Free Flap 1.7 and 3.15 eDrive Supp Set
Electronic movement support for Free flap fitting seriesFree e-drive is Häfele’s electro-mechanical... Read More
Product Details
Electronic movement support for Free flap fitting series
Free e-drive is Häfele’s electro-mechanical movement assitance for the entire application area of the Free flap fitting family
The electrical drive solution is perfectly coordinated with all Free fittings and adds Free flap E solutions to the multi-award winning Free family
Standard programming and operating functions for all Free E applications
The installation position and the range of applications of the Free fittings remain unchanged
The e-drive unit can be retrofitted at any time (lever arm replacement also required with Free up and Free swing)
Installation: e-drive unit for screw fixing onto left Free fitting, push button sender for recess installation in side panel (drill hole Ø 35 mm)
Nominal voltage: 24 V DC/2.5 A
Radio frequency: 2.44 GHz
Degree of protection: III
Installation
E-Drive unit for screw fixing onto left Free fitting,
Push button sender for recess mounting in side panel (drill hole Ø 35 mm)

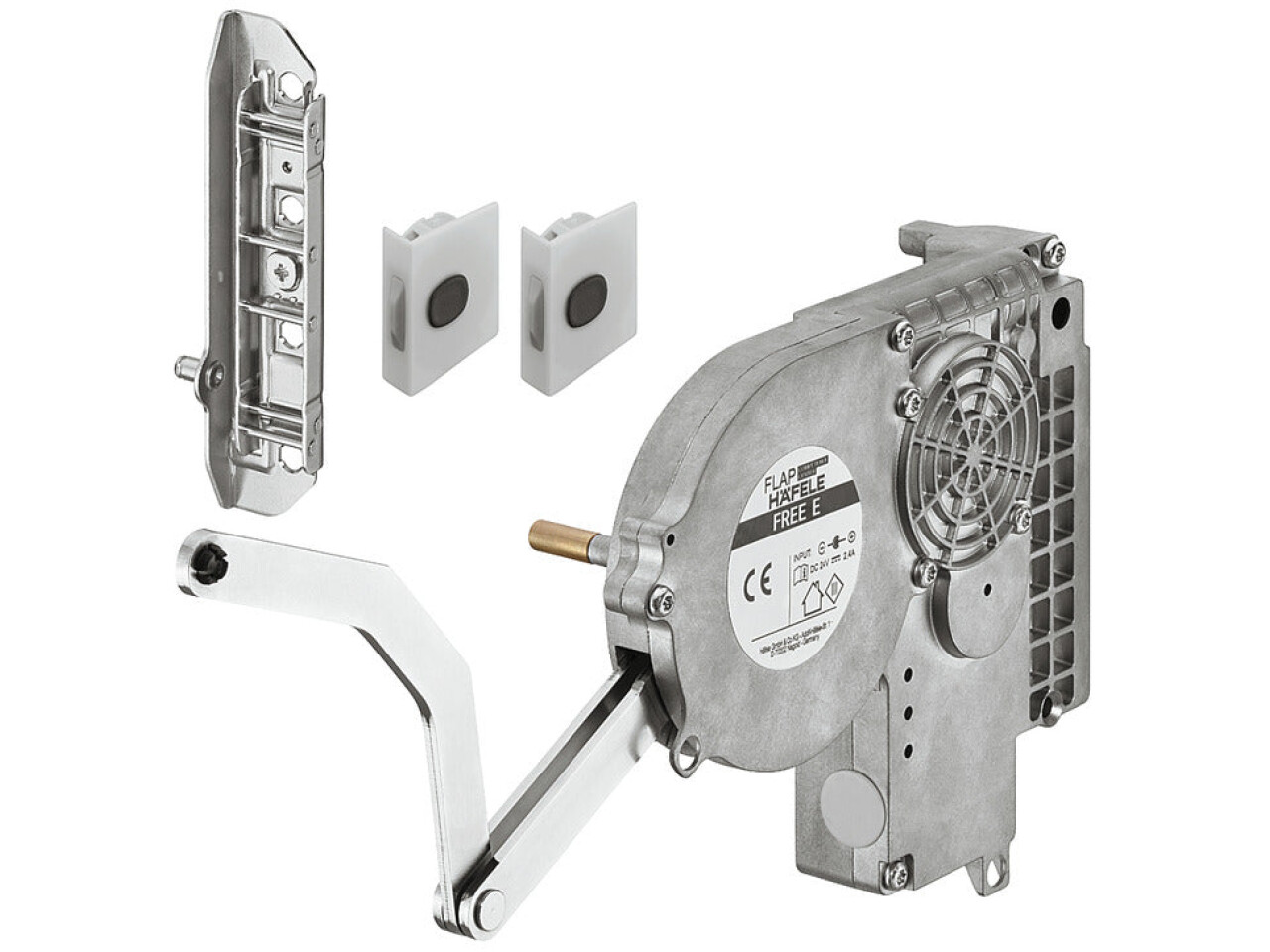

Supplied with
1 e-drive drive unit
2 Push button senders (with CR2032 battery)
1 Free flap e-drive front fixing bracket
1 Drilling template for push button sender
1 Set of operating instructions
Fixing materials
Warranty/Guarantee information
This product is covered under Häfele’s Lifetime Guarantee.
All products covered under the Häfele Lifetime Guarantee have met our quality standards and have been tested according to the relevant industry certification.
All products under this guarantee are covered for normal use of the products in a domestic environment - for commercial environments our standard 12 month guarantee would apply.
For more information go to:
Services > Customer Support > Häfele Lifetime Guarantee
| Technical data | |
|---|---|
| Nominal voltage | 24 V DC |
| Nominal current | 2.5 A |
| Radio frequency | 2.4 GHz |
| Protection class | III |
Only suitable for Free flap fittings that have been produced after 11.05.2015
Specifications
Version
With CR-2032 batteries
Area of application
for retrofitting Häfele Free flap fittings to electronic drive
Material
Drive housing: Zinc alloy,
Push button sender: Plastic
Suitable for
Häfele Free Flap 1.7 and Free flap 3.15 lift up front fittings
Hafele Lifetime Guarantee
Order reference
Order driver, mains lead and cover cap separately
