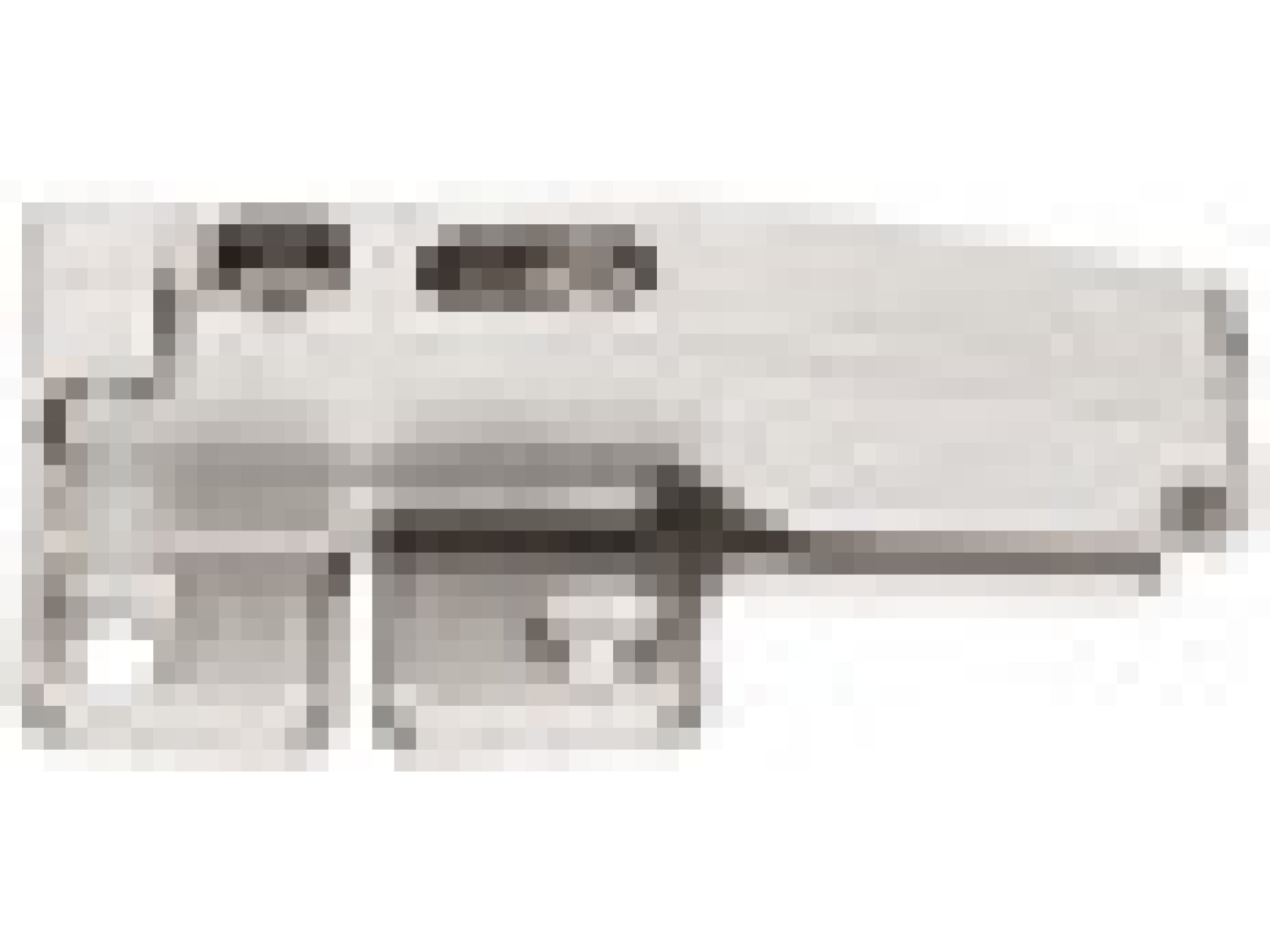

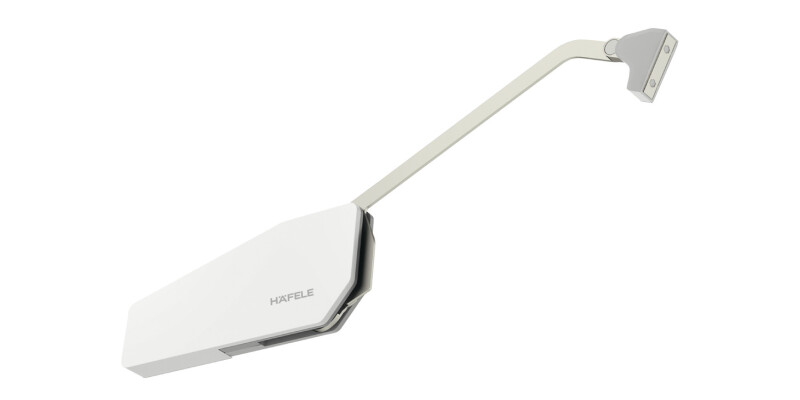

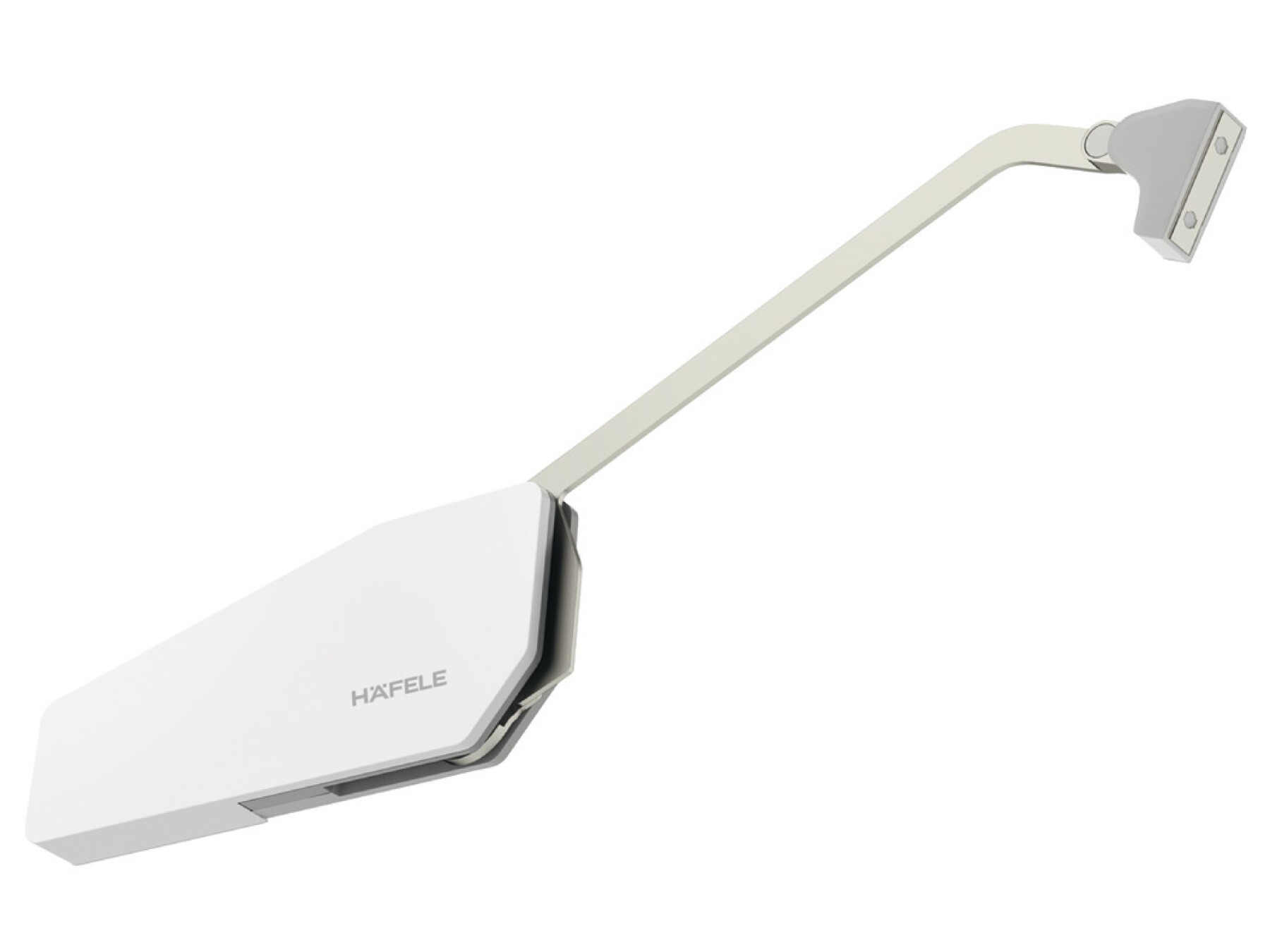

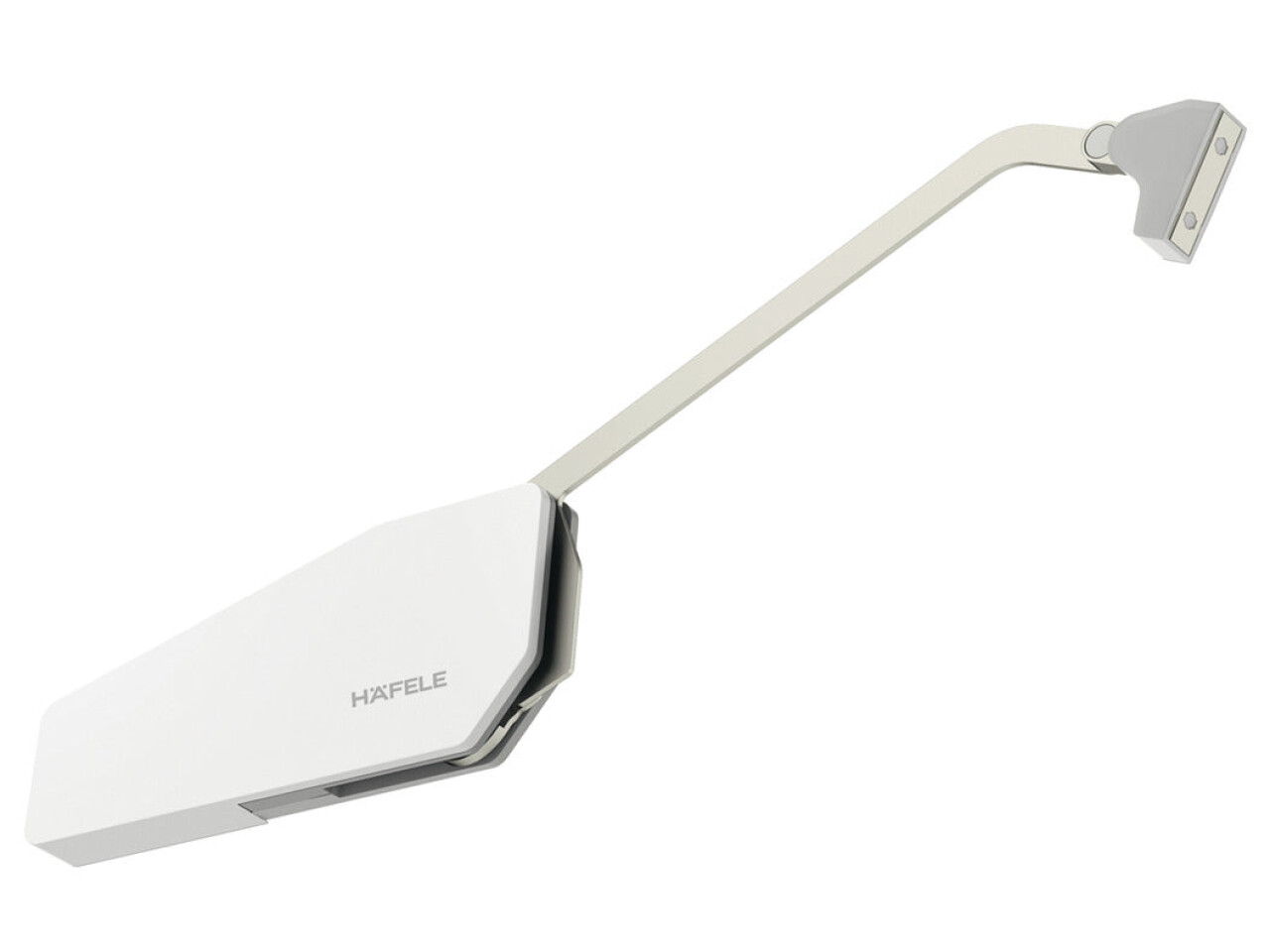

Free Fold 710-790mm 3.6-6.2kg Grey
Time saving installation provided by plugs, pre-mounted euro screws and clip fixing for front panelFor use in... Read More
Product Details

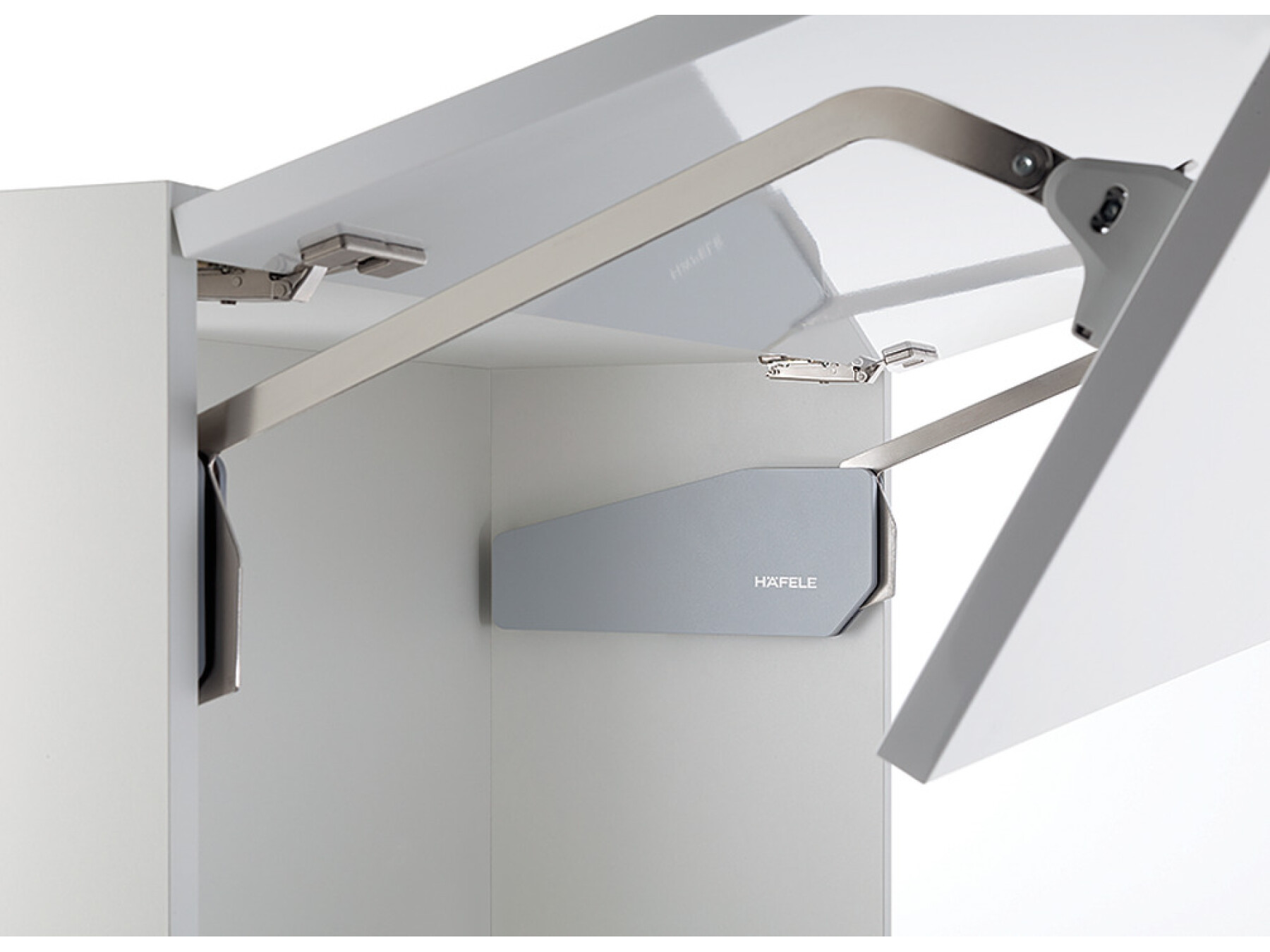

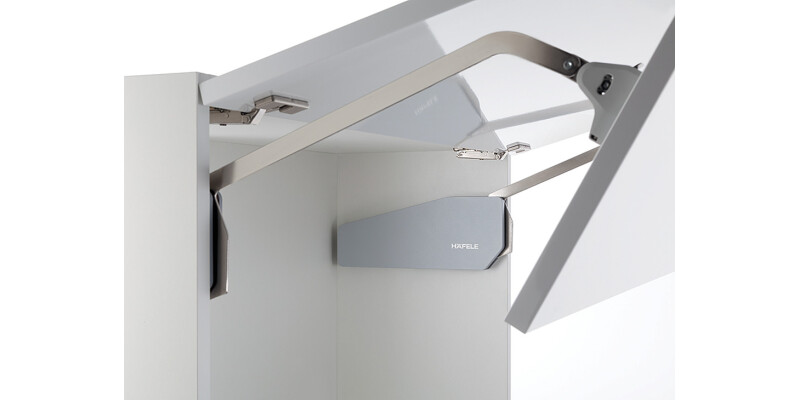

Time saving installation provided by plugs, pre-mounted euro screws and clip fixing for front panel

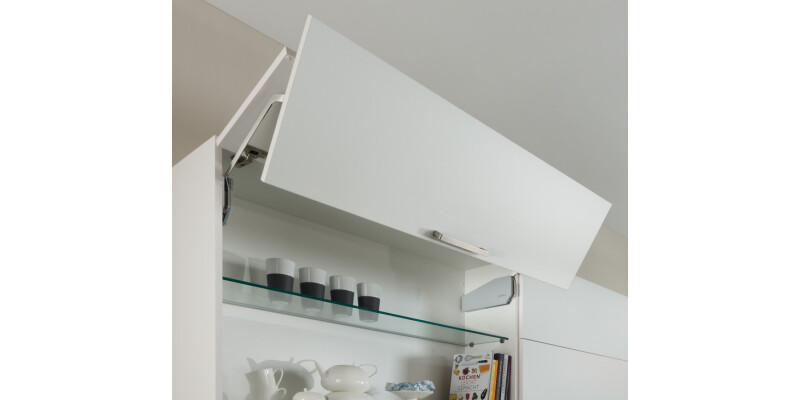

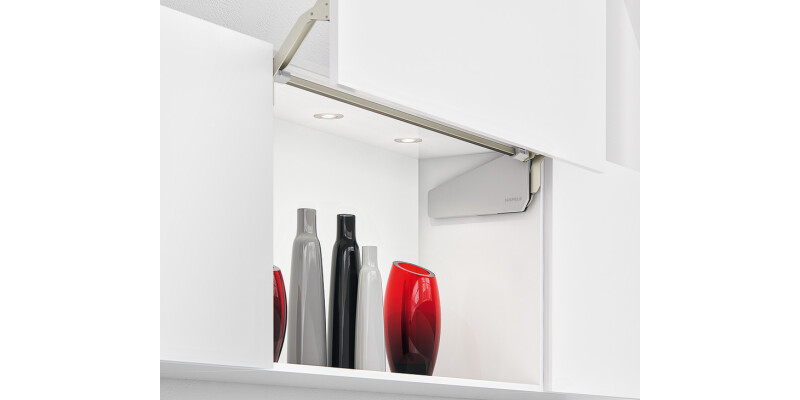

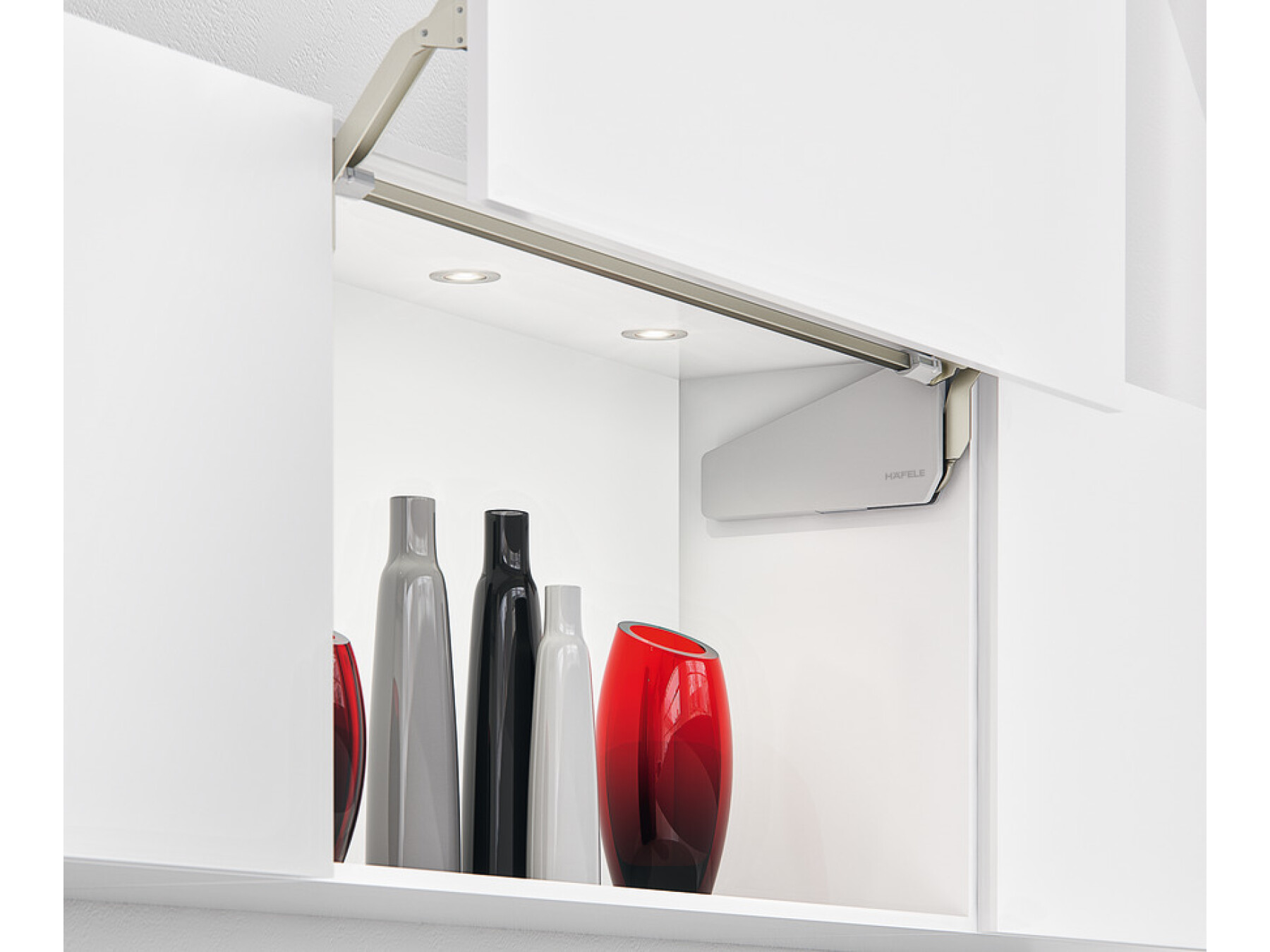

For use in furniture in kitchens, living rooms, bathrooms and offices
Finger safe
Adjustment facility
Height/side/depth of top front panel (via concealed hinge) and bottom front panel (via centre hinge)
Holding power/centre pull (via fitting)
Order reference
Min. 110º opening concealed hinges are required - order Quick Fixing 125º hinge and mounting plate separately

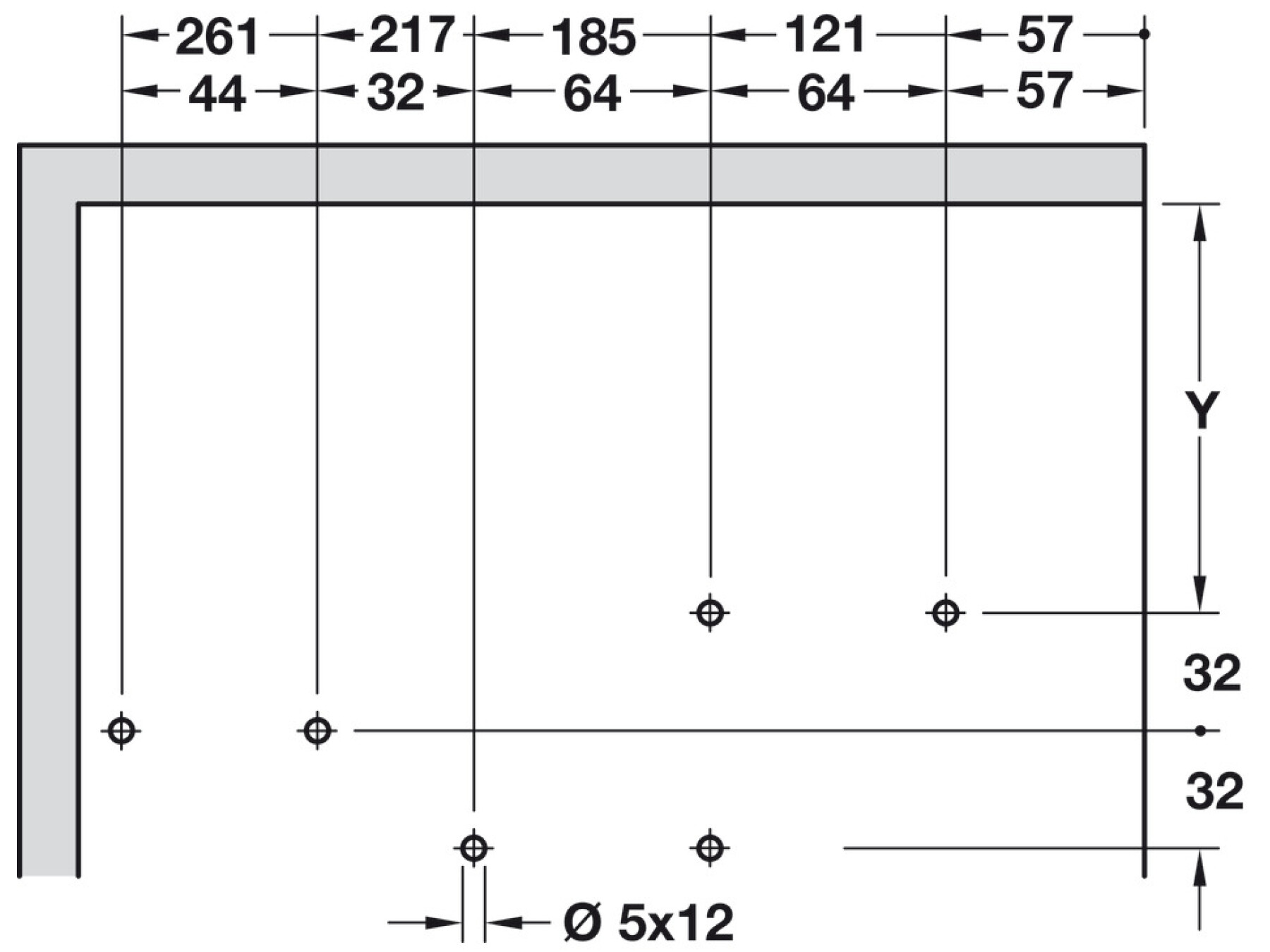

Varianta Ø 5 mm countersunk screws and accessories to be ordered seperately

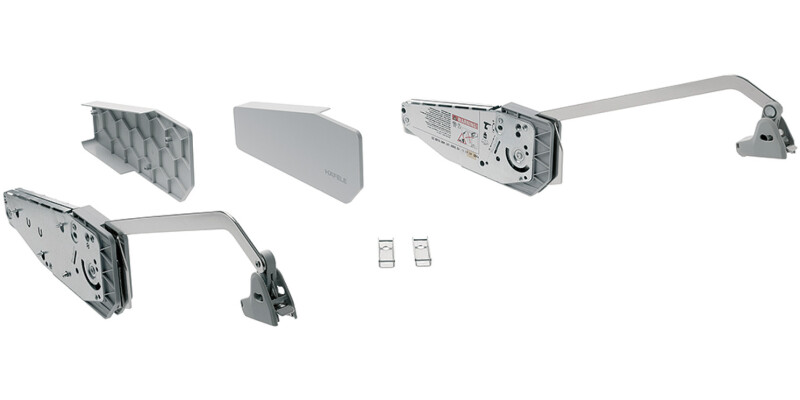

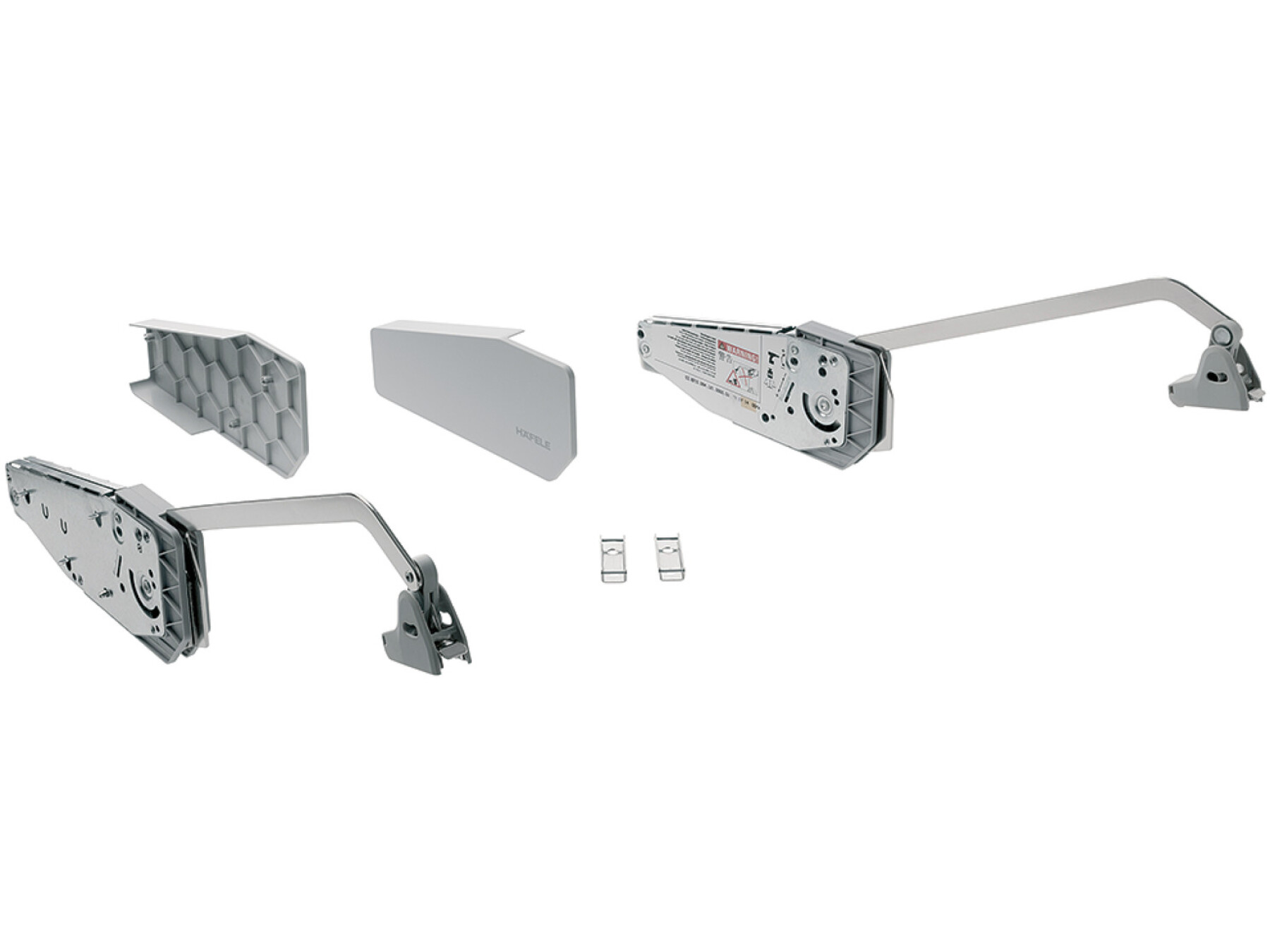

Supplied with
Warranty/Guarantee information
This product is covered under Häfele’s Lifetime Guarantee.
All products covered under the Häfele Lifetime Guarantee have met our quality standards and have been tested according to the relevant industry certification.
All products under this guarantee are covered for normal use of the products in a domestic environment - for commercial environments our standard 12 month guarantee would apply.
For more information go to:
Services > Customer Support > Häfele Lifetime Guarantee
Did you know, you can use our Panel Weight Calculator to work out the weight of your panels?
Specifications
Area of application

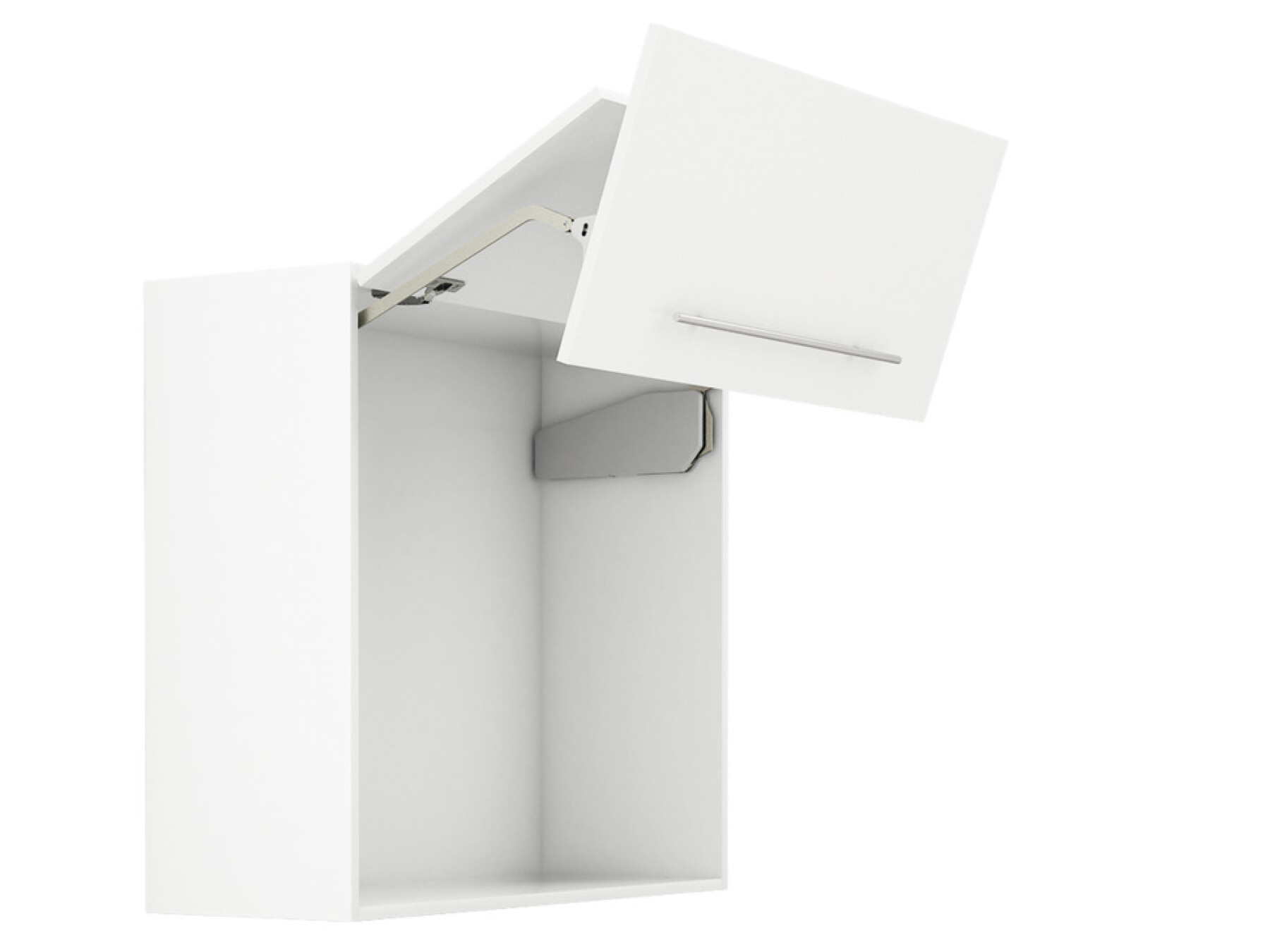

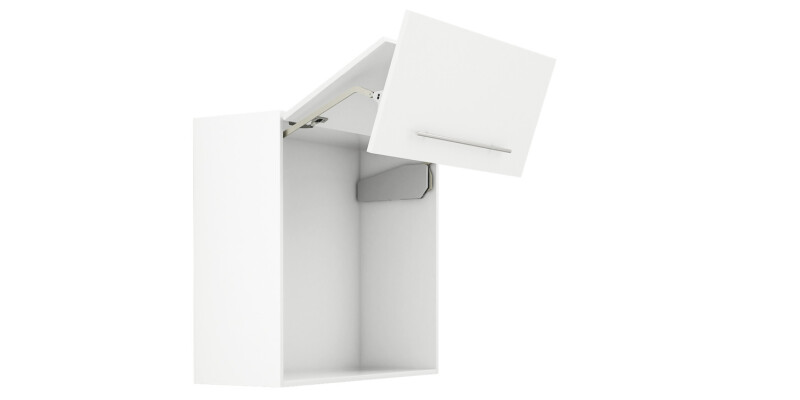

For two-piece flaps - wood or with aluminium frame from 45 mm
Material
Fitting: Steel
Cover cap: Plastic
Colour/finish
Fitting: Nickel plated
Cover colour
Grey
