Free Fold/Up/Swing eDrive Supp Set
Part Number: 372.37.099
For flexible combination with every Häfele Free fold, Free up or Free swing fitting, Supplementary set
Price:
£394.89
Per Item
Electronic movement support for Free flap fitting seriesFree e-drive is Häfele’s electro-mechanical movement... Read More
Product Information
Product Details

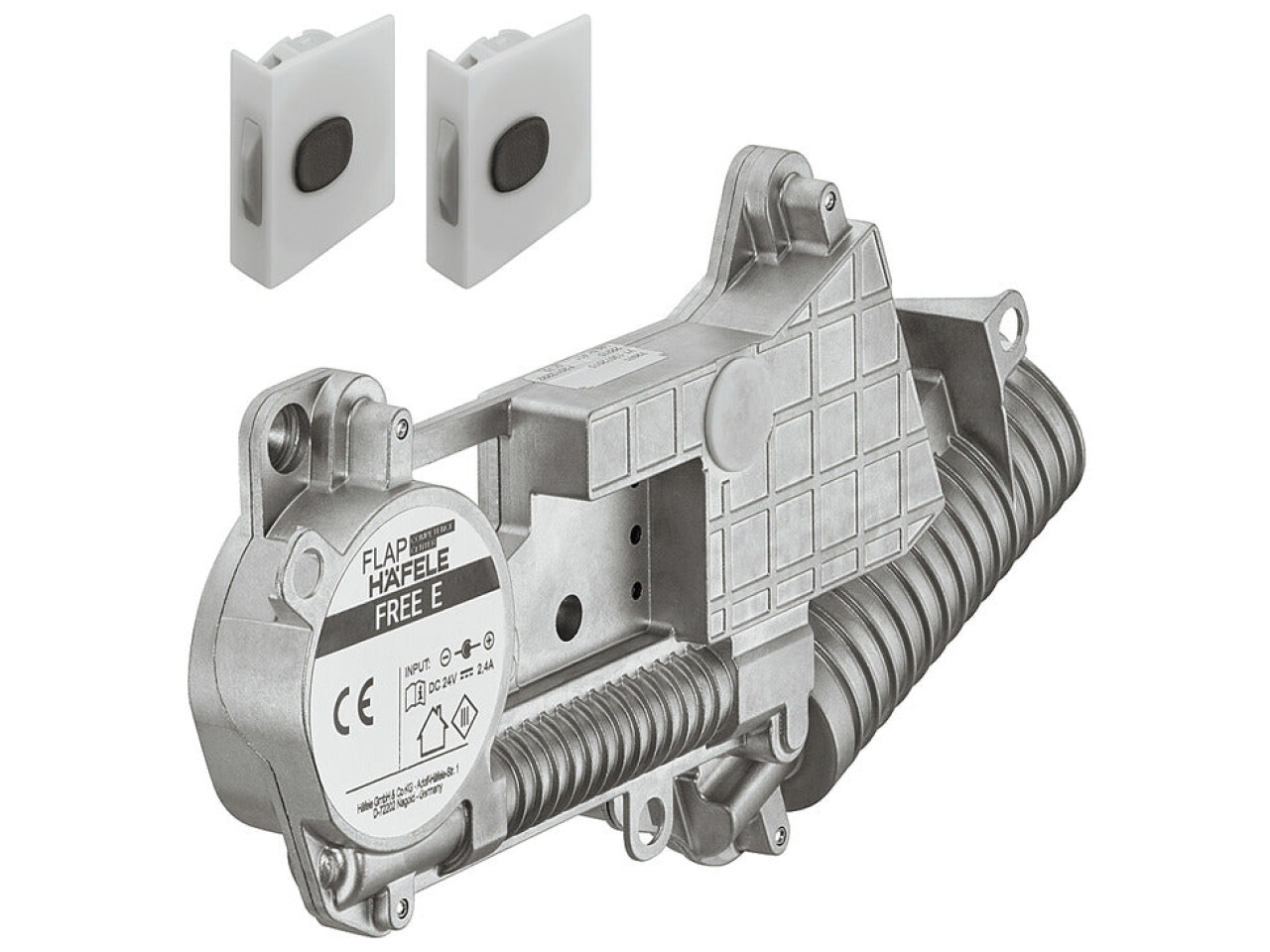

Electronic movement support for Free flap fitting series
Free e-drive is Häfele’s electro-mechanical movement assistance for the entire application area of Free Fold, Free Up and Free Swing fittings
The electrical drive solution is perfectly coordinated with all Free fittings and adds Free flap E solutions to the multi-award winning Free family
Standard programming and operating functions for all Free E applications
The installation position and the range of applications of the Free fittings remain unchanged
The e-drive unit can be retrofitted at any time (lever arm replacement also required with Free up and Free swing)
Installation: e-drive unit for screw fixing onto left Free fitting, push button sender for recess installation in side panel (drill hole Ø 35 mm)
Nominal voltage: 24 V DC/2.5 A
Radio frequency: 2.4 GHz
Degree of protection: III
Area of application
E-Drive unit for screw fixing onto left Free fitting
Push-button sender for recess installation in side panel (drill hole Ø 35 mm)
Supplied with
1 e-drive drive unit
2 Push button senders (withCR2032 battery)
1 Drilling template for push button sender
1 Set of operating instructions
Fixing materials
Warranty/Guarantee information
This product is covered under Häfele’s Lifetime Guarantee.
All products covered under the Häfele Lifetime Guarantee have met our quality standards and have been tested according to the relevant industry certification.
All products under this guarantee are covered for normal use of the products in a domestic environment - for commercial environments our standard 12 month guarantee would apply.
For more information go to:
Services > Customer Support > Häfele Lifetime Guarantee
| Technical data | |
|---|---|
| Nominal voltage | 24 V DC |
| Nominal current | 2.5 A |
| Radio frequency | 2.4 GHz |
| Protection class | III |
Free e-drive covers the same application areas as the mechanical basic fittings. The drilling patterns on side panel and front panel also remain unchanged.
Specifications
Suitable for
Free E-Drive
Installation
Screw fixing
Hafele Lifetime Guarantee
25 years
Order reference
Order driver, mains lead and cover cap separately
