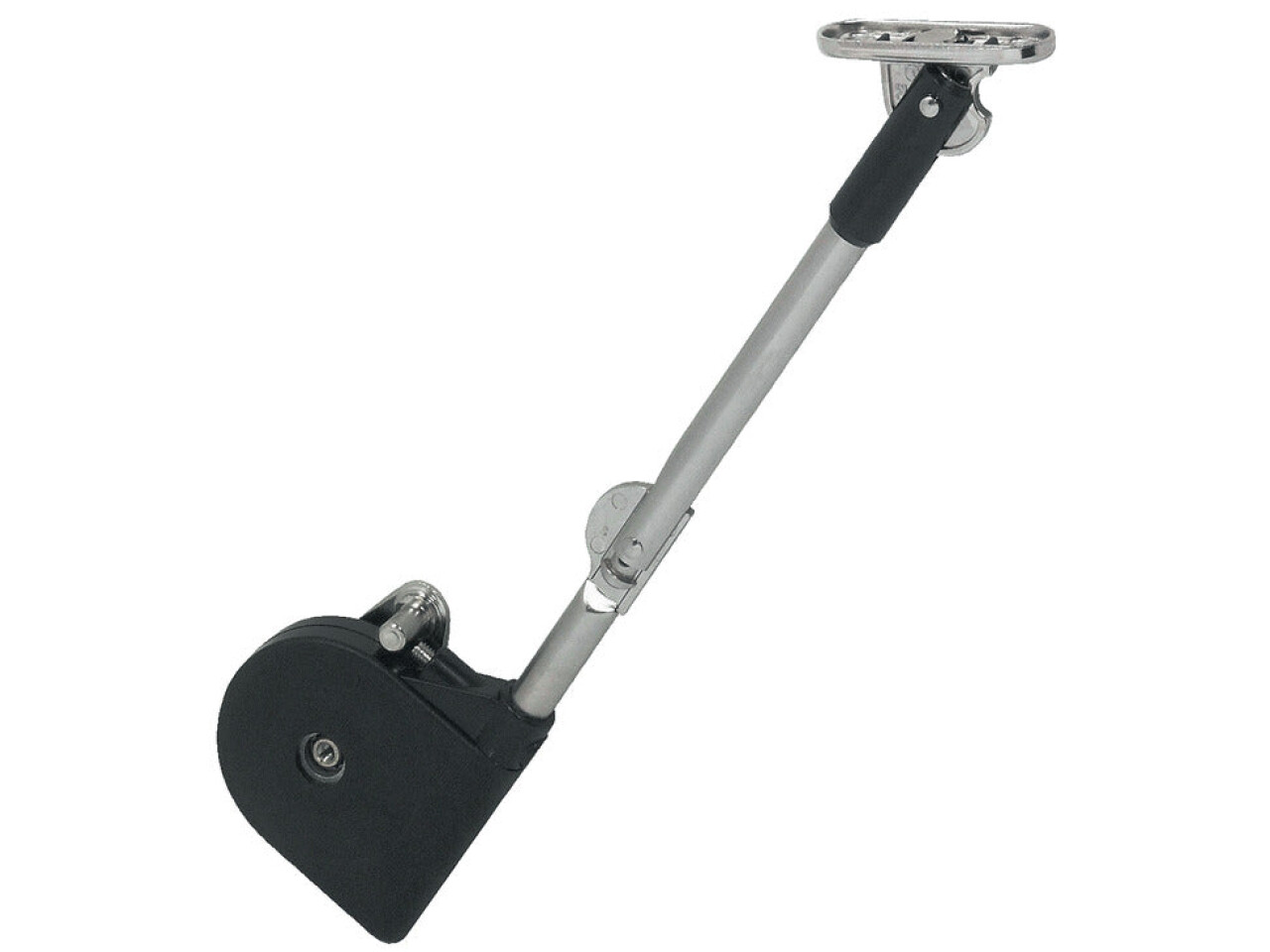

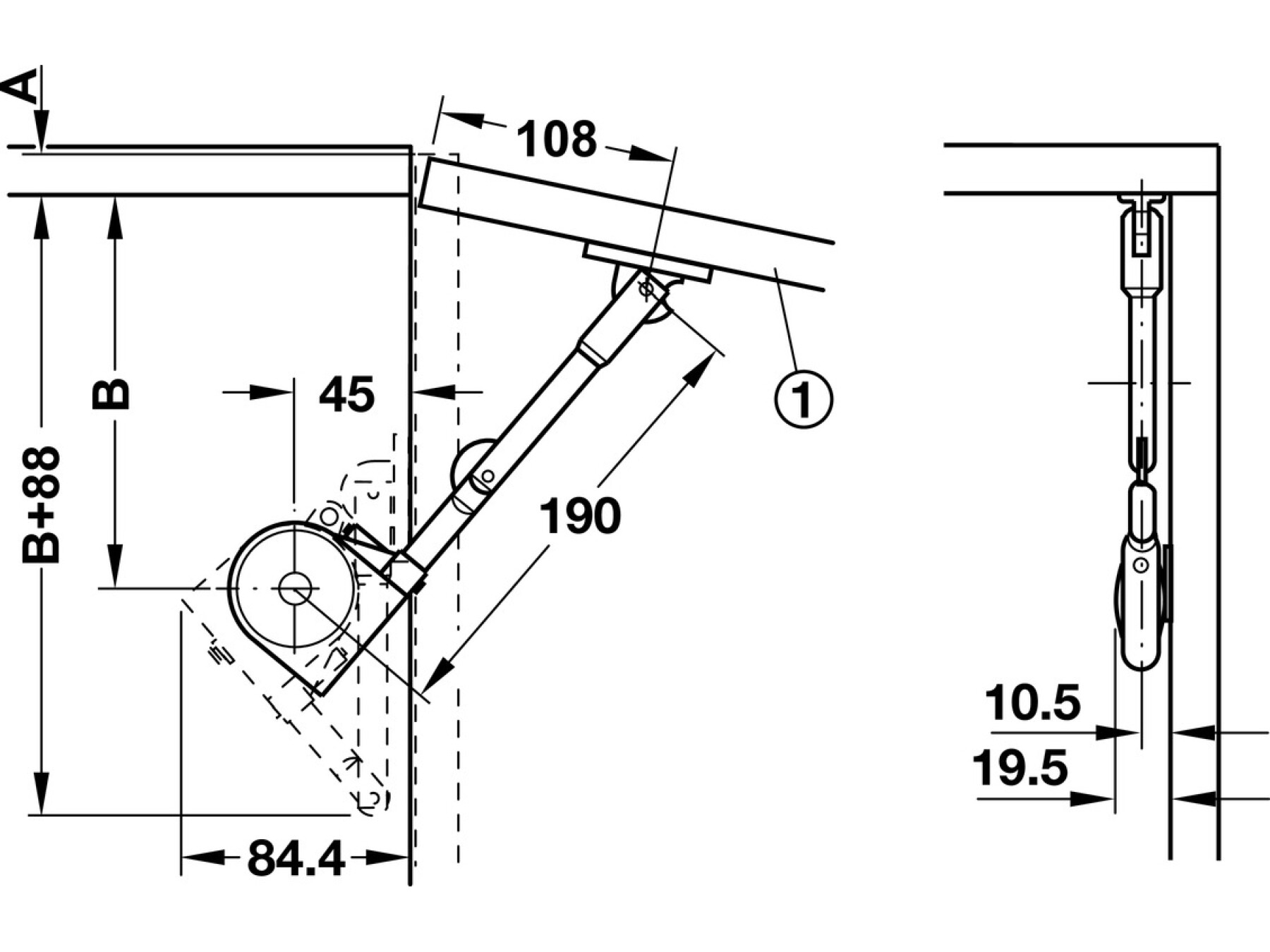

Lid Stay 190mm St NP/Pl Black
Part Number: 365.31.300
Opening angle 90°, Black housing
Price:
£23.39
Per Item
With quick mounting angled footUnhanded designDid you know, you can use our Panel Weight Calculator to work out... Read More
Product Information
Product Details
With quick mounting angled foot
Unhanded design
Did you know, you can use our Panel Weight Calculator to work out the weight of your panels?
Specifications
Area of application
for wooden flaps
Version
with joint,

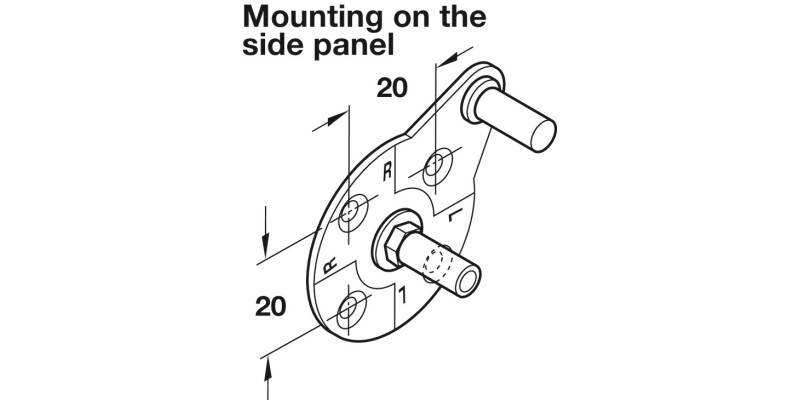

with angular bracket
Material
Stay: Steel
Housing: Plastic
Colour/finish
Nickel plated
Cover colour
Housing: Black
Lid material
Wood
Opening angle
90 °

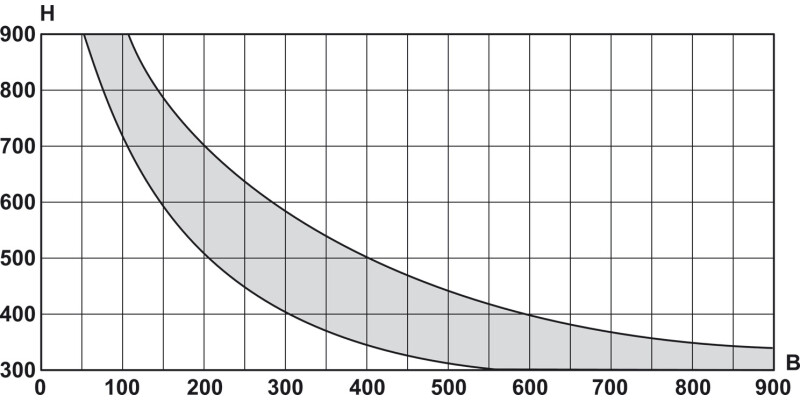

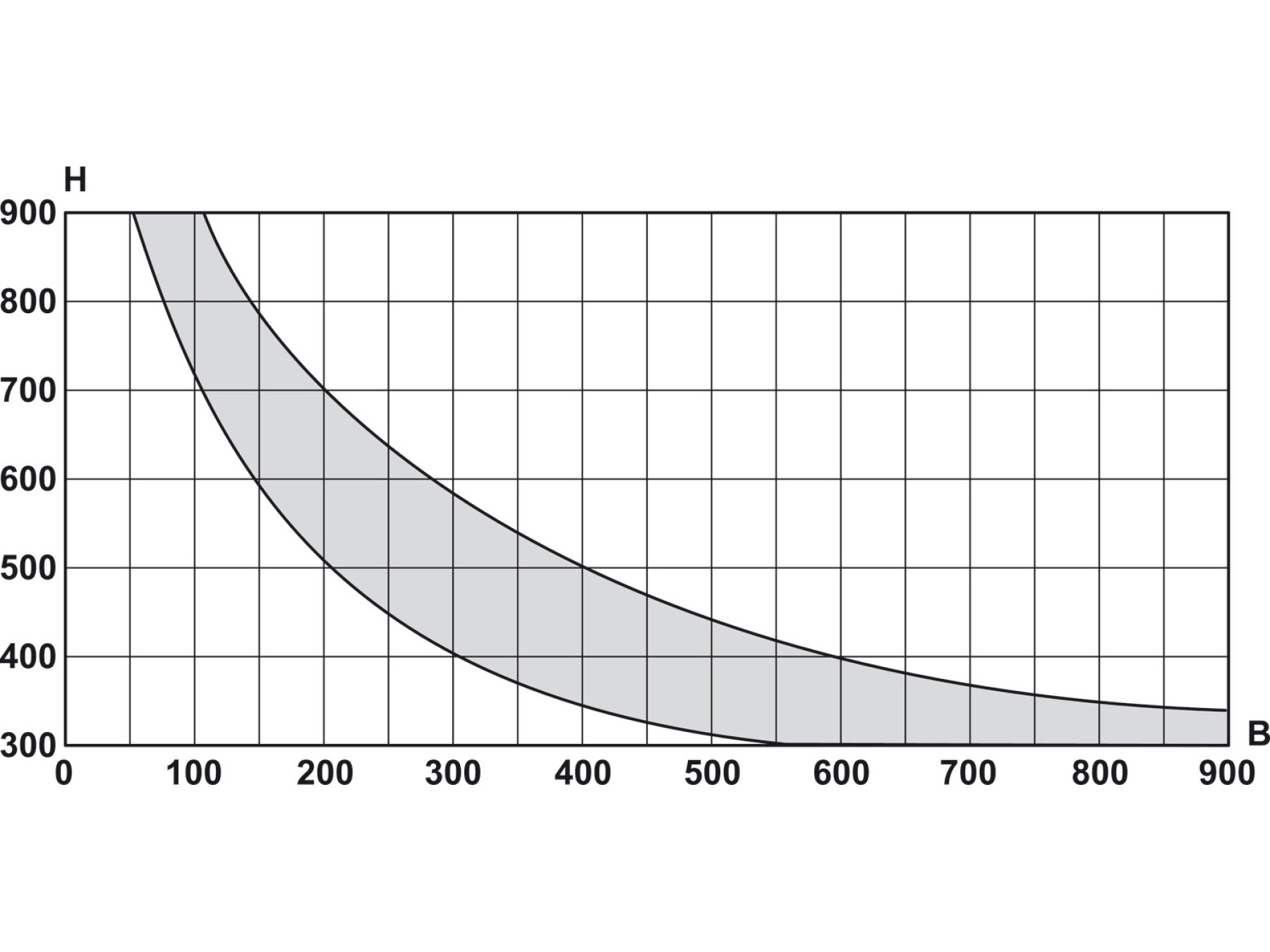

For cabinet width
≤900 mm
For cabinet height
300 – 900 mm
For lid weight
4 kg

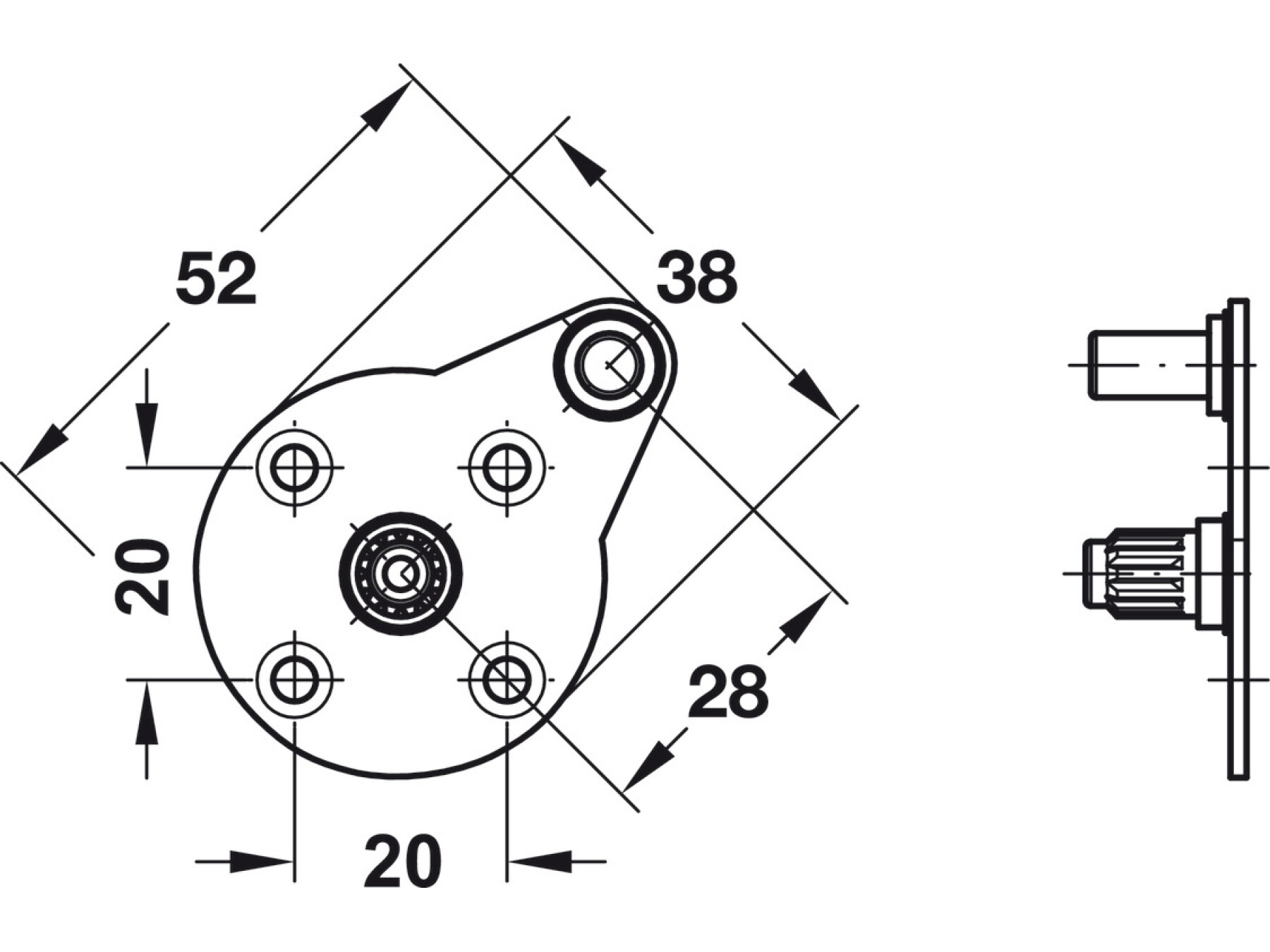

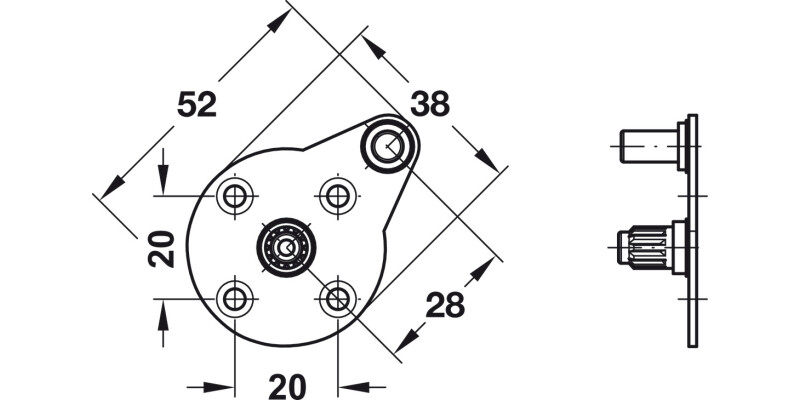

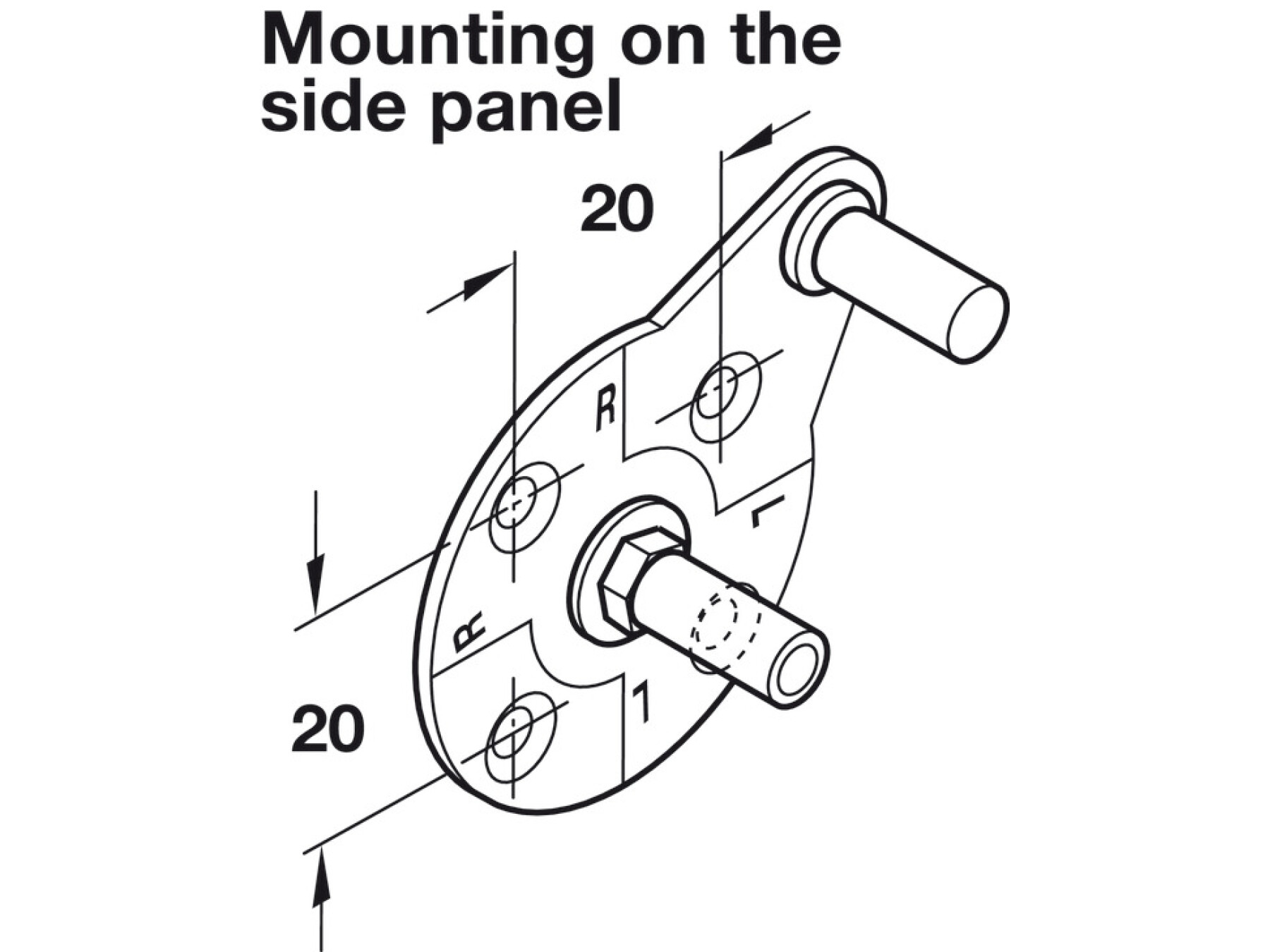

Mounting
right and left hand use

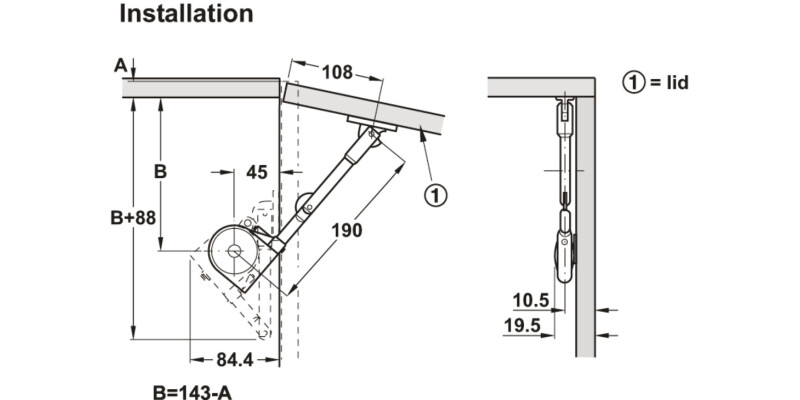

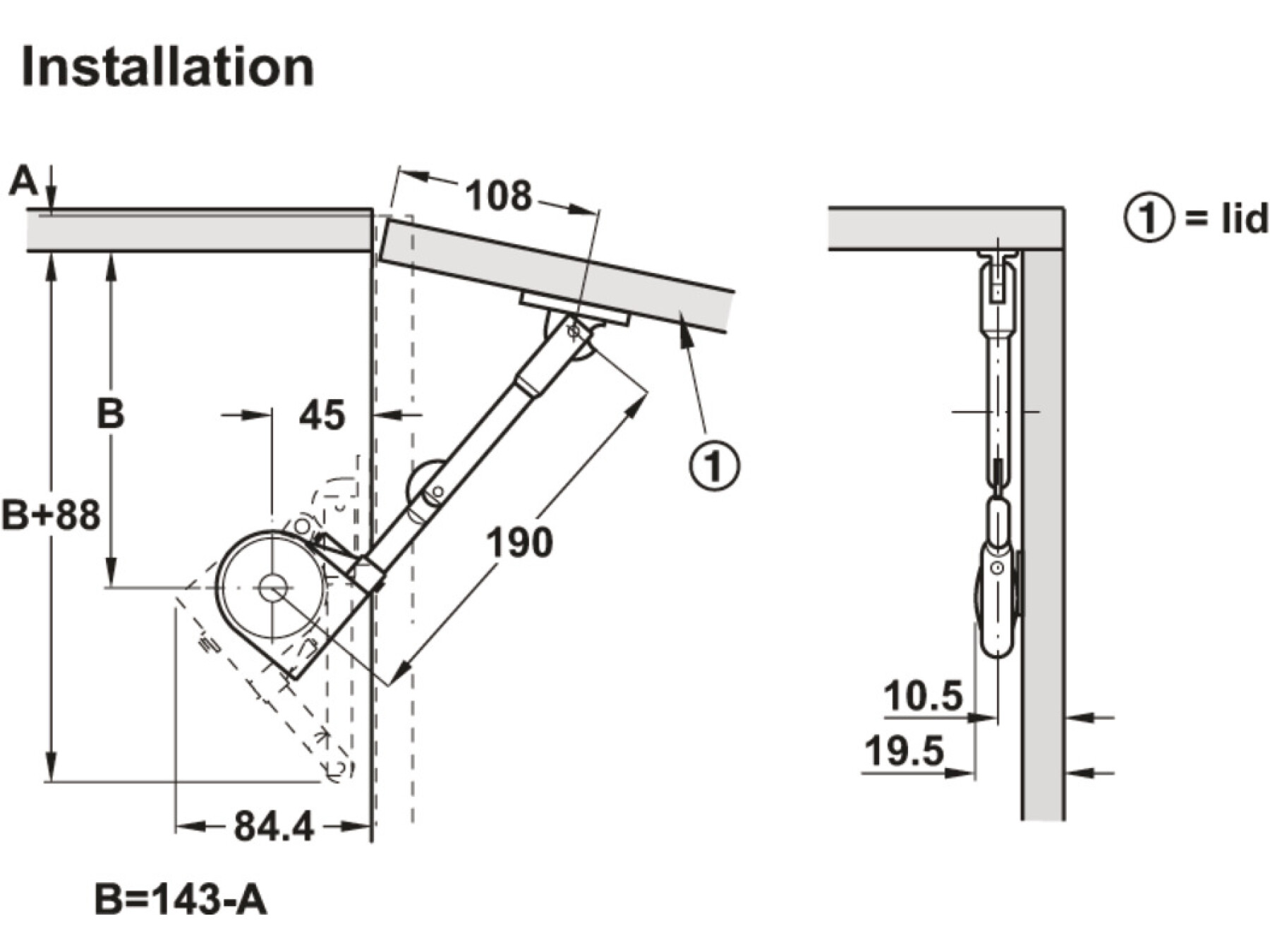

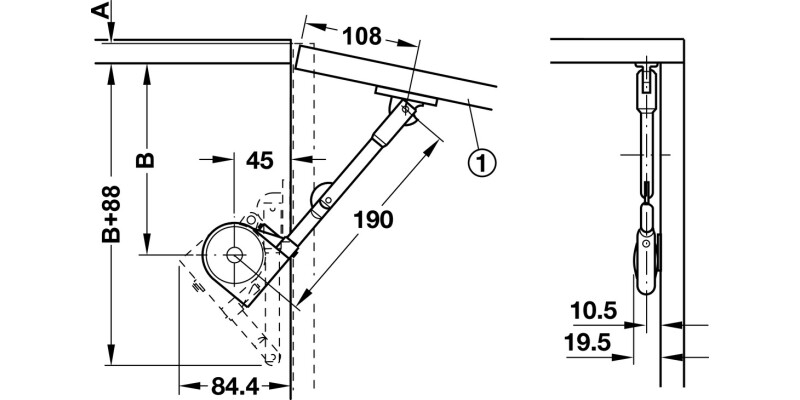

Installation
For screw fixing
at angular bracket for plug fitting (quick fixing system)
Supplied with
Fixings
