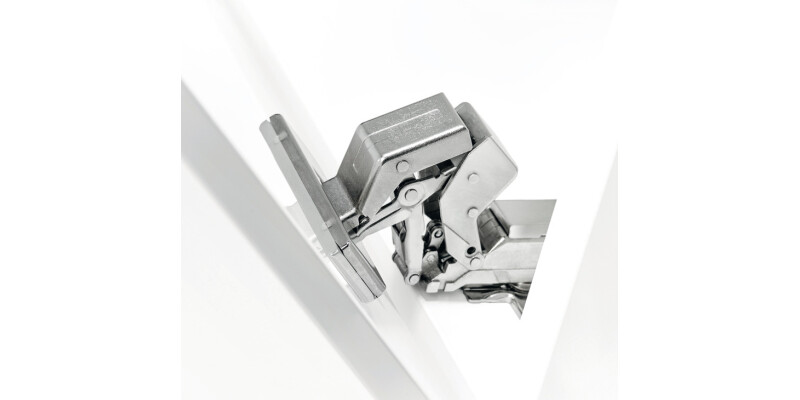

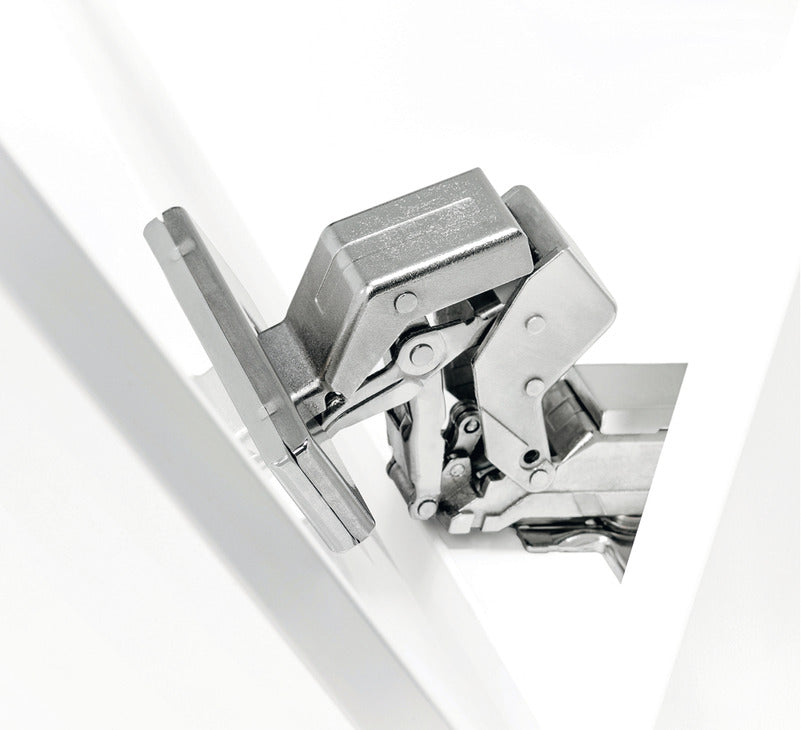

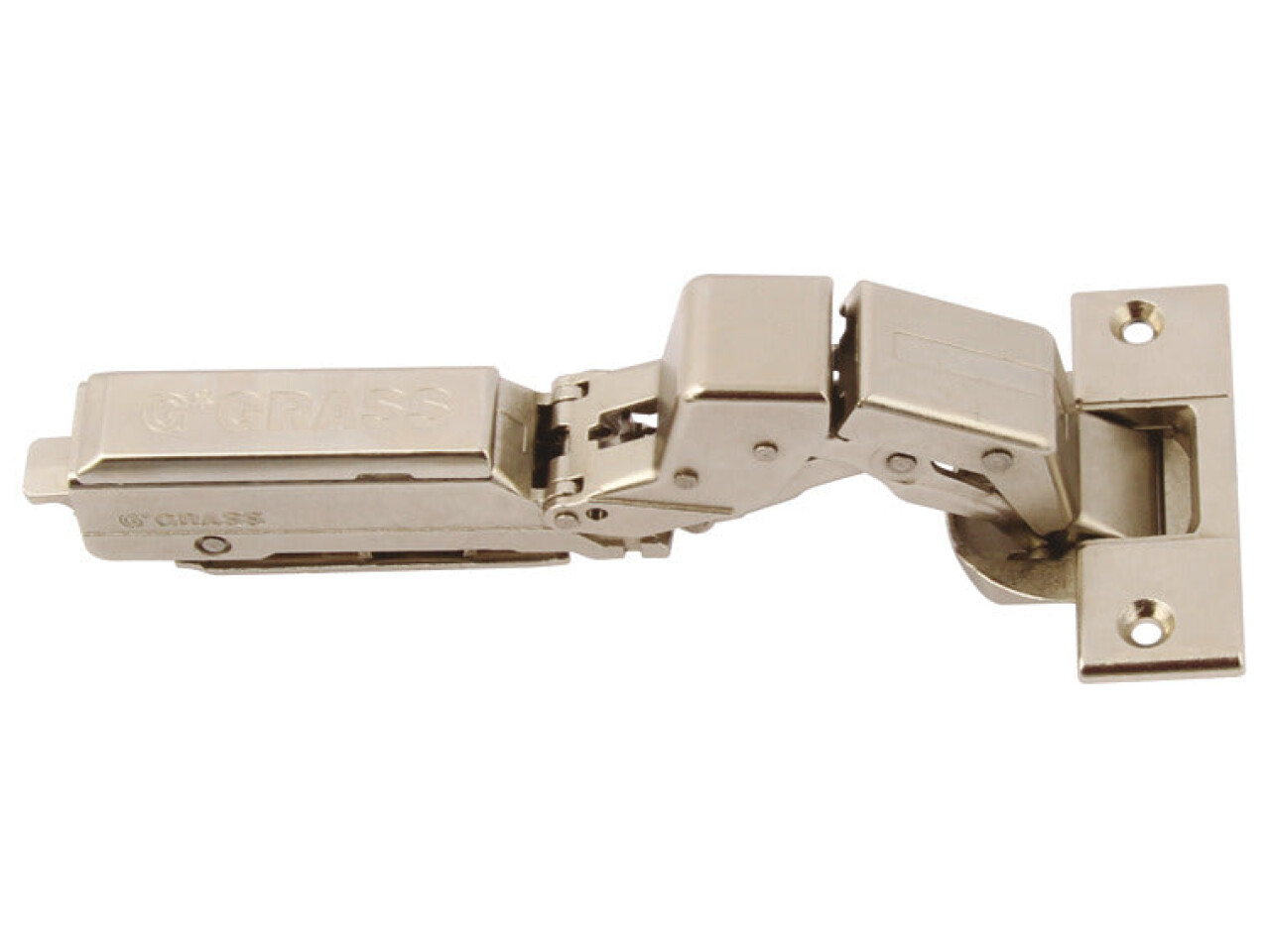

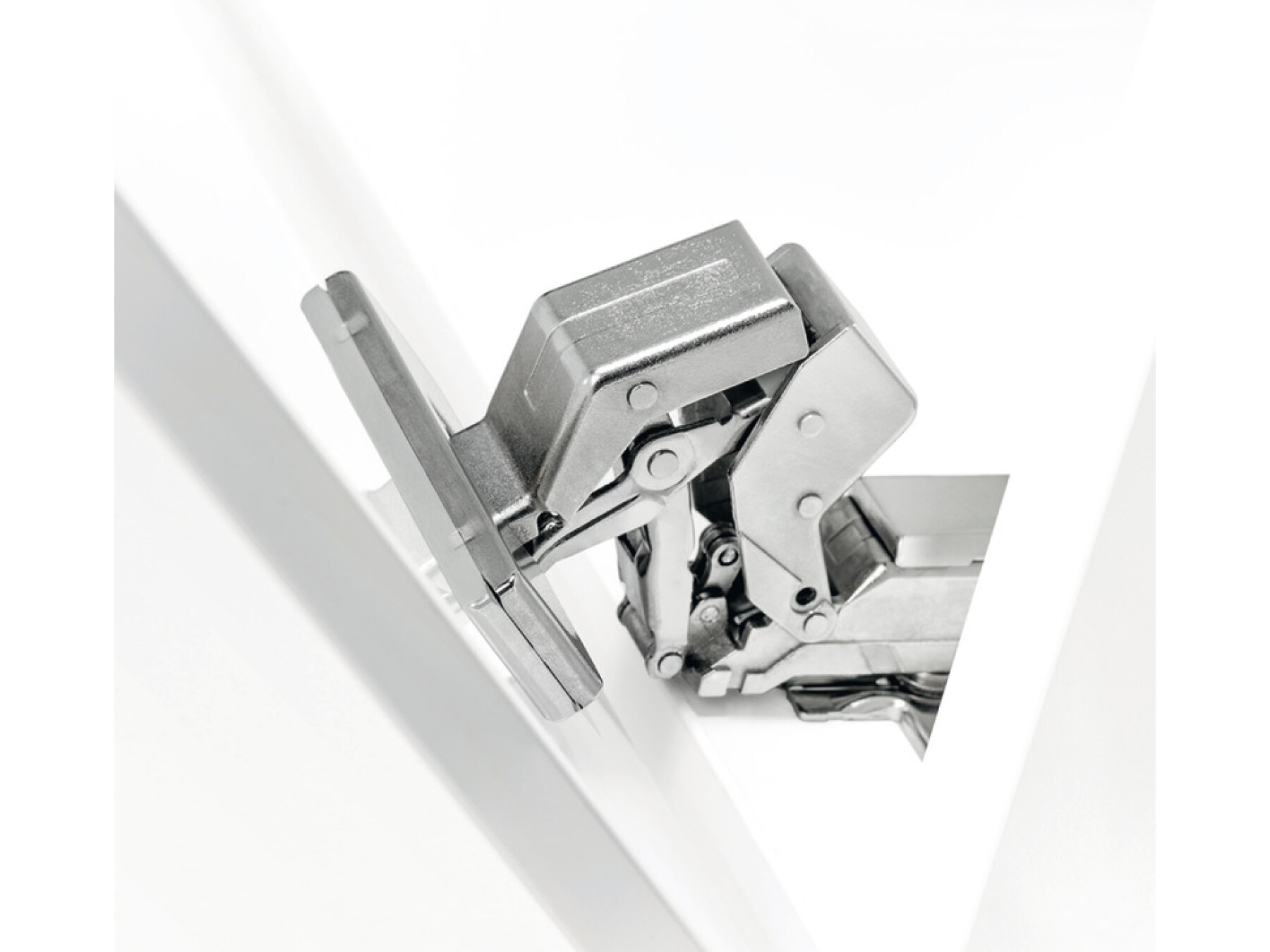

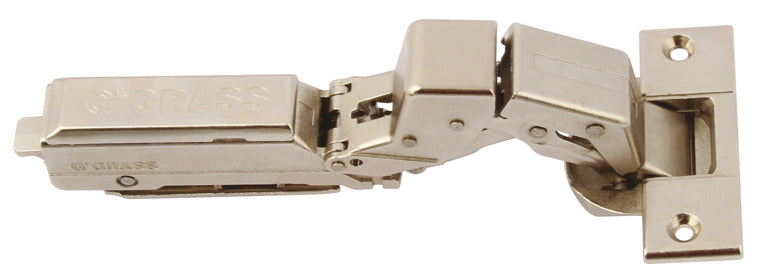

Tiomos M9 110D Hinge w Damper Night/Ant
Part Number: 348.43.806
With integrated damper, Tiomos Night - anthracite
Price:
£18.57
Per Item
Ideal for thin doors or four-sided mitred applications 110°⌀ 35 mm cup Order reference Wider range of... Read More
Product Information
Product Details
Ideal for thin doors or four-sided mitred applications 110°
⌀ 35 mm cup
Order reference
Wider range of mounting plates and opening angle restraint available, please order separately
Order Hospa ⌀ 3.5 mm countersunk screws separately
Image shows with hinge cover cap not included, to be ordered separately
Trail fitting is recommended for all door thicknesses
Please see cat. page for additional technical information
Specifications
Area of application
Application examples:
Thin furniture doors
Four-sided mitred applications 110°

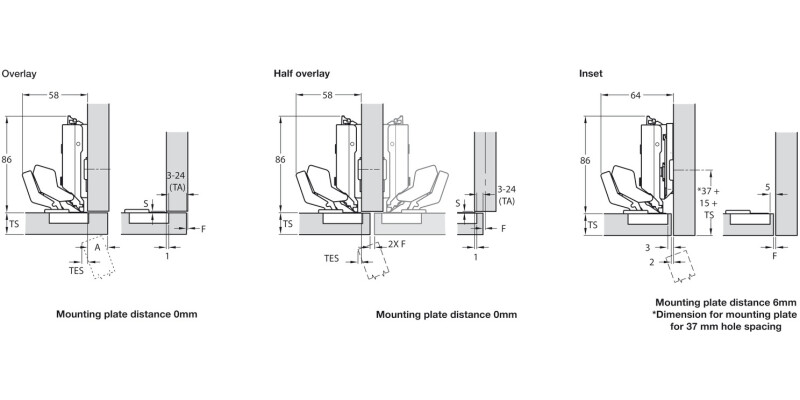

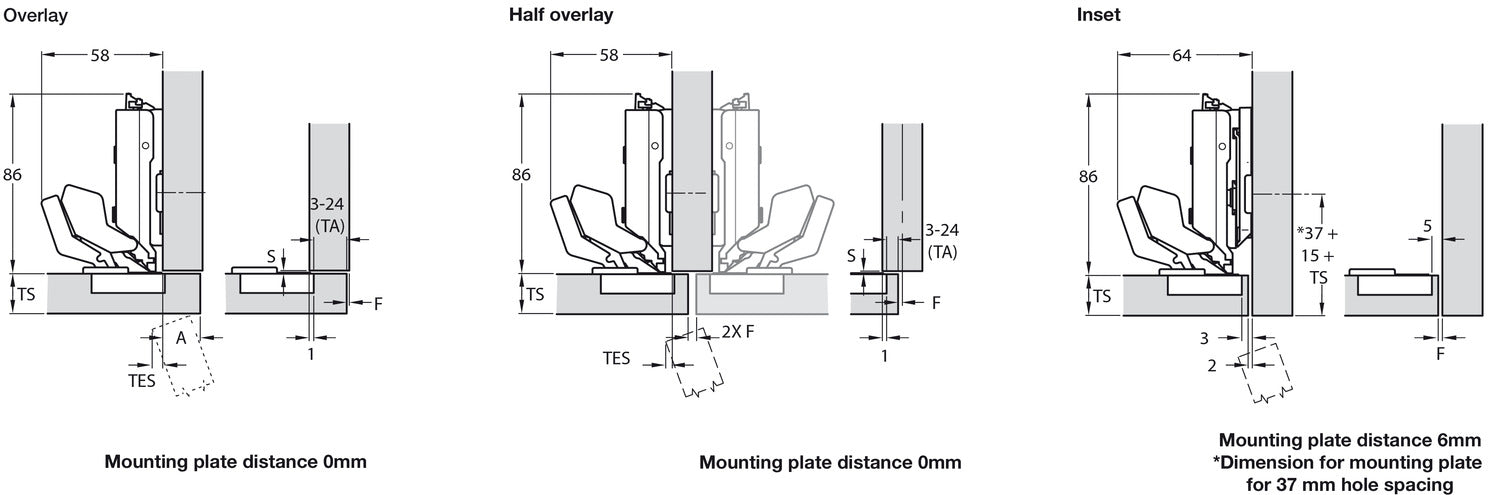

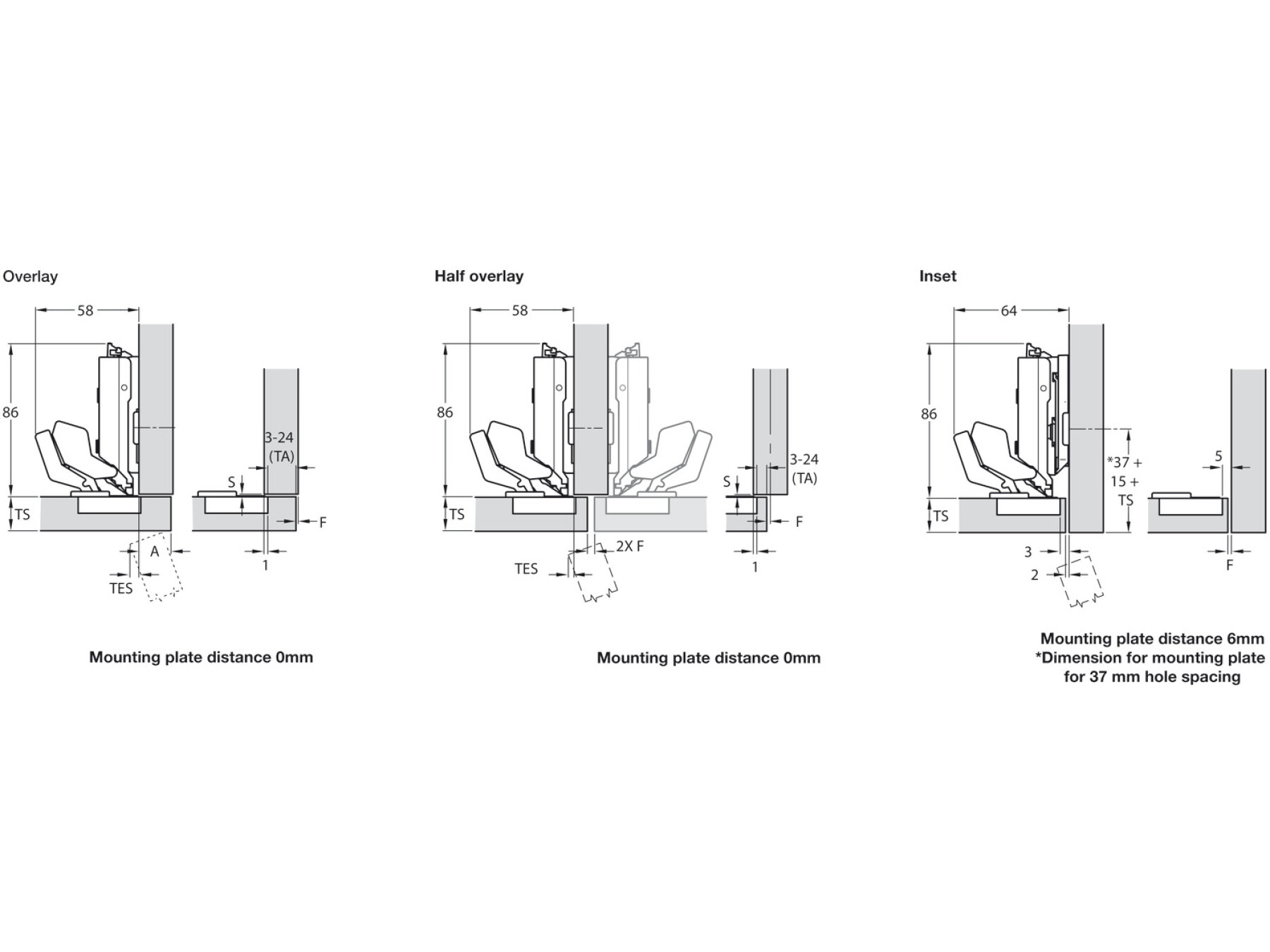

Concealed hinge version
Full overlay
Crank type
High Cranked
Door processing for assembly
with cup drilling
Opening angle
110°

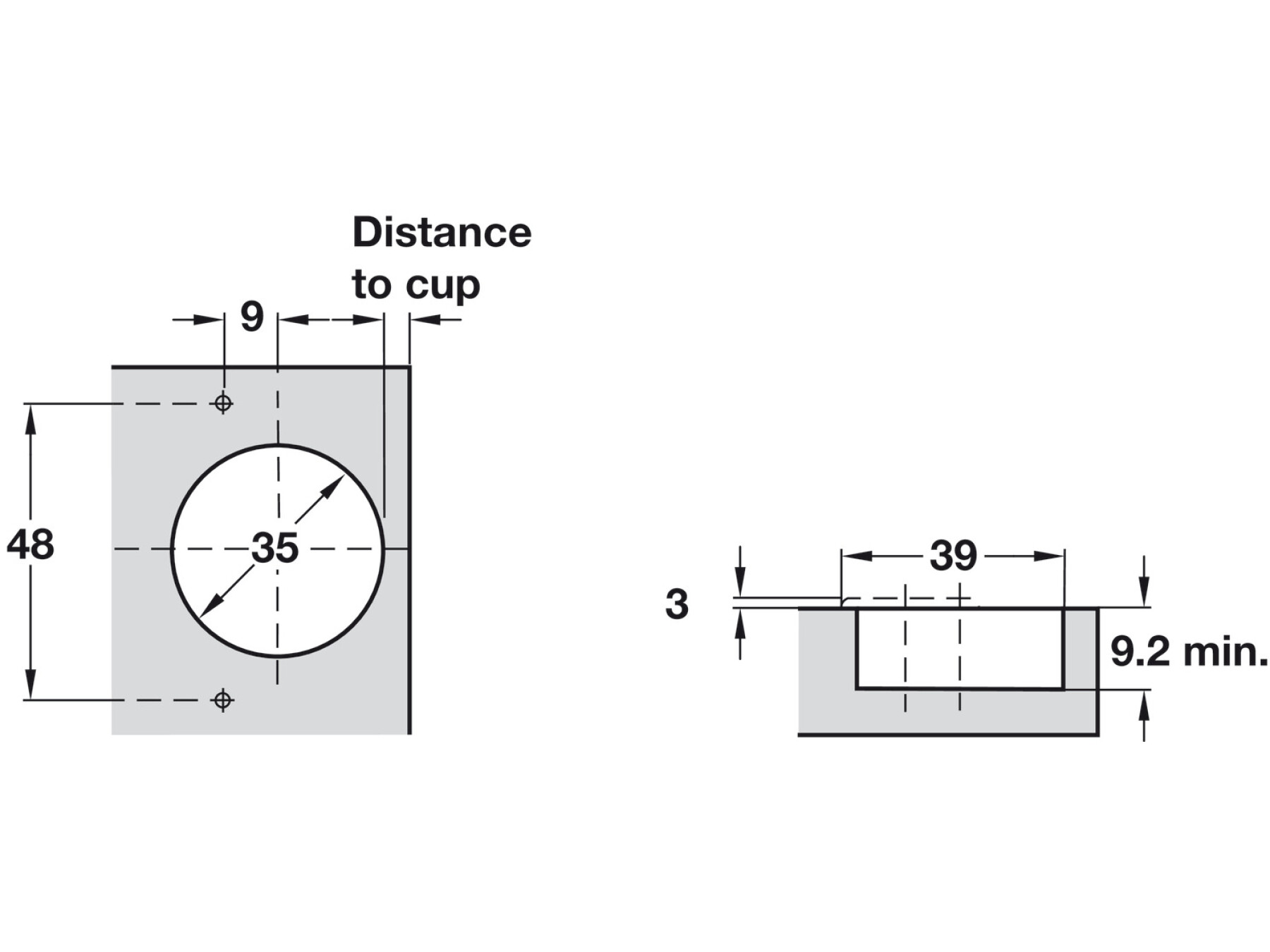

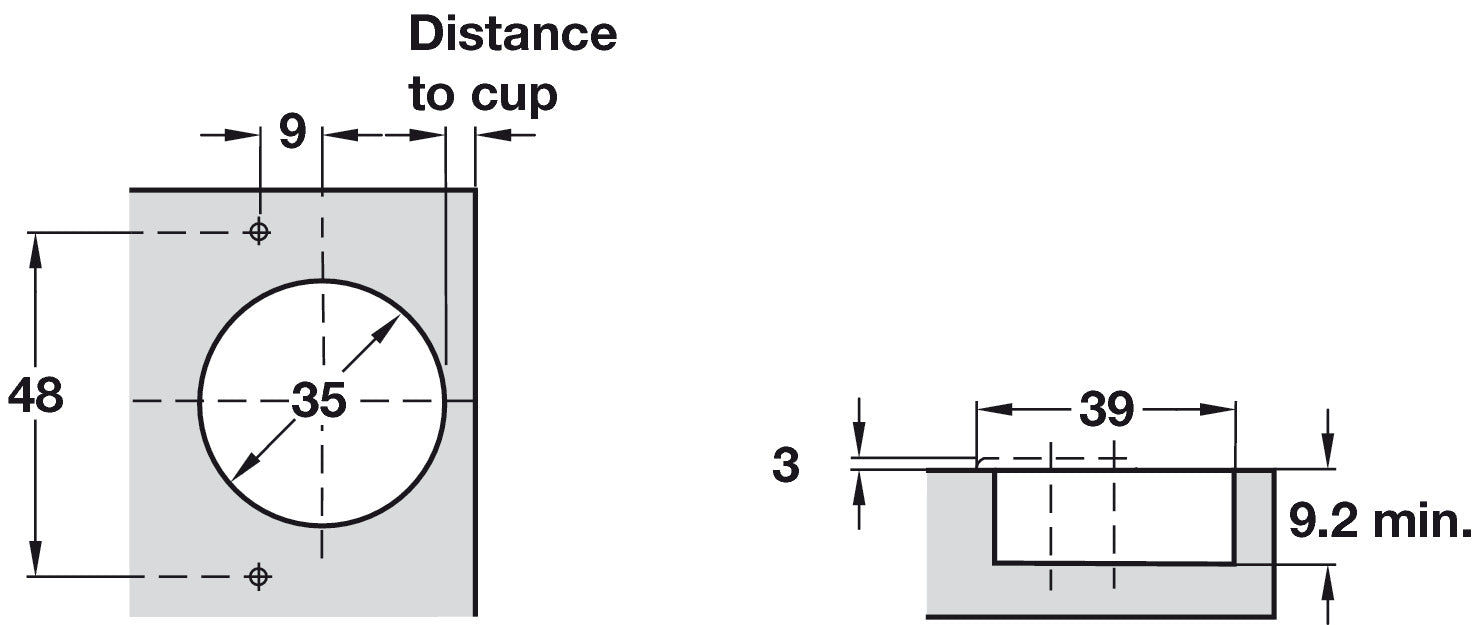

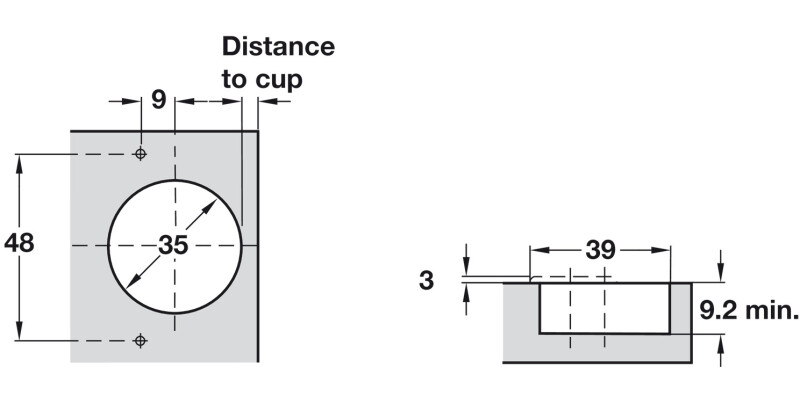

Cup drilling depth
9.20 mm
Cup drilling Ø
35.00 mm
Cup fixing
for screw fixing
Drilling pattern
48/9
