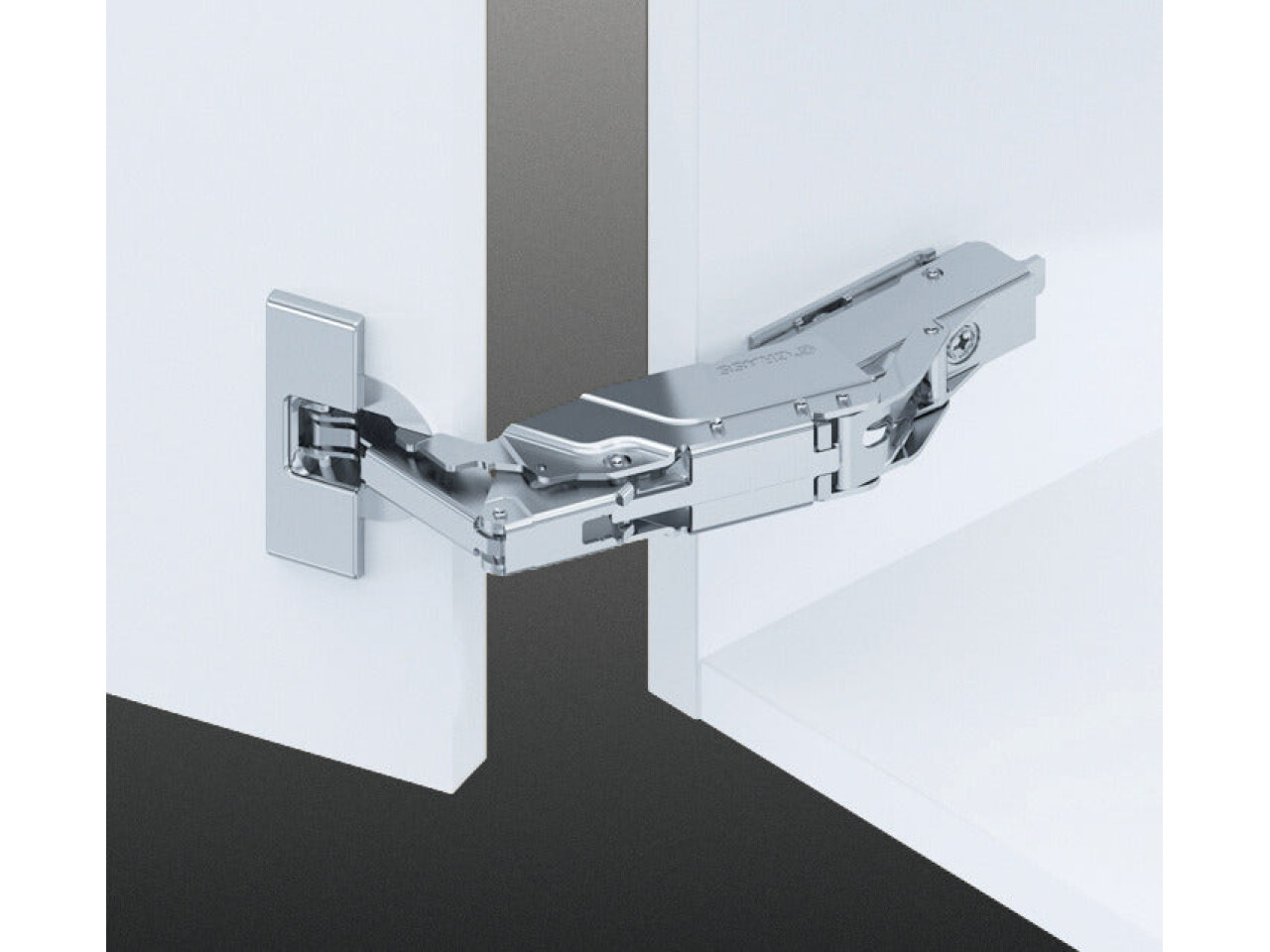

Concealed Cup Hinge Set, 155� Soft Close, Grass Tiomos

Concealed Cup Hinge Set, 155� Soft Close, Grass Tiomos

Part Number: 348.32.821

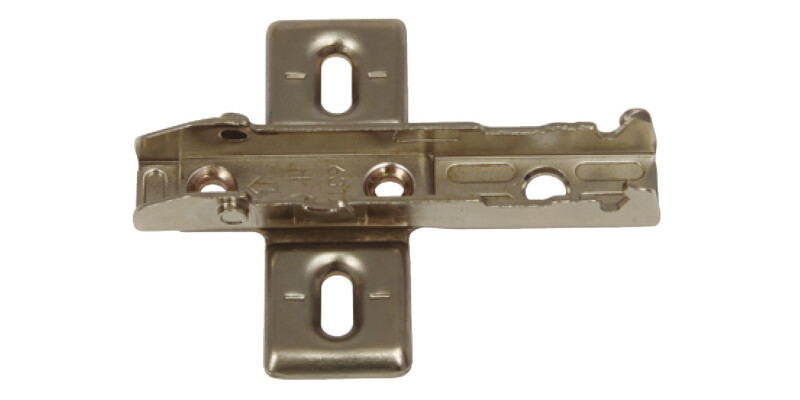

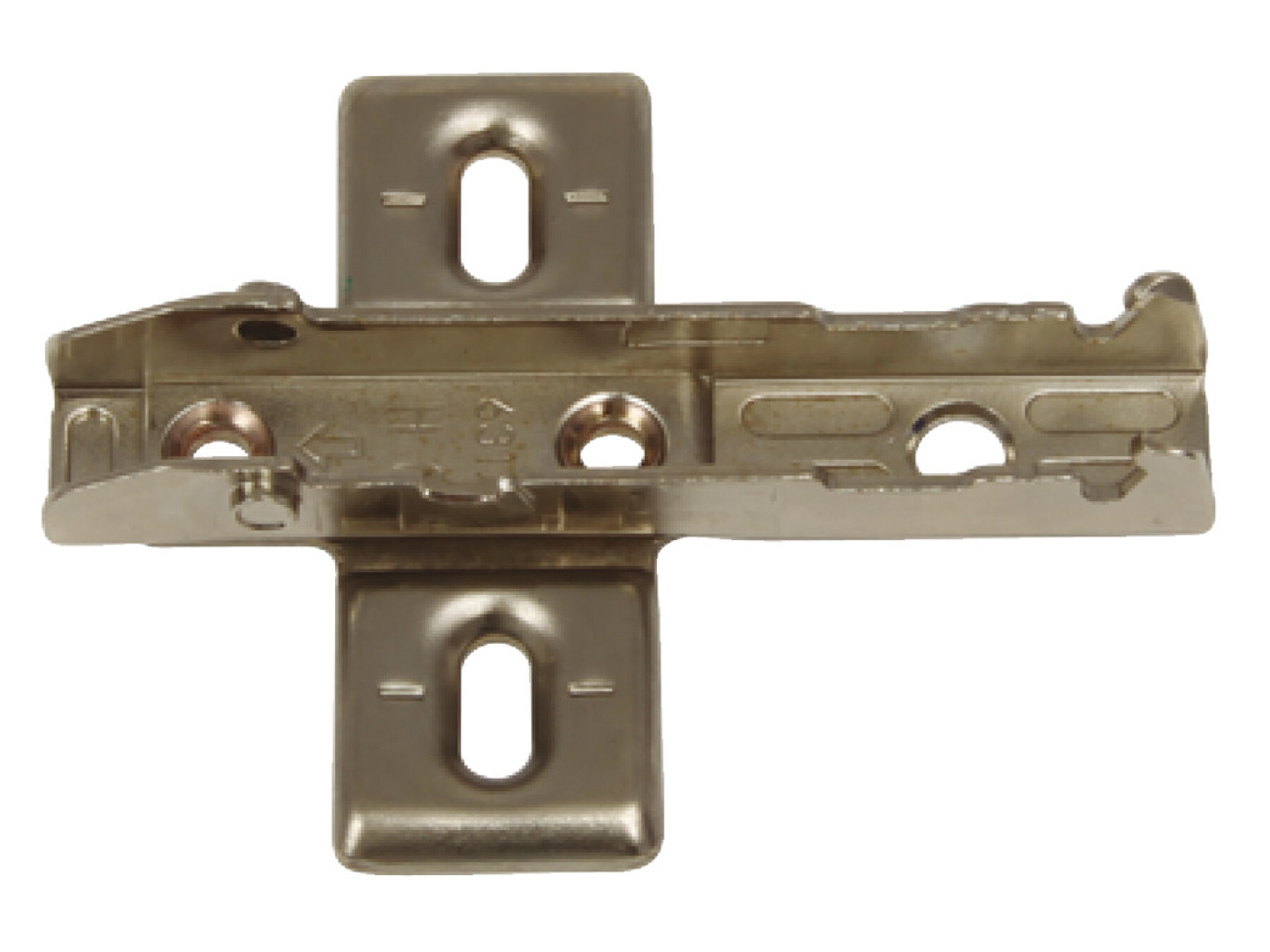

With cruciform mounting plates, With 1 part plate, screw fixing

Price:

£215.26

Per 50 Pack

VAT excluded

Concealed Cup Hinge Set, 155� Soft Close, Grass Tiomos (Part No: 348.32.821) is a premium concealed cup hinge... Read More

Product Information

Product Details

Concealed Cup Hinge Set, 155� Soft Close, Grass Tiomos (Part No: 348.32.821) is a premium concealed cup hinge solution designed to elevate everyday cabinet performance in both living and commercial environments. Built for smooth, reliable operation, this set combines a clean, full-overlay look with dependable engineering—ideal for modern cabinetry that demands both style and strength.

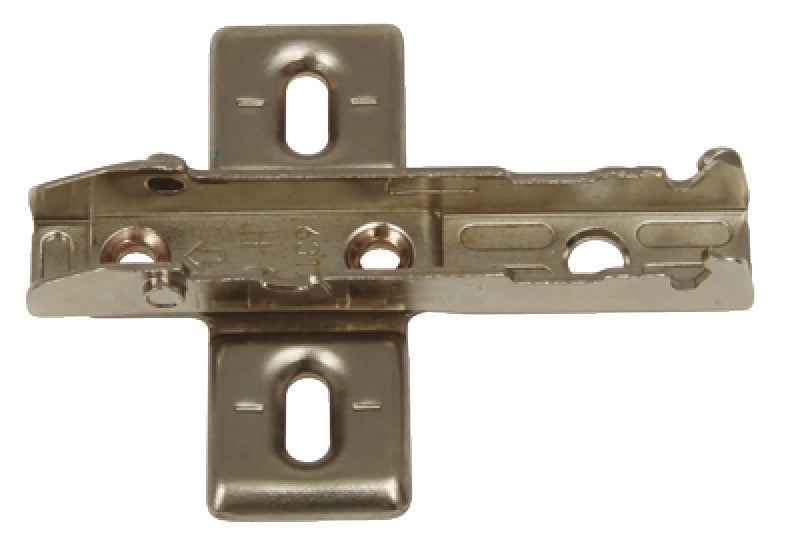

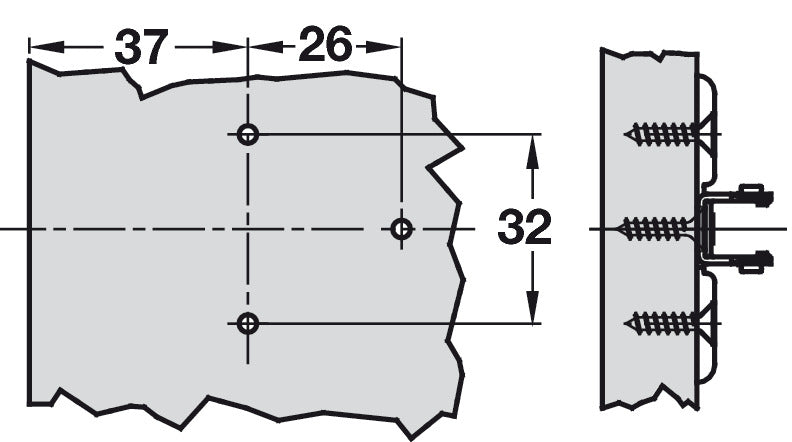

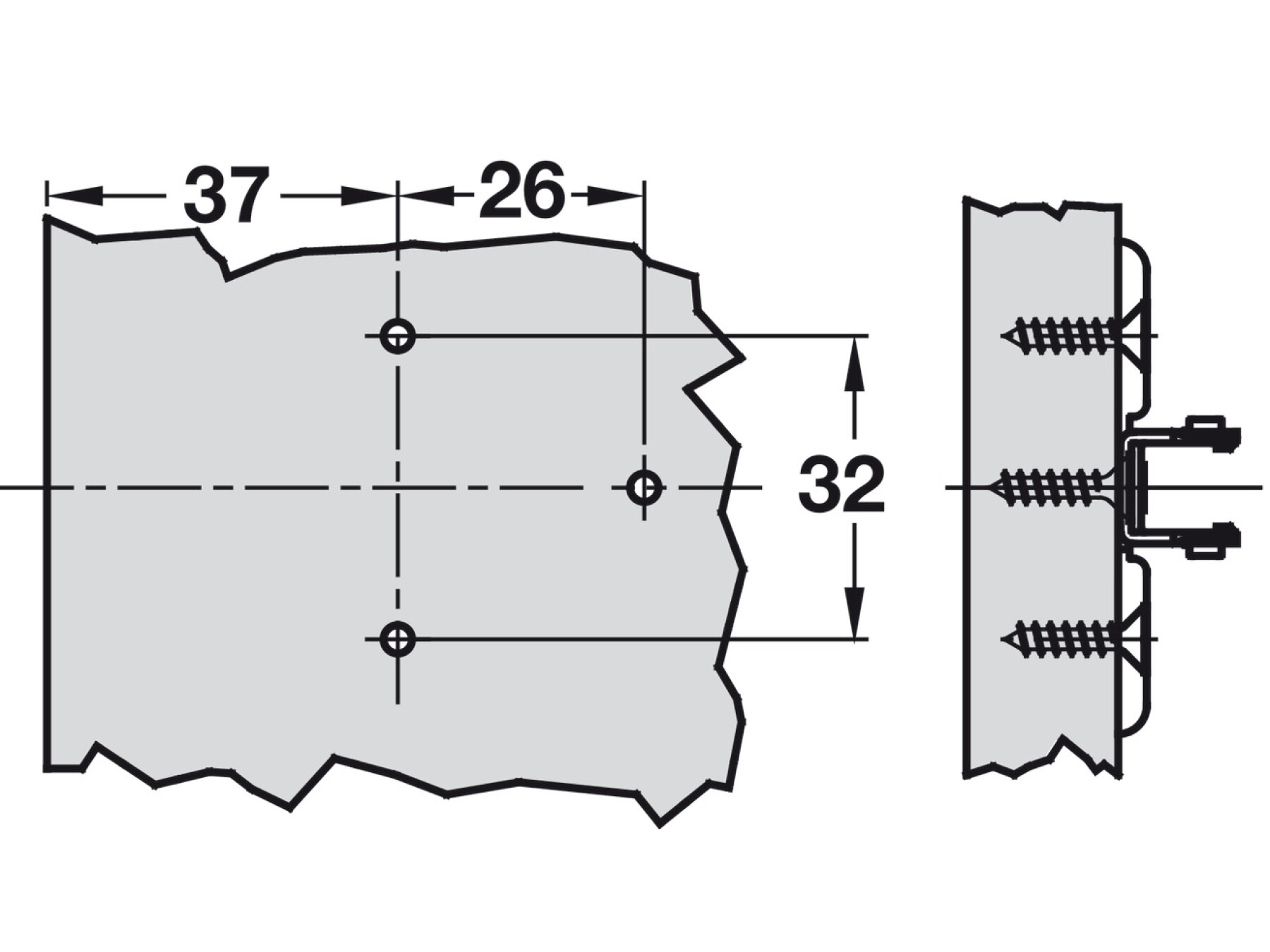

Product subtitle: With cruciform mounting plates, With 1 part plate, screw fixing—so you can enjoy a secure fit and straightforward installation using the included plate design and screw fixing method. The cruciform mounting plates help provide stability where it matters most, making this hinge/plate set a great choice for professional fitters and DIY-friendly projects.

Area of application: For standard applications—perfect for doors where a concealed hinge system delivers a refined finish without visual clutter.

Functionality: Featuring a soft closing mechanism, Tiomos helps reduce slam and promotes a quieter, more controlled closing action every time you use the cabinet.

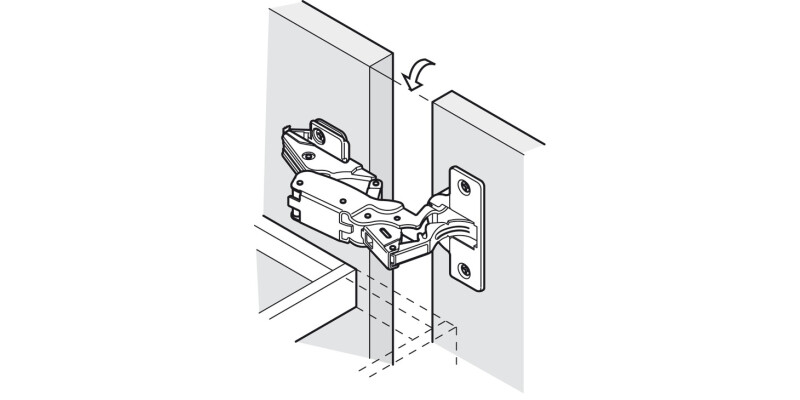

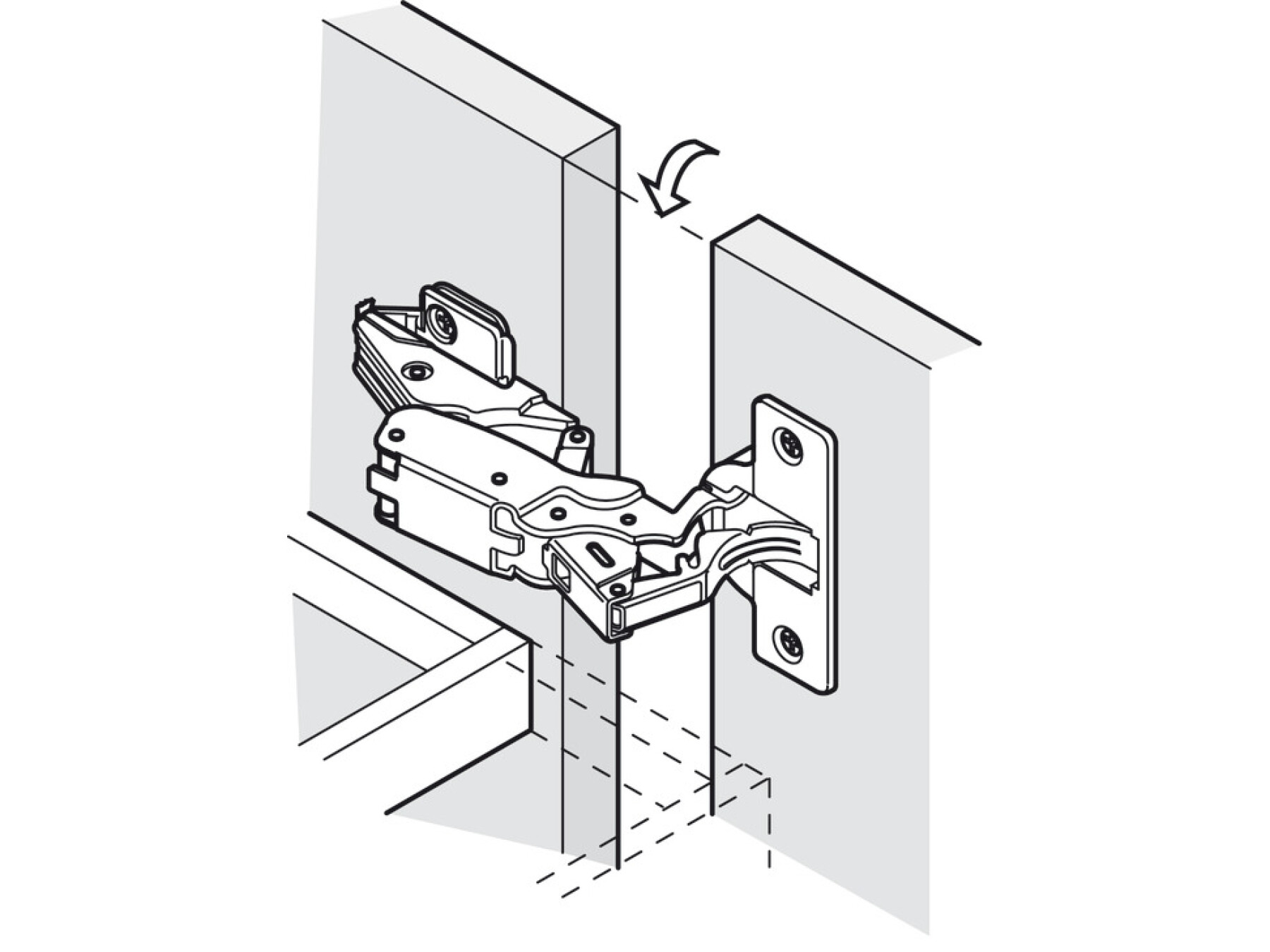

Concealed hinge version: Full overlay configuration creates a sleek front appearance and an even door alignment when mounted.

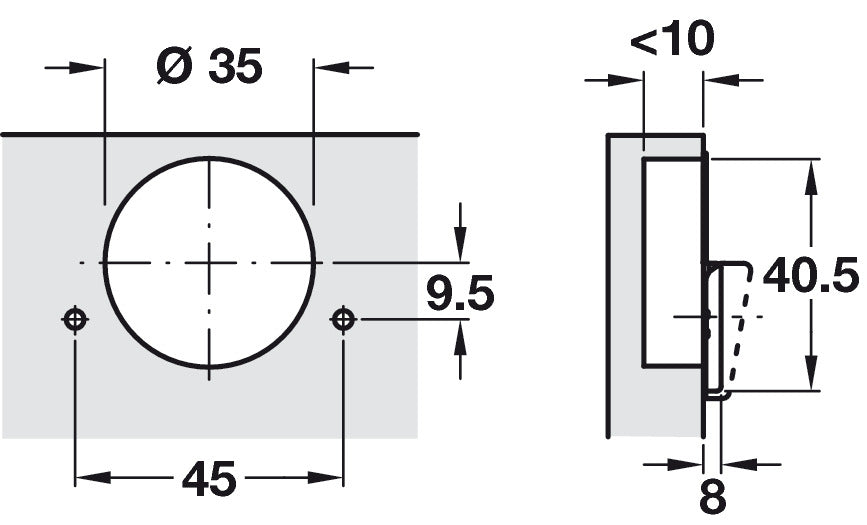

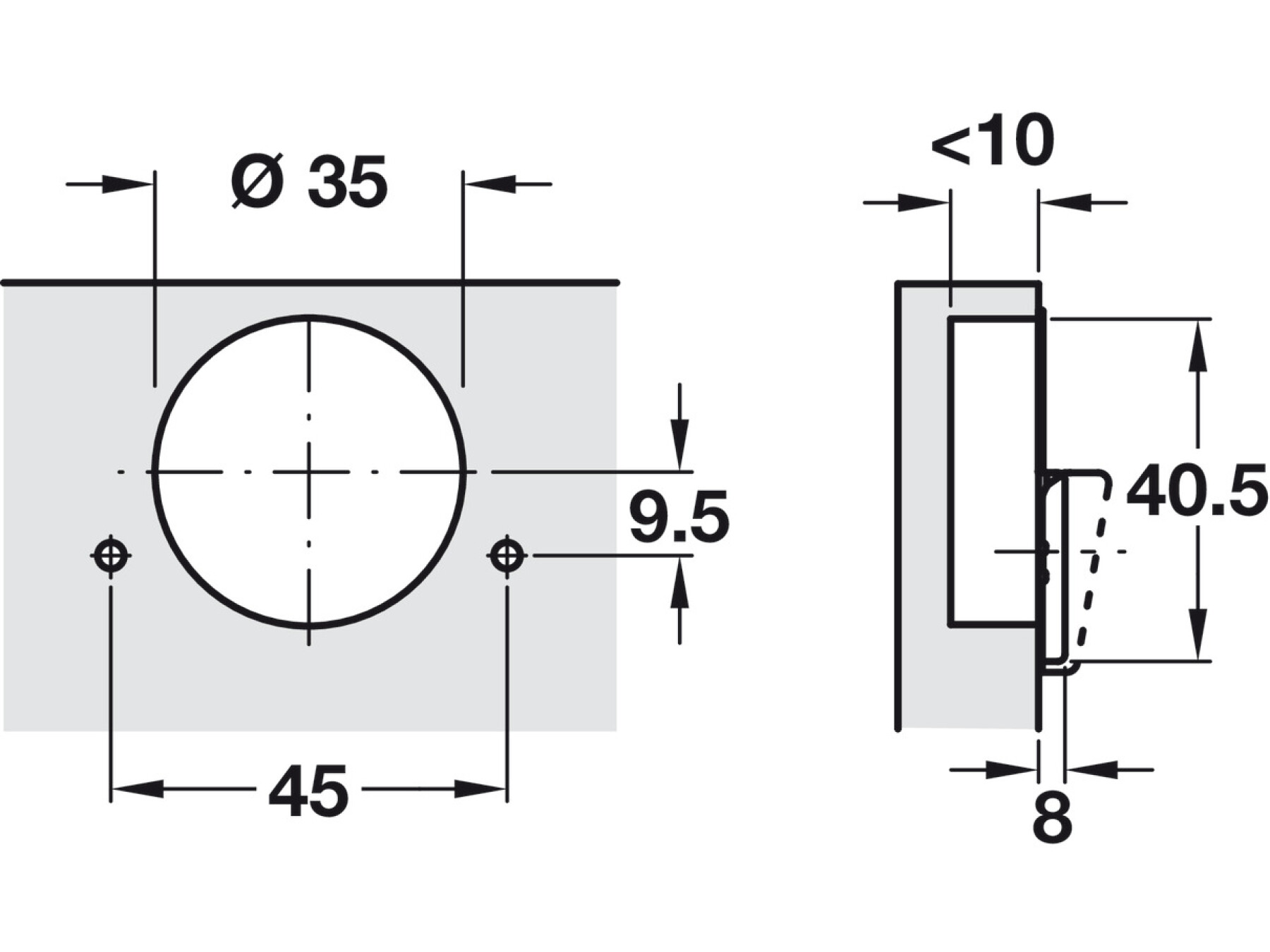

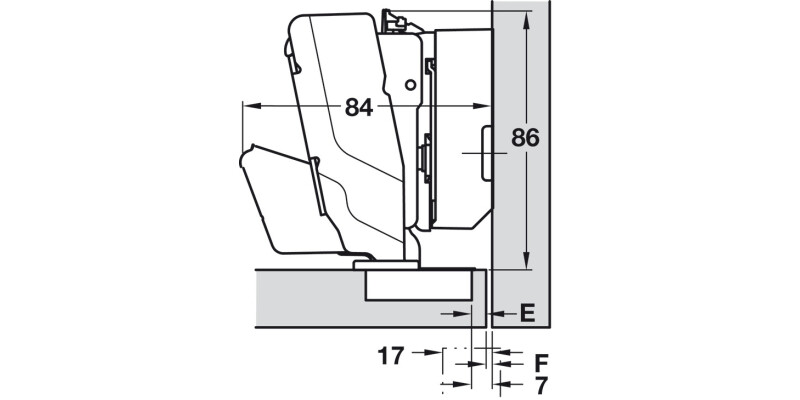

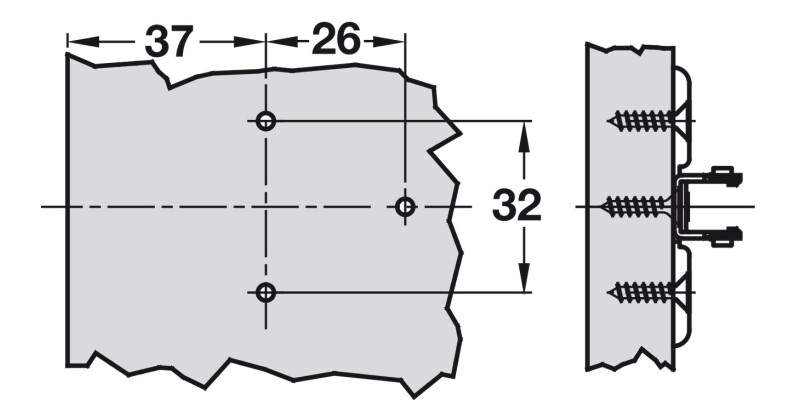

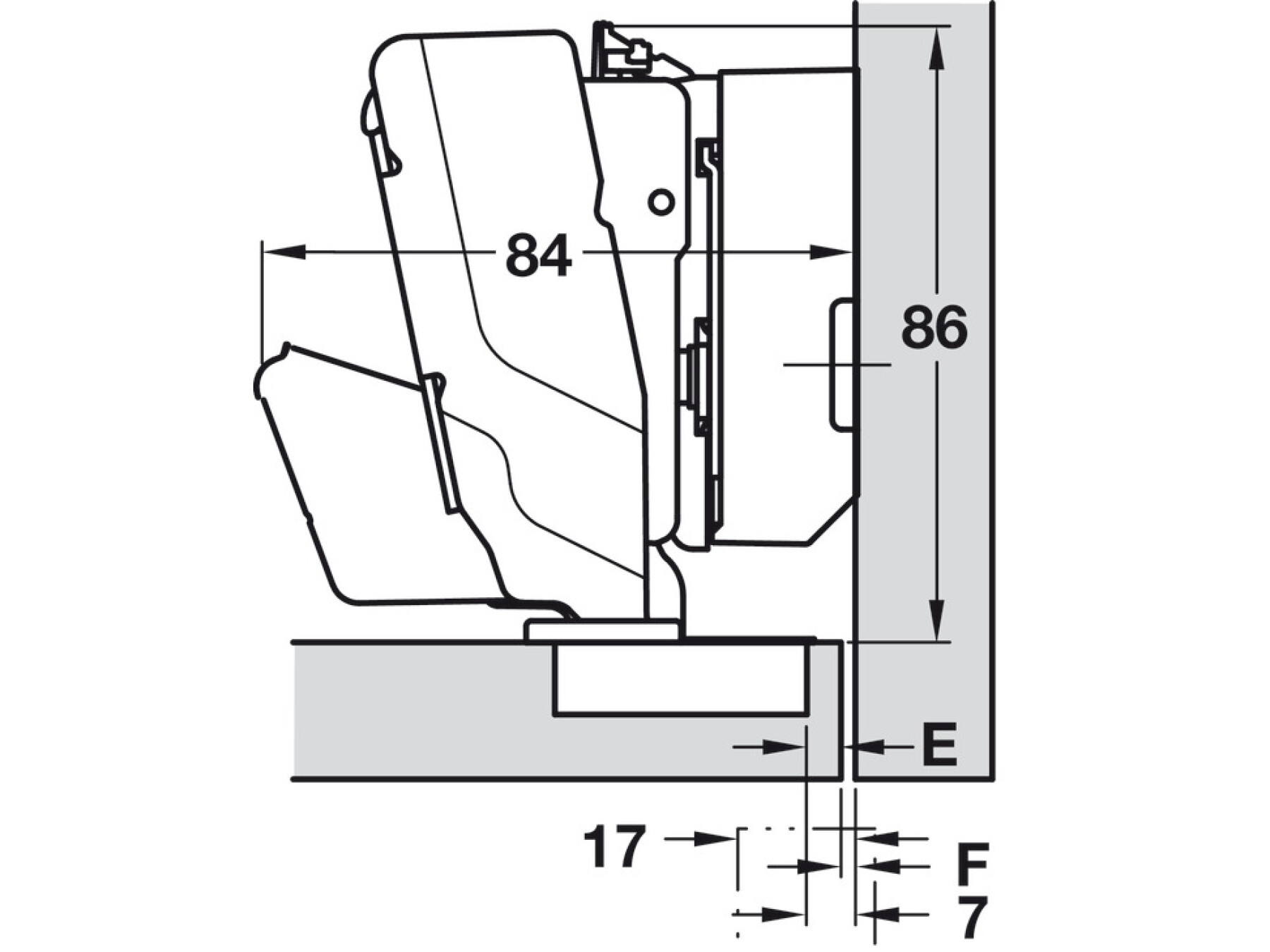

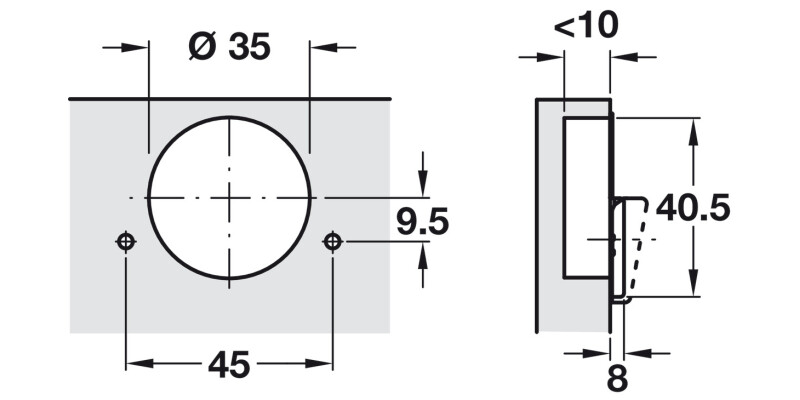

Door processing for assembly: Supplied with cup drilling capability, including 10.00 mm cup drilling depth and a drilling pattern of 42/11 for precise compatibility. Made from zinc alloy, it’s built to handle daily use with confidence.

Opening angle: 160°—giving your cabinet doors excellent access and practicality. Please note: Order reference advises sourcing Hospa Ø 3.5 mm countersunk screws separately.

Upgrade your cabinetry with the Concealed Cup Hinge Set, 155� Soft Close, Grass Tiomos and enjoy smooth soft-close performance, a clean concealed finish, and secure installation—ready for your next cabinet build.

Specifications

Area of application

For standard applications

Functionality

With soft closing mechanism

Concealed hinge version

Full overlay

Door processing for assembly

with cup drilling

Material

Zinc alloy

Colour/finish

Opening angle

160°

Cup drilling depth

10.00 mm

Drilling pattern

42/11

Order reference

Order Hospa Ø 3.5 mm countersunk screws separately

FAQ

Product Details

Is the Tiomos 160D hinge set suitable for full overlay doors?

Yes. This Tiomos 160D concealed cup hinge set is designed for full overlay applications, helping the door sit neatly over the cabinet face for a clean, aligned look.

Does this hinge set include the mounting plates and how many parts are supplied?

Yes. The set is supplied as a 2 part hinge plate arrangement and includes 1 part plate with the cruciform mounting plate style, ready for screw fixing during installation.

Will the hinge close softly, or is it a standard close?

It includes soft closing. The Tiomos 160D Hinge/Plate Set is built with a soft closing mechanism to reduce slam and improve door closing comfort in kitchens and other cabinet applications.

What opening angle can I expect from this hinge set?

Up to 160 degrees. The hinge supports an opening angle of 160°, making it suitable for a wide range of living and commercial cabinet door uses.

What drilling and fixing details should I plan for during fitting?

This hinge set is intended for installation with a cup drilling depth of 10.00 mm and uses a 42/11 drilling pattern. It is designed to be fixed using the appropriate screws, and you should consider ordering the correct Hospa Ø 3.5 mm countersunk screws separately as noted in the order reference.

How should I order the correct screws for the Tiomos 160D hinge set?

Use the specified screw size. The order reference indicates that you should order Hospa Ø 3.5 mm countersunk screws separately, so you will have the correct fixings for reliable mounting of the hinge set to your cabinet.
