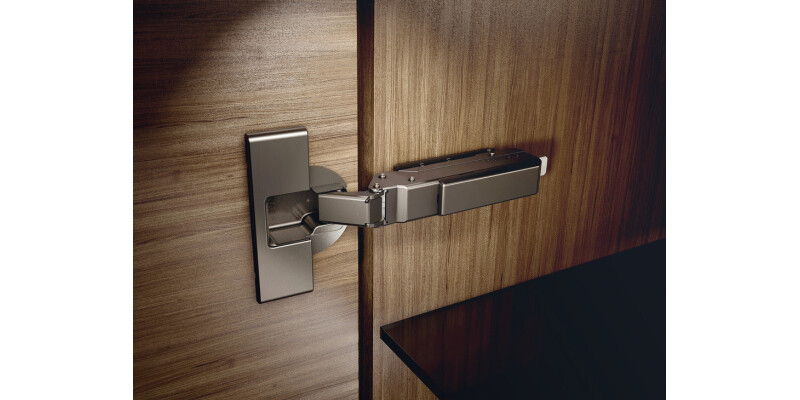

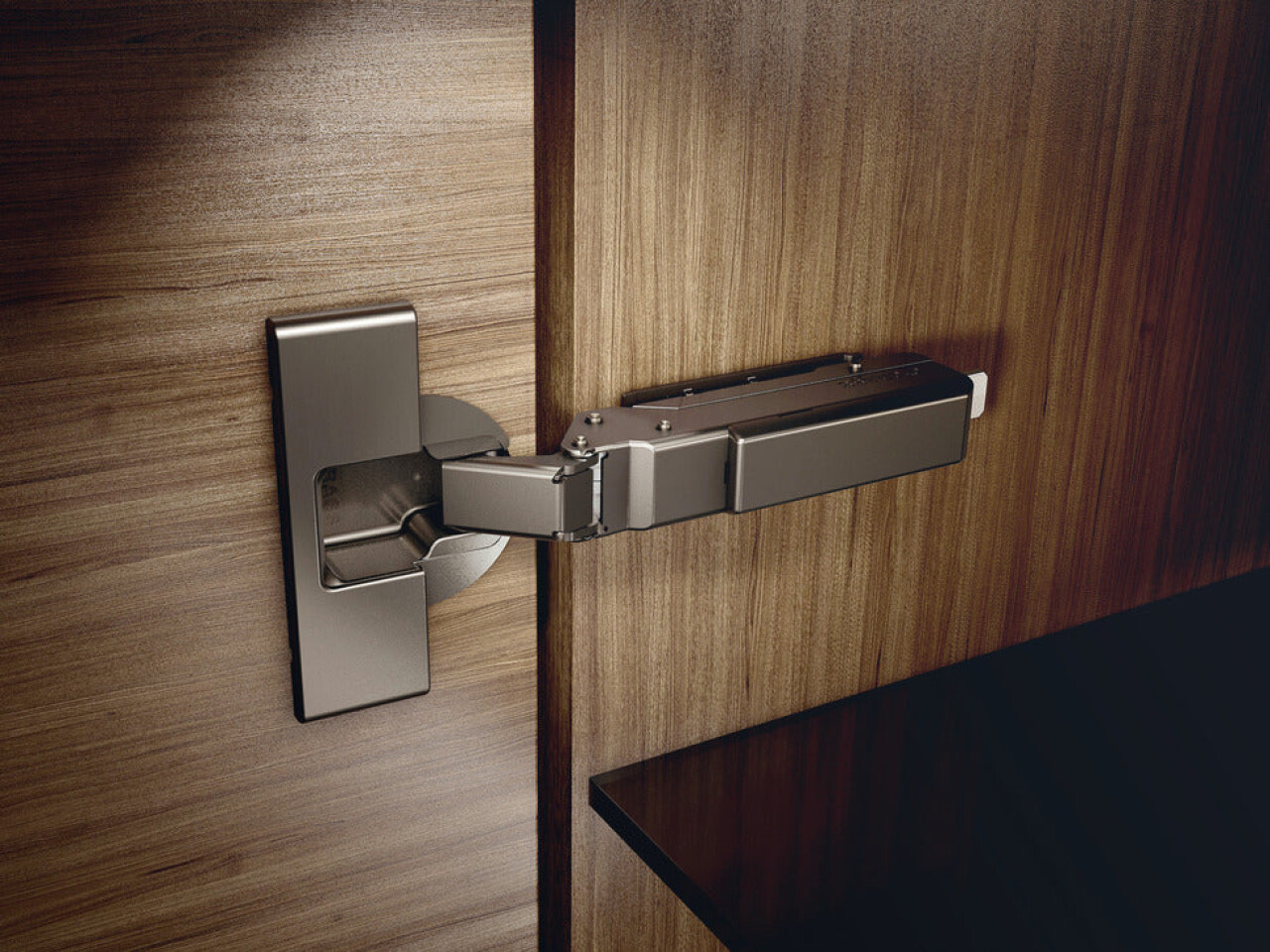

Tiomos 110D Hinge Click SC Ins Night/Ant
Part Number: 348.31.807
Click on arm, Screw fixing cup, 45/9.5, with soft close, Tiomos Night - anthracite
Price:
£7.71
Per Item
For standard applicationsØ 35 mm cup Dimensions in drawings and tables are calculated using factory settings and... Read More
Product Information
Product Details
For standard applications
Ø 35 mm cup

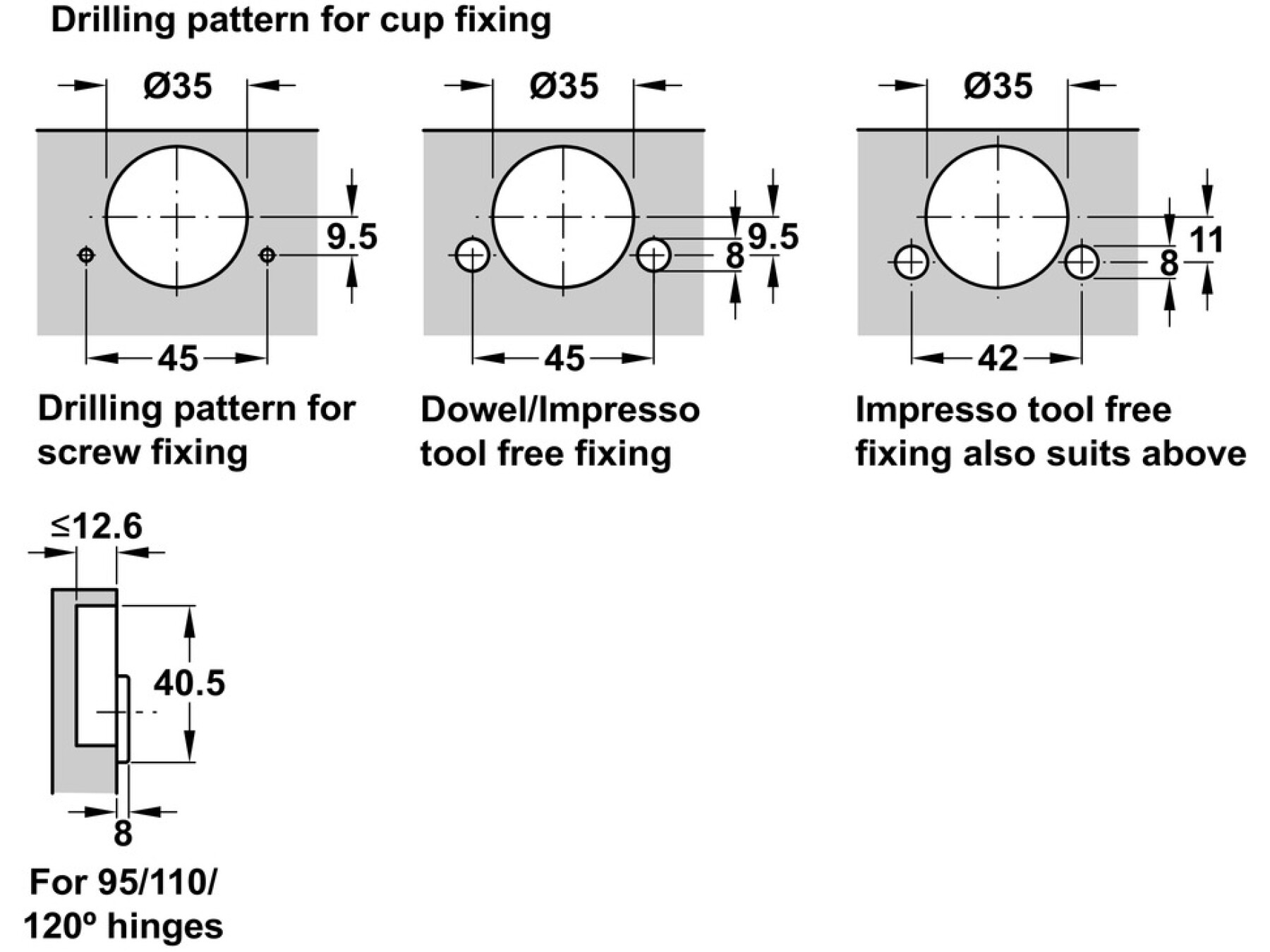

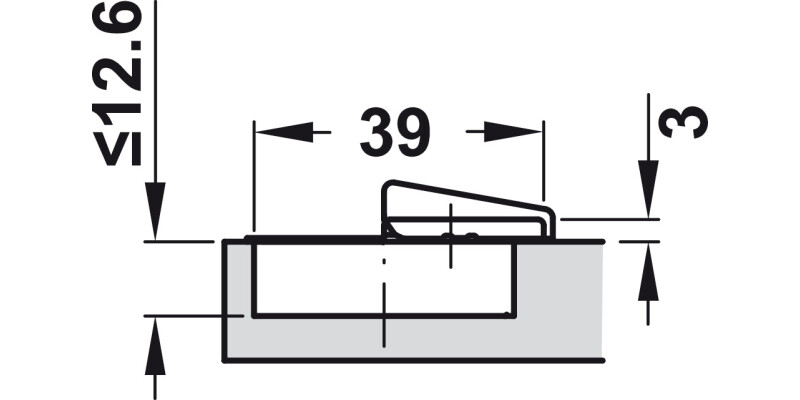

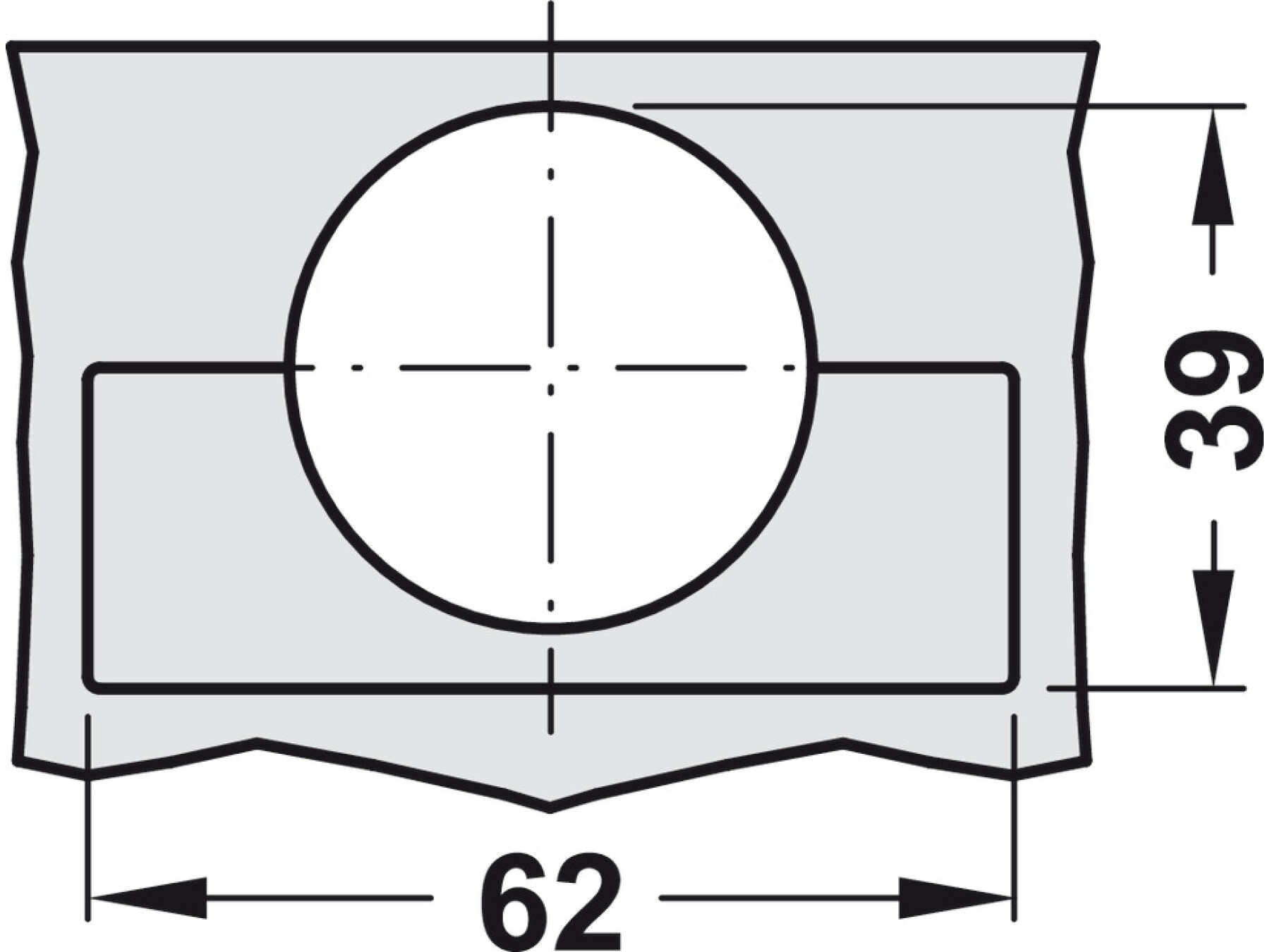

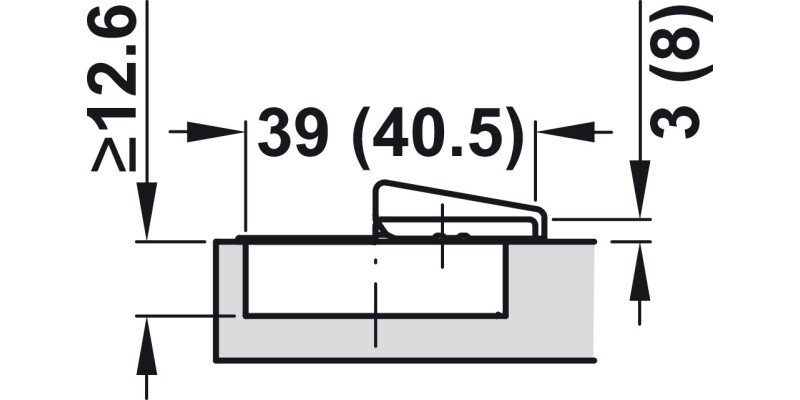

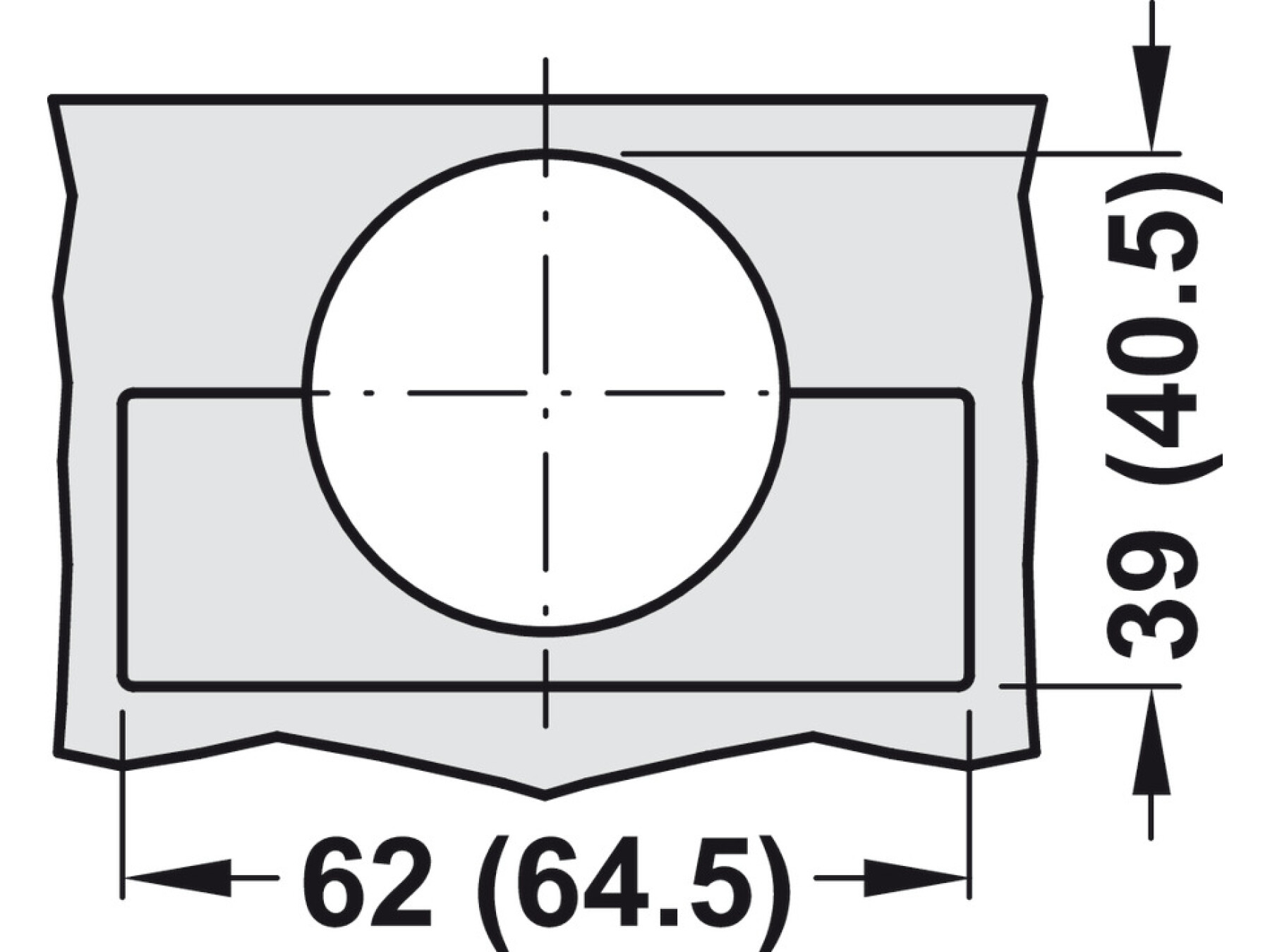

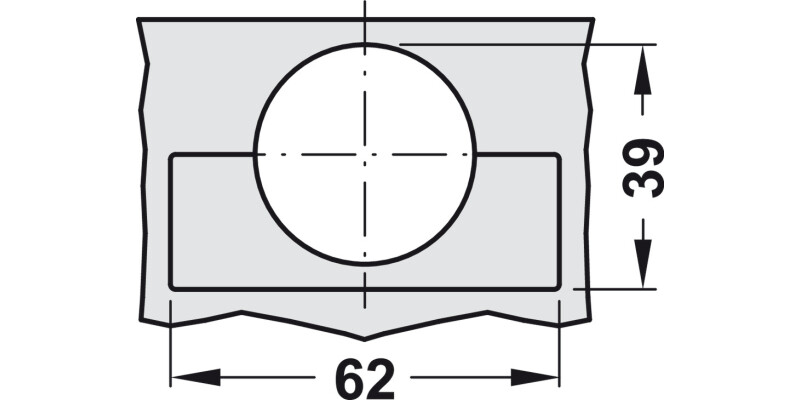

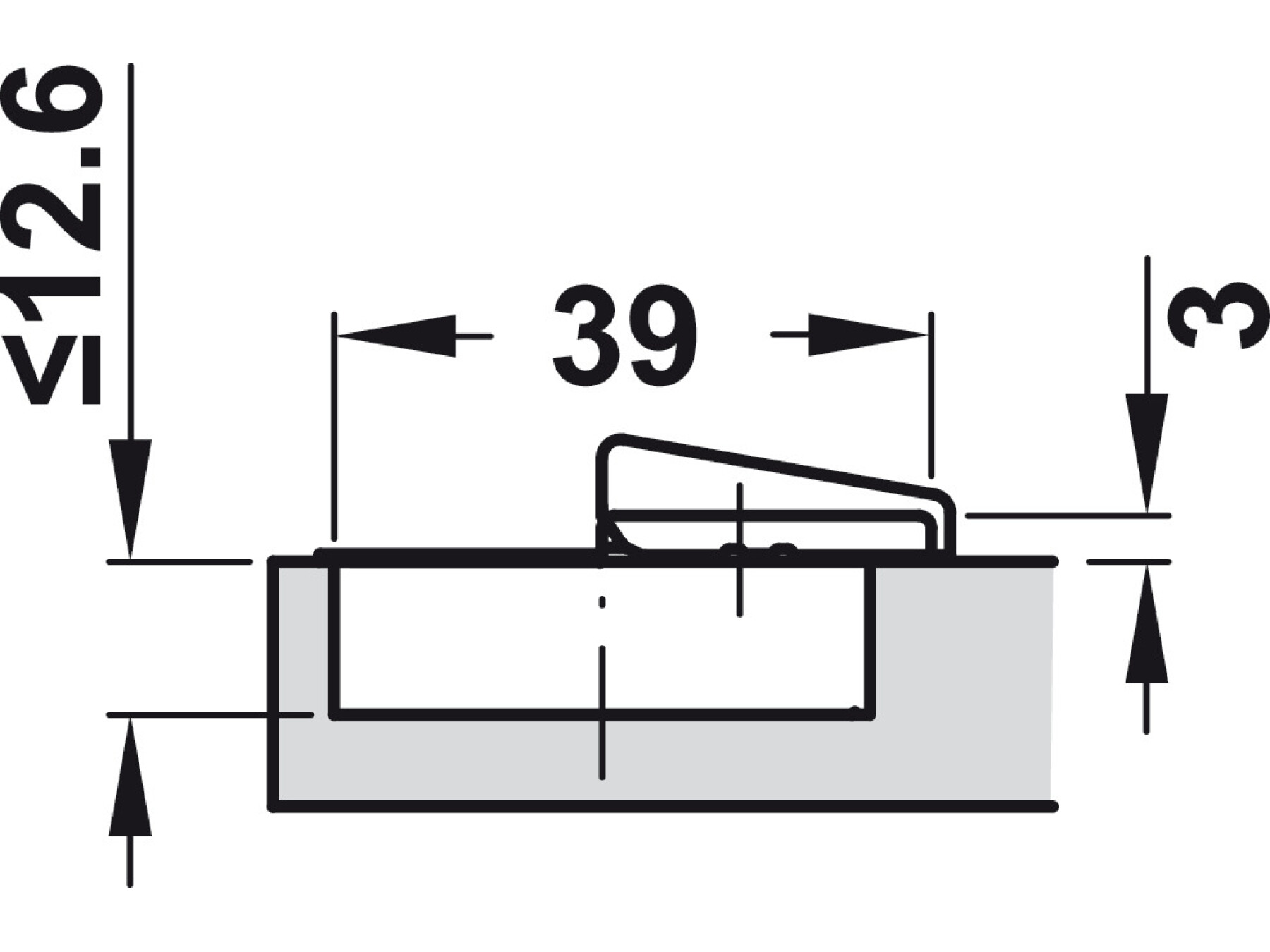

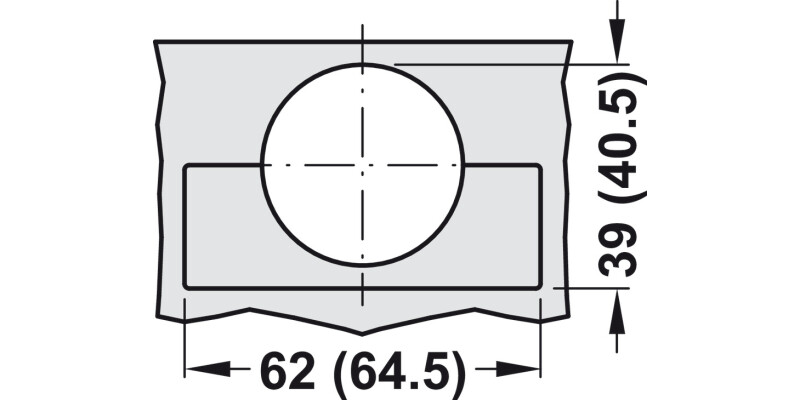

Dimensions in drawings and tables are calculated using factory settings and for mounting plate distance 2 mm.
Adjustment facility
Side adjustment 2 mm, Height adjustment -2.5 – 2.5 mm, Depth adjustment -2 – 3 mm, Height adjustment depending on mounting plate
| Minimum gap | |||||
|---|---|---|---|---|---|
| Door thickness mm | Distance to cup E mm | ||||
| 3,0 | 4,0 | 5,0 | 6,0 | 7,0 | |
| 16 | 0,6 | 0,6 | 0,6 | 0,6 | 0,6 |
| 17 | 0,6 | 0,6 | 0,6 | 0,6 | 0,6 |
| 18 | 0,7 | 0,7 | 0,7 | 0,7 | 0,7 |
| 19 | 0,9 | 0,9 | 0,9 | 0,9 | 0,9 |
| 20 | 1,1 | 1,1 | 1,1 | 1,1 | 1,1 |
| 21 | 1,4 | 1,3 | 1,3 | 1,3 | 1,3 |
| 22 | 1,6 | 1,6 | 1,6 | 1,5 | 1,5 |
| 24 | 2,4 | 2,1 | 2,1 | 2,1 | 2,0 |
| Minimum gap F | |||||
| Door overlay mm | ||||||||||
|---|---|---|---|---|---|---|---|---|---|---|
| -4 | -3 | -2 | -1 | 0 | ||||||
| 3 | 4 | 0 | ||||||||
| 3 | 4 | 5 | 6 | 2 | ||||||
| 3 | 4 | 5 | 6 | 7 | 3 | |||||
| Distance to cup E mm | Mounting plate distance mm | |||||||||

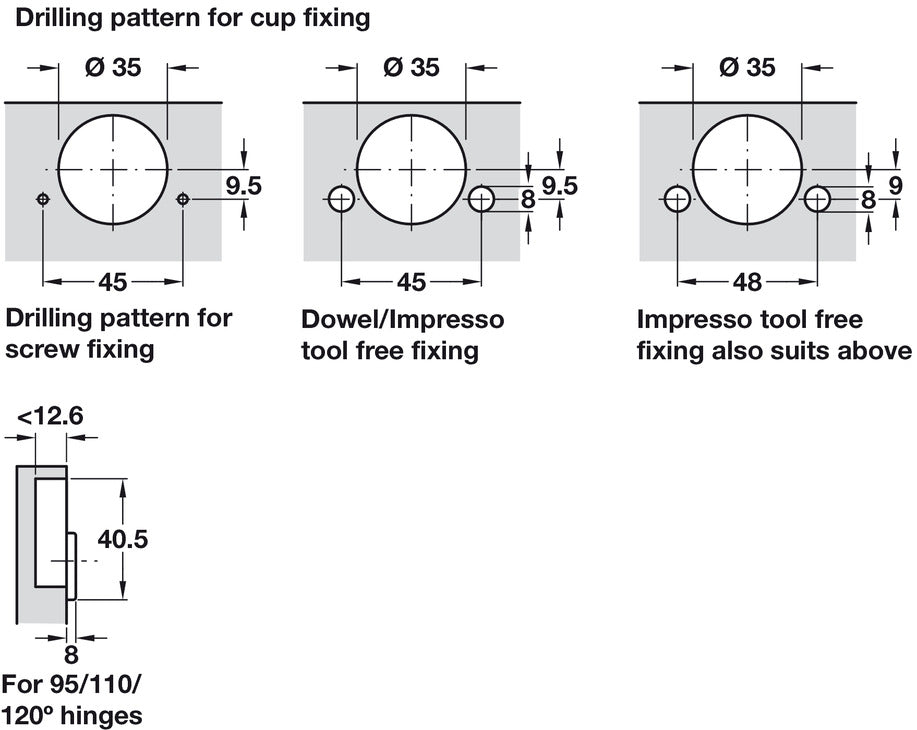

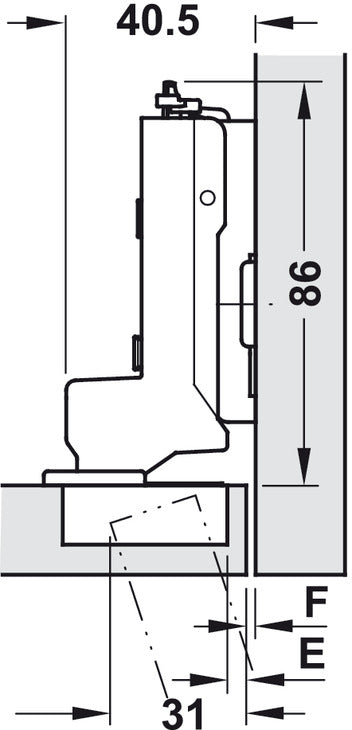

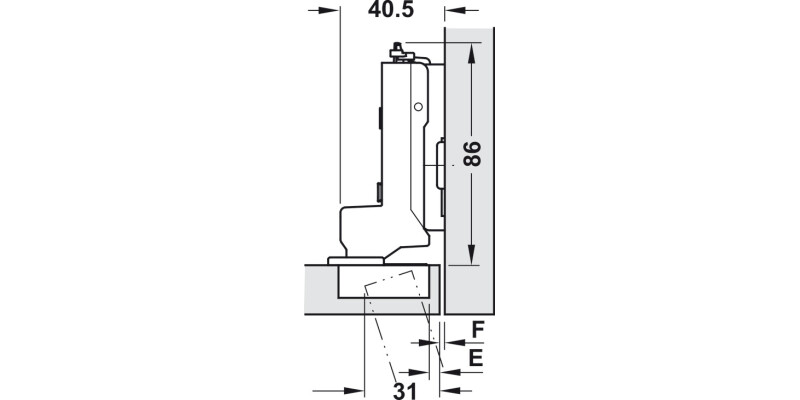

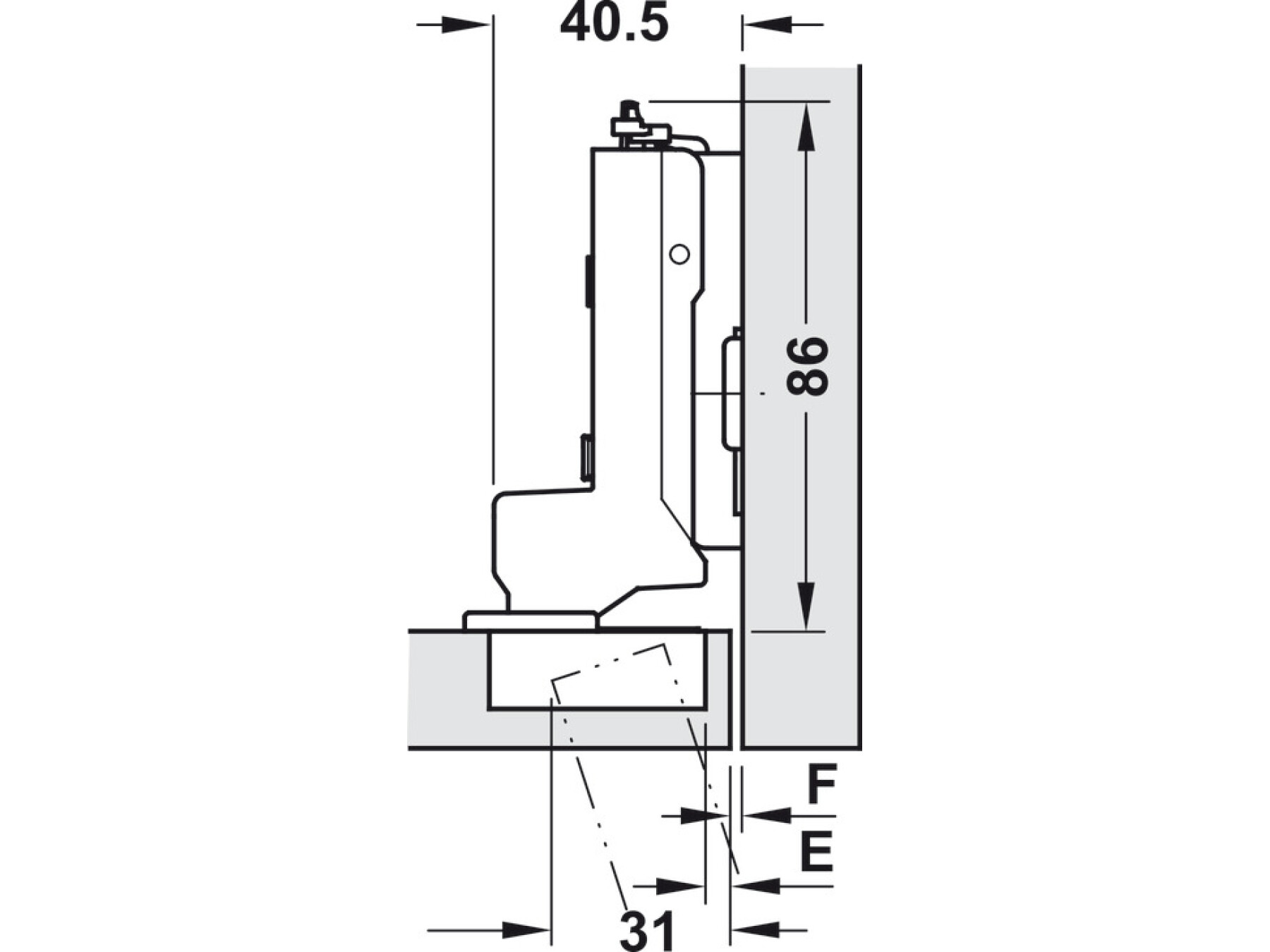

The dimensions specified in the drawings are calculated with a mounting plate distance of 2 mm.
For hinges with opening mechanism please order Grass Tipmatic separately.
Set back mounting plate screw-on position by door thickness +1.5 mm.
Specifications
Area of application
for standard applications
Concealed hinge version
Inset
Crank type
High Cranked
For door material
Wood
Door processing for assembly
with cup drilling
Material
Cup: Steel, Hinge arm: Zinc alloy
Opening angle
110°
Cup drilling depth

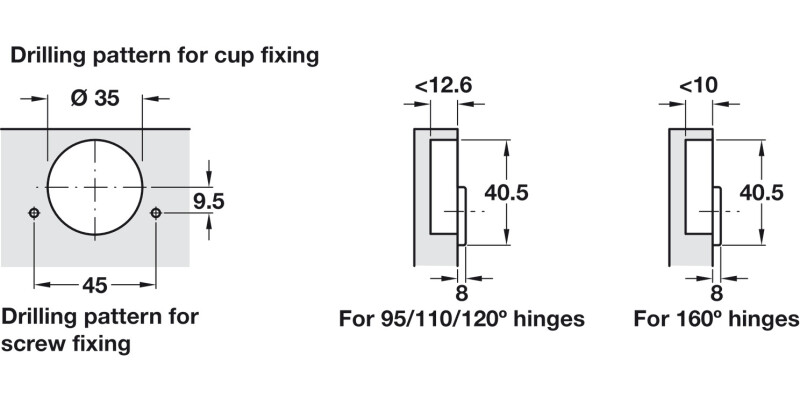

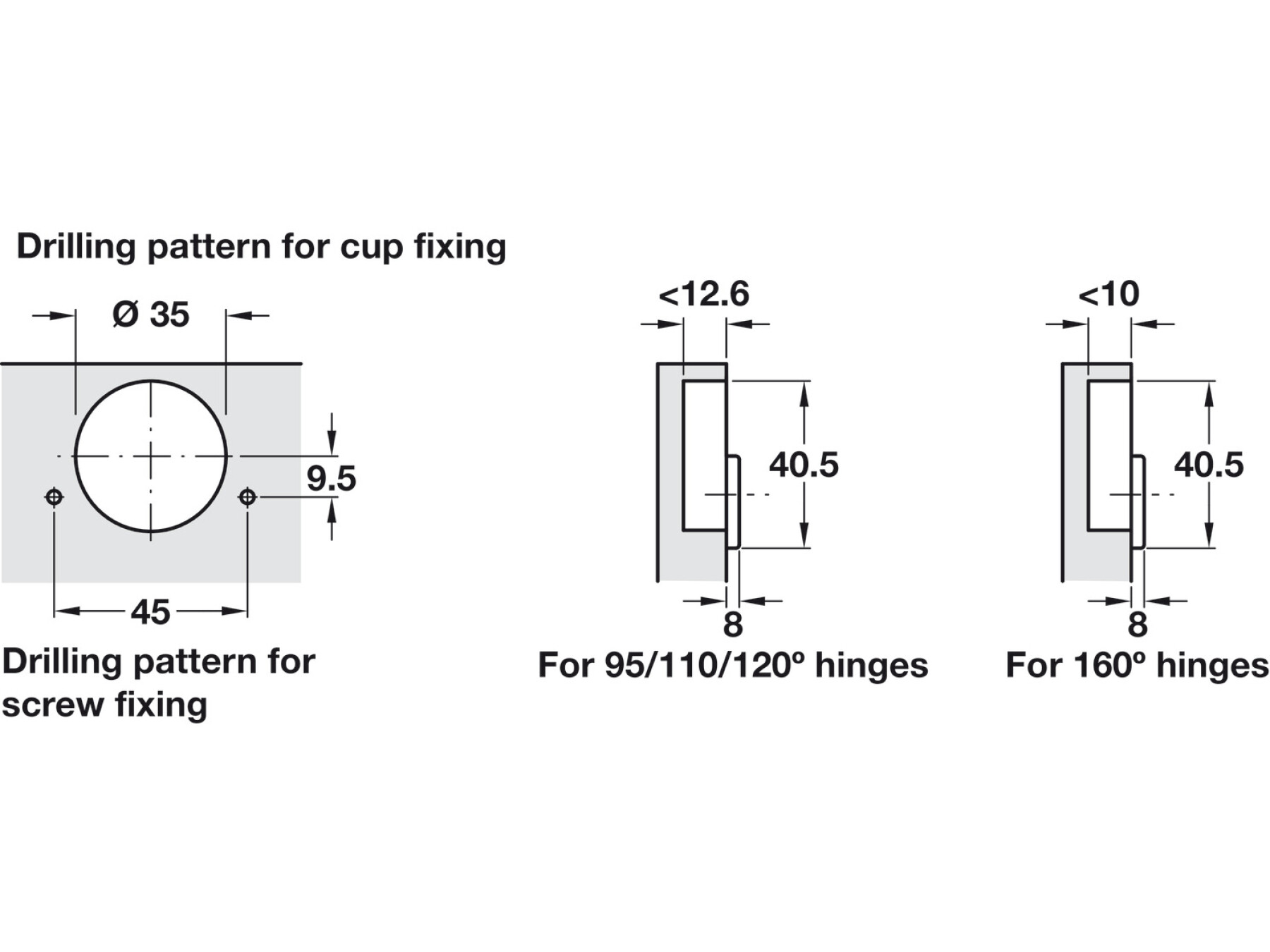

12.60 mm
Cup drilling Ø
35.00 mm
Installation
Door on cabinet without tools with clip system
Installation note
Set back mounting plate screw-on position by door thickness +1.5 mm.
Order reference
Order mounting plate and Hospa Ø 3.5 mm countersunk screws separately
