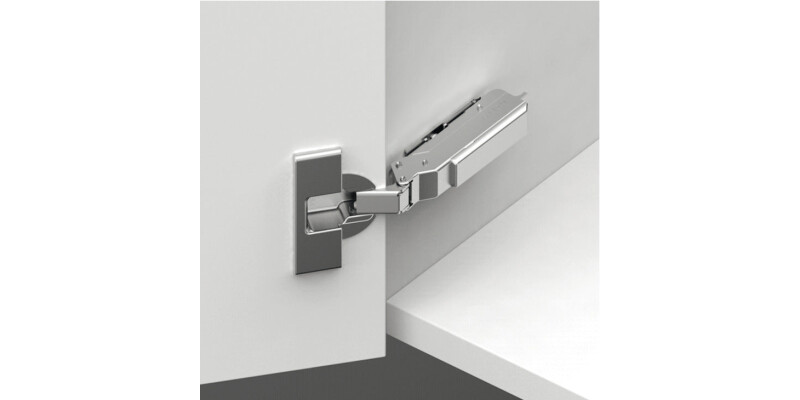

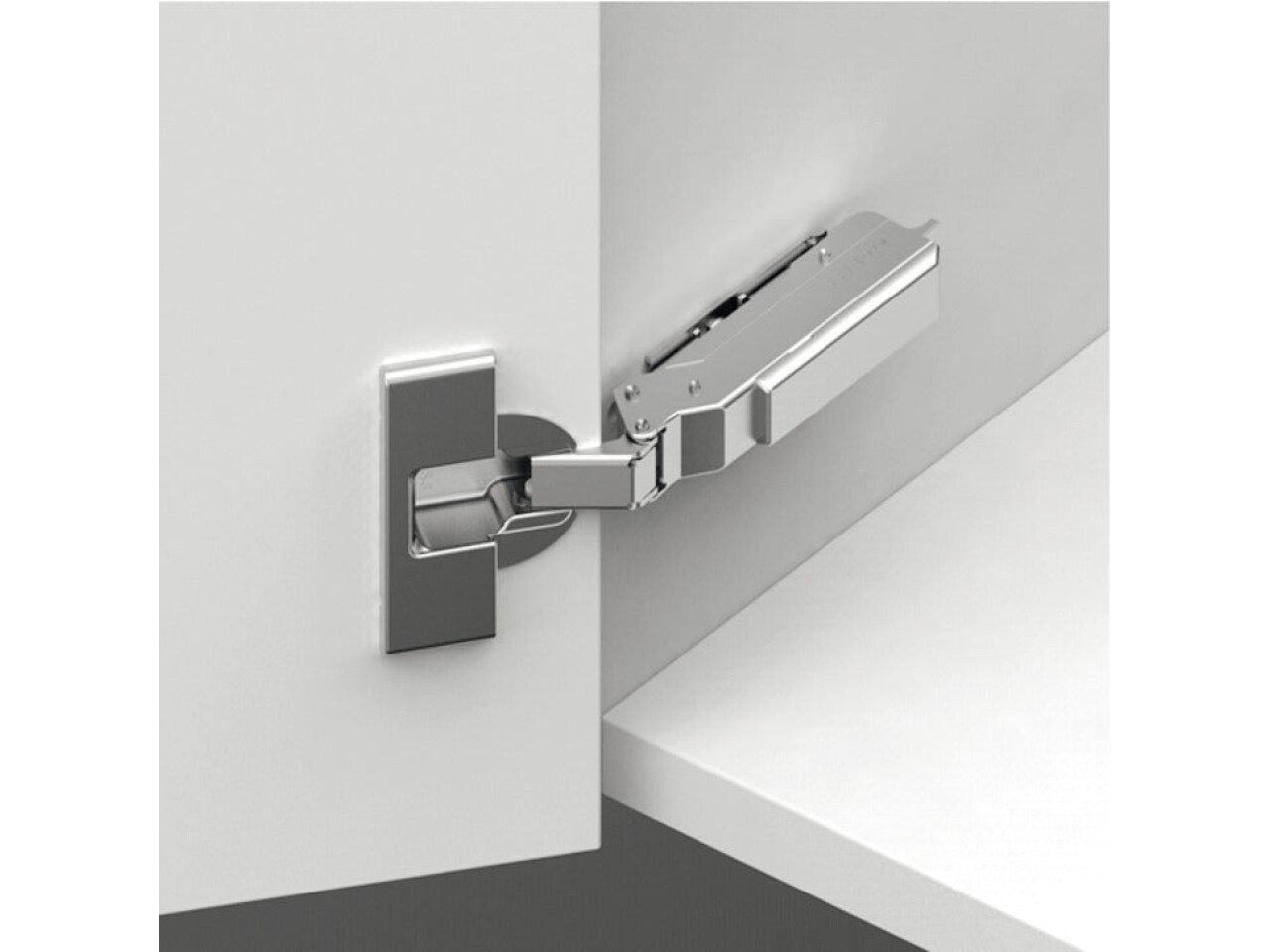

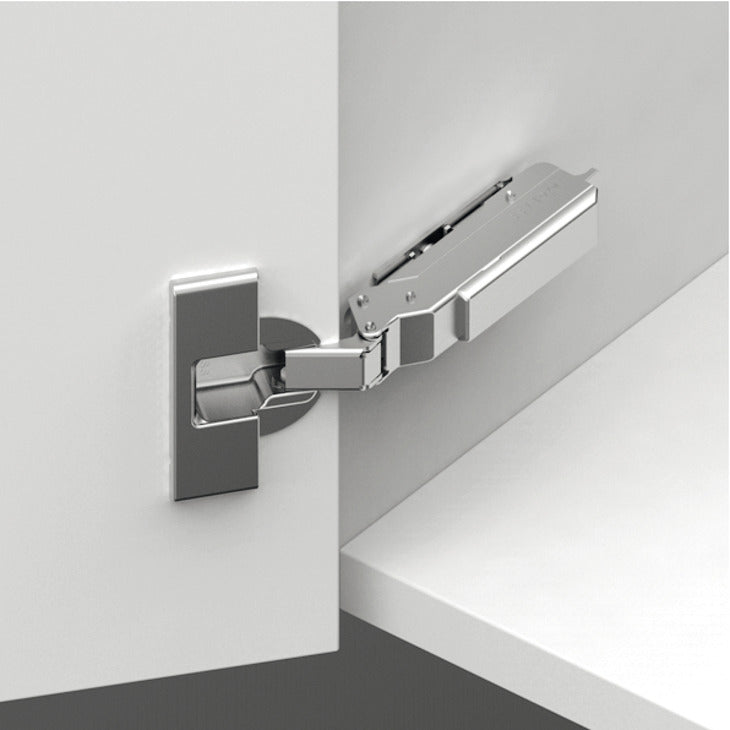

Tiomos 110D Hinge Click w SC SF Full+
Part Number: 348.31.800
With integrated soft close, Screw fixing cup, 45/9.5, with soft close, nickel plated
Price:
£5.80
Per Item
Ø 35 mm cupUp to 24 mm overlay Dimensions in drawings and tables are calculated using factory settings and for... Read More
Product Information
Product Details
Ø 35 mm cup
Up to 24 mm overlay
Dimensions in drawings and tables are calculated using factory settings and for mounting plate distance 2 mm.
Adjustment facility
Side adjustment 2 mm, Height adjustment -2.5 – 2.5 mm, Depth adjustment -2 – 3 mm, Height adjustment depending on mounting plate
| Minimum gap | |||||
|---|---|---|---|---|---|
| Door thickness mm | Distance to cup E mm | ||||
| 3,0 | 4,0 | 5,0 | 6,0 | 7,0 | |
| 16 | 0,6 | 0,6 | 0,6 | 0,6 | 0,6 |
| 17 | 0,6 | 0,6 | 0,6 | 0,6 | 0,6 |
| 18 | 0,7 | 0,7 | 0,7 | 0,7 | 0,7 |
| 19 | 0,9 | 0,9 | 0,9 | 0,9 | 0,9 |
| 20 | 1,1 | 1,1 | 1,1 | 1,1 | 1,1 |
| 21 | 1,4 | 1,3 | 1,3 | 1,3 | 1,3 |
| 22 | 1,6 | 1,6 | 1,6 | 1,5 | 1,5 |
| 24 | 2,4 | 2,1 | 2,1 | 2,1 | 2,0 |
| Minimum gap F | |||||
| Door overlay mm | ||||||||||
|---|---|---|---|---|---|---|---|---|---|---|
| 15 | 16 | 17 | 18 | 19 | 20 | 21 | 22 | 23 | 24 | |
| 3 | 4 | 5 | 6 | 7 | -2 | |||||
| 3 | 4 | 5 | 6 | 7 | 0 | |||||
| 3 | 4 | 5 | 6 | 7 | 2 | |||||
| 3 | 4 | 5 | 6 | 7 | 3 | |||||
| Distance to cup E mm | Mounting plate distance mm | |||||||||

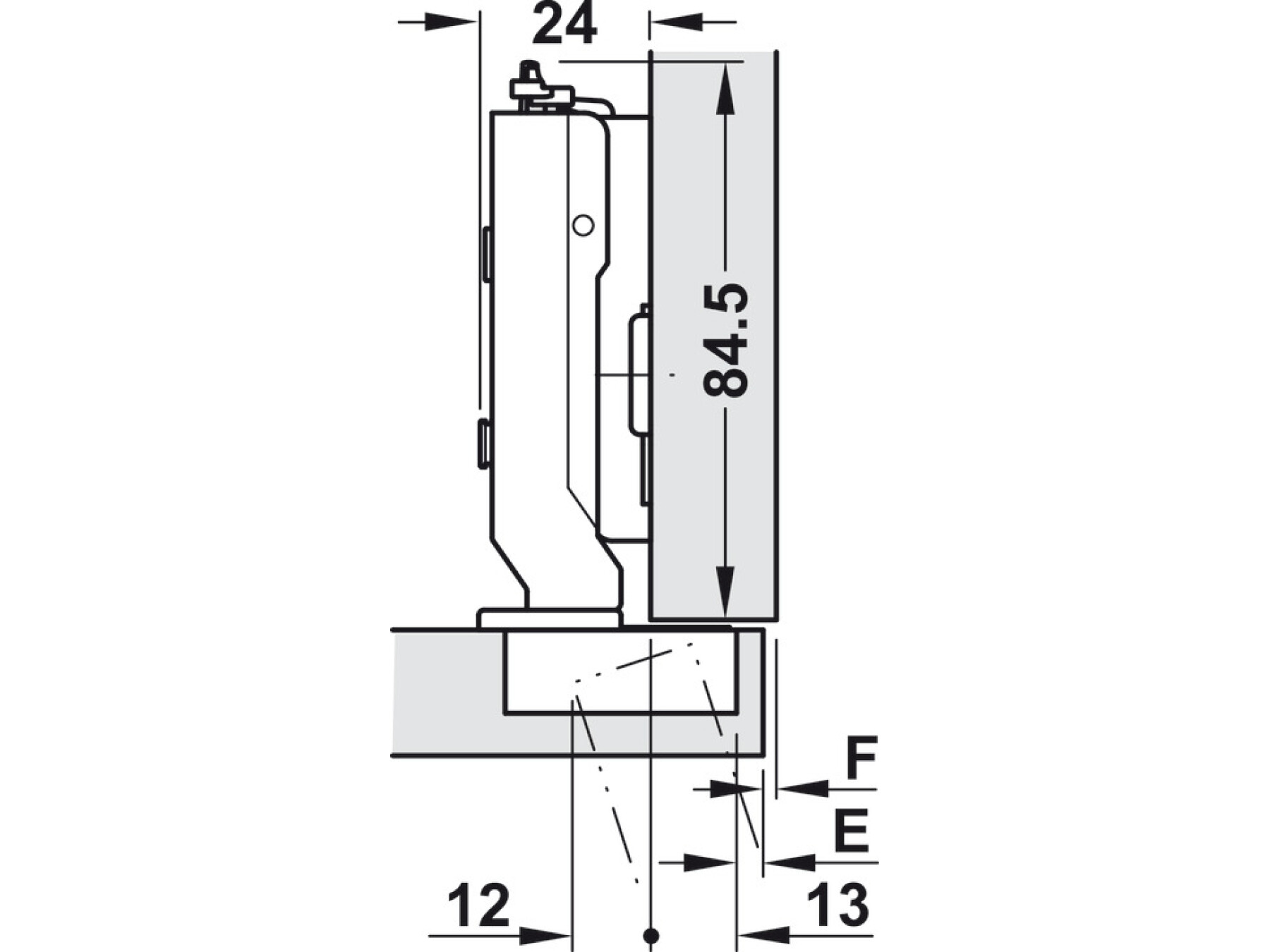

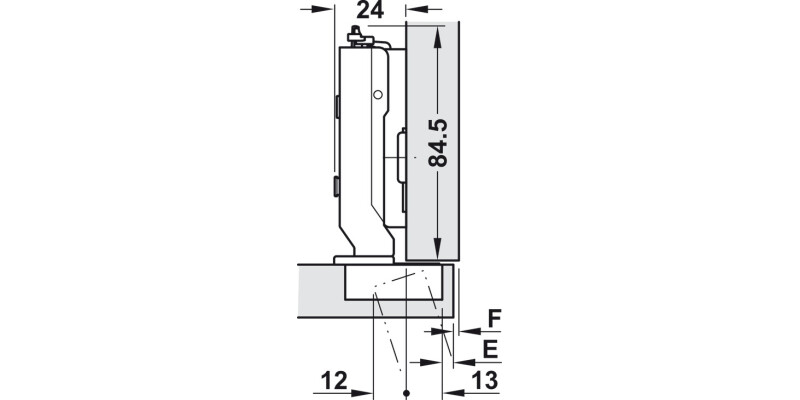

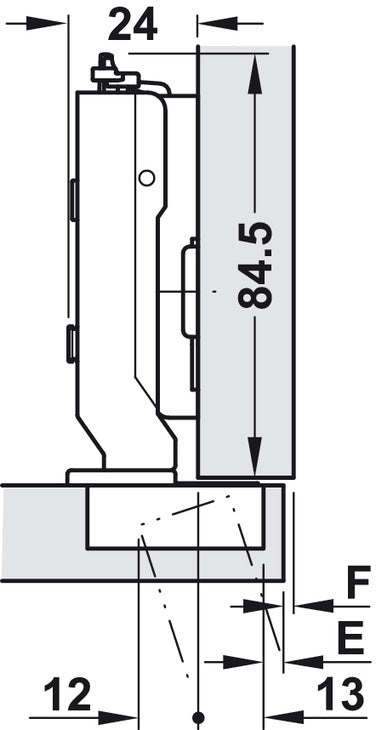

The dimensions specified in the drawing are calculated with a mounting plate distance of 2 mm.
Specifications
Area of application
For standard applications
For large door overlay up to 24 mm
Concealed hinge version
Full overlay
Crank type
Straight
For door material
Wood
Door processing for assembly
with cup drilling
Material
Steel
Opening angle
110°

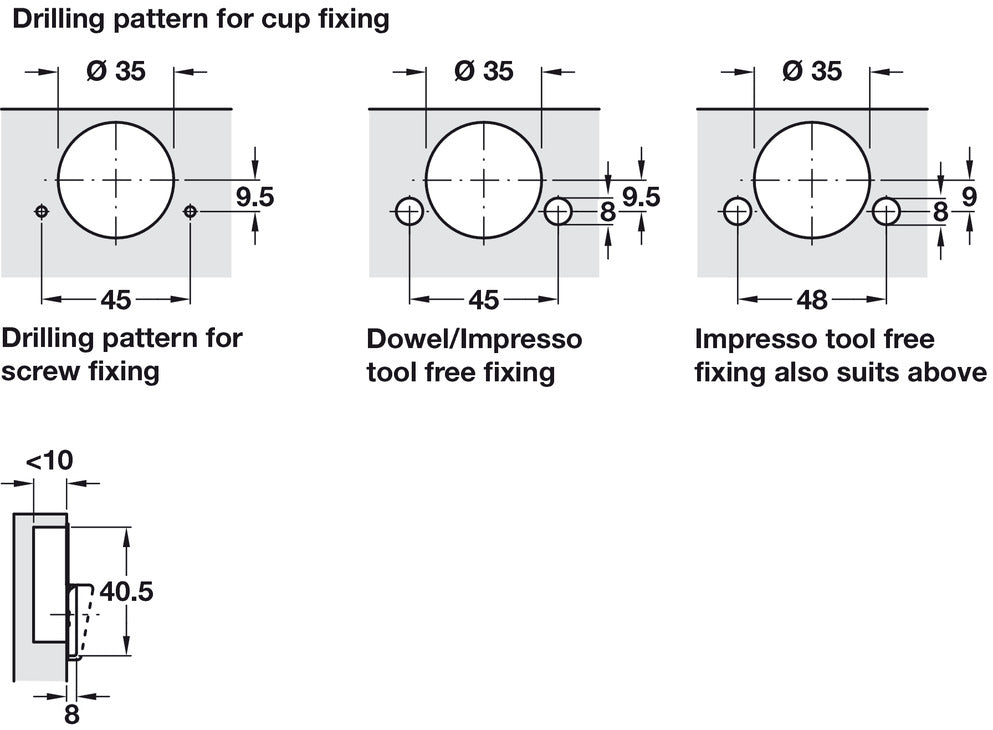

Cup drilling depth
12.60 mm
Cup drilling Ø
35.00 mm
Installation
Door on cabinet without tools with clip system
Order reference
Order mounting plate and Hospa Ø 3.5 mm countersunk screws separately
