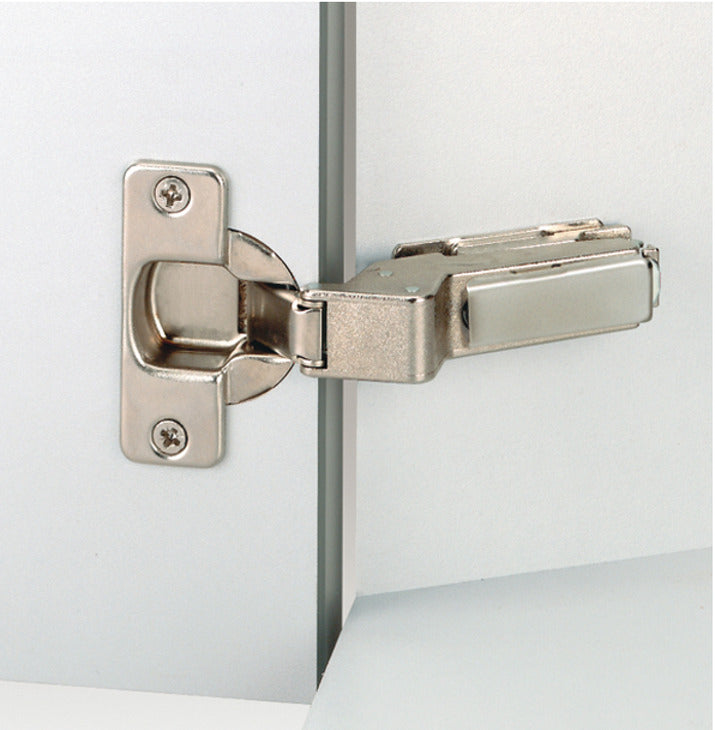

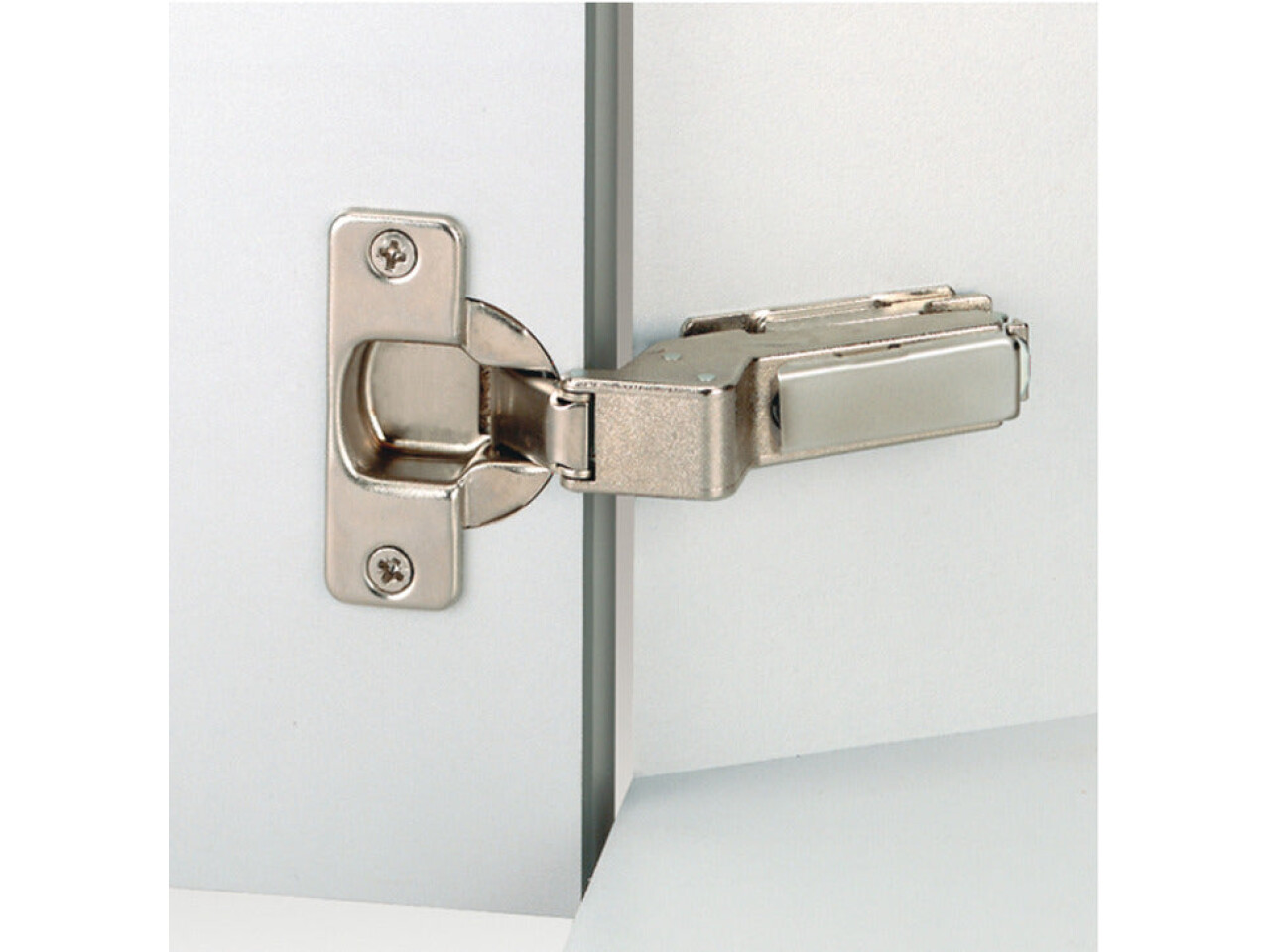

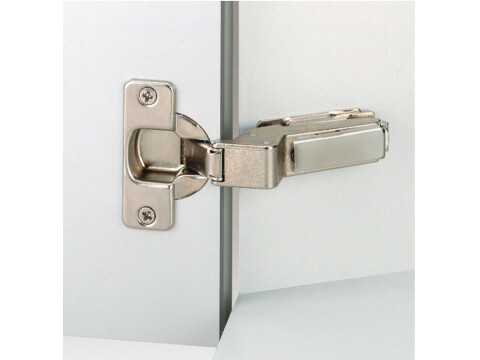

Nexis 95/45D Hinge Sprung Click SF
Part Number: 322.29.531
Soft close compatible, Screw fixing cup, click on arm, 48/9
Price:
£8.91
Per Item
For 45° angled applications⌀ 35 mm cup Order reference Wide range of mounting plates available, please order... Read More
Product Information
Product Details

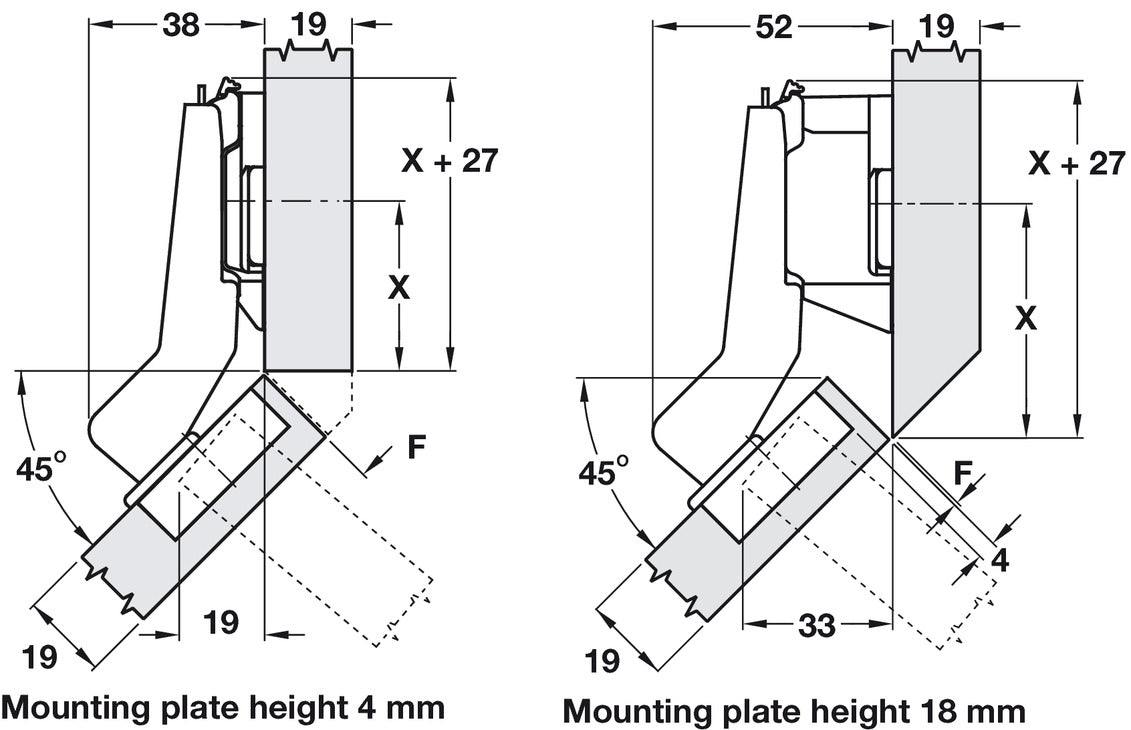

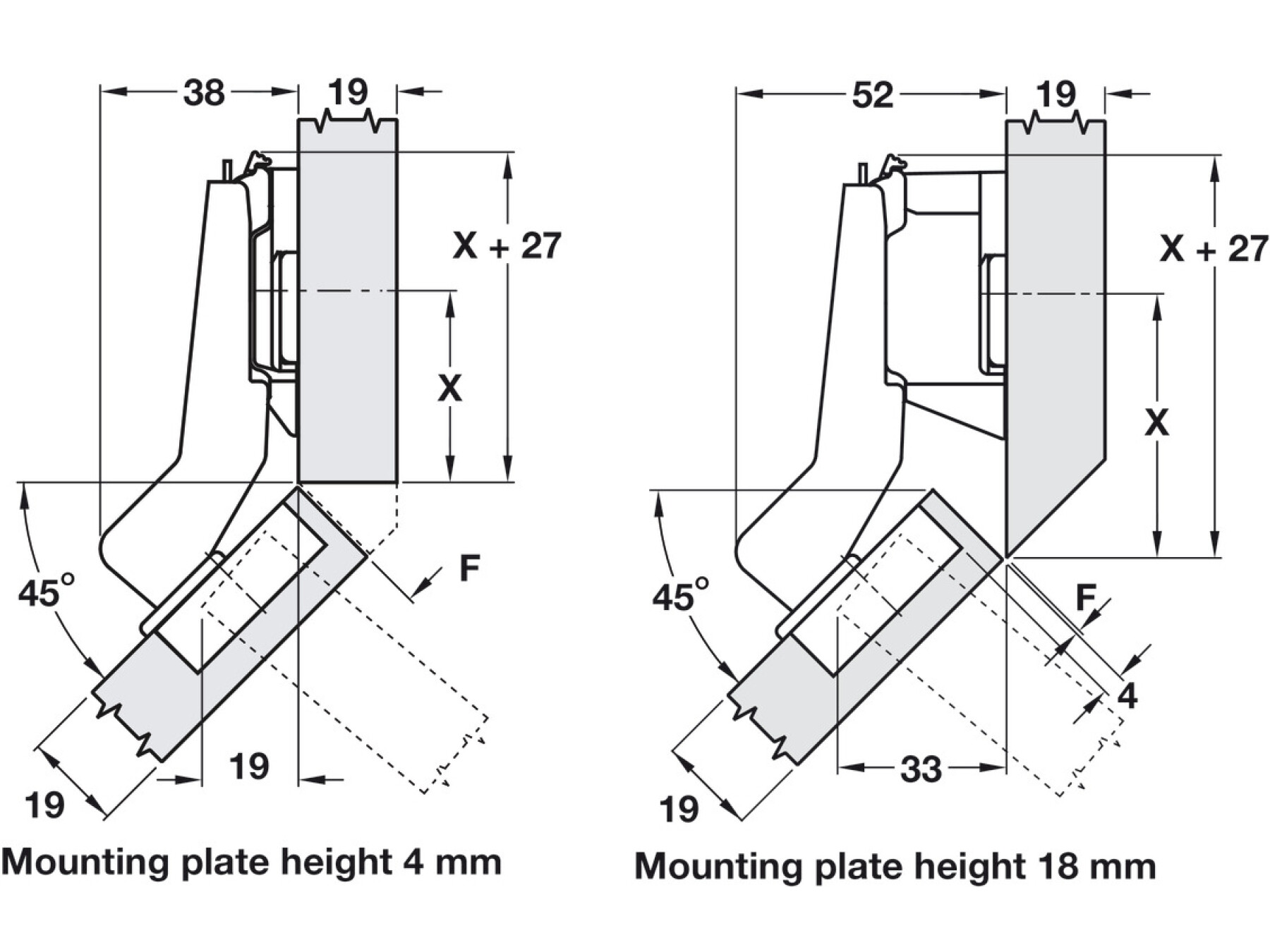

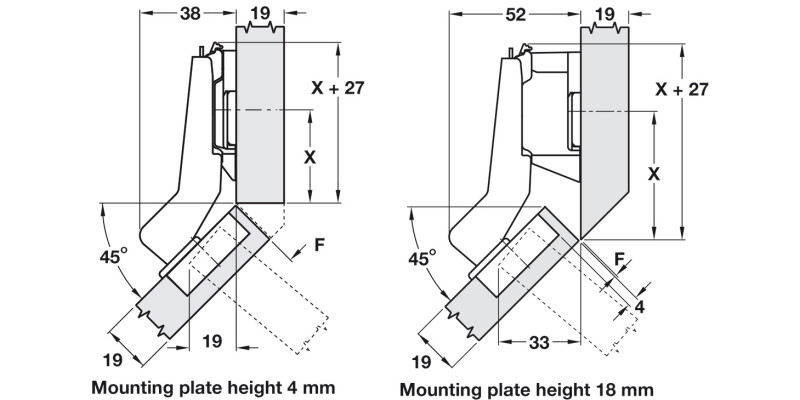

For 45° angled applications
⌀ 35 mm cup
Order reference

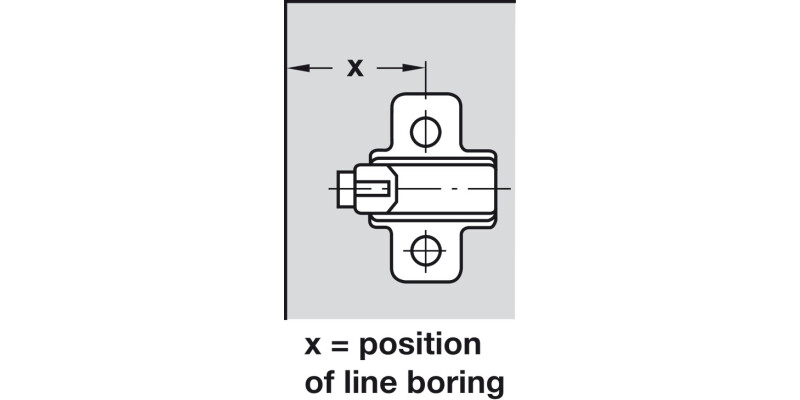

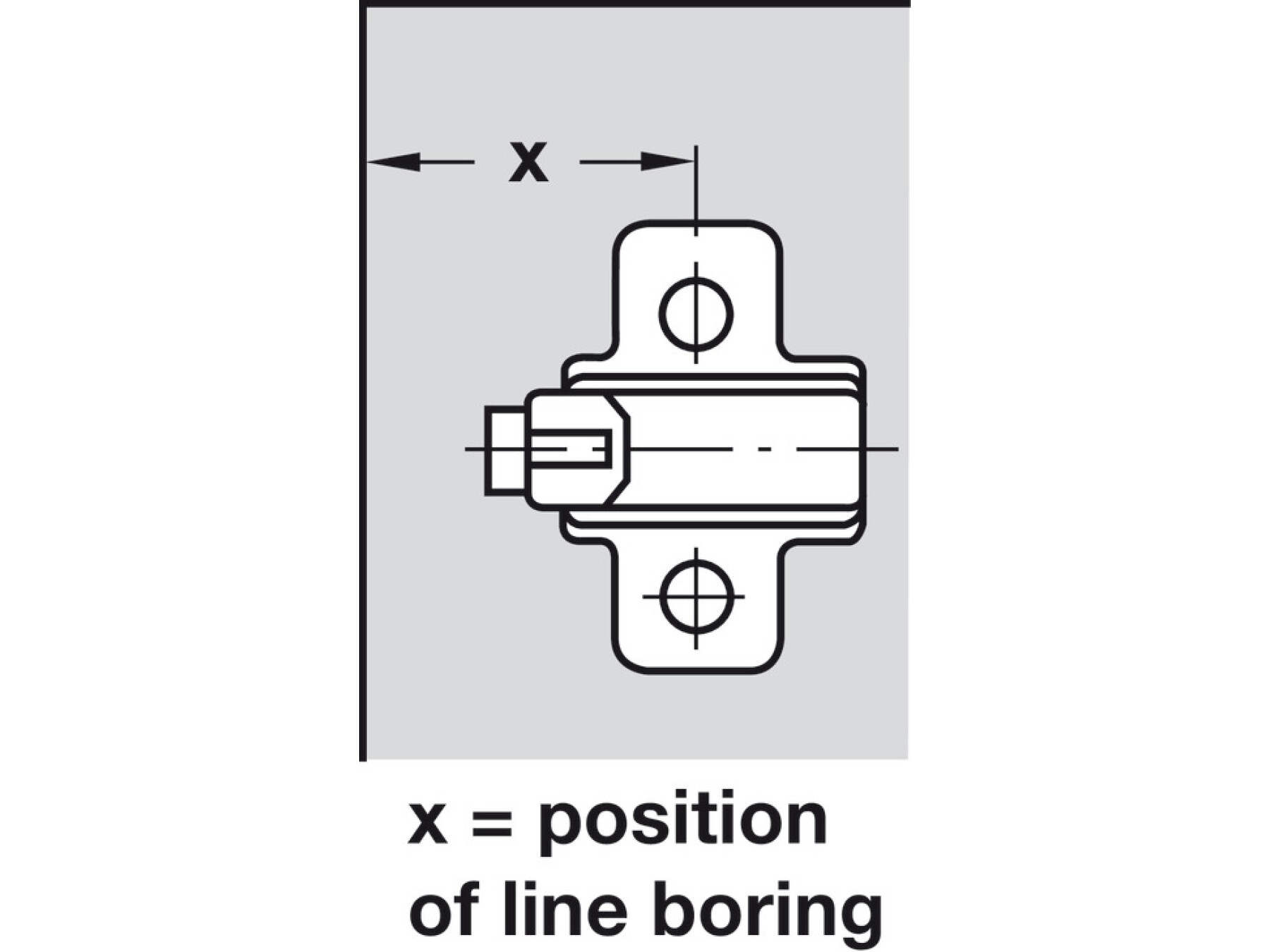

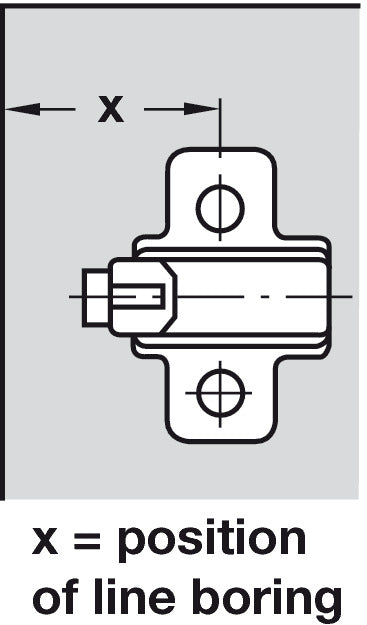

Wide range of mounting plates available, please order separately
Order Hospa ⌀ 3.5 mm countersunk screws separately
Specifications
Area of application
For 45° angled applications
Version
Click on
Functionality
With spring
Concealed hinge version
Angled application
Crank type
High Cranked
Door processing for assembly
with cup drilling
Material
Cup: Steel, Hinge arm: Zinc alloy
Colour/finish
nickel plated
Opening angle
95°

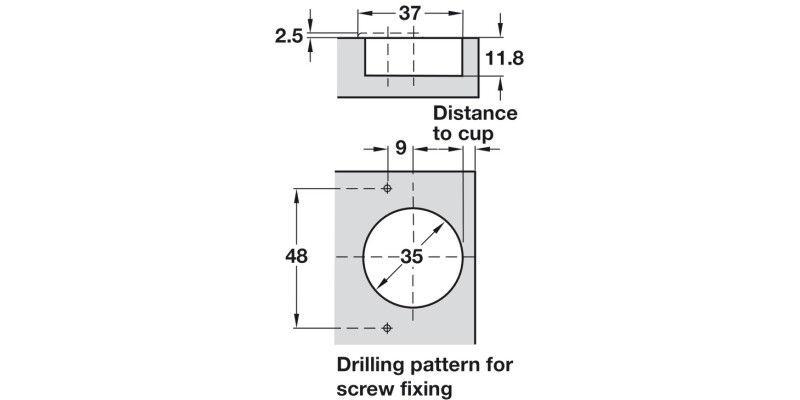

Cup drilling depth
11.80 mm
Cup drilling Ø
35.00 mm
Cup fixing
for screw fixing

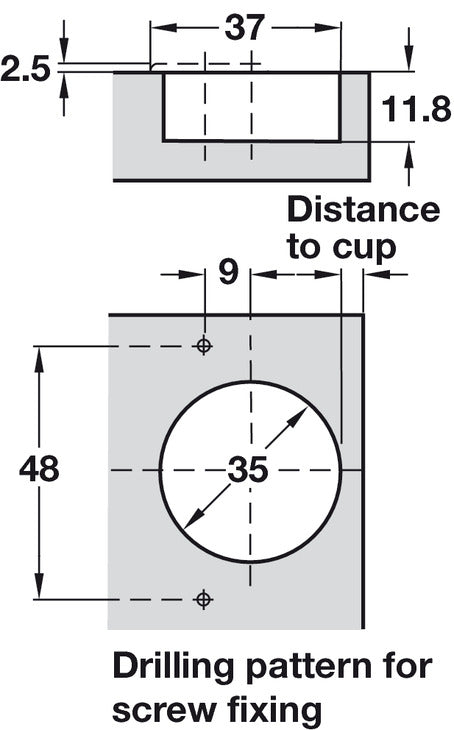

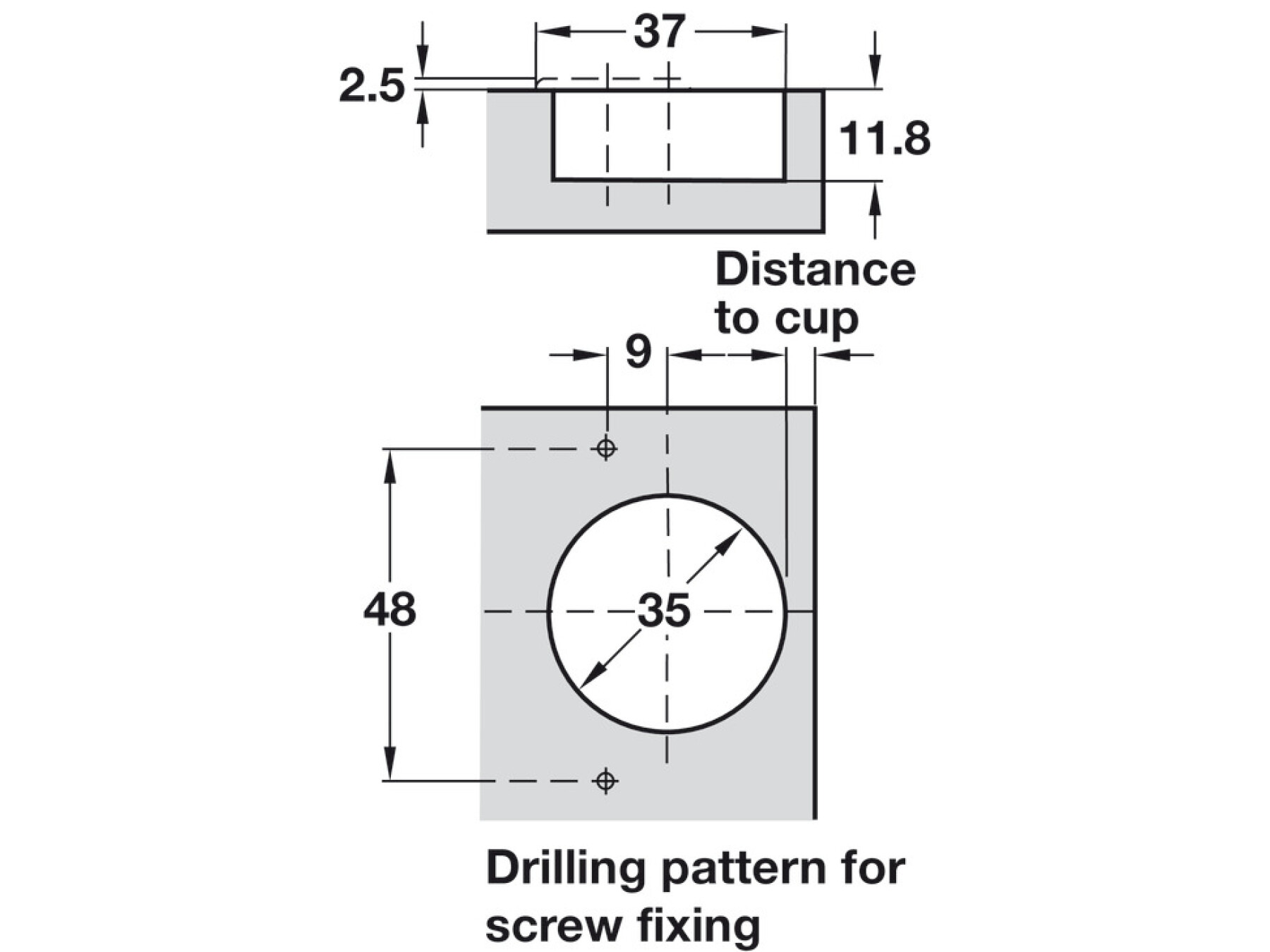

Drilling pattern
48/9
