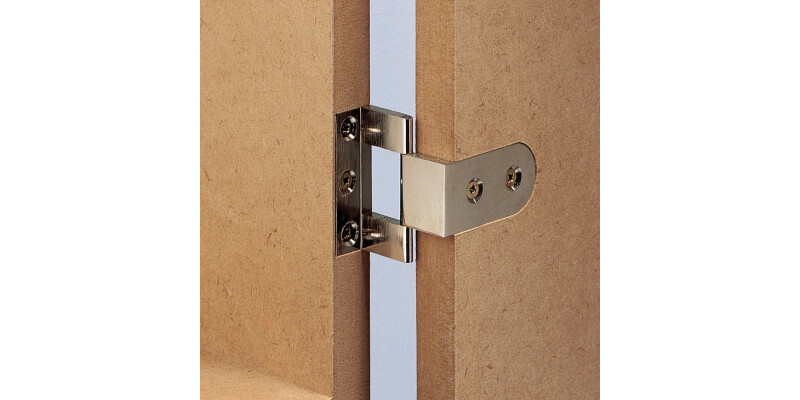

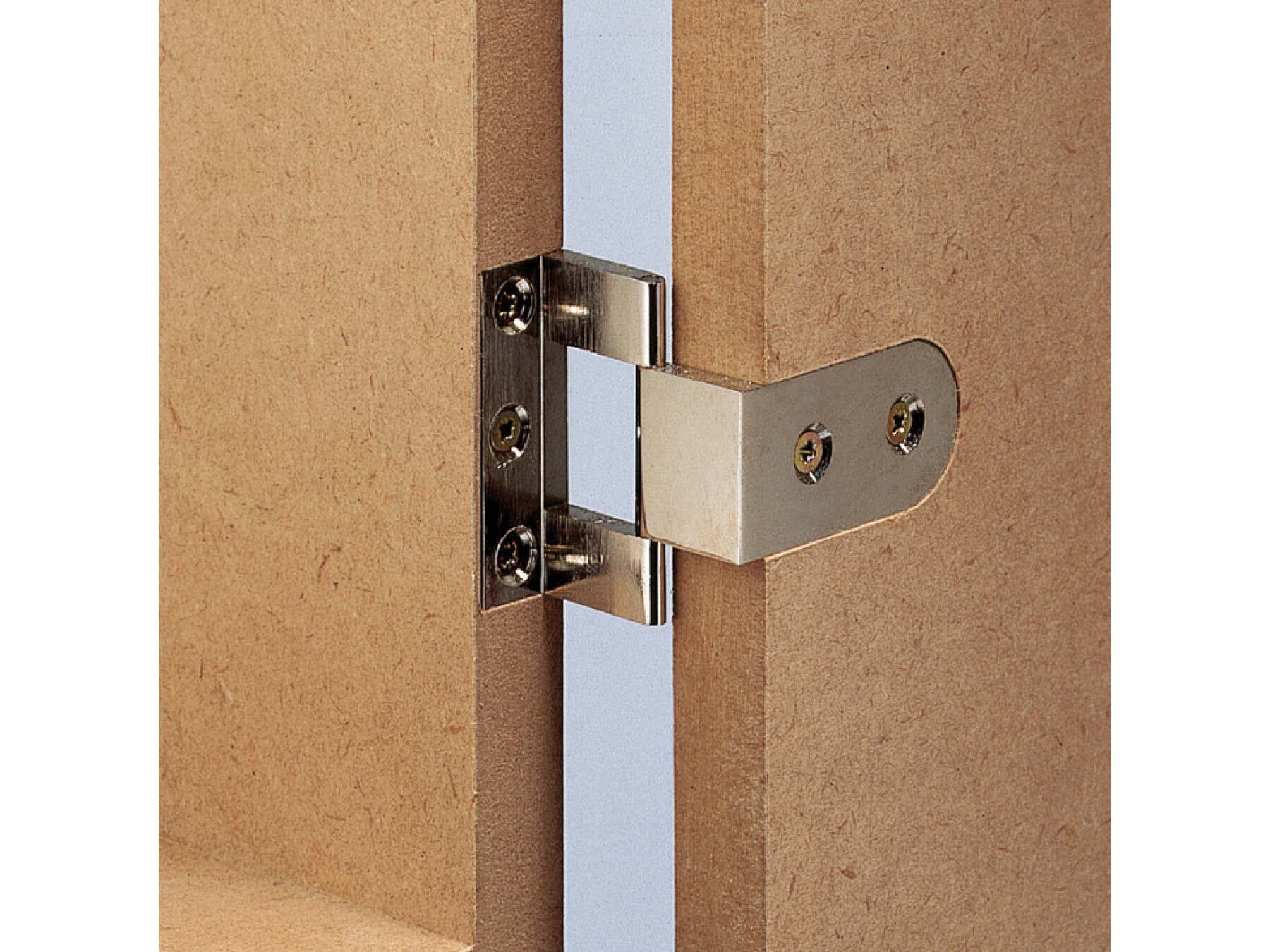

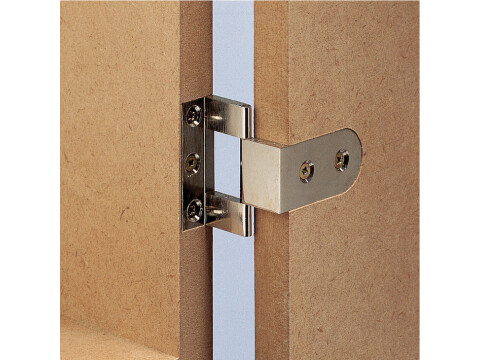

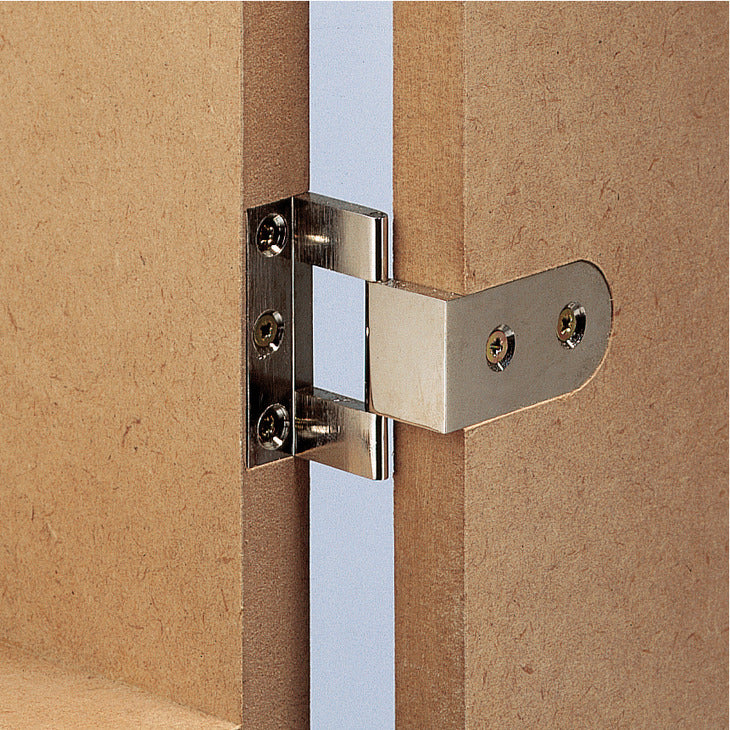

Neuform Hinge 40mm 19-20mm Brass Pol
Part Number: 307.04.806
For door thickness 19-20 mm, for side panel thickness from 17 mm, polished
Price:
£11.88
Per Item

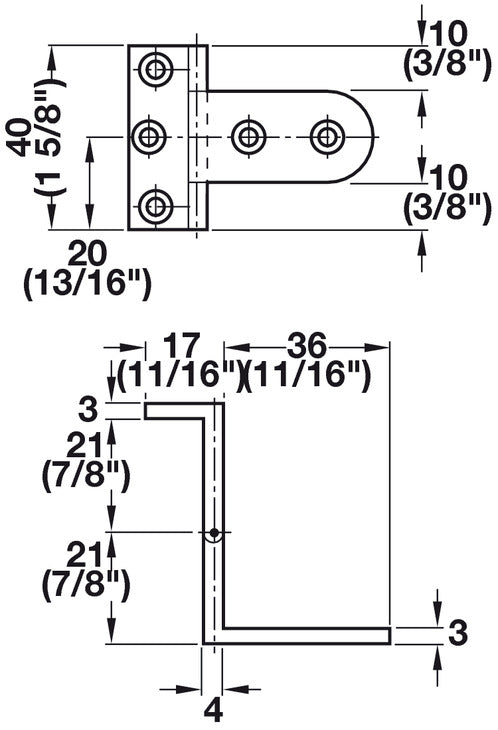

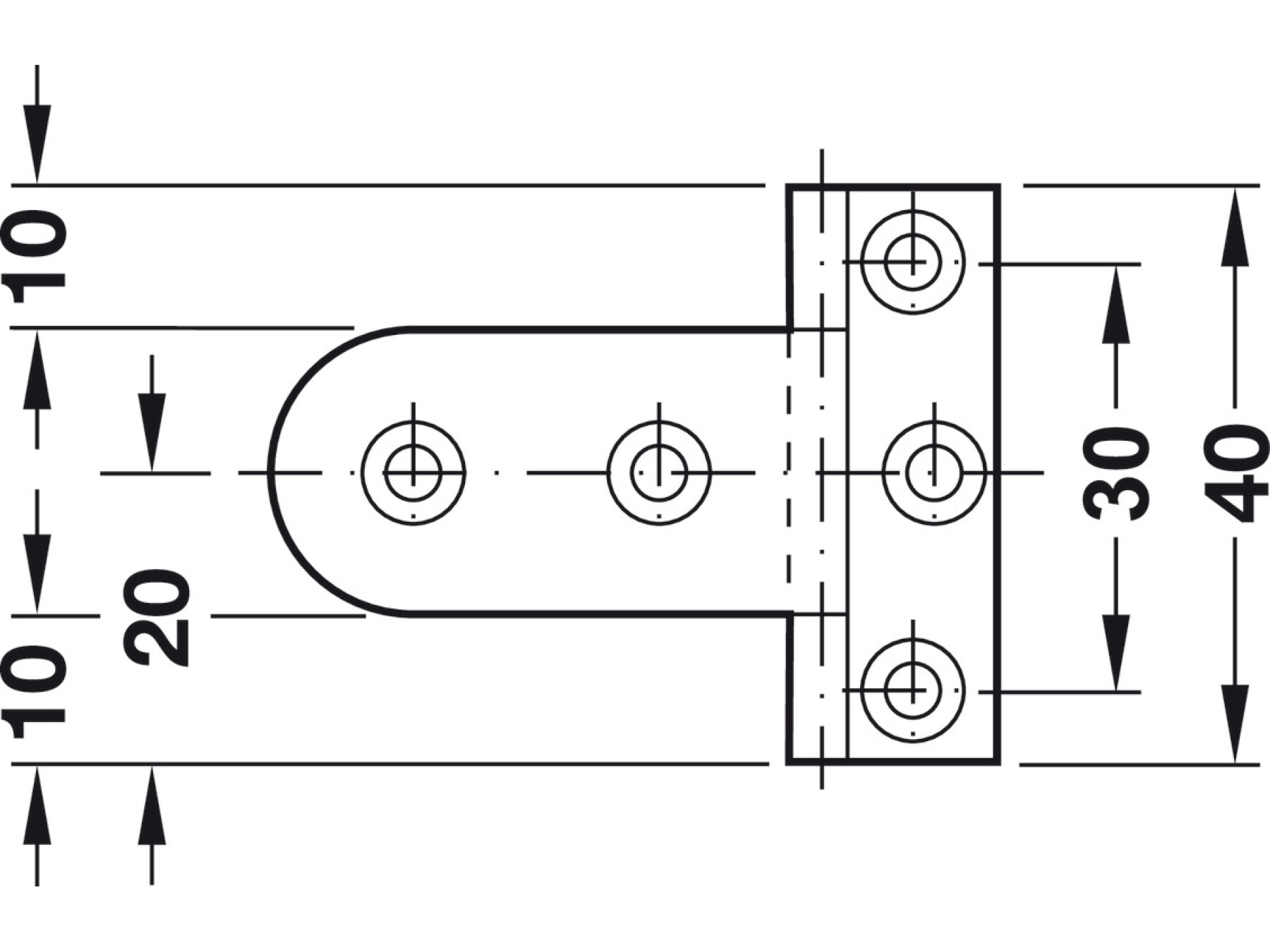

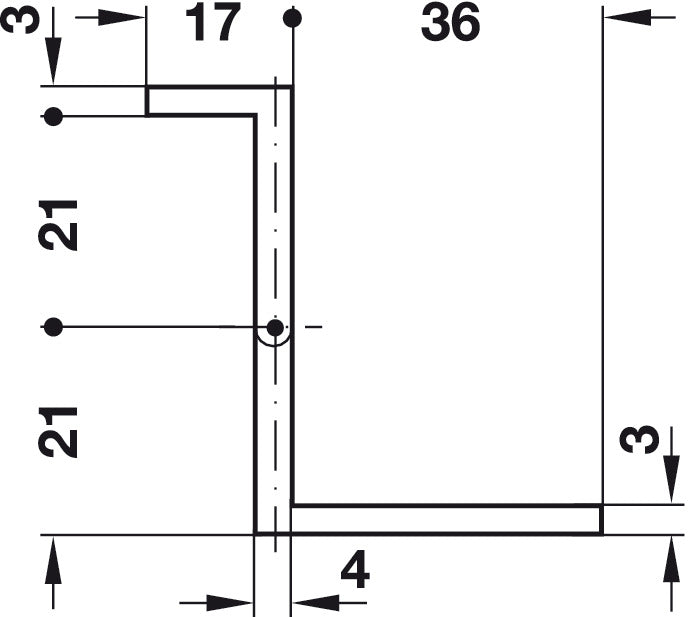

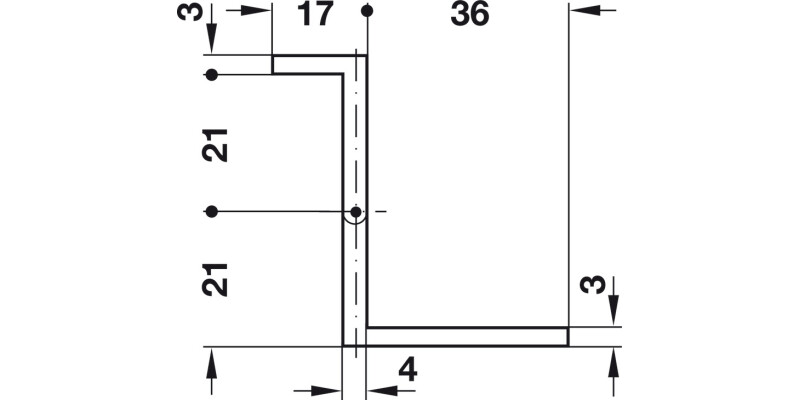

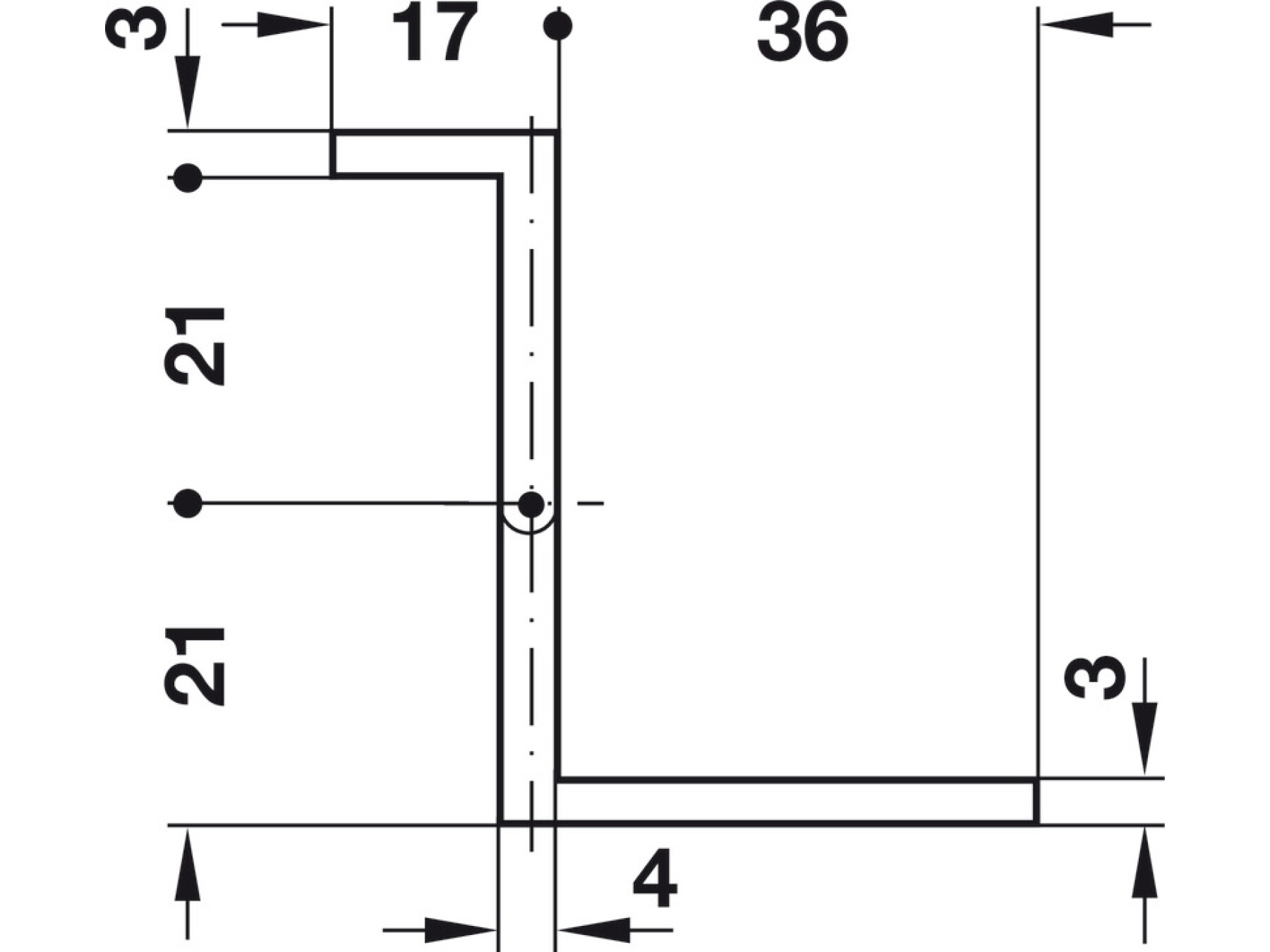

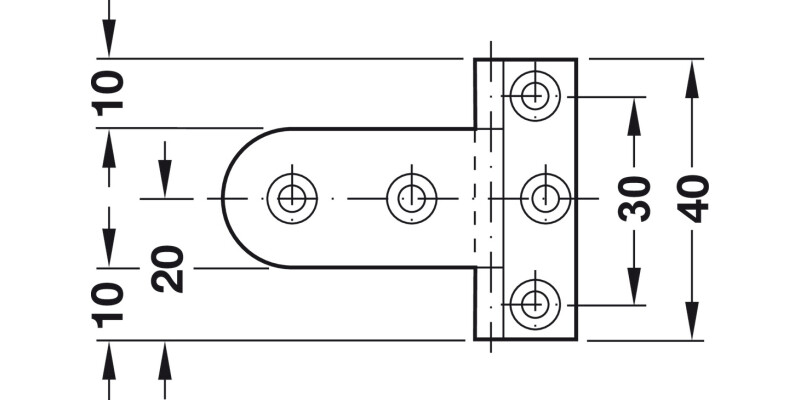

Product Information
Specifications
Material
Drawn profiled brass
Length
40.00 mm
Flange thickness
4.00 mm
Number of drill holes
5.00
Mounting
left or right
Product category
Butt Hinge
Area of application
For overlay doors
Crank type
L1
Flange shape
rounded / square
For door thickness
19 – 21 mm
Side panel thickness
≥17 mm
Installation
For screw fixing, Ø 4 mm barrel
Order reference
Order Hospa Ø 3.5 mm countersunk screws separately
