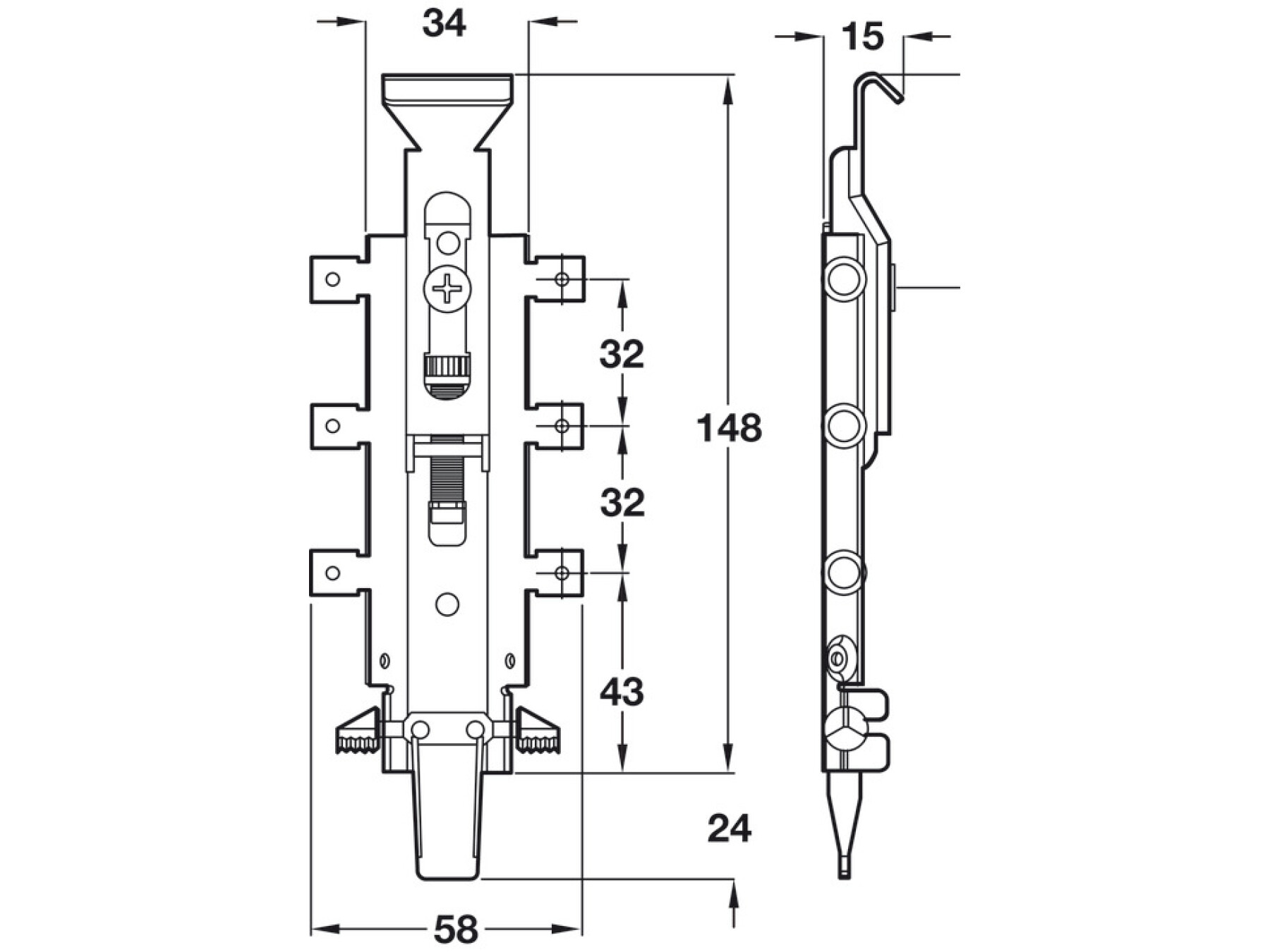

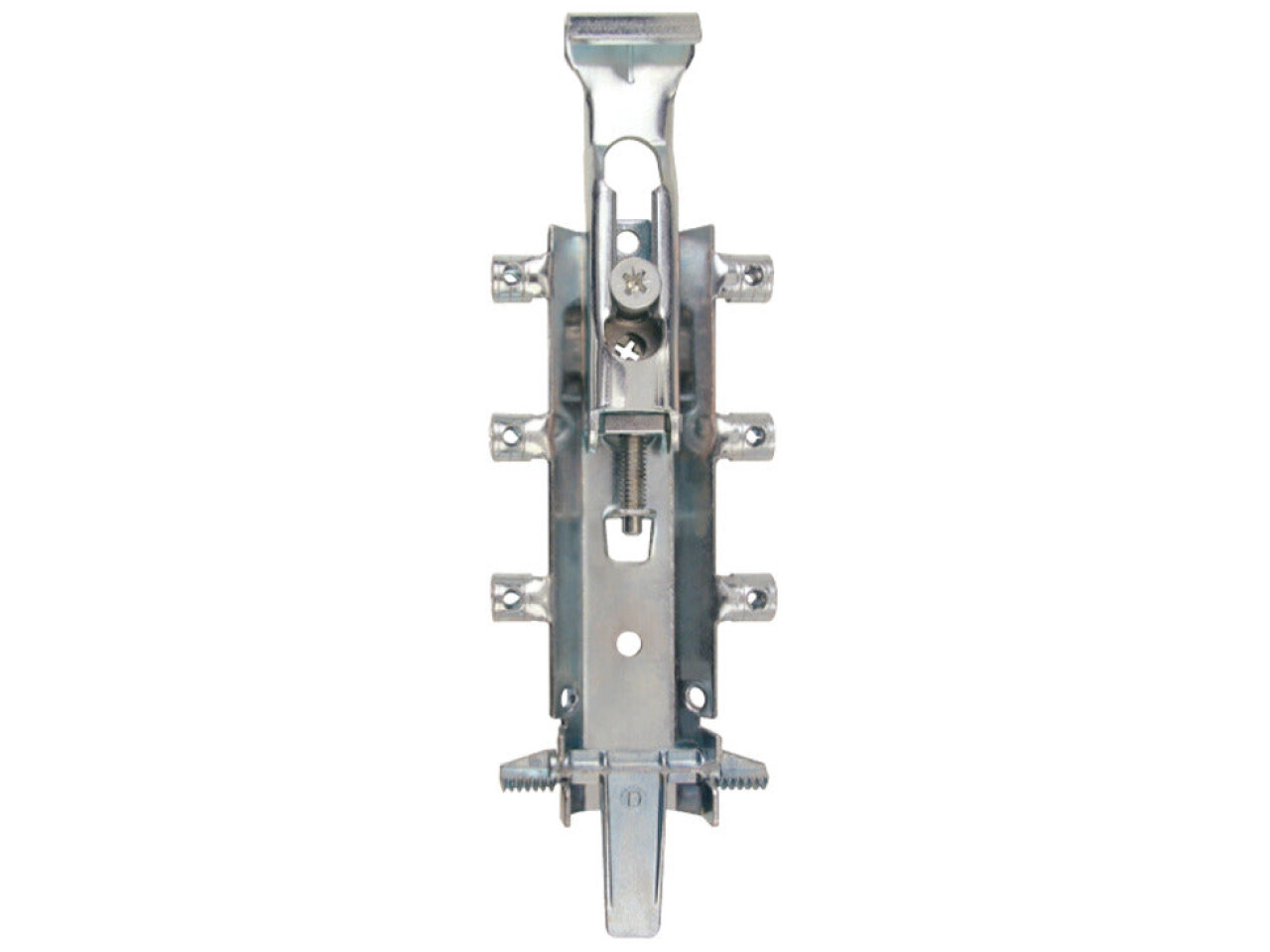

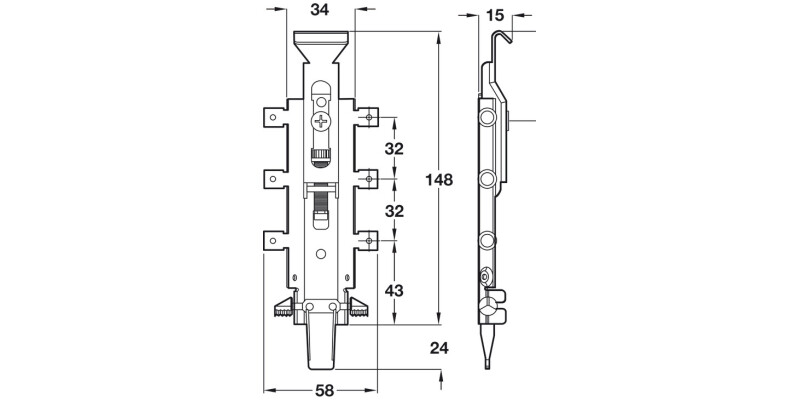

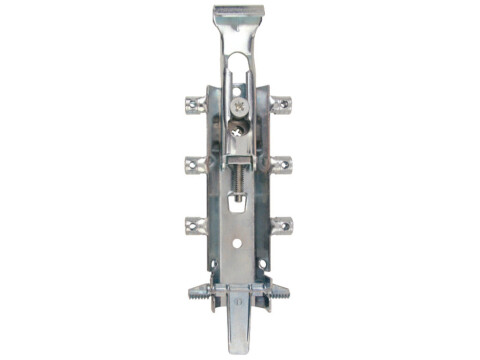

Spider Cabinet Hanger Conc Dowel SZP
Part Number: 290.36.910
Unhanded
Price:
£2.64
Per Item
Cabinet hanger concealed behind rear panel, only cover cap visible inside the cabinetInstallation Dowels/Screw... Read More
Product Information
Product Details
Cabinet hanger concealed behind rear panel, only cover cap visible inside the cabinet
Installation

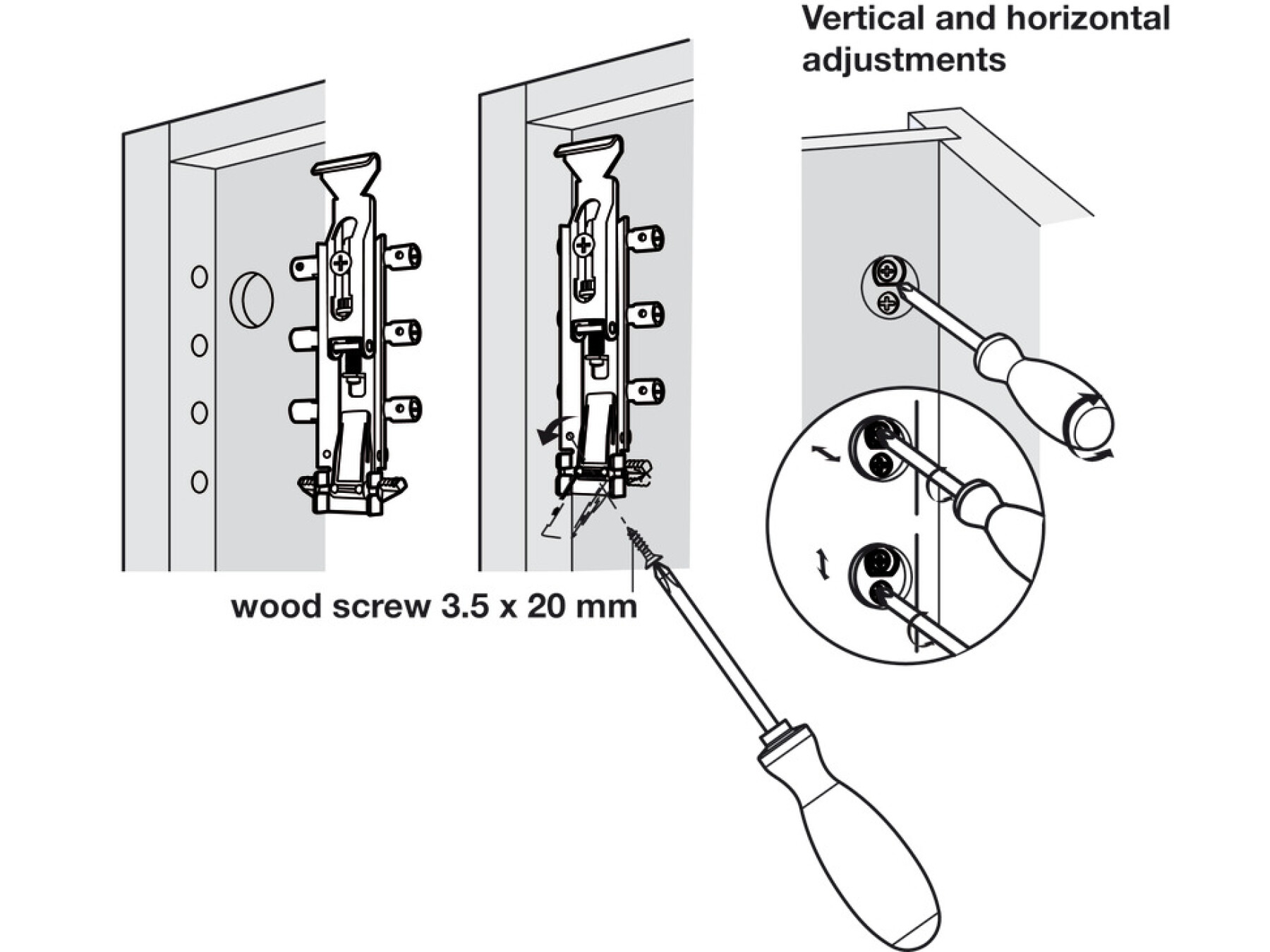

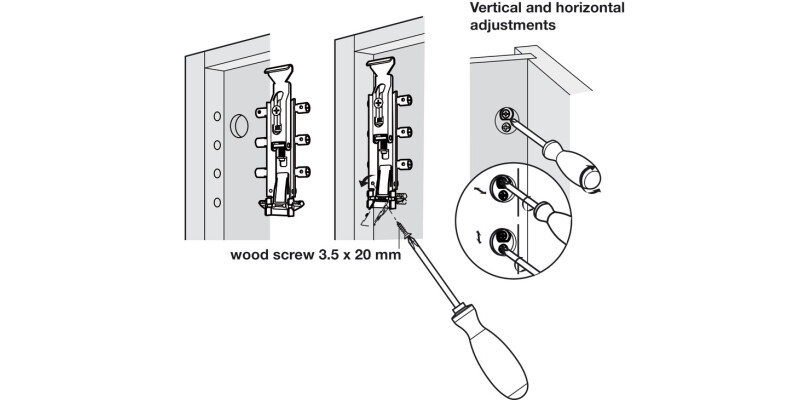

Dowels/Screw mounting:

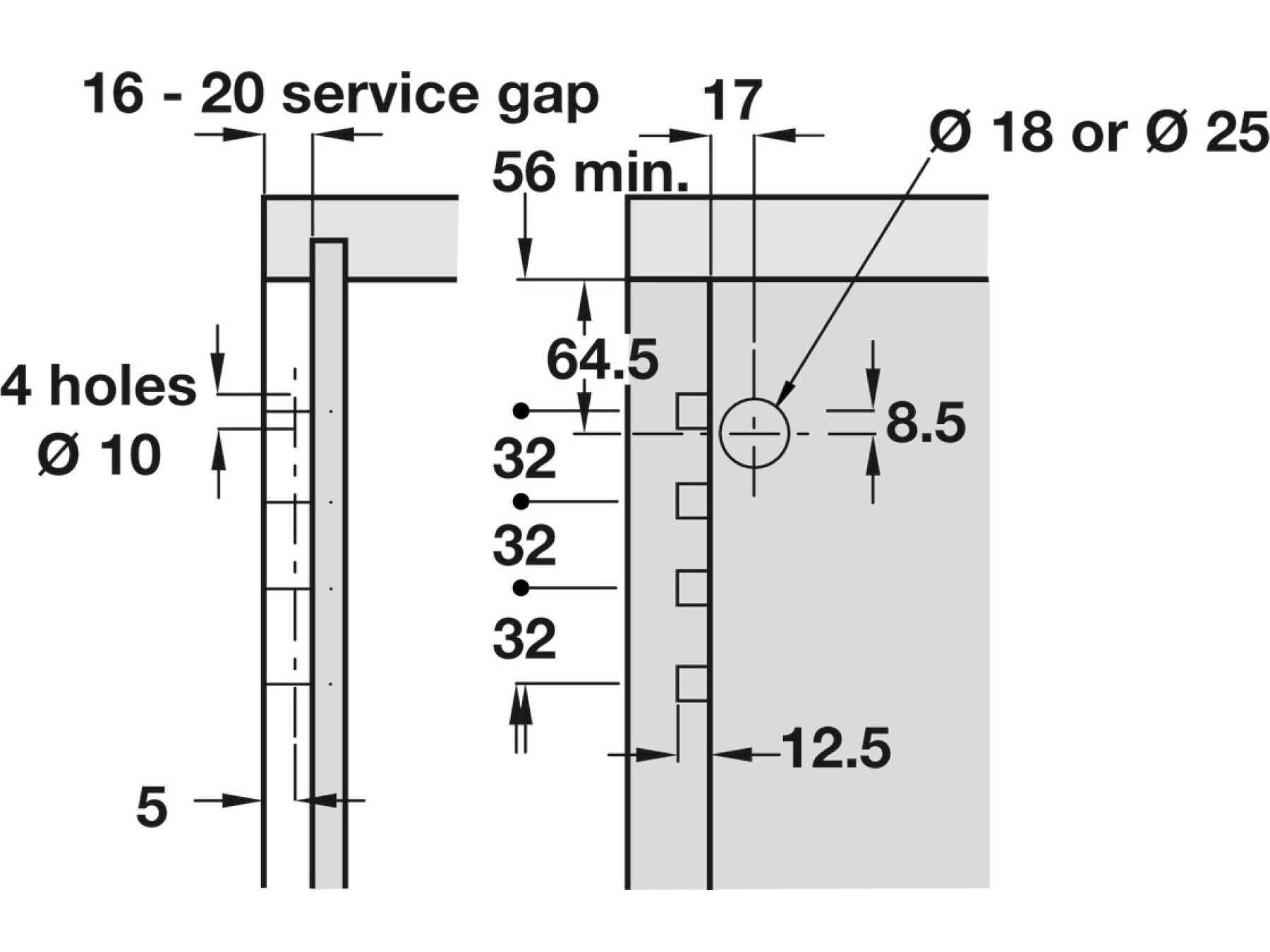

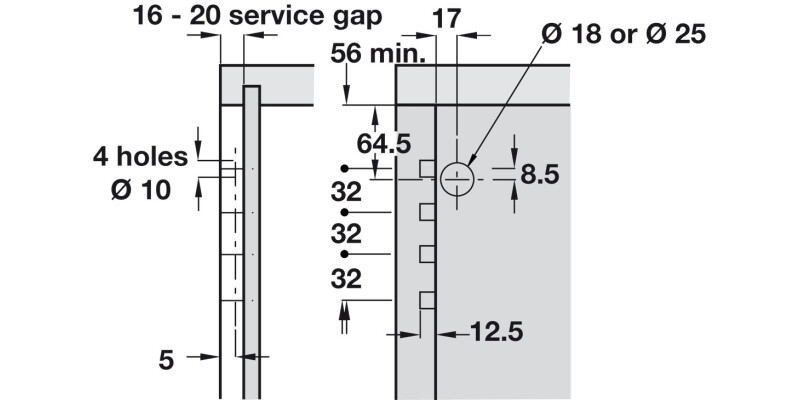

Slots into side cabinet by making four face borings and secured in position by rotating the locking pin with ridges 180°
A 3.5 x 20 mm lateral wood screw permanently secures the cabinet hanger in place (not provided)
Installation note
Two-way adjustment:
Vertical adjustment: 0-18 mm (Vertical adjustments through front gear cross socket interconnected to the vertical bolt, which reduces the cabinet adjustment effort)
Horizontal adjustment: 11-17 mm
Cabinet hangers should only be adjusted with a hand tool and not a power tool
Specifications
Area of application
For hanging wall units
Load bearing capacity per pair
130.00 kg
Order reference
Wall plates and cover caps must be ordered separately
