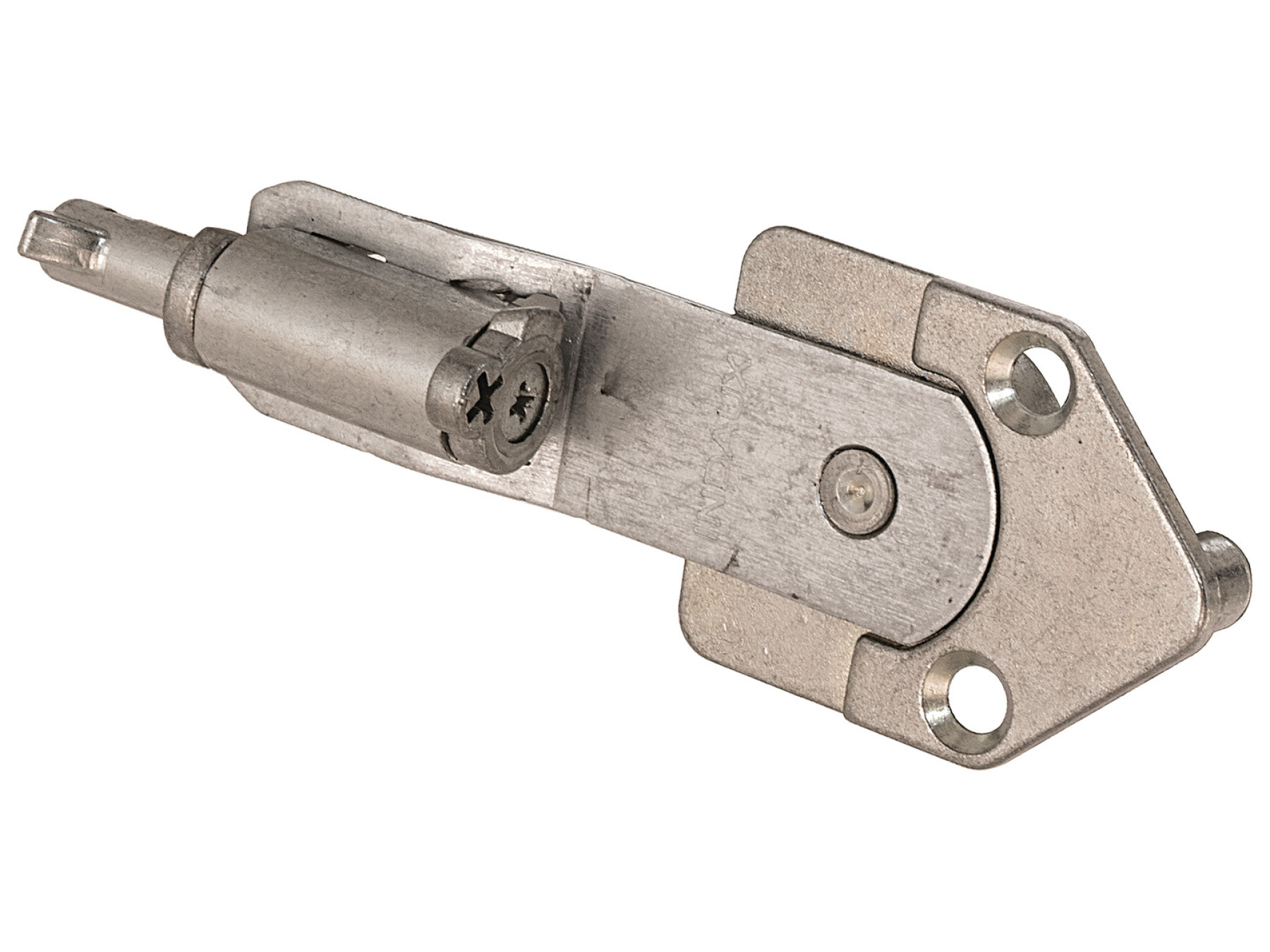

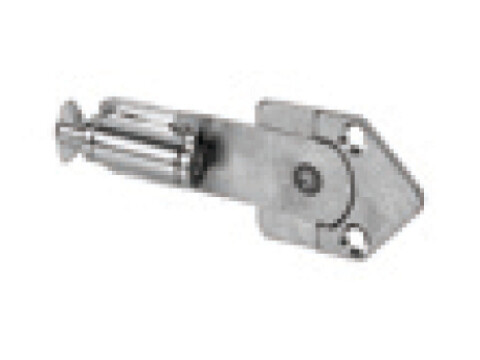

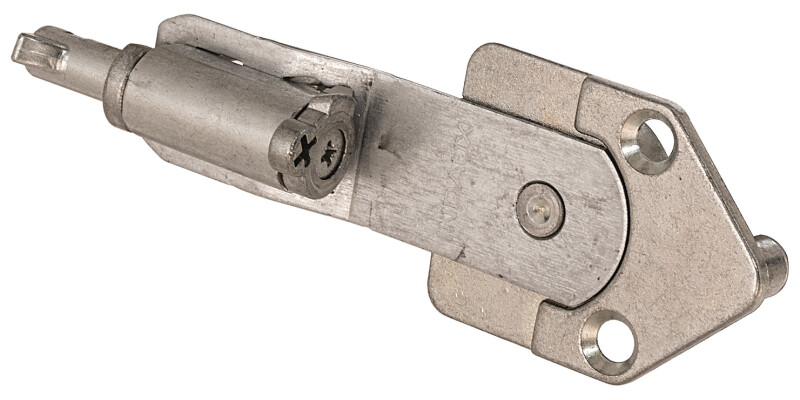

Atlas Cabinet Back Support Universal
Part Number: 290.24.910
Zinc plated
Price:
£2.87
Per Item
For large suspended low furnitureThe perfect solution for heavy loads in suspended kitchens and bathroom... Read More
Product Information
Product Details

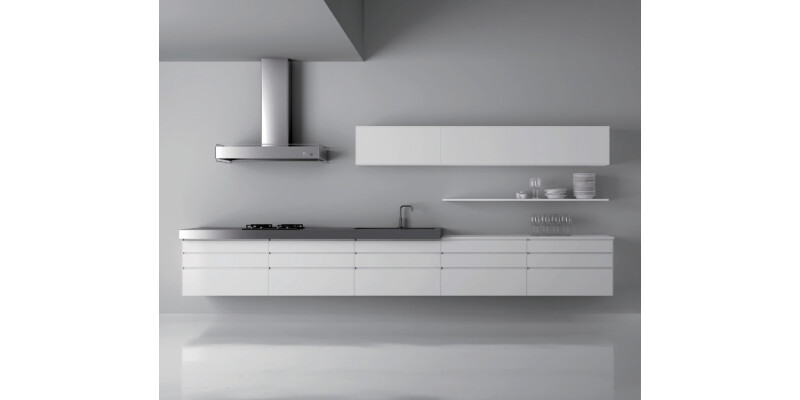

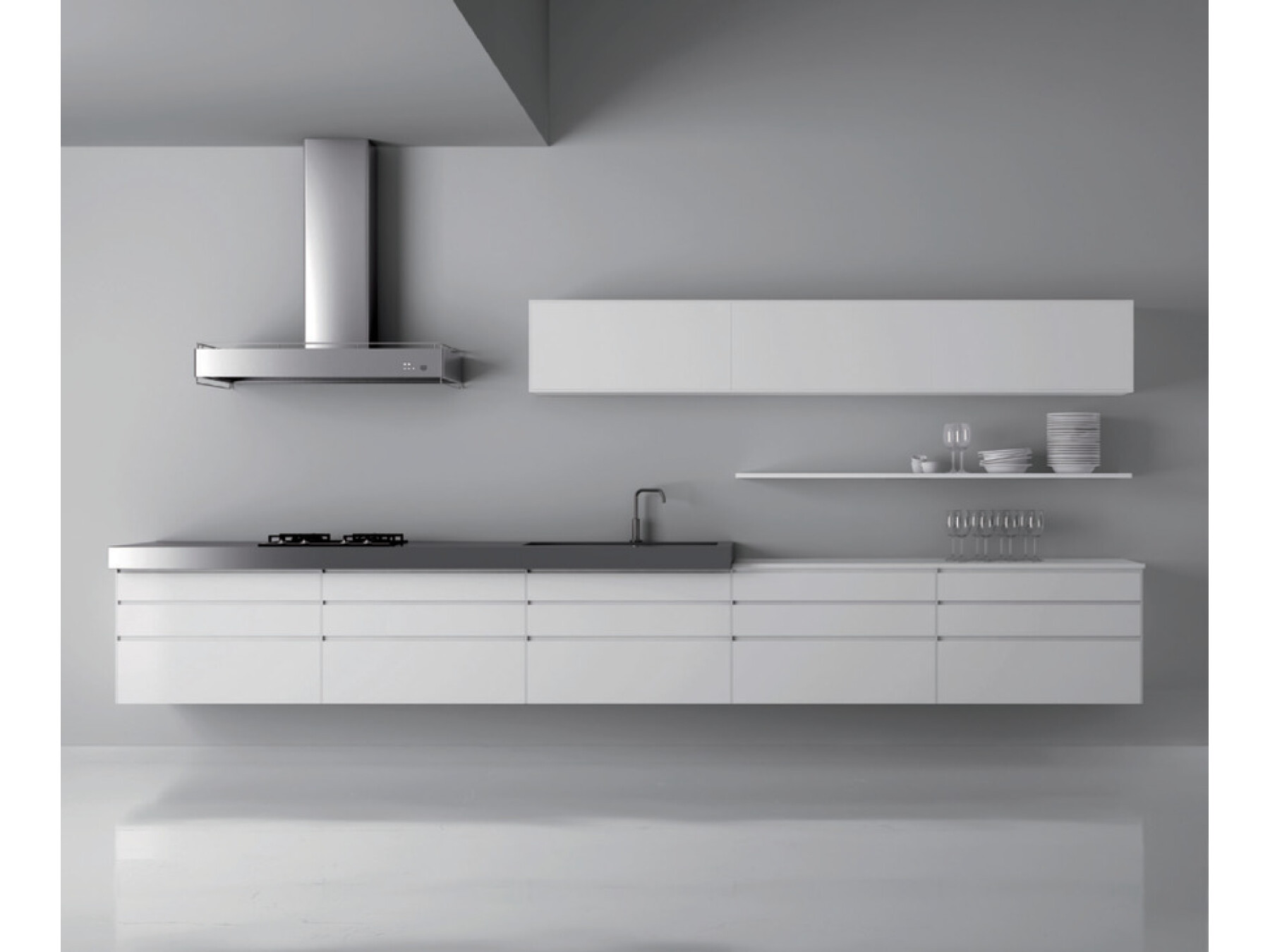

For large suspended low furniture
The perfect solution for heavy loads in suspended kitchens and bathroom cupboards
Maximum safety in the vertical loads, anti-tilt, easy machining and regulation
Hidden wall fixing system which adjusts perfectly to the module
Easy industrial installation can be pre-assembled to ease transport

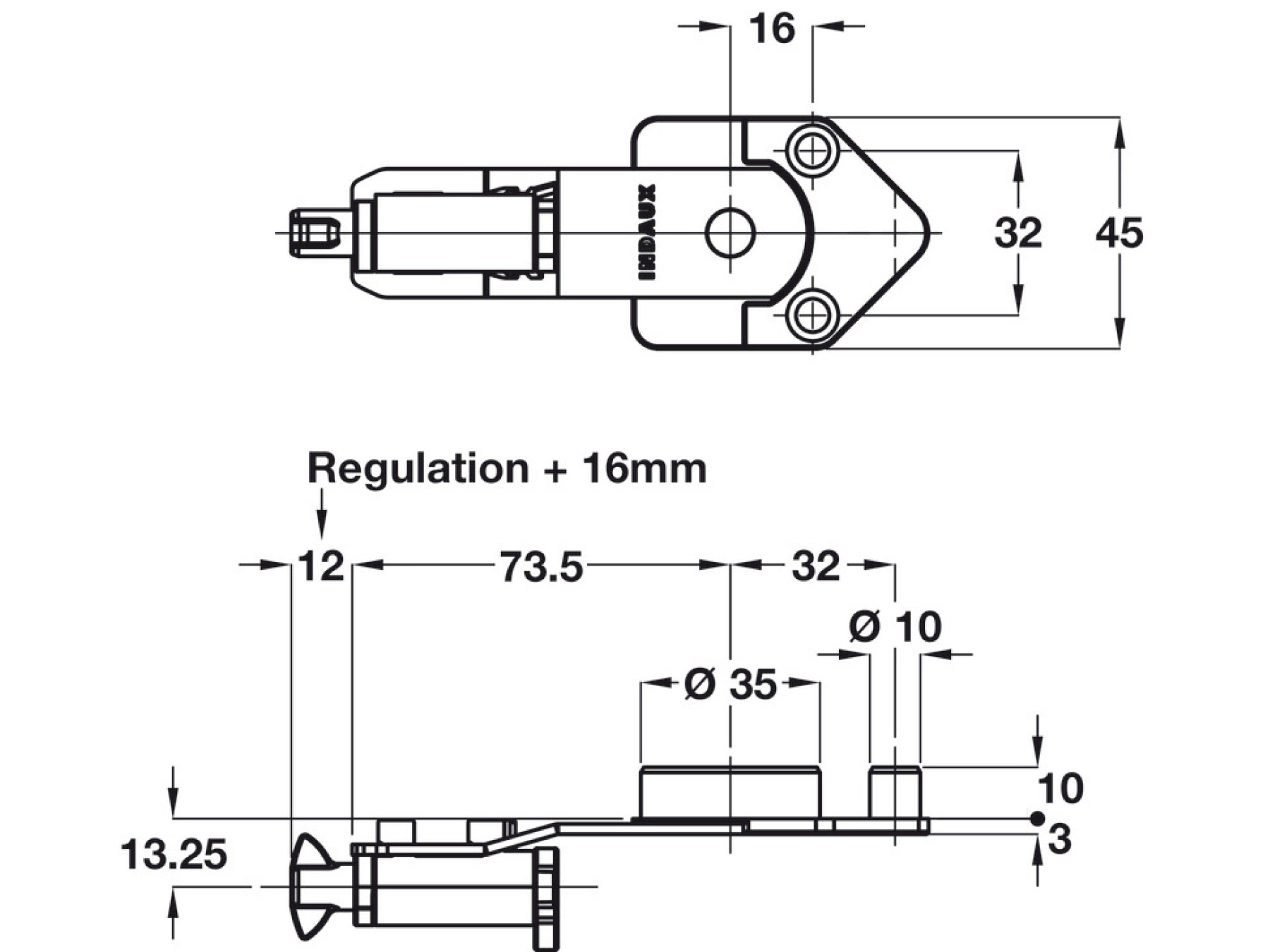

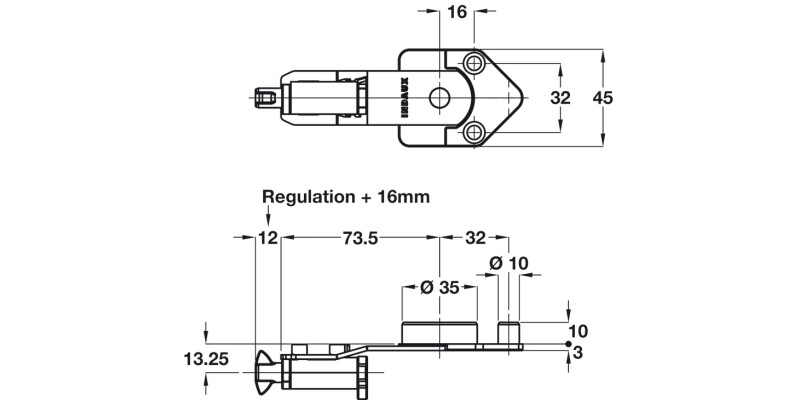

In combination with the lower support fitting, it can be adjusted in depth, vertically and horizontally
Does not interfere with the smooth running of the top doors
Specifications
Colour/finish
galvanized/chromatized
Adjustment facility
Depth adjustment: 5.5
Load bearing capacity
369.00 kg
Note on load bearing capacity
Tests successfully completed with a load of 369 kg
Order reference
Fixing bolts not included, order separately (subject to structure materials)
