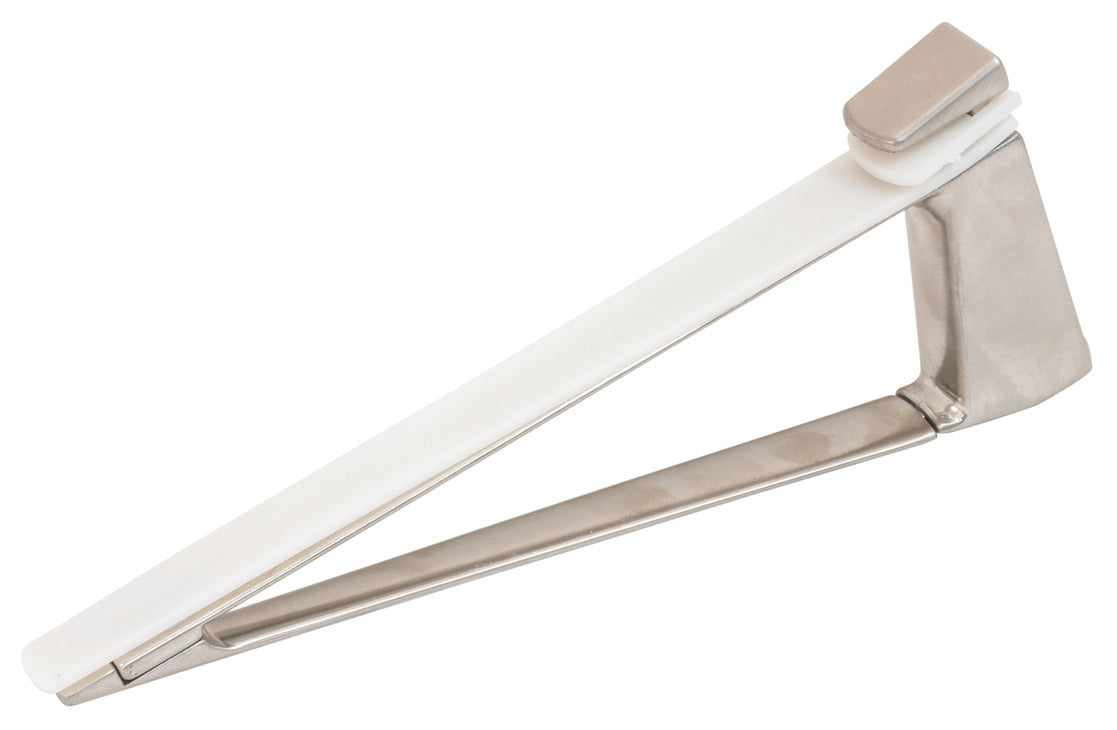

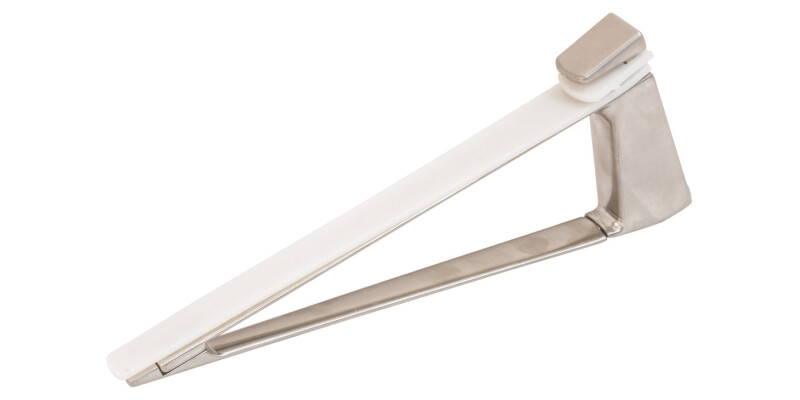

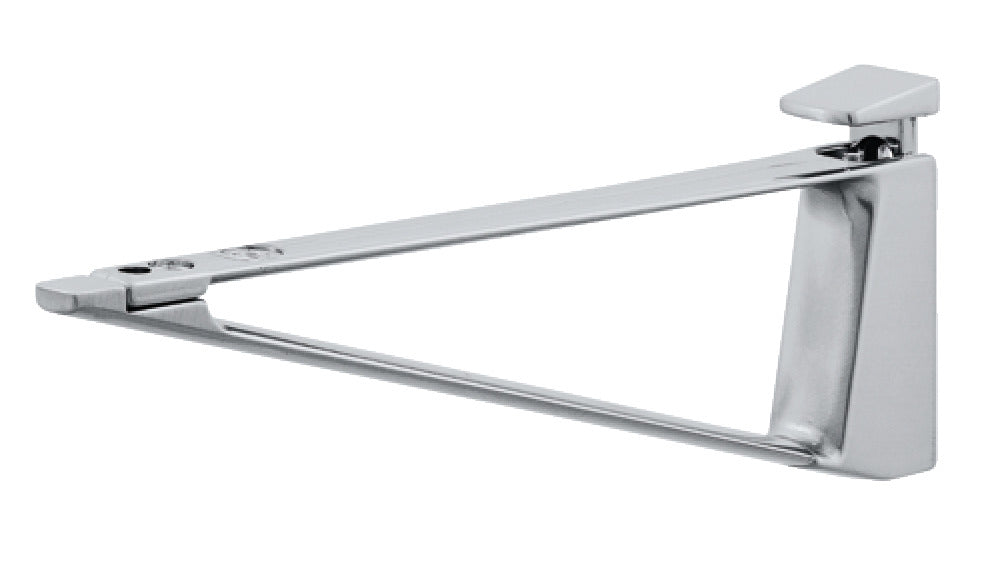

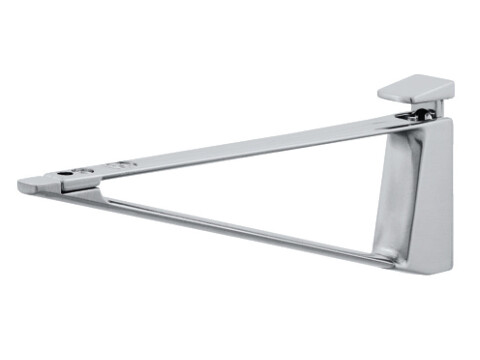

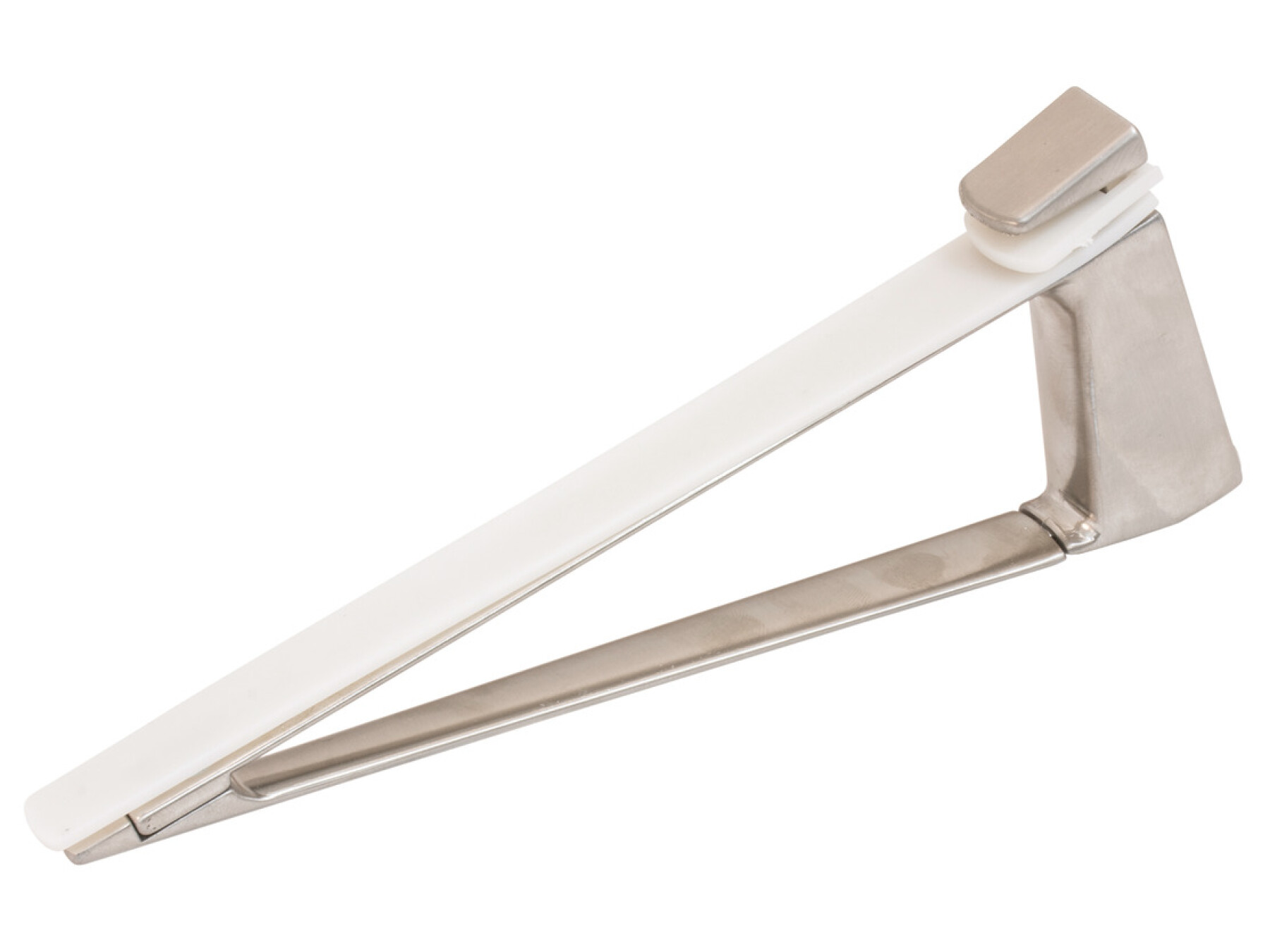

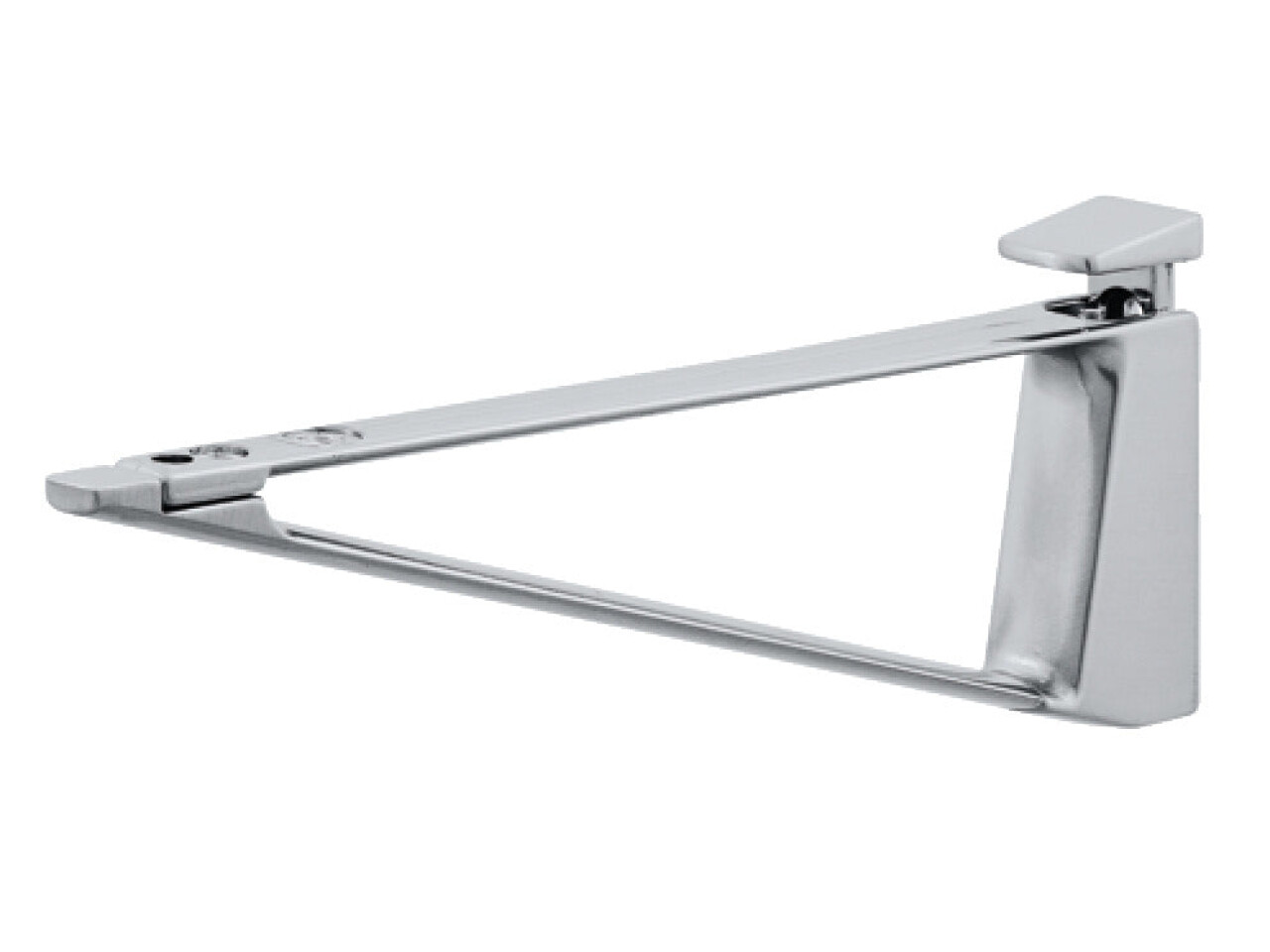

Shelf Clamp Support 4-45mm Screw SS Eff
Part Number: 287.76.010

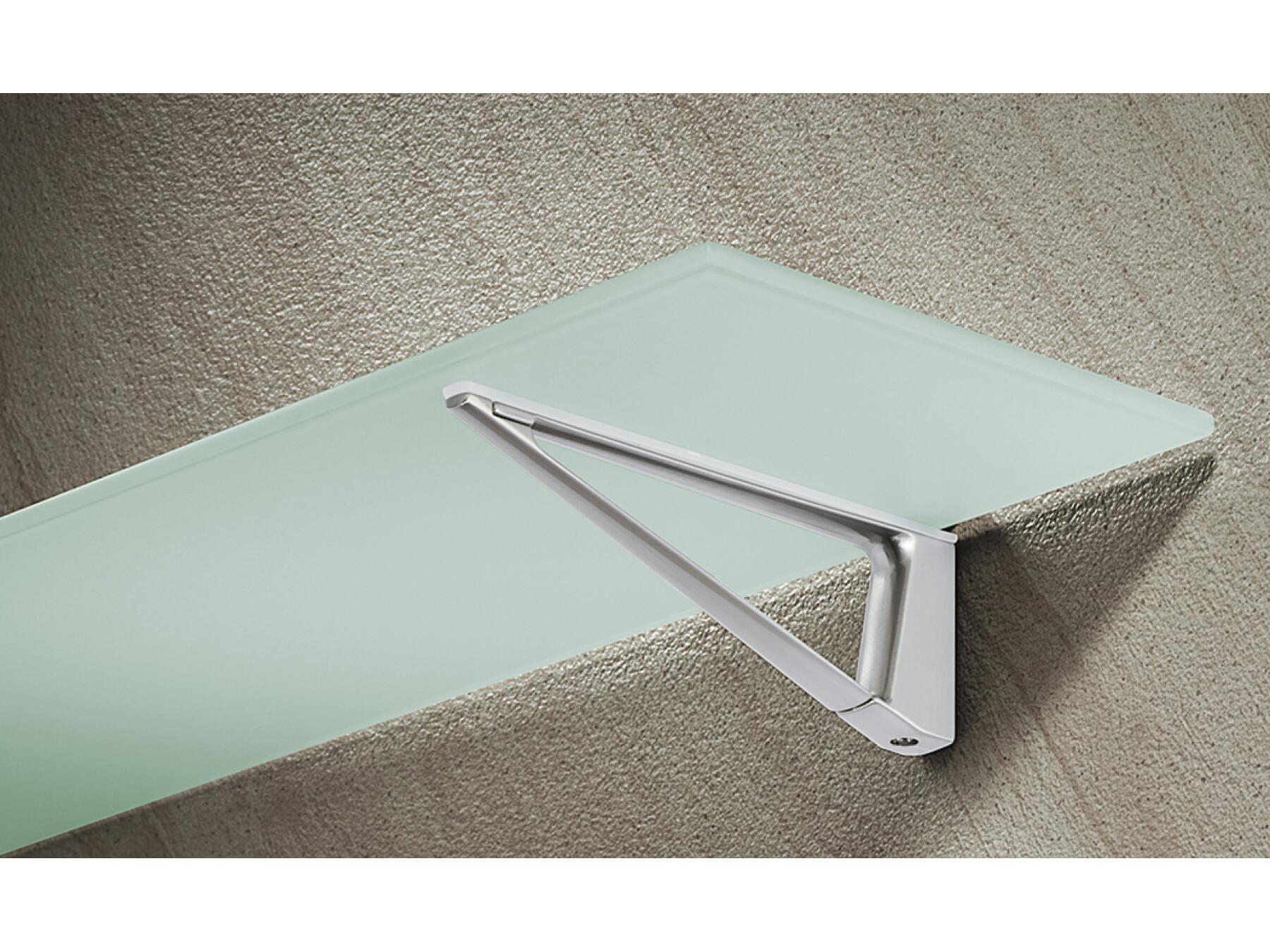

For wooden and glass shelves, Stainless steel effect
Price:
£56.19
Per Item
Shelf depth: min 170 mm, max. 210Spacing between brackets: max. 700 mm Note on load bearing capacity 17 kg per... Read More
Product Information
Product Details
Shelf depth: min 170 mm, max. 210
Spacing between brackets: max. 700 mm
Note on load bearing capacity
17 kg per piece, tested to DIN EN 16337:2013-08 with 1.7 kg plate for impact test with shelf size 1,000 x 210 x 38 mm,
i.e. 34 kg load bearing capacity with surface load and 2 supports
max. distance between two shelf supports: 700 mm.
The specified load bearing capacity applies only with proper and reliable attachment to the wall.
Specifications
Application

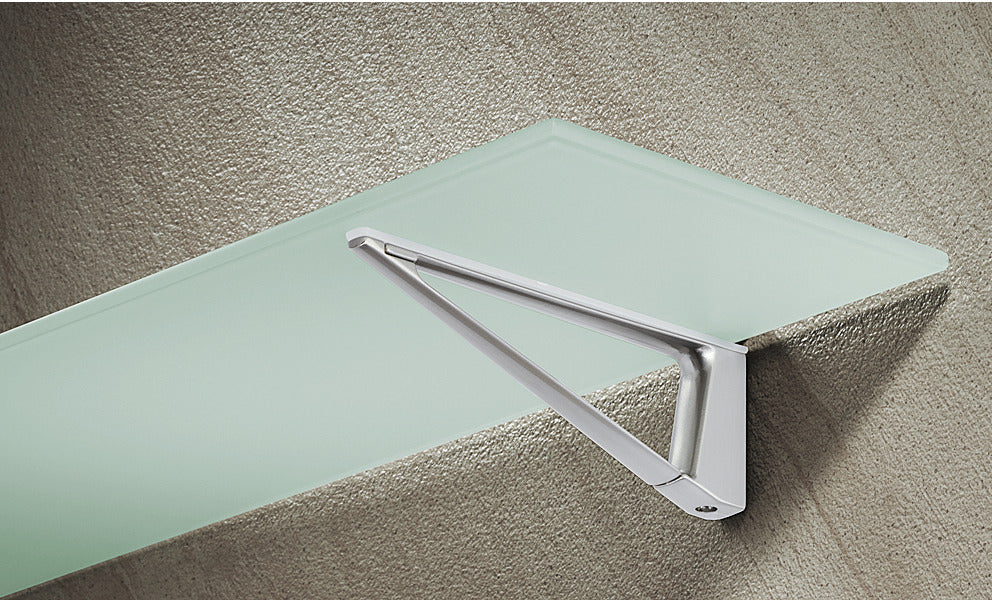

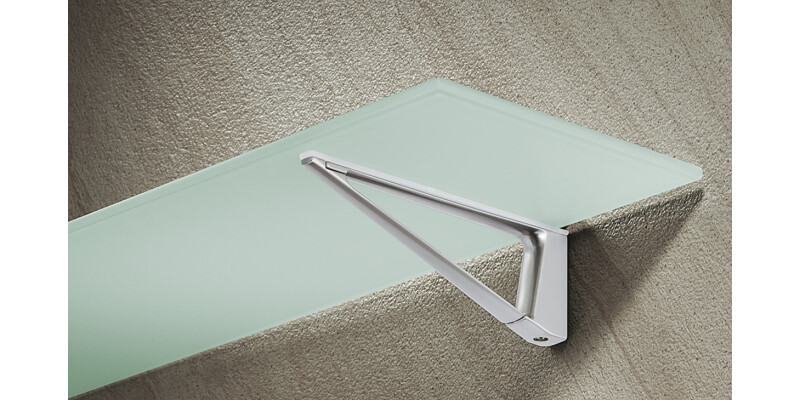

For wooden and glass shelves
For shelf thickness
4 – 45 mm

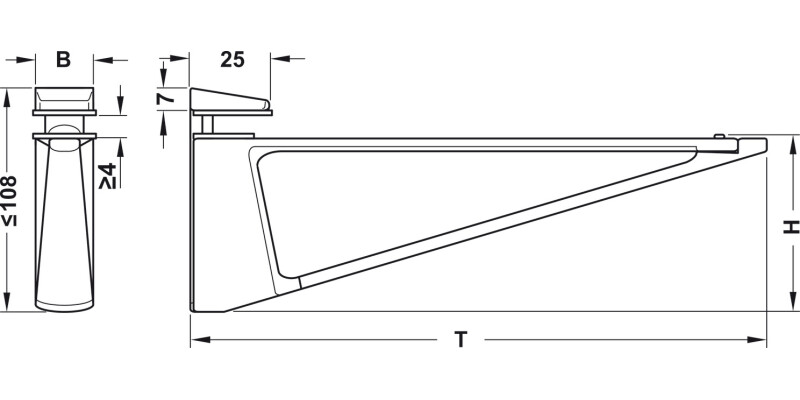

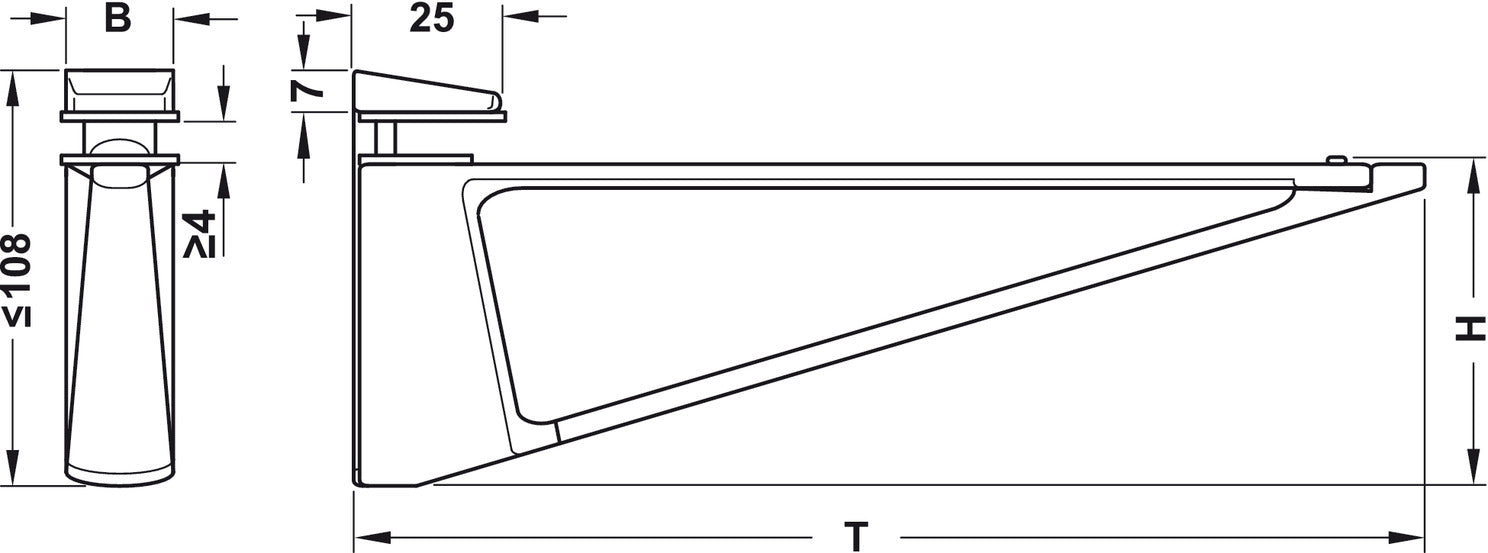

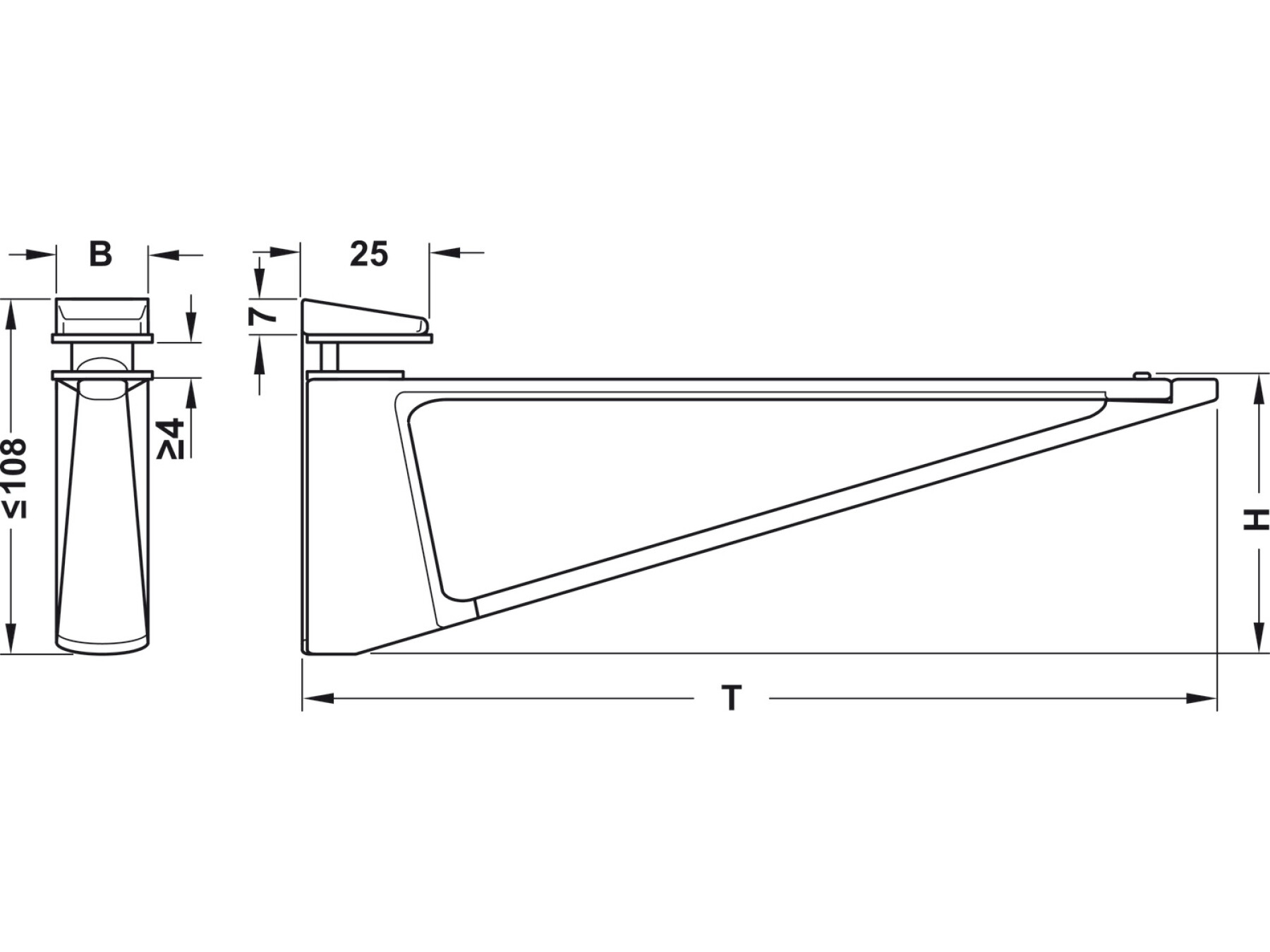

Dim. (W x D x H)
18 x 180 x 55 mm
Material
Zinc alloy
Load bearing capacity per item
17.00 kg
Installation
For screw fixing to support element
Shelf is secured by tightening with clamps
Installation note
Shelf depth: min 170 mm, max. 210
Spacing between brackets: max. 700 mm
