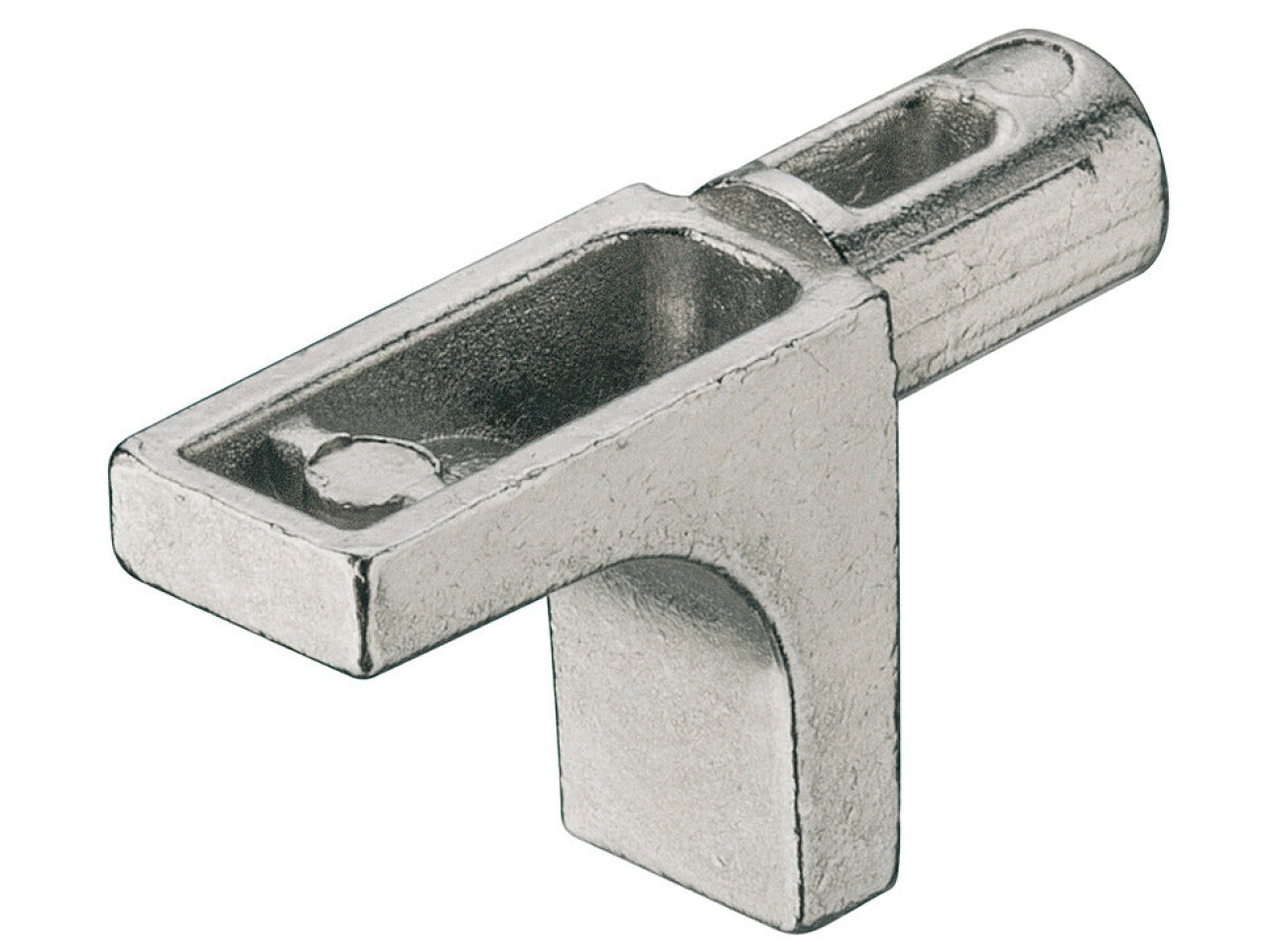

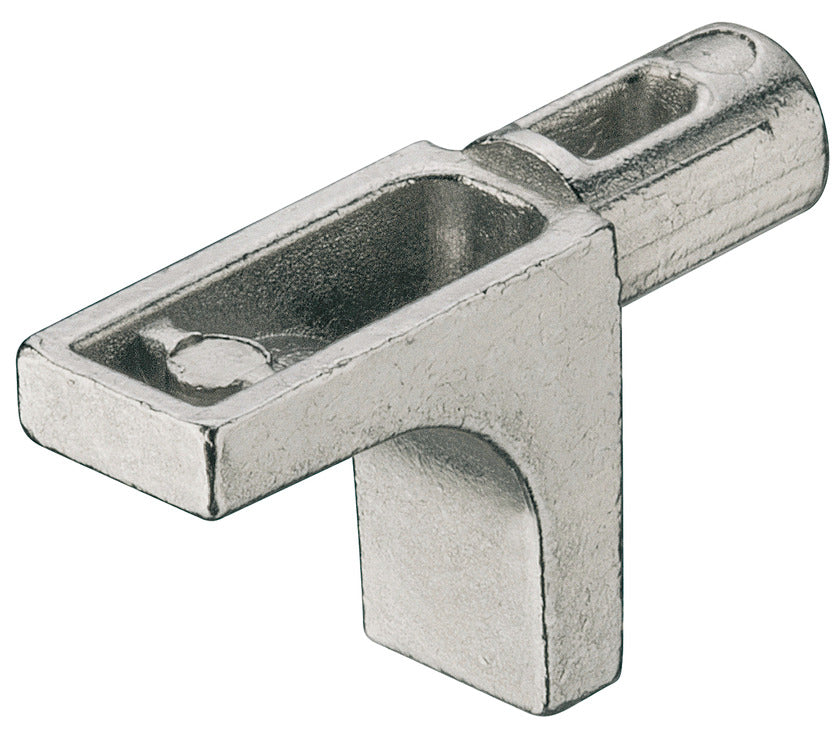

K Line Shelf Support D5mm Plug Trans
Part Number: 284.84.990
Transparent
Price:
£5.50
Per 100 Pack
Achieve a consistent look by using the K Line shelf support; one design available for either glass or wooden... Read More
Product Information
Product Details
Achieve a consistent look by using the K Line shelf support; one design available for either glass or wooden shelves
Note on load bearing capacity
Load bearing capacity per item, tested in accordance with DIN EN 16337:2013-08 with 1.7 kg plate for impact test with shelf size 300 x 1000 x 19 mm, i.e. 62.4 kg load bearing capacity when using 4 shelf supports
Identical model with plastic support: Cat. No. 282.84.721
Specifications
Application
For wooden shelves
Installation
For insert fitting

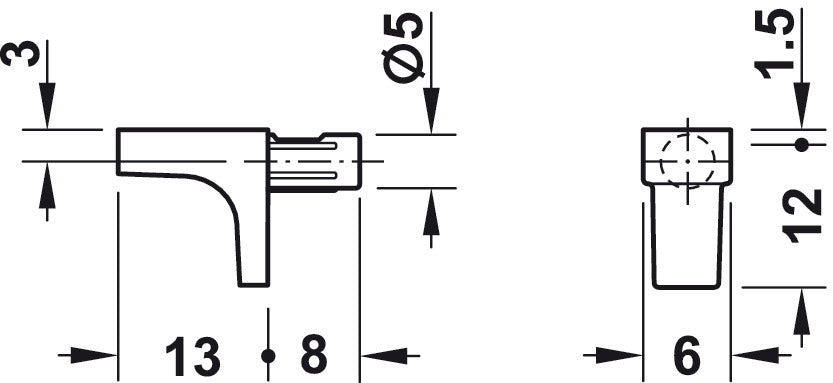

For drill hole Ø
5.00 mm
Support size
3.00 mm
Pin length
8.00 mm
Version
Rubber pad
Material
Zinc alloy
Load bearing capacity per item
15.60 kg
Load bearing capacity with 4 shelf supports
62.40 kg
