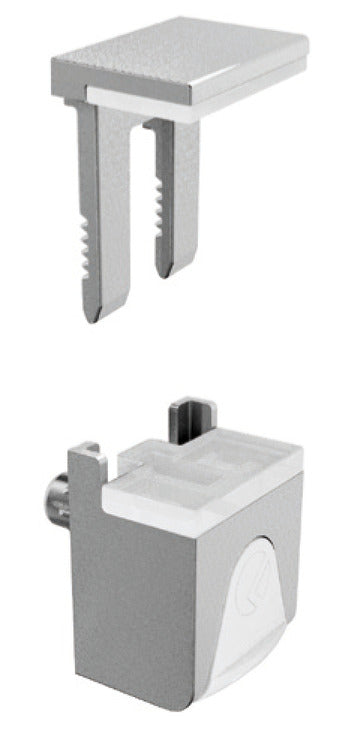

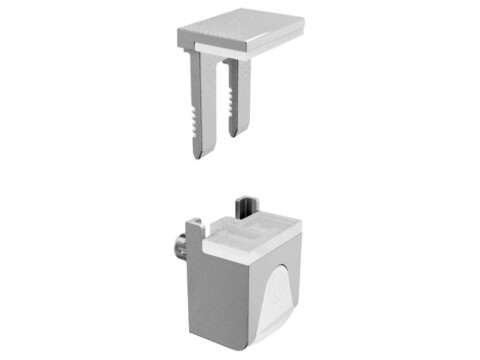

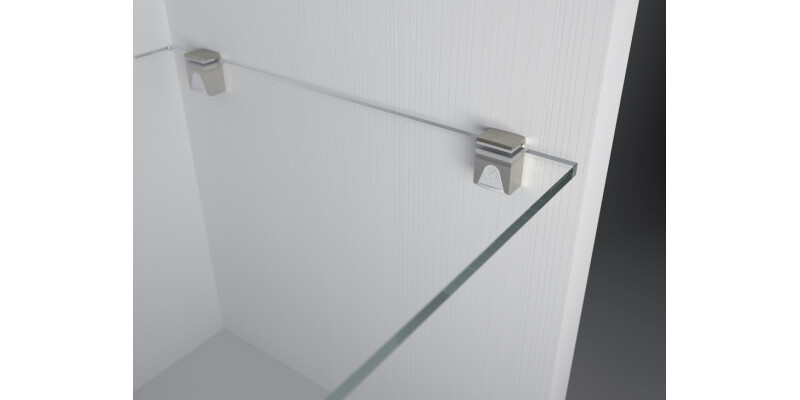

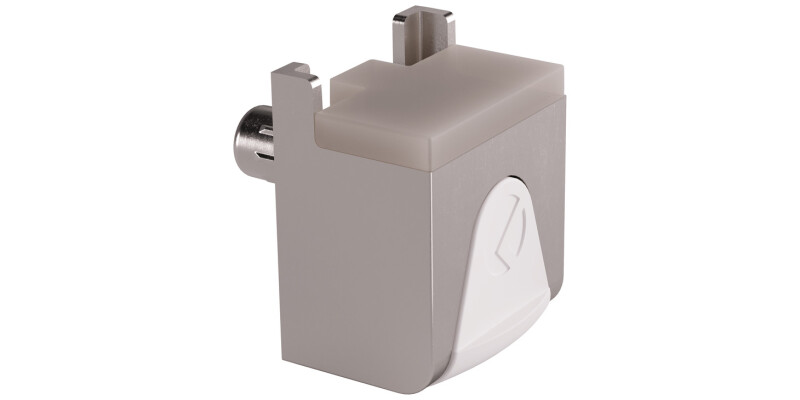

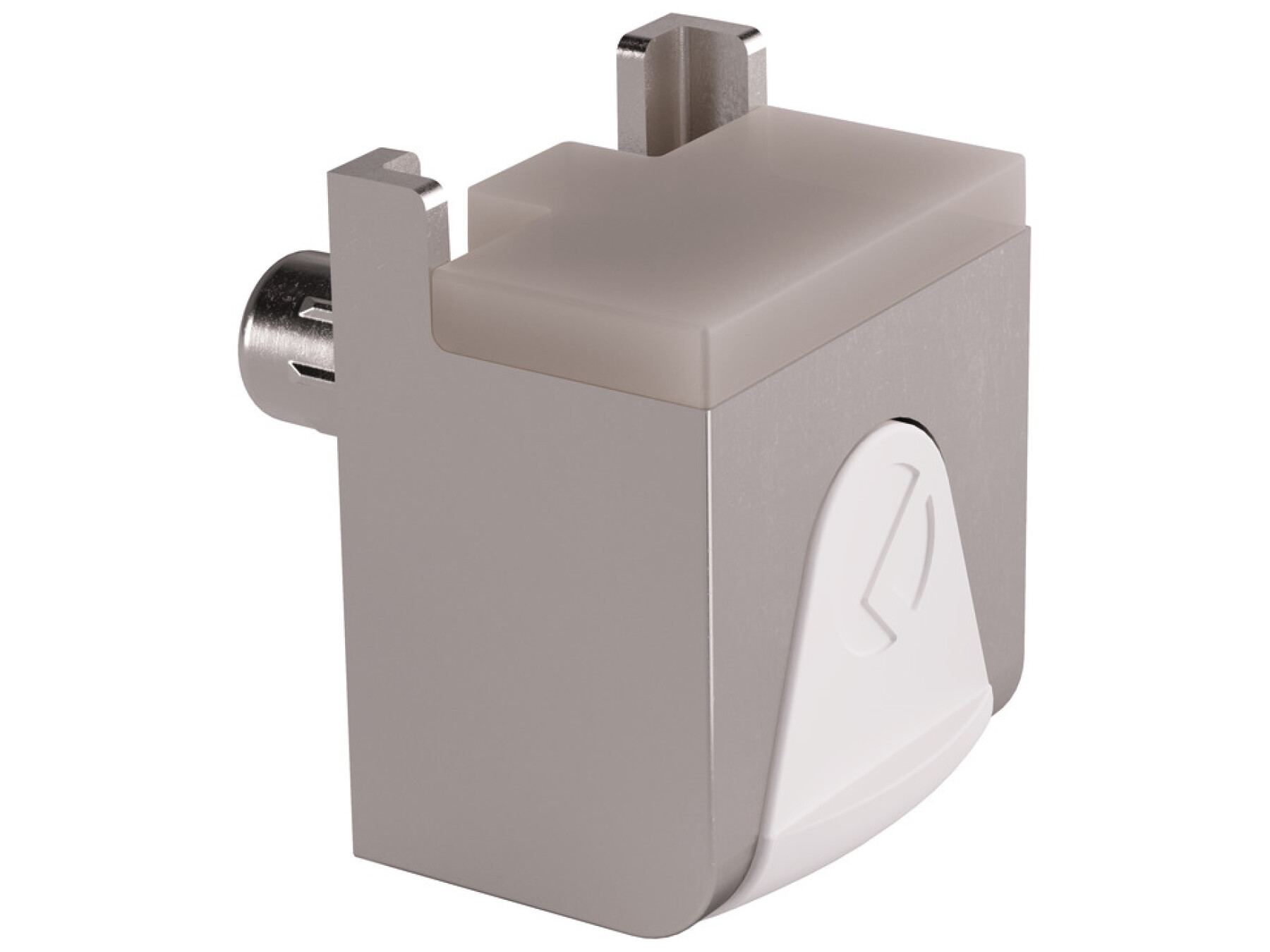

Kubic Gls Shelf Support 4-8mm w Rubber
Part Number: 284.04.641
With rubber
Price:
£1.42
Per Item
Designed for rigid furniture, the carcase can be moved safely even when upside down with the glass already... Read More
Product Information
Product Details

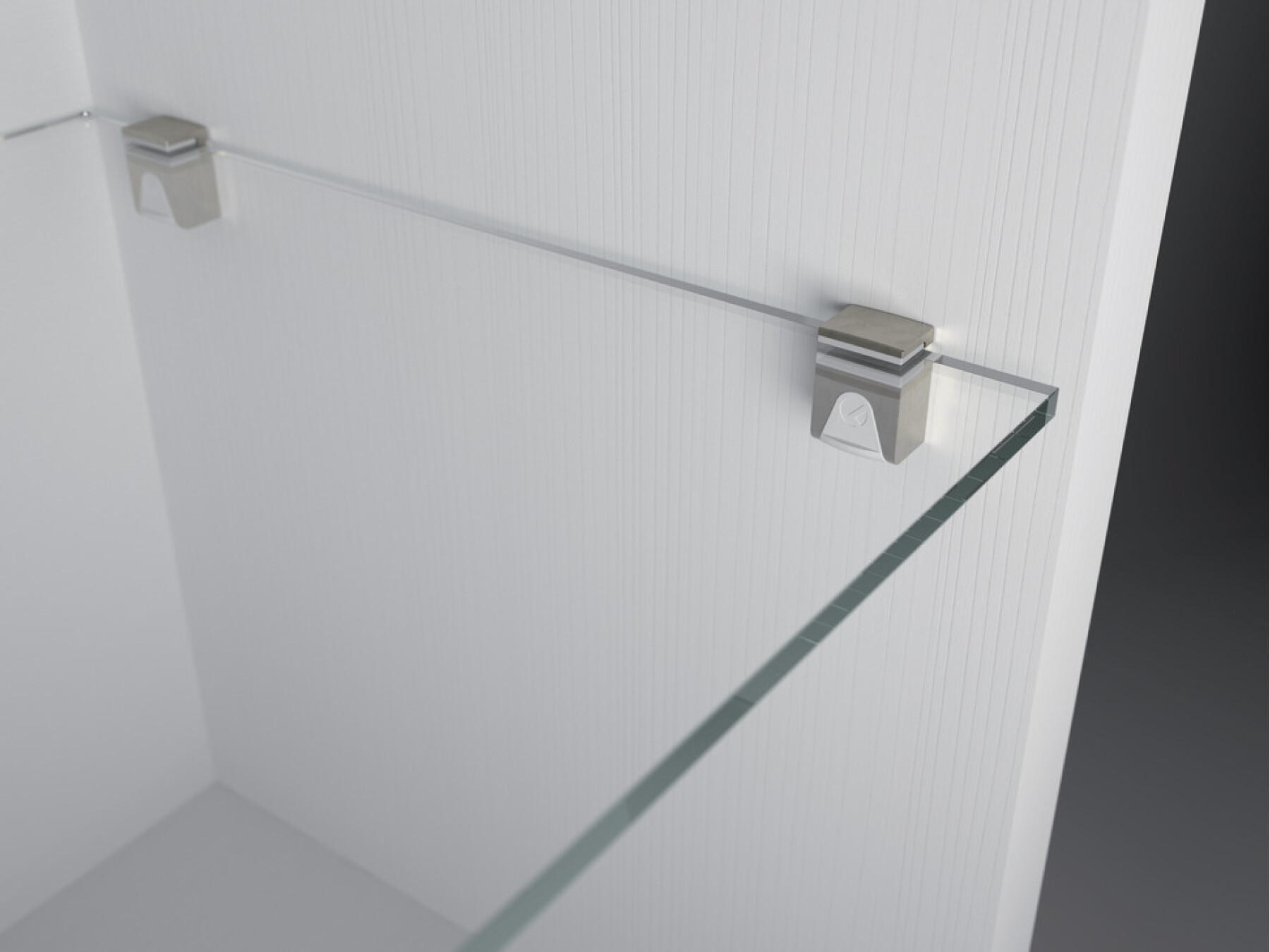

Designed for rigid furniture, the carcase can be moved safely even when upside down with the glass already installed
Secures glass in position
Load carrying capacity applies to 4 shelf supports bearing an evenly distributed load
Testing was carried out according to DIN EN 1727 “Mechanical safety requirements for shelf supports”
Specifications
Application
For glass shelves
Colour/finish
Nickel coloured
Installation
Pin fixing

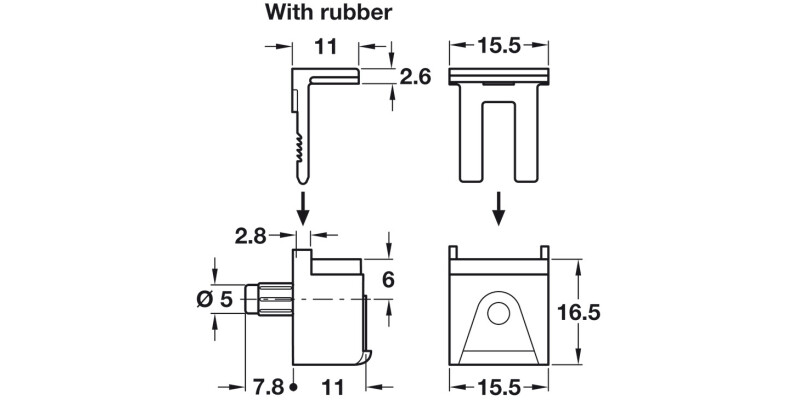

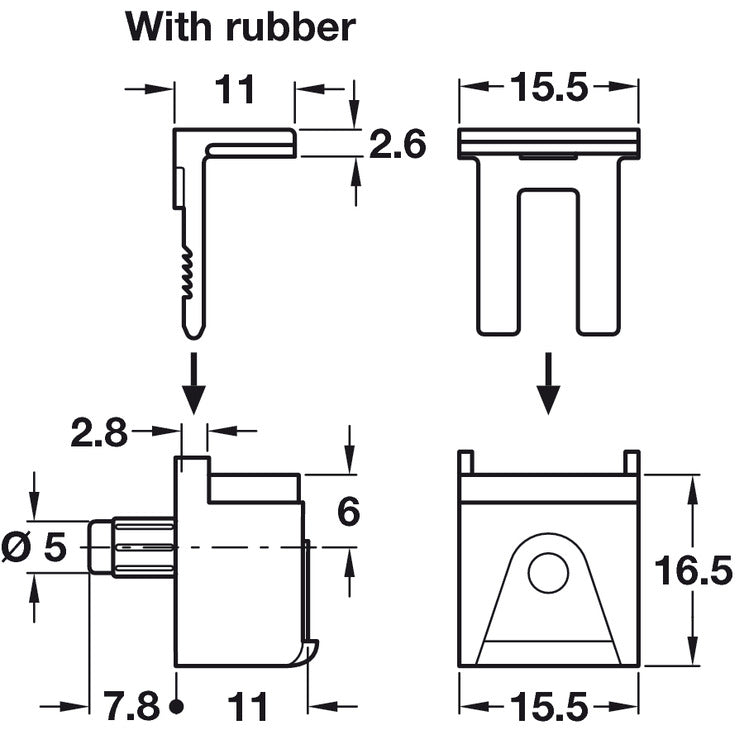

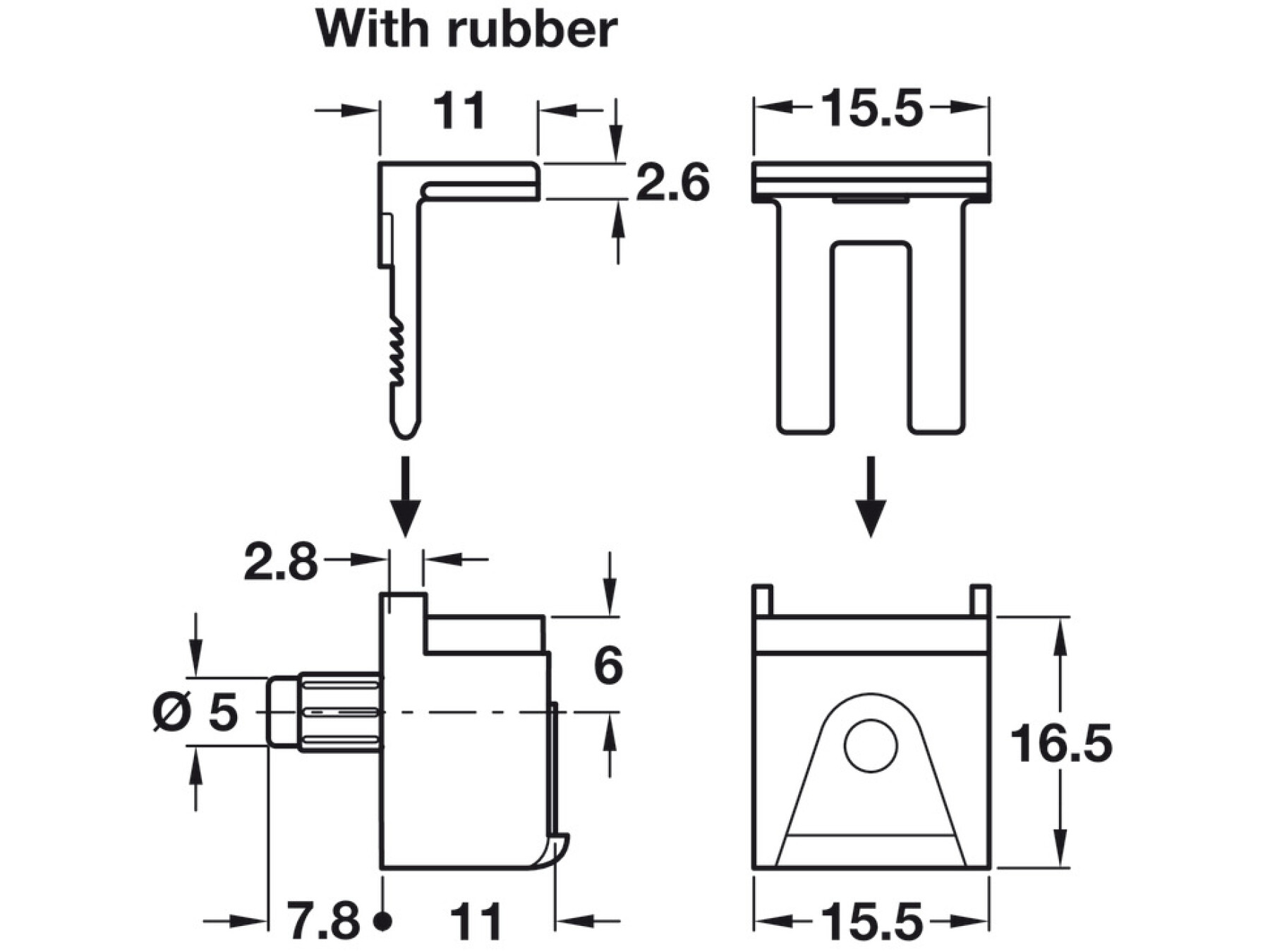

For drill hole Ø
5.00 mm

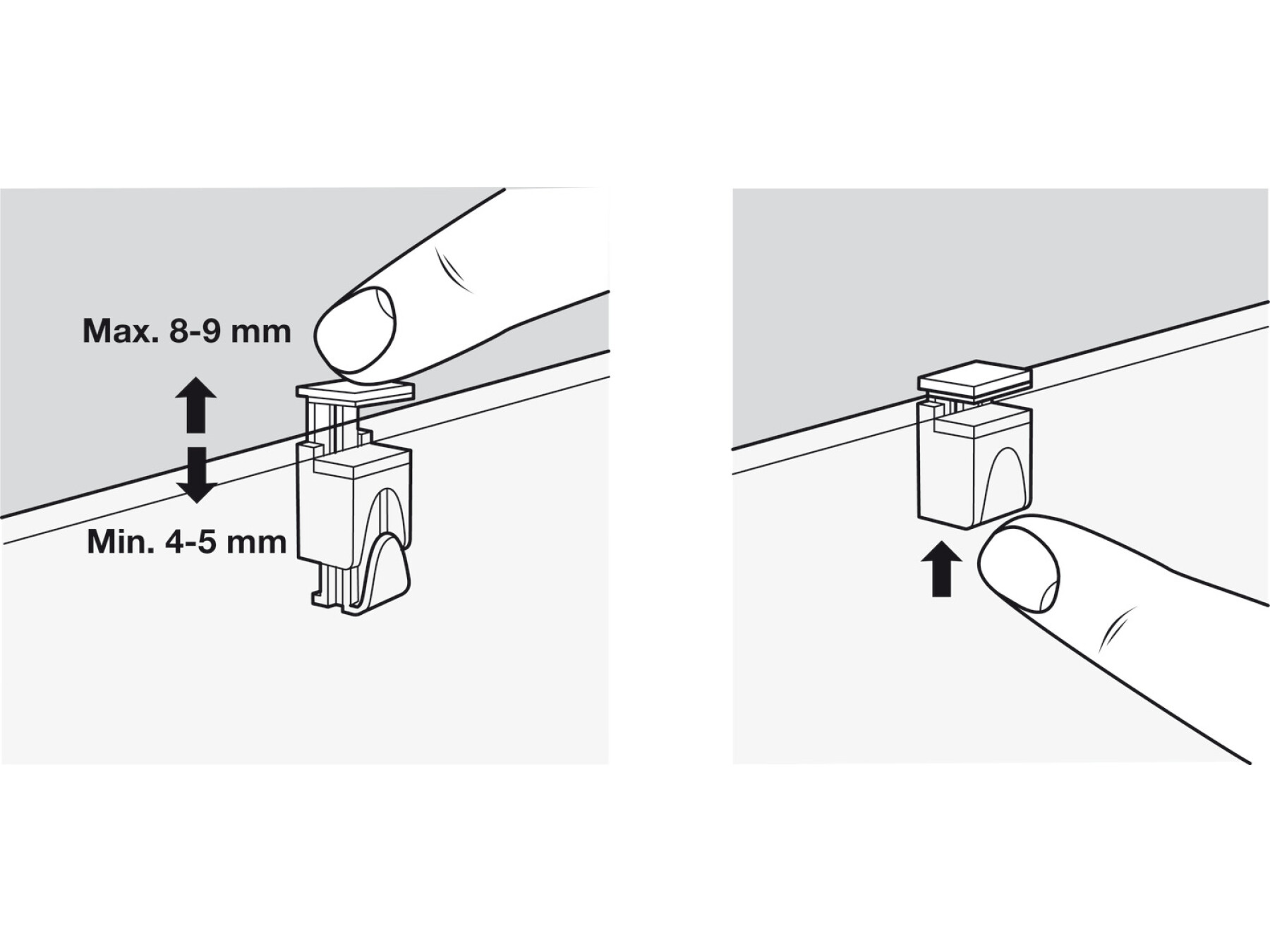

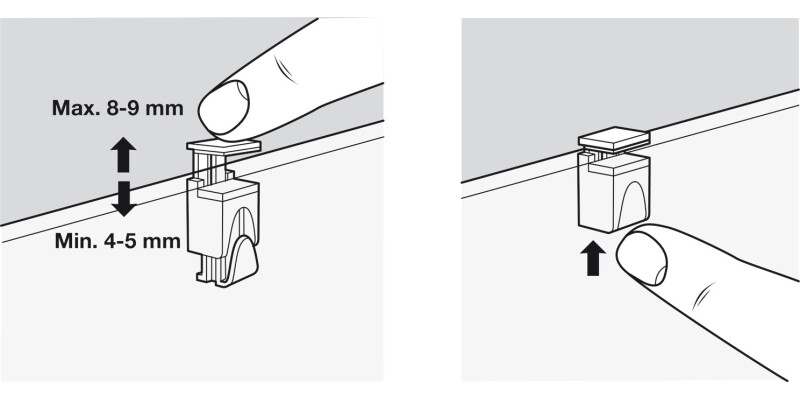

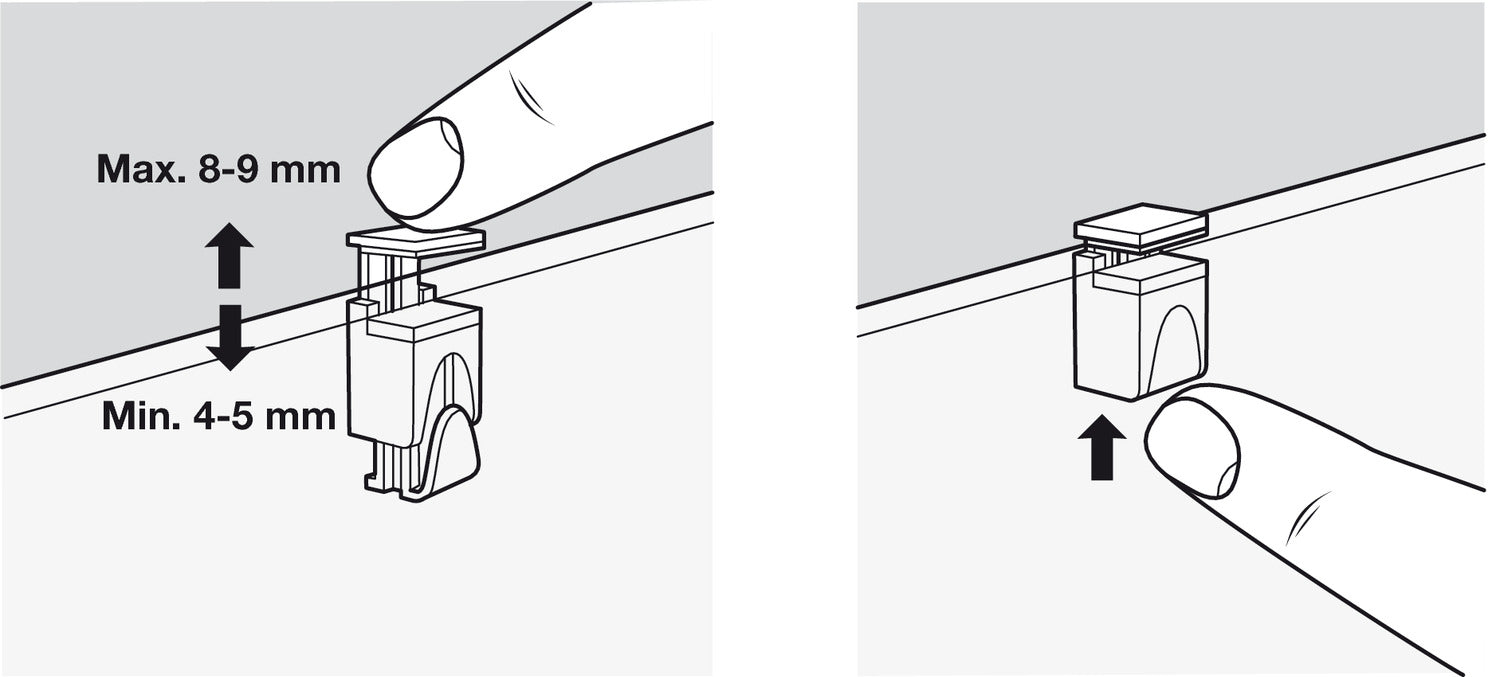

For glass thickness
5-9 mm
Support size
6.00 mm
Pin length
7.80 mm
Version
With rubber pad
Material
Zinc alloy
Load bearing capacity with 4 shelf supports
25.00 kg
