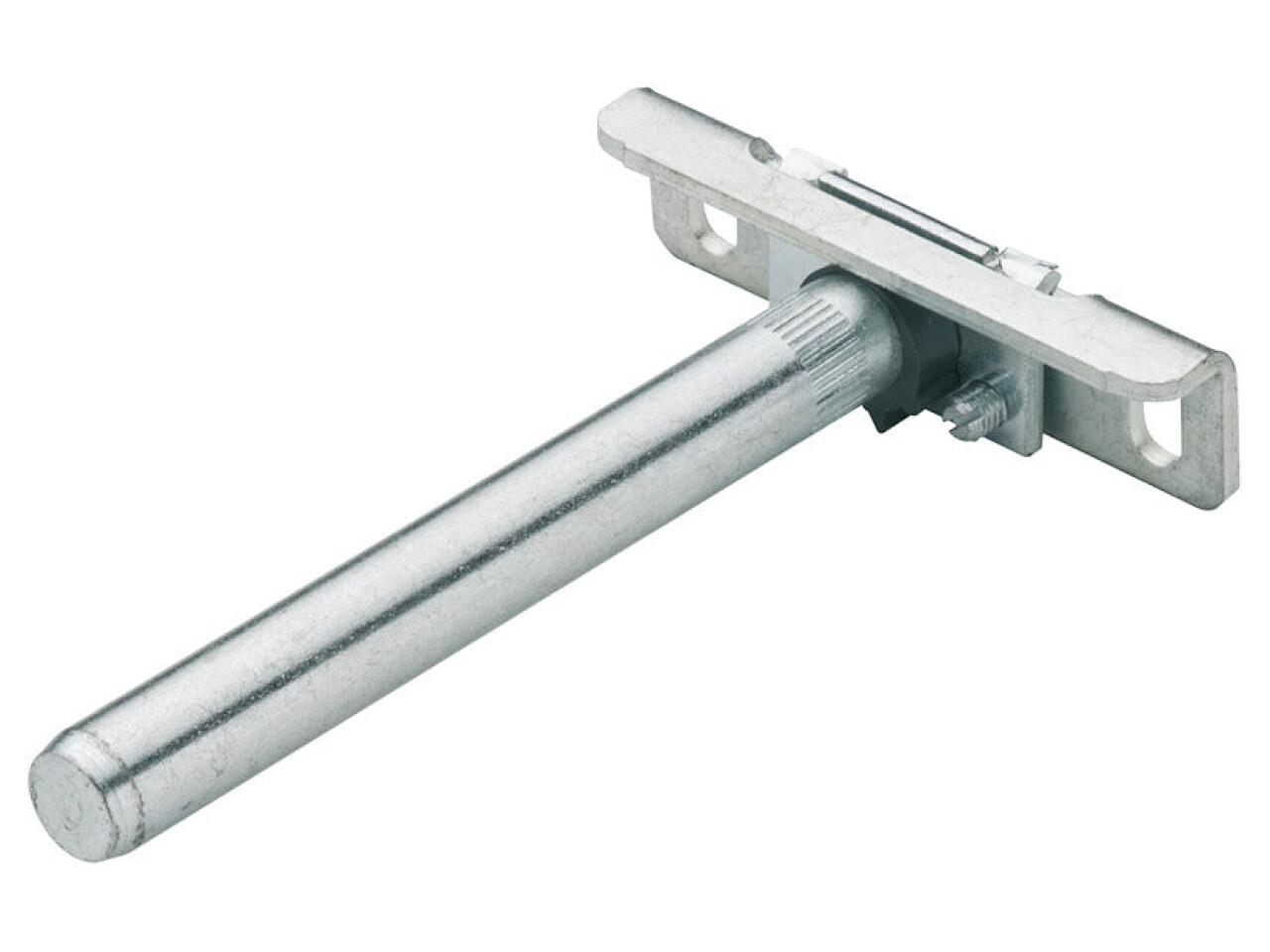

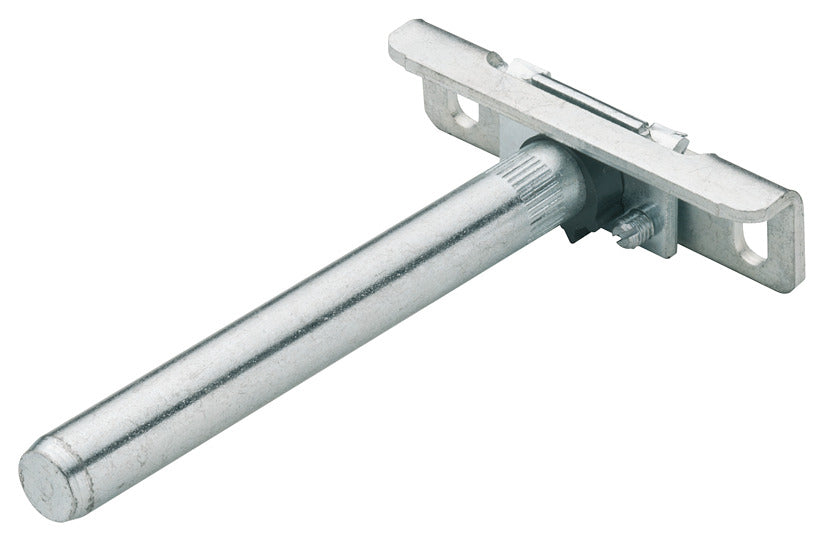

Con Shelf Support 24mm Eccentric Sleeve
Part Number: 283.33.904
For concealed mounting of shelves,with screw mounting plate, For min. shelf thickness: 24 mm, galvanized
Price:
£23.10
Per 4 Pack
Supporting pin with knurled section is installed in a Ø 12 mm hole in the shelf, the pin may be exposed or... Read More
Product Information
Product Details

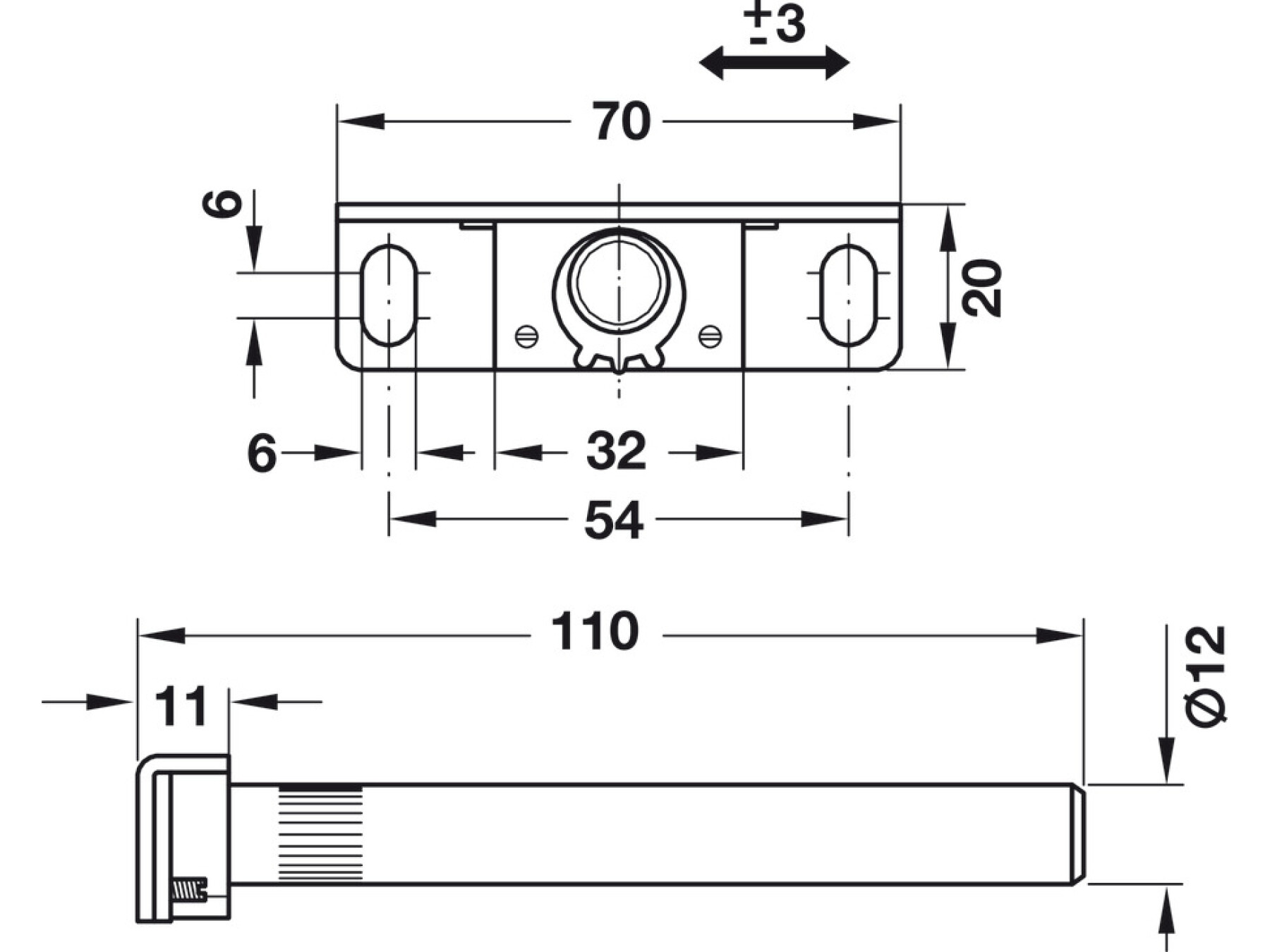

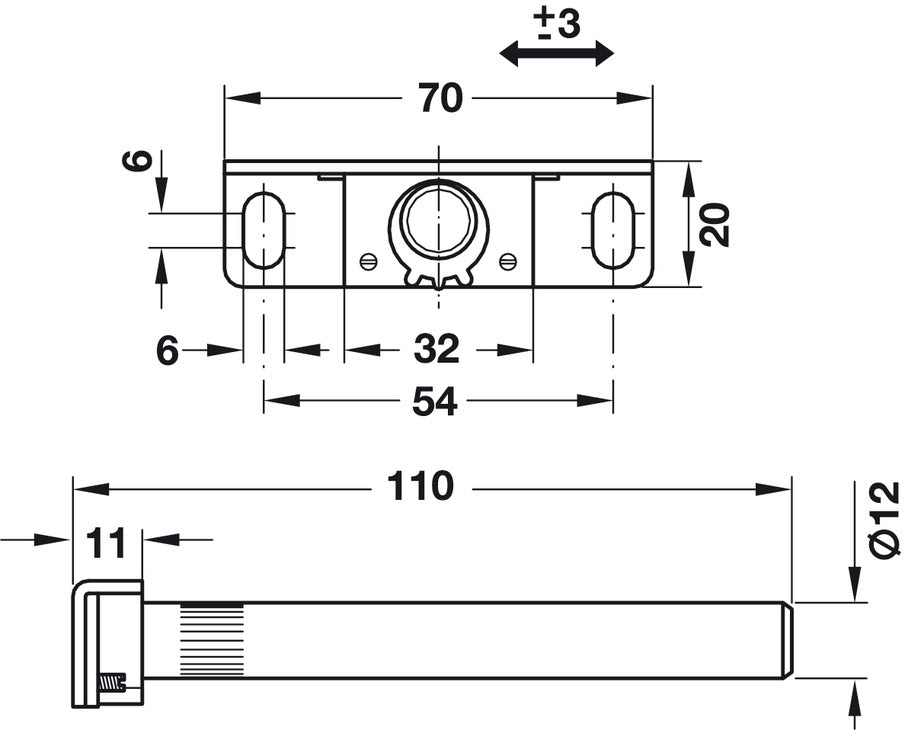

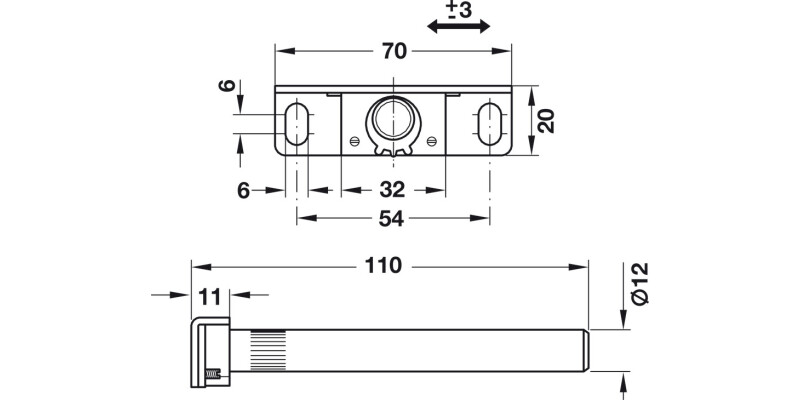

Supporting pin with knurled section is installed in a Ø 12 mm hole in the shelf, the pin may be exposed or concealed depending on the thickness of the shelf
Height adjustable via slots
Inclination adjustment using adjusting screws which press on the rear plate when turned in
Lateral adjustment by lifting the supporting pin; can be adjusted to the right or left

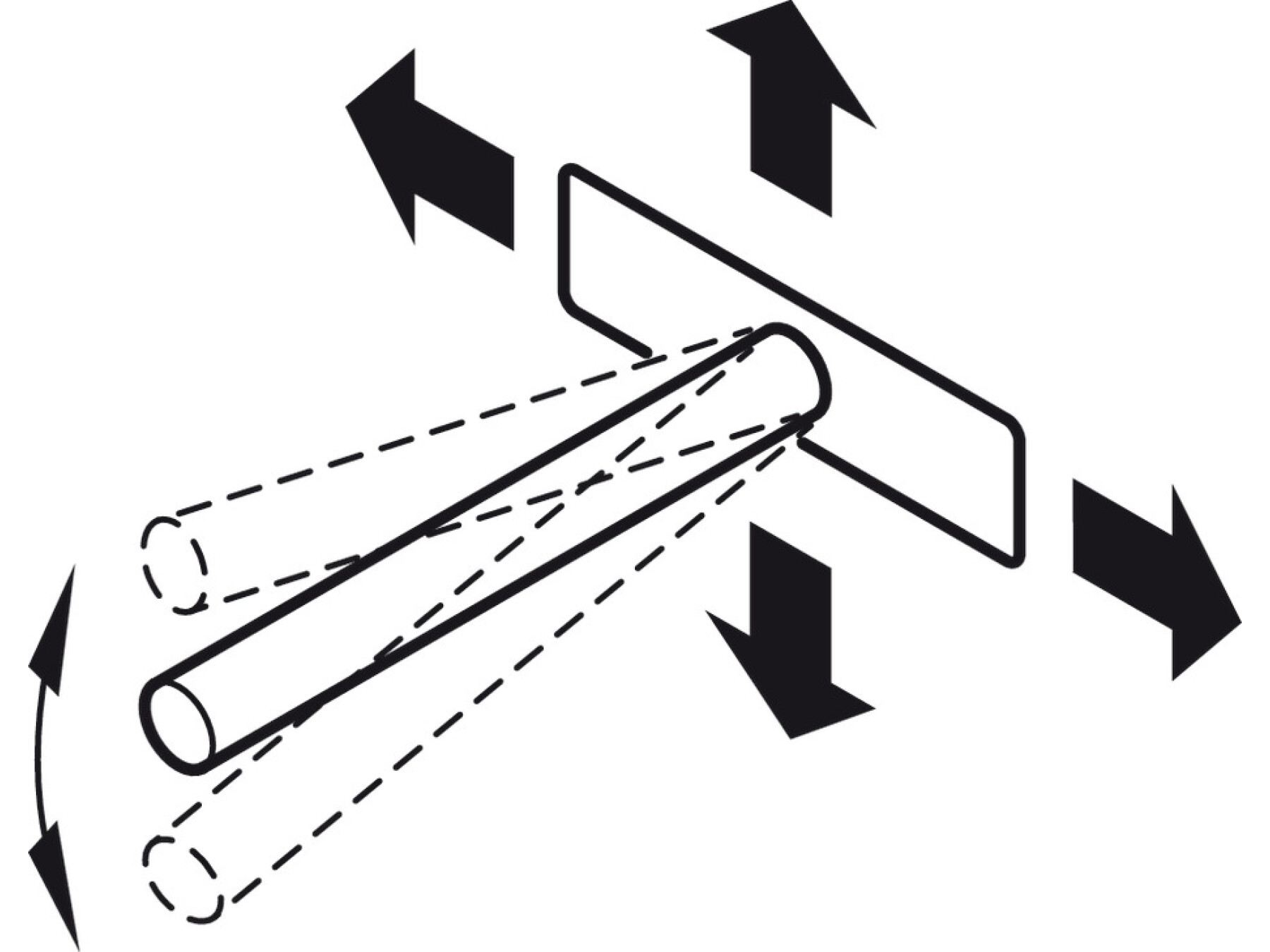

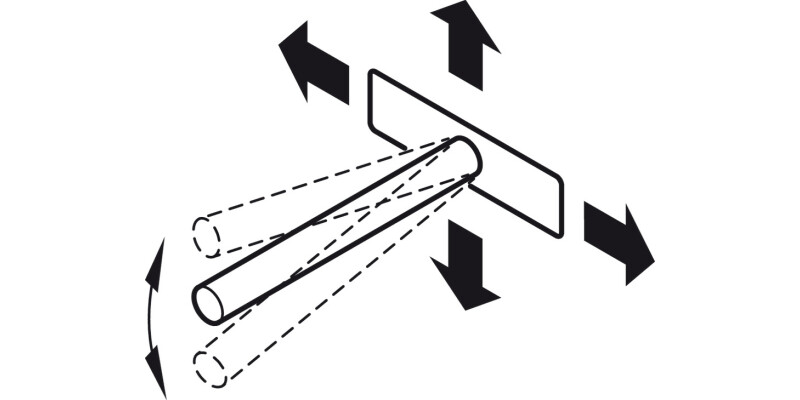

Adjustment facility
Tilt adjustment: via adjusting screwsHeight adjustment: via slots in screw-on plateSide adjustment: sliding via slot ±3 mm
Installation
For screw fixing to support element
For mounting in drilled hole in shelf
For installation into woodwork or masonry walls
Supplied with
1x Supporting pin with mounting plate, galvanized steel
1x Pre-mounted plastic sleeve
2x Adjusting screws for inclination adjustment
Max. distance between two shelf supports: 700 mm
Specifications
For shelf thickness
≥24 mm
Colour/finish
zinc plated
Version
With screw-on plate and eccentric sleeve
Area of application
For concealed installation
Material
Steel
