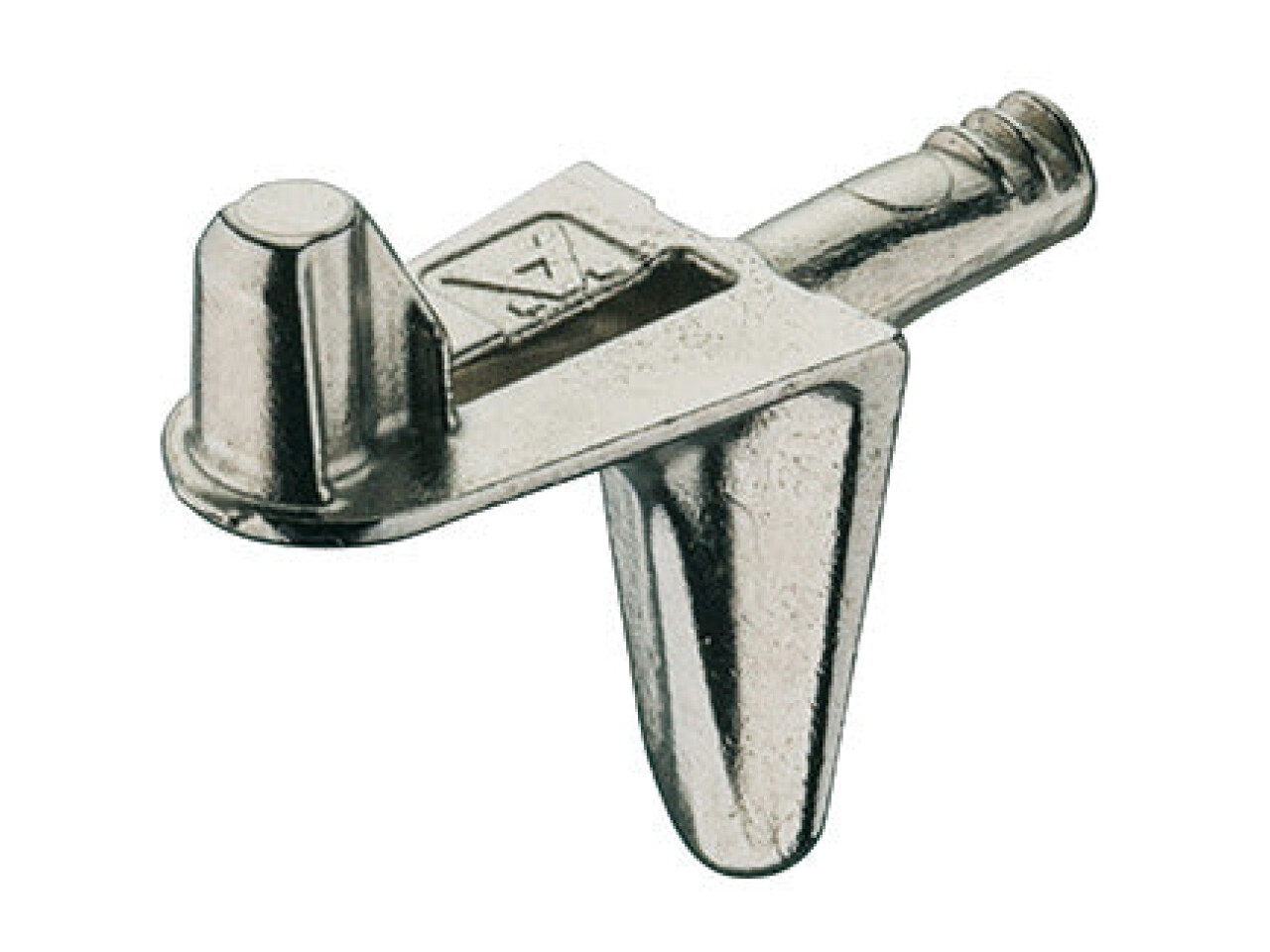

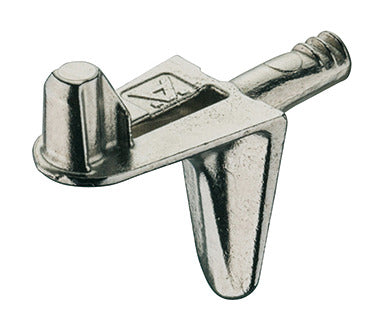

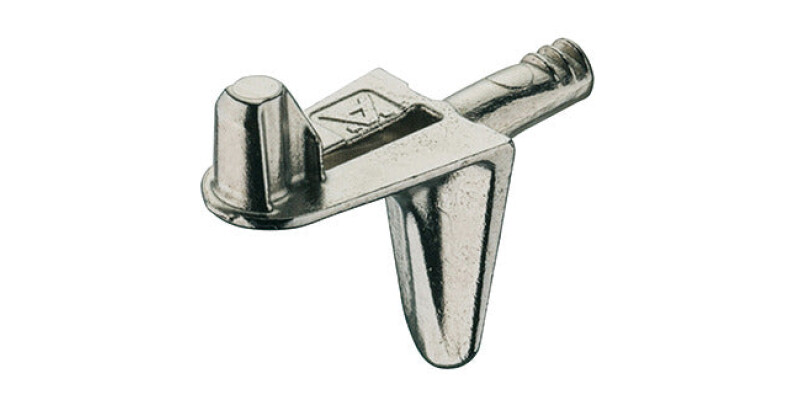

Shelf Support D3mm w Lug Plug ZA NP
Part Number: 282.25.727
With twin grooves and shelf-fixing lug, load bearing capacity 6.25 kg per item, Nickel plated
Price:
£5.07
Per 100 Pack
Shelf-fixing lug prevents shelf from being pulled out horizontally Note on load bearing capacity Load bearing... Read More
Product Information
Product Details
Shelf-fixing lug prevents shelf from being pulled out horizontally
Note on load bearing capacity
Load bearing capacity per item, tested in accordance with DIN EN 16337:2013-08 with 1.7 kg plate for impact test, i.e. 25 kg load bearing capacity when using 4 shelf supports
Load carrying capacity applies to 5 shelf supports bearing an evenly distributed load. Testing was carried out according to DIN EN 16337:2013 Hardware for furniture
Specifications
Application
For wooden shelves
Installation
For Mounting in drilled hole

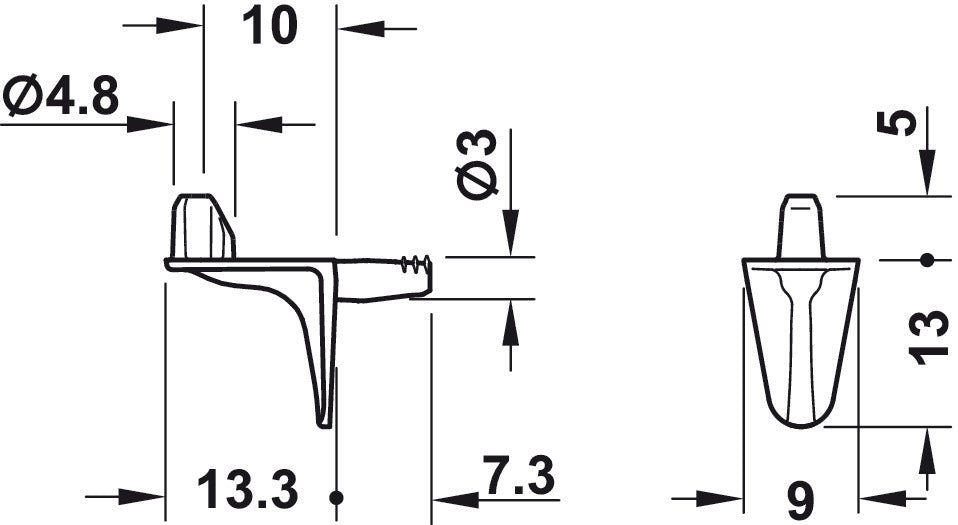

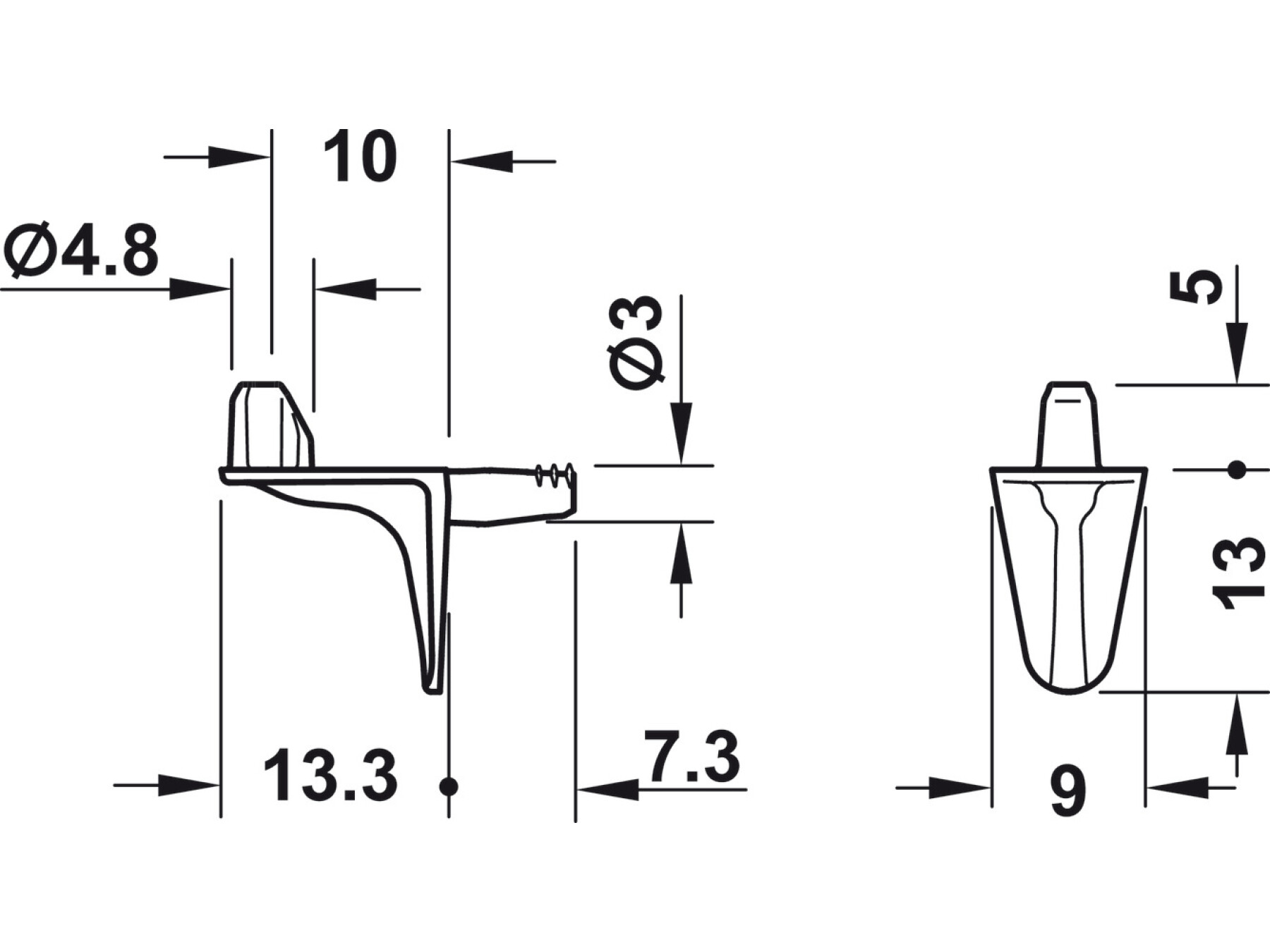

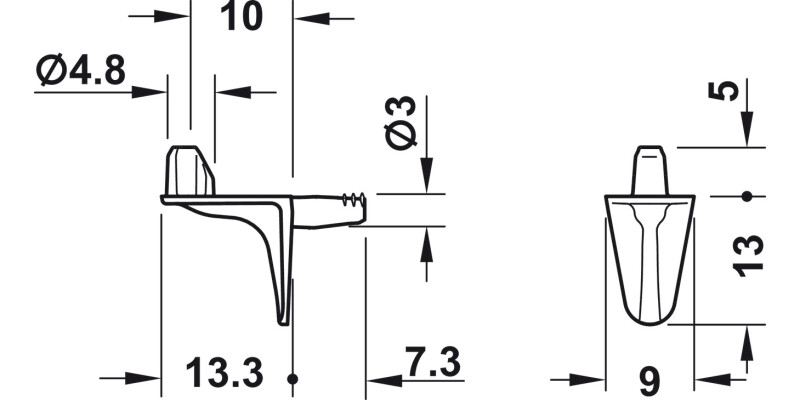

For drill hole Ø
3.00 mm
Distance fixing lug
10.00 mm
Pin length
7.30 mm
Version
With twin grooves and shelf-fixing lug
Material
Zinc alloy
Load bearing capacity per item
6.25 kg
Load bearing capacity with 4 shelf supports
25.00 kg
Warranty/Guarantee information
