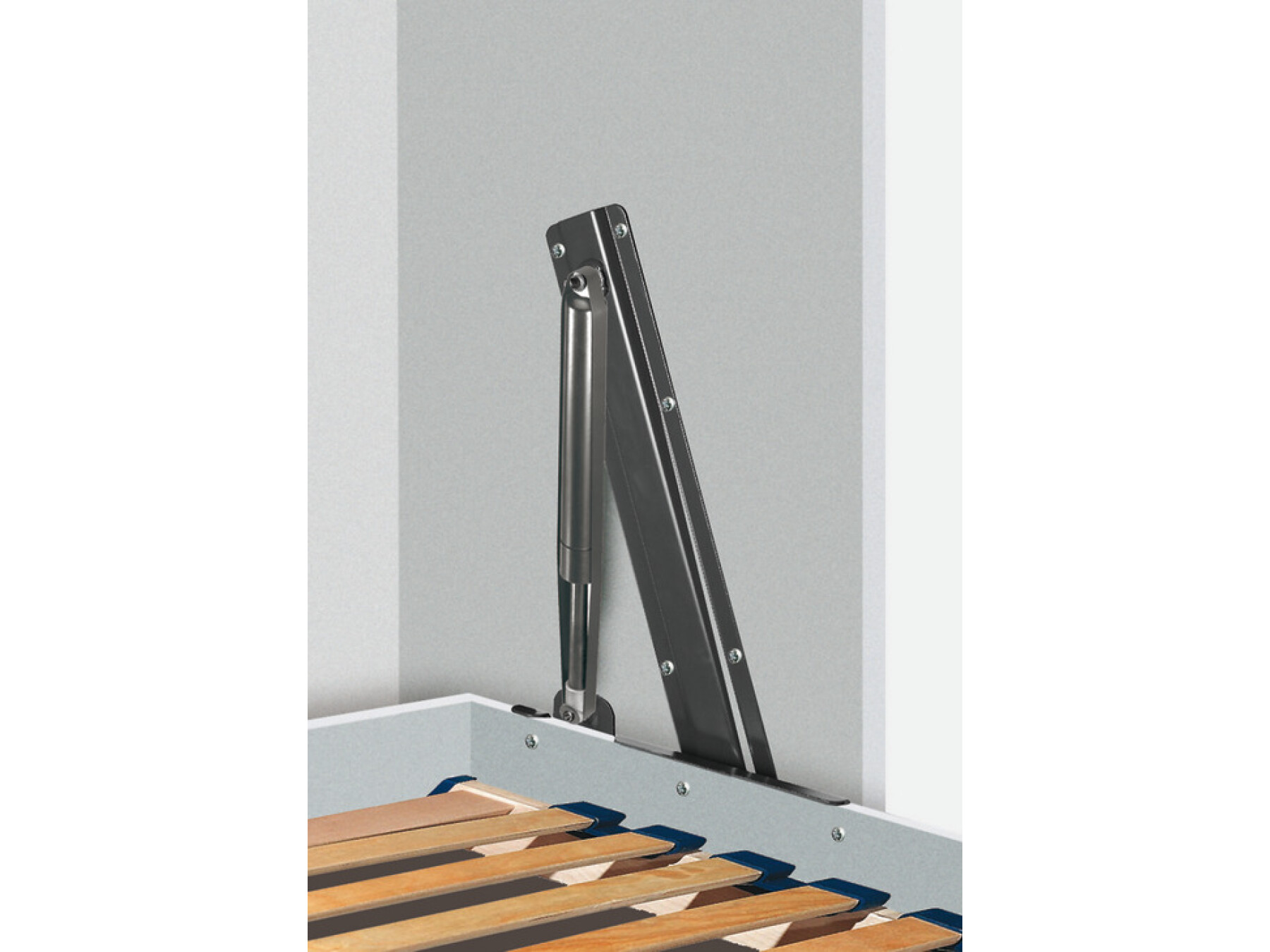

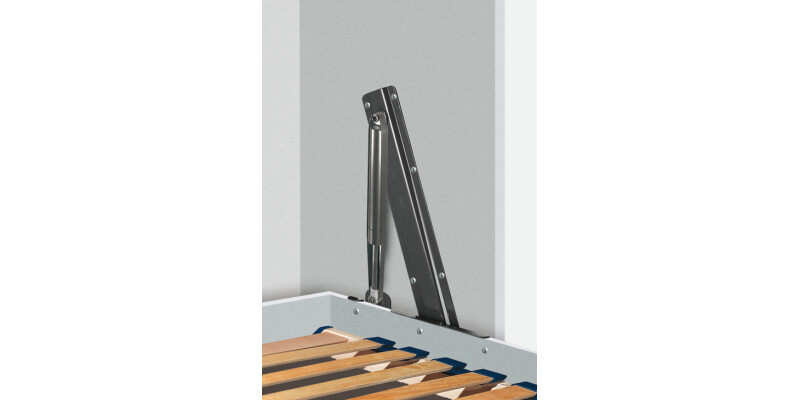

Bed Fitting Front Set Anthracite 9011
Part Number: 271.95.203
Steel, Anthracite (RAL 9011)
Price:
£255.45
Per Item
For construction of foldaway beds according to customers own requirementsMax. installation height 2300 mmConsists... Read More
Product Information
Product Details

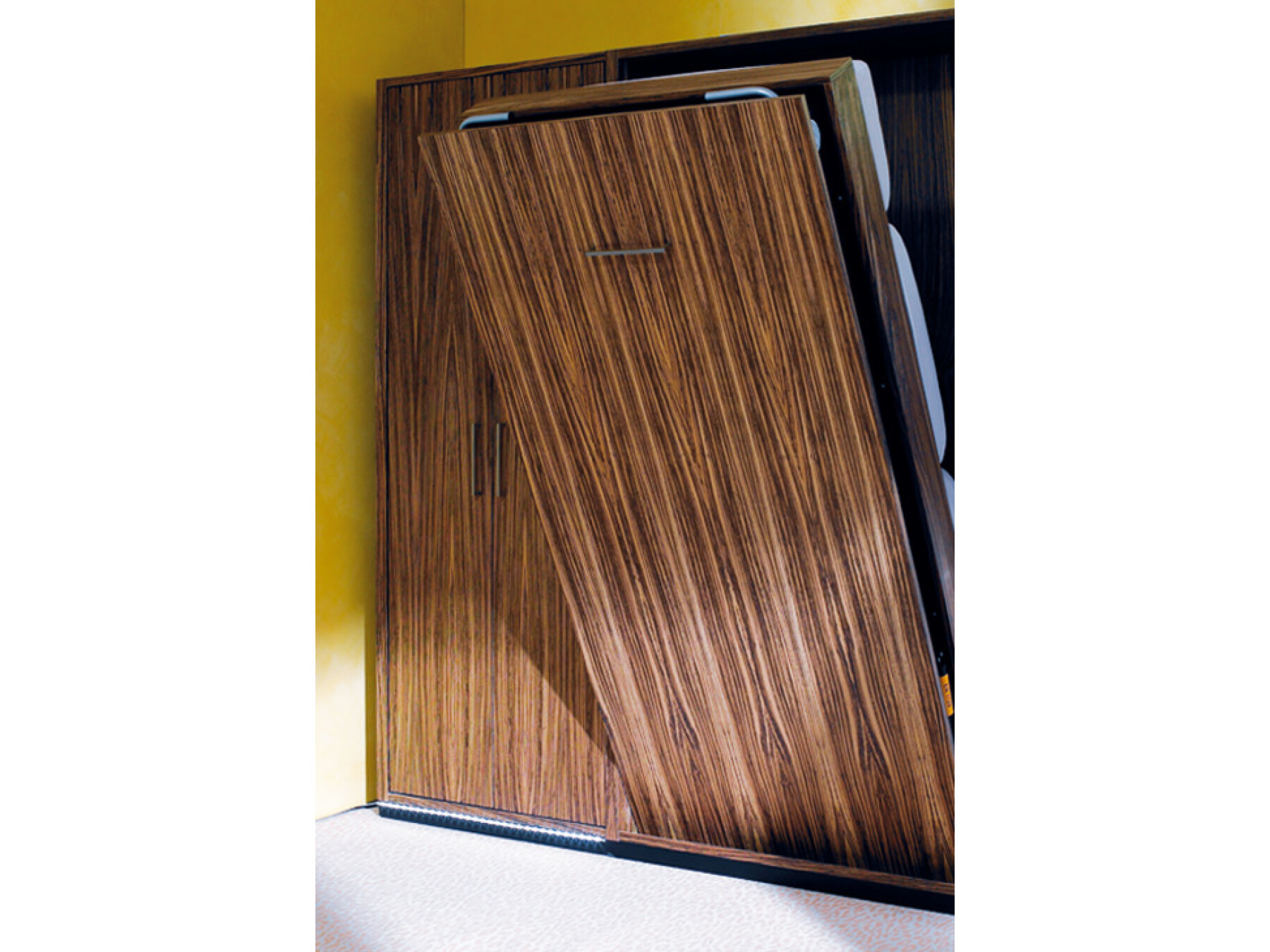

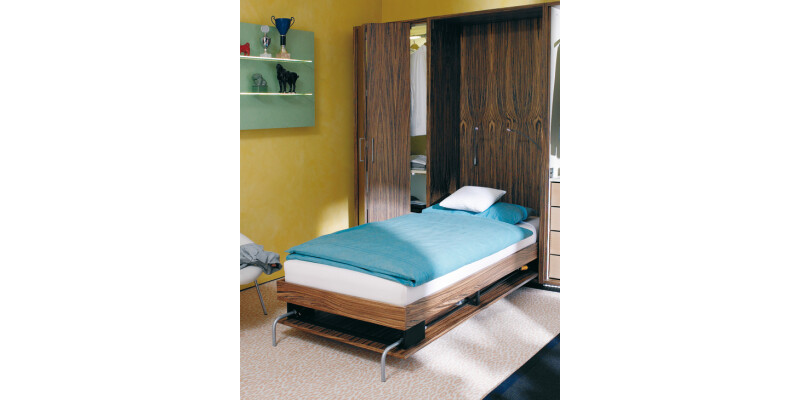

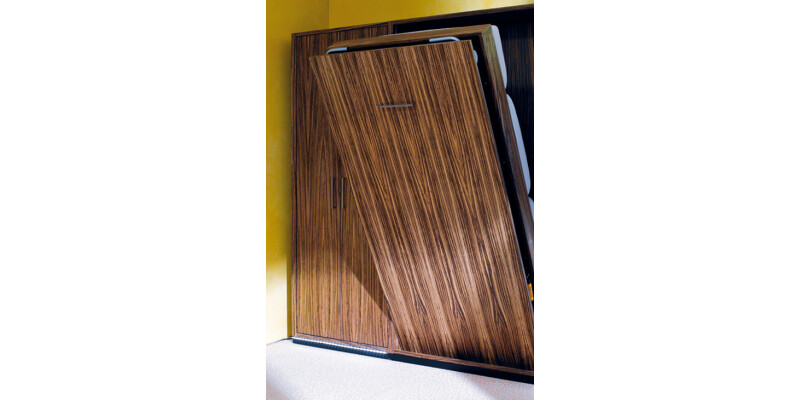

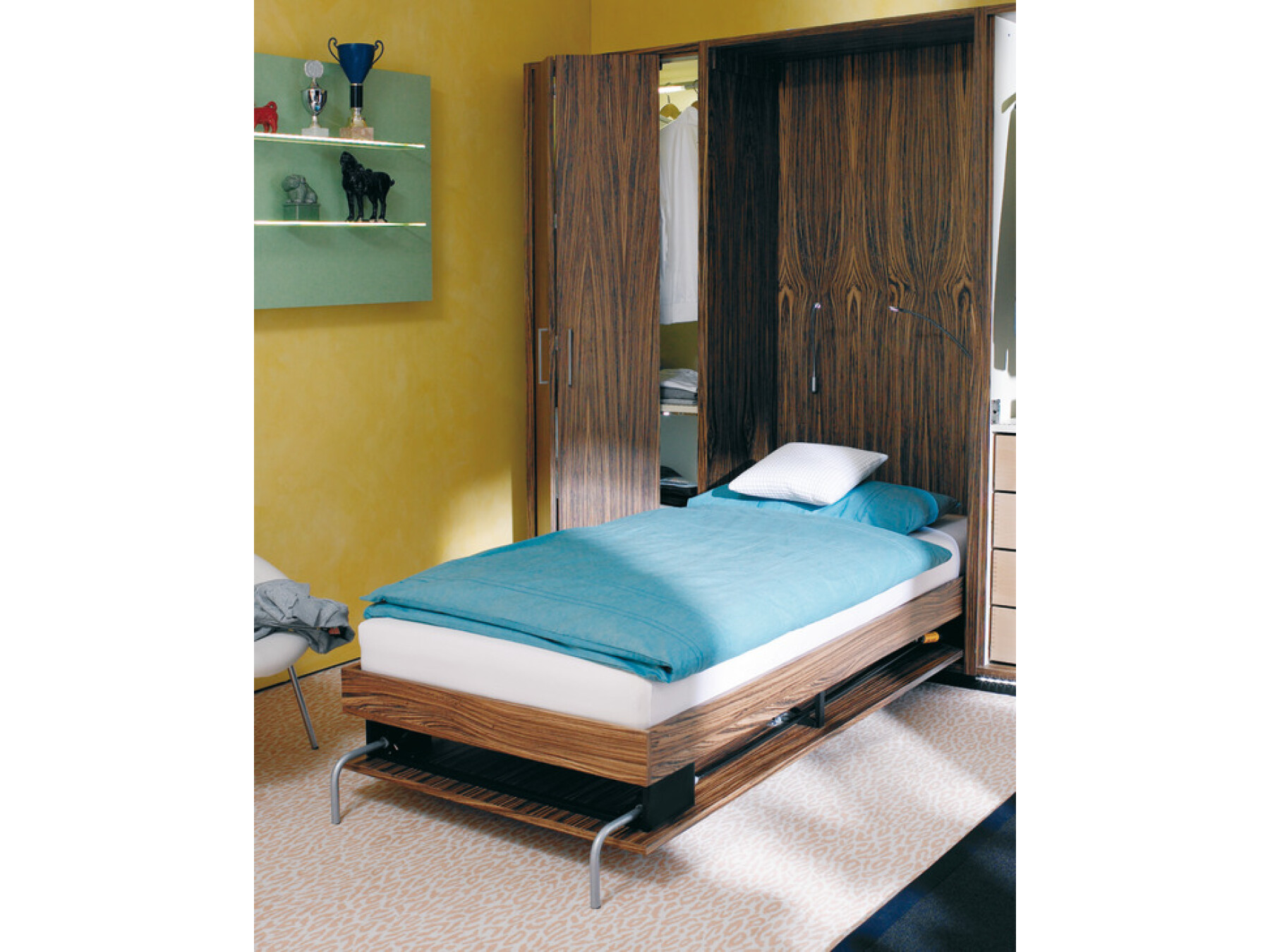

For construction of foldaway beds according to customers own requirements
Max. installation height 2300 mm
Consists of

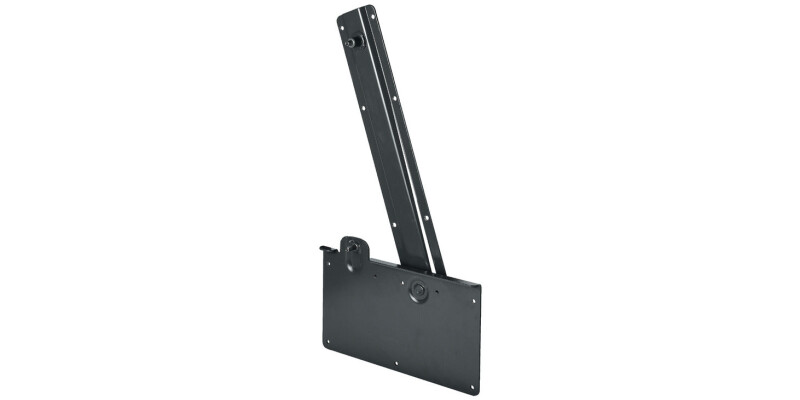

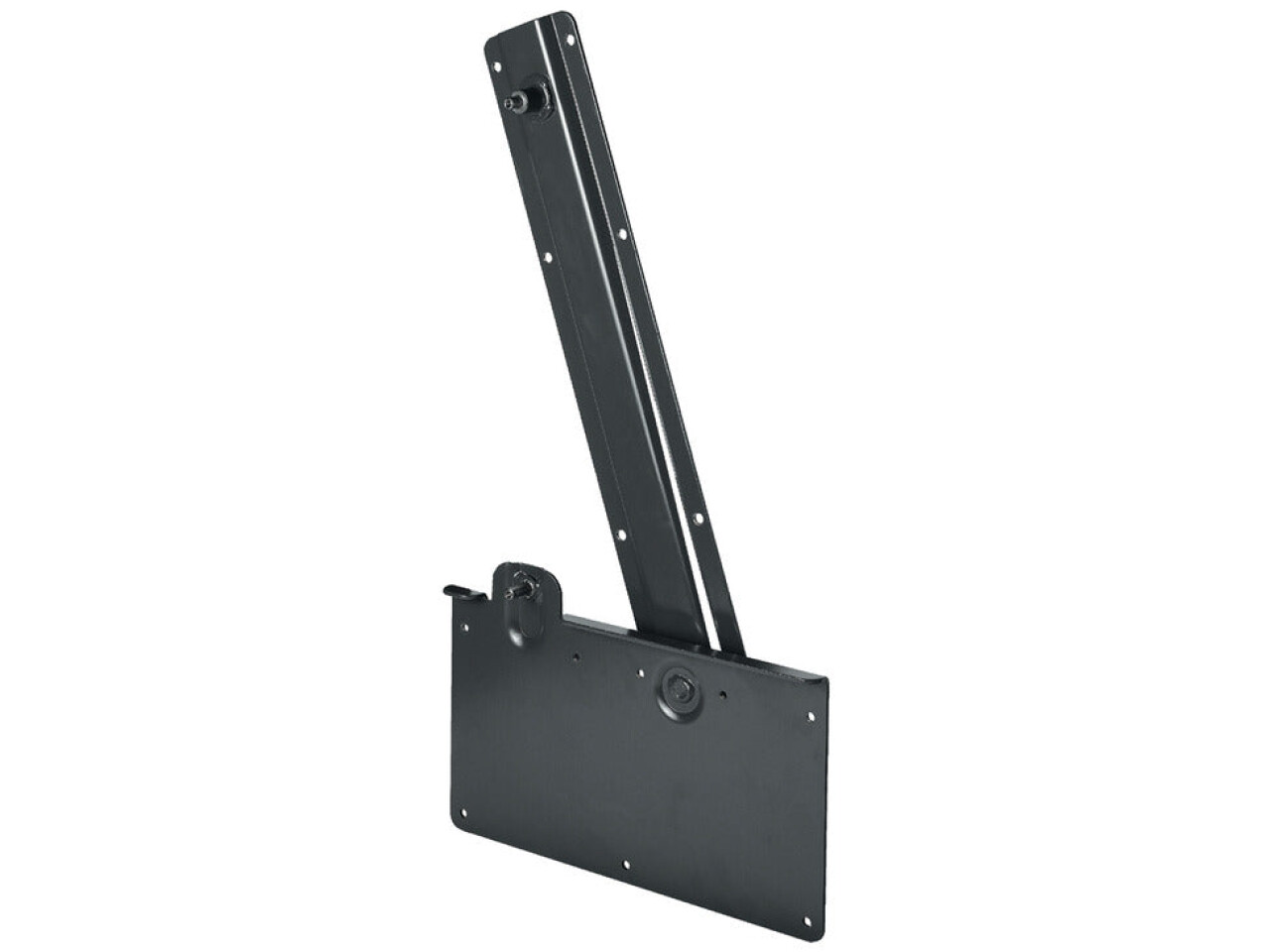

1 pair x Folding fittings with pivot bearings and positioning bolts for gas pistons
2 x Securing brackets
Gas pistons must be ordered separately depending on weight of the bed. 2 gas pistons are required per bed fitting
Supplied with
2 x Securing brackets, 1 x safety lever with stop plate, fixing materials and detailed installation instructions
| Material thickness of bedding box and cabinet | 20 mm |
| Internal cabinet height | Mattress length + 170 mm |
| Internal cabinet width | Mattress width + 94 mm |
Bed weight = total weight of the bed box, slatted frame, mattress and bedding.
Two bed boxes must be mounted next to each other to make a double bed. Not compatible with centre support.
Specifications
Colour/finish
Anthracite RAL 9011, Powder coated
Bed weight
100 kg
Area of application
Foldaway beds
Material
Steel
Load bearing capacity
100.00 kg
Installation

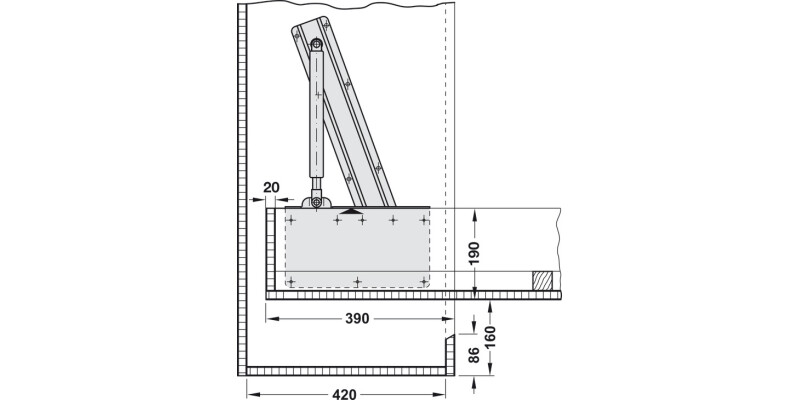

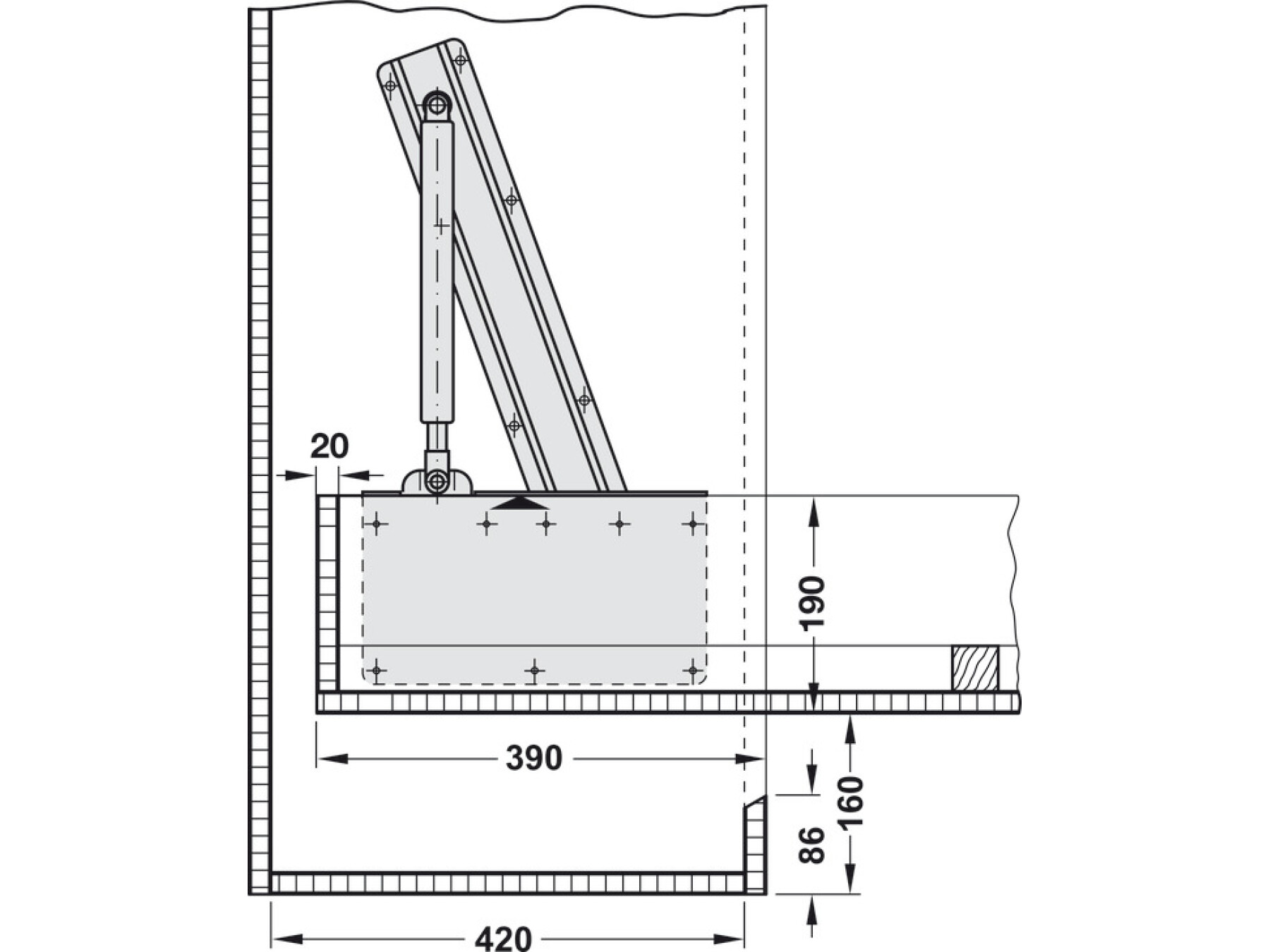

Max. installation width 1500 mm, min. installation depth 420 mm, plinth height 90 mm
Order reference
Gas pistons to be ordered separately
