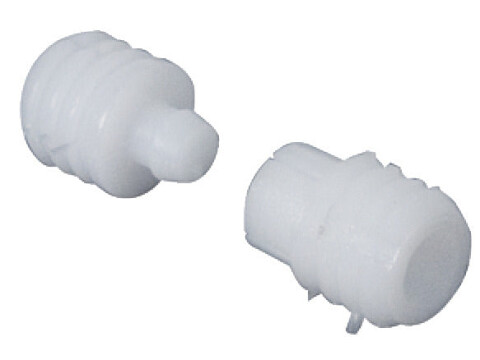

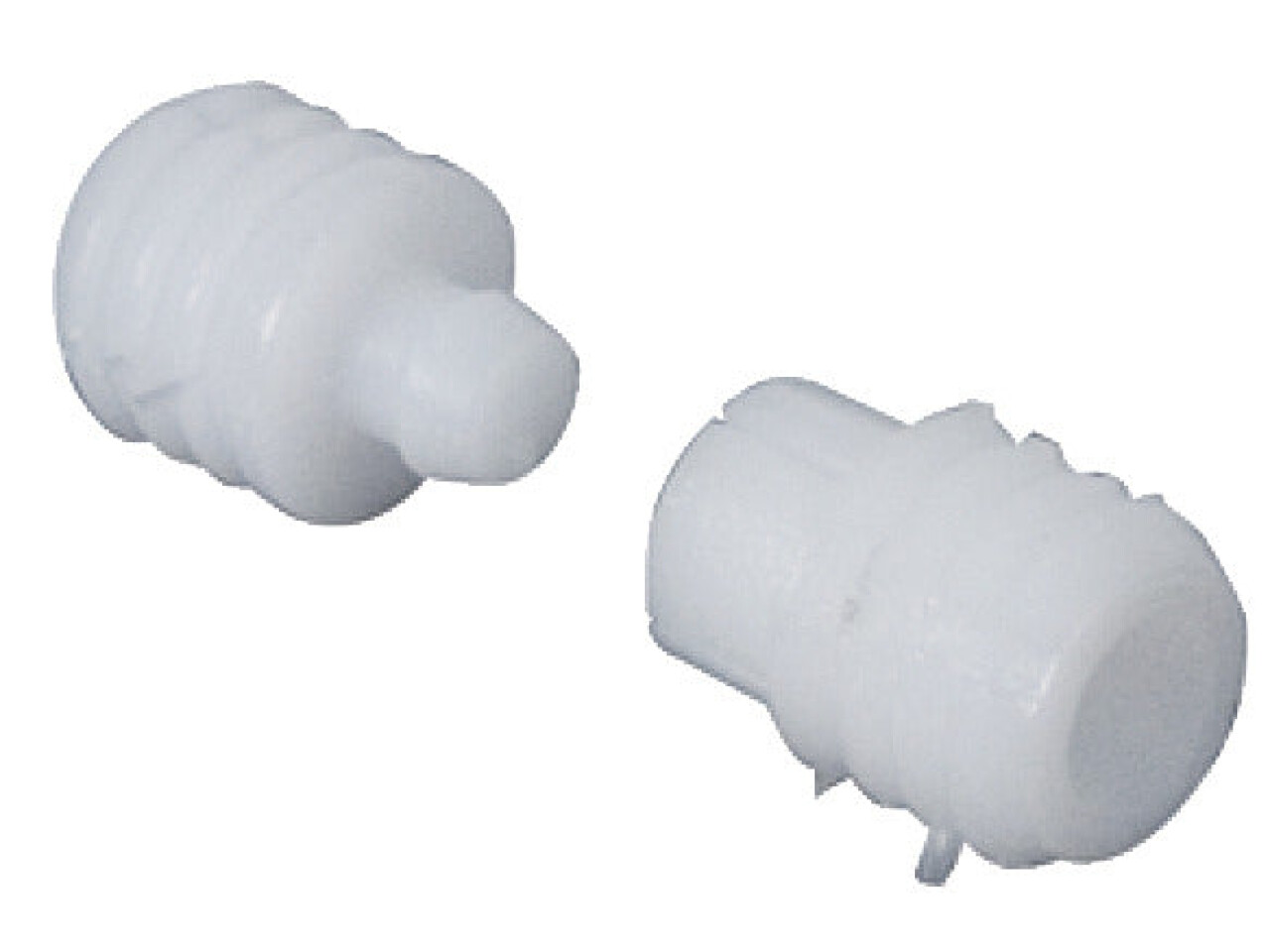

Dowel Connector 2Pt Press Poly Nat
Part Number: 267.20.700
For release fastenings, Natural coloured polyamide
Price:
£33.13
Per 100 Pack
Can be disconnected at any time and with parting resistance of up to 15 kgFemale element has four slots, male... Read More
Product Information
Product Details
Can be disconnected at any time and with parting resistance of up to 15 kg

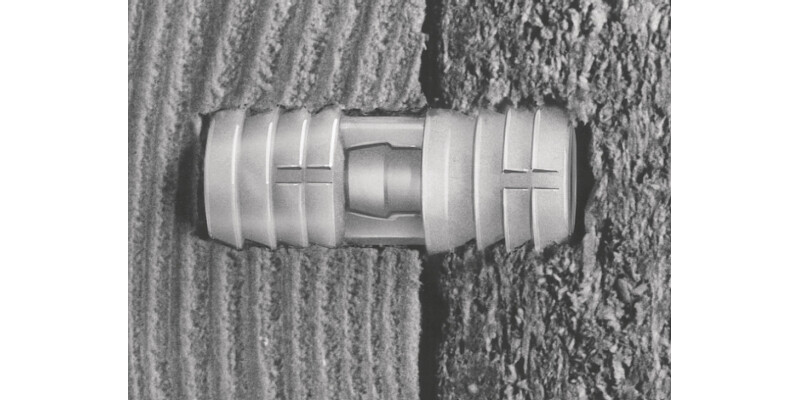

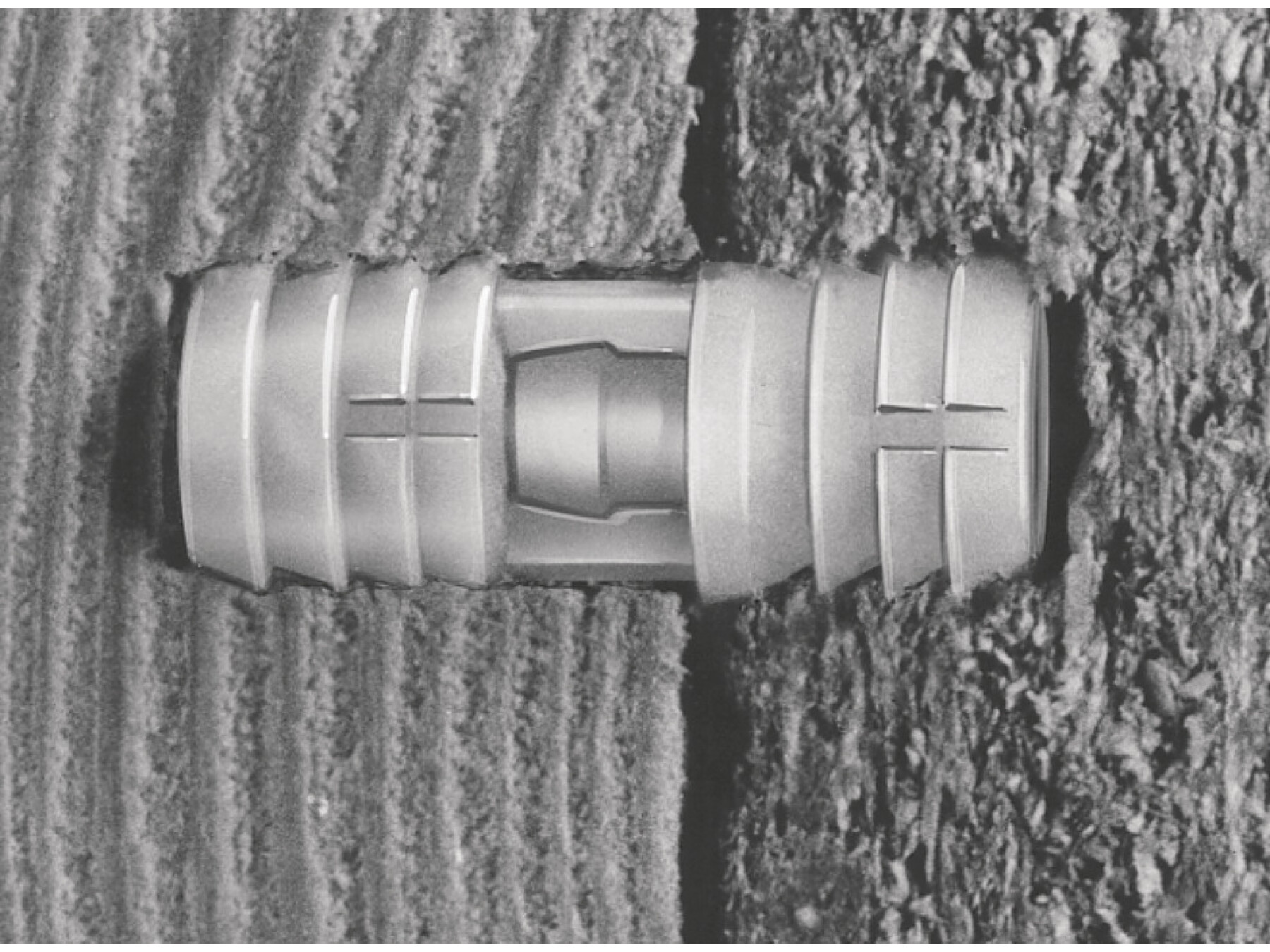

Female element has four slots, male element incorporates a tapered plug which locks into position, ensuring a secure seat in the material and a strong joint

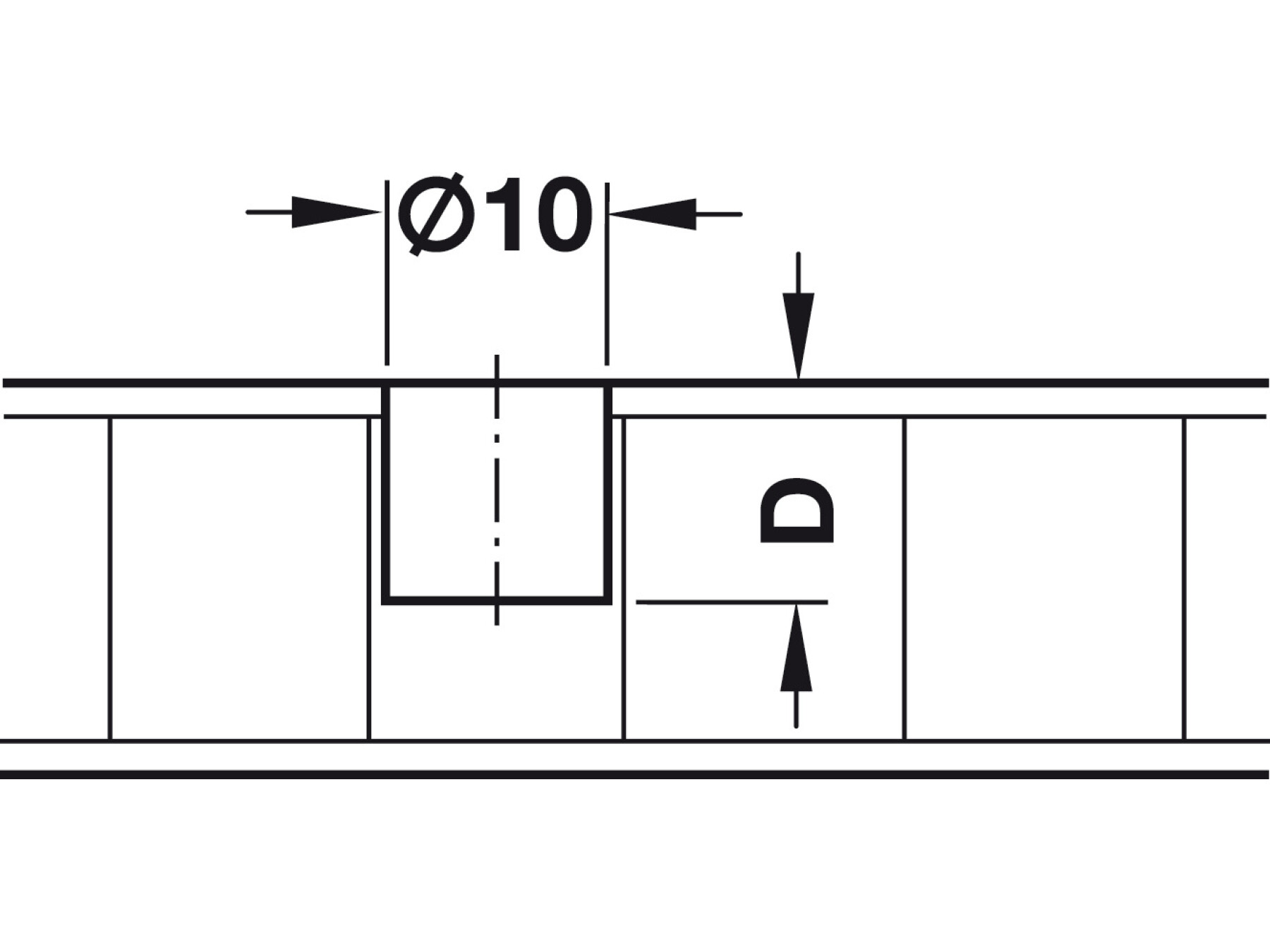

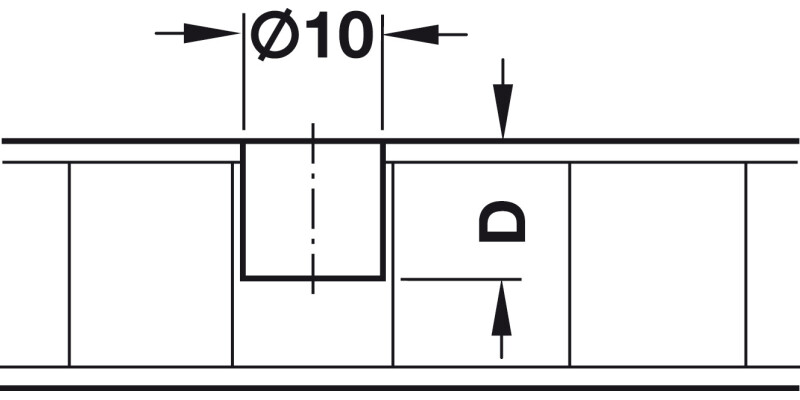

Installation description

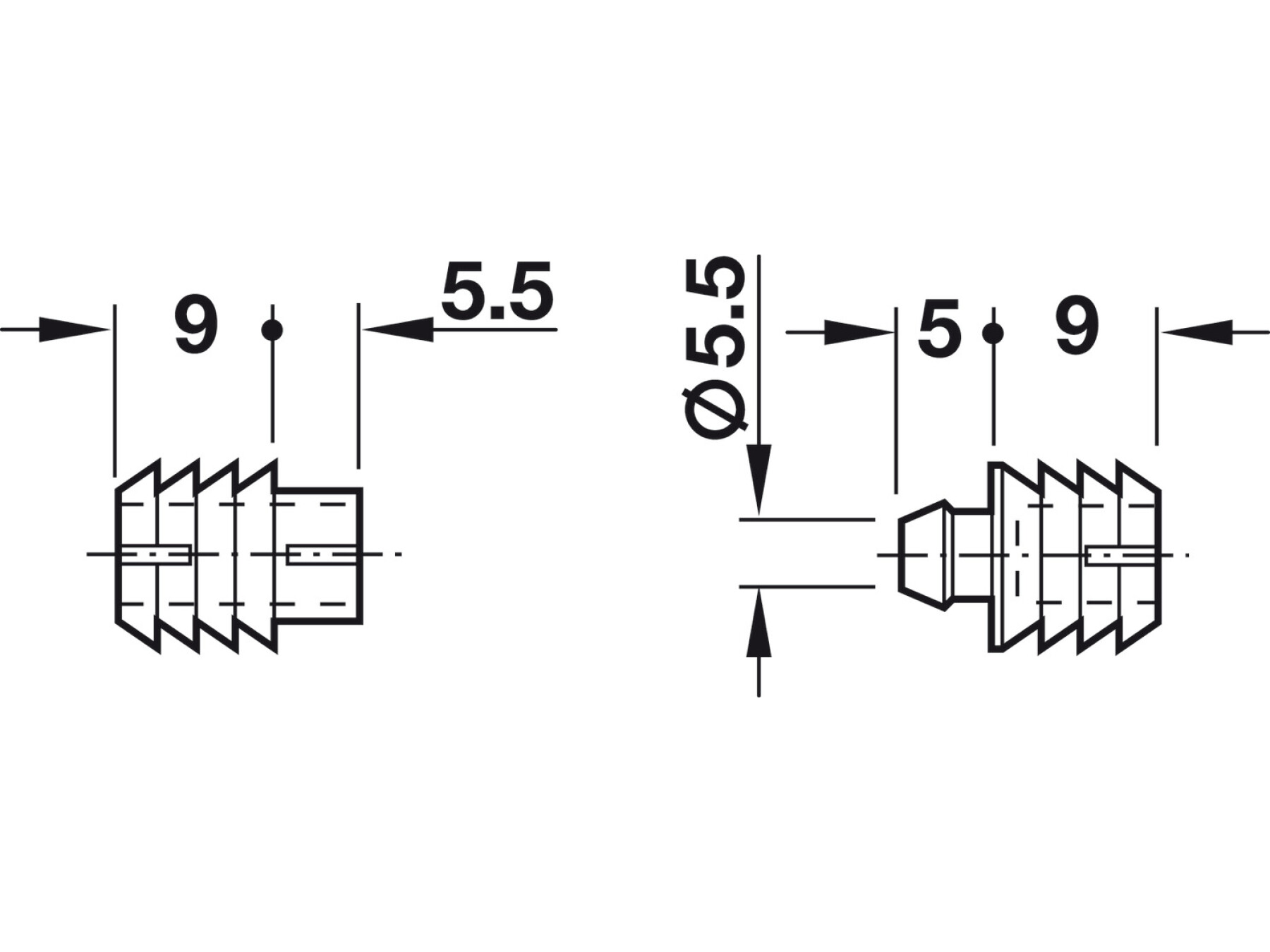

Drilling depth D
for male element: ≥10 mm
for female element: ≥15 mm
Insert male and female element flush.
Warranty/Guarantee information
This product is covered under Häfele’s Lifetime Guarantee.
All products covered under the Häfele Lifetime Guarantee have met our quality standards and have been tested according to the relevant industry certification.
All products under this guarantee are covered for normal use of the products in a domestic environment - for commercial environments our standard 12 month guarantee would apply.
For more information go to:
Services > Customer Support > Häfele Lifetime Guarantee
For release fastenings
Not suitable for ceiling installation
Specifications
Drill hole Ø
10.00 mm
Dowel connector system version
2-piece
Area of application
For concealed fastening without nails or screws
Version

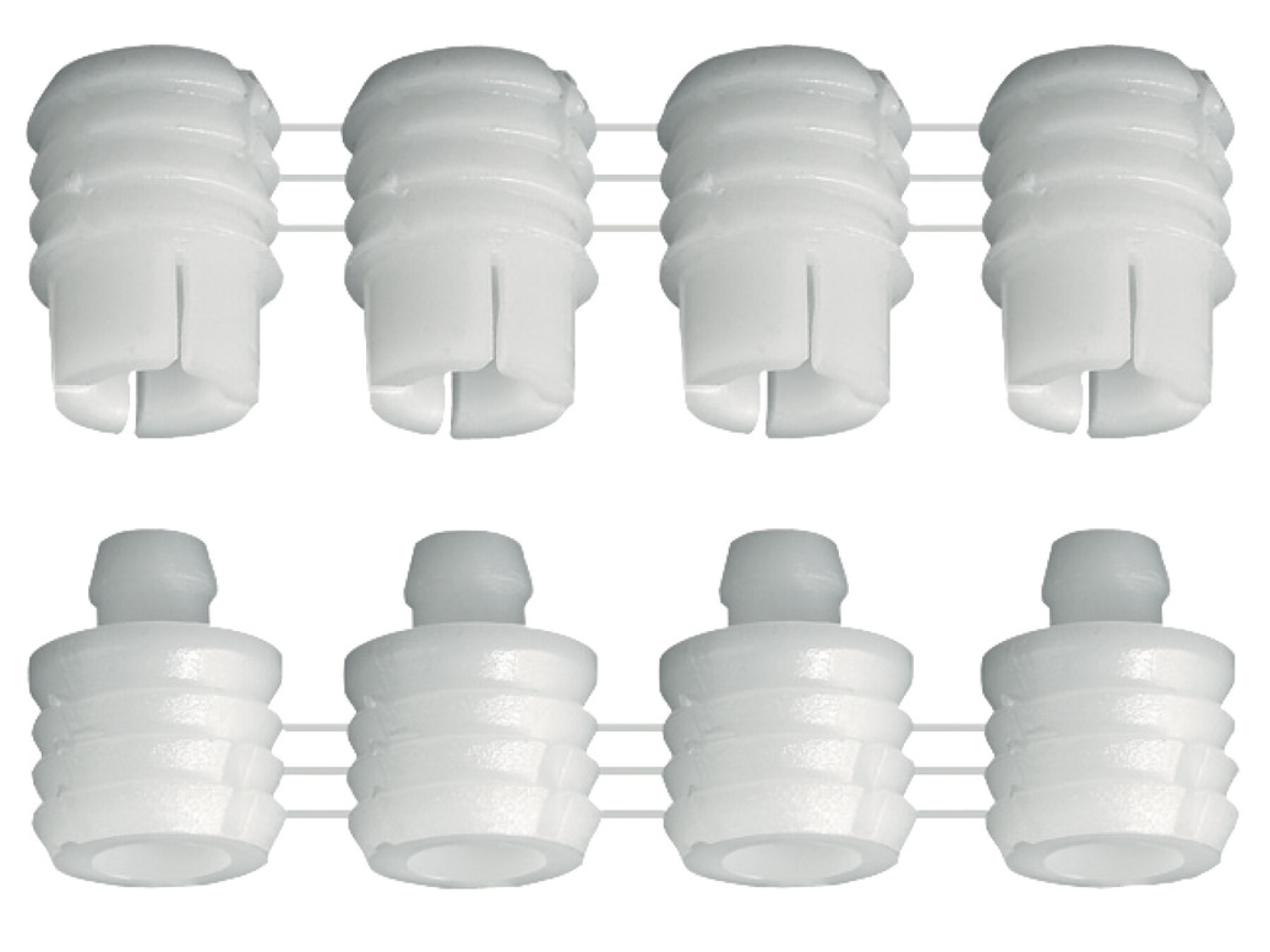

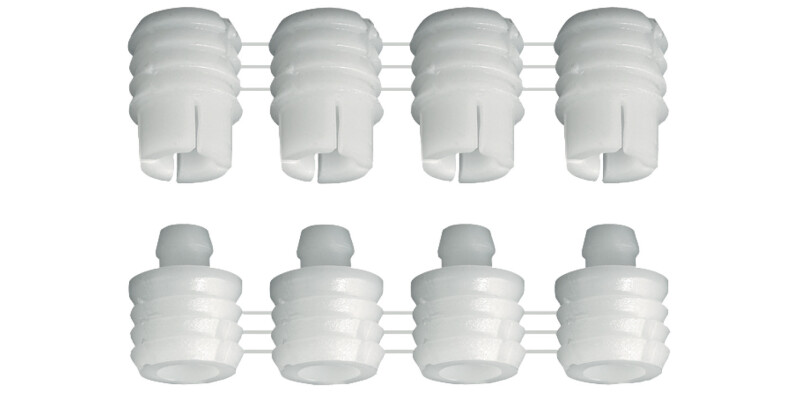

22 pieces moulded together,
Tensile load up to 15 kg
Material
Polyamide
Colour/finish
Natural colour
Operating principle
Tensile load up to 15 kg
Installation
Not suitable for ceiling structures, can be dismantled
Hafele Lifetime Guarantee
25 years
Order reference
Special tools and centring pin must be ordered separately for installation of press-fit connector
