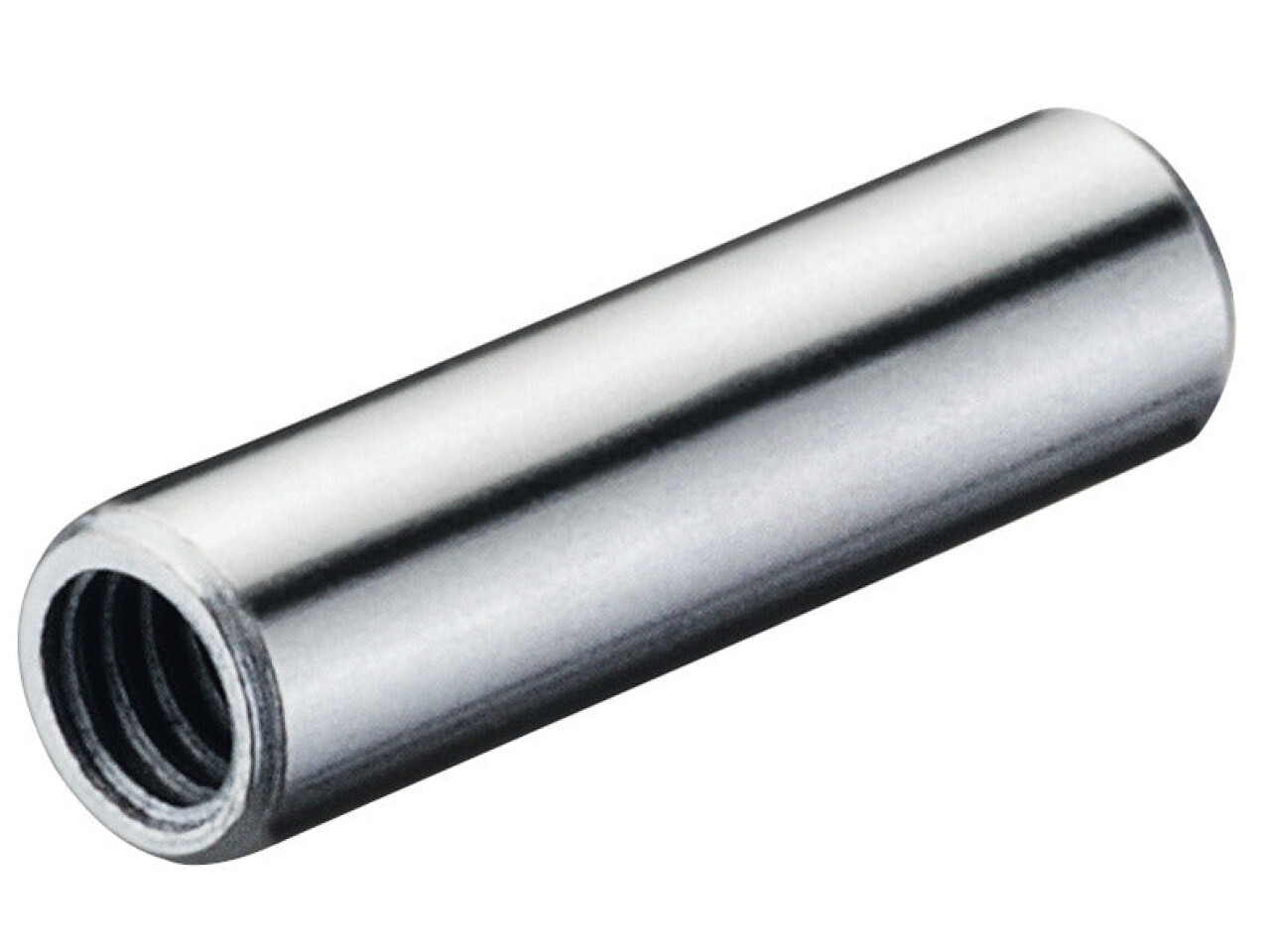

Thread Sleeve M4 5x18mm 24-29mm St Galv
For double-sided installation Warranty/Guarantee information This product is covered under Häfele’s Lifetime... Read More
Product Details

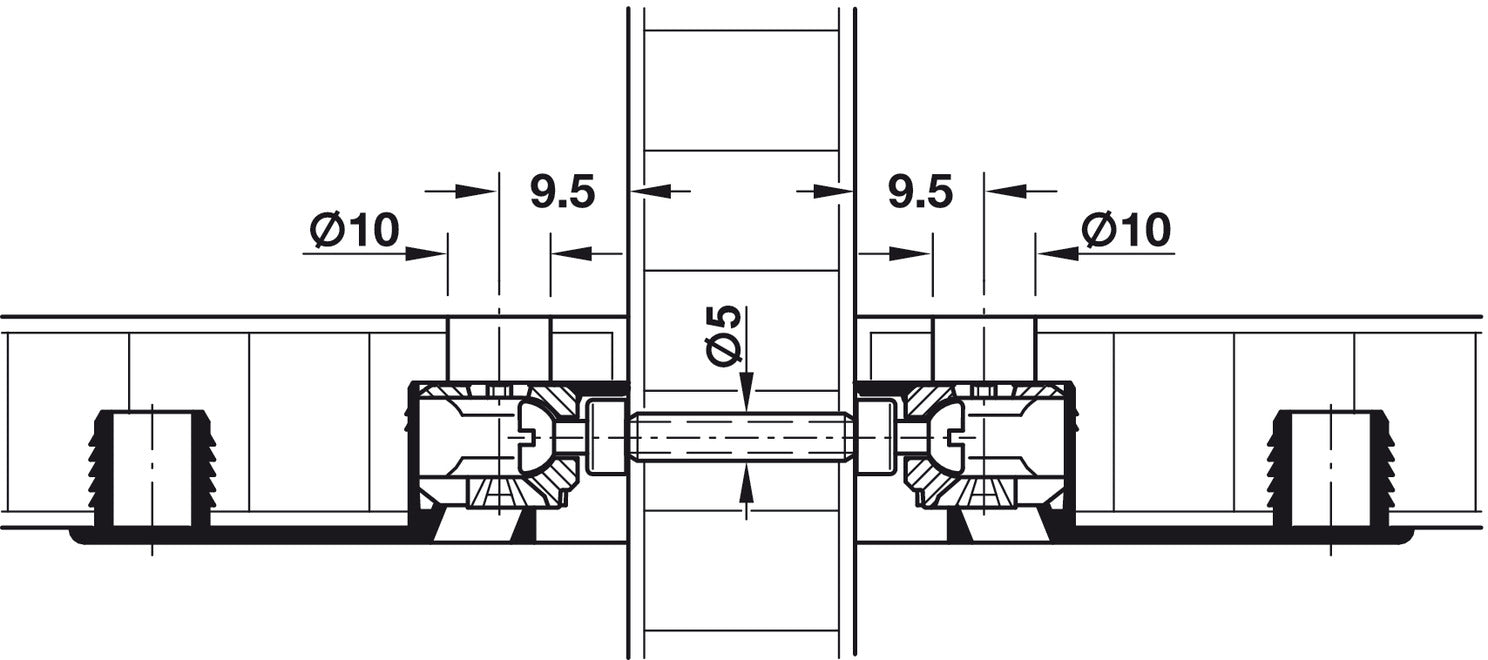

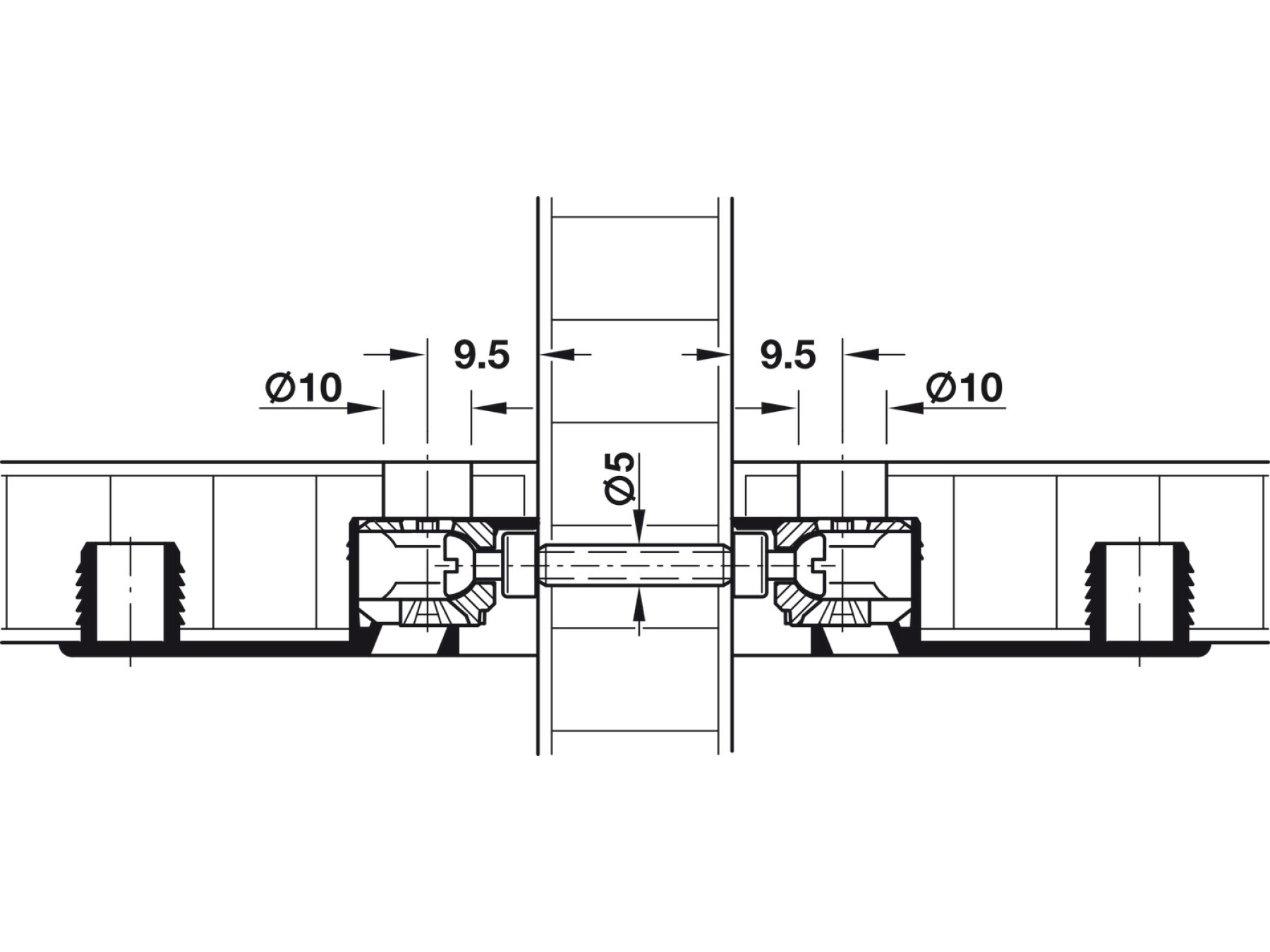

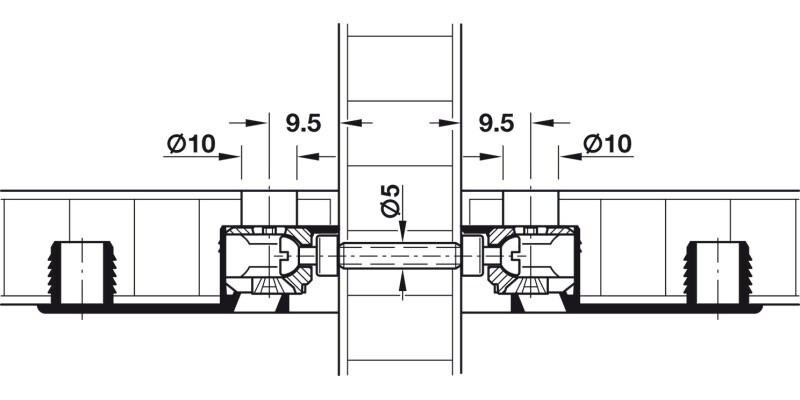

For double-sided installation
Warranty/Guarantee information
This product is covered under Häfele’s Lifetime Guarantee.
All products covered under the Häfele Lifetime Guarantee have met our quality standards and have been tested according to the relevant industry certification.
All products under this guarantee are covered for normal use of the products in a domestic environment - for commercial environments our standard 12 month guarantee would apply.
For more information go to:
Services > Customer Support > Häfele Lifetime Guarantee
| Length | 15 mm | 18 mm | 22 mm | 30 mm | 25 mm |
| For wood thickness | 24 – 26 mm | 24 – 29 mm | 28 – 33 mm | 36 – 40 mm | 31 – 36 mm |
Optional drill hole Ø 10 mm from above if connector is to be tightened from above.
Specifications
For drill hole Ø
Colour/finish
Area of application

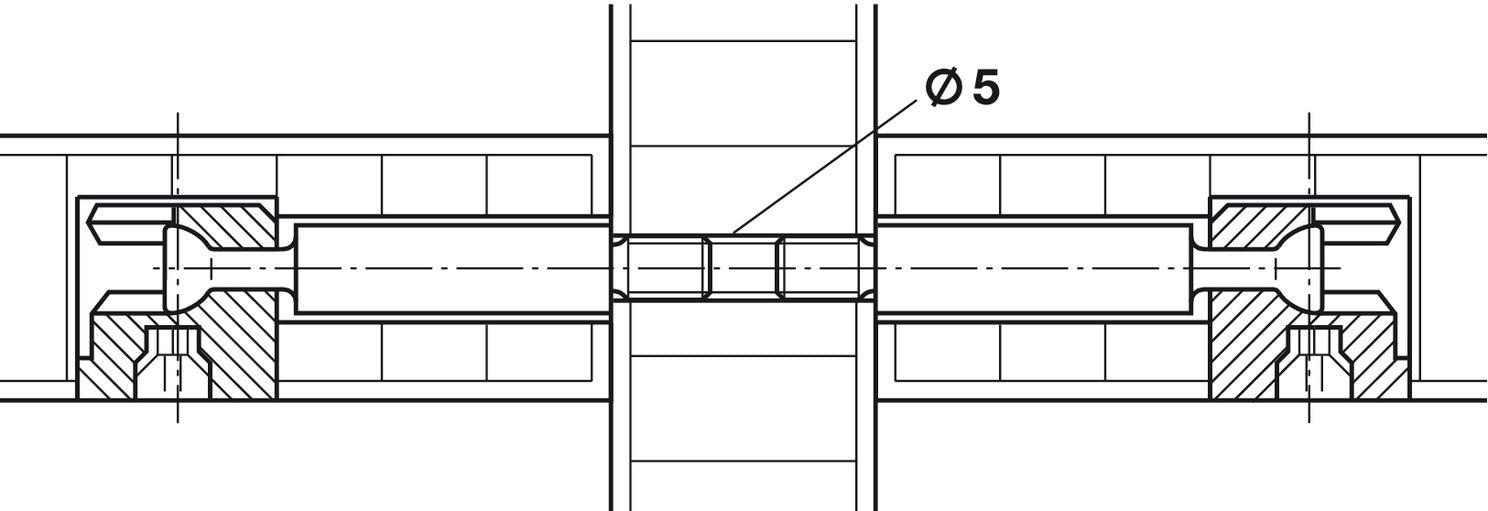

Can also be used as capped bolt for connectors
Version

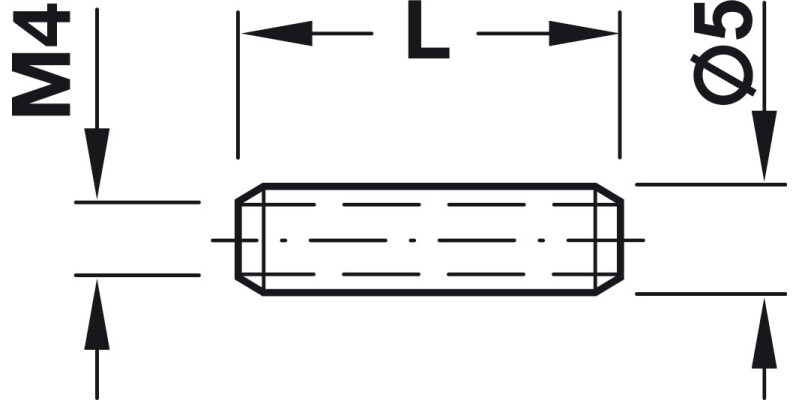

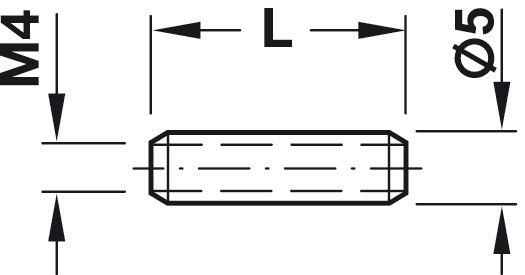

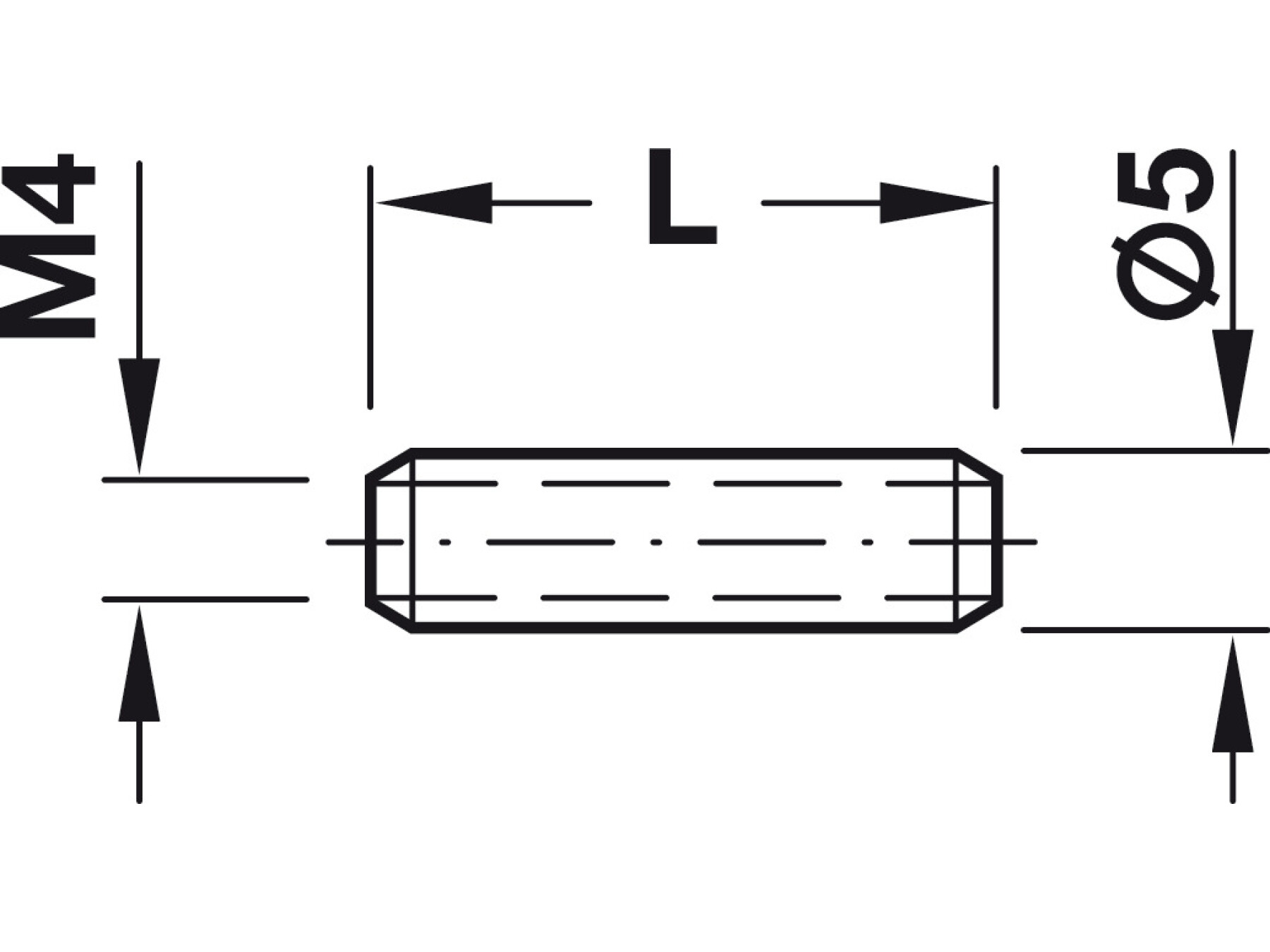

With M4 internal thread, for press-fit installation in Ø 5 mm holes
