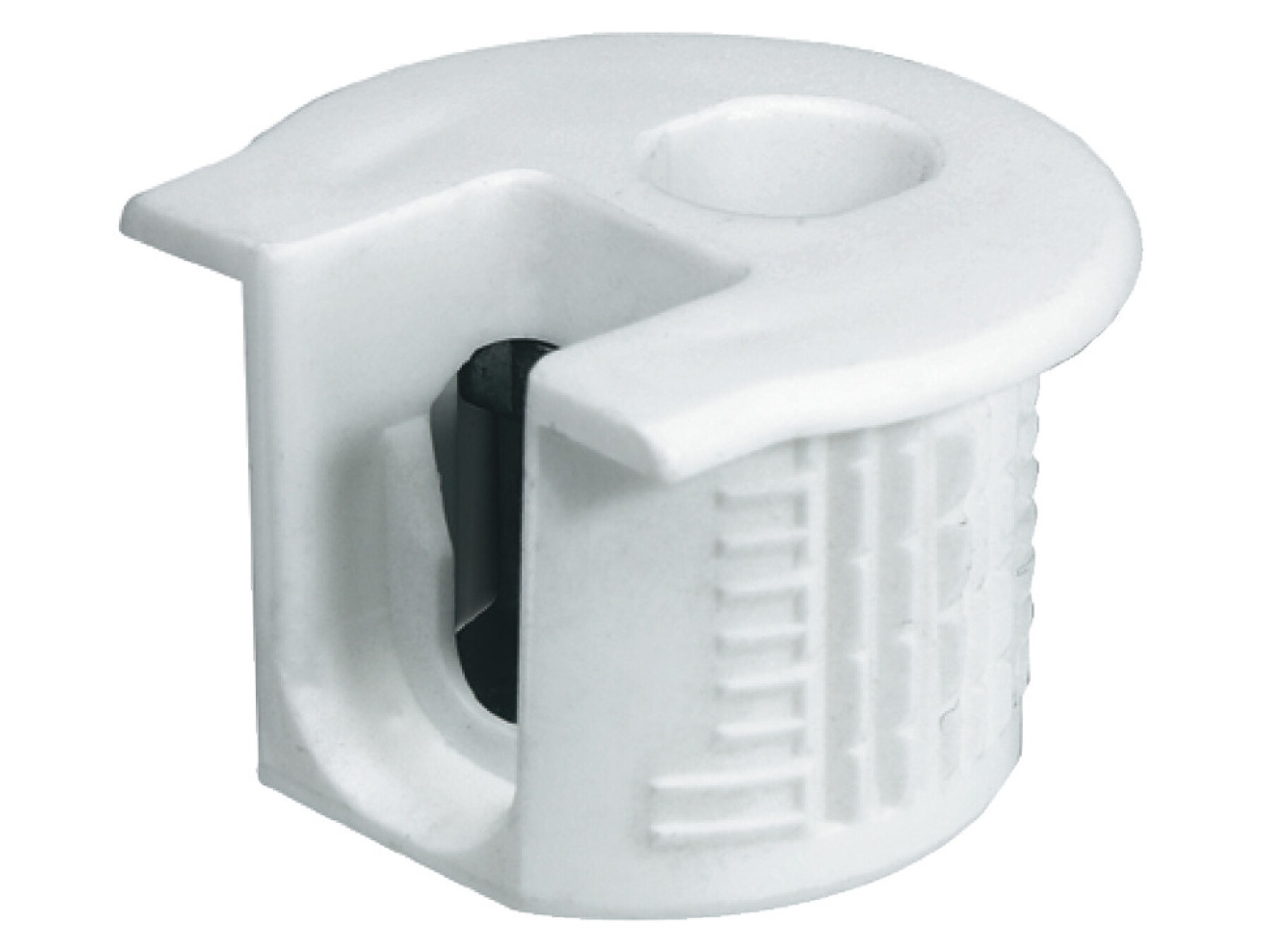

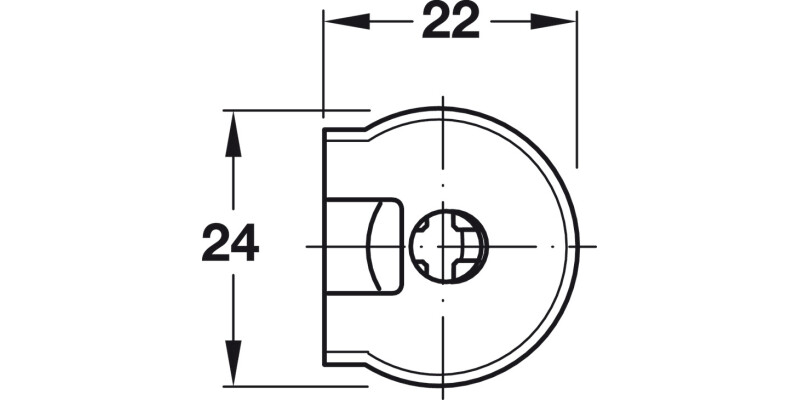

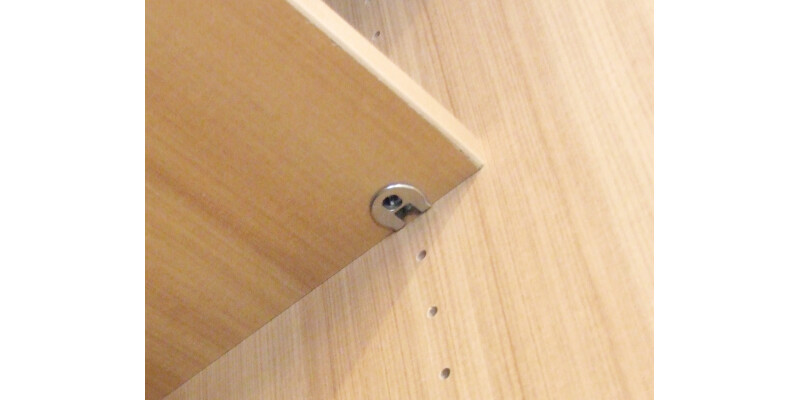

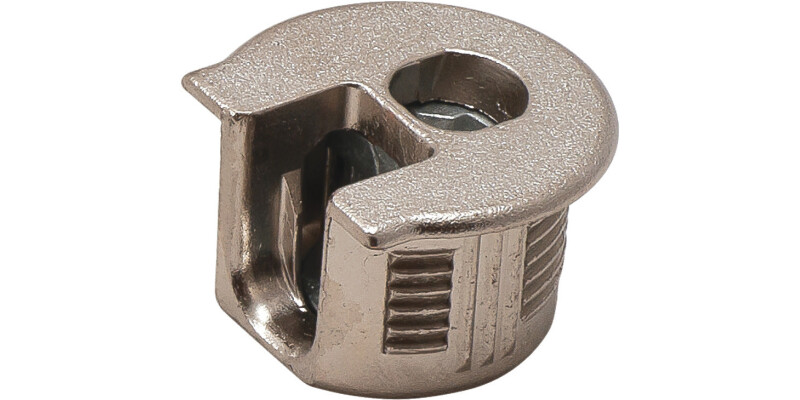

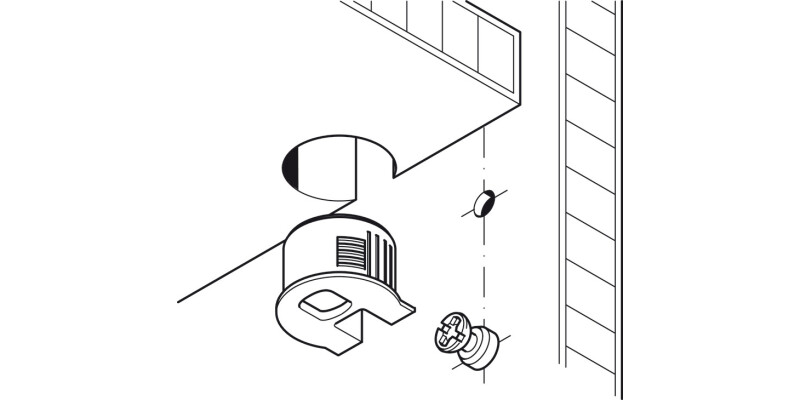

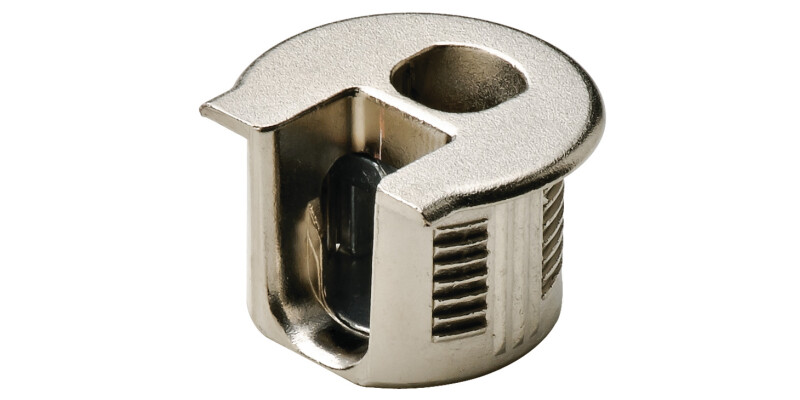

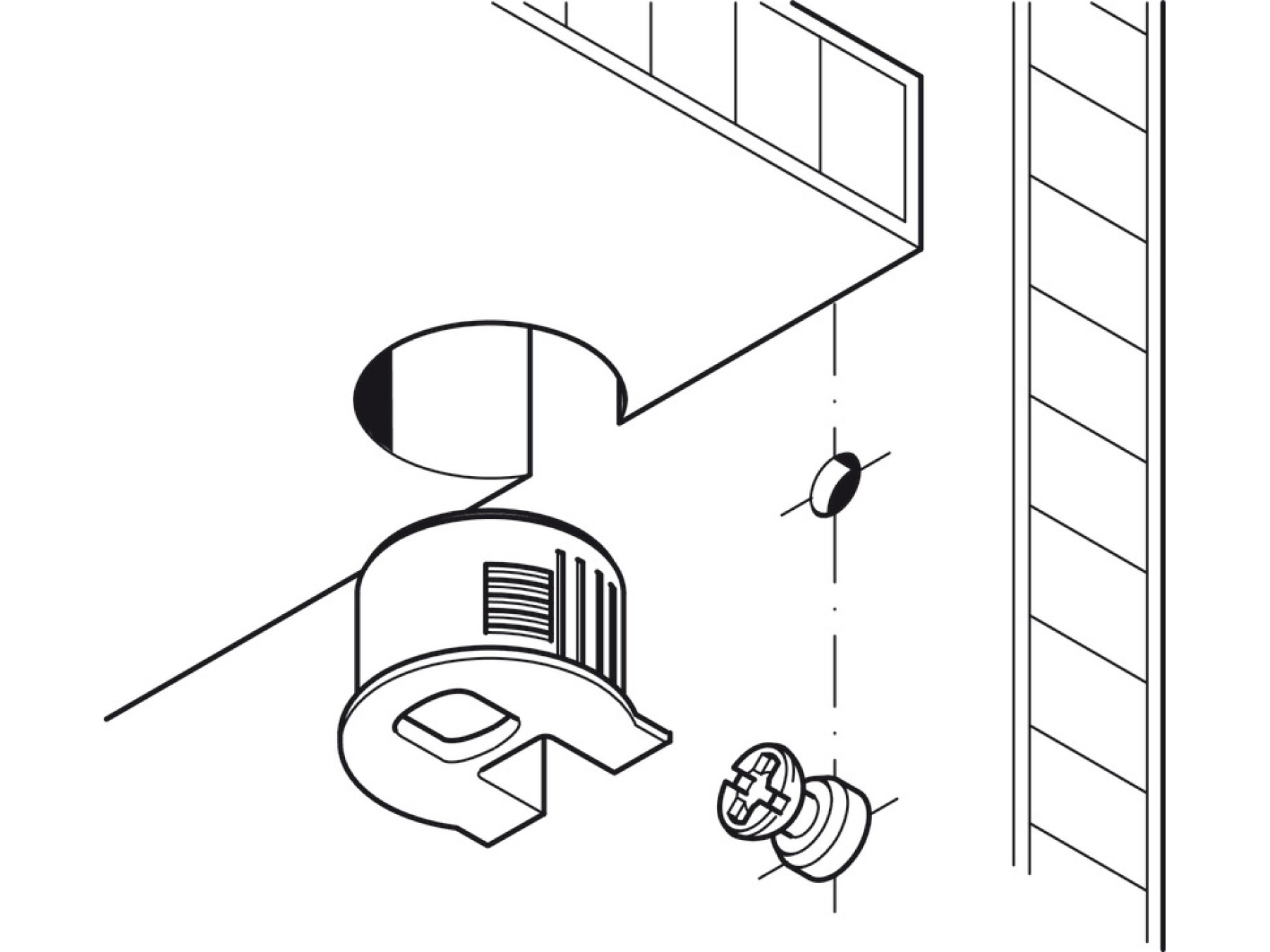

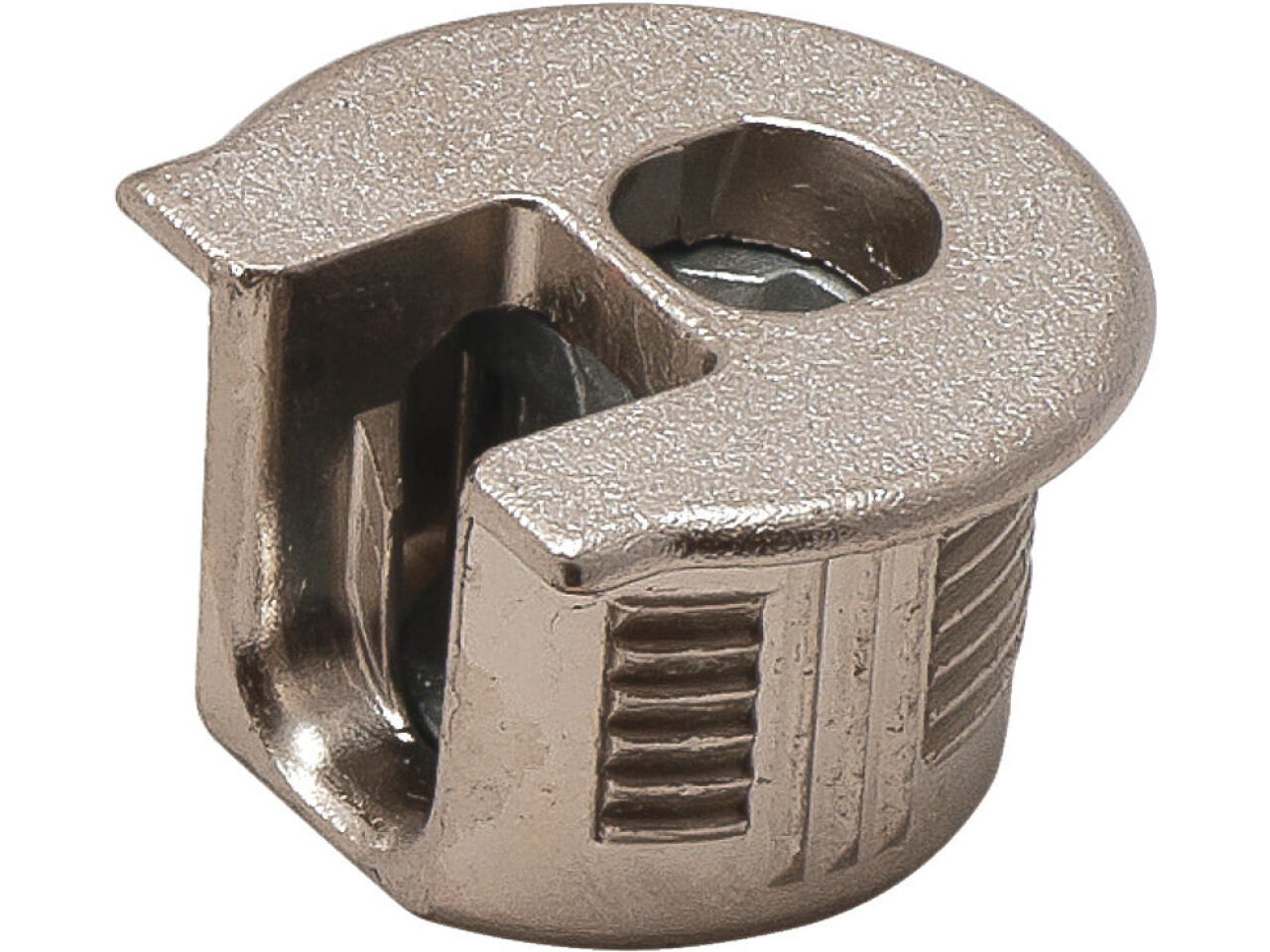

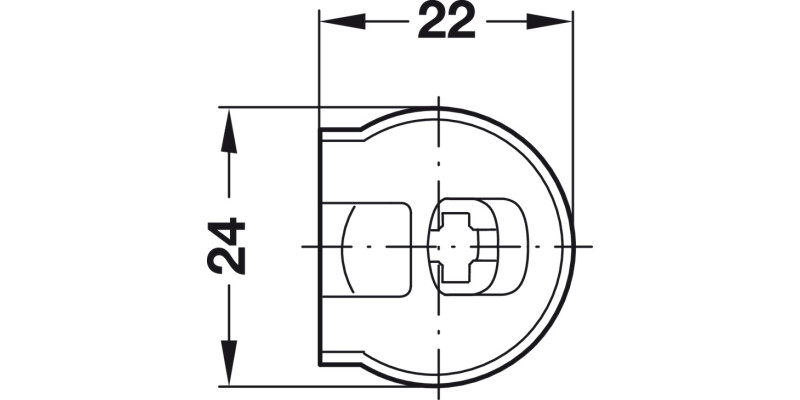

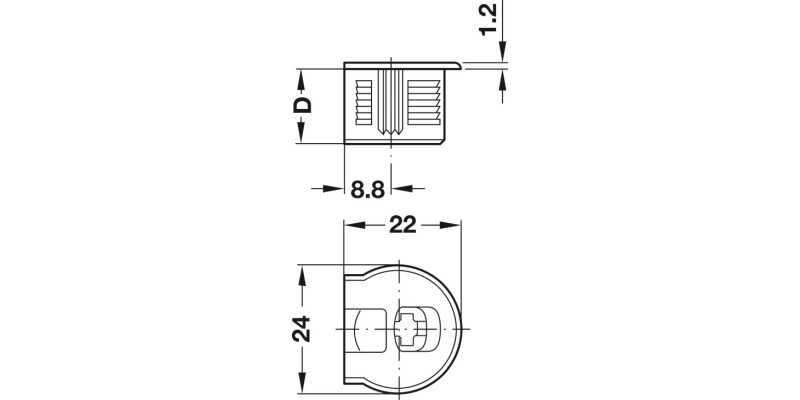

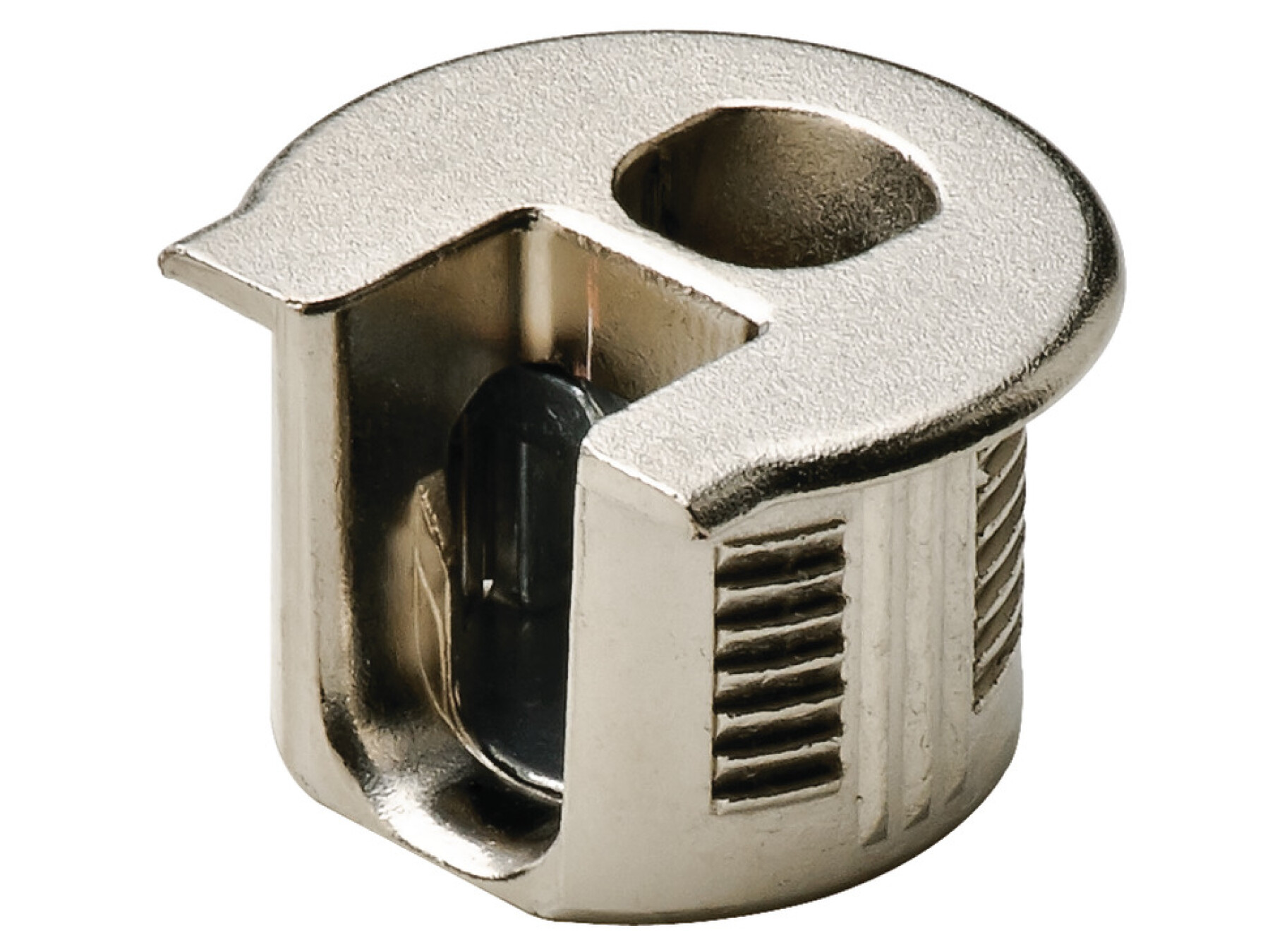

Rafix 20 Housing w Ridge 16mm ZA NP
Part Number: 263.15.703

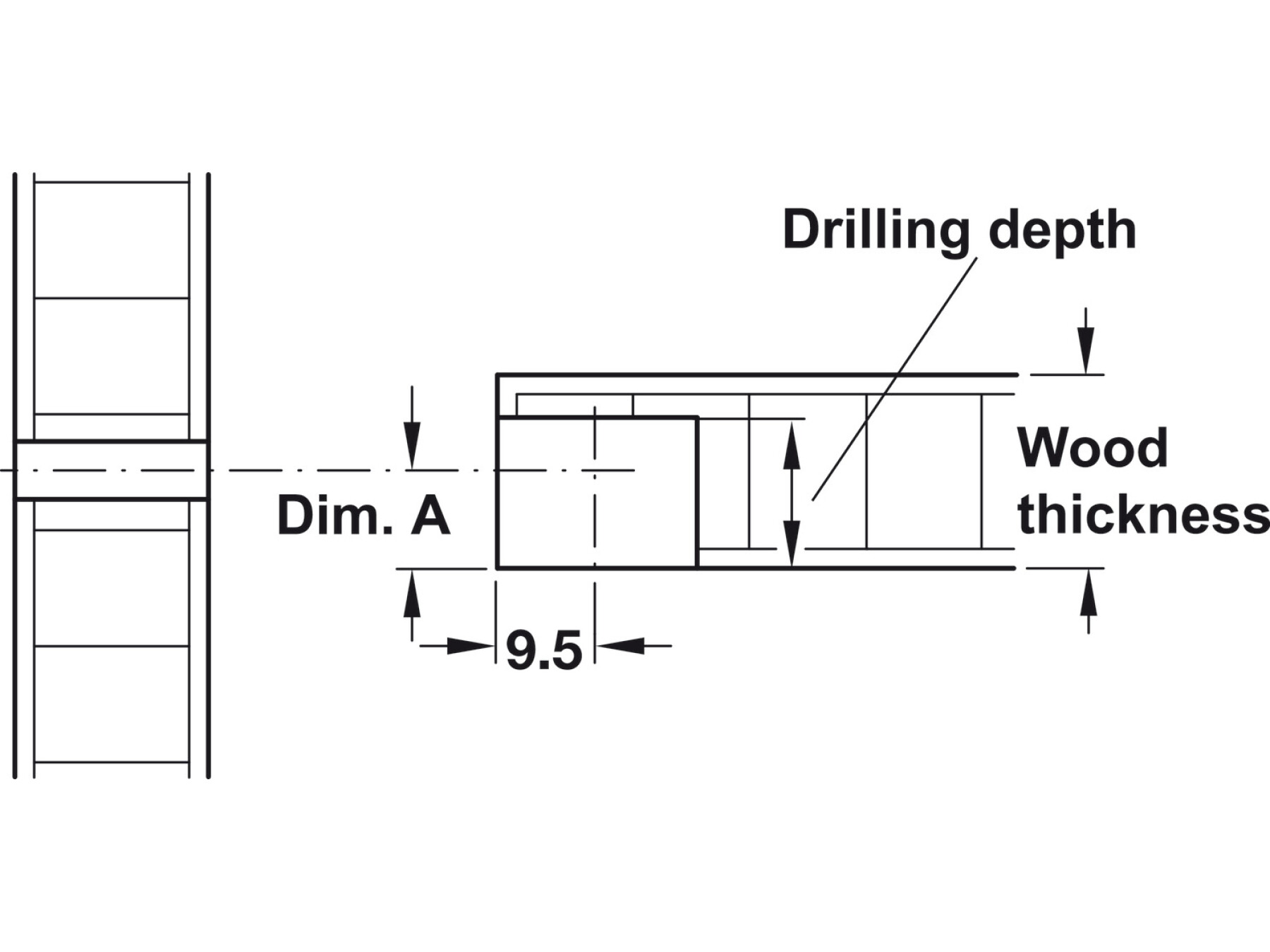

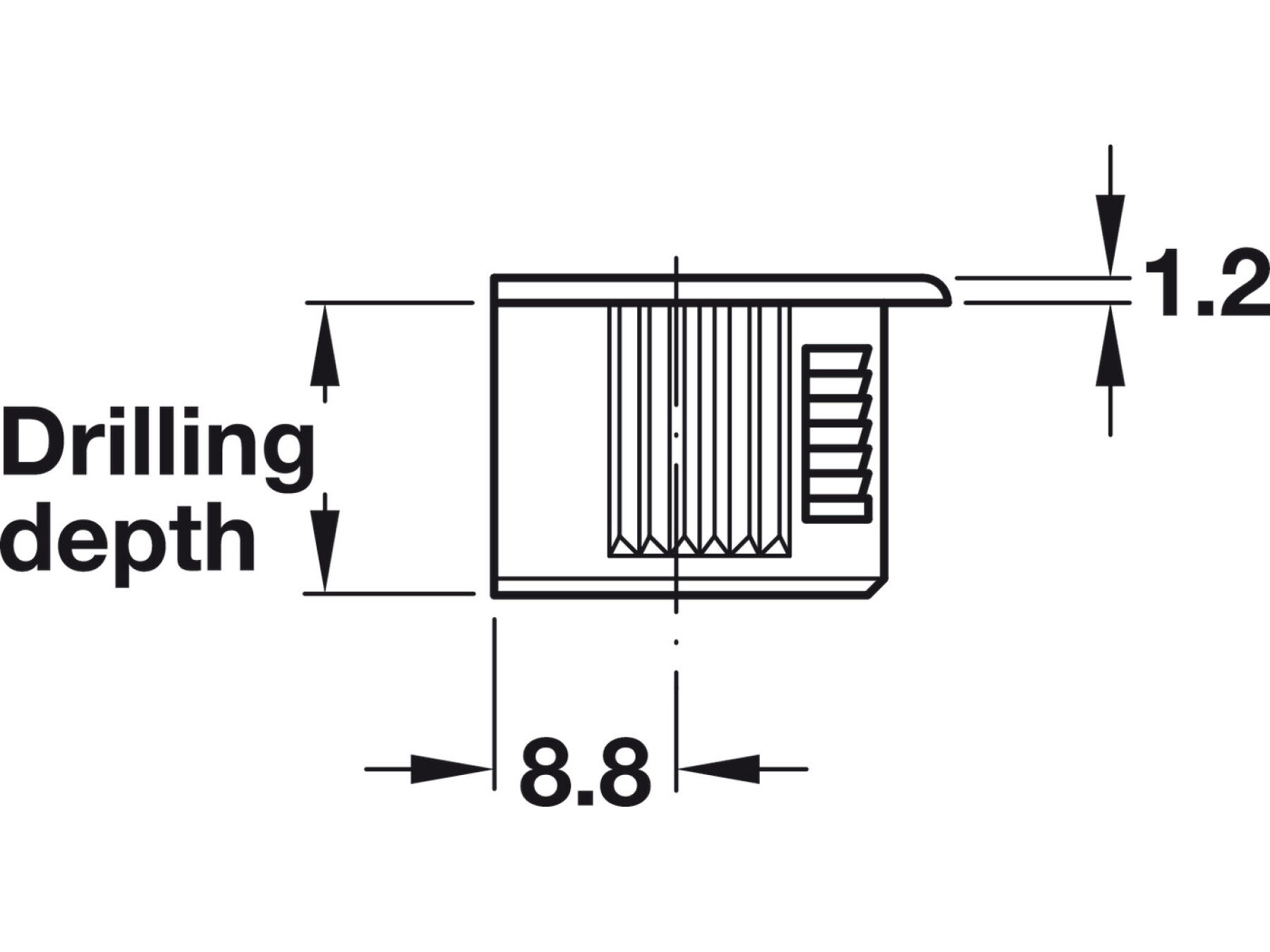

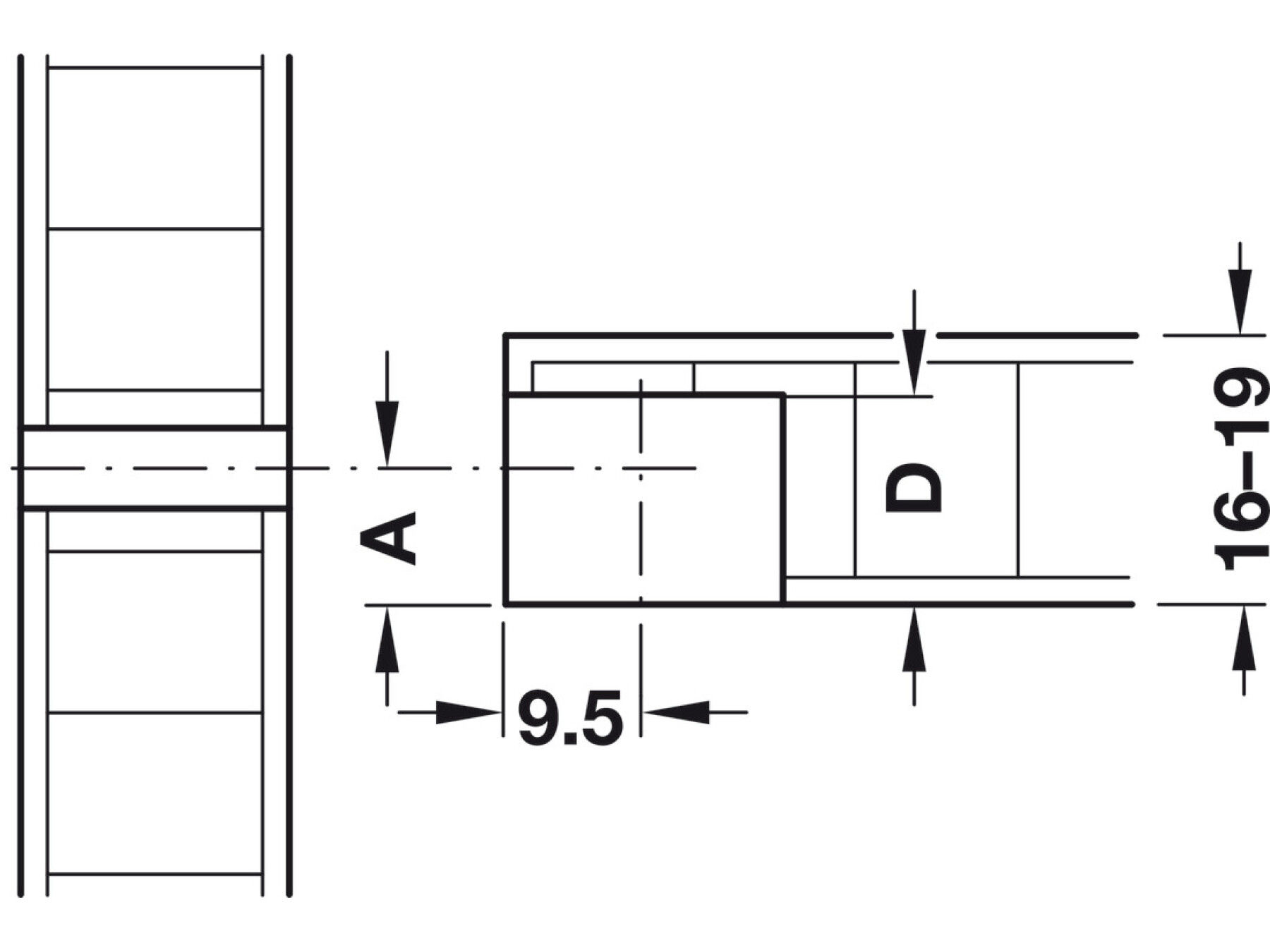

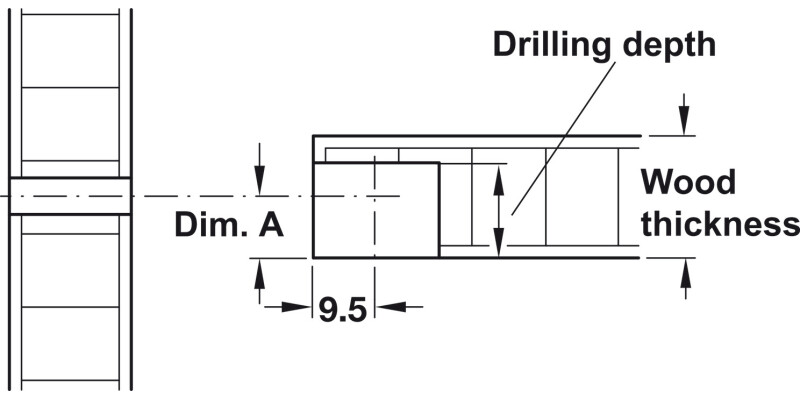

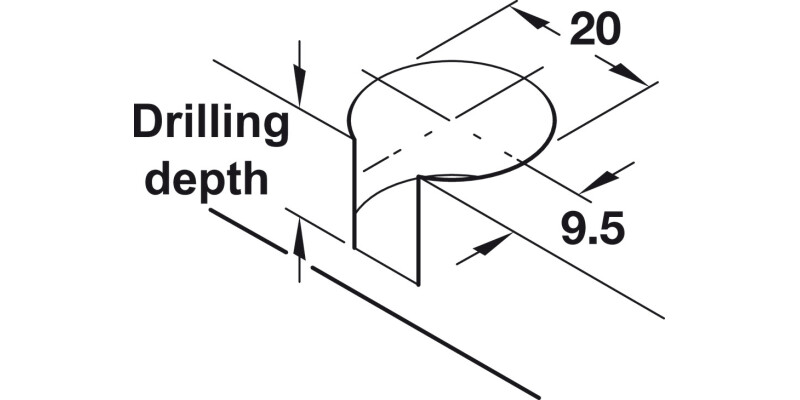

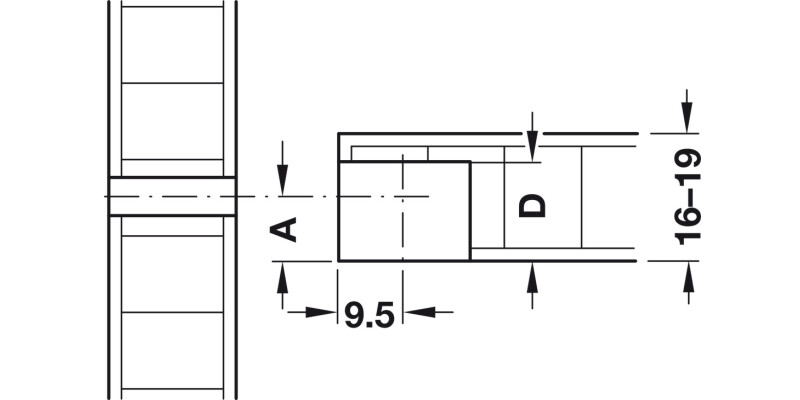

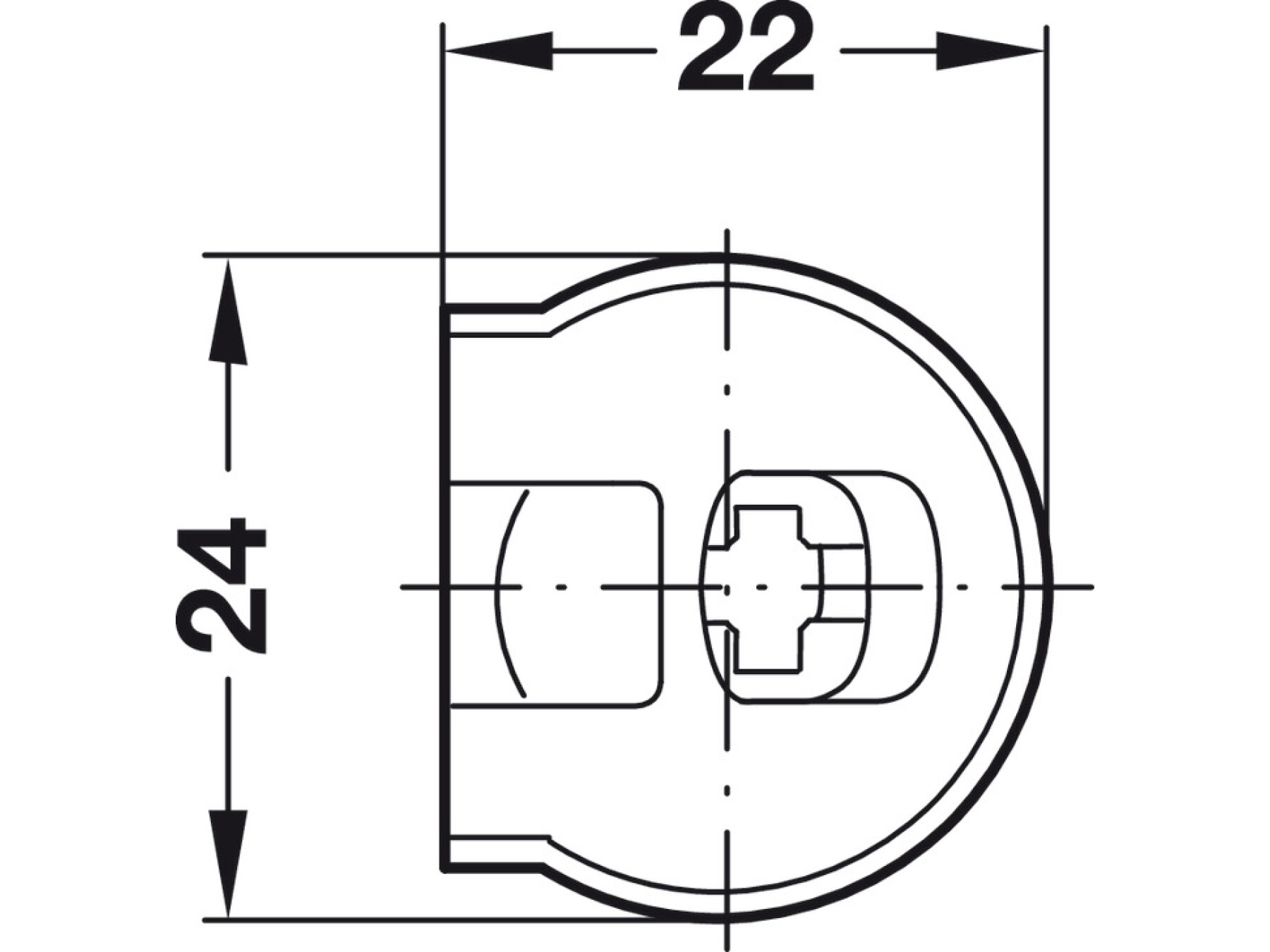

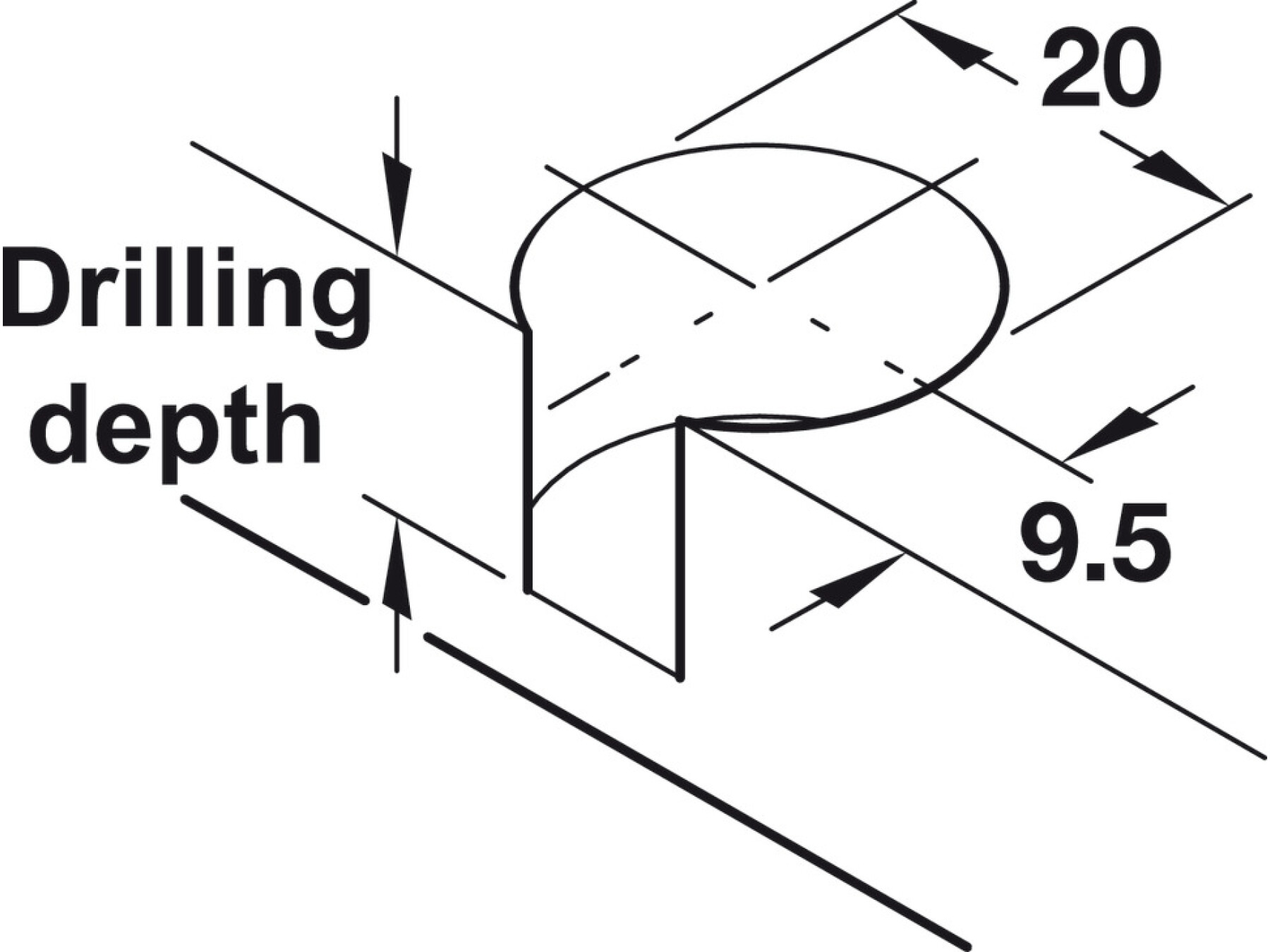

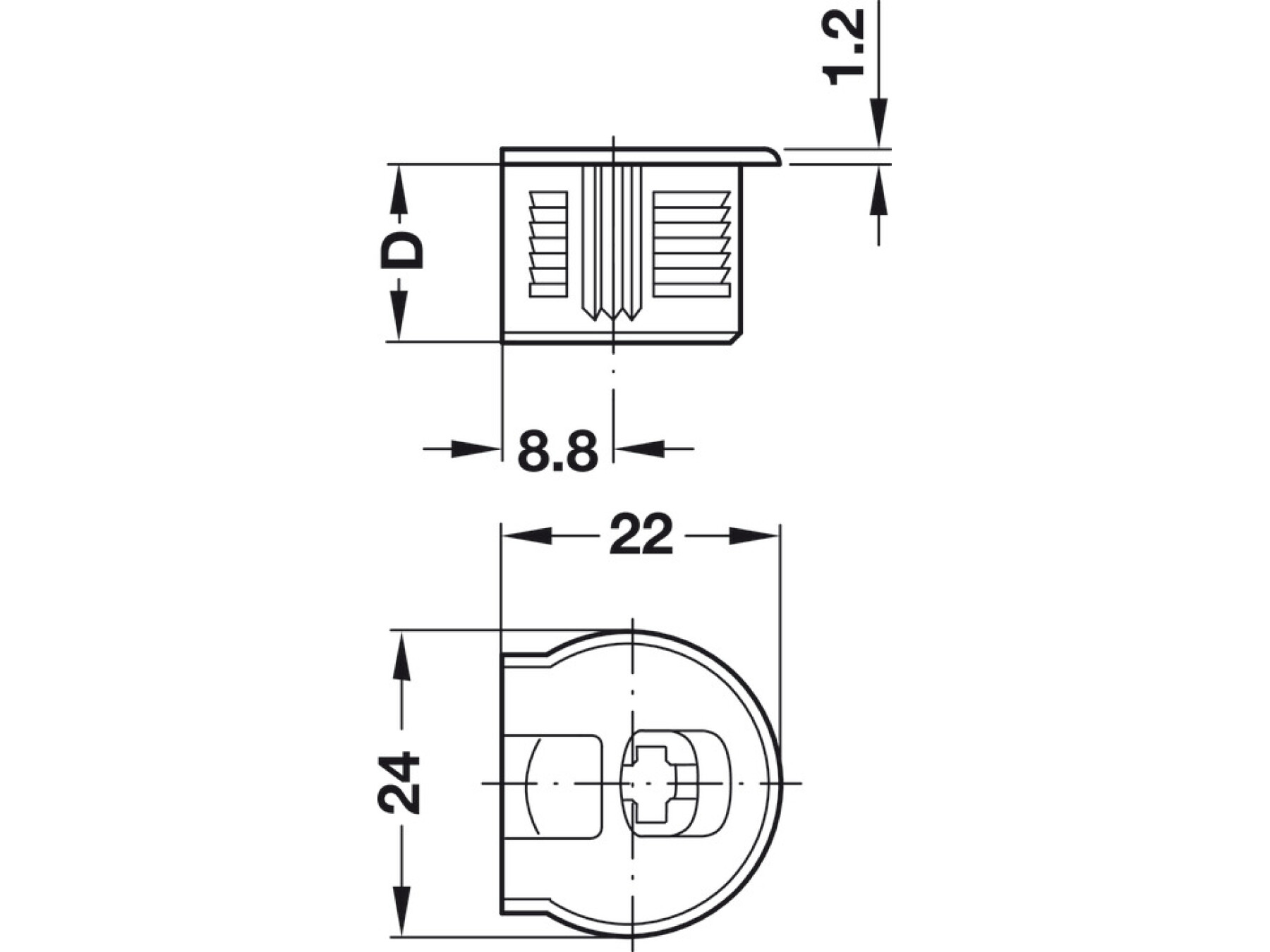

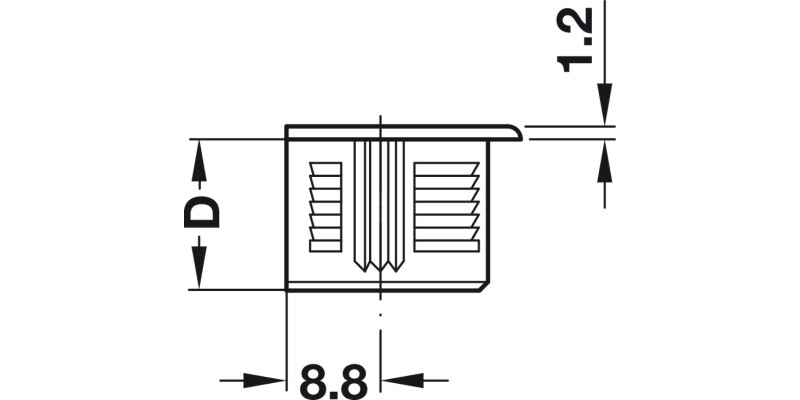

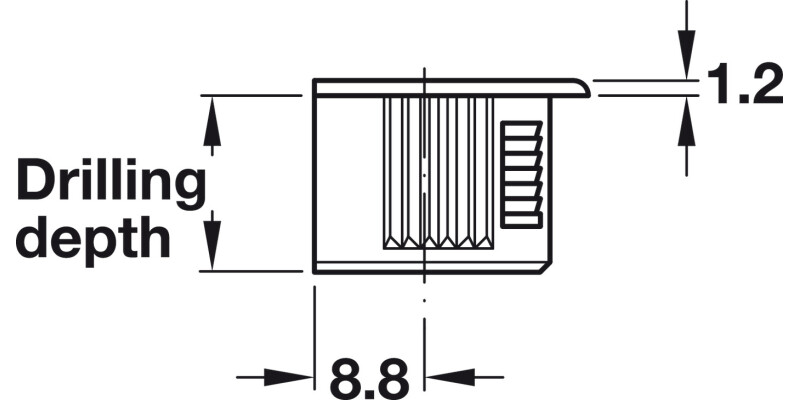

With tightening element, With ridge, for wood thickness from 16 mm, dim. A 8.0 mm, drilling depth X 12.7+0.2, nickel plated
Price:
£61.88
Per 100 Pack
Order reference Order Rafix-20 connecting bolts suitable for these housings separatelyRed jig, Unitool drilling... Read More
Product Information
Product Details
Order reference
Order Rafix-20 connecting bolts suitable for these housings separately
Red jig, Unitool drilling jig and Variantool-N drilling jig are available if required
Warranty/Guarantee information
This product is covered under Häfele’s Lifetime Guarantee.
All products covered under the Häfele Lifetime Guarantee have met our quality standards and have been tested according to the relevant industry certification.
All products under this guarantee are covered for normal use of the products in a domestic environment - for commercial environments our standard 12 month guarantee would apply.
For more information go to:
Services > Customer Support > Häfele Lifetime Guarantee
Specifications

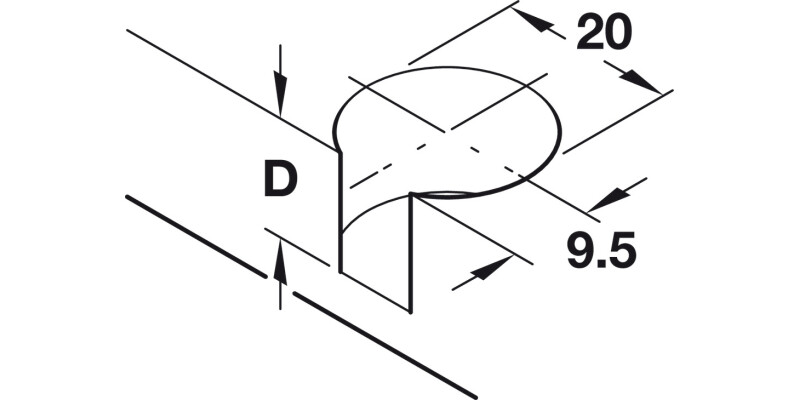

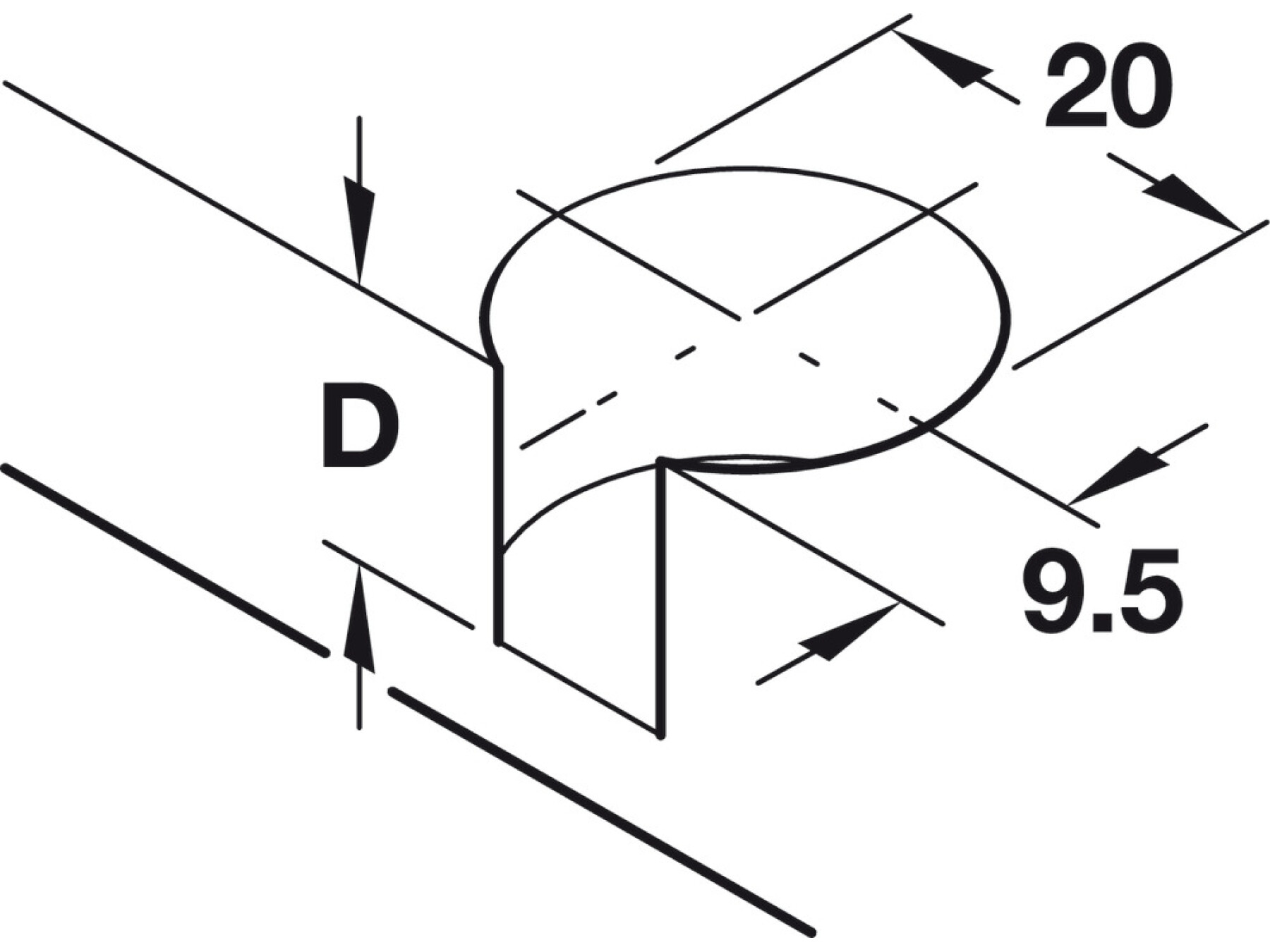

Drill hole Ø housing
20.00 mm
Version
With rim, With ridge, With tightening element, Without dowel
Drive
PZ2 cross slot
Material
Zinc alloy, Tightening element: Zinc alloy
Hafele Lifetime Guarantee
25 years
