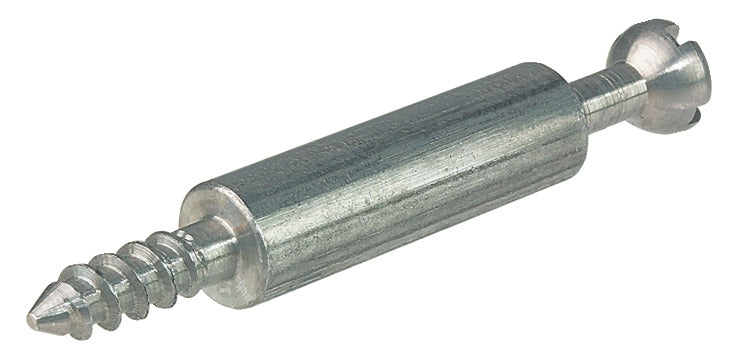

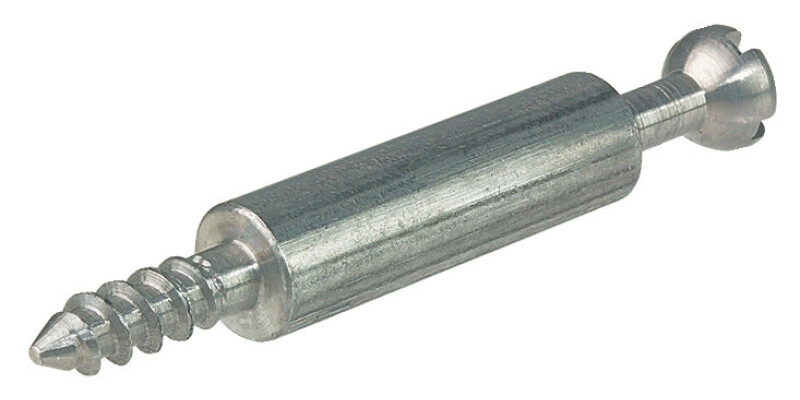

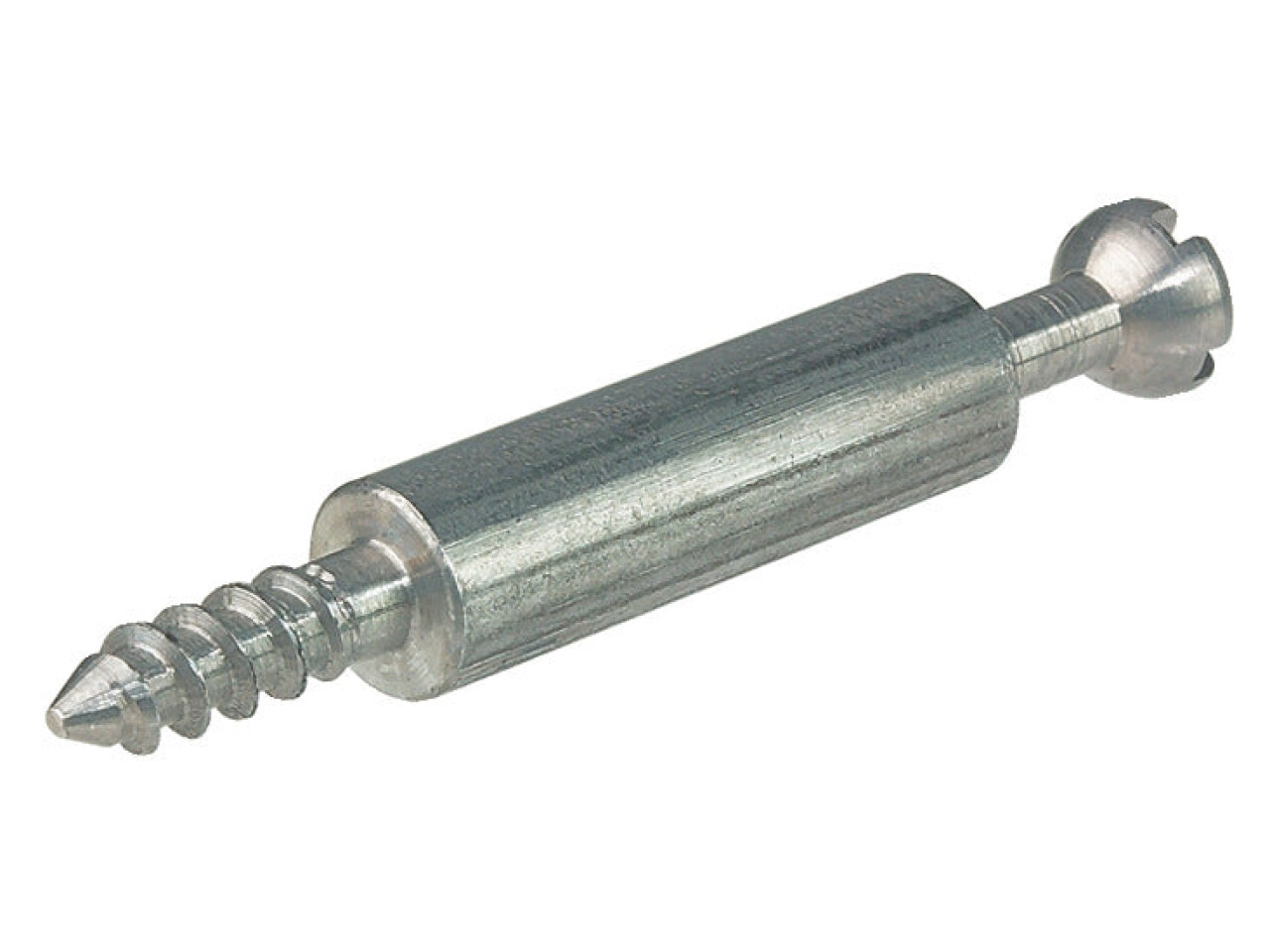

Minifix S100 Con Bolt 3/5/34mm St Galv

Part Number: 262.28.919

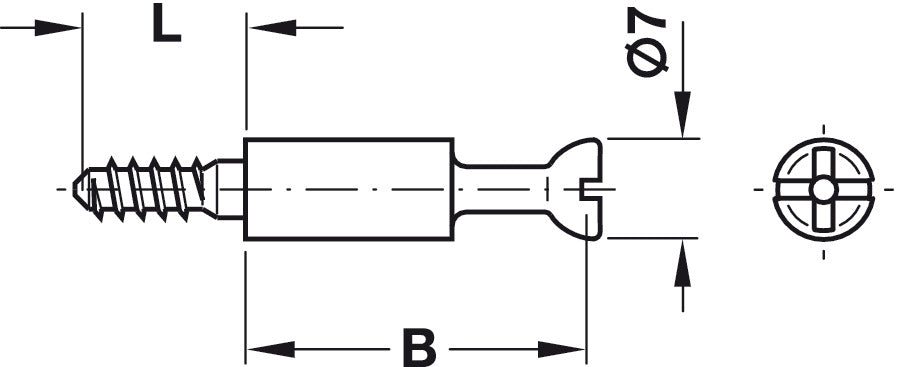

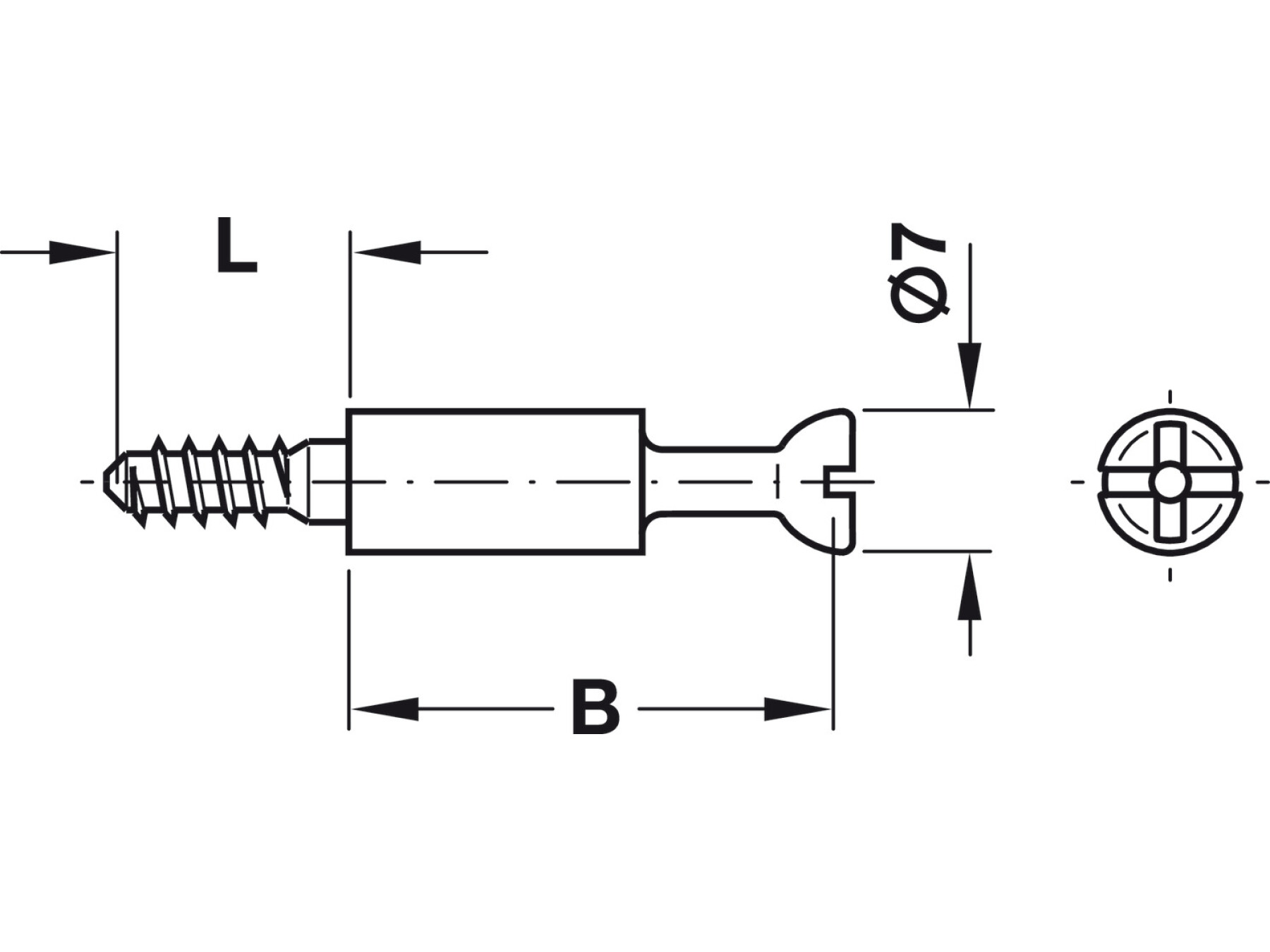

Bolt head Ø 7 mm, Drilling distance B: 34 mm, galvanized
Price:
£6.46
Per 100 Pack
VAT excluded

Installation For direct, screw-in installation in Ø 3 mm holes or for press-fitinstallation in Ø 5 mm holes... Read More

Product Information

Product Details

Installation

For direct, screw-in installation in Ø 3 mm holes or for press-fit
installation in Ø 5 mm holes when used with dowels

Order reference

Order Minifix housings separately
Red jig & Unitool drilling jig for Minifix housings and Variantool-N drilling jig for series-drilled holes for connecting bolts are available if required
Expanding sleeves and dowels for Ø 5 mm holes are available to order separately

Warranty/Guarantee information

This product is covered under Häfele’s Lifetime Guarantee.
All products covered under the Häfele Lifetime Guarantee have met our quality standards and have been tested according to the relevant industry certification.
All products under this guarantee are covered for normal use of the products in a domestic environment - for commercial environments our standard 12 month guarantee would apply.

For more information go to:
Services > Customer Support > Häfele Lifetime Guarantee

Specifications

Thread

Special thread

Thread type

Special thread

Thread length

12.00 mm

For drill hole Ø

3.00 mm

Area of application

For single or double-sided constructions

Material

Steel

Drive

PZ2 cross slot, Flat blade

Bolt hole

8.00 mm

Hafele Lifetime Guarantee

25 years
