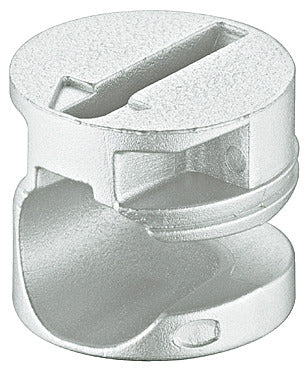

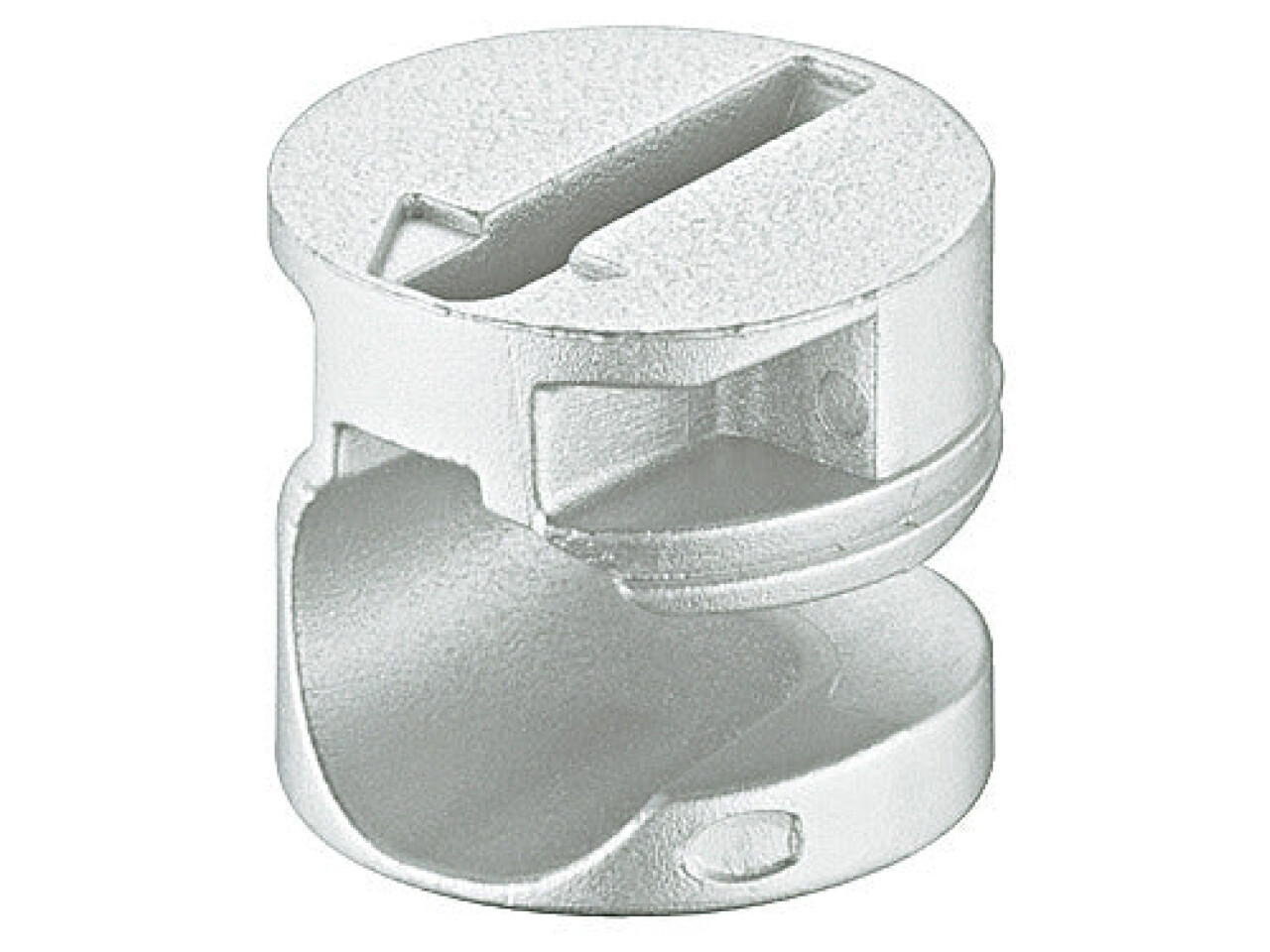

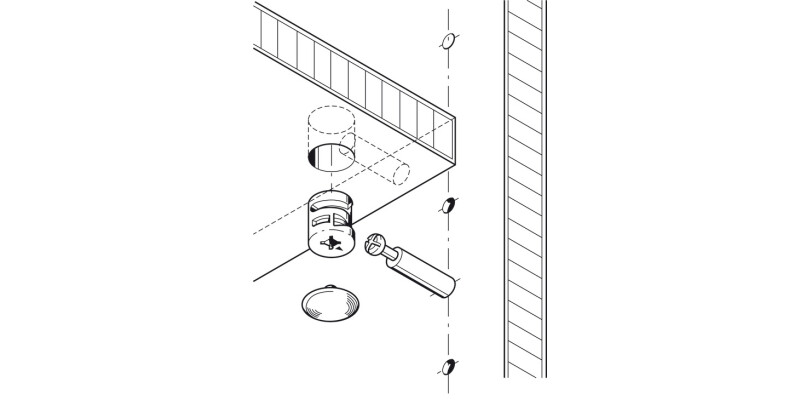

Minifix 15 Housing 15/16mm wo Rim White
Part Number: 262.15.707

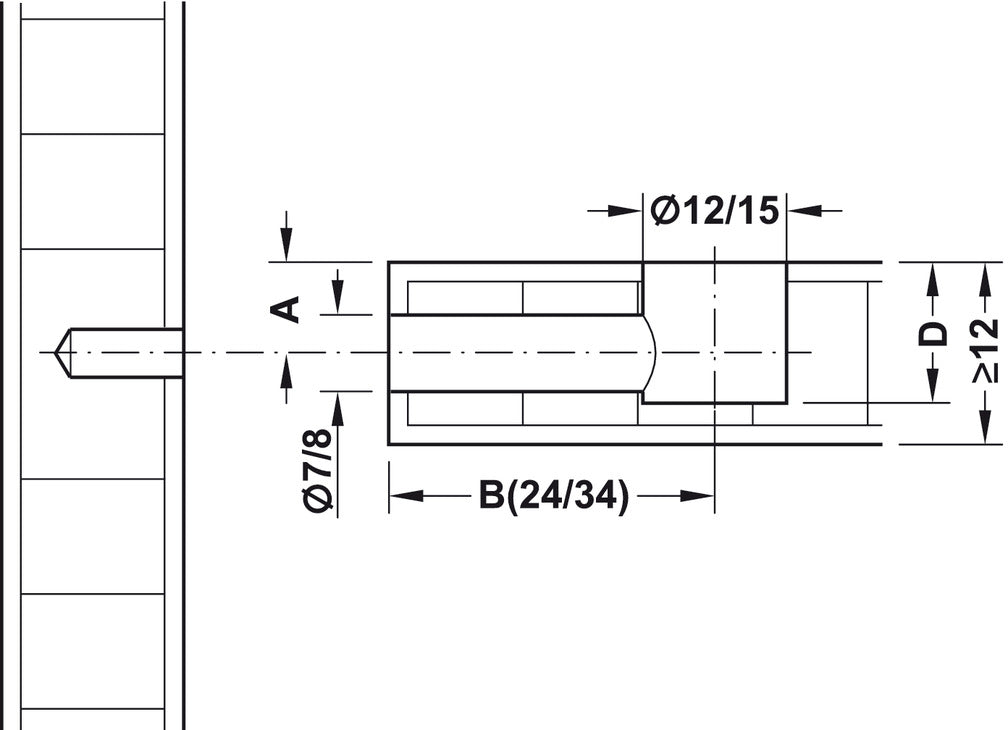

For wood thickness from 15 mm, dim. A 7.5 mm, drilling depth x 12.0+0.2 mm, white
Price:
£4.61
Per 100 Pack
Order reference Order Minifix 15 bolts separatelyRed jig & Unitool drilling jig for Minifix 15 housings and... Read More
Product Information
Product Details
Order reference
Order Minifix 15 bolts separately

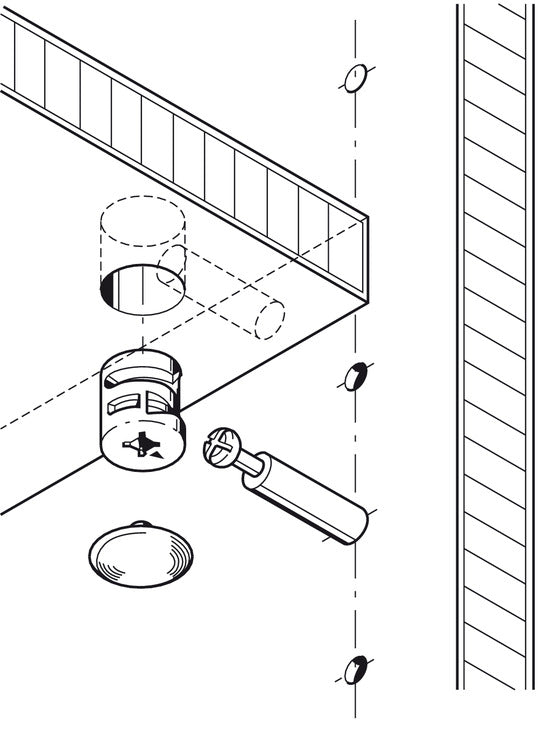

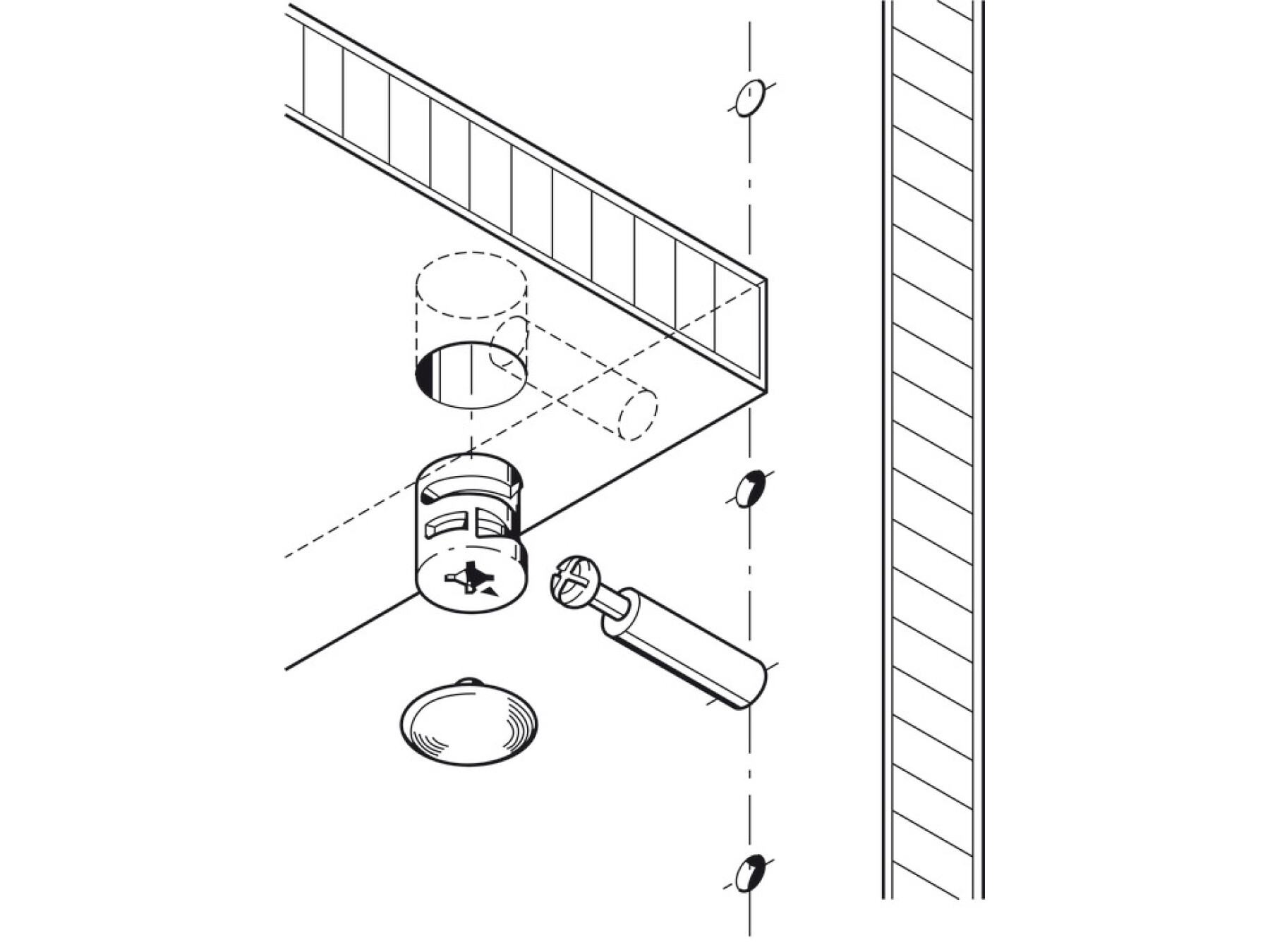

Red jig & Unitool drilling jig for Minifix 15 housings and Variantool-N drilling jig for series-drilled holes for connecting bolts are available if required
Warranty/Guarantee information
This product is covered under Häfele’s Lifetime Guarantee.
All products covered under the Häfele Lifetime Guarantee have met our quality standards and have been tested according to the relevant industry certification.
All products under this guarantee are covered for normal use of the products in a domestic environment - for commercial environments our standard 12 month guarantee would apply.
For more information go to:
Services > Customer Support > Häfele Lifetime Guarantee
Specifications
For wood thickness
≥15 mm

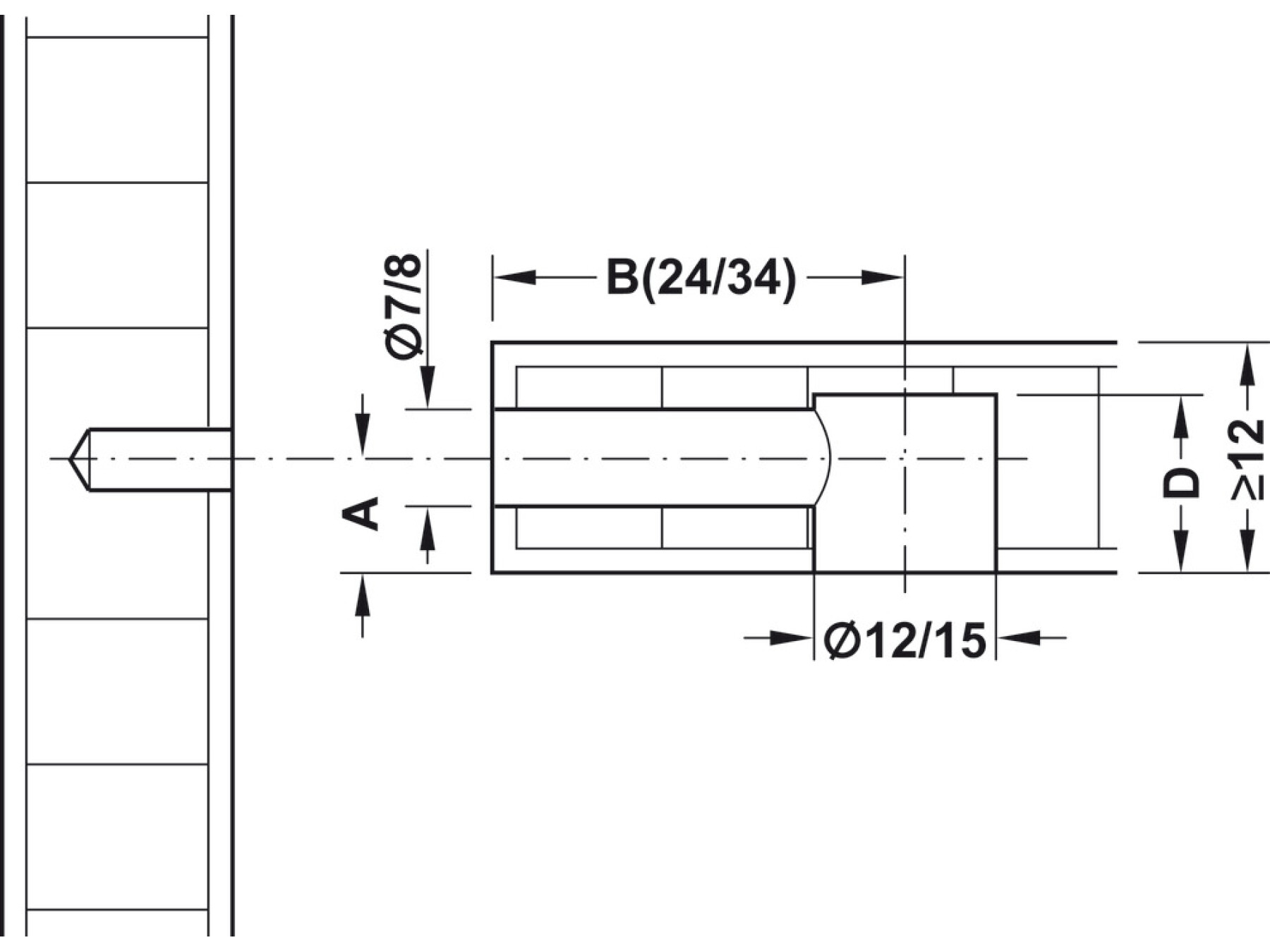

Drilling depth
12 mm +0.2 mm

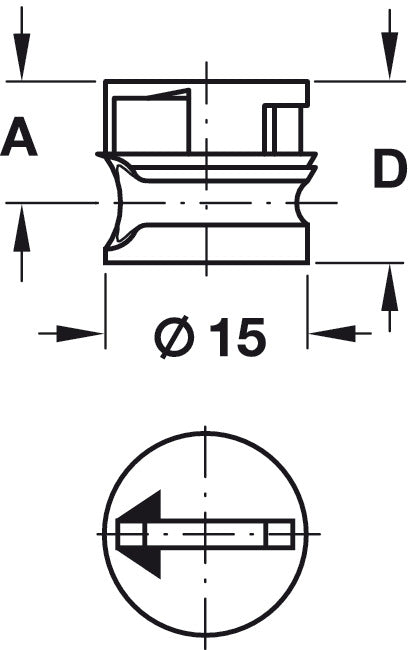

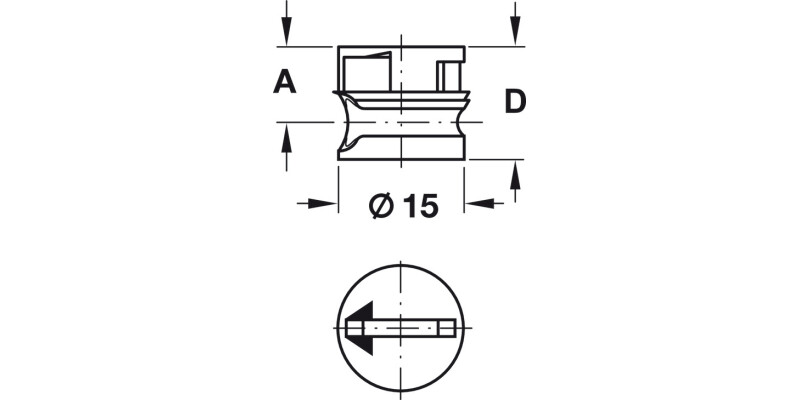

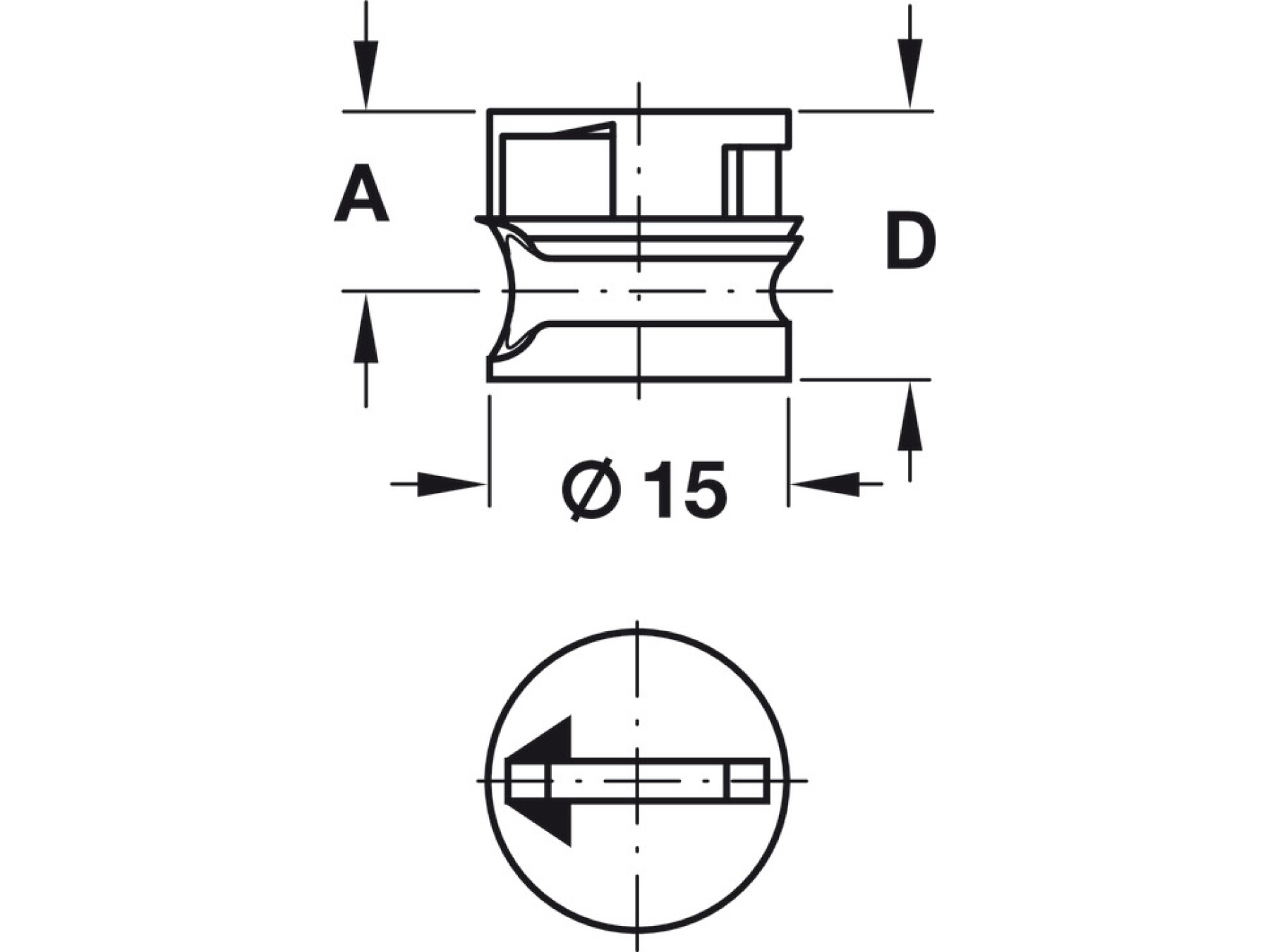

Dim. A
7.50 mm
Drive
Flat blade, Tightening key

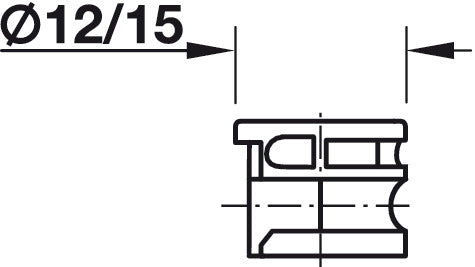

Drill hole Ø housing
15.00 mm
Colour/finish
White
Area of application
For connecting bolts with head Ø 6.5 and 7 mm, spreading bolts not suitable
Material
Plastic
Suitable for
Connecting bolt with head Ø 6.5 and 7 mm, spreading bolt cannot be used.
Installation
Only to be used with Minifix connecting bolts with bolt head Ø 7 mm
Hafele Lifetime Guarantee
25 years
