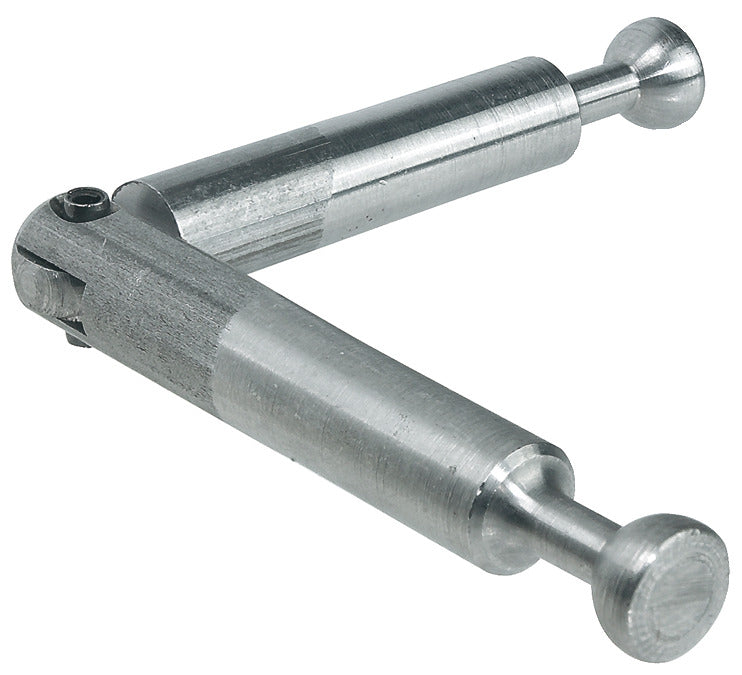

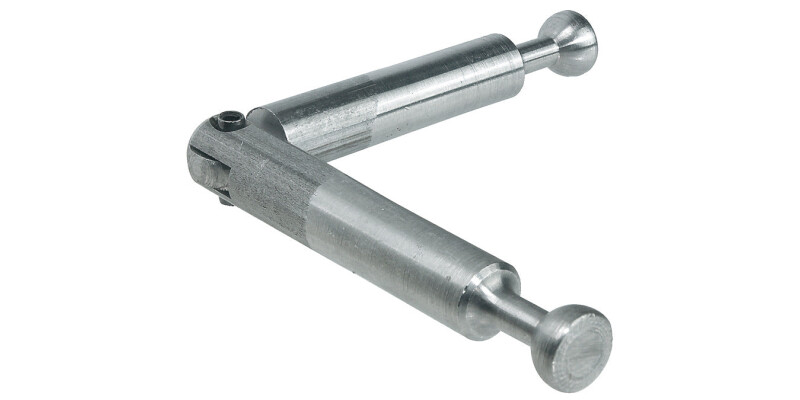

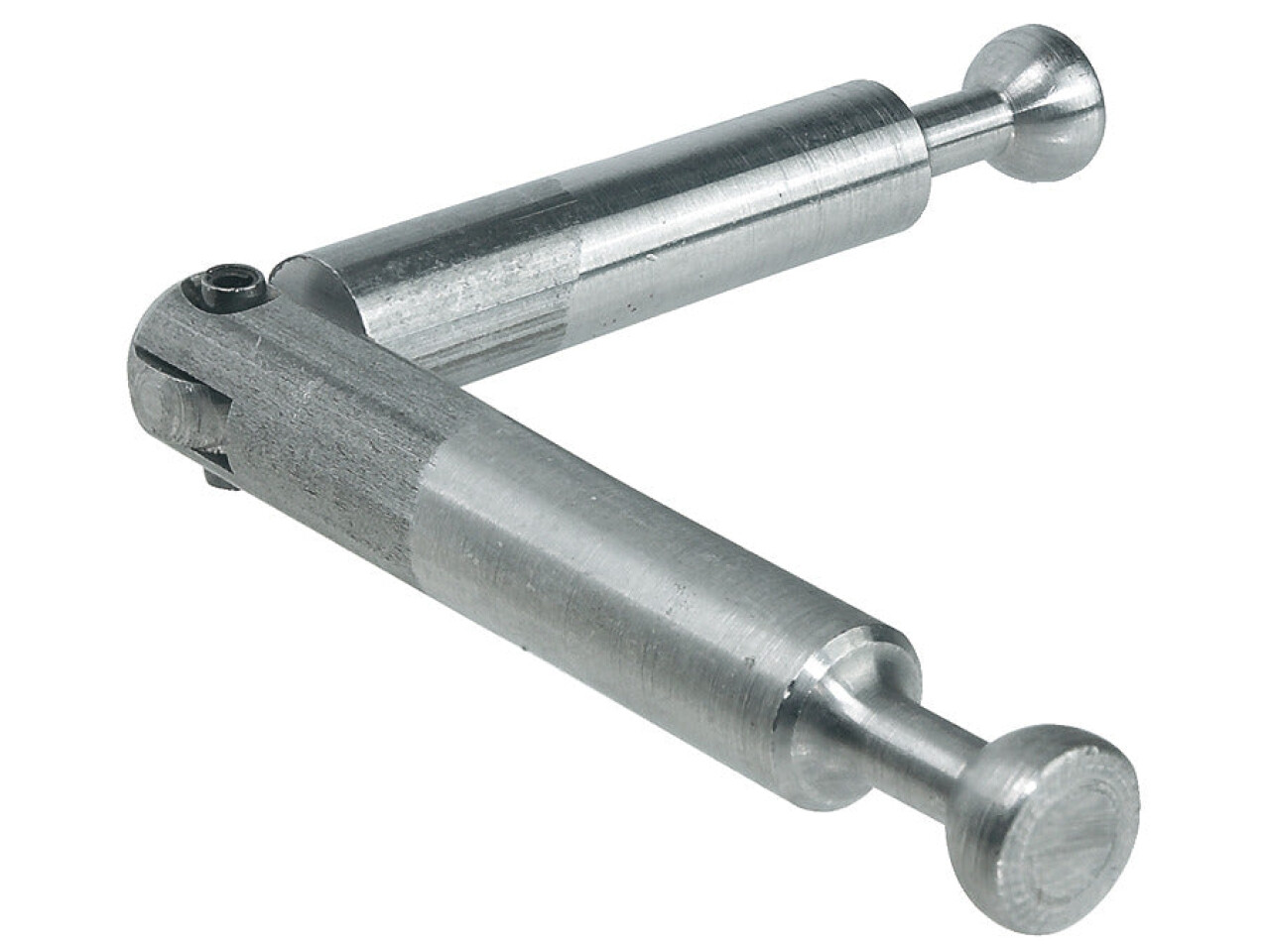

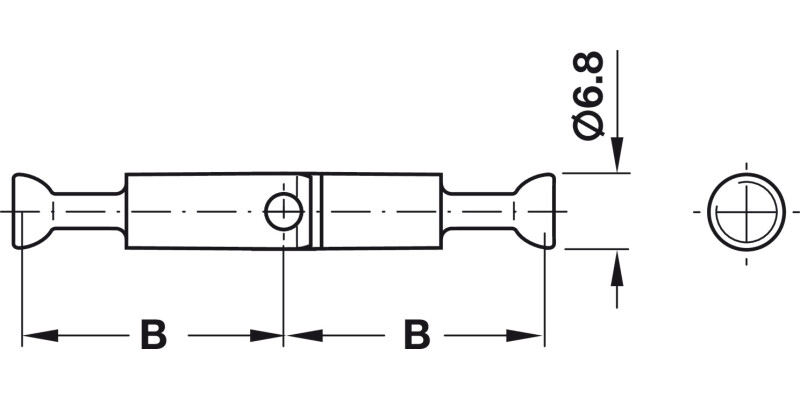

Minifix GV Mitre Joint 7/24mm St Galv

Order Minifix housings separately
Red jig & Unitool drilling jig for Minifix 15 housings and Variantool-N drilling jig for series-drilled holes for connecting bolts are available if required

This product is covered under Häfele’s Lifetime Guarantee.
All products covered under the Häfele Lifetime Guarantee have met our quality standards and have been tested according to the relevant industry certification.
All products under this guarantee are covered for normal use of the products in a domestic environment - for commercial environments our standard 12 month guarantee would apply.

For more information go to:
Services > Customer Support > Häfele Lifetime Guarantee

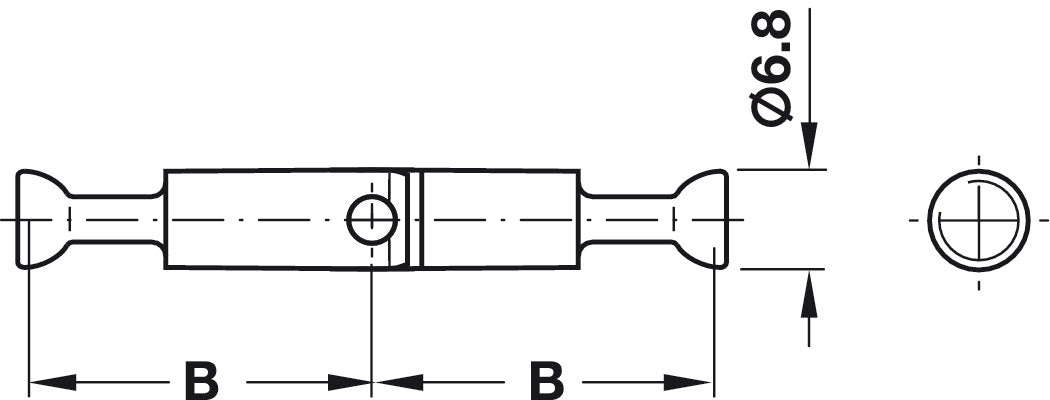

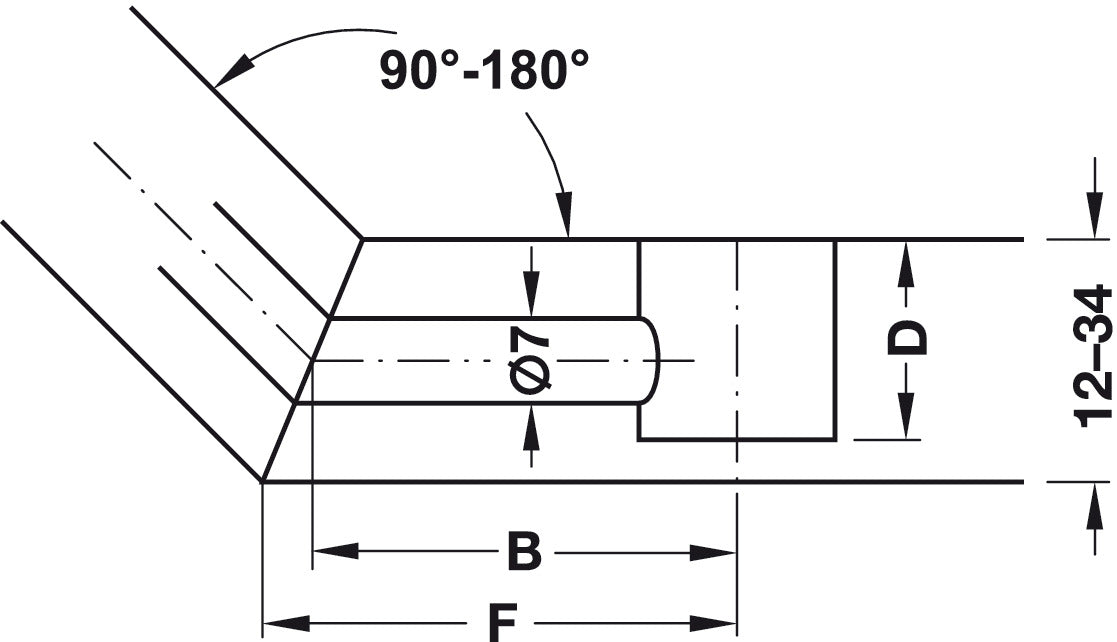

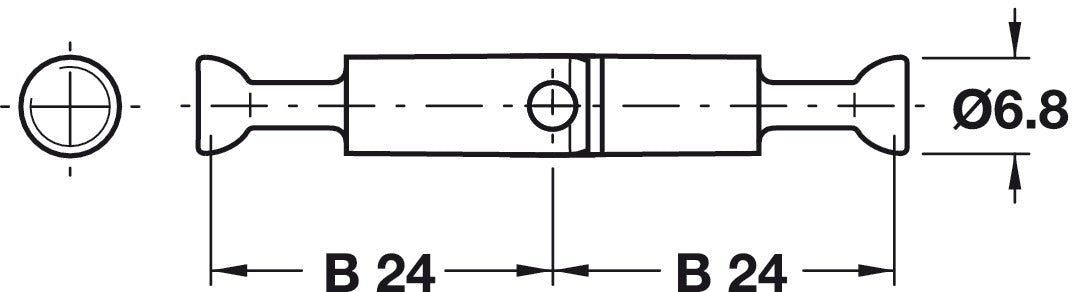

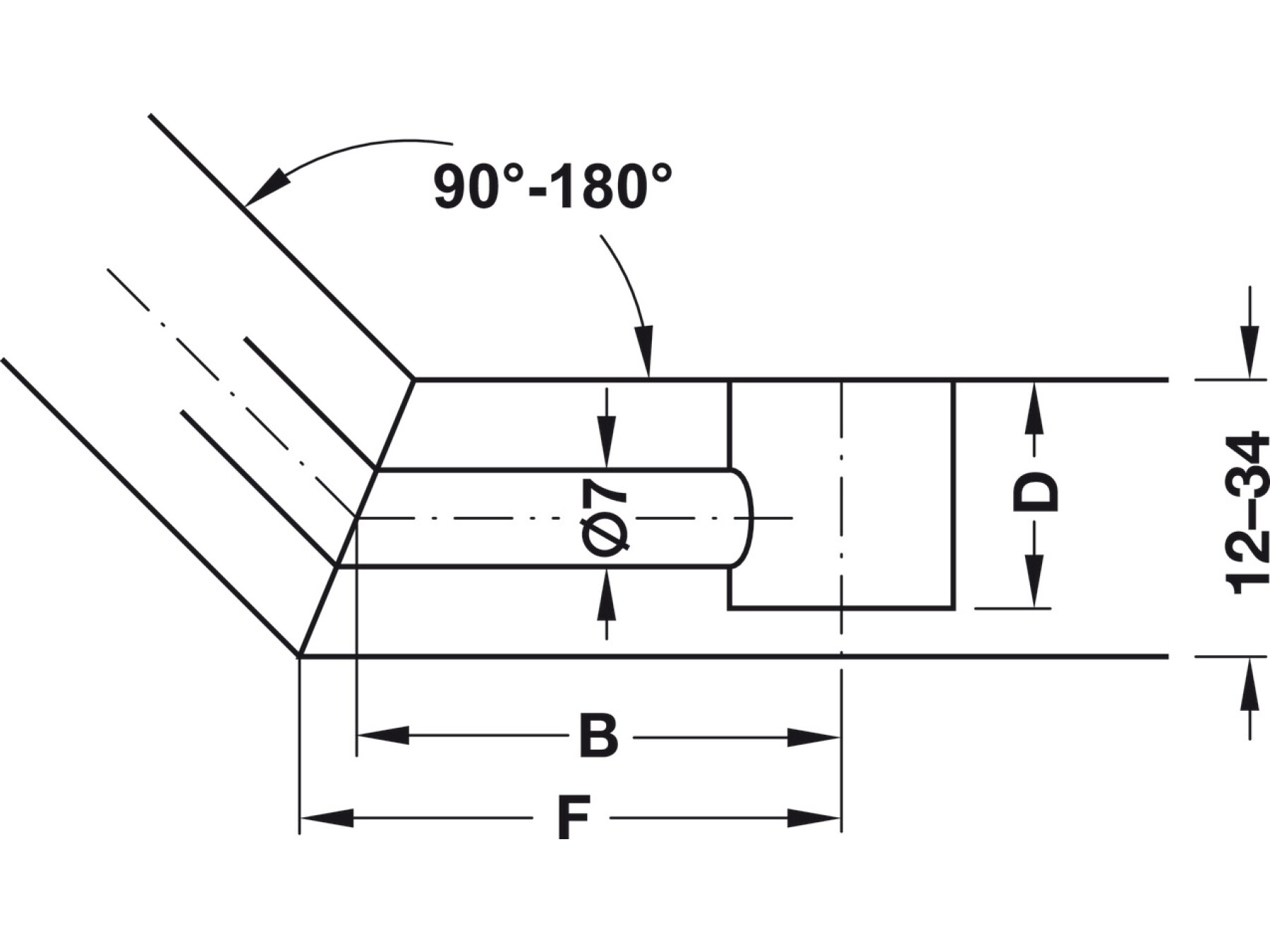

The inset distances F in mm in the following table apply to mitre-joint connecting bolts with a drilling dimension B of 44 mm. 20 mm must be deducted from the specified inset distances F for drilling dimension B of 24 mm. The dimension for drilling depth D corresponds to the drilling depth D of the Minifix^® connector housing that is used.
Please use connector housing without flanged rim.
These connectors should preferably be used only in combination with Minifix 15 zinc alloy housings
