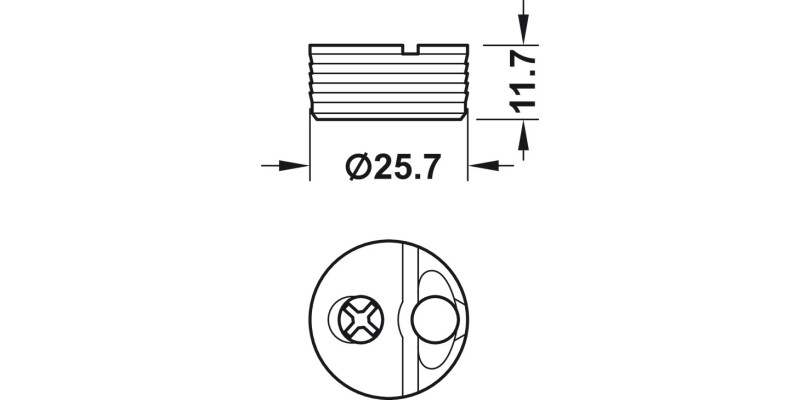

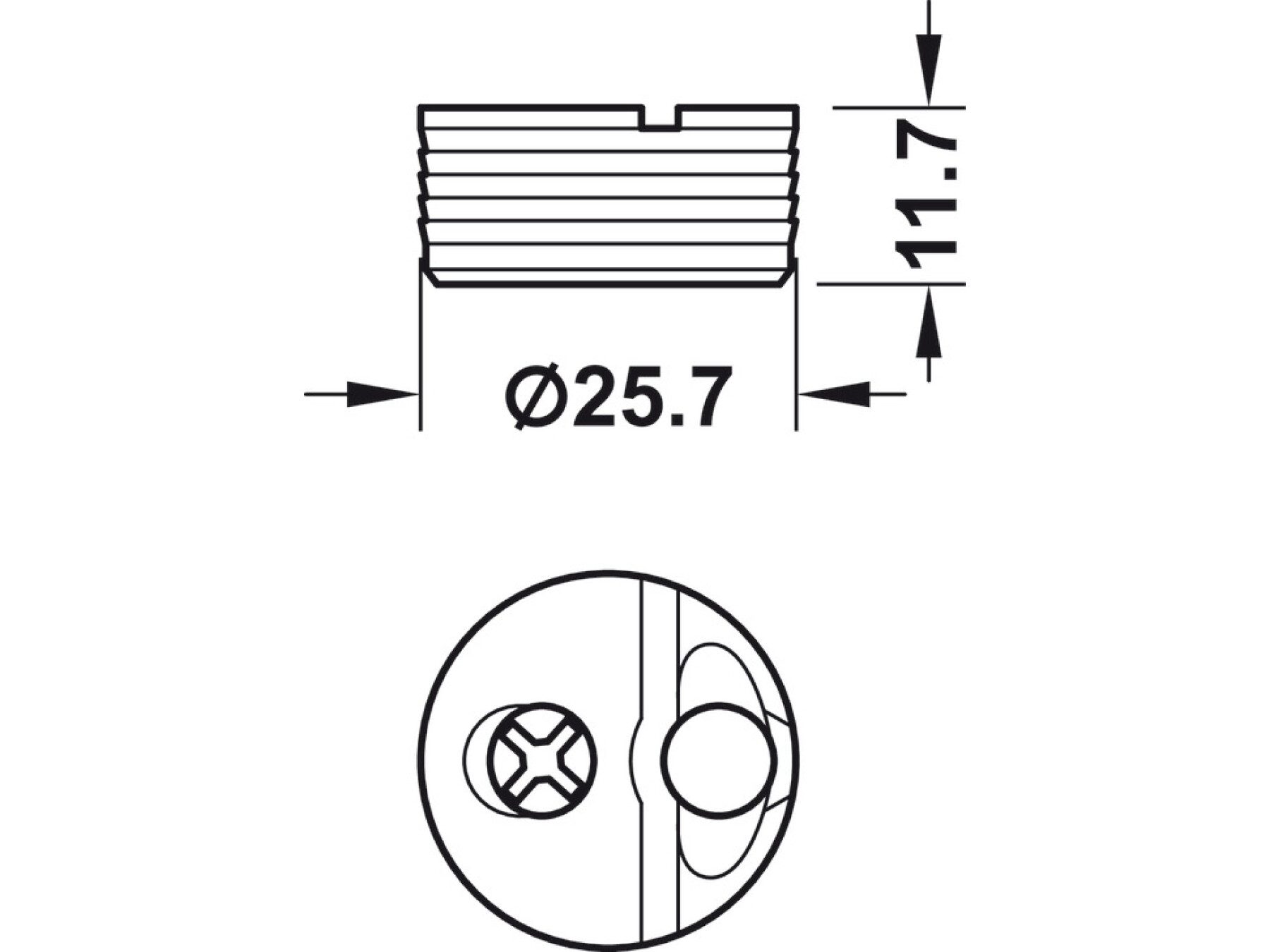

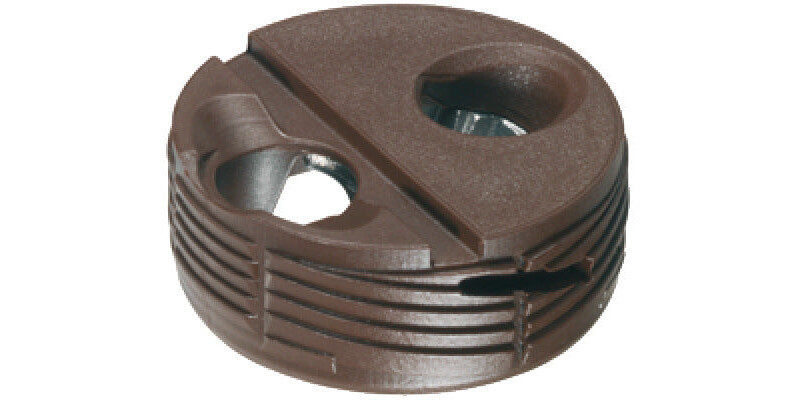

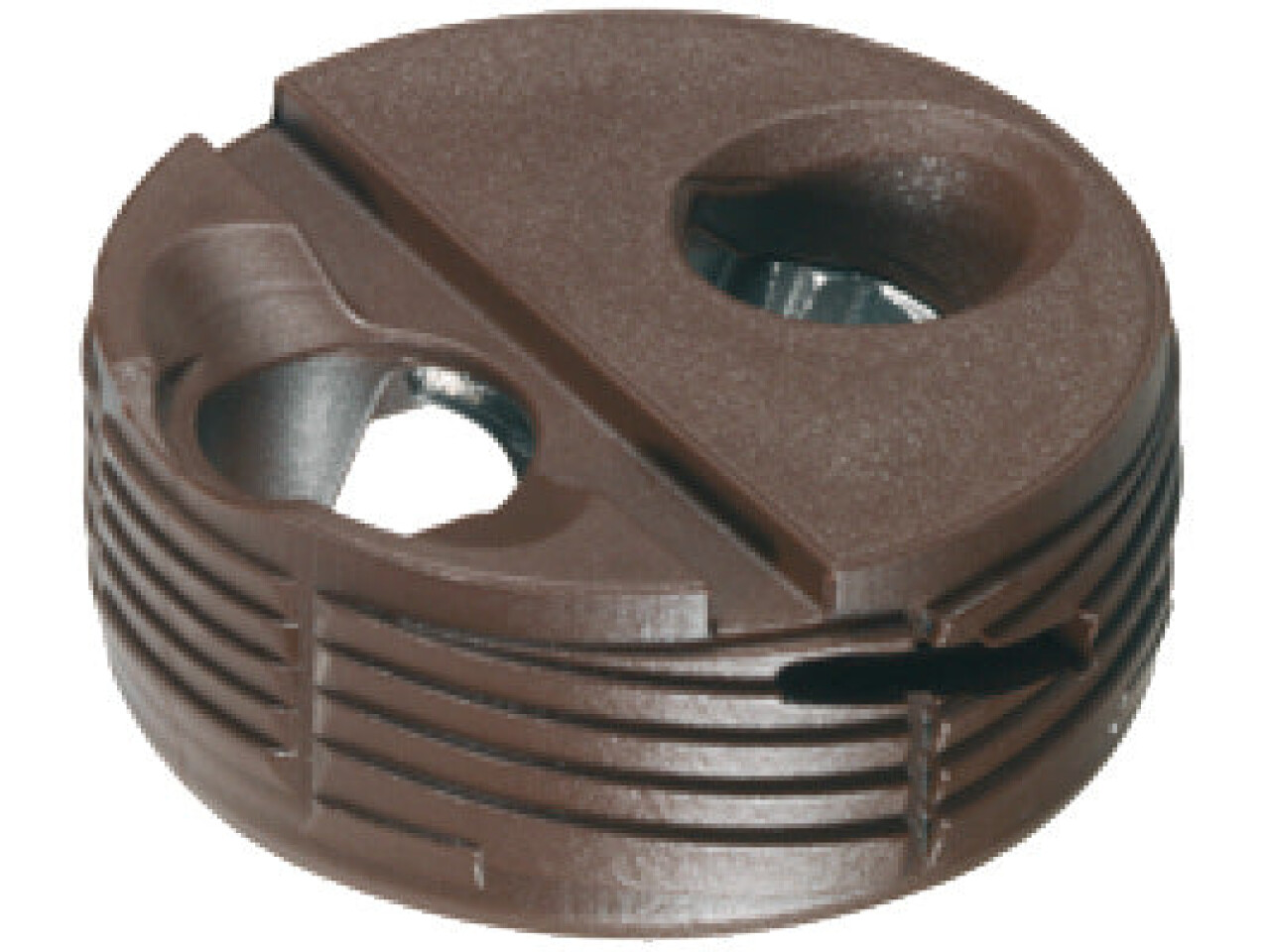

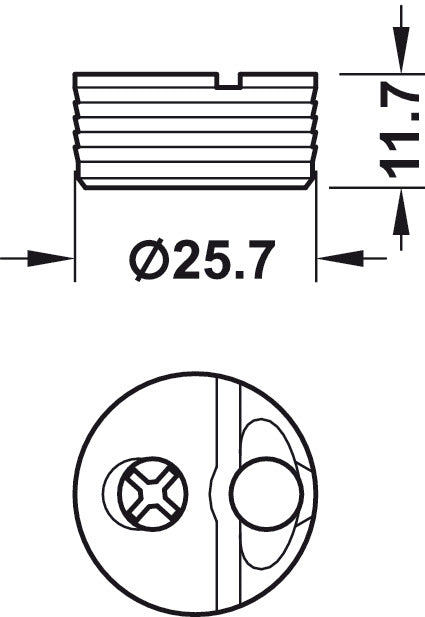

Tofix Connector Housing Pl Brown
Part Number: 261.95.104
For wood thickness 18–26 mm, Brown
Price:
£18.87
Per 100 Pack
No protruding parts, therefore stackable with pre-mounted connectorHalf of the inserted housing is covered when... Read More
Product Information
Product Details
No protruding parts, therefore stackable with pre-mounted connector
Half of the inserted housing is covered when installed, therefore most of the connector is concealed.
Bolt with long threaded part for high pull out resistance and durable connections
Comfortable tightening with drive tool in 45°position.
Area of application

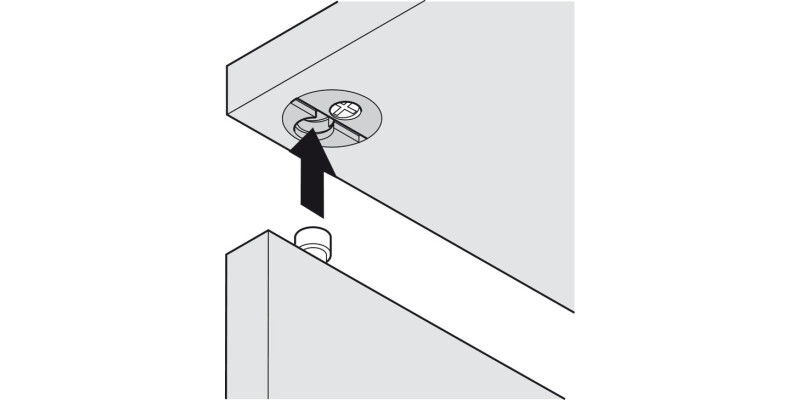

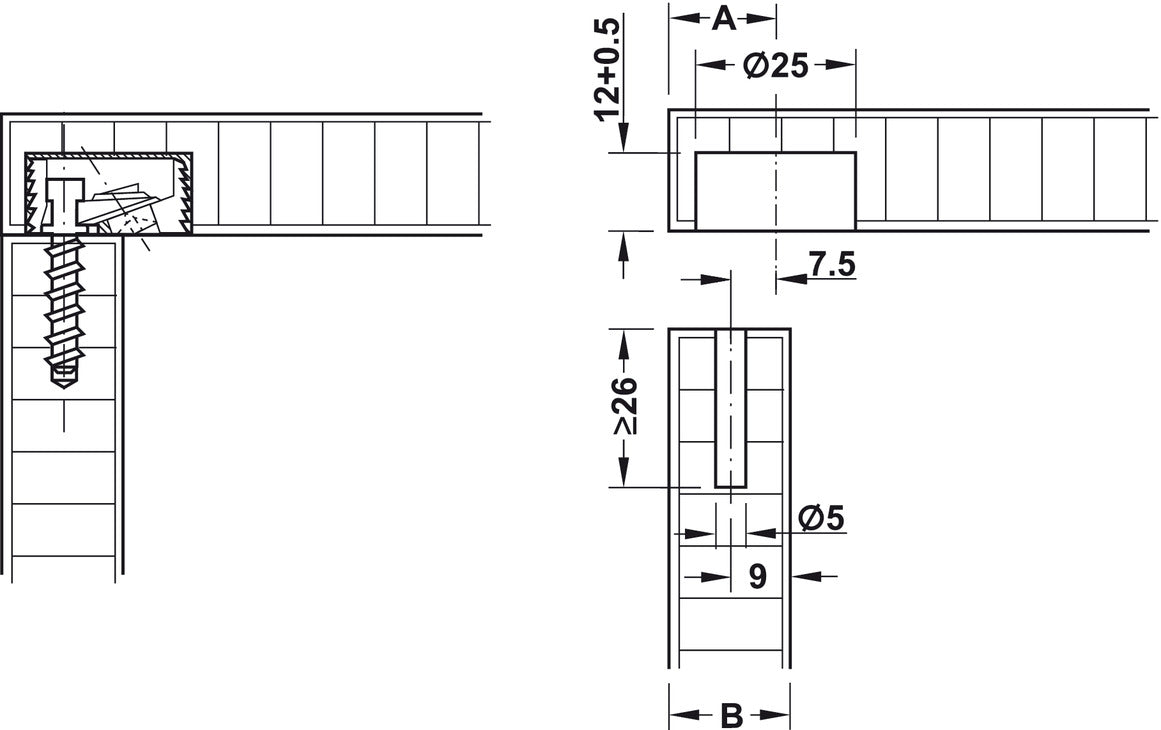

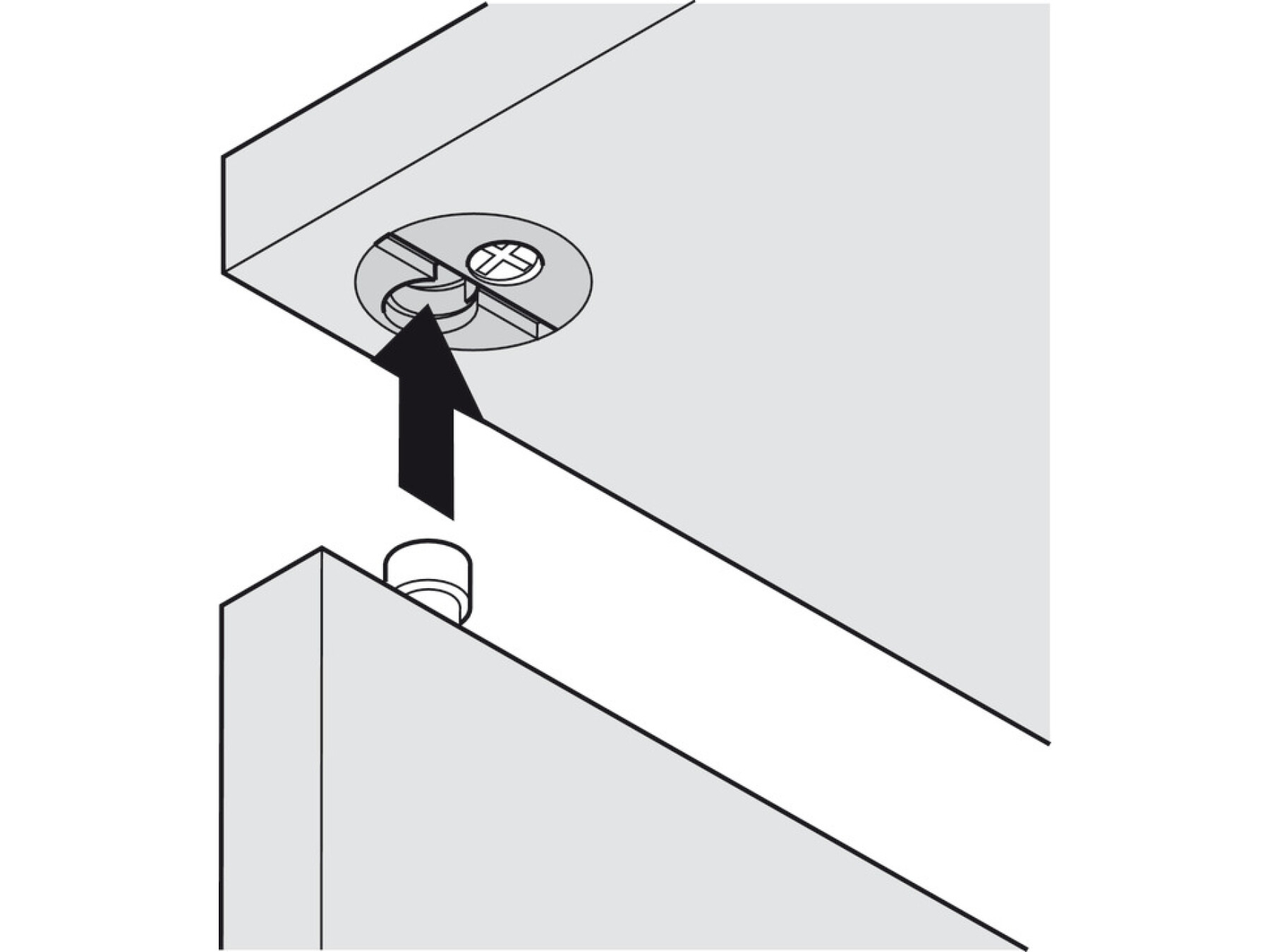

For cabinets with continuous cabinet top panel, e.g. sideboards. The housing is semi-concealed when installed.
Warranty/Guarantee information
This product is covered under Häfele’s Lifetime Guarantee.
All products covered under the Häfele Lifetime Guarantee have met our quality standards and have been tested according to the relevant industry certification.
All products under this guarantee are covered for normal use of the products in a domestic environment - for commercial environments our standard 12 month guarantee would apply.
For more information go to:
Services > Customer Support > Häfele Lifetime Guarantee
Specifications
Version
with tightening element
Material
Plastic, Tightening element: Zinc alloy
For wood thickness
18 – 26 mm
Installation
For press fitting
Hafele Lifetime Guarantee
25 years
Order reference
Order Tofix connecting bolt 261.95.010 separately
