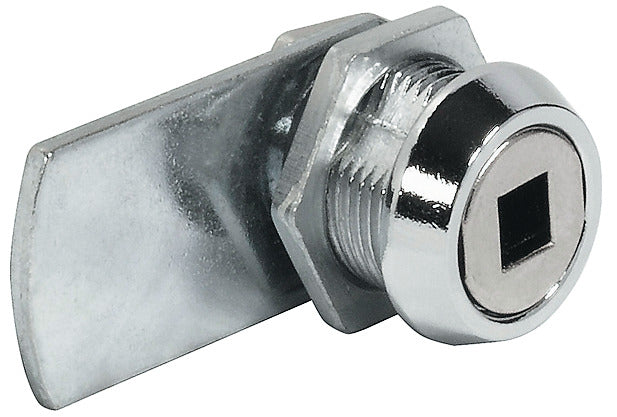

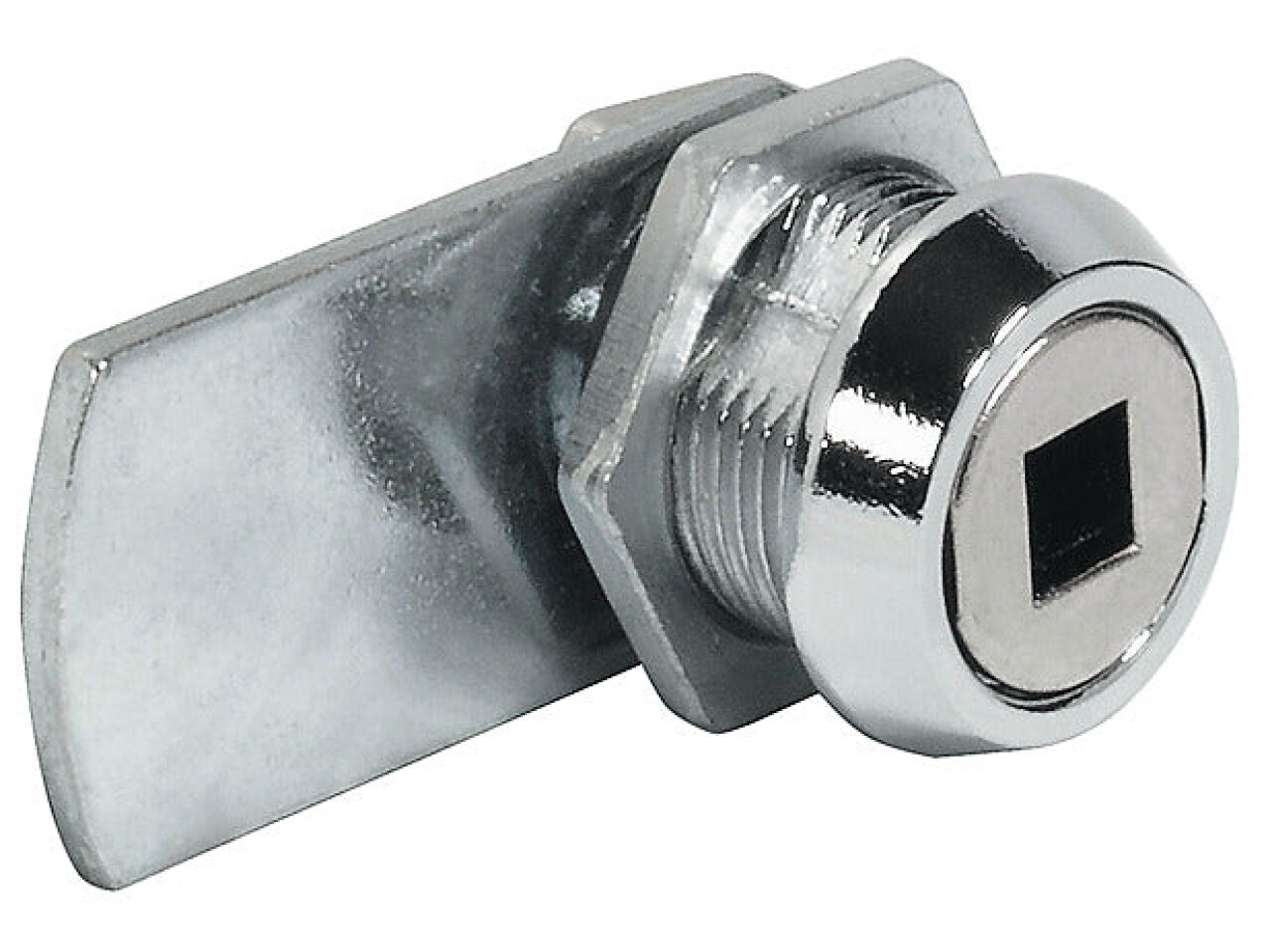

Cam Lock, for Square Profile Key, with Straight Cam and Nut Attachment

Product Details

Cam Lock, for Square Profile Key, with Straight Cam and Nut Attachment (Product Part No: 235.78.207) is a reliable, space-saving locking solution designed for everyday use in quality cabinetry and furniture. Ideal when you need a secure closure without bulky hardware, this cam lock offers smooth operation and a clean, professional finish.

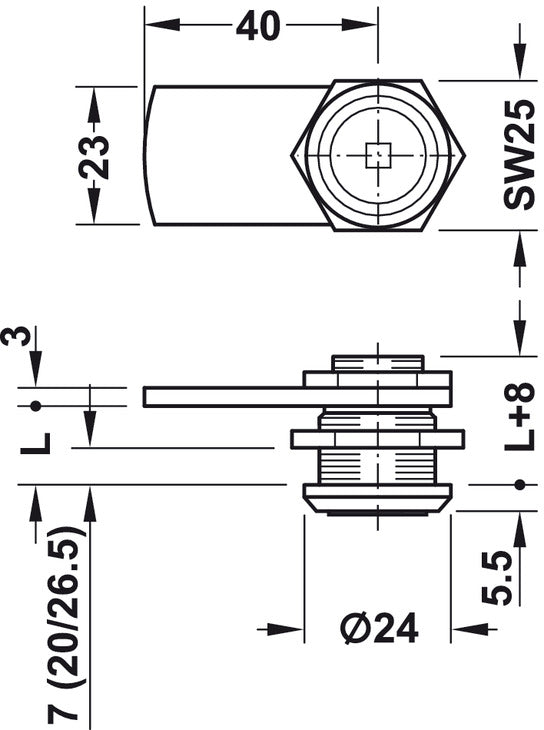

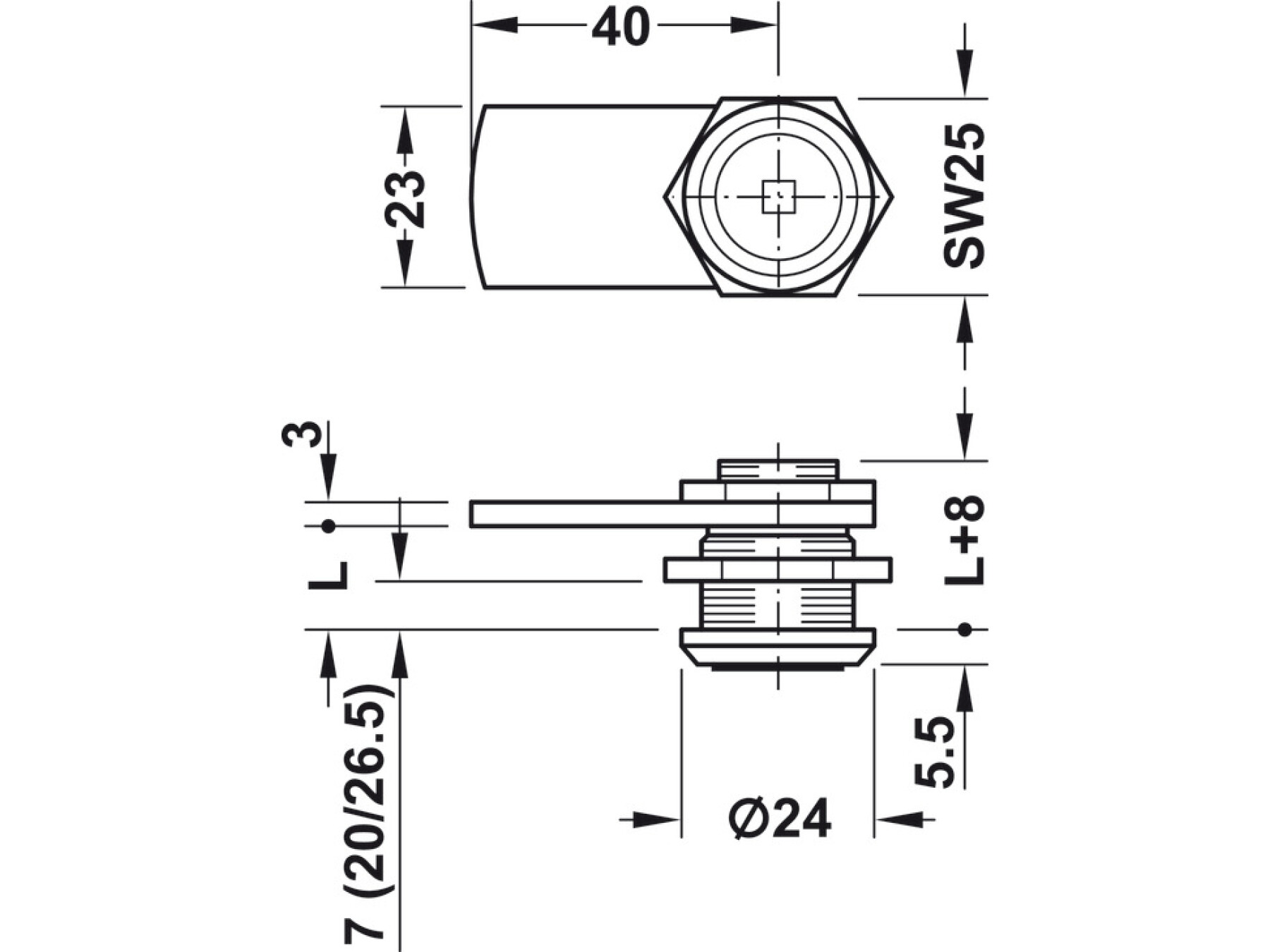

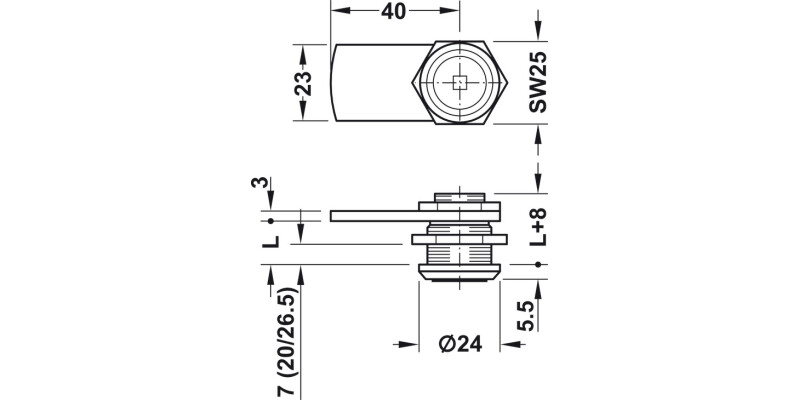

Included in the trusted Cam Lock range, the Closure direction 180° 1 (2-8), length L 32.5 mm subtitle highlights the precise fit and movement you can expect—helping you align doors and panels correctly for consistent performance.

Area of application: Perfect for both wooden and metal furniture, it’s a smart choice for cabinet doors, workshop storage, and living or commercial installations where durability matters.

Version & security features: The lock is supplied with catches and a straight locking cam, complete with a 6 mm square spindle aperture for solid engagement. Made from zinc alloy, it’s built to withstand frequent locking cycles while maintaining dependable alignment.

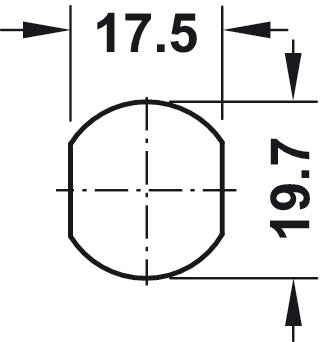

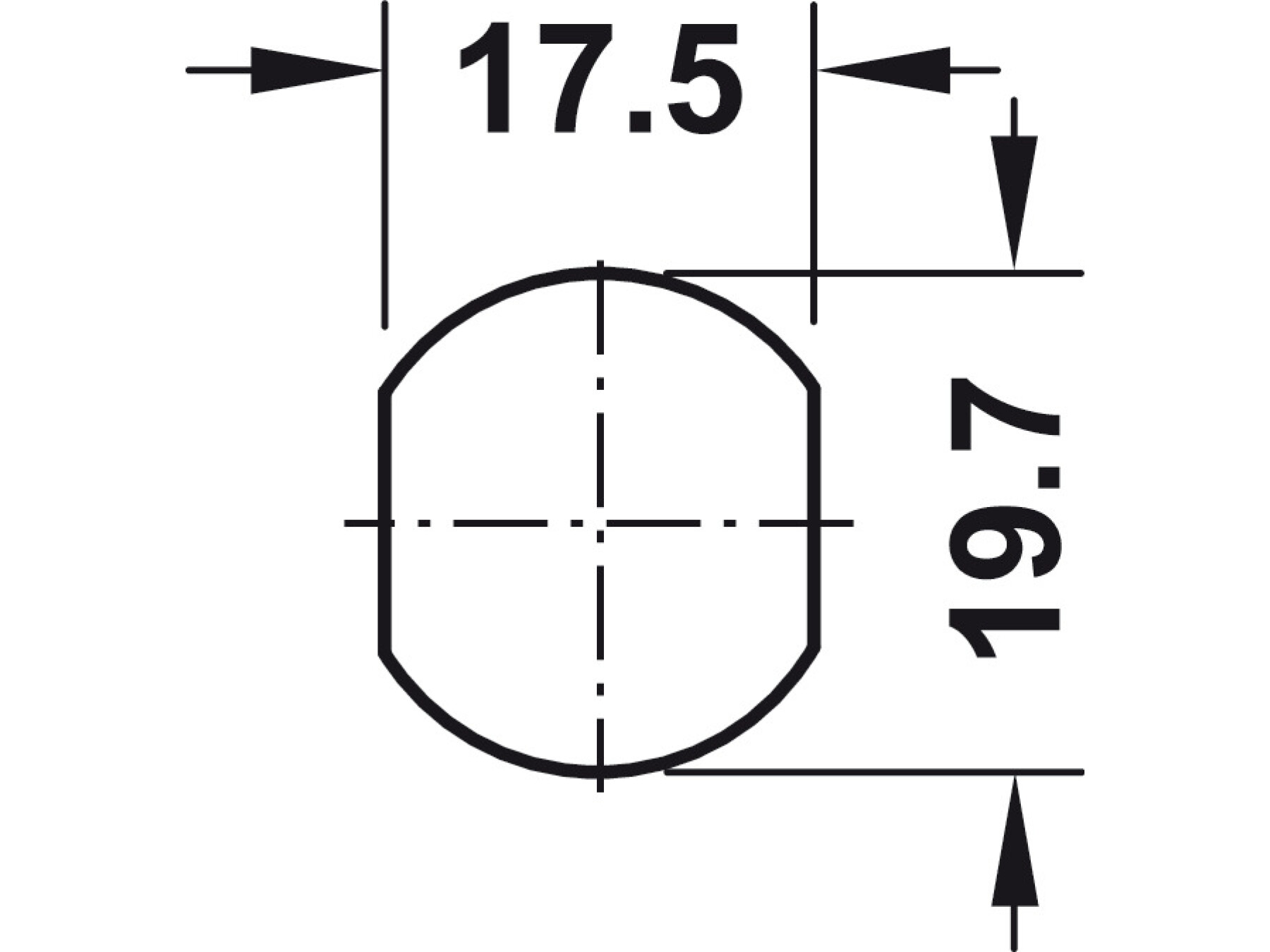

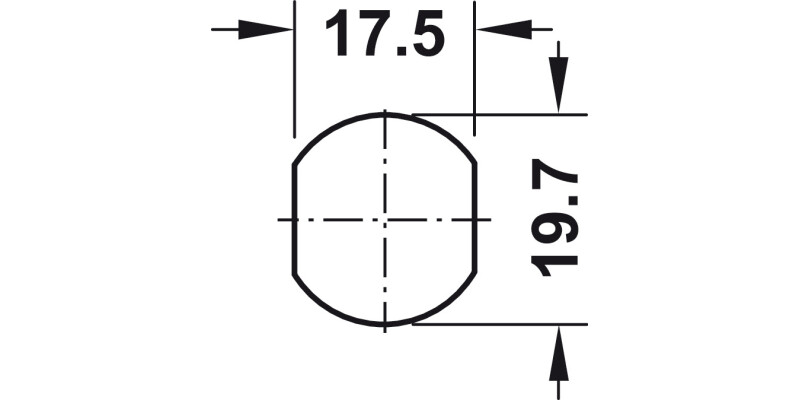

Installation: Designed for screw fixing with hexagonal nut using the specified hole pattern 19.7 x 17.5 mm—so you can install efficiently with the right mounting layout.

With key: No key is included. Please note the order reference: order the square profile key separately.

Supplied with: 1 cam lock, 1 cam, and 2 hexagon nuts—everything you need to get your cabinetry securely locked and ready for use.

Order square profile key separately

1 Cam lock
1 Cam
2 Hexagon nuts
