Cam Lock, with Ø 19 mm Cylinder and Key Trap

Product Details

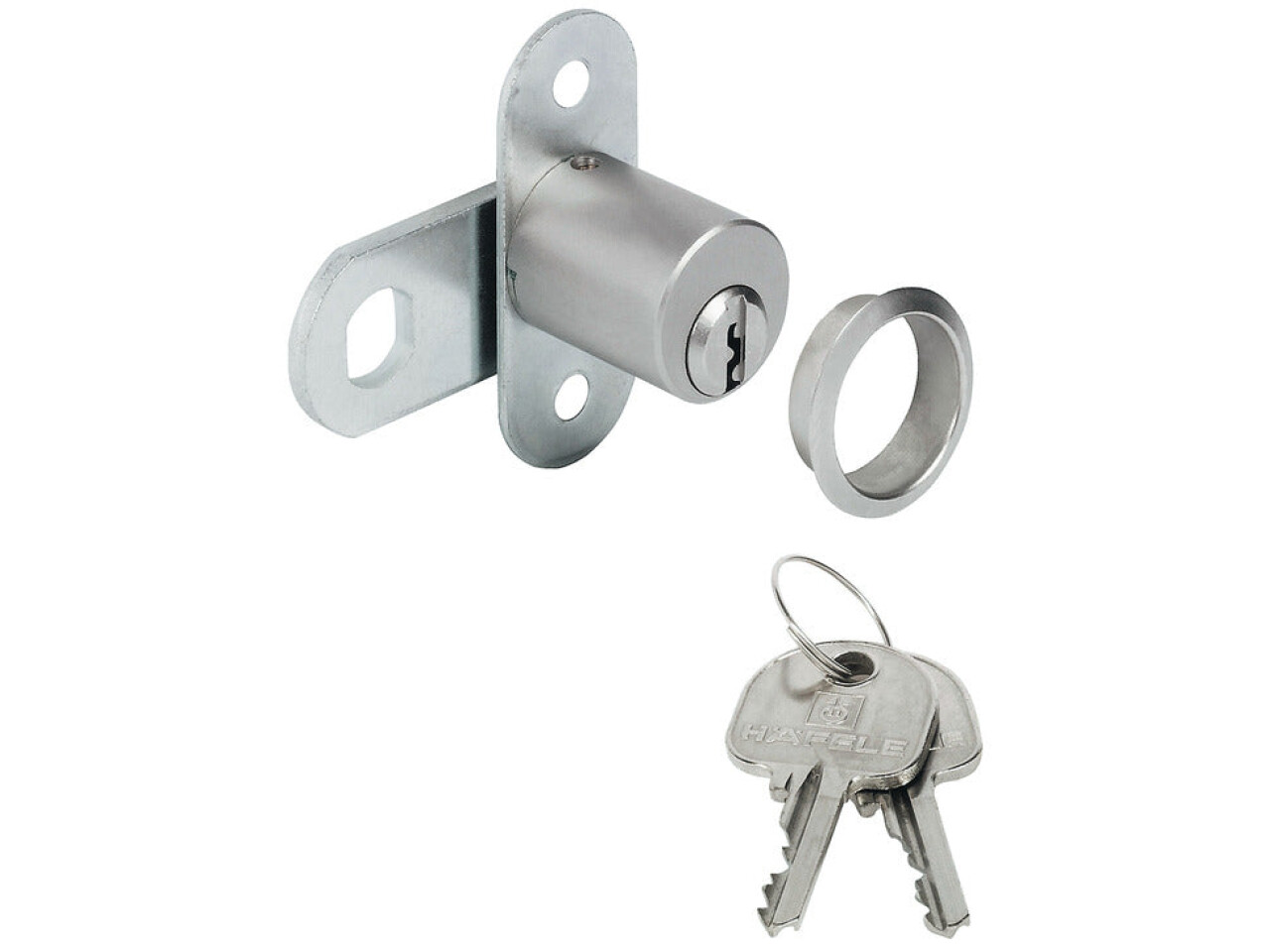

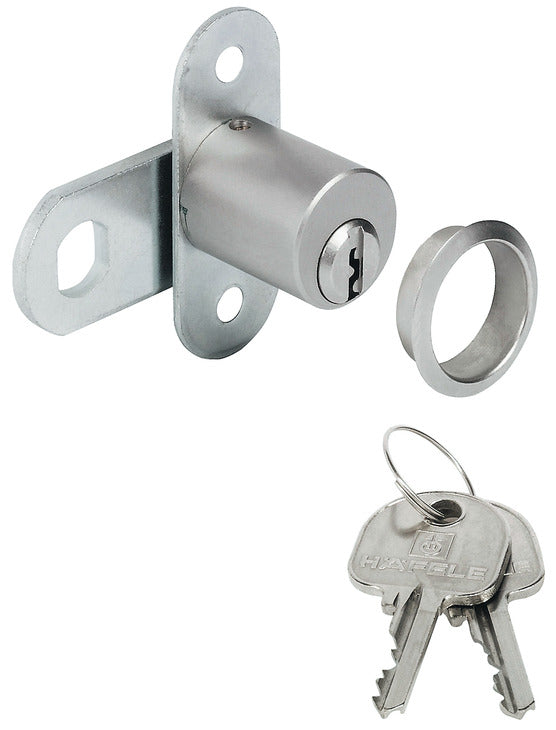

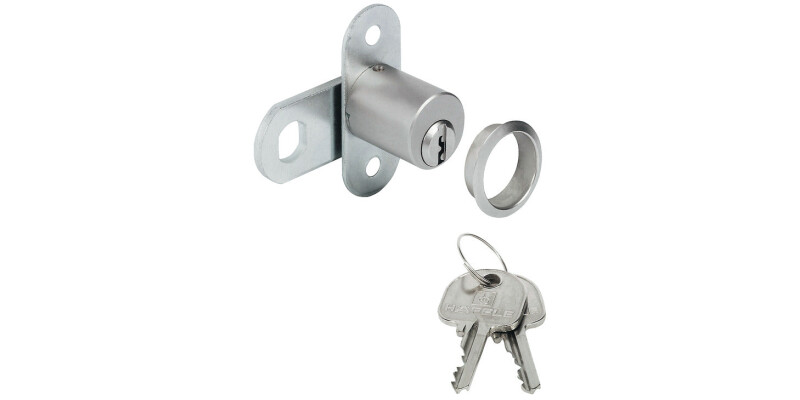

Cam Lock, with Ø 19 mm Cylinder and Key Trap (Product Part No: 235.03.200) is a reliable, space-saving locking solution designed for cabinets and furniture applications. With its standard profile and a straight cam, this cam lock delivers secure closure in a clean, professional finish—ideal for both living spaces and commercial settings.

This lock features a 90° (reversible, with key trap) closure travel, helping you achieve dependable alignment and consistent operation. Thanks to the key-trap design, the cylinder supports safer key handling for everyday use—especially beneficial in shared or workplace environments.

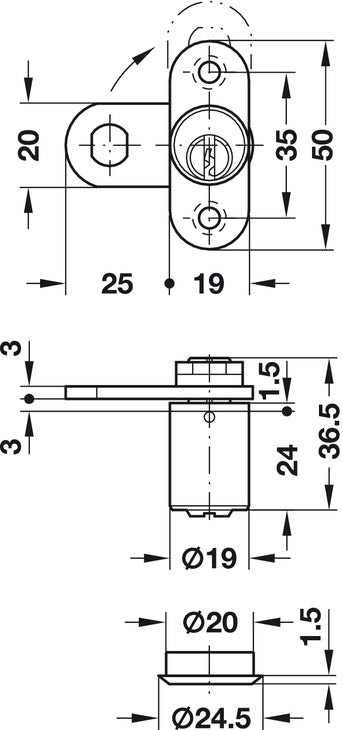

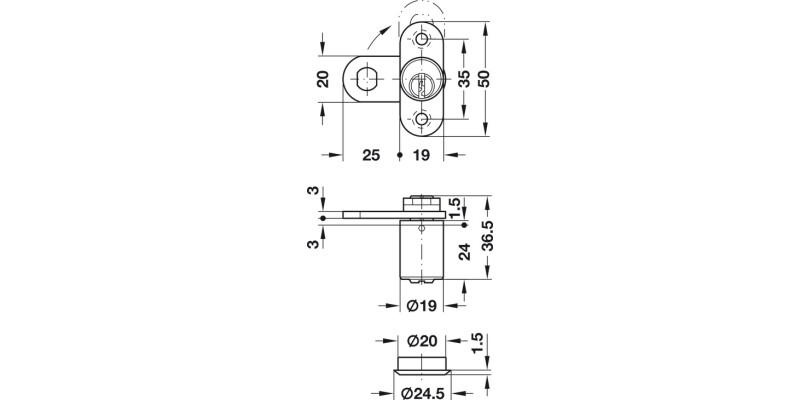

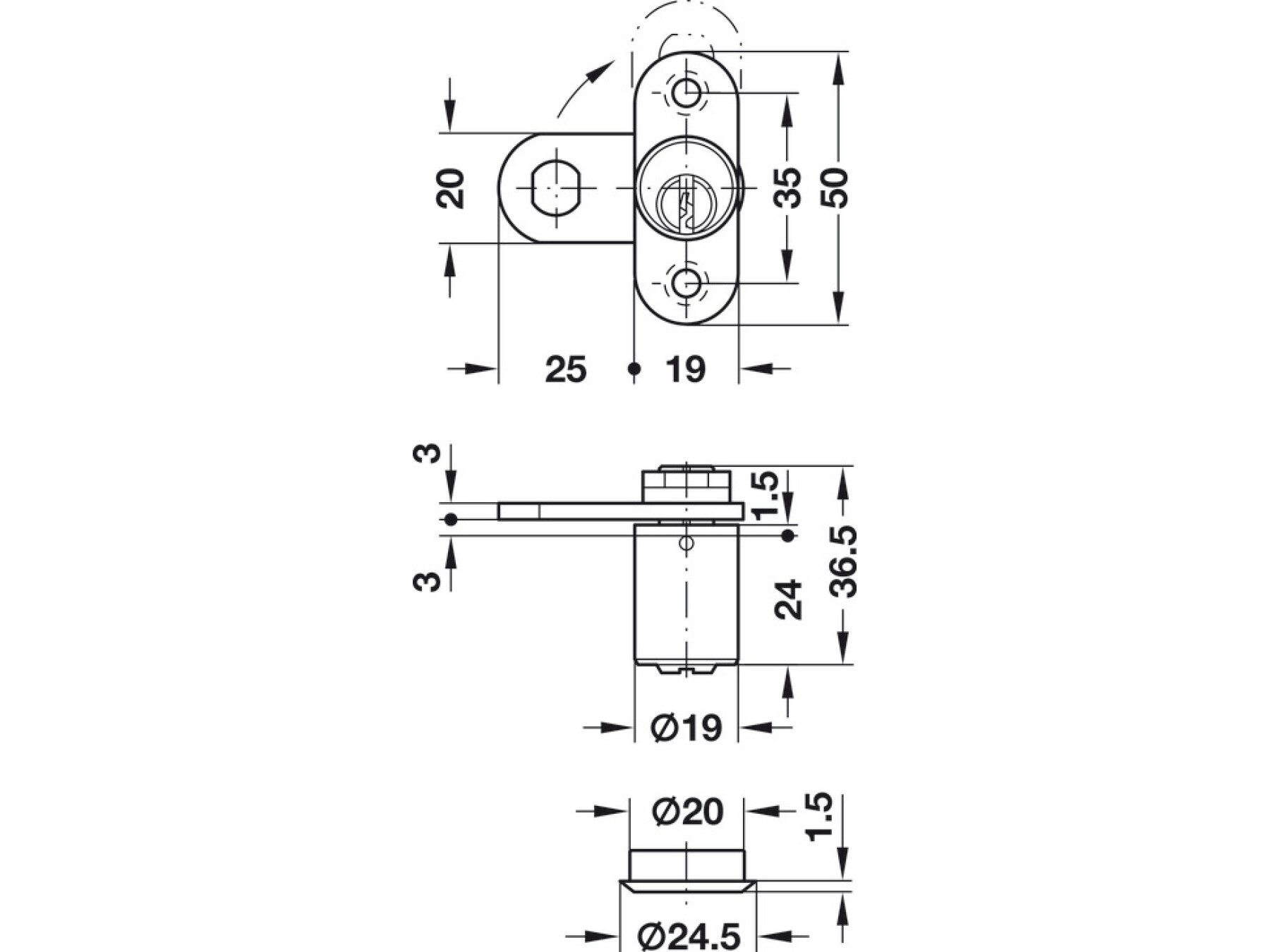

Engineered for practicality, the cylinder diameter is 19 mm (D19mm), with a cylinder length of 24 mm. It is suitable for door thickness up to 21 mm, making it a great fit for many cabinet doors and panels without complicated adjustments.

Finish & materials are built for durability: the housing is zinc alloy and the cylinder is brass, finished in nickel plated, matt for a refined, modern look. The lock includes a round cylinder and operates with 5 pin tumblers for confident security.

Installation is straightforward: screw fixing with screw-on plate. This CamLock version also comes with a key included, so you can upgrade or replace your existing cabinet lock quickly.

Choose Cam Lock, with Ø 19 mm Cylinder and Key Trap for a secure, reversible 90° cabinet locking system—designed to be dependable, easy to install, and attractive from day one.
