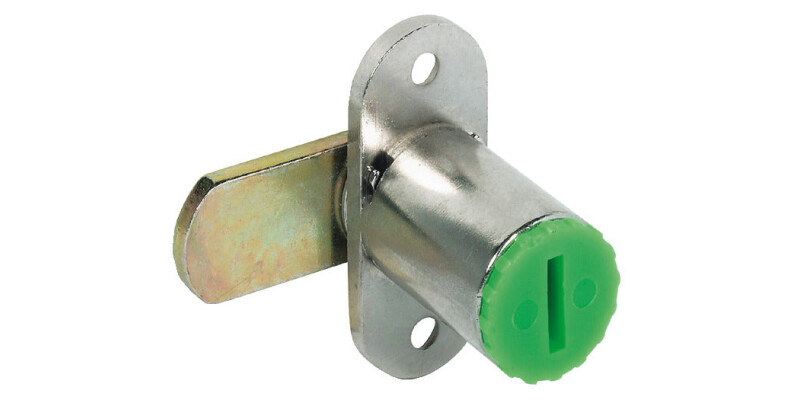

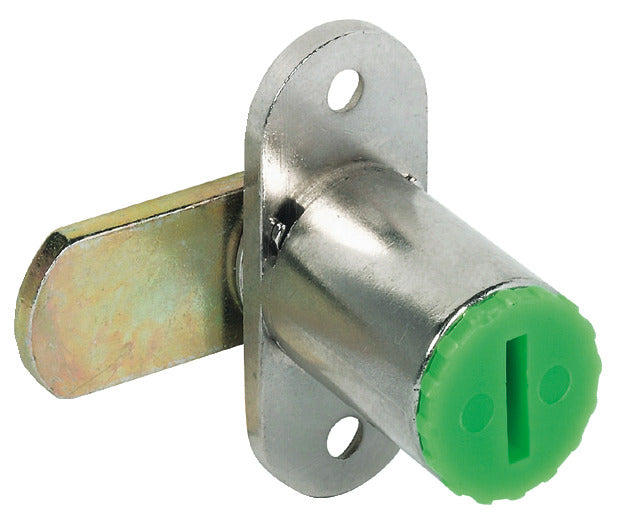

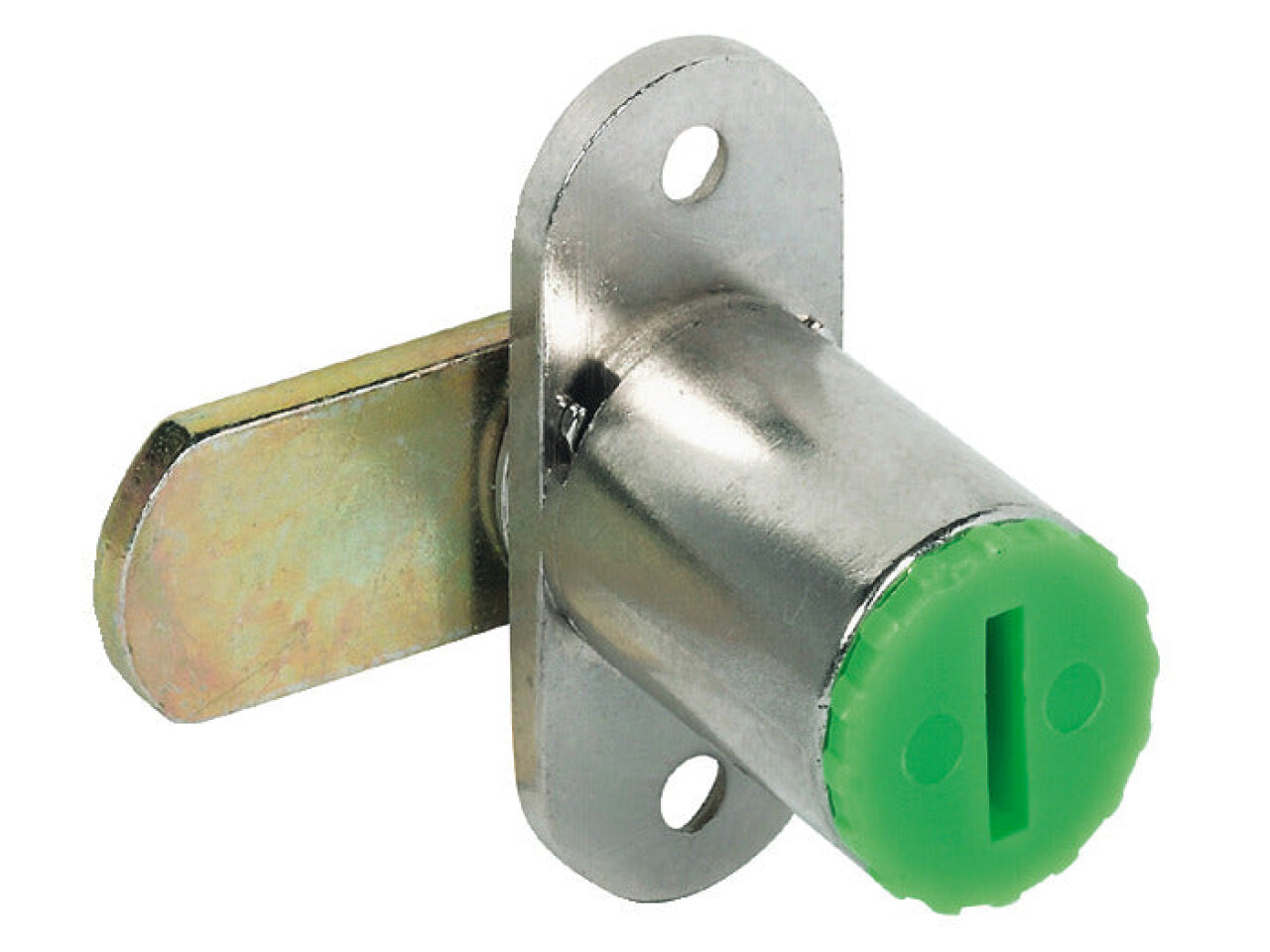

Symo3000 Cam Lockcase 22mm Dir.A NP
Part Number: 235.59.600
For combination with Symo cylinder removable core, Closure direction A (D, F, G*)
Price:
£3.94
Per Item
Product Information
Specifications
Closure travel
90° locking cam (reversible), 180° key
For door thickness
≤22 mm
Colour/finish
Nickel plated
Installation
For screw fixing with screw-on plate
Area of application
For cylinder cores that are inserted from the front on site
Version
With straight locking cam
Material
Zinc alloy
Cylinder shape
prepared for round cylinder
Cylinder housing length
22.00 mm
with key
No
Order reference
Order cylinder rosette and Hospa Ø 3.5 mm screws separately
Supplied with
1 Locking cam
1 Mounting screw
1 Steel washer
