Central Rotary Lock Case, Twin Wing, Symo 3000
Part Number: 234.98.610
For combination with Symo cylinder removable core, Travel 17 mm, nickel plated
Price:
£3.53
Per Item
Central Rotary Lock Case, Twin Wing, Symo 3000. (Product Part No: 234.98.610) is a smart, secure locking solution... Read More
Product Information
Product Details

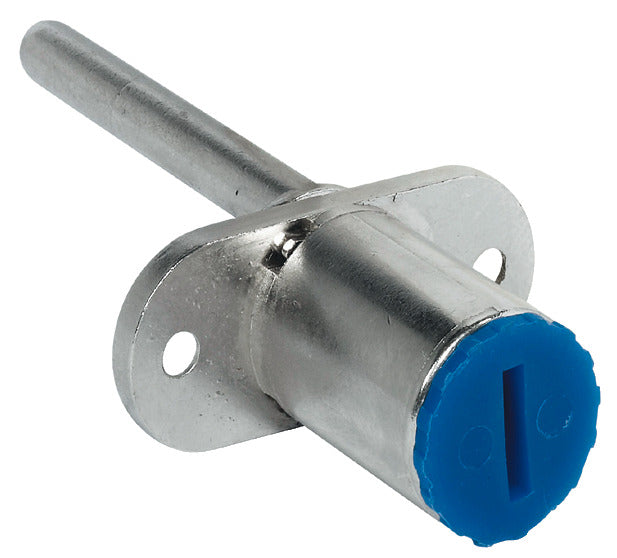

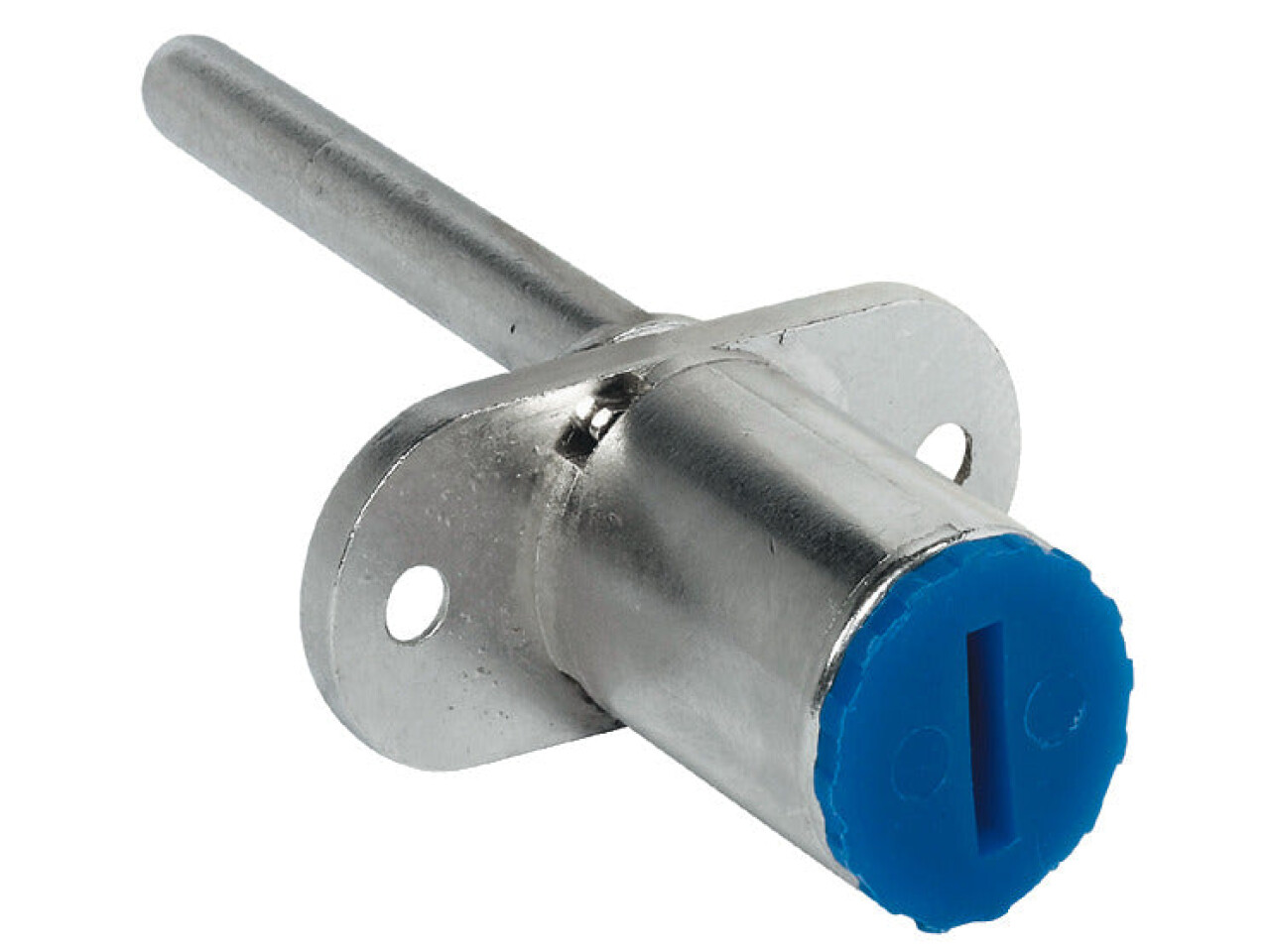

Central Rotary Lock Case, Twin Wing, Symo 3000. (Product Part No: 234.98.610) is a smart, secure locking solution designed for professional office organisation and quality furniture fittings. Built for reliable daily use, this central rotary lock case works perfectly when you choose Symo cylinder removable core—making it an ideal option for modern cupboards, office furniture doors, and commercial installations where easy maintenance matters.
As part of the Central Rotary Lock Case range within your Office Organisation collection, this model is finished in a polished nickel plated zinc alloy construction. The result is a stylish appearance and durable performance, helping your furniture look well-kept while staying protected.

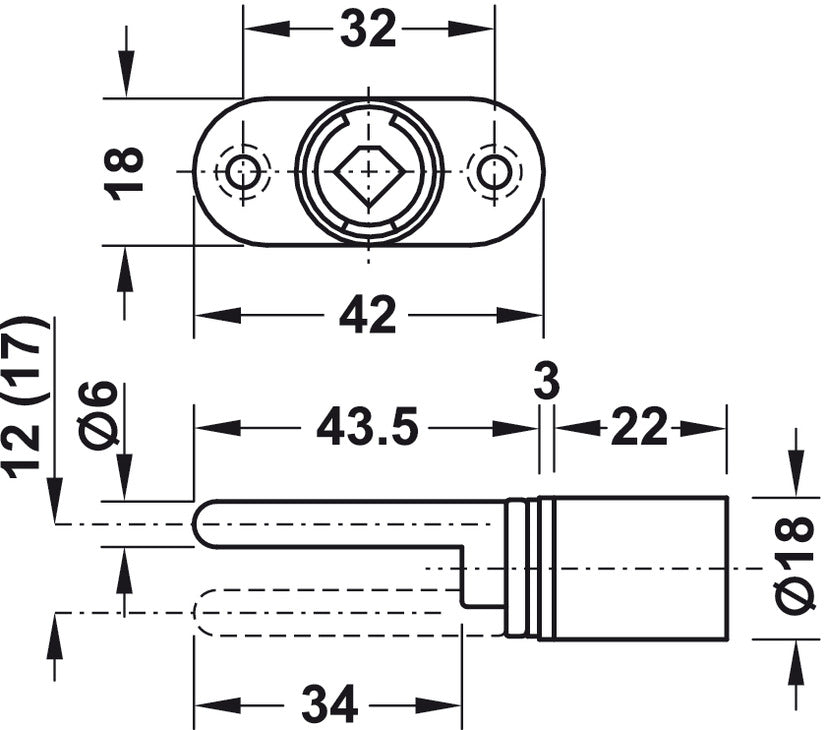

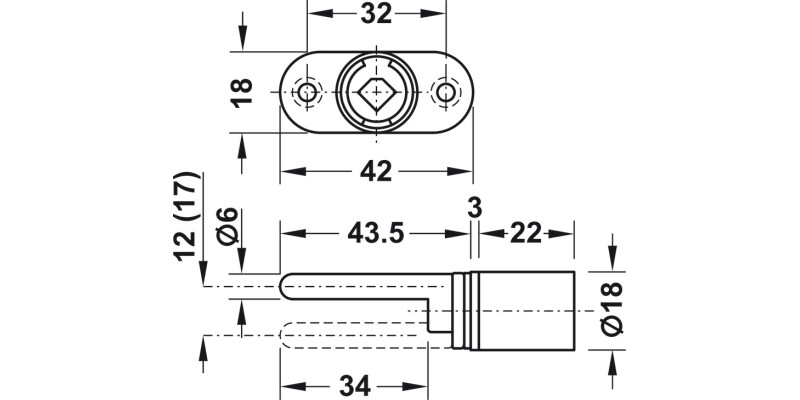

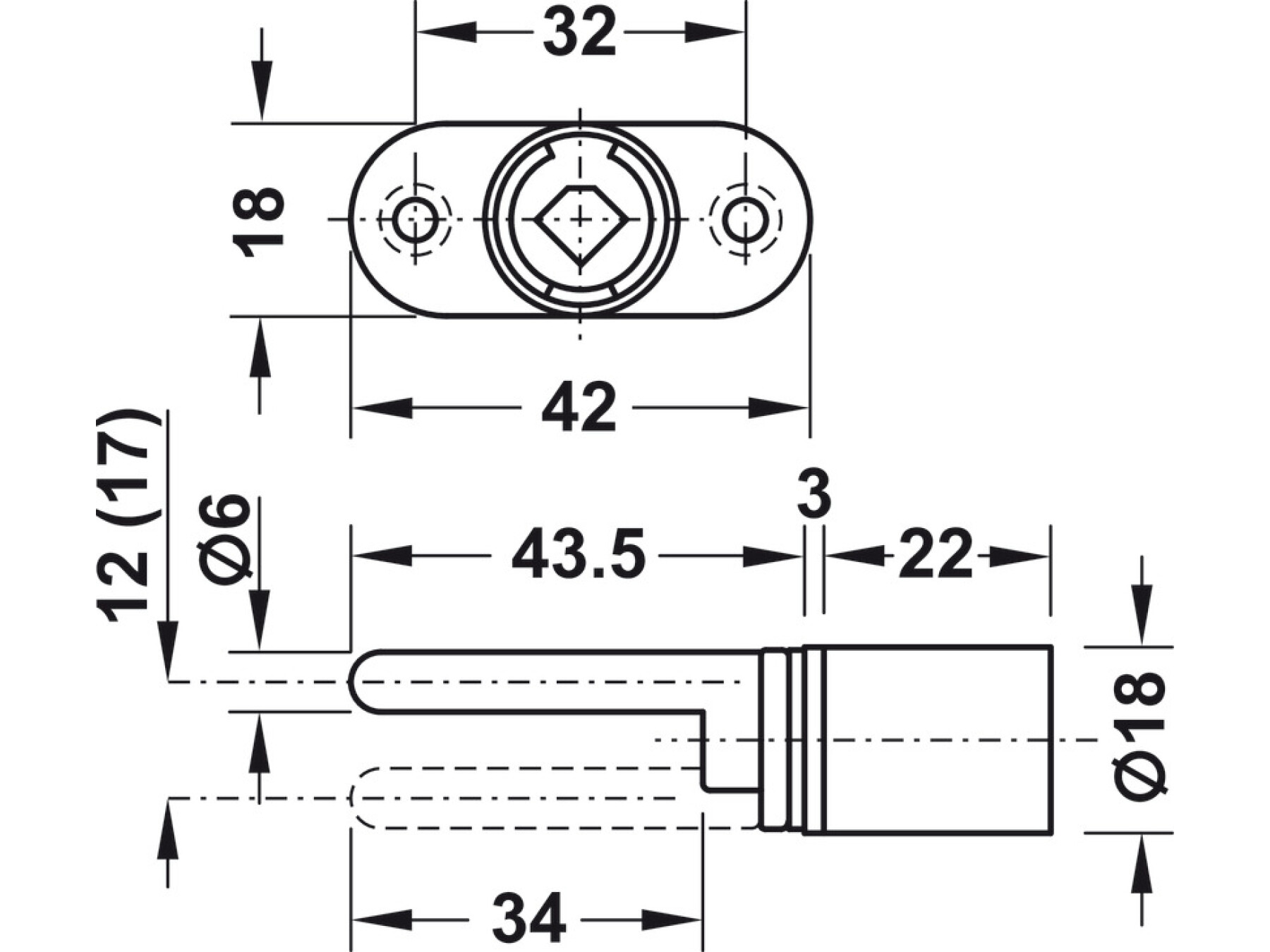

With a closure travel of 180°, the lock offers a smooth, consistent movement for secure engagement. It is prepared for round cylinders and features a cylinder housing length of 22.00 mm with a cylinder diameter of 18.00 mm. That means you can achieve a neat, professional fit when installing the cylinder components.

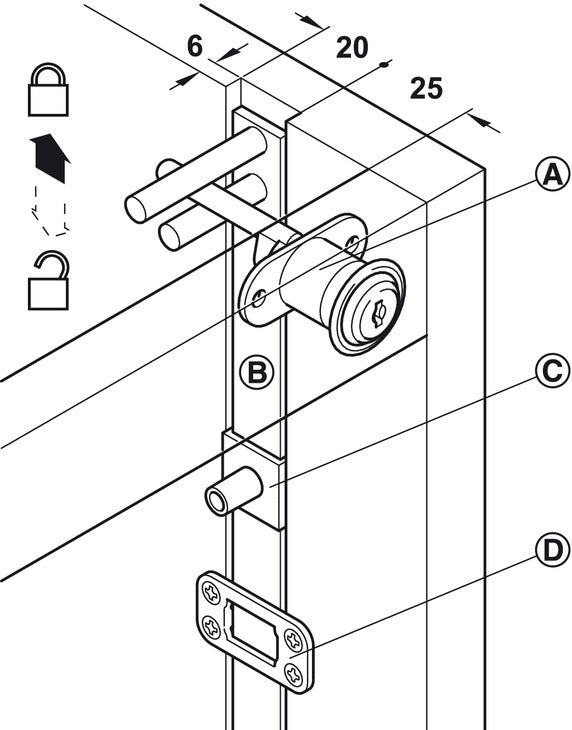

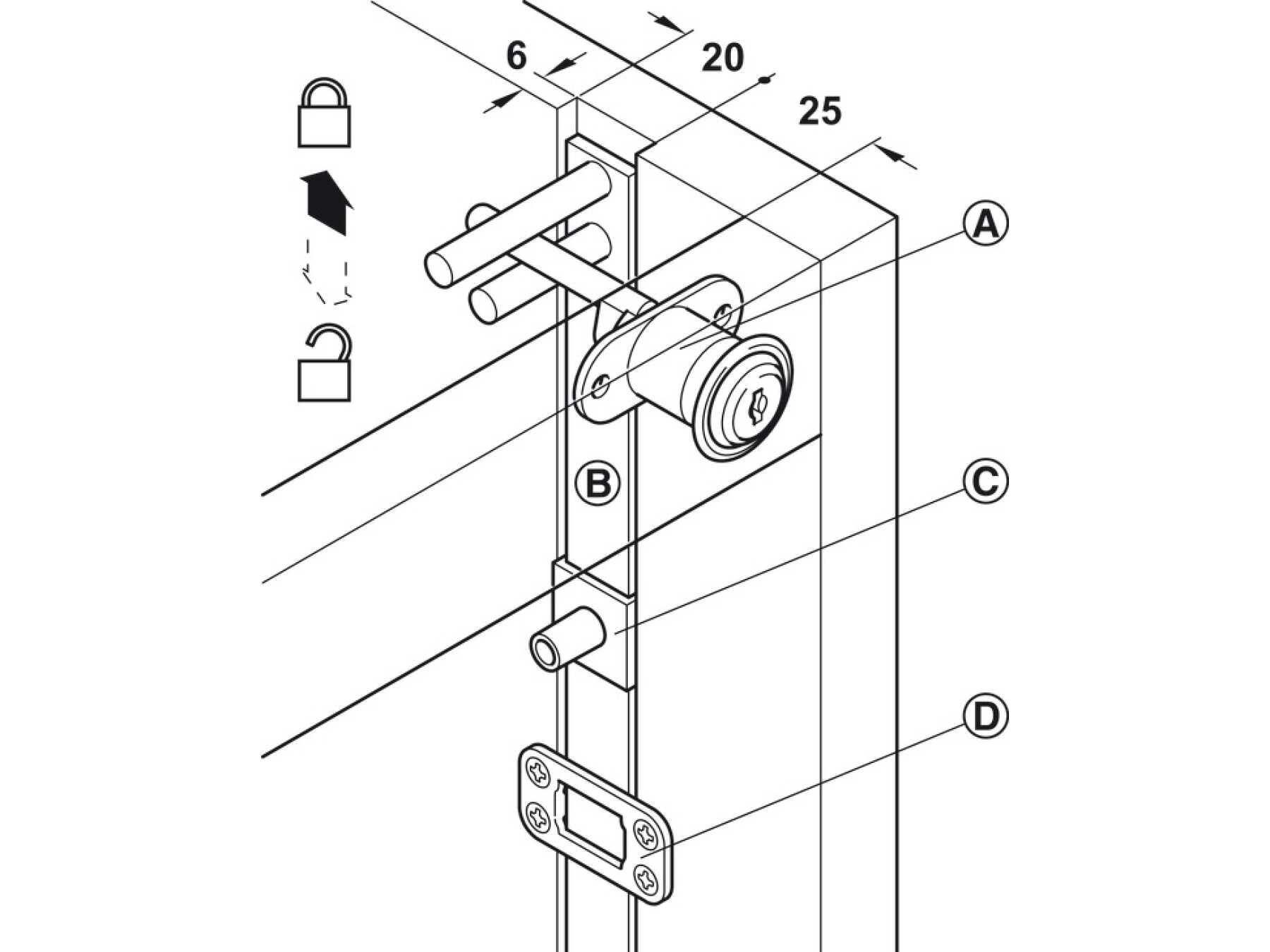

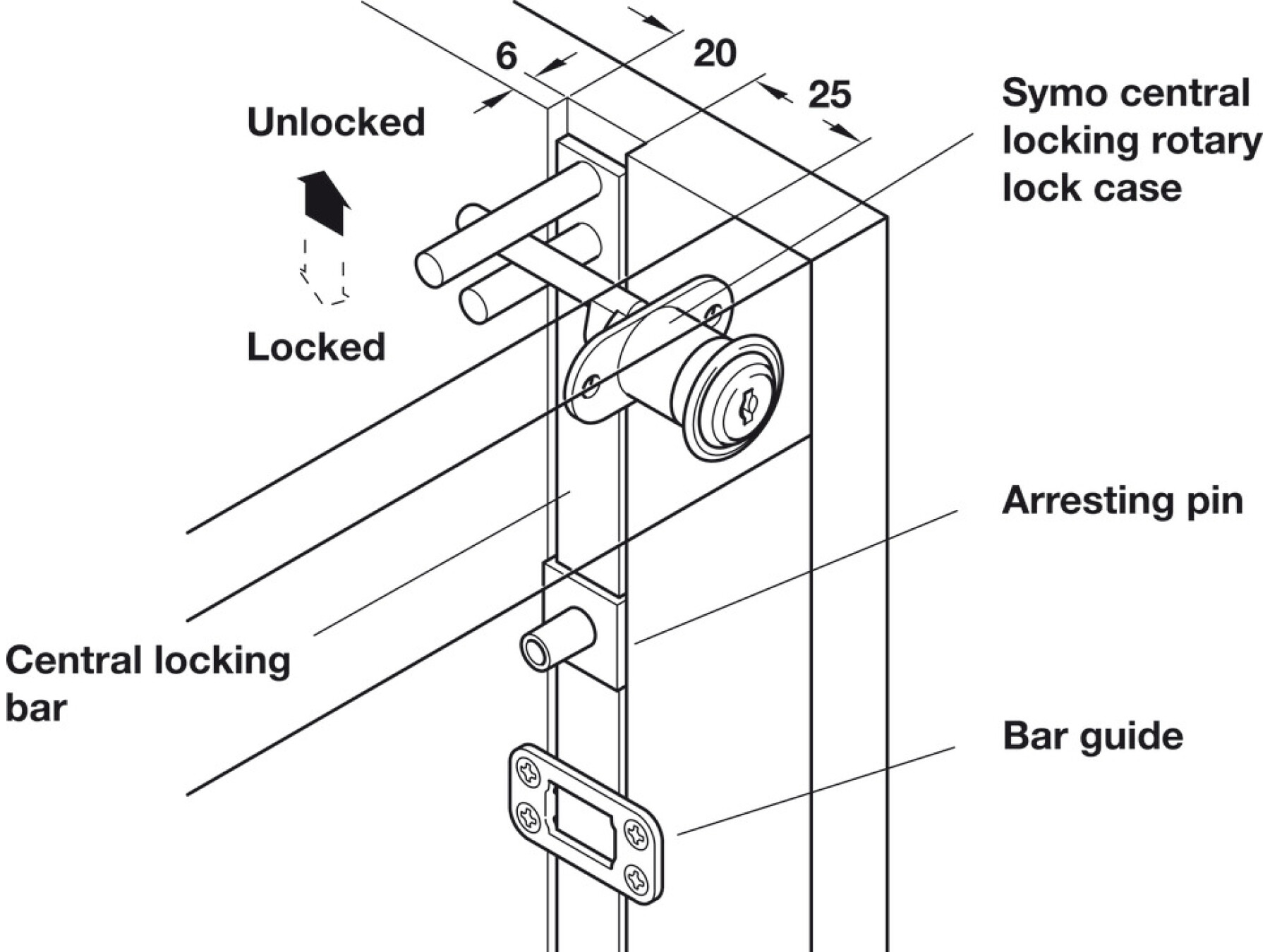

This version includes a lifting pin and is intended for on-site installation of cylinder cores and in the front panel. Installation is designed for fixed front panels using screw fixing, giving you stability during setup and long-term use.
If you’re looking for an upgrade that balances security, compatibility, and refined finishing, the Central Rotary Lock Case, Twin Wing, Symo 3000. – For combination with Symo cylinder removable core, Travel 17 mm, nickel plated is a dependable choice for your next office or commercial project.
Specifications
Closure travel
180°
Colour/finish
Nickel plated
Area of application
For on-site installation of cylinder cores and in the front panel
Version
With lifting pin
Material
Zinc alloy
Cylinder shape
prepared for round cylinder
Cylinder housing length
22.00 mm
Cylinder Diameter
18.00 mm
Installation
For installation in fixed front panel
for screw fixing
with key
No
FAQ
Product Details
What is the Symo3000 Central Rotary Lock 22/17mm NP used for?
It is a central rotary lock case for office and commercial furniture that provides secure locking for removable cylinder cores. It is designed for use in a fixed front panel, making it suitable for cupboards, cabinets and other fitted furniture applications.
Does this lock fit the Symo cylinder removable core?
Yes. This model is for combination with the Symo cylinder removable core. That means the lock case is matched to the Symo core system so you can install the core on site as required.
What does the 22/17mm measurement mean?
22mm relates to the cylinder housing length and 17mm refers to the travel. Travel describes the working movement, and this lock has a closure travel of 180 degrees for consistent operation in furniture front panels.
Is it suitable for installing in a fixed front panel?
Yes. It is intended for on site installation of cylinder cores and in the front panel, with screw fixing for mounting in a fixed panel.
Can the lock be operated with a key?
No key operation is included with this lock case. The lock is listed as with key: no, so access and security depend on the compatible cylinder core you fit.
What finish and material should I expect?
It is nickel plated for a durable, professional appearance. The housing is made from zinc alloy, which is commonly used in furniture lock bodies for strength and reliable everyday use.
What is the lifting pin version and do I need it?
This version is with lifting pin, which supports the correct functional set up of the lock mechanism. If your cabinet design requires this configuration for alignment or operation, this version is the right match.
What is the product part number and how can I order it?
The product part number is 234.98.610. Adding this exact part number to your order helps ensure you receive the correct Symo3000 central rotary lock case matched to the removable core system.
