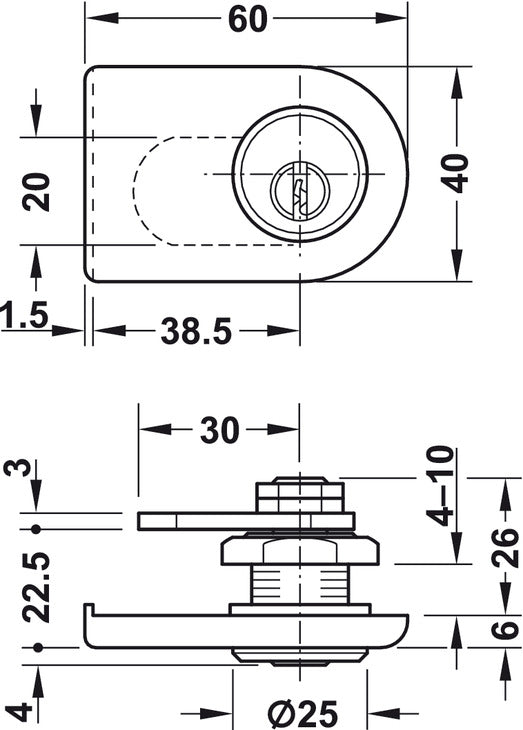

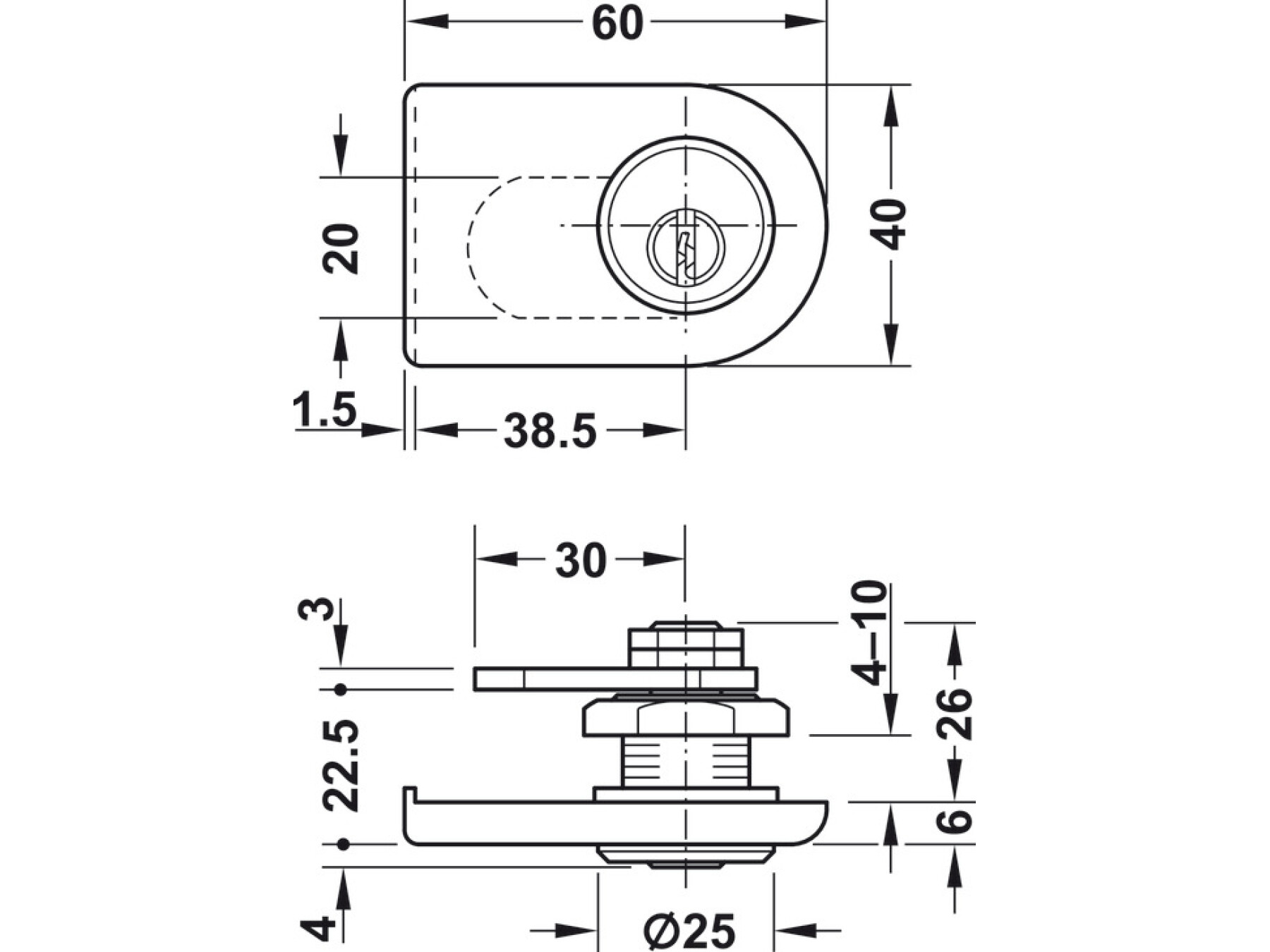

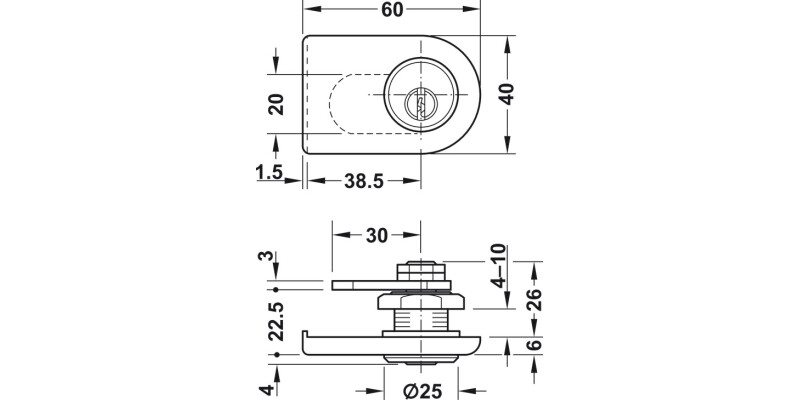

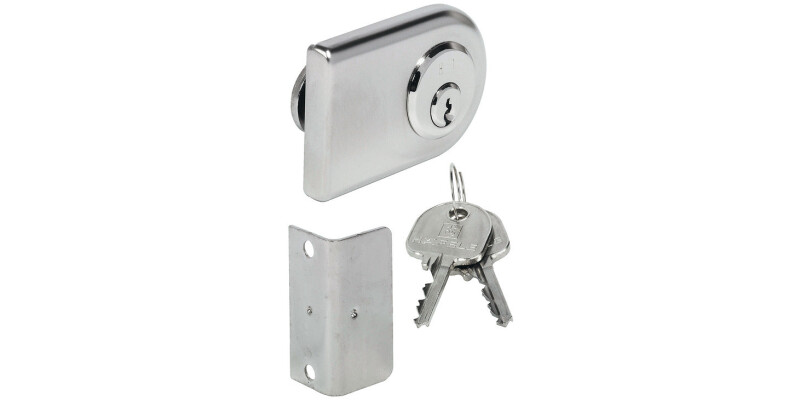

Glass Door Cyl Lever Lock B Diff MNP

Part Number: 233.30.654
Closure direction 90°, B (C, E, H), keyed to differ
Price:
£27.10
Per Item
VAT excluded

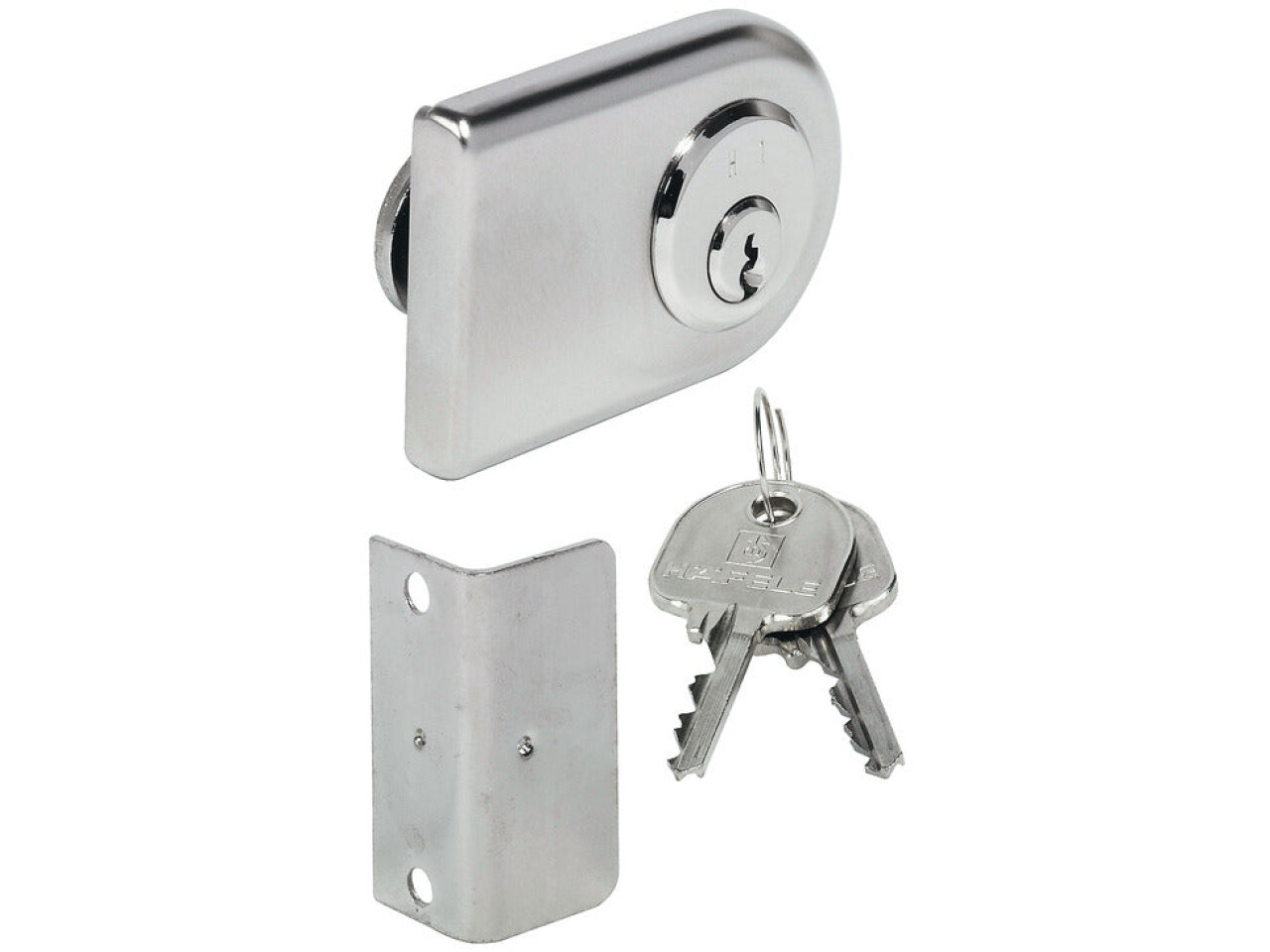

Supplied with 1 Glass door cam lock2 Keys1 Locking cam3 Hexagon nuts1 Clamping plate1 Clamping rosette1 Angled striking plate

Product Information

Product Details

Supplied with

1 Glass door cam lock
2 Keys
1 Locking cam
3 Hexagon nuts
1 Clamping plate
1 Clamping rosette
1 Angled striking plate

Specifications

Locking system

Standard profile

Closure travel

90° (reversible, with key trap)

Colour/finish

Nickel plated, Matt

Area of application

for hinged and sliding glass doors

Cylinder shape

round cylinder

Version

With fixed pin tumbler cylinder
with straight locking cam

Material

Cylinder: Brass
Trim cap: Zinc alloy

Locking system

with 5 pin tumblers

For glass thickness

4 – 10 mm

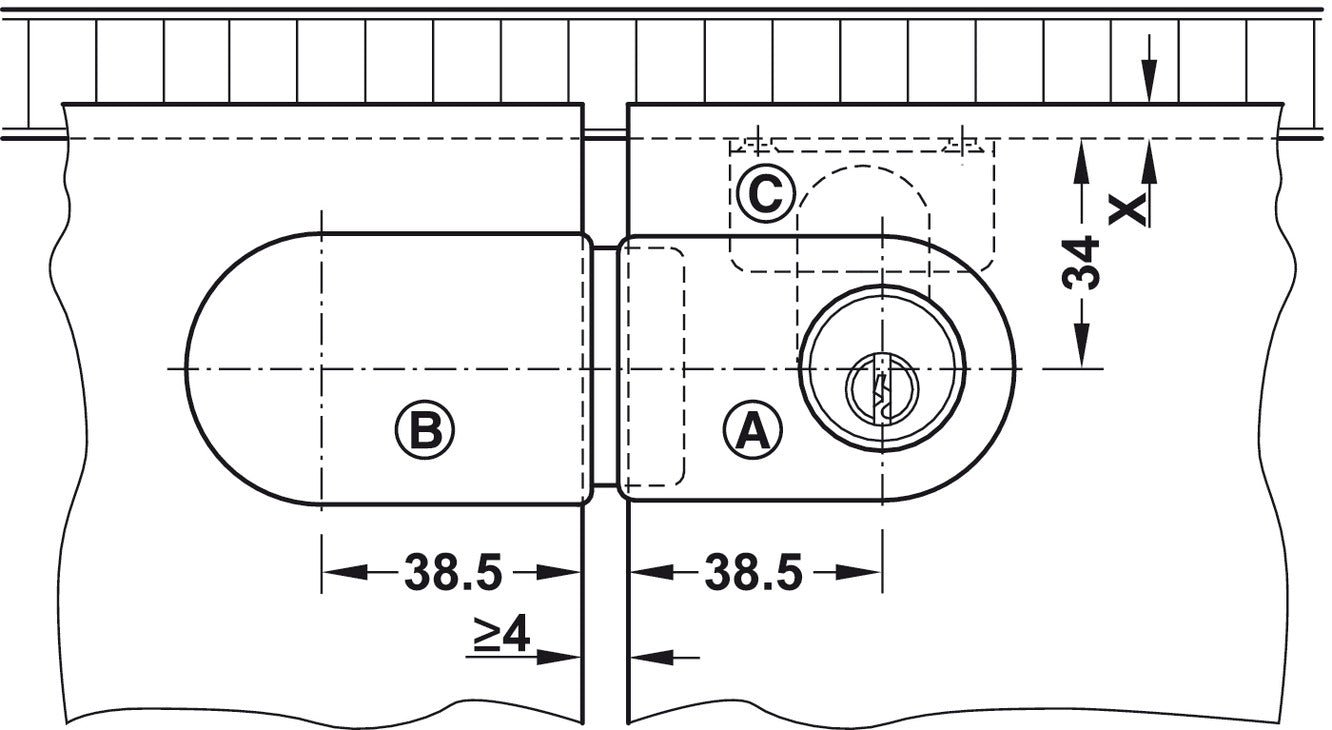

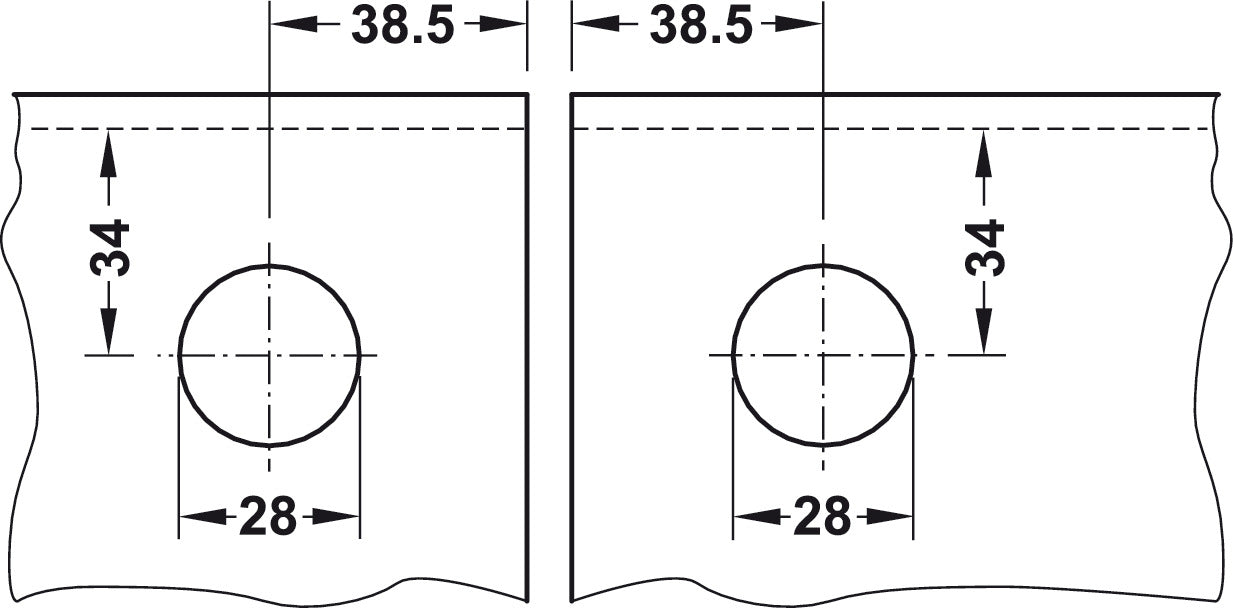

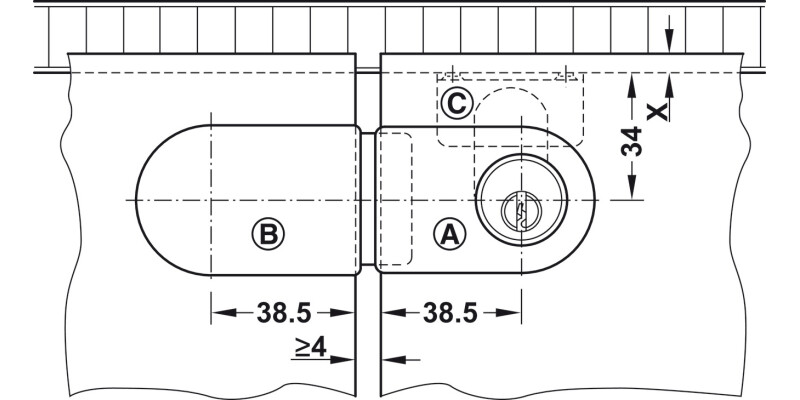

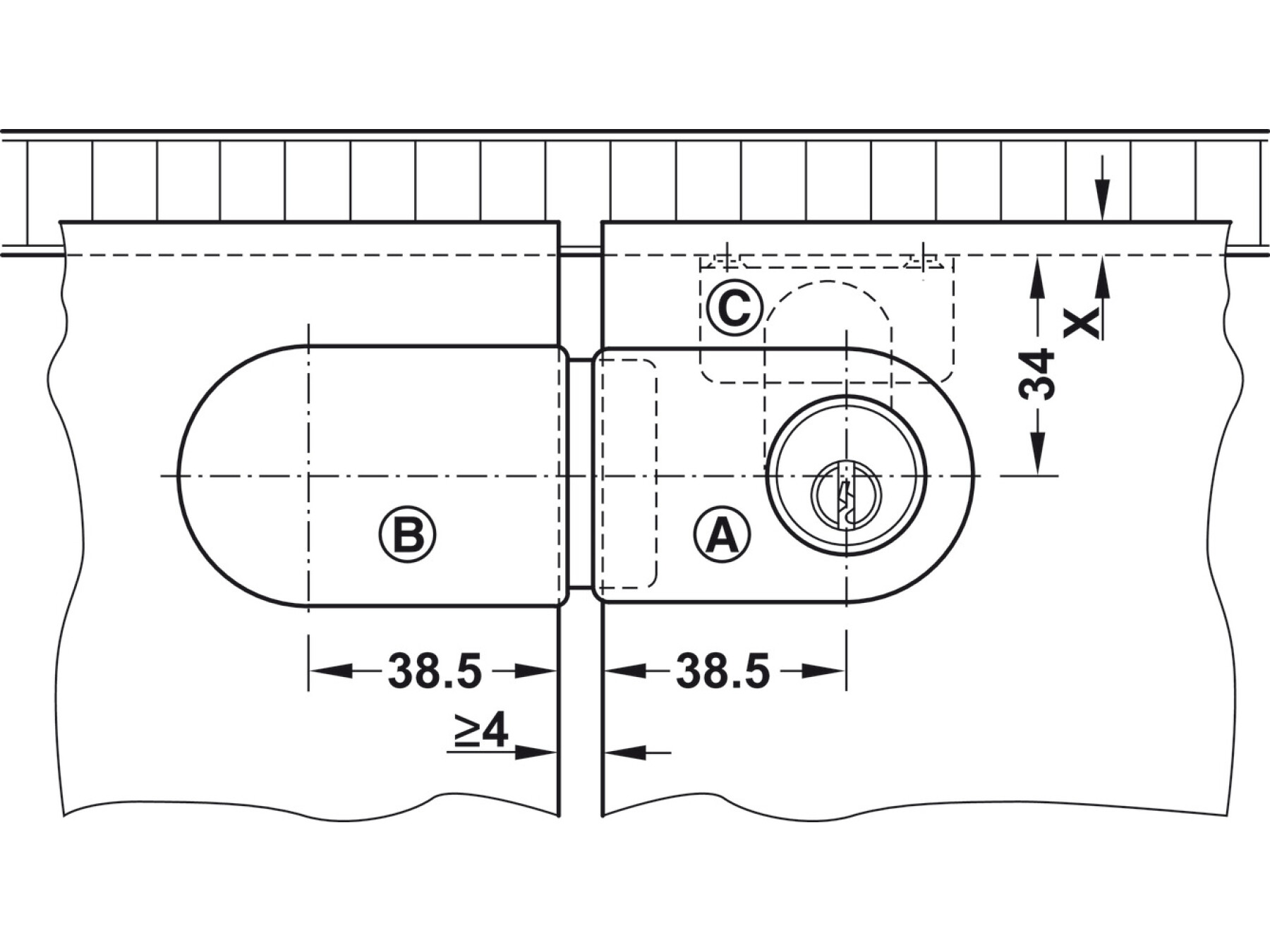

Installation

For screw fixing with hexagon nut

Forend Type

38.50 mm

with key

Yes
