Cylinder Core, with Pin Tumblers, Keyed Alike, Symo Premium 20

Product Details

Is the Symo3000 Cylinder Core 010A NP suitable for both left and right hand cabinet locks?

Yes. This cylinder core is designed for use with both DIN left hand and DIN right hand mounting. This makes it a convenient choice when you need a matched core for different cabinet door orientations within the Symo 3000 system.

Which keying option does this cylinder core use, and can I key it alike with other locks?

It is keyed alike. The closure type is keyed alike, meaning the cylinder is intended to work with matching key arrangements for compatible locks in the Symo system. If you are planning a set of cabinets, keyed alike can help simplify access.

What lock cases is this cylinder core compatible with?

It is suitable for Symo 3000 lock cases. This product is intended as a plug fitted cylinder core for use with Symo 3000 locking system lock cases. For best results, confirm you are using the correct lock case range before ordering.

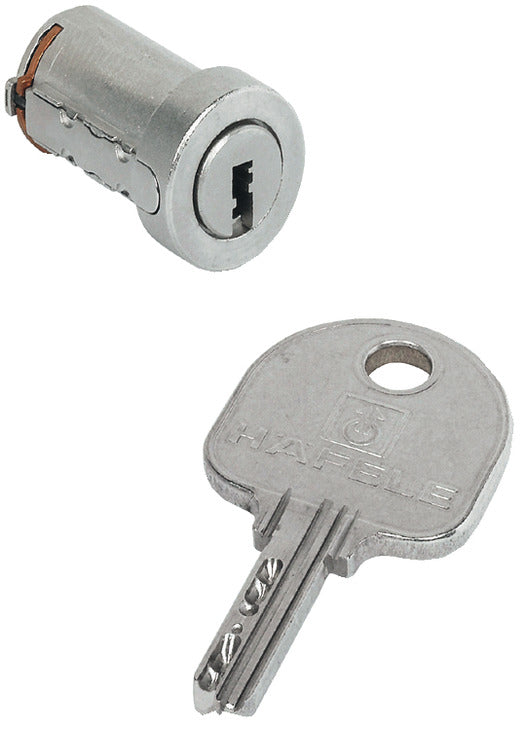

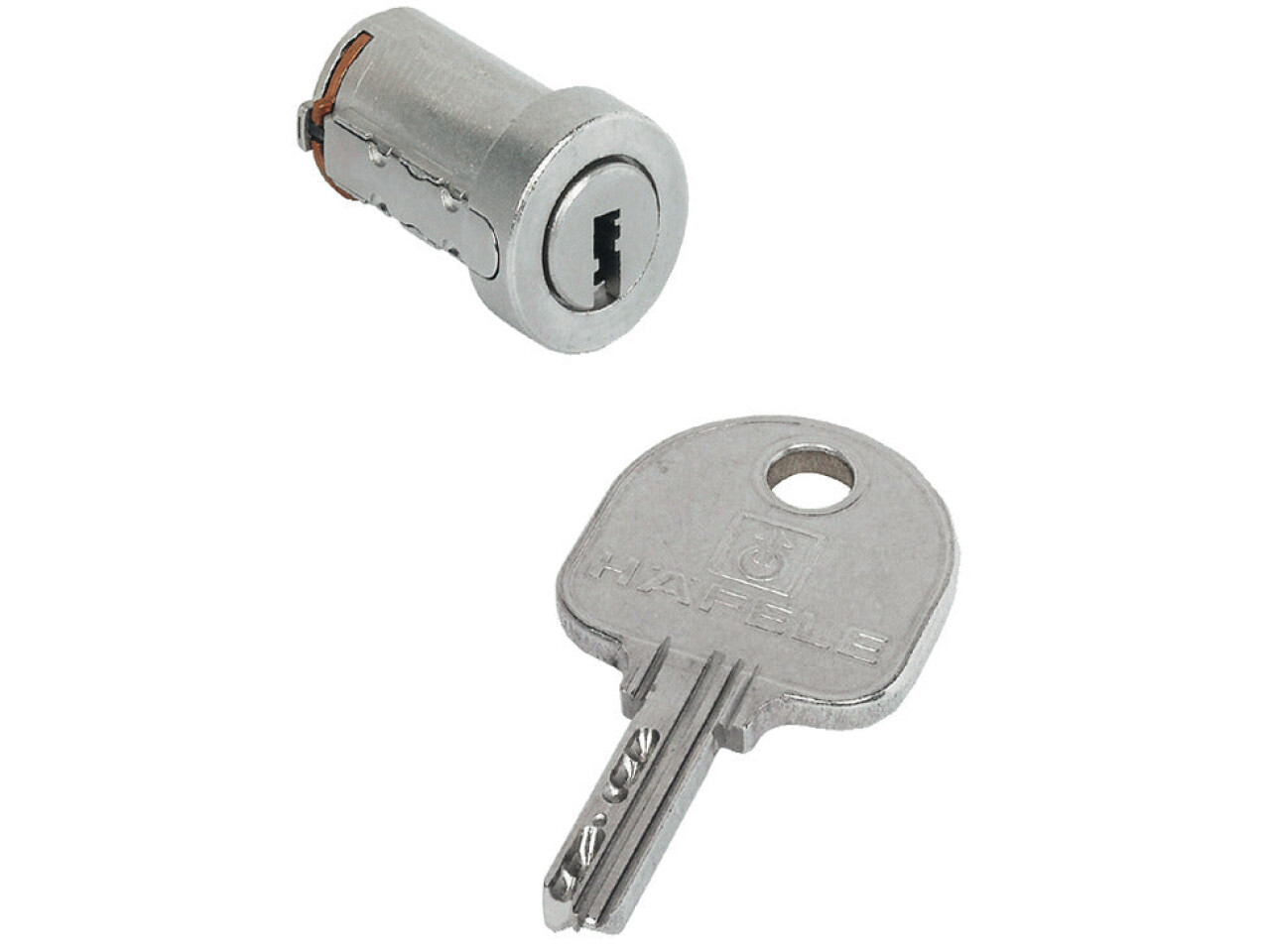

Does the cylinder core come with a key?

Yes. The pack includes 1 key. This is helpful if you are fitting the core into a cabinet lock for the first time or replacing an existing cylinder where you need immediate access.

How is the cylinder core installed into the lock system?

It is designed for plug fitting into the lock case. This cylinder core version is mounted by inserting it into the corresponding Symo 3000 lock case. If you are replacing an older cylinder, check that the lock case profile matches the standard profile used by this core.

What are the cylinder size and profile details to look for when replacing an old core?

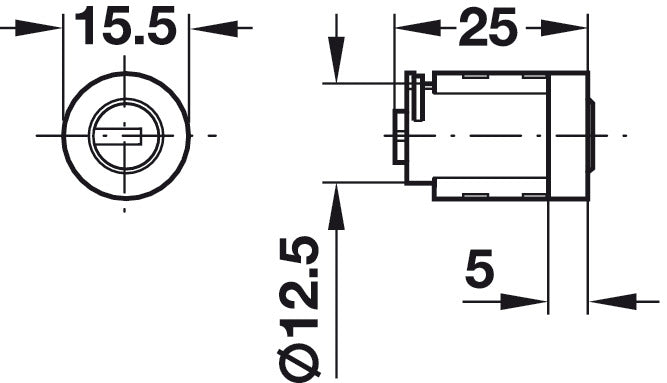

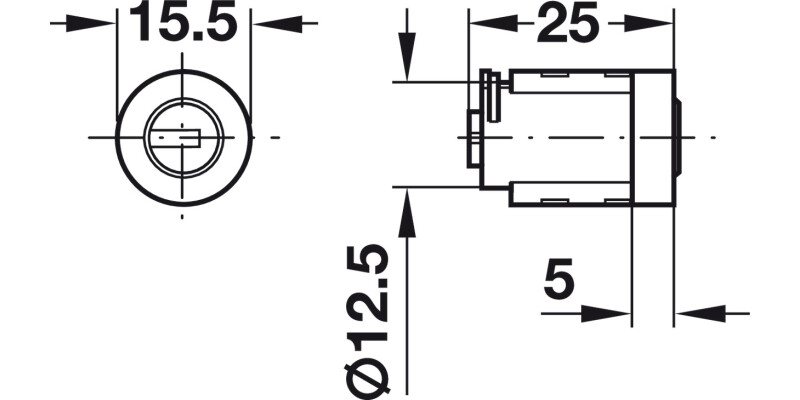

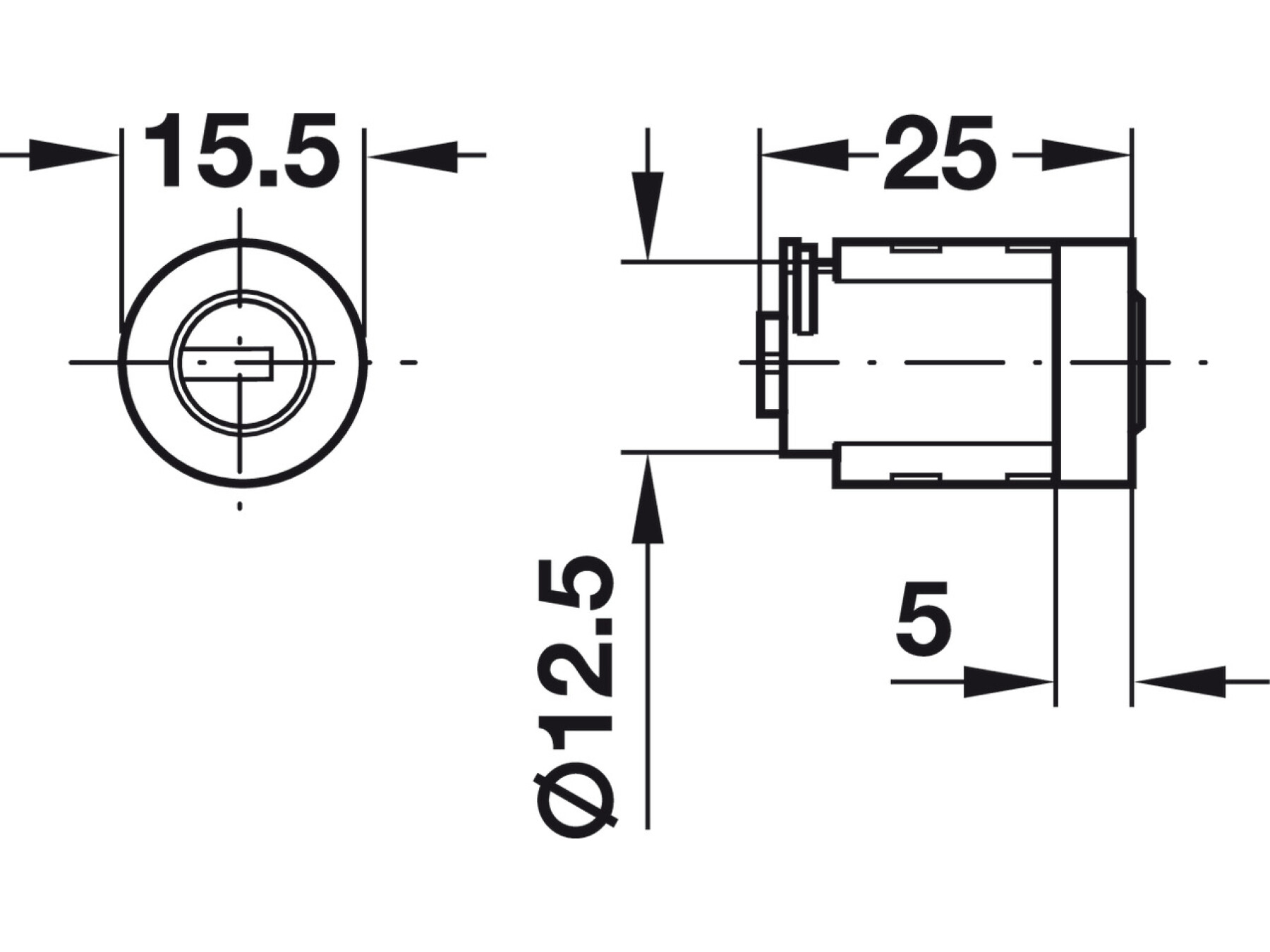

Cylinder length is 25.00 mm and diameter is 12.50 mm. It uses a standard profile and a round cylinder shape. These details are important when you are replacing a previous core to ensure a correct fit.
