Part No: 051.46.904
Window Frame Screw, with Countersunk Head TS30
£37.77
(excl. VAT)

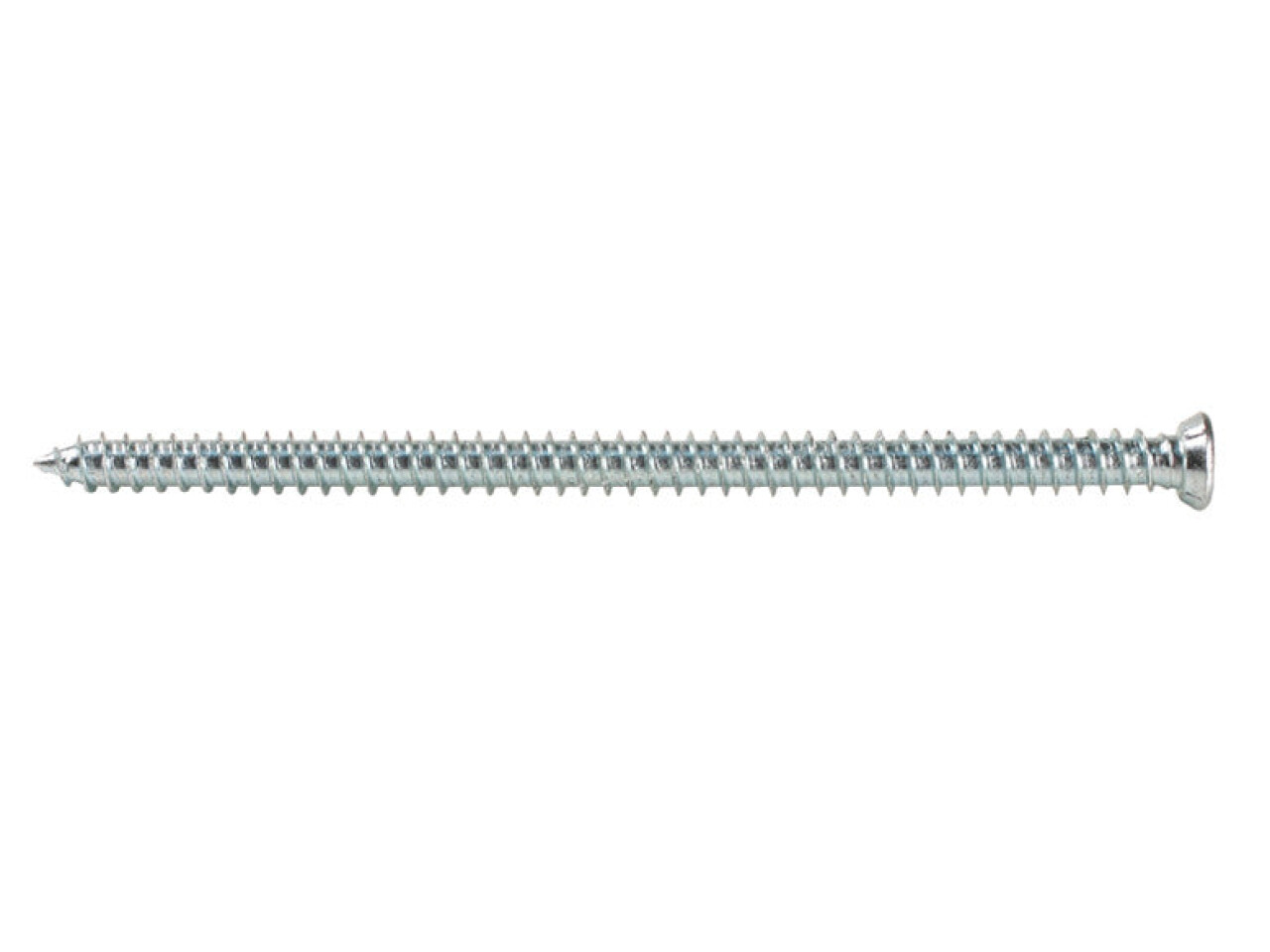

Window Frame Screw, with Countersunk Head TS30
Part Number: 051.46.906
Length 182 mm, 100 Pack
Price:
£47.22
Per 100 Pack
Window Frame Screw, with Countersunk Head TS30 (Length 182 mm, 100 Pack) is the dependable fastening solution for... Read More
Product Information
Product Details
Window Frame Screw, with Countersunk Head TS30 (Length 182 mm, 100 Pack) is the dependable fastening solution for professional window and frame installations. Designed for secure fixing into window frame applications, this screw combines strength, precision fit, and corrosion resistance—helping you achieve a clean, durable result every time.

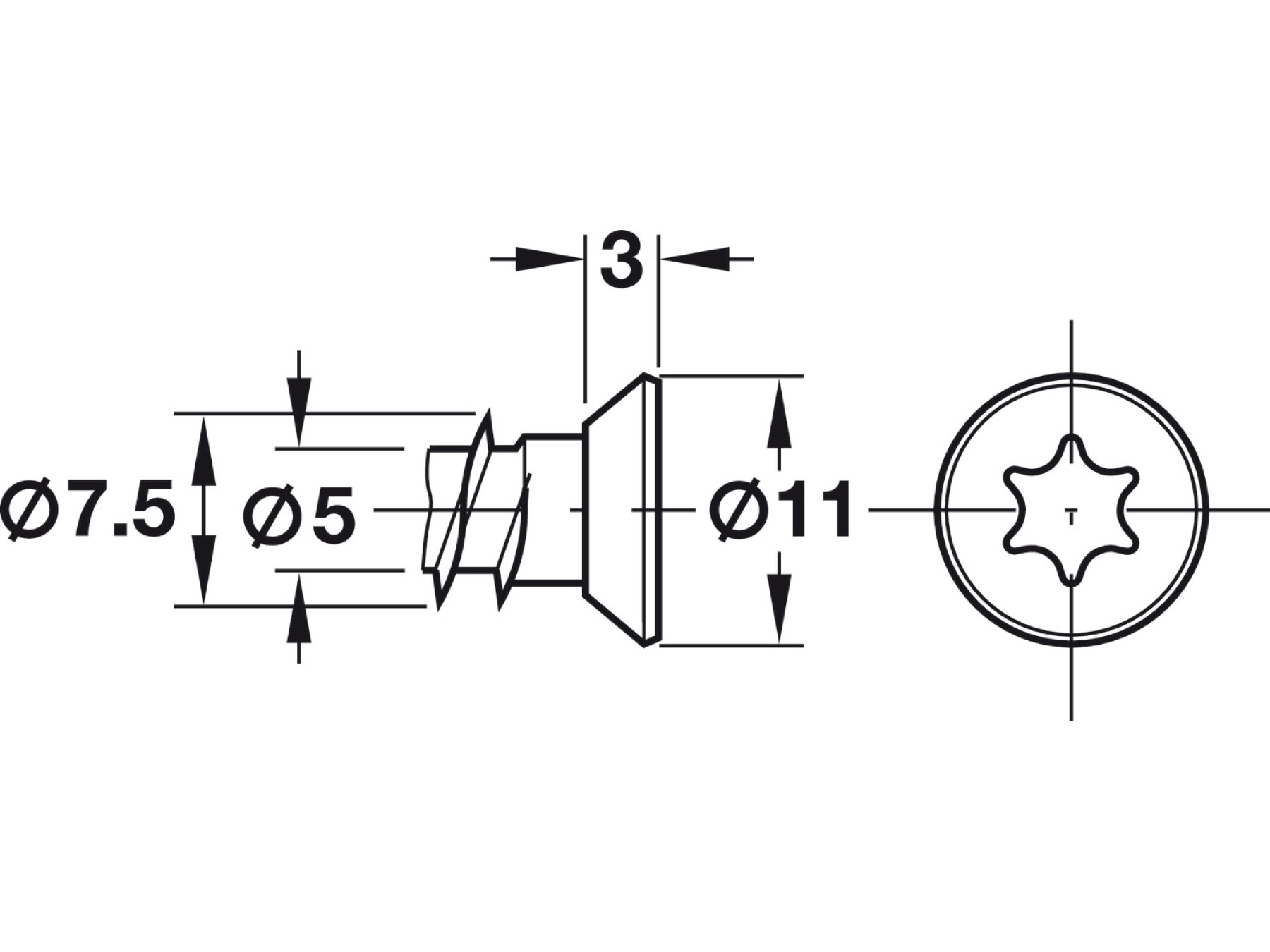

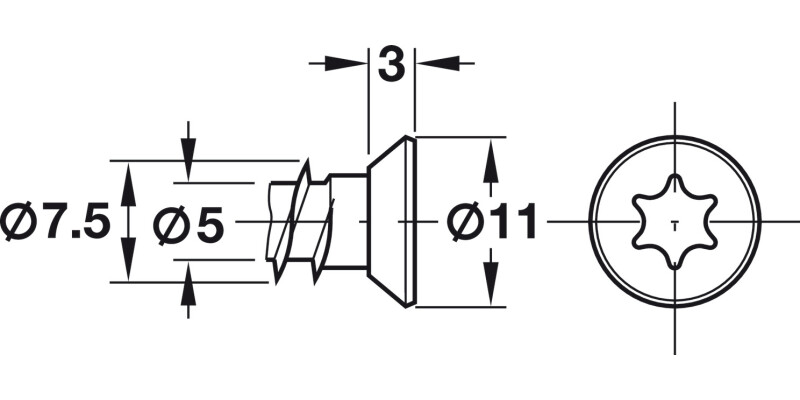

Each screw features a countersunk head, allowing the head to sit neatly flush for a tidy finish and improved appearance around the frame. With a head diameter of 11.00 mm, it’s engineered to seat properly and maintain stability in demanding positioning. The 7.50 mm thread diameter and fully threaded design work together to pull materials together firmly for a reliable hold.
Made from steel and finished with a zinc plated low-friction coating, these screws help reduce friction during driving while supporting long-term performance. The galvanized protection supports resistance to corrosion, making them suitable for projects where exposure and durability matter.

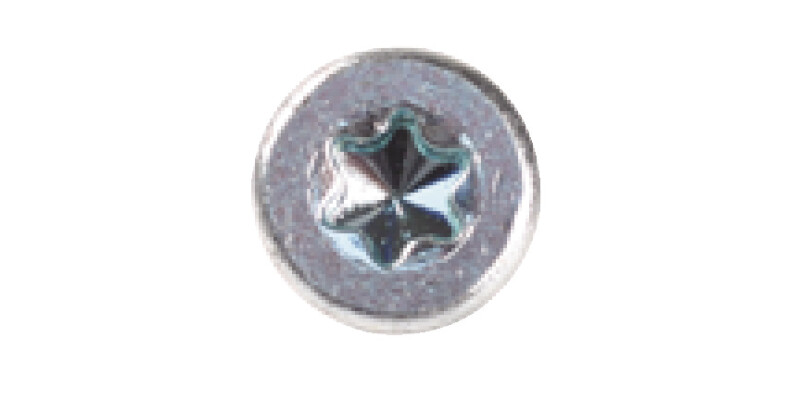

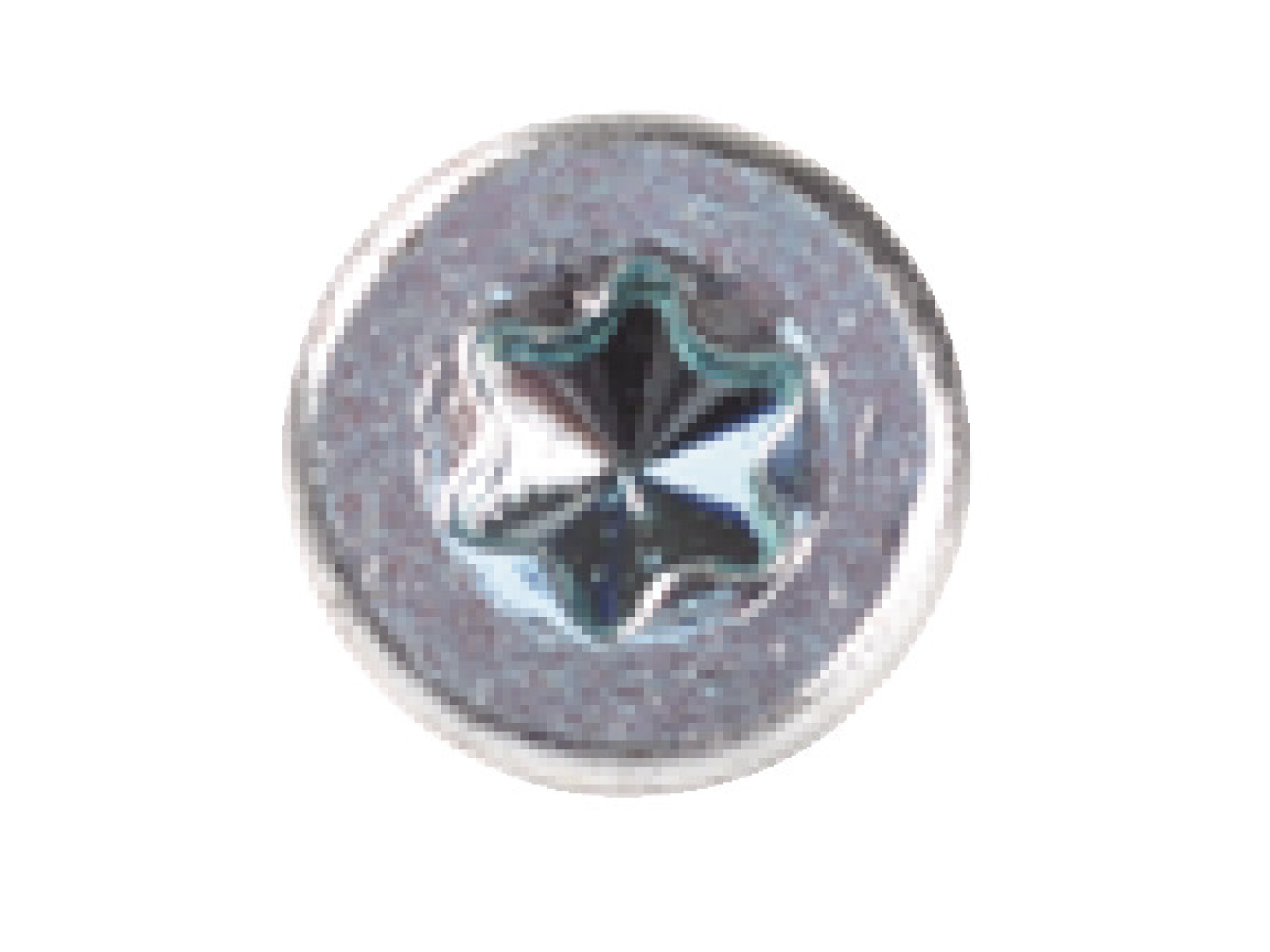

For driving, this model uses a T-Star / Torx drive, giving you better grip and control during installation. It’s a smart choice for installers who want speed, confidence, and reduced cam-out compared with basic drive types.
Ideal for window frame fitting and related construction tasks, the Window Frame Screw, with Countersunk Head TS30 is supplied as 100 Pack stock, so you’ll be ready for multiple jobs without constant reordering. Product Part No: 051.46.906.
Specifications
Colour/finish
Zinc plated low-friction coating
Material
Steel
Thread Ø
7.50 mm
Head Ø
11.00 mm
Type of head
countersunk head
Drive
T-Star / Torx
Thread
Fully Threaded
FAQ
Product Details
Are these screws suitable for window frame fixing?
Yes. Window Frame Screw Csk Galv D7.5x182 mm is designed for typical window frame applications where a countersunk head helps the screw sit neatly flush for a tidy finish.
What size are the screws in this pack?
They measure 7.5 mm in thread diameter and 182 mm in length. The countersunk head is sized to suit window frame fixings, making them a good match for projects that specify this dimension.
Do I need a Torx or T-Star bit to drive them?
Yes. These screws are driven using a T-Star or Torx drive, so you will need the compatible bit on your drill or driver for reliable grip and easier installation.
Will the galvanised coating help with corrosion resistance?
It helps. The zinc plated low friction coating is applied to the steel to provide improved corrosion resistance and smooth driving, which is especially useful in exterior or damp conditions.
Are the screws fully threaded?
Yes. The thread is fully threaded, which can improve holding power through the full clamping area for window frame work.
How many screws are included in this product?
This listing is a 100 pack. It is a convenient quantity for completing multiple frame fixings without needing to place separate orders, helping you keep the same screw type throughout your job.
What is the part number for ordering?
Product Part No: 051.46.906. Using this number when ordering helps ensure you receive the exact size and specification, including the 182 mm length.
Related Products
Part No: 051.46.905
Window Frame Screw, with Countersunk Head TS30
£39.30
(excl. VAT)
Part No: 051.46.903
Window Frame Screw, with Countersunk Head TS30
£25.26
(excl. VAT)
Part No: 051.46.902

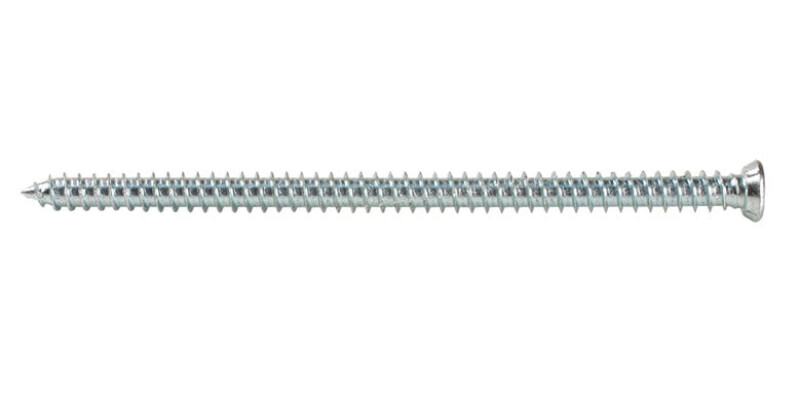

Window Frame Screw, with Countersunk Head TS30
