Straight Fitt f Wood Dr Max 2250mm Gry

Name: Straight Fitt f Wood Dr Max 2250mm Gry
SKU: 406.99.613
Price: 23.29 GBP
Availability: InStock

Part Number: 406.99.613

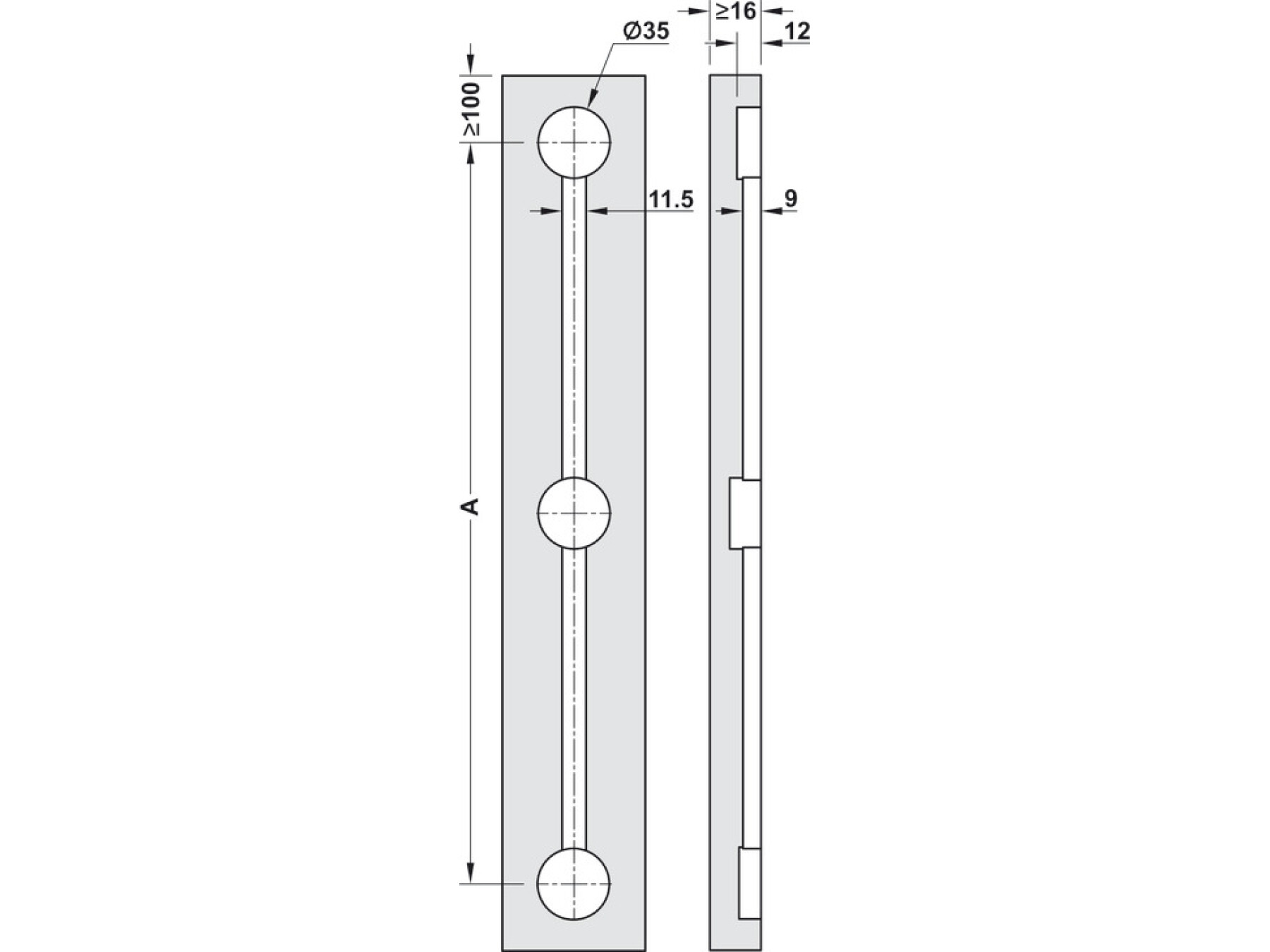

For min. board thickness 16 mm, Door height ≤2,250 mm, dim. A: 1,838 mm

Price:

£23.29

Per Item

VAT excluded

Please note: Not suitable for hardwoodAdds rigidity to wooden sliding or hinged doors from 16 mm thick and... Read More

Product Information

Product Details

Please note: Not suitable for hardwood
Adds rigidity to wooden sliding or hinged doors from 16 mm thick and prevents warping in either direction
Ideal for large, heavy doors
Suitable for retro fitting; can straighten warped doors
Normally two straightening fittings are recommended per door panel

Area of application

For hinged and sliding doors, prevents doors warping in either direction or straightens doors which have become warped

2 straightening fittings recommended per door leaf.
Not suitable for hardwood! Please note when using this product in combination with lacquered panels, a pattern of the routered recesses may emerge on the front.

Specifications

Colour/finish

trim strip: Grey, Cup: Nickel plated, Tensioner: Nickel plated

For door thickness

≥16 mm

Material

Threaded bar: Steel
Tensioner: Zinc alloy
Trim strip: Plastic

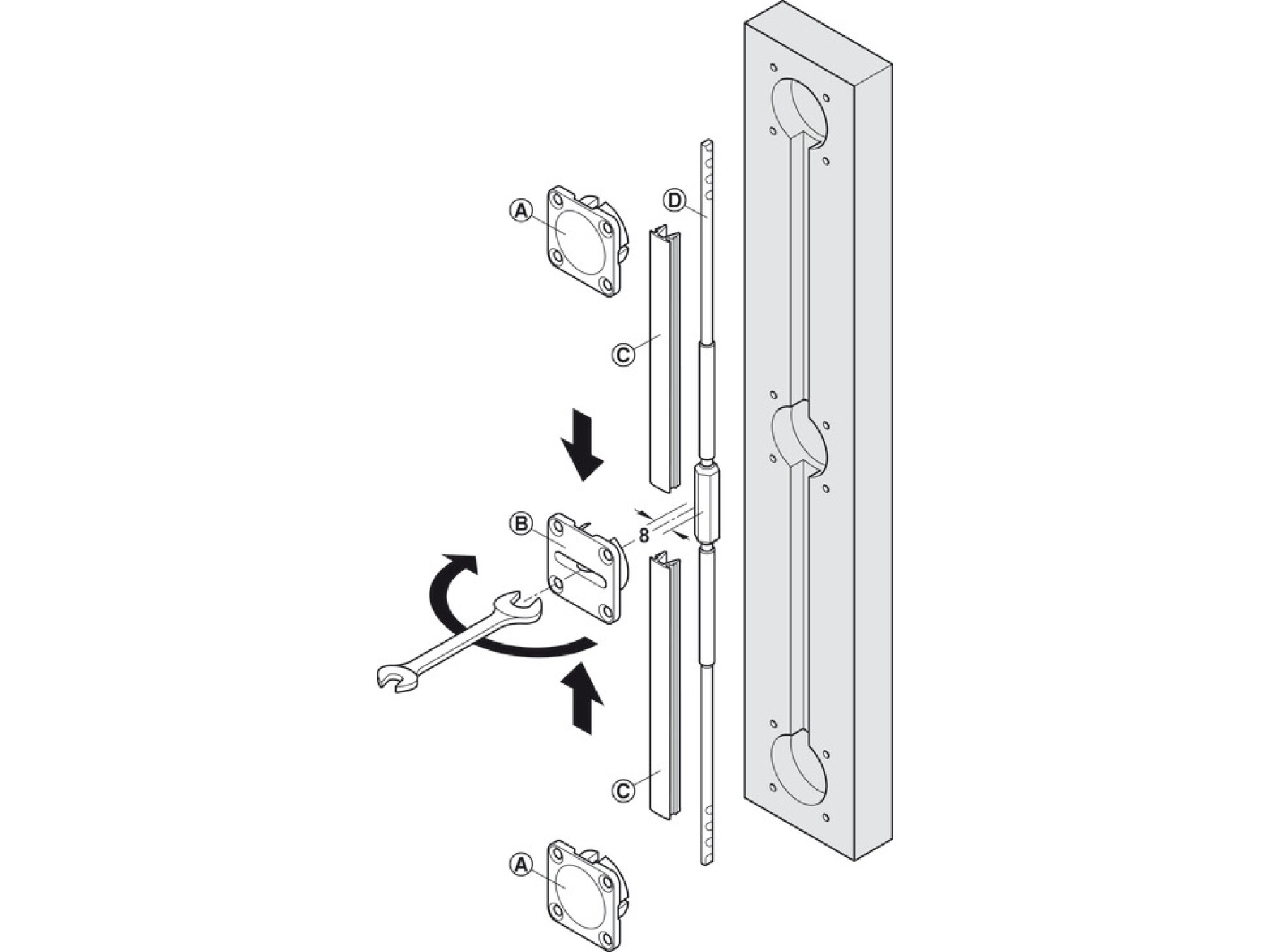

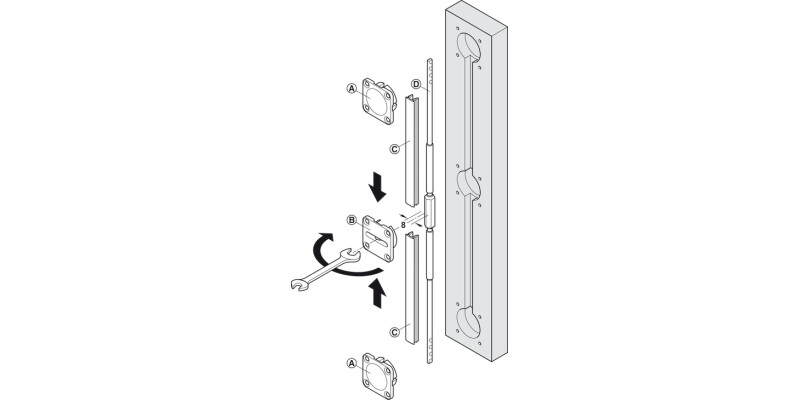

Installation

For recess mounting and screw fixing

Adjustment facility

Via pre-mounted hexagonal nut with SW 8 open-ended spanner

Hafele Lifetime Guarantee

10 years

Supplied with

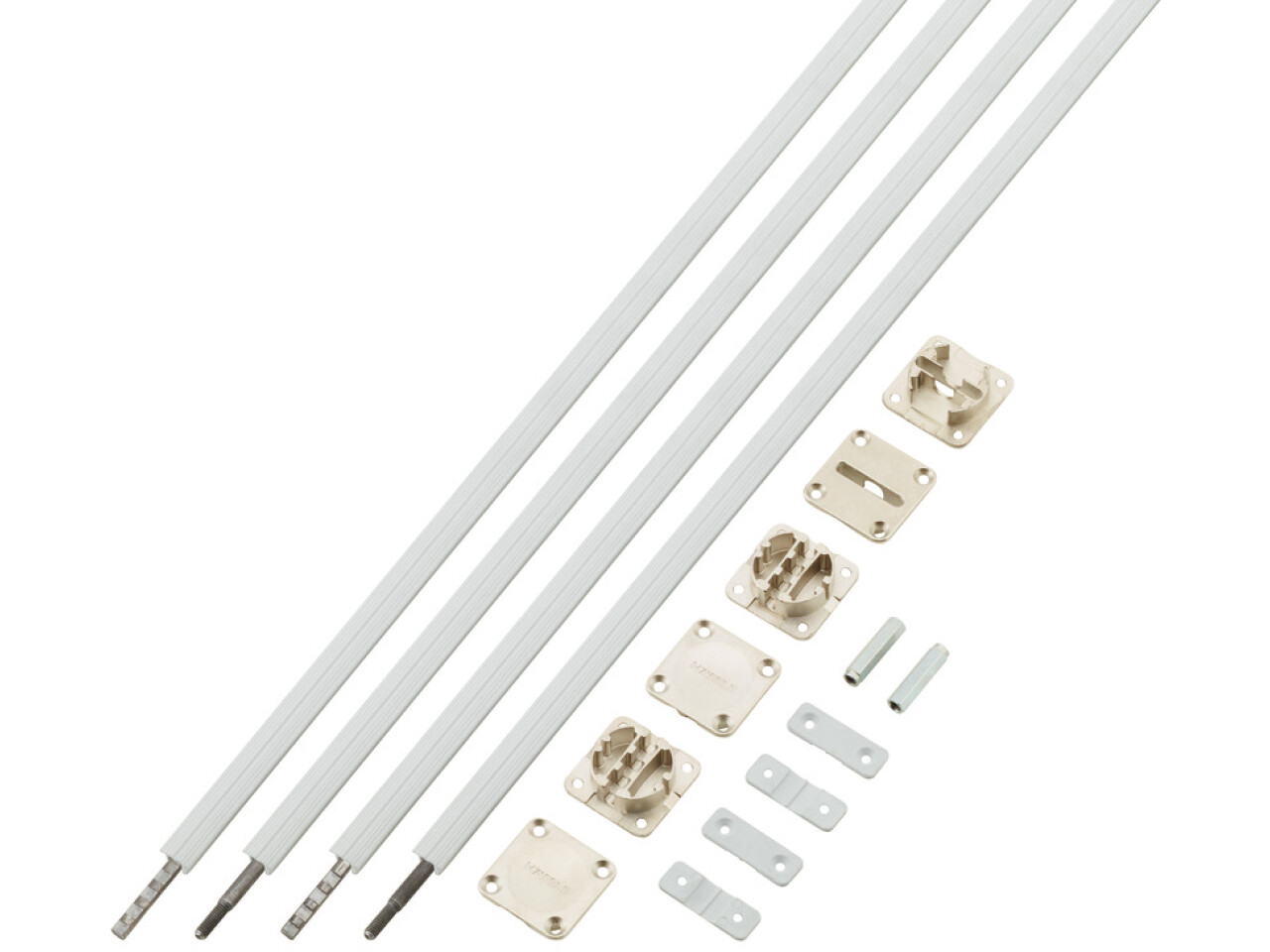

1 set consists of 2 straightening fittings including all individual components and open-ended spanner
