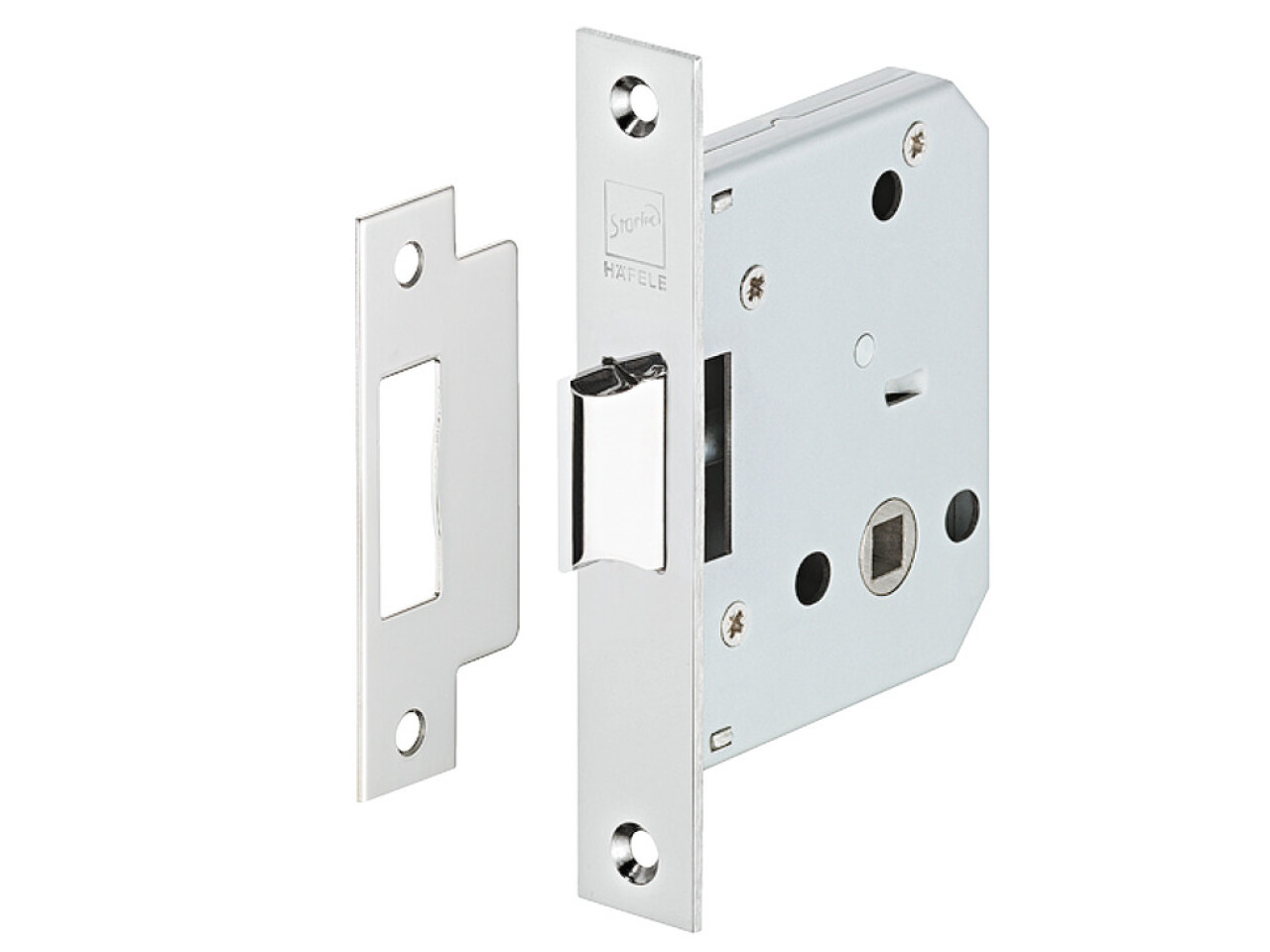

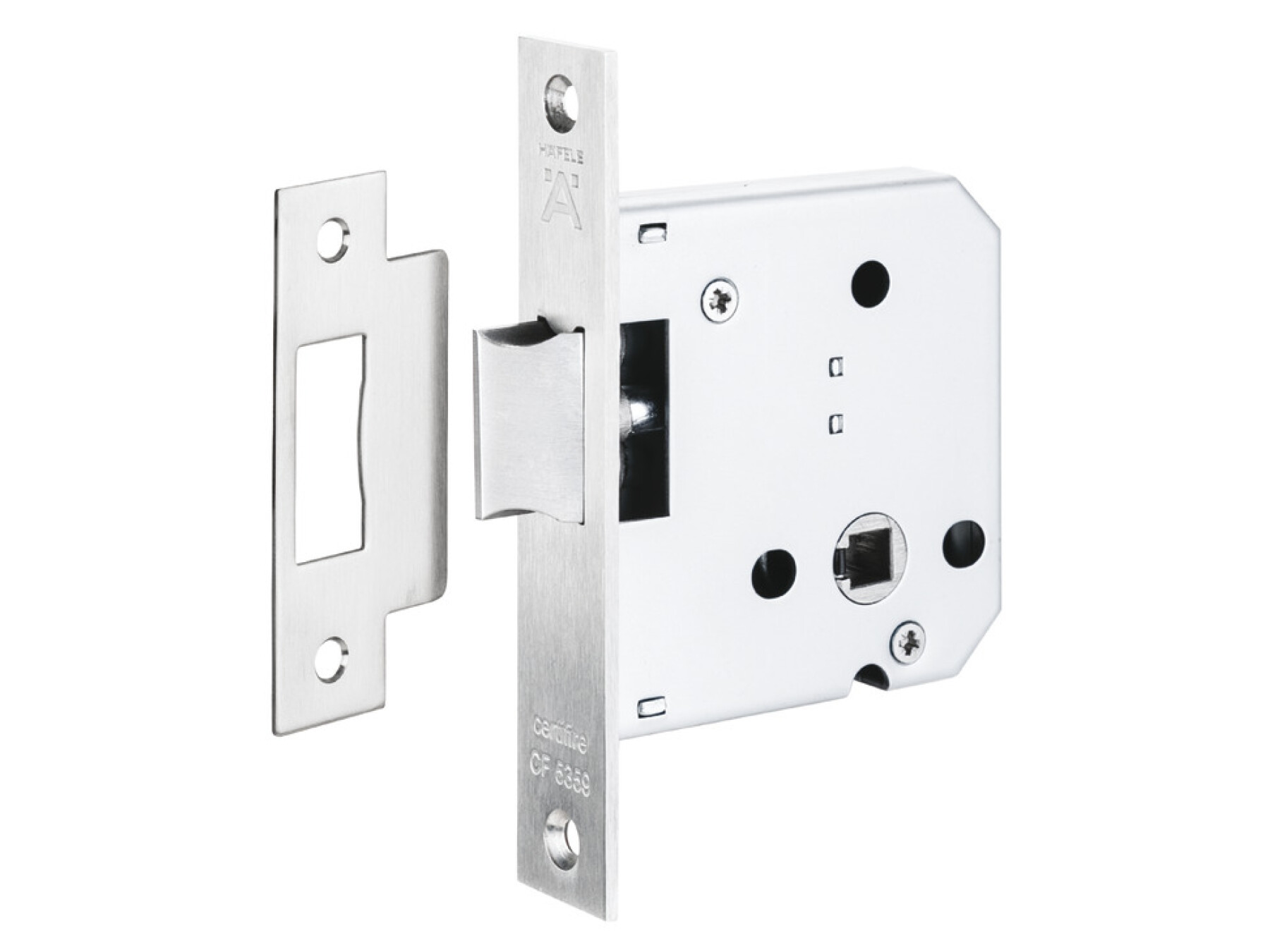

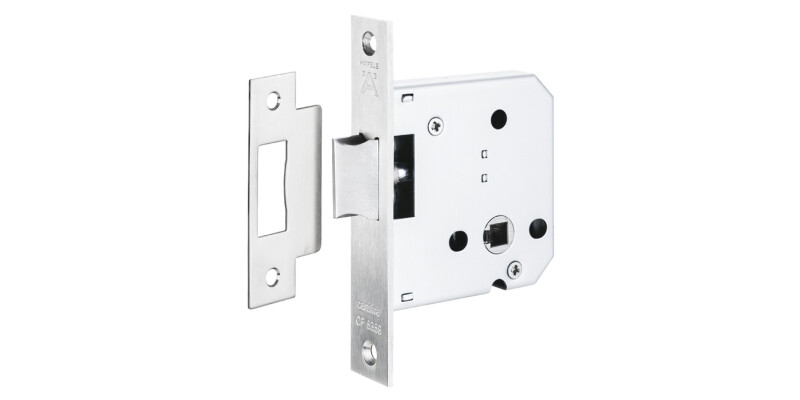

Startec Mort Latch 55/84 Rad SSS
Part Number: 911.23.394

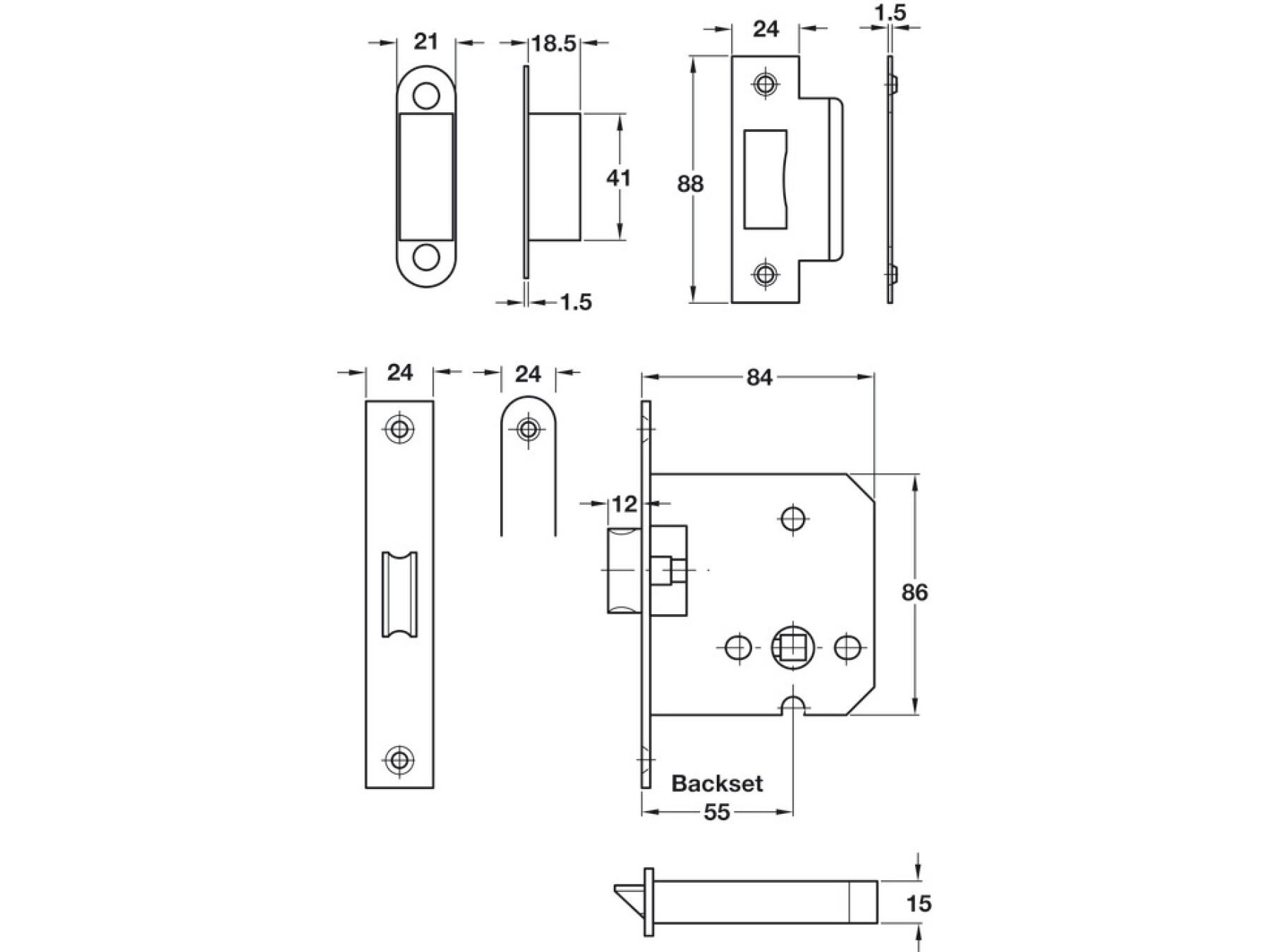

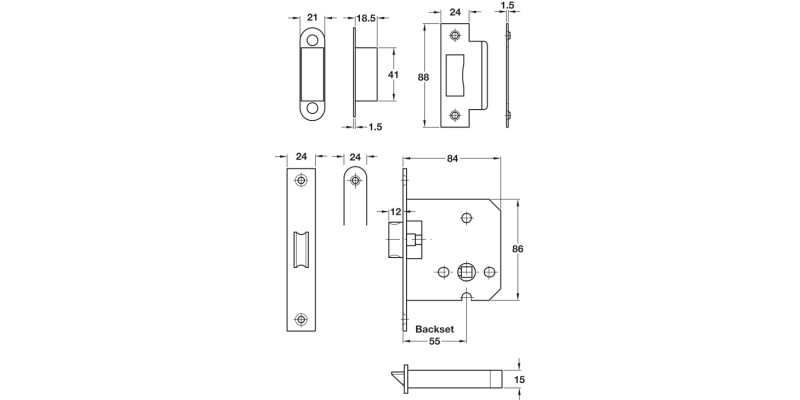

Backset 55 mm, case size 84 mm, Radius forend, Satin
Price:
£13.96
Per Item
Latchbolt operated by lever handles, reversibleForend: SquareFlanged strike plate: Square, flatLatchbolt... Read More
Product Information
Product Details
Latchbolt operated by lever handles, reversible
Forend: Square
Flanged strike plate: Square, flat
Latchbolt follower: 8 mm for use with sprung or unsprung furniture
Warranty/Guarantee information
This product is covered under Häfele’s Lifetime Guarantee.
All products covered under the Häfele Lifetime Guarantee have met our quality standards and have been tested according to the relevant industry certification.
All products under this guarantee are covered for normal use of the products in a domestic environment - for commercial environments our standard 12 month guarantee would apply.
For more information go to:
Services > Customer Support > Häfele Lifetime Guarantee
| Technical data | |
|---|---|
| Lever follower | 8 mm |
Specifications
Forend Type
55.00 mm
Forend design
Flat forend edged
Forend width
24.00 mm
Door construction
Unrebated
Lever follower
8.00 mm
Mounting
DIN left/right (reversible)
Material
Case: Galvanized steel
Forend: Stainless steel
Flanged strike plate: Stainless steel
Latchbolt version
Standard latch
For door type
Hinged doors
Version
Strike plate with bolt pocket
Lock actuation
Lever handle activated
Colour/finish
Satin stainless steel
Forend length
138.00 mm
Deadbolt version
Without deadbolt
Standard
Certified in compliance with EN 12209: 2003
Classification in compliance with EN 12209
3|X|8|1|0|G|3|B|0|2|0
Hafele Lifetime Guarantee
10 years
Supplied with
Fixings
