Slido F-Li31 60A FitSet 1Dr w Two SC
Part Number: 402.31.034

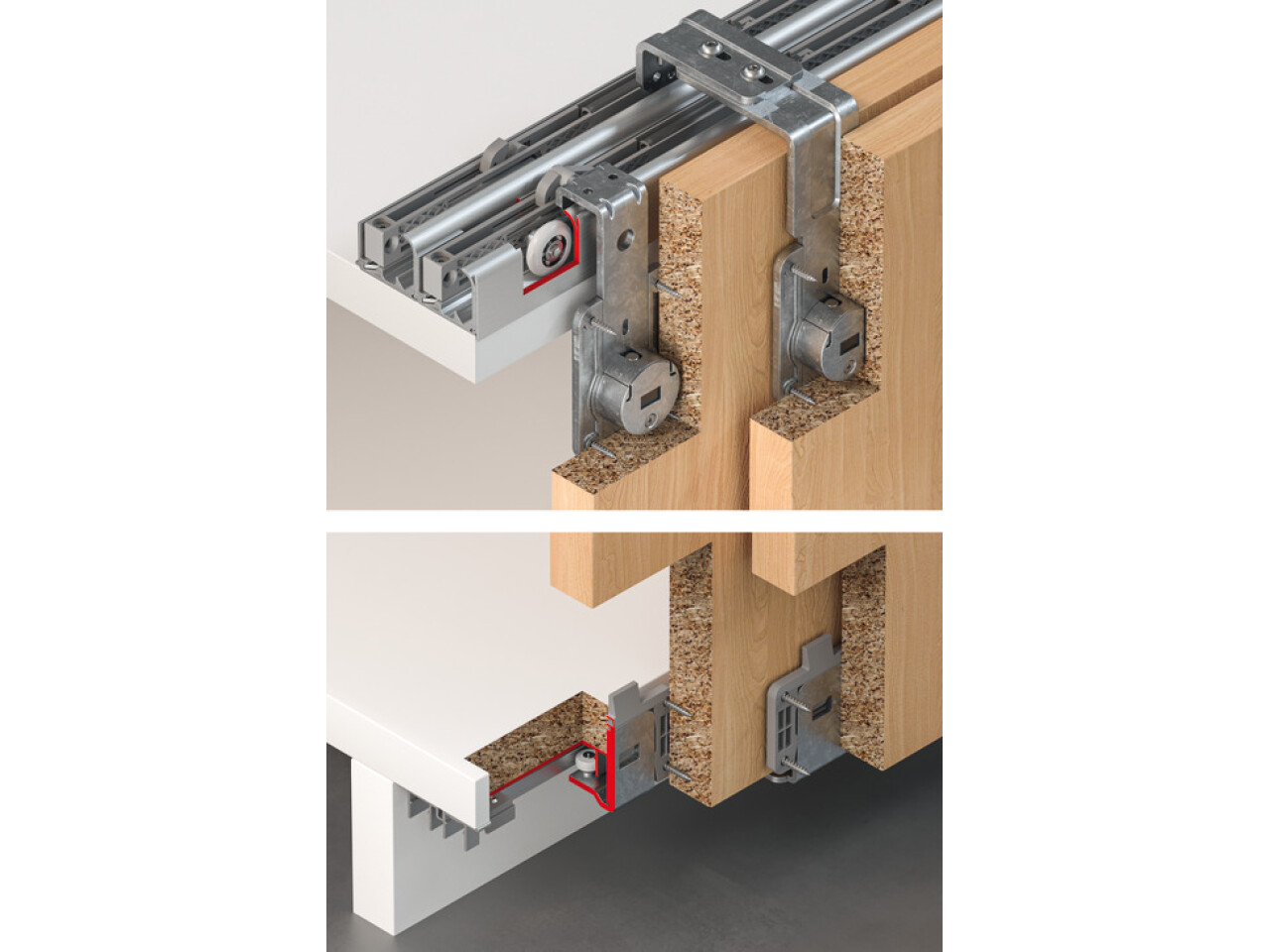

Top hung system, For 1 door, with soft closing mechanism on both sides
Price:
£232.07
Per Item
Top hung system for overlay timber door applications up to 60 kgCan be connected to an electric sliding door... Read More
Product Information
Product Details
Top hung system for overlay timber door applications up to 60 kg
Can be connected to an electric sliding door drive; e-drive
Easy to assemble and disassemble
High performance soft close fitting included
Door stopper: Clip-in door stopper or top soft and self closing mechanism for insertion in guide track
Running gear: Top running, 2 roller
Running gear guided by: Ball bearing roller, plastic, steel axle
Installation: Guide and running gear for screw fixing to door leaf, tracks for screw fixing to cabinet outer side, optionally also to cabinet inner side
The middle door of a 3-door set can only be opened in one direction

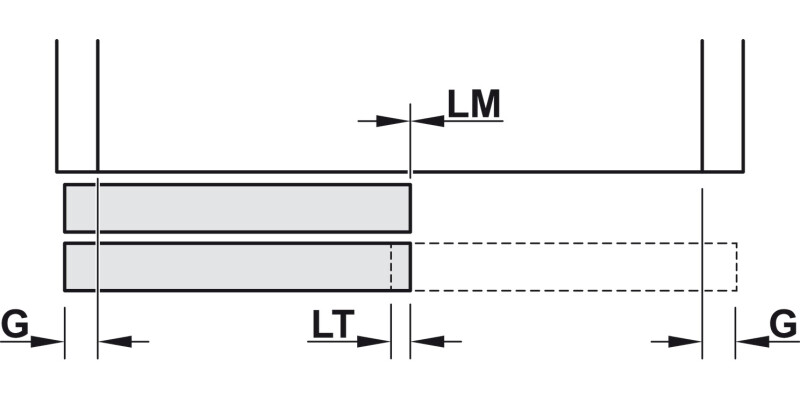

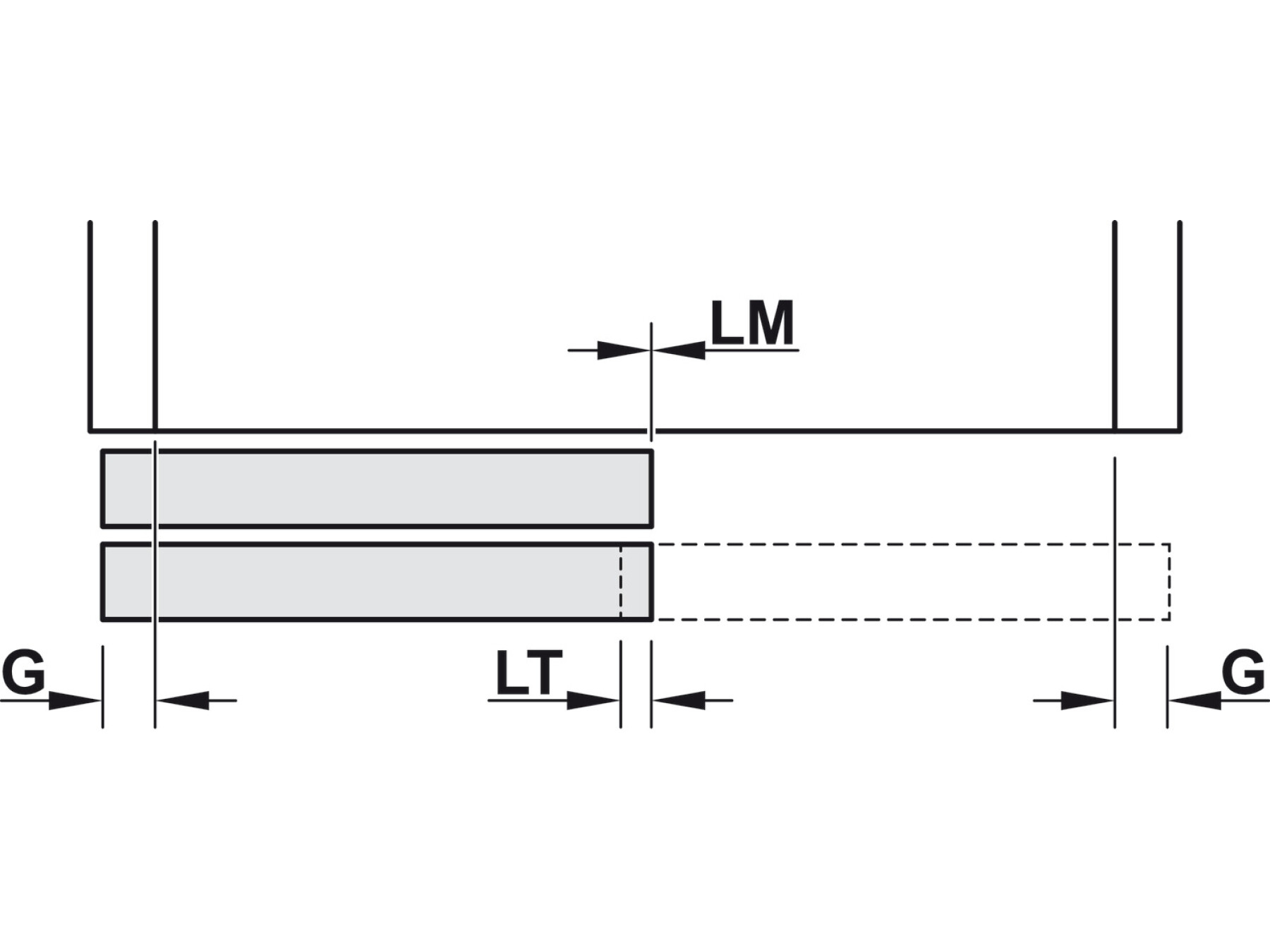

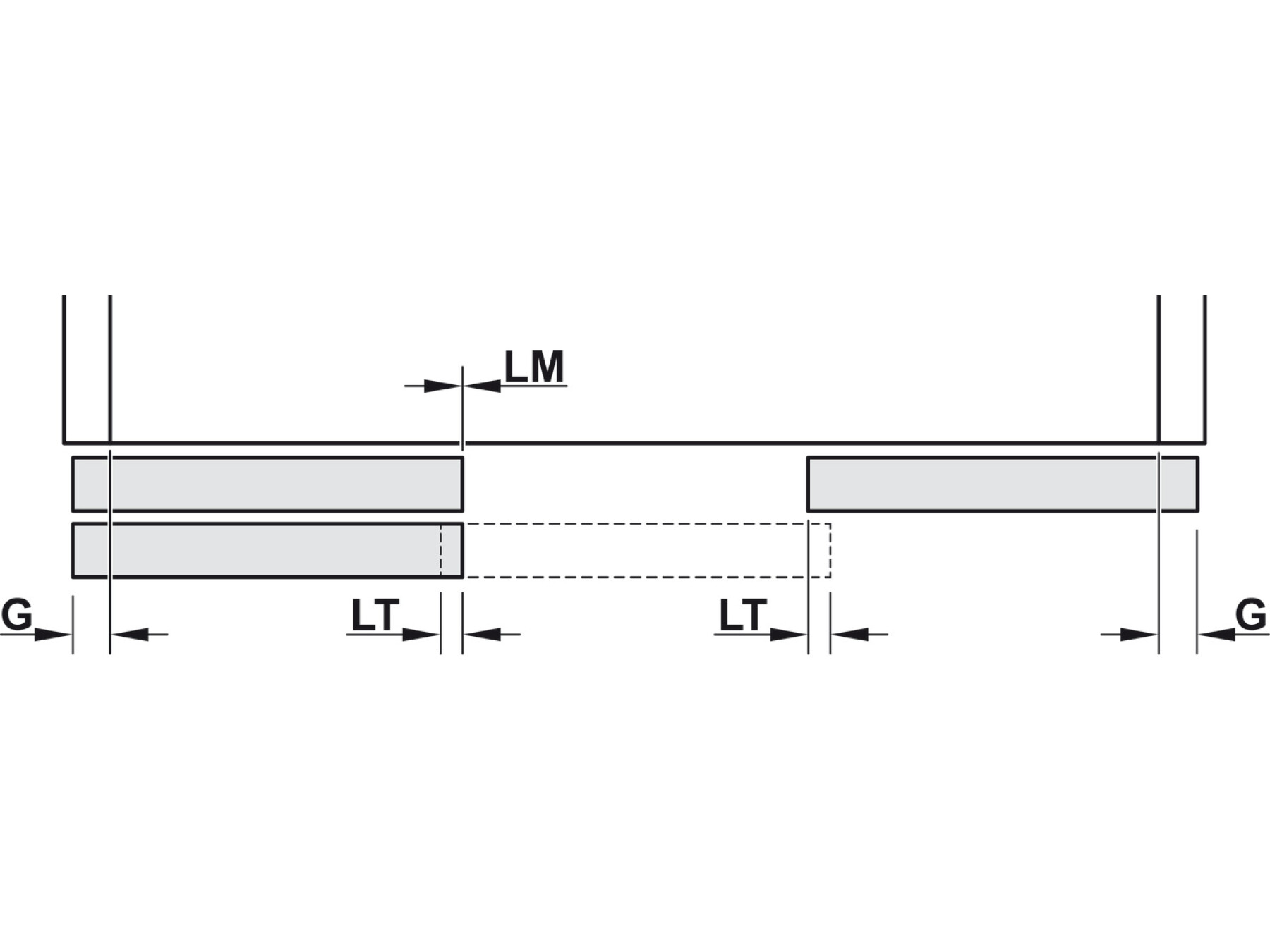

Note on door width
For 1 door: Min. 520 mm with soft closing mechanism on both sides
for 2 doors: Min. 520 mm with soft closing mechanism on both sides
for 3 doors: Min. 350 mm with soft closing mechanism on one side, min. 820 mm with soft closing mechanism on both sides

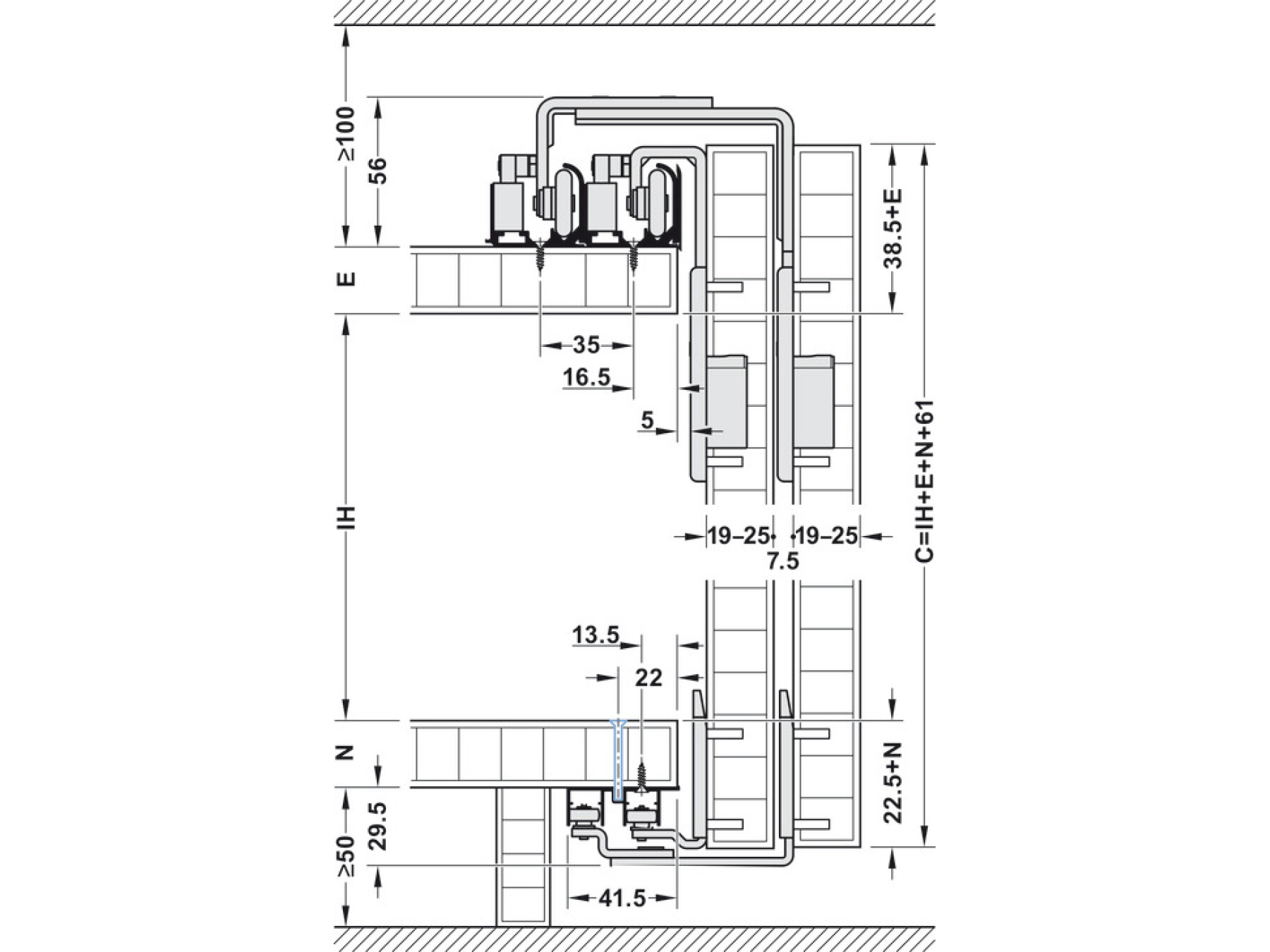

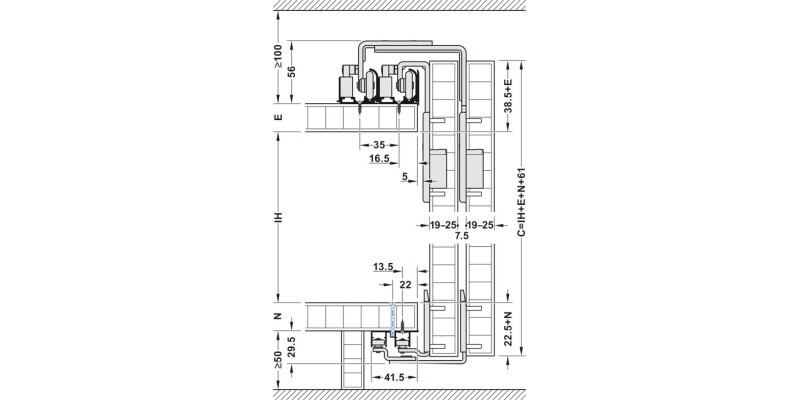

Installation note
Guide and running gear for screw fixing to door
Track for screw fixing to cabinet from outside, double running track also from inside (optional)
Order reference
Tracks, channels and electric drive to be ordered separately
Please note: Two top tracks must be mounted in parallel in order to make a double running track
Supplied with
2x Running gears
3x Door stoppers (2 with clip-in door stopper/1 for soft and self closing mechanism)
2x Guides
2x Soft and self closing mechanisms
Warranty/Guarantee information
This product is covered under Häfele’s Lifetime Guarantee.
All products covered under the Häfele Lifetime Guarantee have met our quality standards and have been tested according to the relevant industry certification.
All products under this guarantee are covered for normal use of the products in a domestic environment - for commercial environments our standard 12 month guarantee would apply.
For more information go to:
Services > Customer Support > Häfele Lifetime Guarantee
Specifications
Suitable for guide track installation
beneath base panel
For door thickness
19 – 25 mm
For door weight
≤60 kg
Running position
Top
Number of rollers
2.00
Height adjustment
-2 – 2 mm
Running gear guided by
Ball bearing
For door material
Wood
Note on door thickness
Adjustable
Height adjustable
Area of application
Overlay cabinet doors
Door stopper
Top clip-in door stopper or soft and self closing mechanism, for sliding into running track
Material/finish
Housing: Zinc alloyRunning gear: SteelMounting plate: SteelGuide: Steel
Adjustment facility
Height adjustment: -2 – 2 mm, Height ±2 mm on running gear using adjusting wheel
Door adjustment via
adjusting wheel

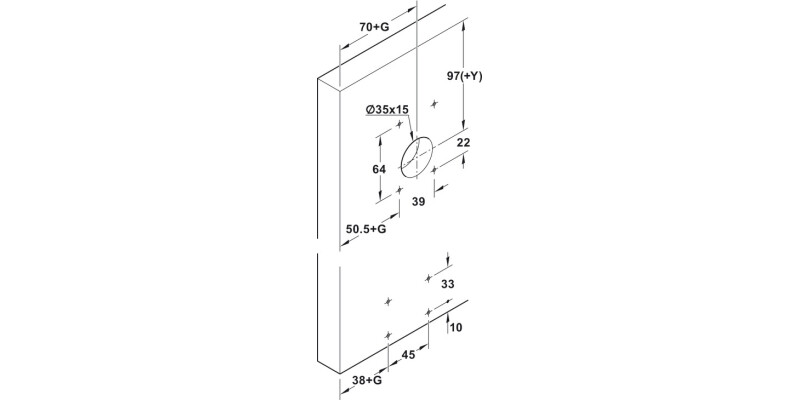

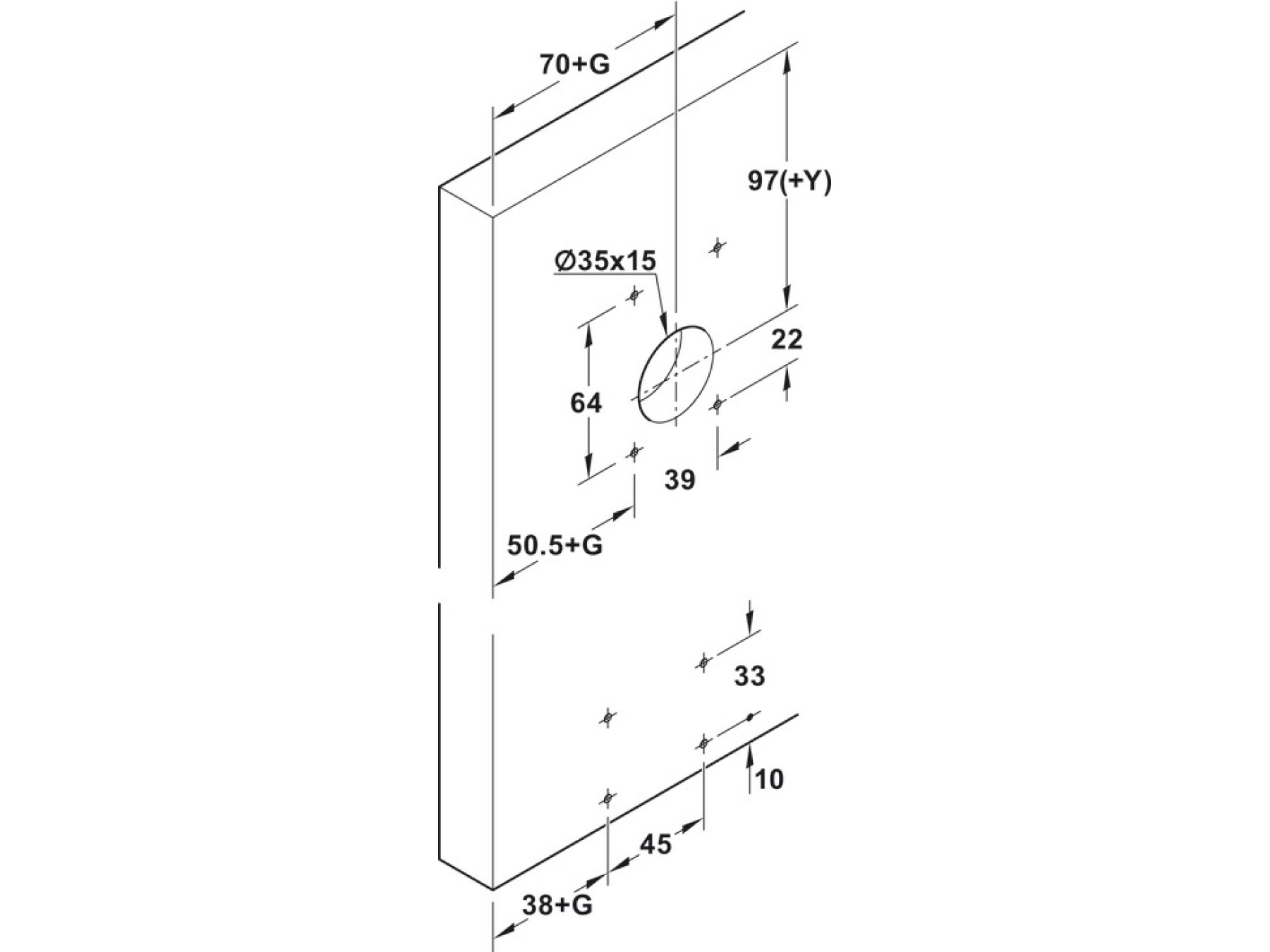

Door processing
With recess
Hafele Lifetime Guarantee
10 years
Type of opening
linear
Number of door wings in a system max.
1 to 3
