Slido F-Li31 40A FitSet 2Dr wo SC

Part Number: 402.31.028
Top hung system, For 2 doors, without soft close
Price:
£252.45
Per Item
VAT excluded

Good quality system for pairs of overlaying cabinet doorsIdeal for residential and commerical applications,... Read More

Product Information

Product Details

Good quality system for pairs of overlaying cabinet doors
Ideal for residential and commerical applications, including high volume cabinet manufacturers
Easy to assemble and disassemble
High performance soft close fitting included

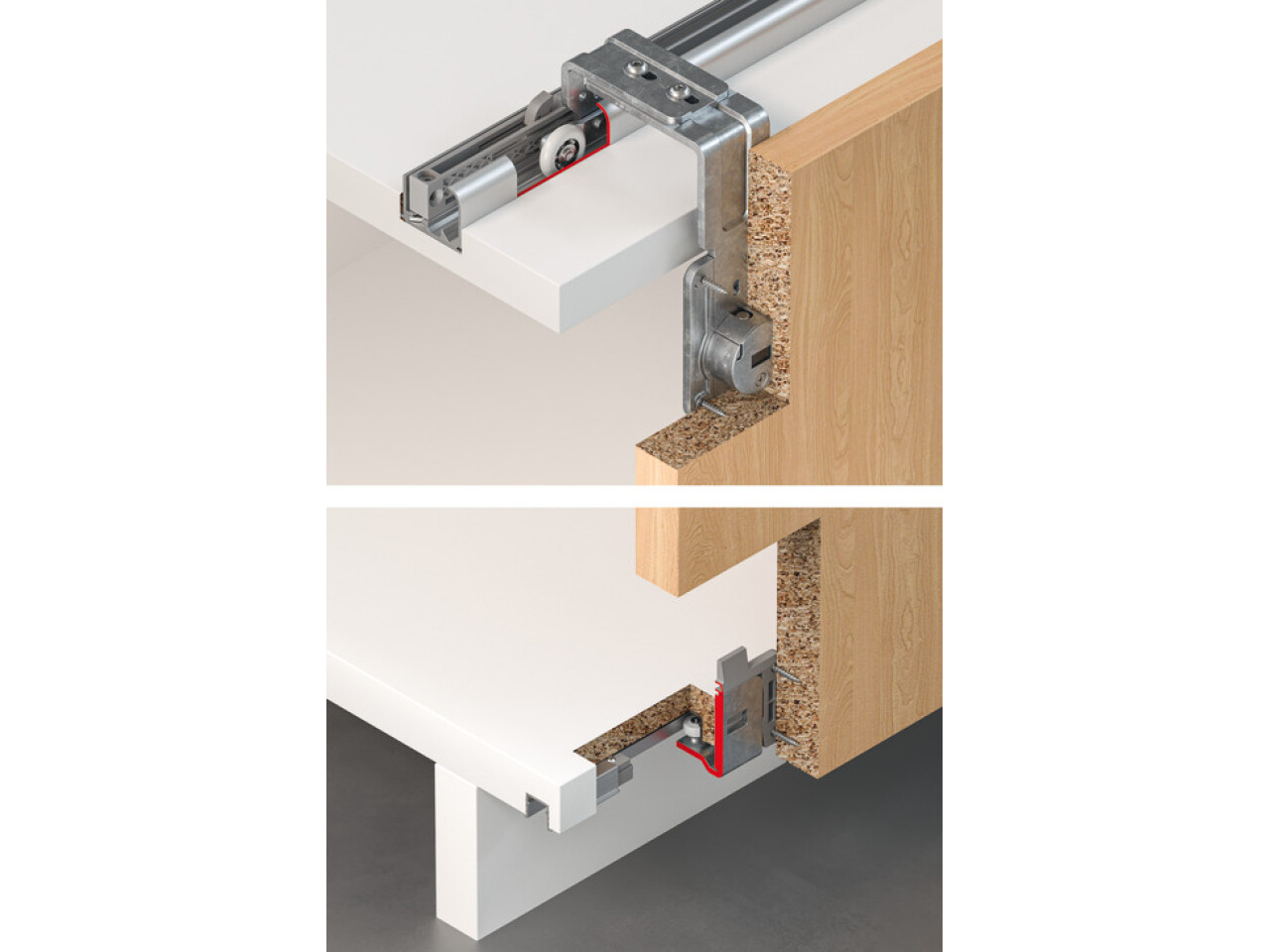

Door stopper: Top clip-in door stopper or soft and self closing mechanism, for sliding onto running track
Running gear: Top running, 2 rollers
Running gear guidw by: Ball bearing mounted plastic roller, steel axle

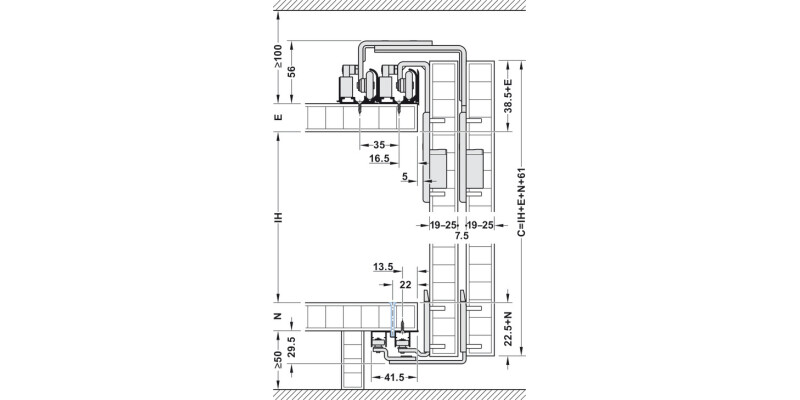

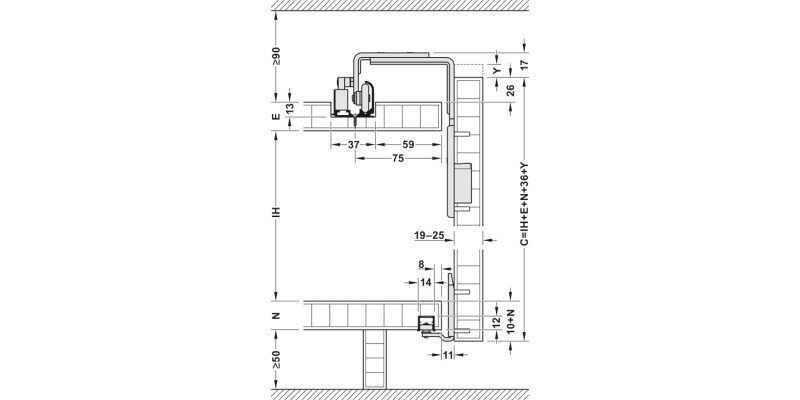

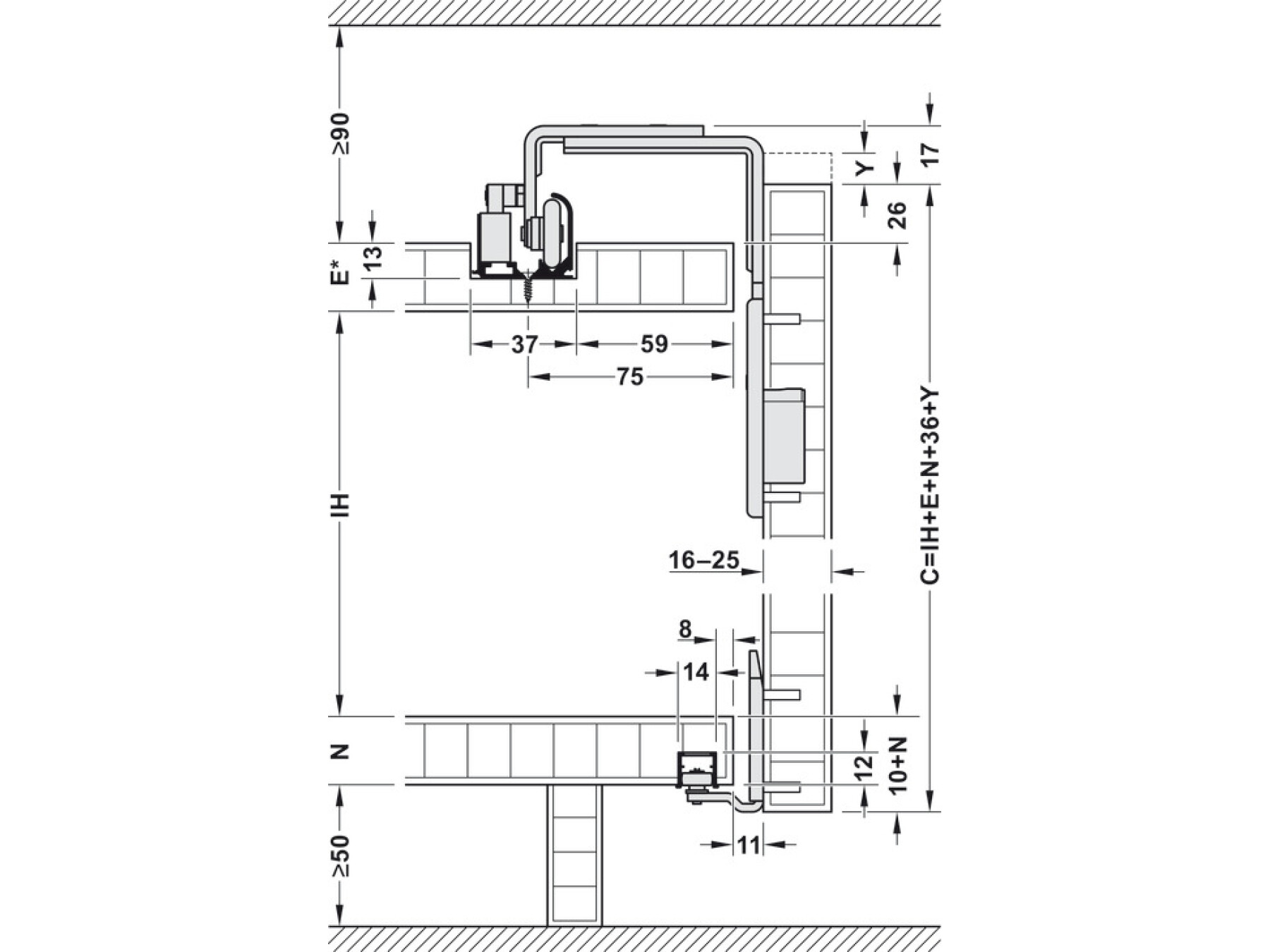

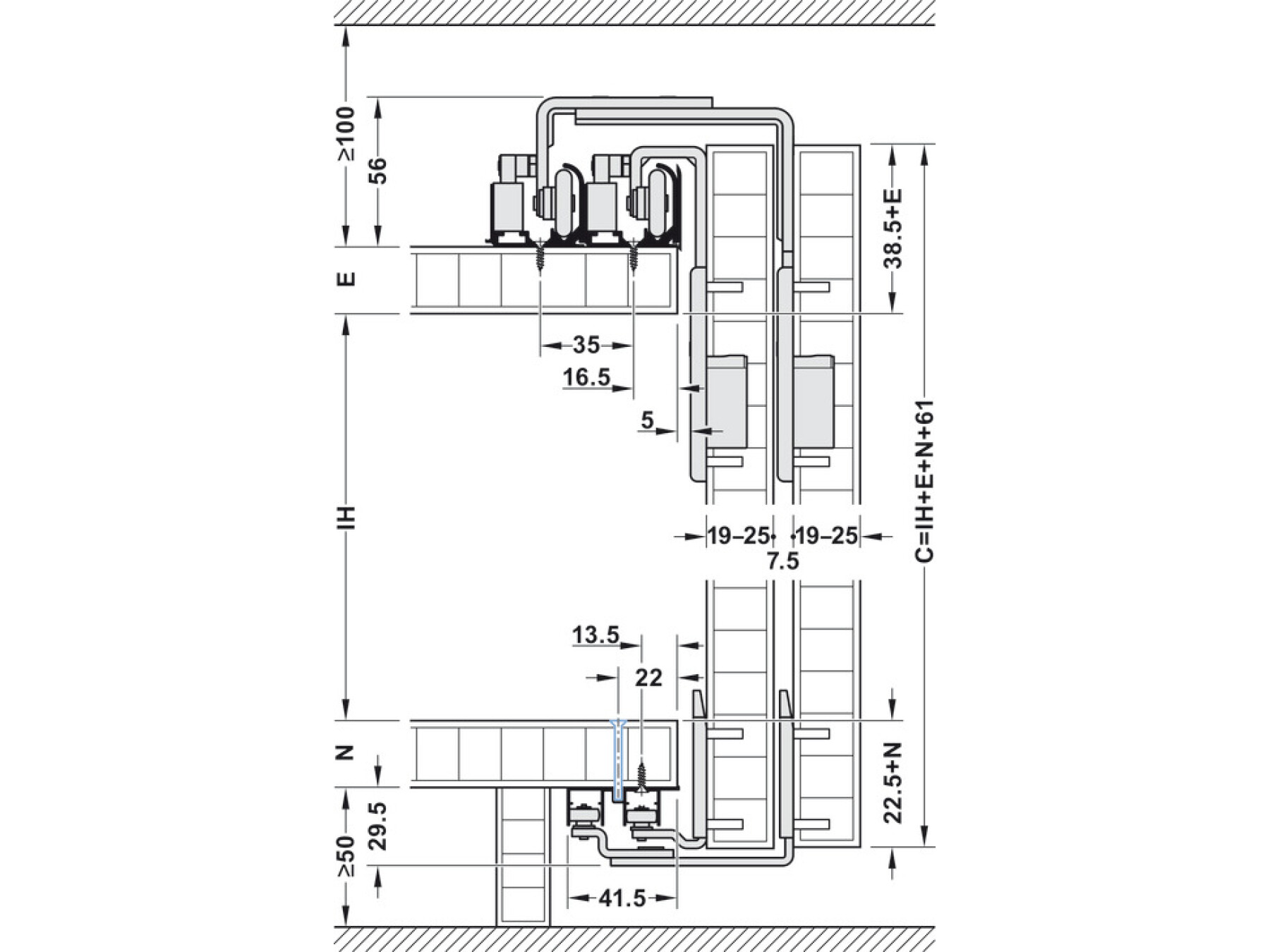

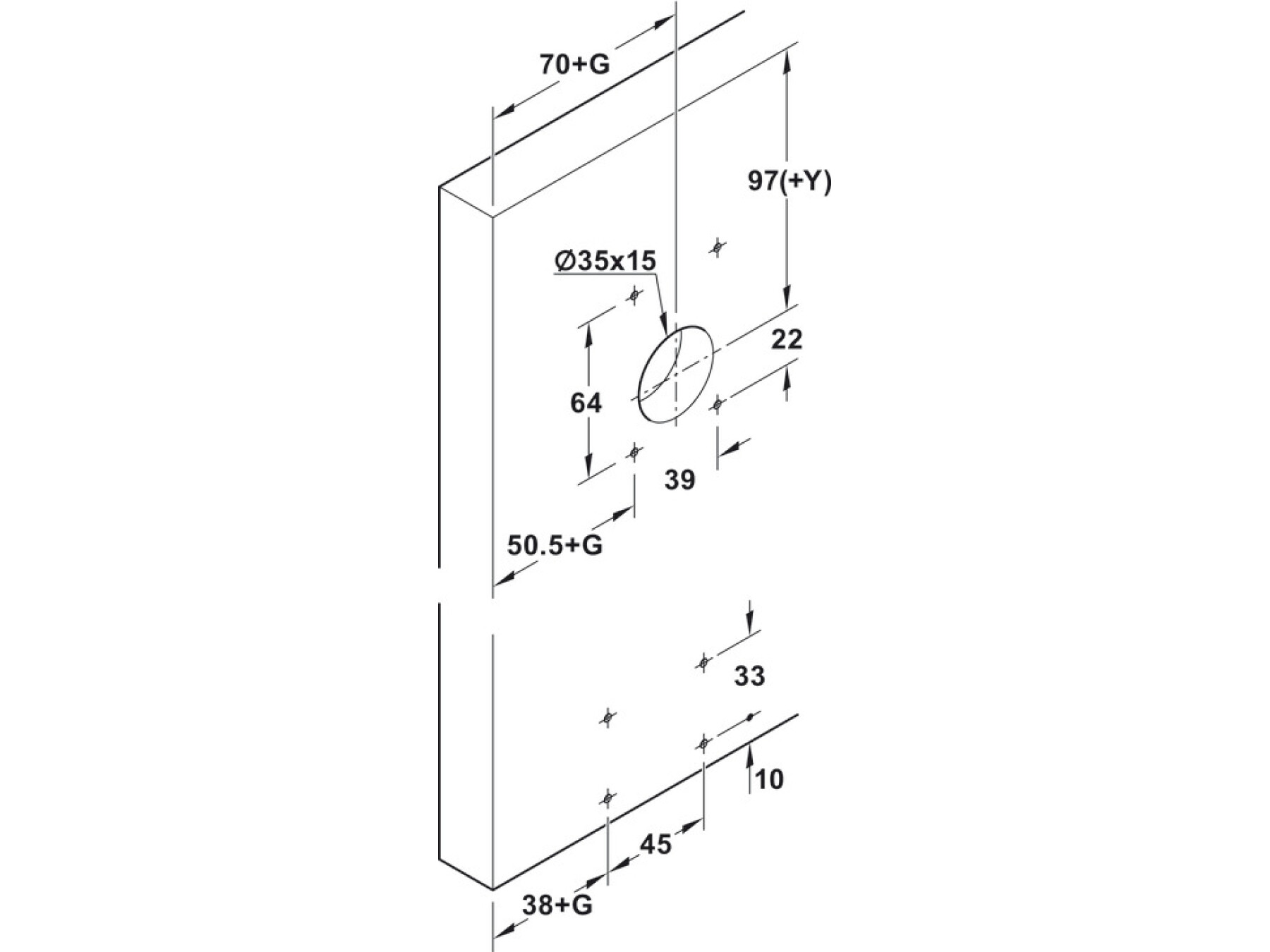

Installation: Guide and running gear for screw fixing to door, track for screw fixing to cabinet from outside, double running track also from inside (optional)

Installation note

guide and running gear for screw fixing to door,
Track for screw fixing to cabinet from outside,
Double guide track (optional) also from the inside

Supplied with

Fitting set for 2 doors without soft close includes 2 x Running gear for outer door, galvanised steel, with friction bearing, with housing for screw fixing into Ø 35 mm hole, black plastic, 2 x Running gear for inner door, galvanised steel, with friction bearing, with housing for screw fixing into Ø 35 mm hole, black plastic, 4 x Top clip in door stopper, with retainer, black plastic, 2 x Bottom guide for outer door, screw fixing, galvanised steel and black plastic, 2 x Bottom guide for inner door, screw fixing, galvanised steel and black plastic, 4 x Bottom door stopper, for bottom guide track, black plastic, 2 x Clip in stopper for outer door, with retainer, black plastic, 2 x Clip in stopper for inner door, with retainer, black plastic

Warranty/Guarantee information

This product is covered under Häfele’s Lifetime Guarantee.
All products covered under the Häfele Lifetime Guarantee have met our quality standards and have been tested according to the relevant industry certification.
All products under this guarantee are covered for normal use of the products in a domestic environment - for commercial environments our standard 12 month guarantee would apply.

For more information go to:
Services > Customer Support > Häfele Lifetime Guarantee

Specifications

For door thickness

19 – 25 mm

For door weight

≤40 kg

Electric drive

optional

Running position

Top

Number of rollers

2.00

Height adjustment

-2 – 2 mm

Running gear guided by

Ball bearing

Height adjustable

Area of application


Overlay cabinet doors

Door stopper

Top clip-in door stopper or soft and self closing mechanism, for sliding into running track

Material/finish

Housing: Zinc alloyRunning gear: SteelMounting plate: SteelGuide: Steel

Adjustment facility

Height adjustment: -2 – 2 mm, Height adjustment ±2 mm

Door adjustment via

adjusting wheel

Door processing

for screw fixing

Hafele Lifetime Guarantee

10 years

Number of door wings in a system max.

1 to 3

Order reference

Tracks, channels and electric drive to be ordered separately
