Slido F-Li31 40A FitSet 2Dr w Two SC
Good quality system for pairs of overlaying cabinet doorsIdeal for residential and commerical applications,... Read More
Product Details
Good quality system for pairs of overlaying cabinet doors
Ideal for residential and commerical applications, including high volume cabinet manufacturers
Easy to assemble and disassemble
High performance soft close fitting included
Door stopper: Top clip-in door stopper or soft and self closing mechanism, for sliding onto running track

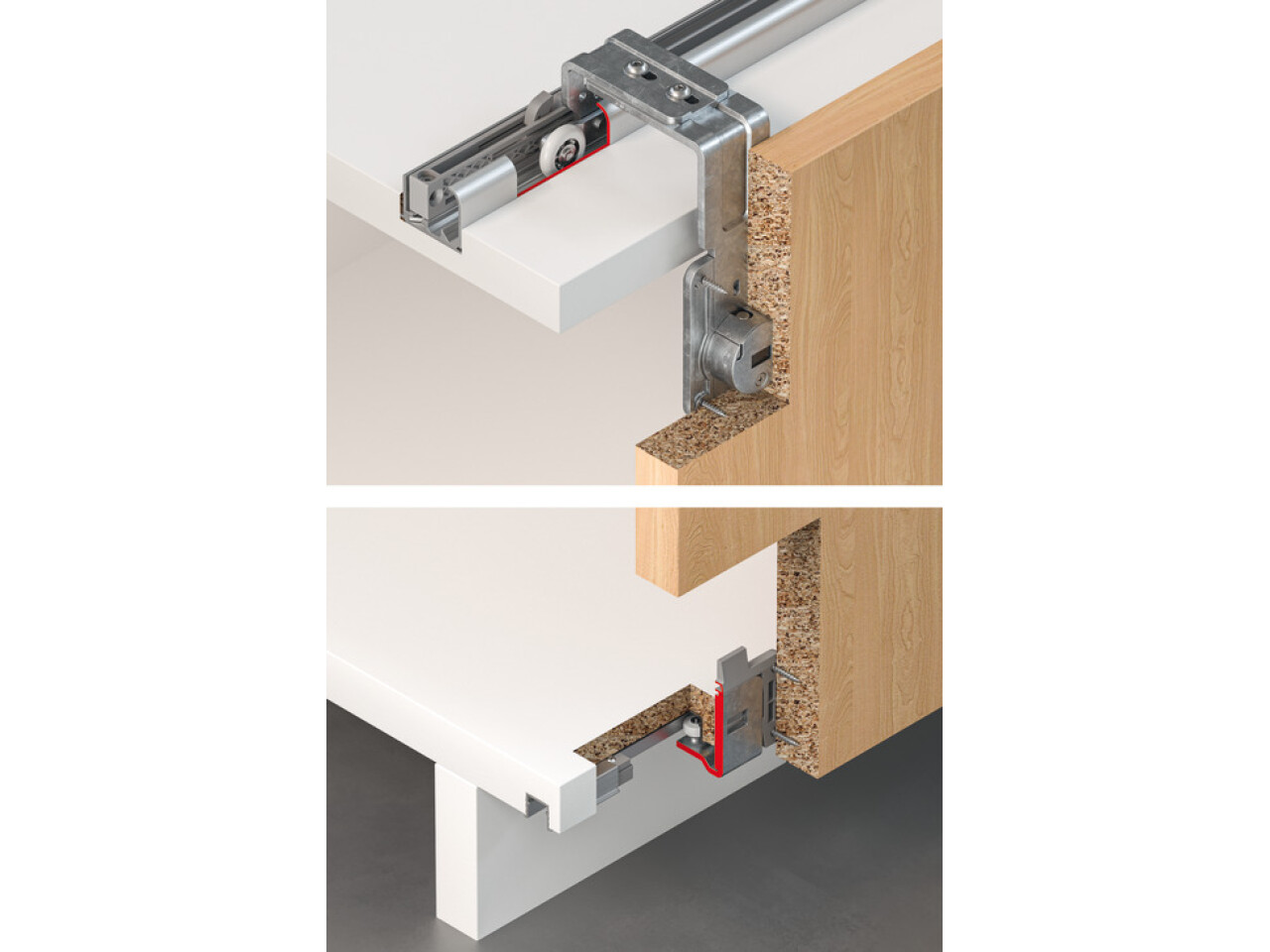

Running gear: Top running, 2 rollers
Running gear guidw by: Ball bearing mounted plastic roller, steel axle

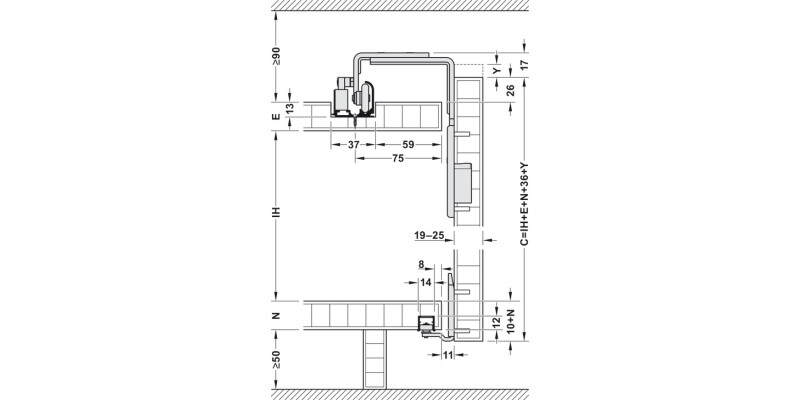

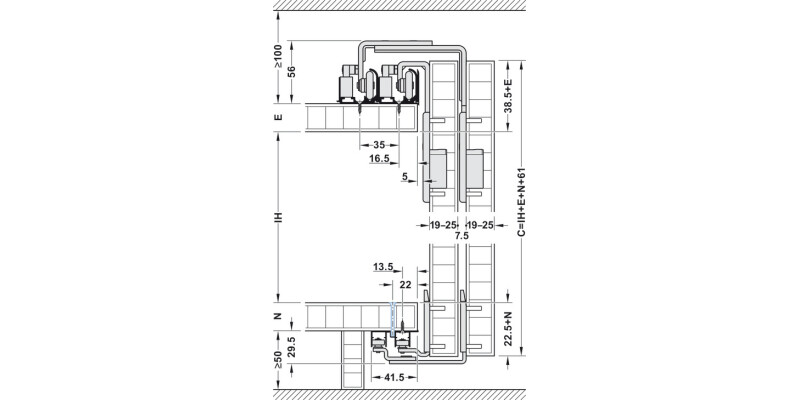

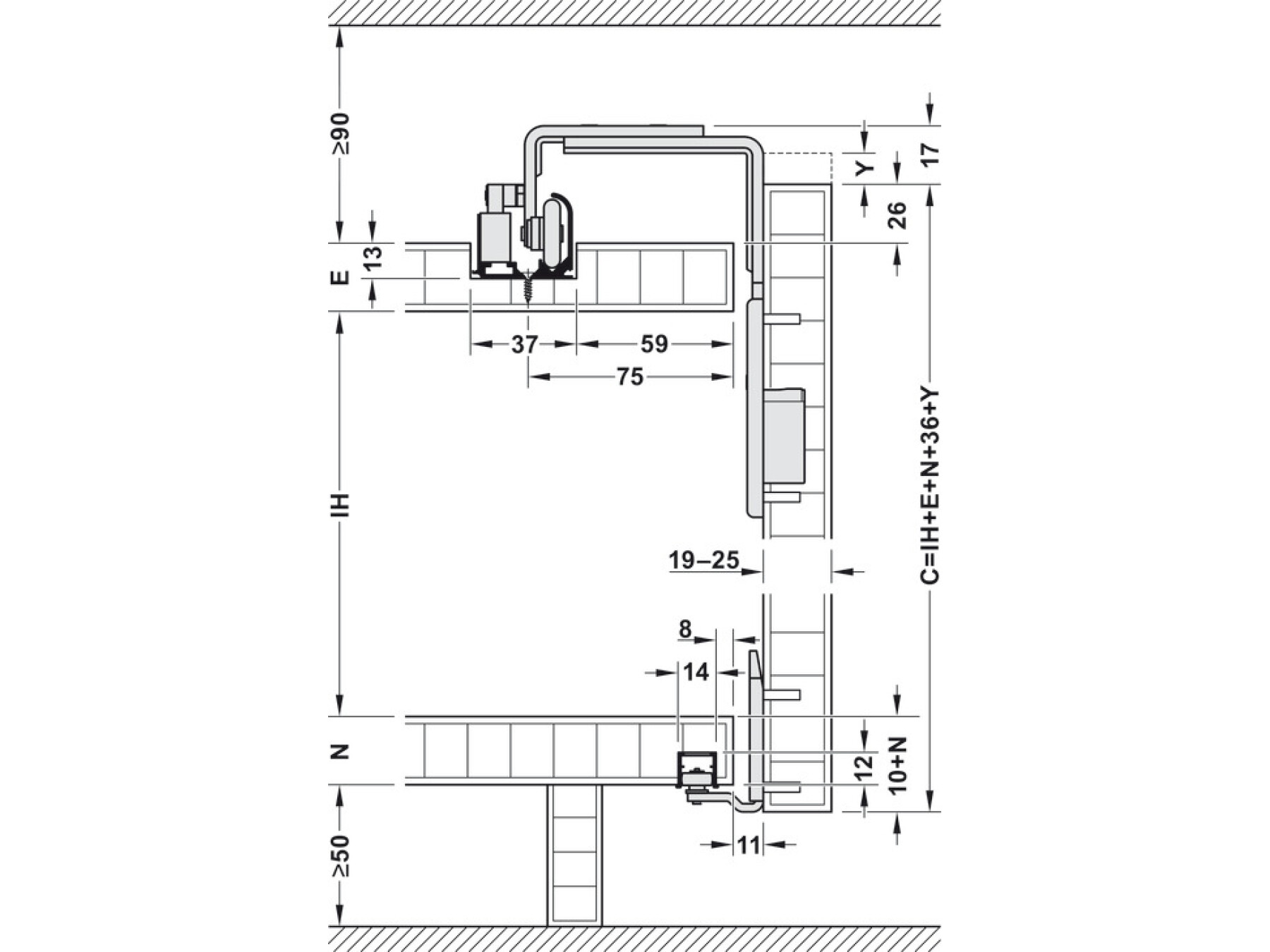

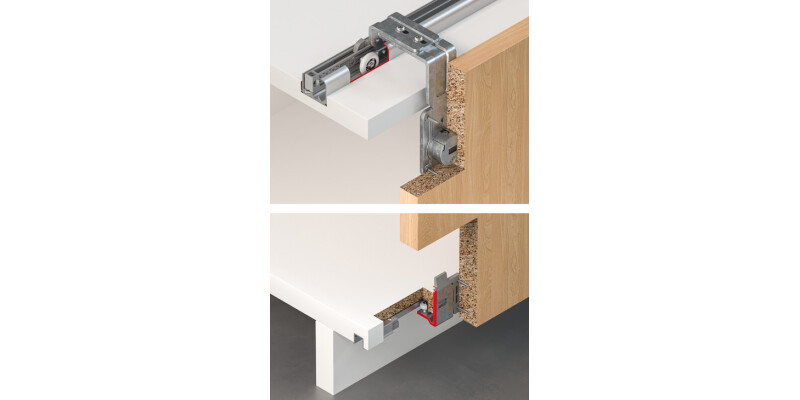

Installation: Guide and running gear for screw fixing to door, track for screw fixing to cabinet from outside, double running track also from inside (optional)
Installation note
guide and running gear for screw fixing to door,
Track for screw fixing to cabinet from outside,
Double guide track (optional) also from the inside
Supplied with

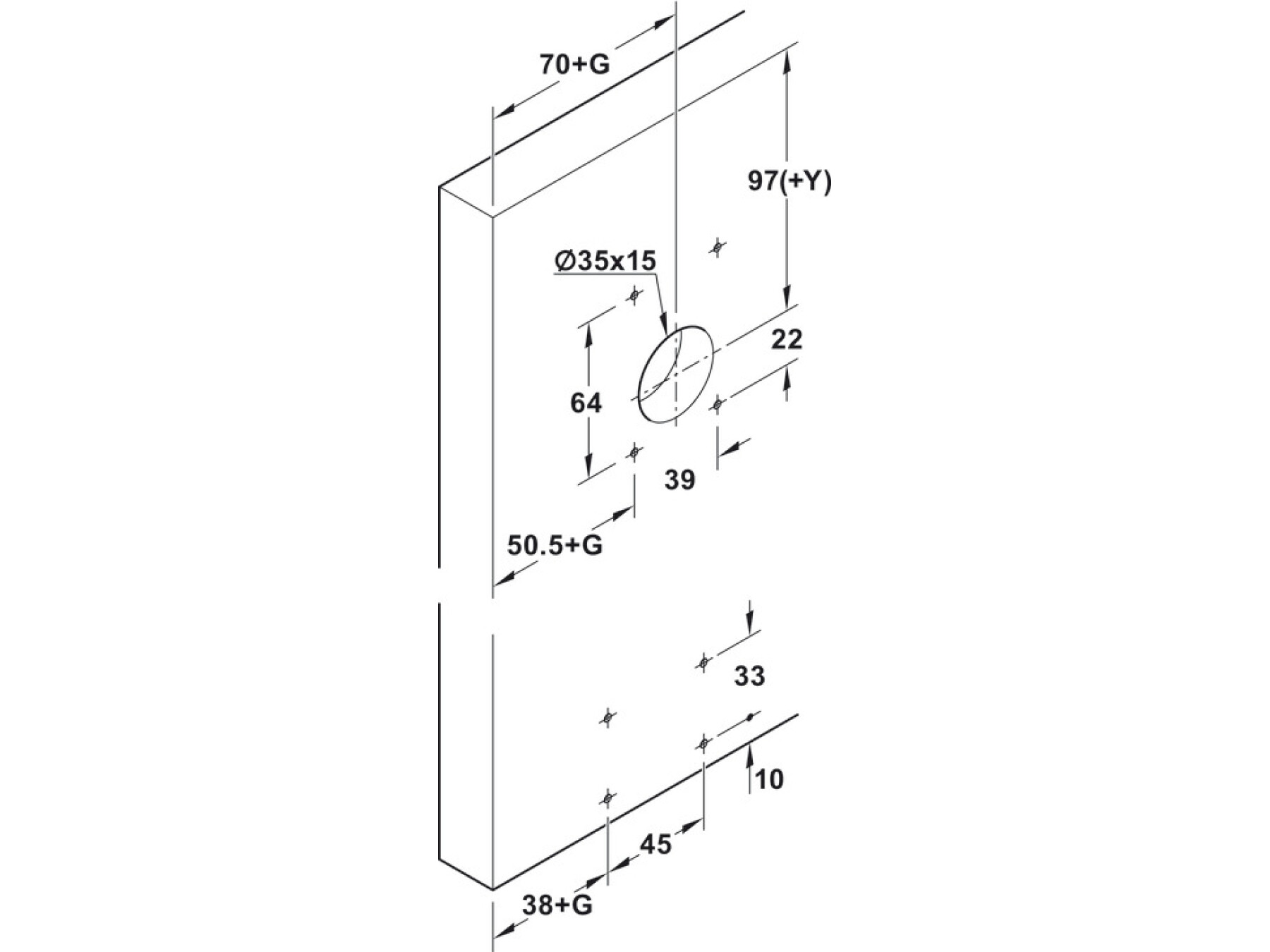

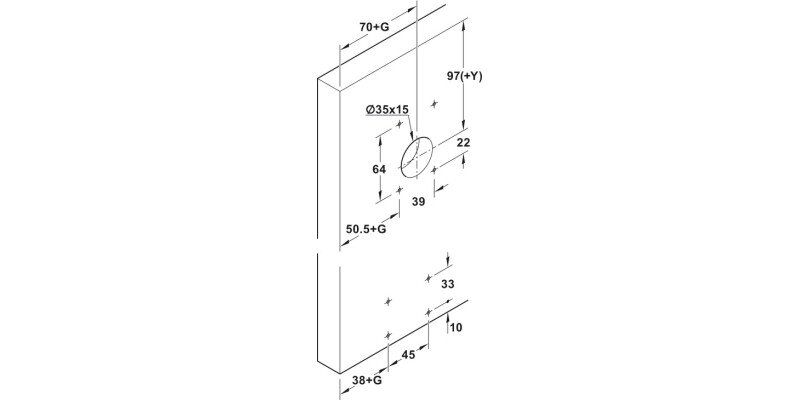

Fitting set for 2 doors with soft close includes 2 x Running gear for outer door, galvanised steel, with friction bearing, with housing for screw fixing into Ø 35 mm hole, black plastic, 2 x Running gear for inner door, galvanised steel, with friction bearing, with housing for screw fixing into Ø 35 mm hole, black plastic, 4 x Soft and self closing mechanism, for sliding into top track, grey/black plastic, 2 x Bottom guide for outer door, screw fixing, galvanised steel and black plastic, 2 x Bottom guide for inner door, screw fixing, galvanised steel and black plastic, 4 x Bottom door stopper, for bottom guide track, black plastic, 1 x Release device for outer door, for soft and self closing mechanism, galvanised steel, 1 x Release device for inner door, left hand, for soft and self closing mechanism, galvanised steel
Warranty/Guarantee information
This product is covered under Häfele’s Lifetime Guarantee.
All products covered under the Häfele Lifetime Guarantee have met our quality standards and have been tested according to the relevant industry certification.
All products under this guarantee are covered for normal use of the products in a domestic environment - for commercial environments our standard 12 month guarantee would apply.
For more information go to:
Services > Customer Support > Häfele Lifetime Guarantee
Specifications
For door thickness
For door weight
Electric drive
Running position
Number of rollers
Height adjustment
Running gear guided by
Height adjustable
Area of application
Overlay cabinet doors
Door stopper
Top clip-in door stopper or soft and self closing mechanism, for sliding into running track
Material/finish
Adjustment facility
Door adjustment via
Door processing
Hafele Lifetime Guarantee
Number of door wings in a system max.
Order reference
Tracks, channels and electric drive to be ordered separately
