Slido F-Li21 12C FitSet 2Dr w SC
Top quality system for small top hung cabinet doors, ideal for kitchens and cabinets for domestic or commecial... Read More
Product Details

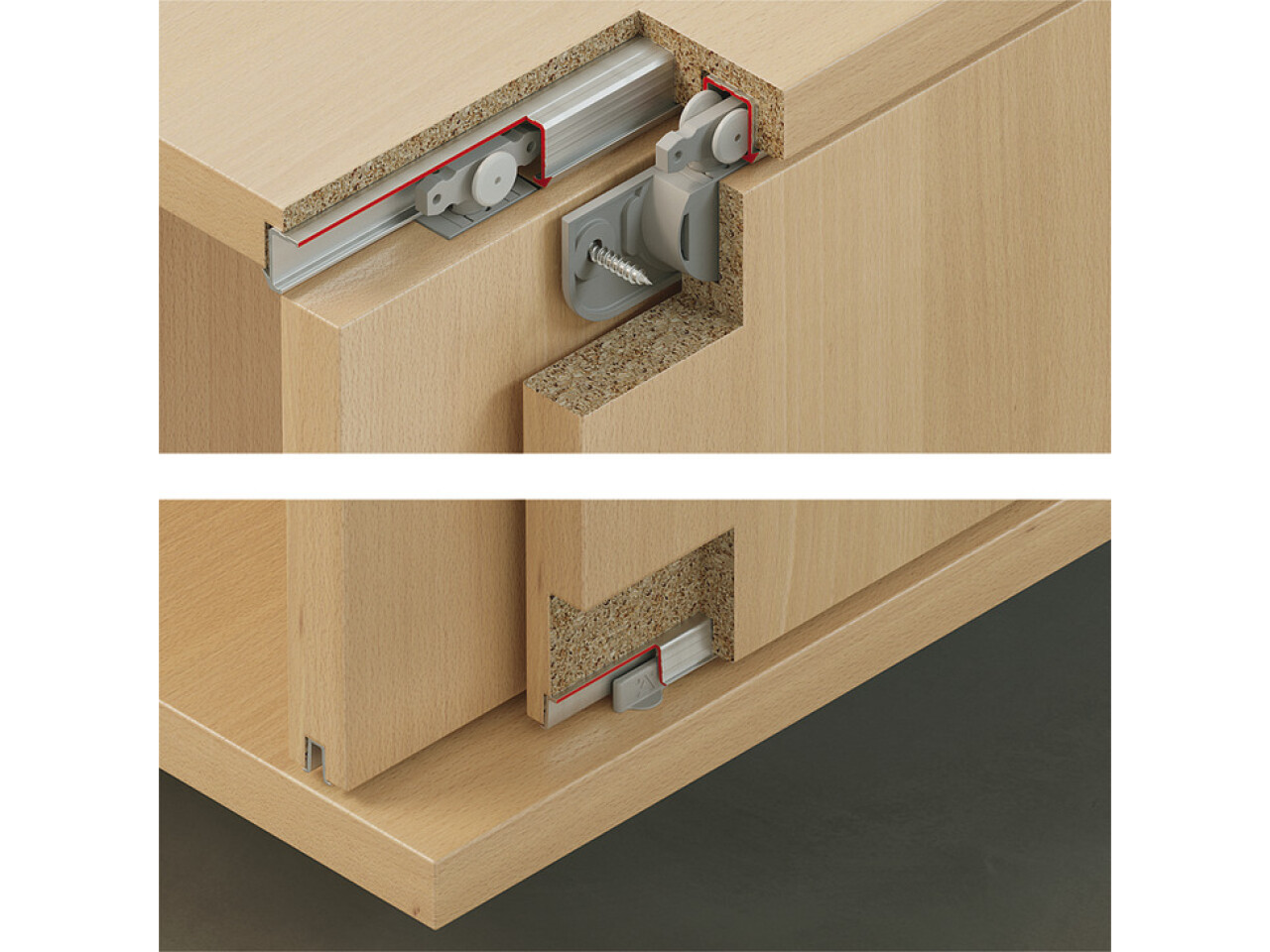

Top quality system for small top hung cabinet doors, ideal for kitchens and cabinets for domestic or commecial applications
Note on door width
Min. 325 mm with soft closing mechanism on one side
Min. 515 mm with soft closing mechanism on both sides
Order reference
Please order running and guide tracks separately.For cabinets with more than 3 doors, please order following sets: 1 set for 1 door and 1 set for 2 doors
Supplied with
Fitting set includes 4 x Housing, for screw fixing, black plastic, 2 x Running gear, with friction bearing, for clip fixing into housing, black plastic, 2 x Running gear, soft with soft and self closing and friction bearing, 2 x Clip in door stopper, for top track, black plastic, 2 x Door stopper, for soft and self closing mechanism, for top track, black plastic, 2 x Guide, for press fitting, black plastic, 1 x Stop bracket, with buffer galvanised steel, 1 x Mounting aid, for track installation, red plastic
Warranty/Guarantee information
This product is covered under Häfele’s Lifetime Guarantee.
All products covered under the Häfele Lifetime Guarantee have met our quality standards and have been tested according to the relevant industry certification.
All products under this guarantee are covered for normal use of the products in a domestic environment - for commercial environments our standard 12 month guarantee would apply.
For more information go to:
Services > Customer Support > Häfele Lifetime Guarantee

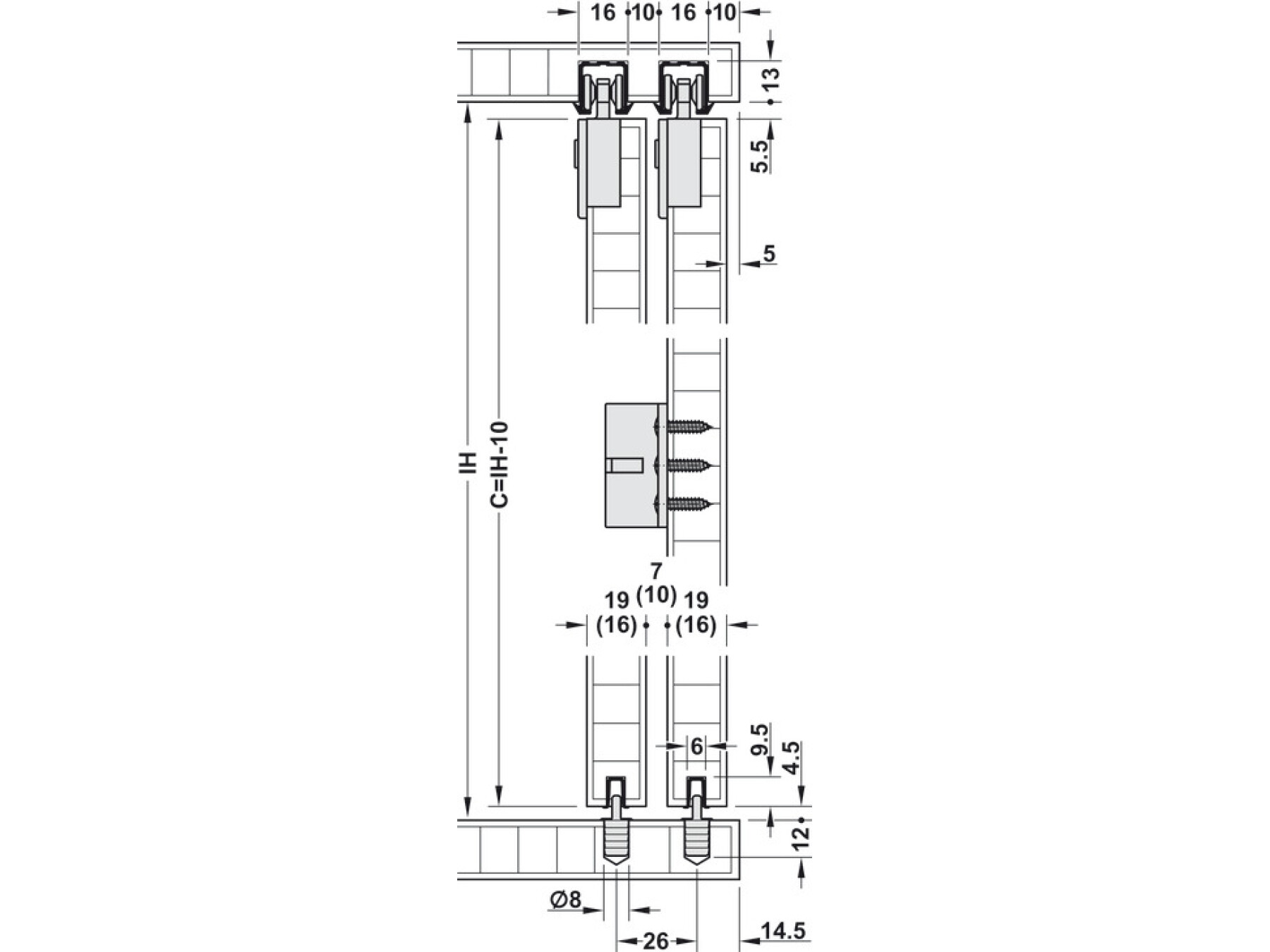

The pitch length of the running gears must be min. 245 mm wit soft closing mechanism on one side and min. 425 mm with soft closing mechanism on both sides. Inspection support cannot be used in combination with running gear with soft and self closing mechanism (inspection support cannot be ordered separately).
Specifications
Number of door leaves per set
For door thickness
For door width
For door weight
Running position
Number of rollers
Height adjustment
Running gear guided by
For door material
Height adjustable
Cabinet version
Area of application
For 2 doors
Note on door weight
We recommend that you adhere to the minimum door weight.
Door stopper
Top clip-in door stopper or soft and self closing mechanism, for sliding into running track
