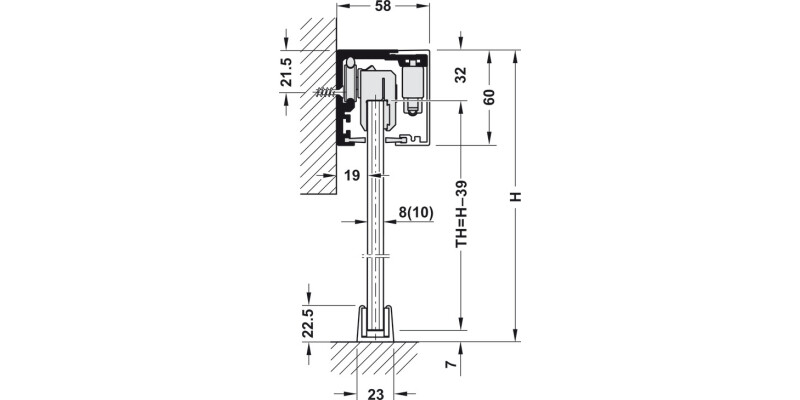

Slido D-Li12 120F FitSet 1Dr w SC Gls
Part Number: 941.30.035
Top hung system, 120-F for 1 door
Price:
£558.59
Per Item
Fittings are completely concealed within the top track and two types of track are available for installation... Read More
Product Information
Product Details

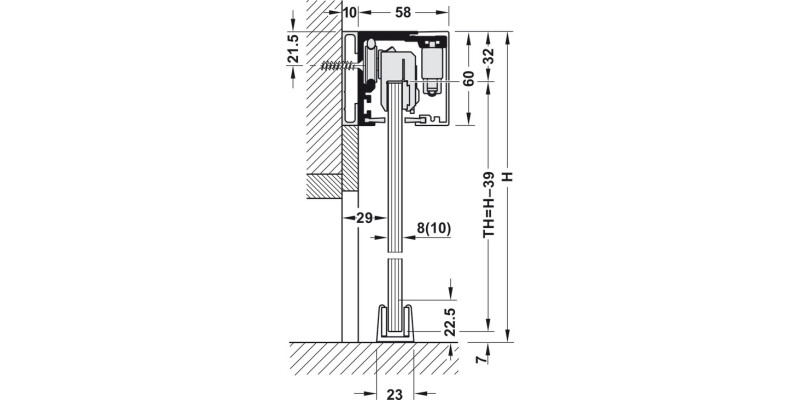

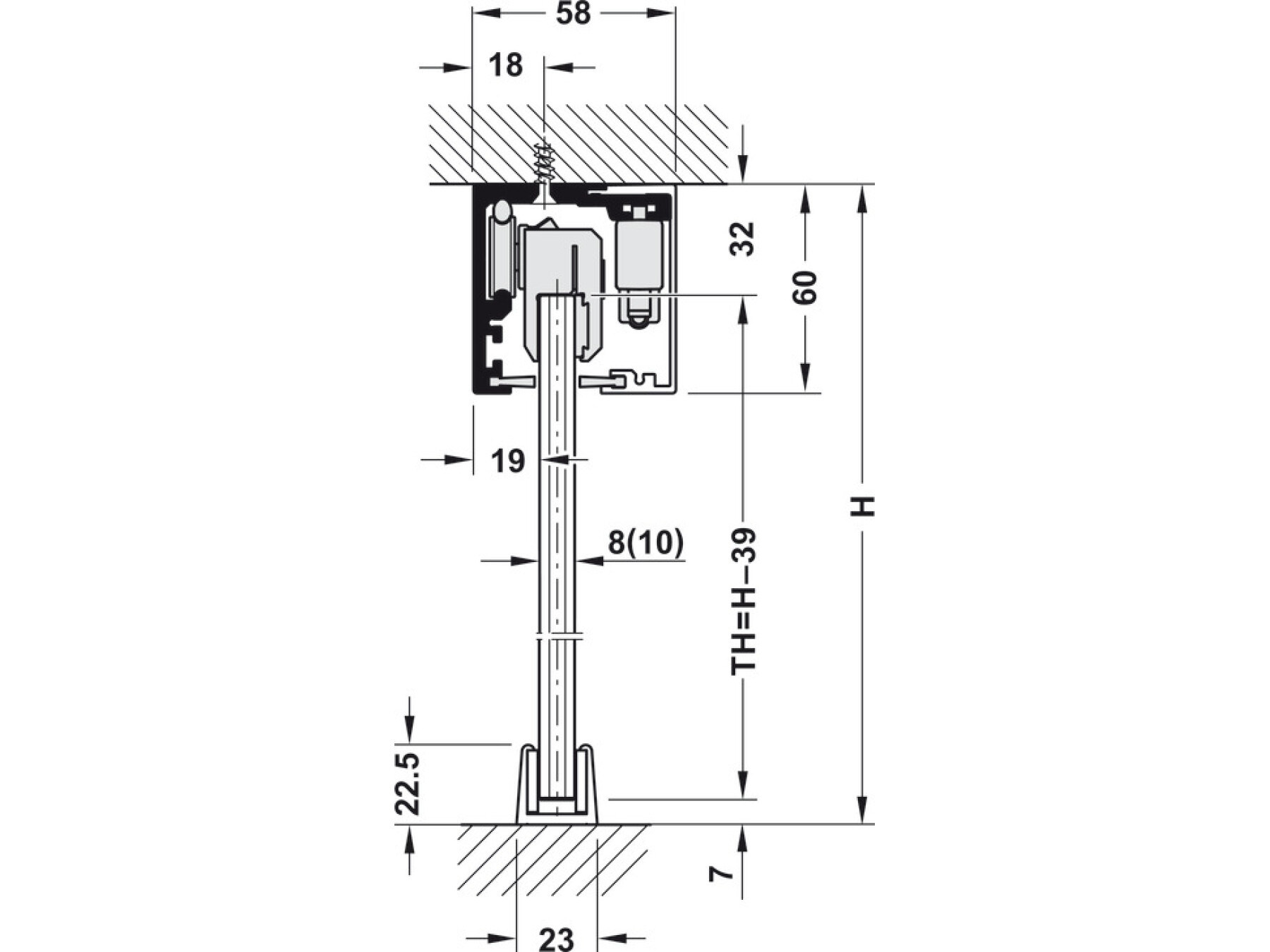

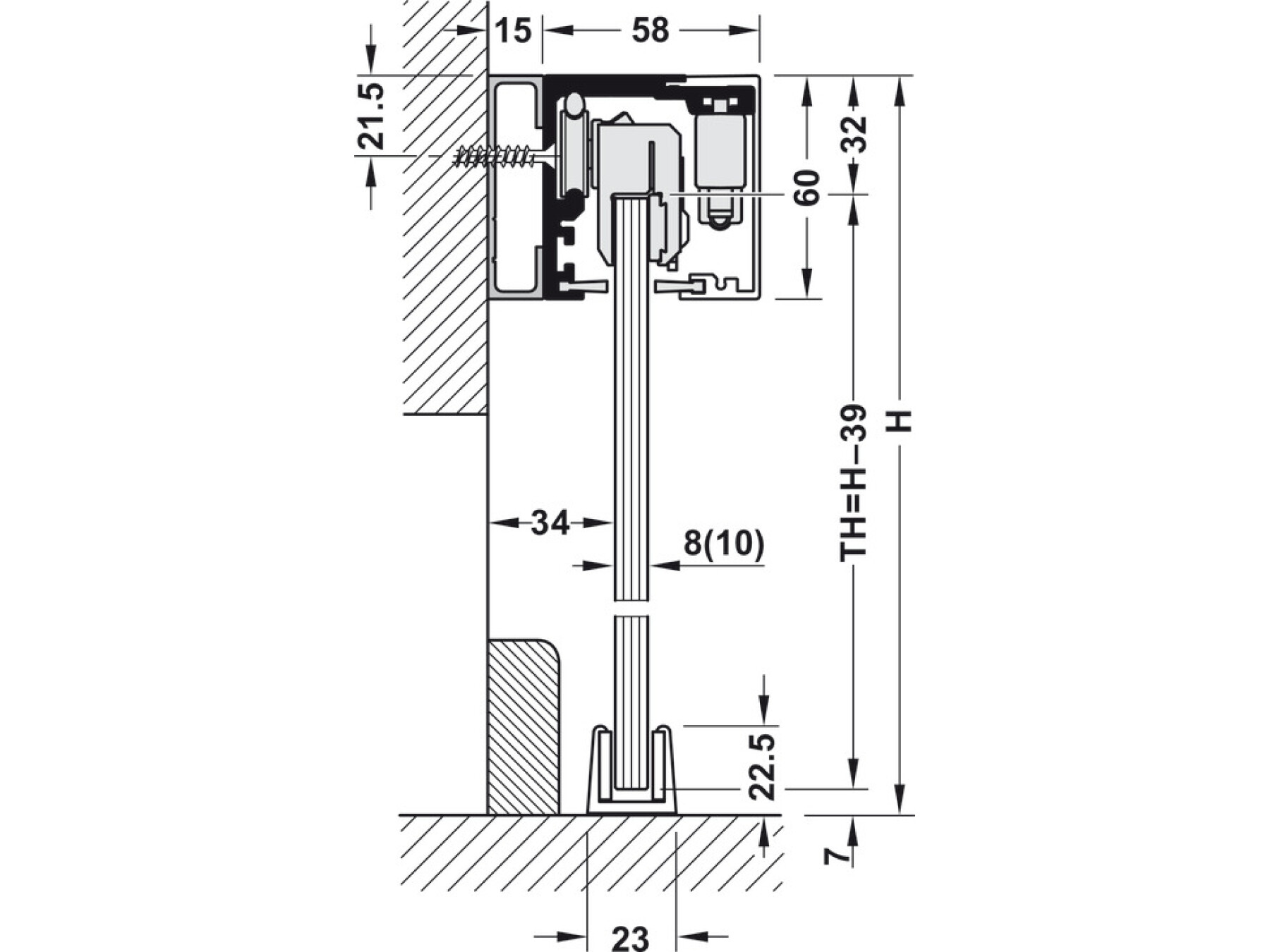

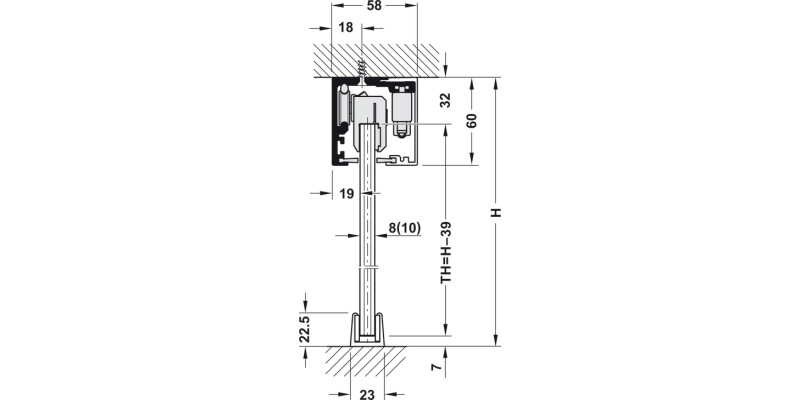

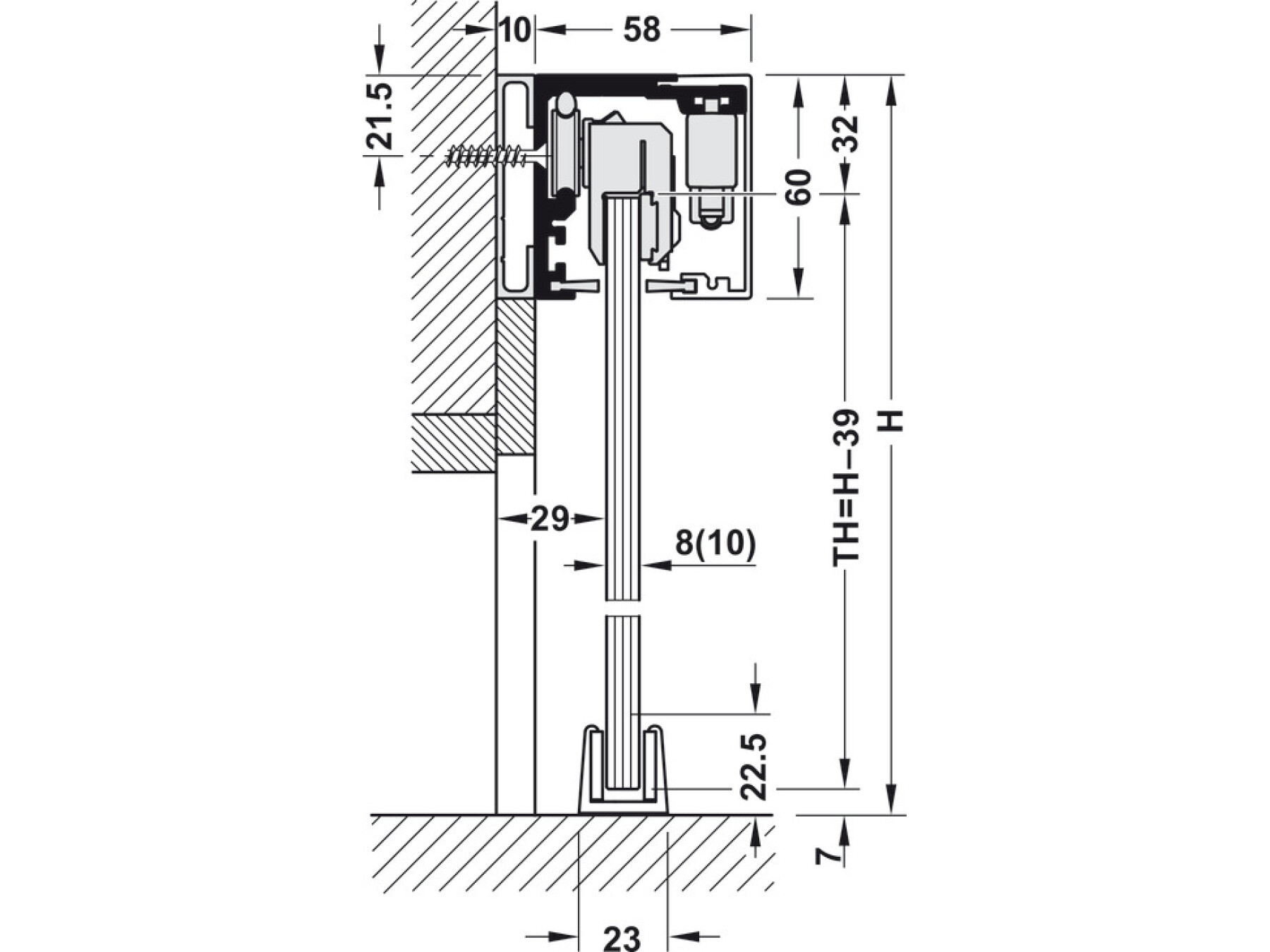

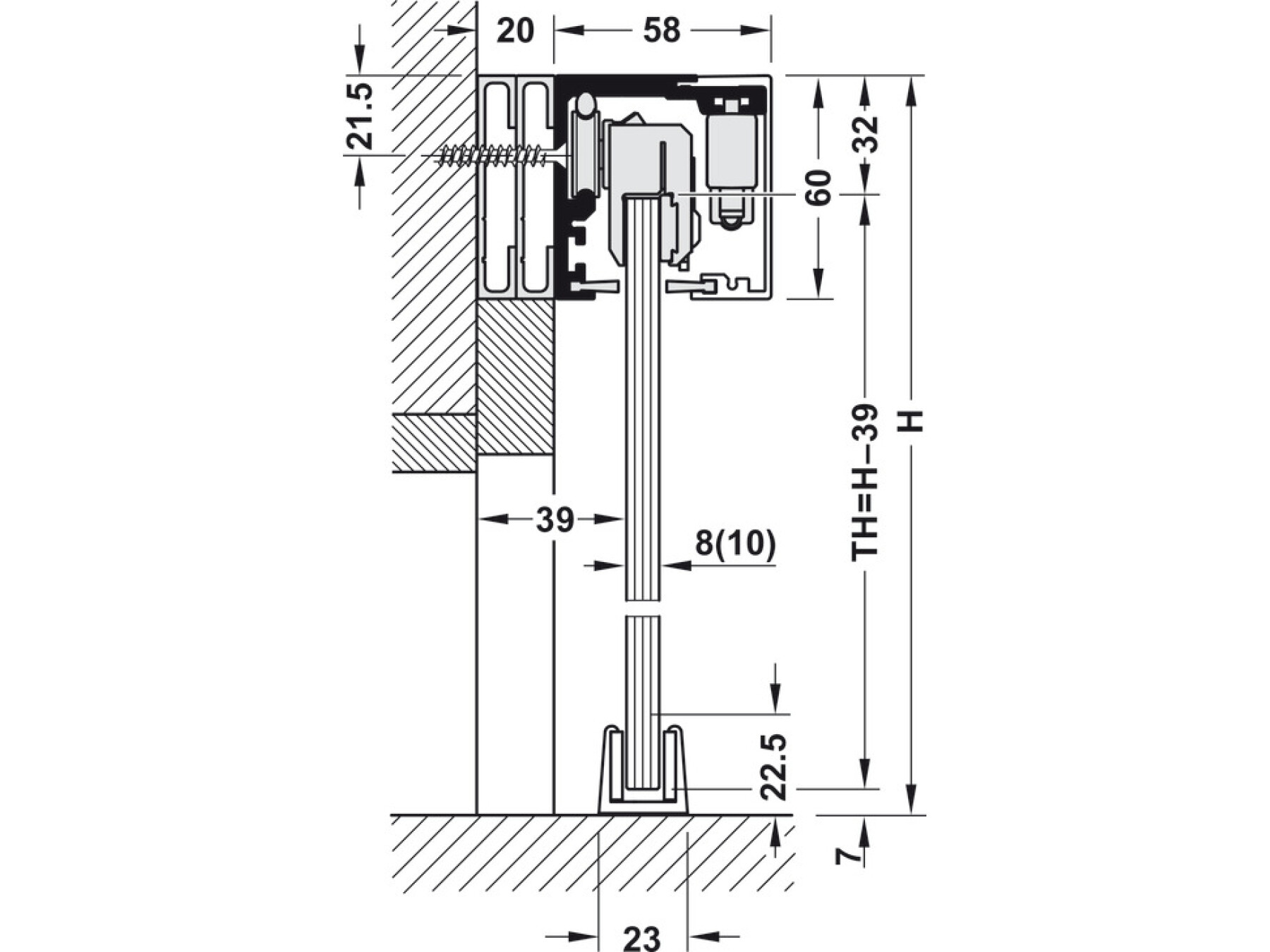

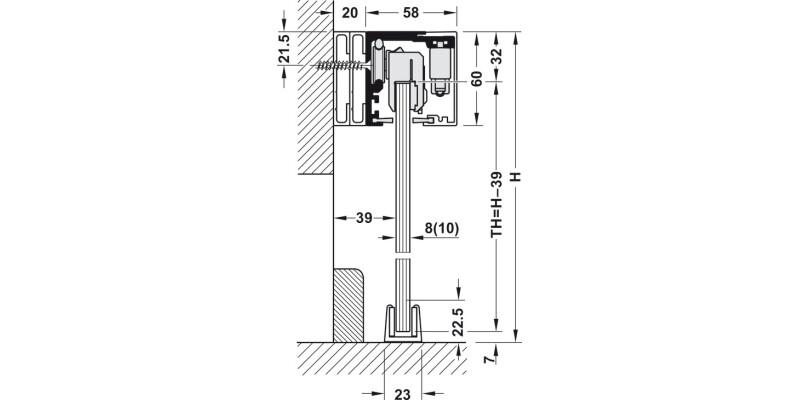

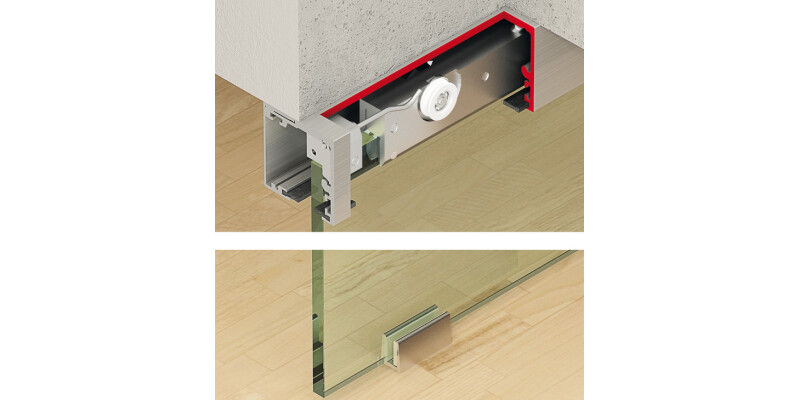

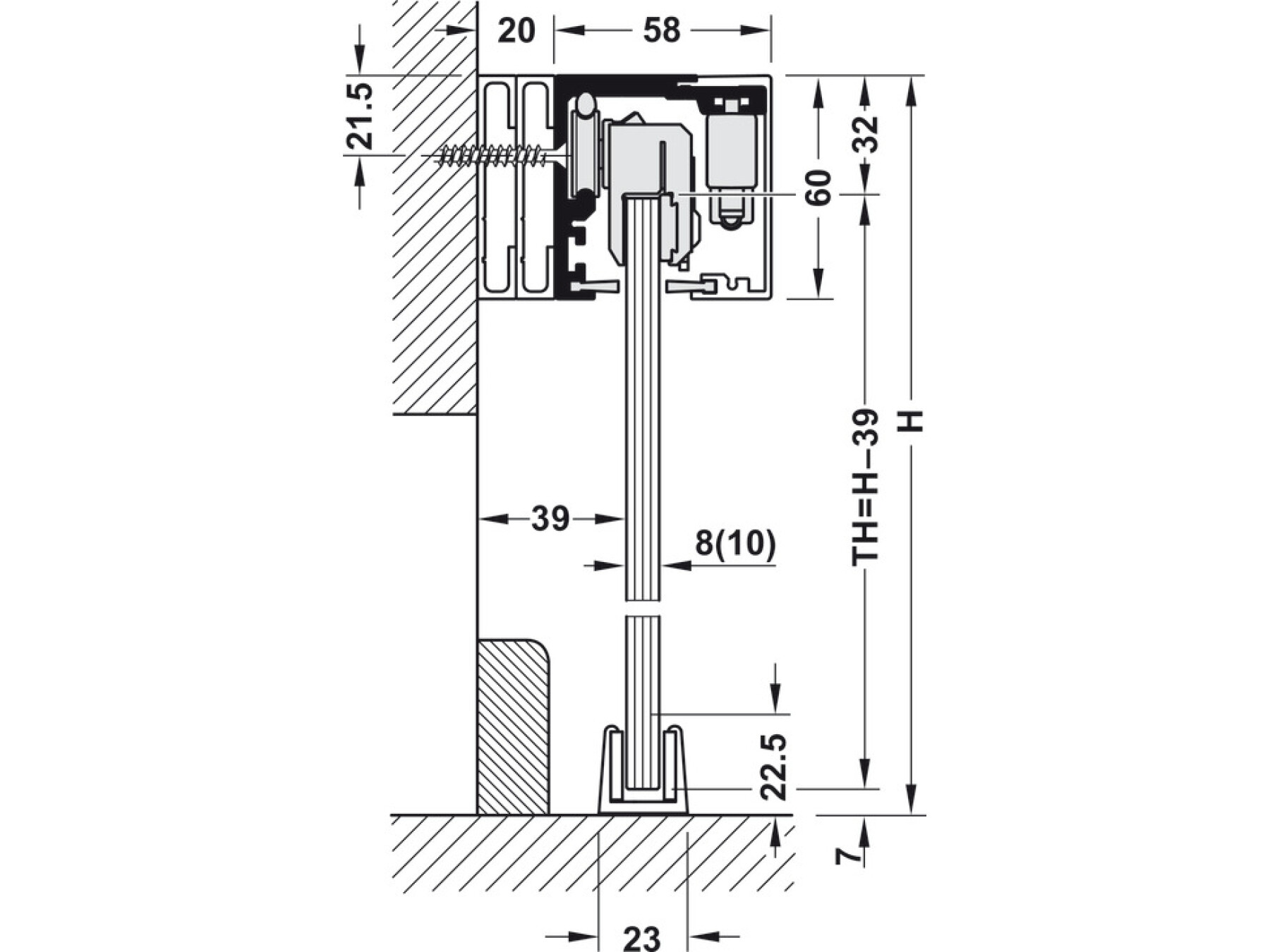

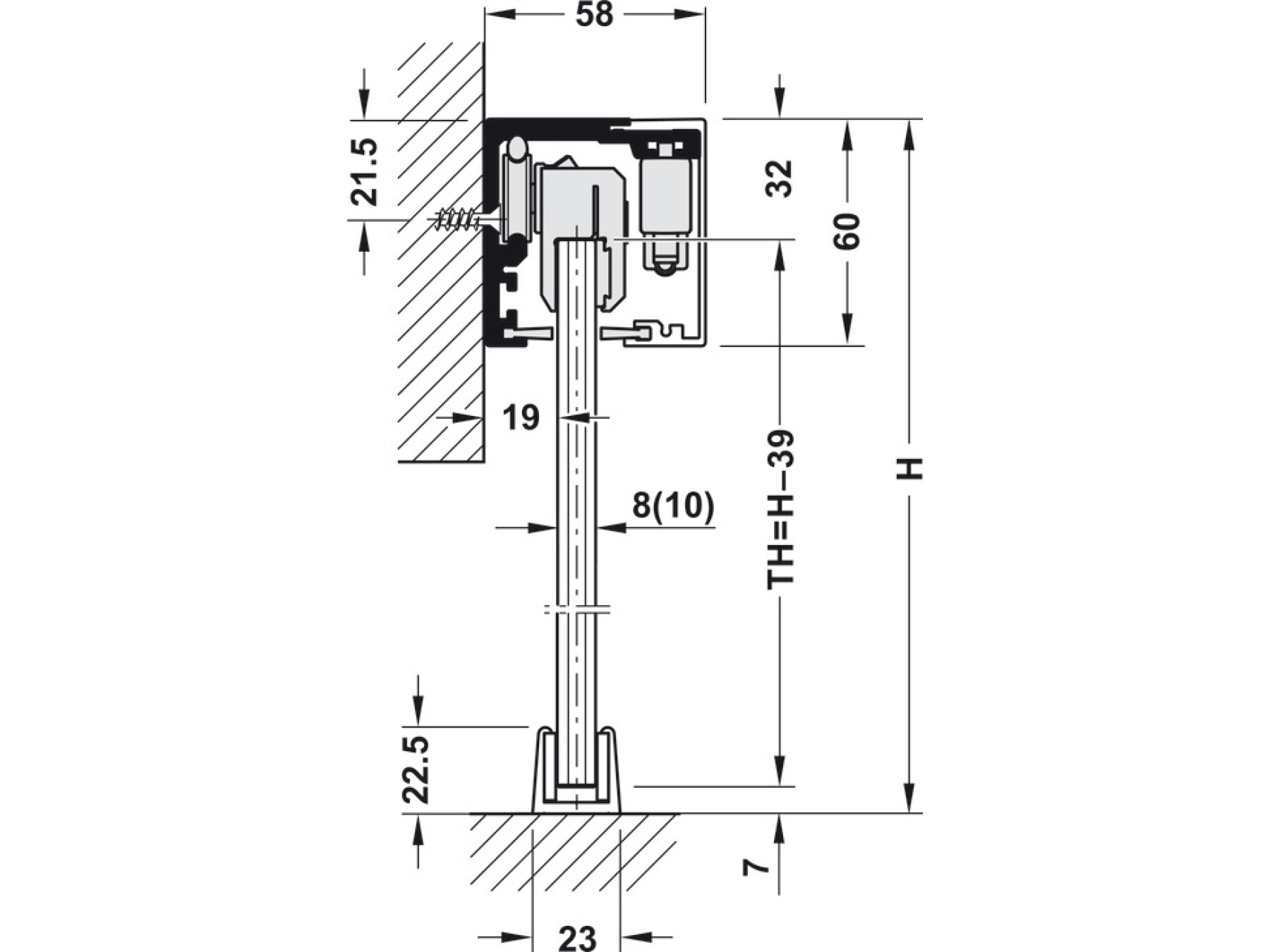

Fittings are completely concealed within the top track and two types of track are available for installation on
ceilings or wall mounting
Soft close as standard
Supplied with
Fitting set for one door includes:
1 pair x Classic 120-F running gear, silver coloured anodised aluminium
2 x Soft and self close mechanism, silver coloured anodised aluminium
1 x Activating pin , silver coloured anodised aluminium
2 x Track stopper, silver coloured anodised aluminium

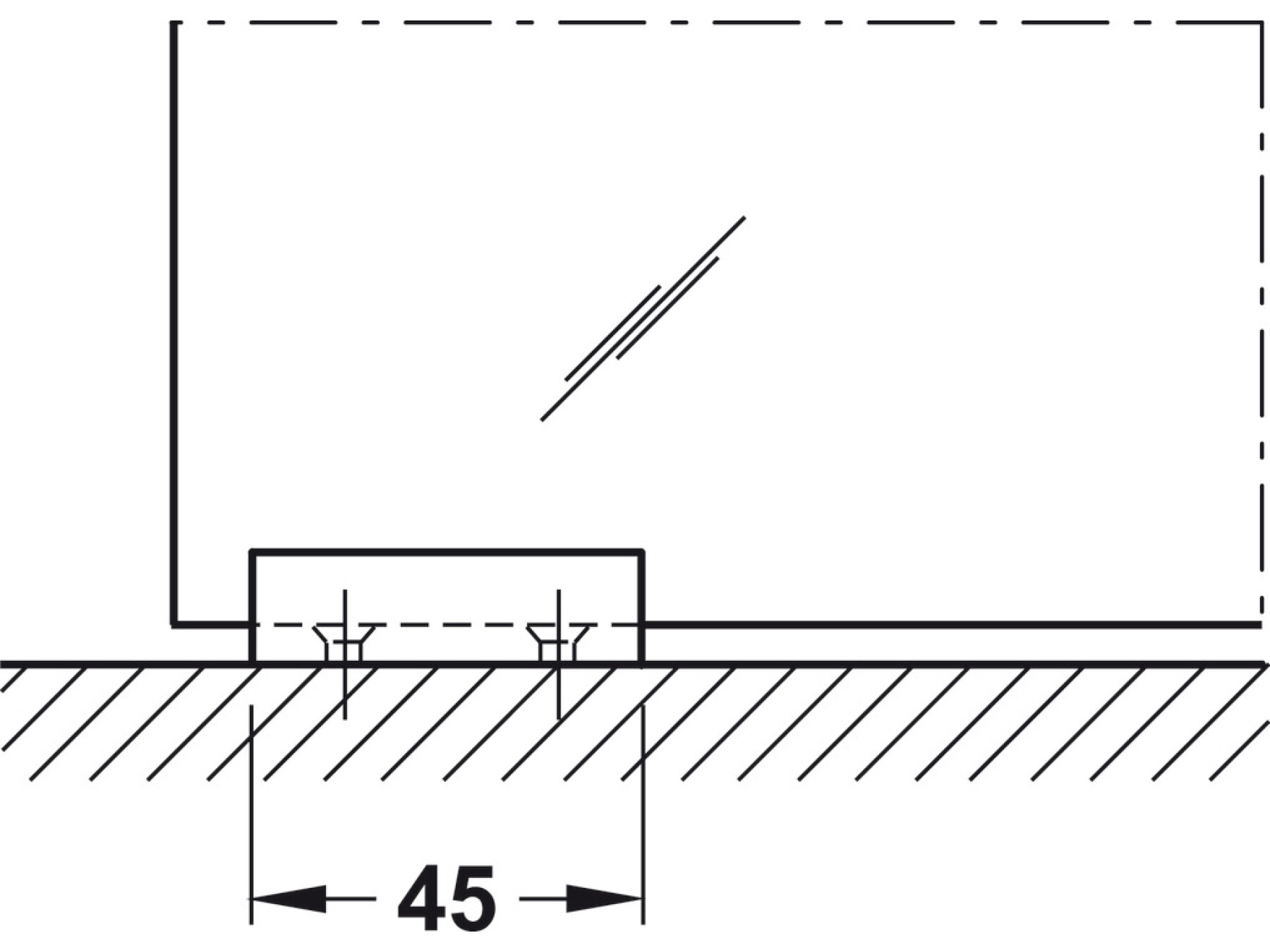

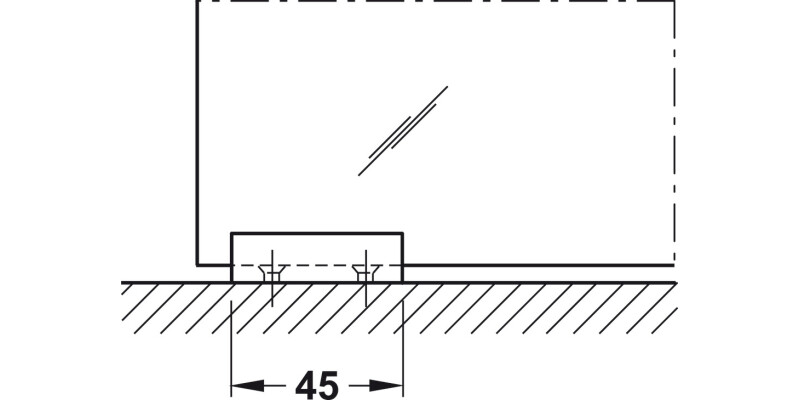

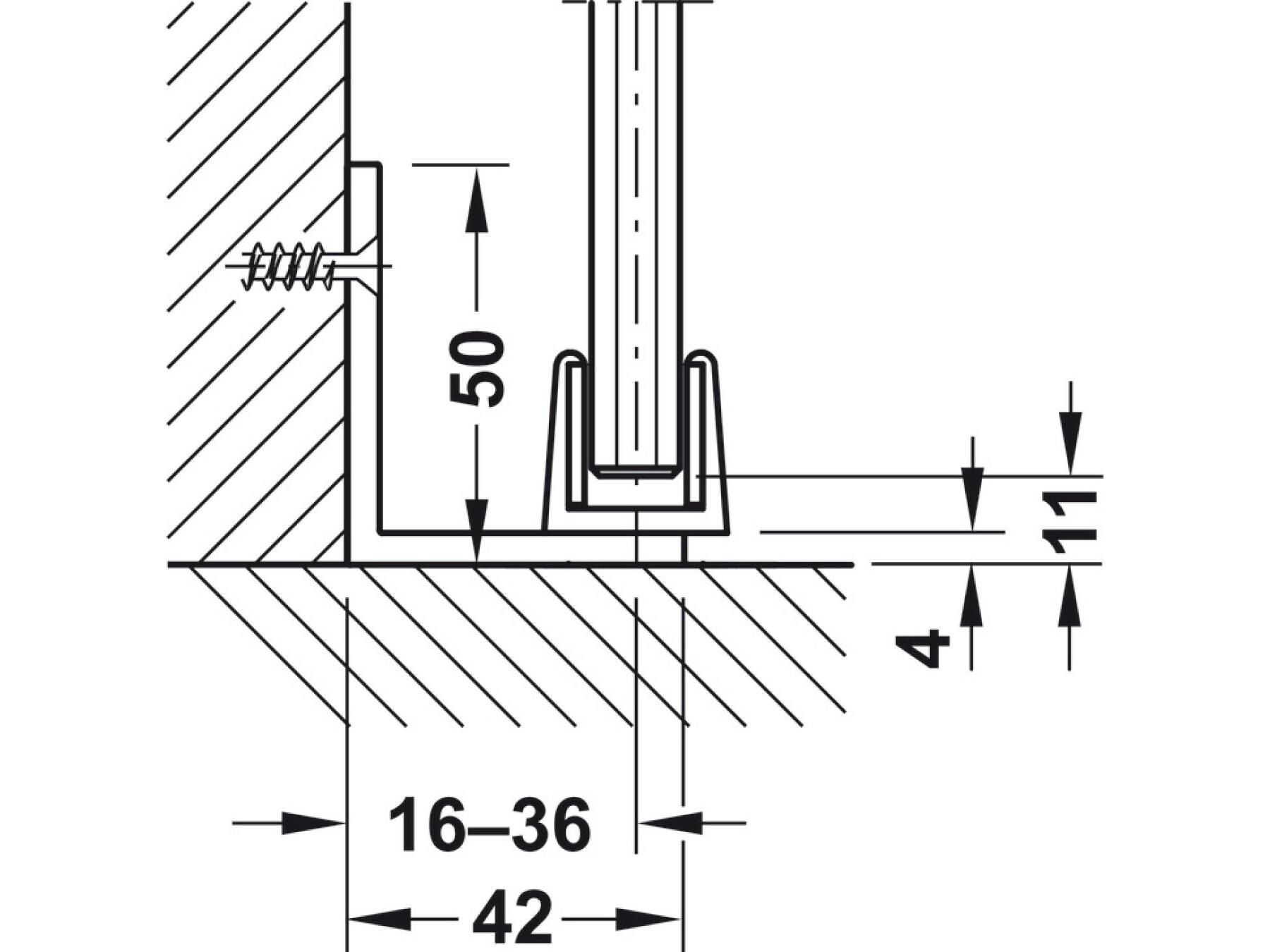

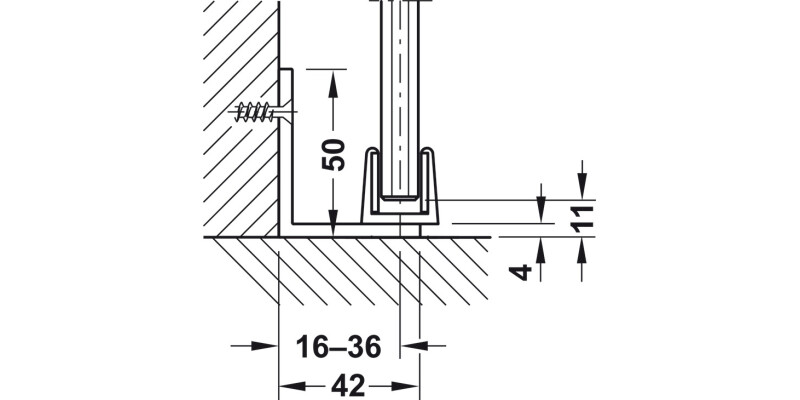

1 x Bottom guide, silver coloured anodised aluminium
Warranty/Guarantee information
This product is covered under Häfele’s Lifetime Guarantee.
All products covered under the Häfele Lifetime Guarantee have met our quality standards and have been tested according to the relevant industry certification.
All products under this guarantee are covered for normal use of the products in a domestic environment - for commercial environments our standard 12 month guarantee would apply.
For more information go to:
Services > Customer Support > Häfele Lifetime Guarantee
For laminated glass only in conjunction with glass drilling and threaded end insert.
For laminated glass only in conjunction with glass drilling and threaded end insert.
Specifications
Number of door wings in a system max.
1 to 2
Number of door leaves per set
1.00
For door material
Glass
Model
50E
Version
With soft and self closing mechanism
Soft closing mechanism
With soft and self closing mechanism on both sides
For door weight
≤120 kg
For door width
≥630 mm
Material/finish
Silver coloured, anodized
Mounting type
Ceiling installation, Wall mounting
For glass thickness with tempered safety glass
8 mm, 10 mm
For glass thickness with laminated glass
8–8,7 mm, 10–10,7 mm
Adjustment facility
Height adjustment: -3 – 4 mm, Height +4/–3 mm
Area of application
Sliding interior doors
For glass type
Tempered safety glass, Laminated glass
Running position
Top
Installation note
For laminated glass only in conjunction with glass drilling and threaded end insert.
Hafele Lifetime Guarantee
10 years
Order reference
Tracks, end caps and brush seals to be ordered separately
