Slido D-Li11 80P Comp FitSet 1Dr wo SC
Part Number: 940.82.540

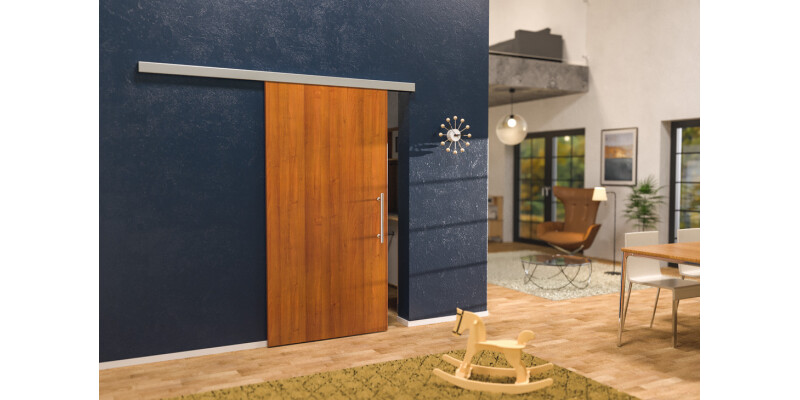

Top hung system, Slido D-Line11 80-P, without soft close
Price:
£56.42
Per Item
Smooth running quality system for commercial and residential interior doorsFitting sets available with or without... Read More
Product Information
Product Details

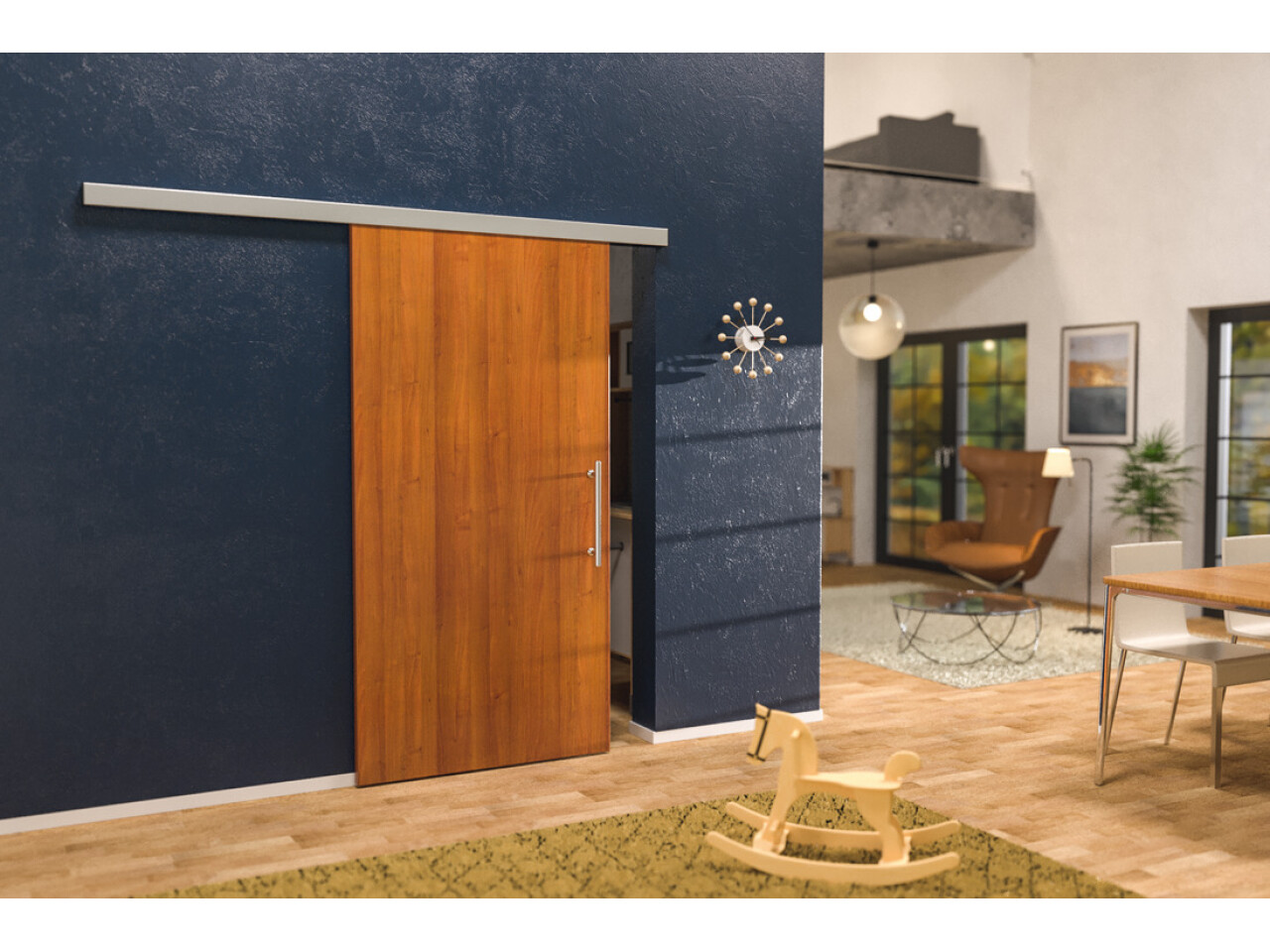

Smooth running quality system for commercial and residential interior doors
Fitting sets available with or without soft closing mechanism
Supplied in a single box which includes the track
For 1 and 2 leaf sliding doors
Note on door width

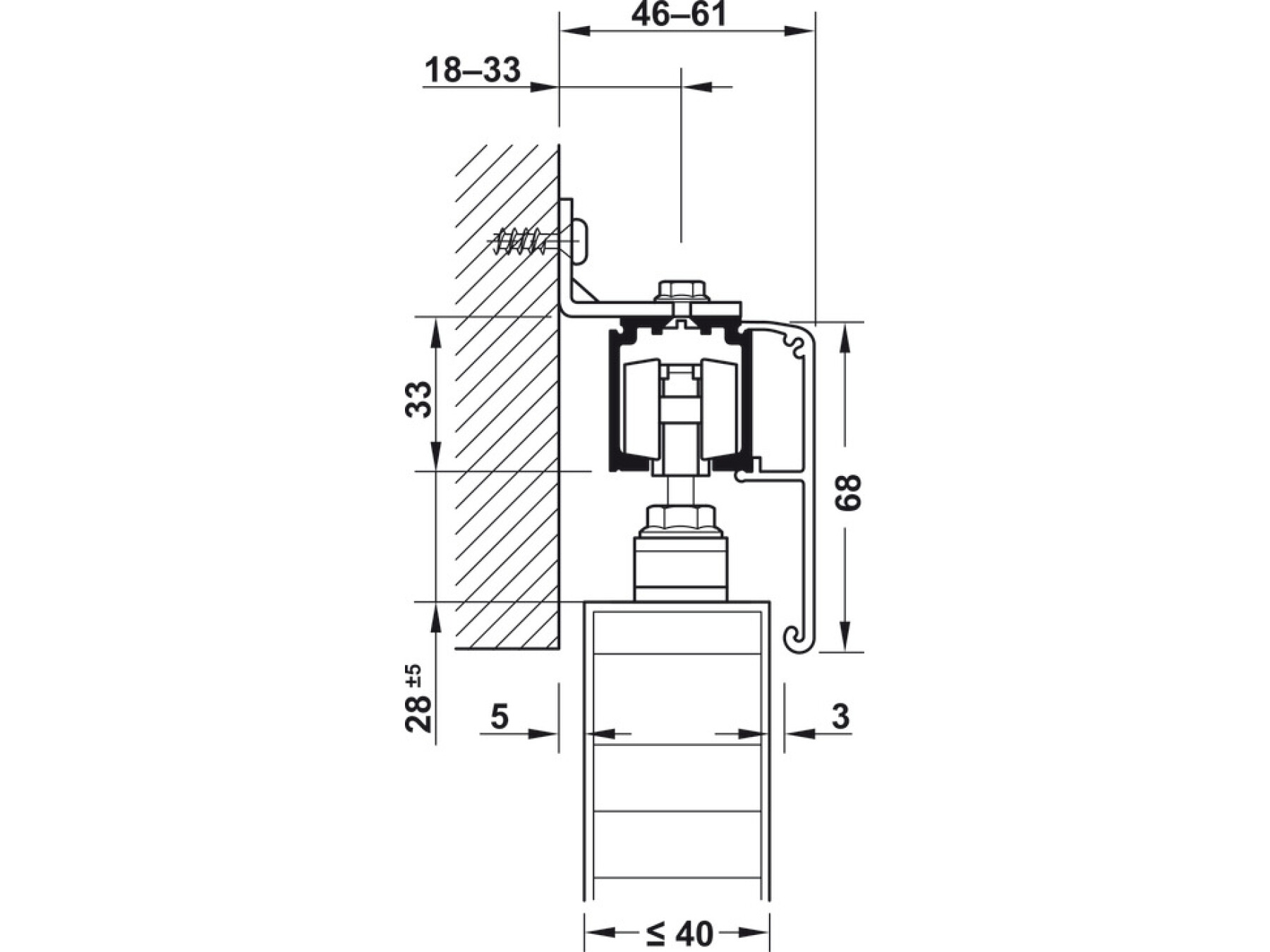

Ceiling installation - Max. 40 mm
Wall mounted installation with clip panel and concealed mounting bracket - 30 mm
Supplied with
1 80P set without soft and self closing mechanism

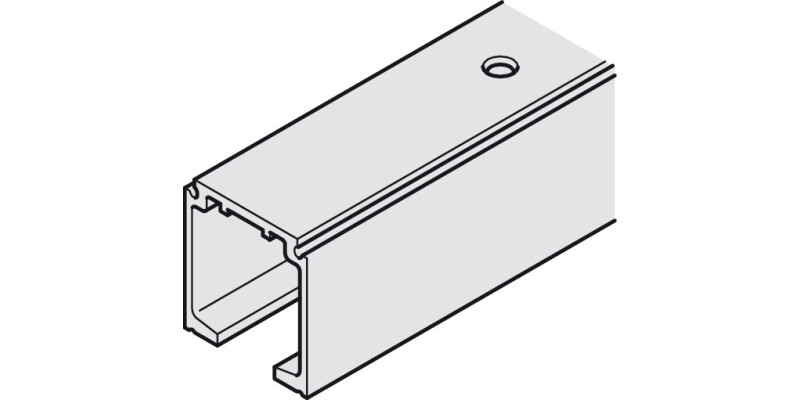

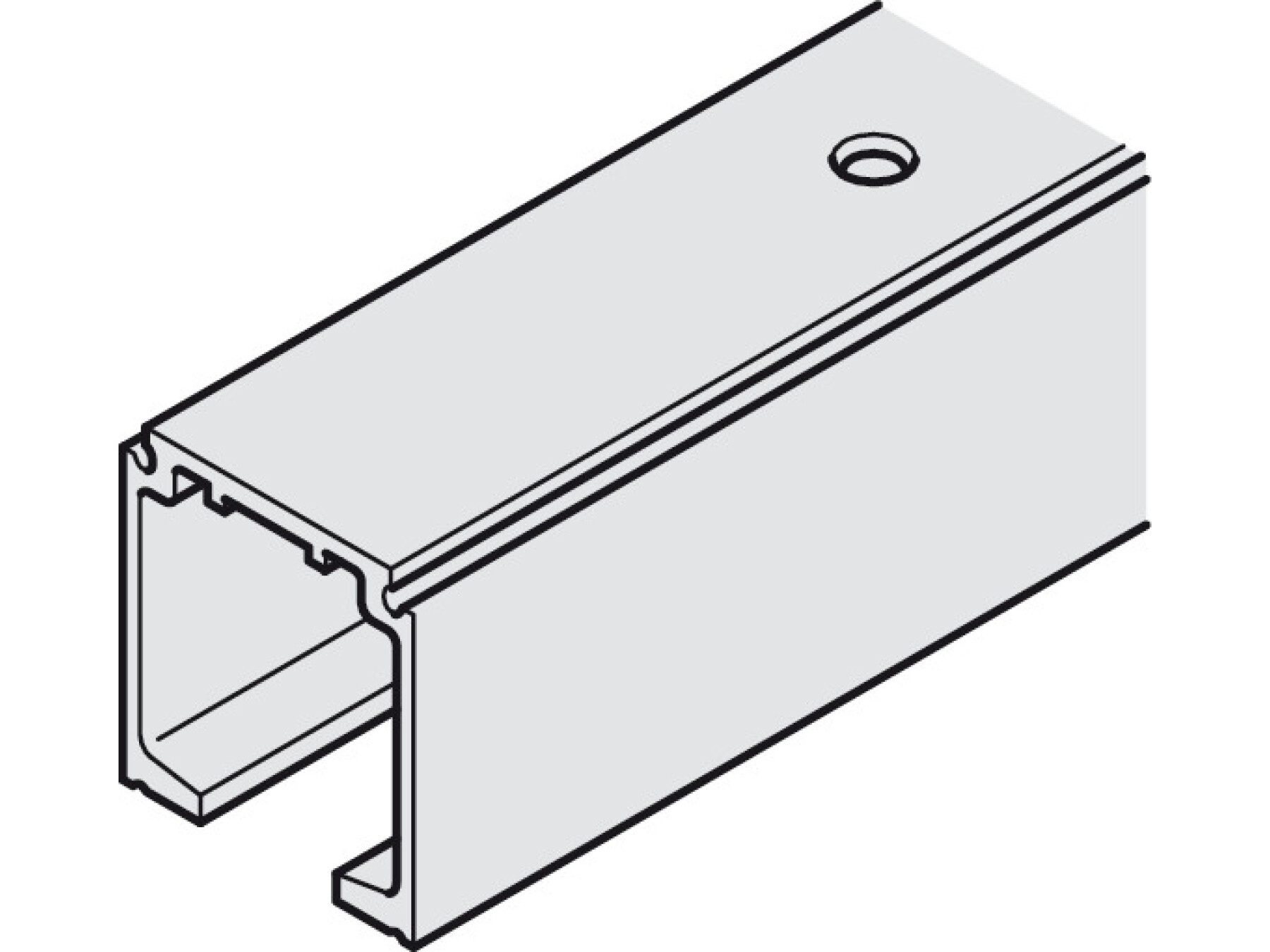

1 running track, 2 m
6 mounting brackets
1 mounting instruction
Warranty/Guarantee information
This product is covered under Häfele’s Lifetime Guarantee.
All products covered under the Häfele Lifetime Guarantee have met our quality standards and have been tested according to the relevant industry certification.
All products under this guarantee are covered for normal use of the products in a domestic environment - for commercial environments our standard 12 month guarantee would apply.
For more information go to:
Services > Customer Support > Häfele Lifetime Guarantee
The set-up costs and the installation instructions are included.
Specifications
Number of door wings in a system max.
1 to 2
Number of door leaves per set
For door material
Wood
Version
with running track
Running track length
2,000.00 mm
Material/finish
Steel, Aluminium, Rubber
Mounting type
Wall mounting
For door thickness
28 – 40 mm
Area of application
Interior doors
Running position
Top
Adjustment facility
height adjustment
Installation
Suspension with screwed on support flange
Door processing
for screw fixing
Hafele Lifetime Guarantee
10 years
Order reference
Mounting bracket and clip panels must be ordered separately if required
