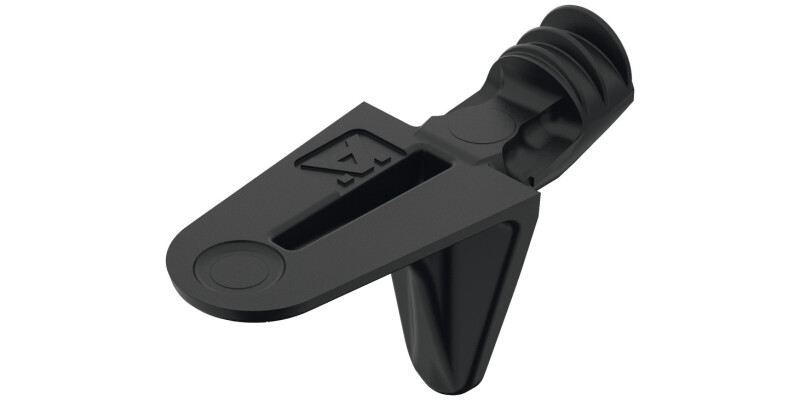

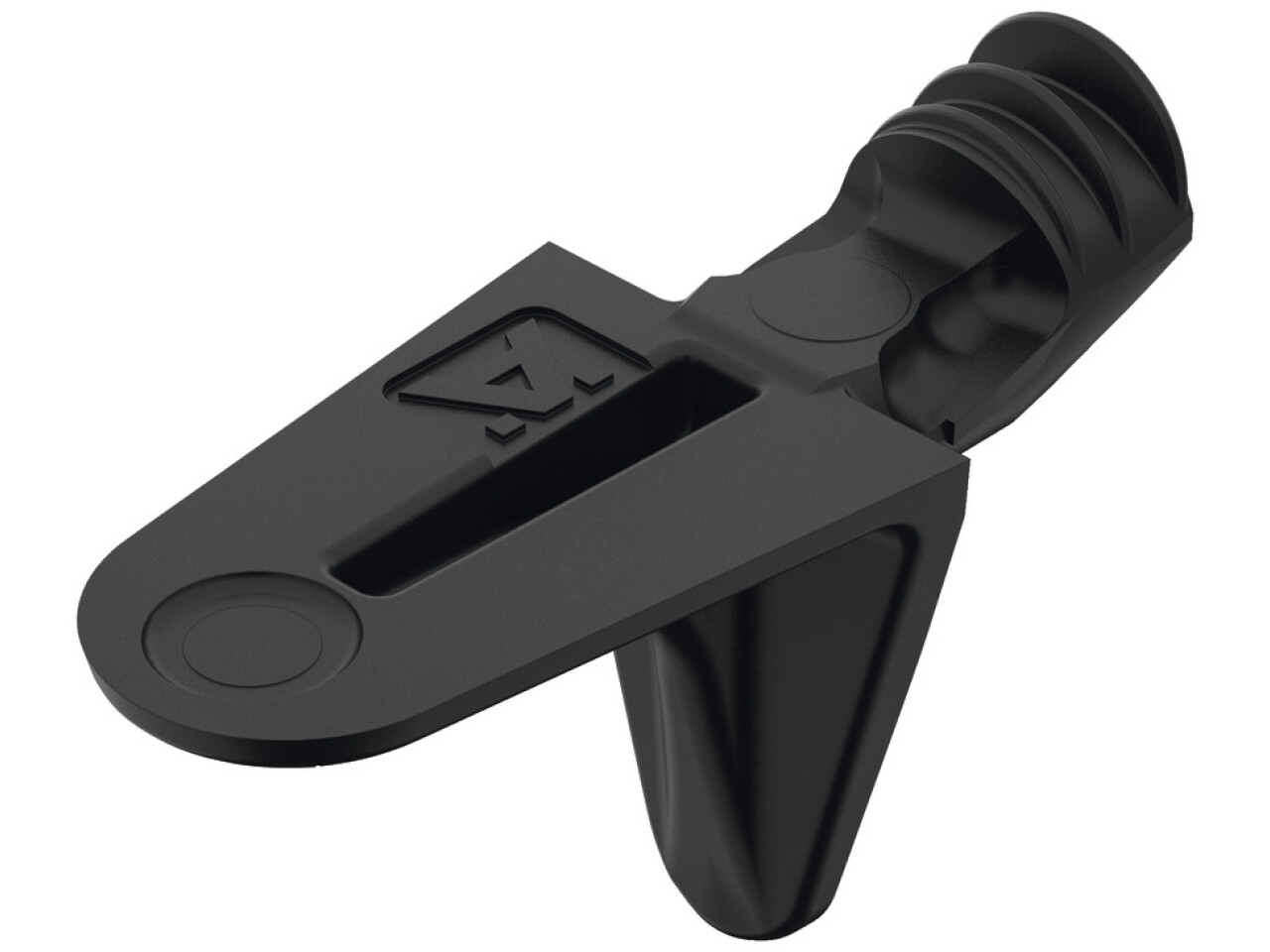

Shelf Support D5mm w Twin Plug ZA Blk
Part Number: 282.24.817
For Ø 5 mm holes, Black passivated
Price:
£11.77
Per 100 Pack
Note on load bearing capacity 9.4 kg per piece, tested to DIN EN16337:2013-8 with 1.7 kg impacttest i.e 37.6 kg... Read More
Product Information
Product Details
Note on load bearing capacity
9.4 kg per piece, tested to DIN EN16337:2013-8 with 1.7 kg impact
test i.e 37.6 kg load bearing when using 4 shelf supports
Identical model with plastic support: Cat. No. 282.24.733
Specifications
Application
For wooden shelves
Colour/finish
Black, passivated
Installation
For Mounting in drilled hole
For drill hole Ø
5.00 mm
Support size
1.00 mm
Pin length
7.30 mm
Version
With twin grooves
Material
Zinc alloy
Load bearing capacity per item
9.40 kg
Load bearing capacity with 4 shelf supports
37.60 kg
