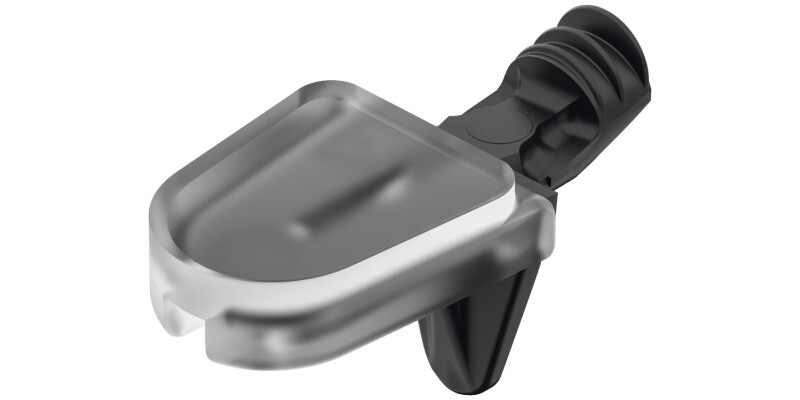

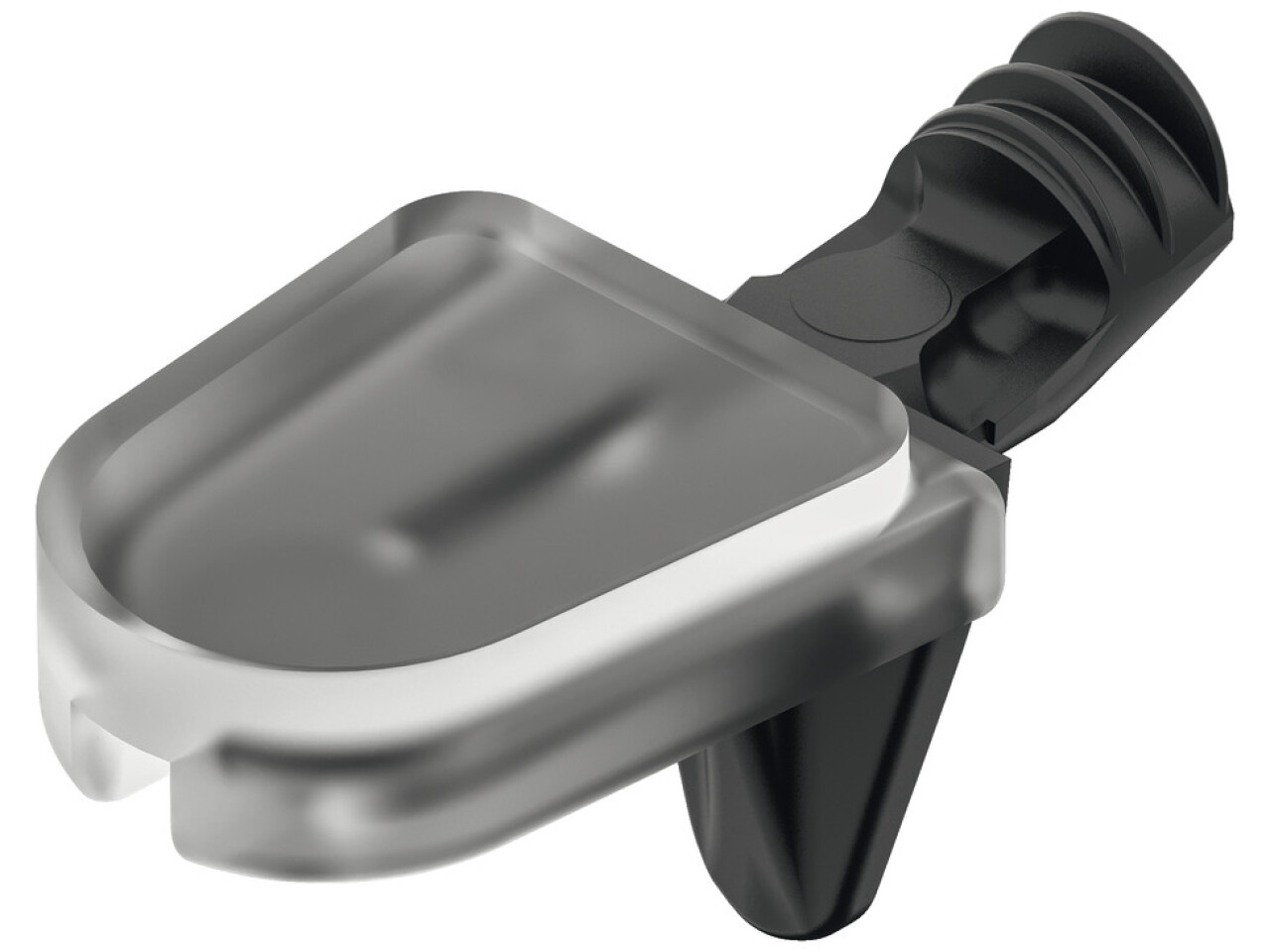

Shelf Support D5mm Buffered Plug ZA Blk
Part Number: 282.24.333
For Ø 5 mm Holes, Black Passivated, Transparent Support
Price:
£16.71
Per 100 Pack
Note on load bearing capacity 6.25 kg per piece, tested to DIN EN16337:2013-8 with 1.7 kg impacttest i.e. 25 kg... Read More
Product Information
Product Details
Note on load bearing capacity
6.25 kg per piece, tested to DIN EN16337:2013-8 with 1.7 kg impact
test i.e. 25 kg load bearing when using 4 shelf supports
Identical model without plastic support Cat. No.: 282.24.717 / 282.24.81

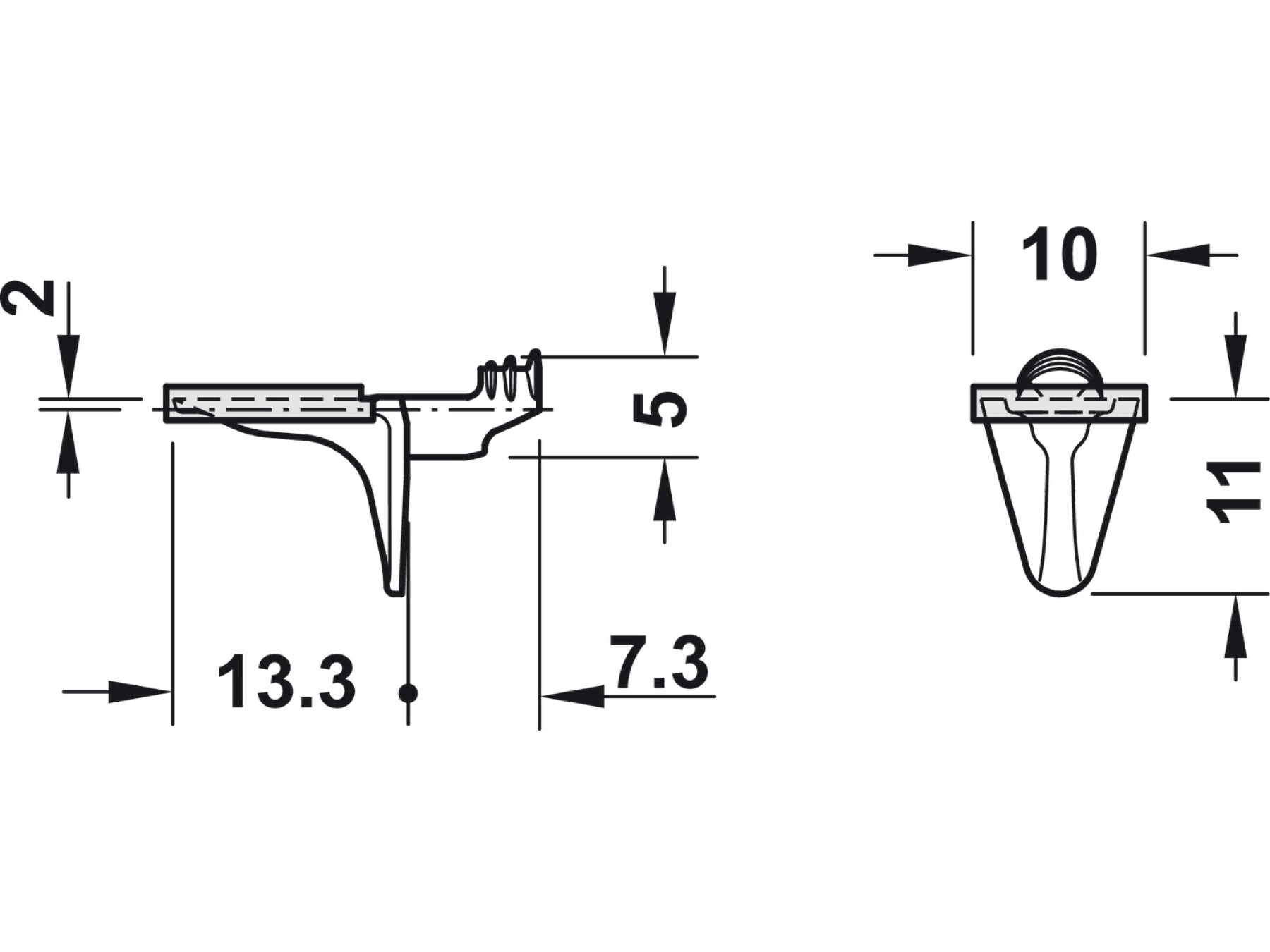

Specifications
Application
For wooden and glass shelves
Installation
For insert fitting
For drill hole Ø
5.00 mm
Support size
2.00 mm
Pin length
7.30 mm
Version
With twin grooves
Material
Zinc alloy
Load bearing capacity per item
6.25 kg
Load bearing capacity with 4 shelf supports
25.00 kg
