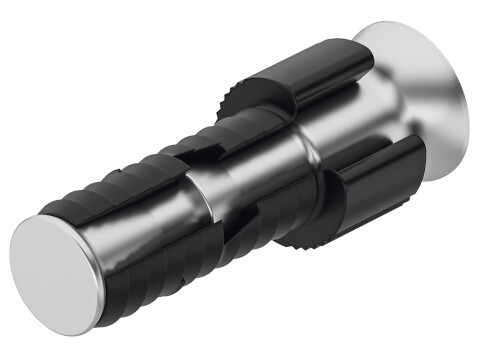

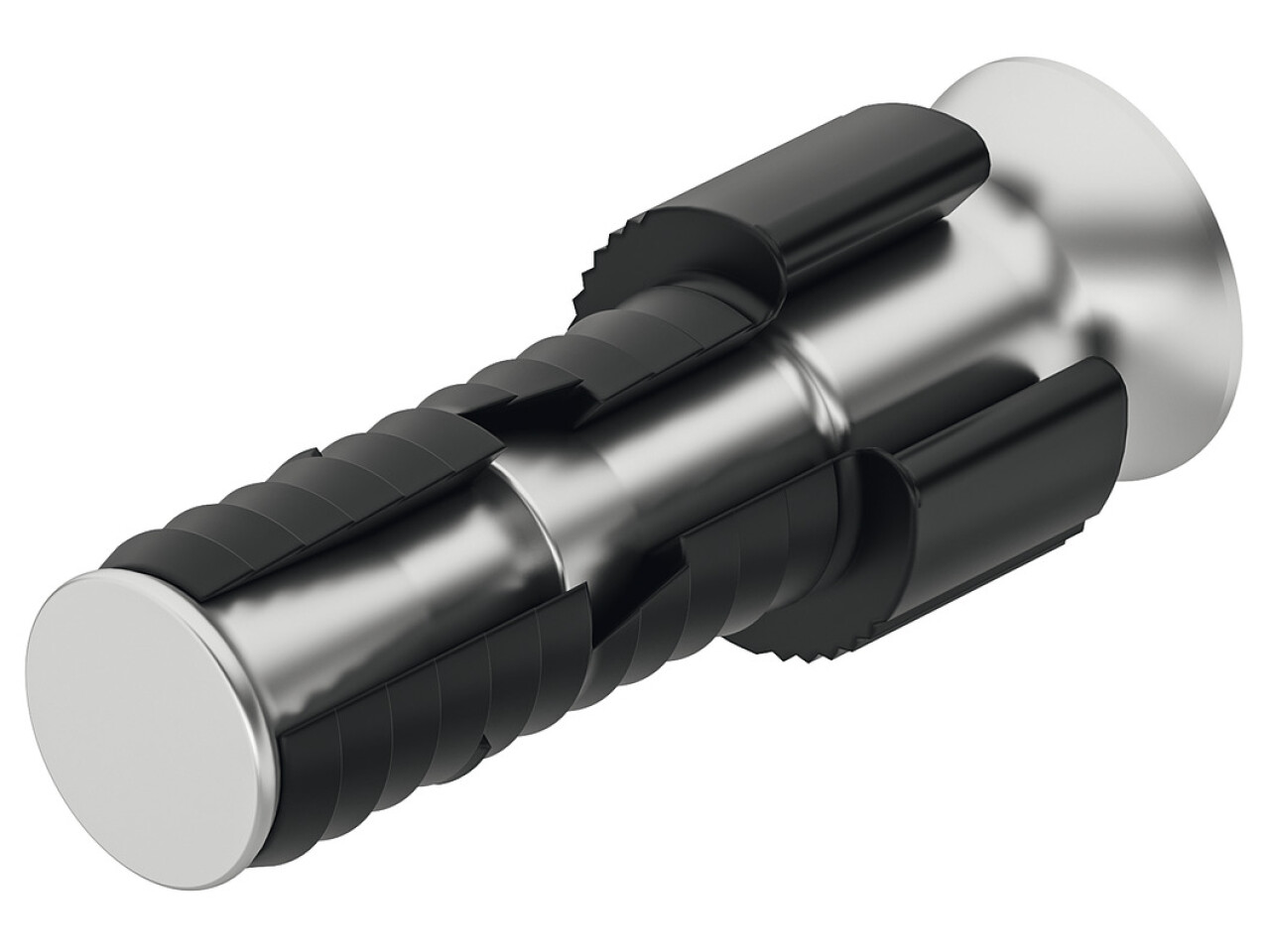

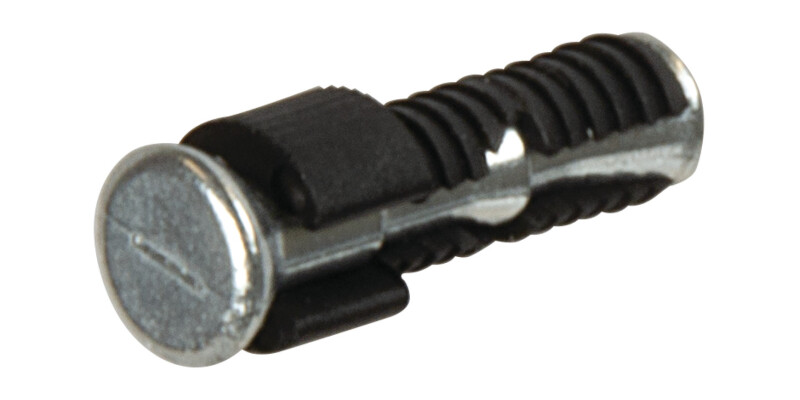

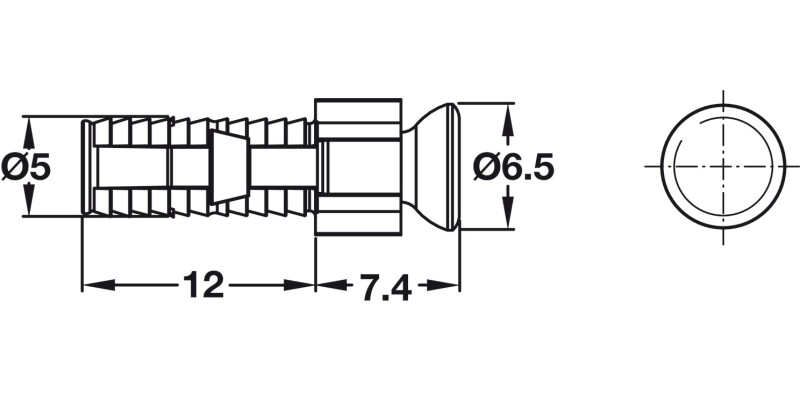

Rafix C20 Spread Bolt 5/12mm ZA Blk

Part Number: 263.20.313
Plastic spreading dowel with harpoon thread, Drilling distance X: 12.5 + 1.0 mm, thread length L: 12 mm
Price:
£14.97
Per 100 Pack
VAT excluded

For industry, joiners and cabinet makersSpreading sleeve with harpoon-type thread and stop Installation Insert... Read More

Product Information

Product Details

For industry, joiners and cabinet makers
Spreading sleeve with harpoon-type thread and stop

Installation

Insert spreading sleeve into drill hole by hand until the stop is reached. The dowel is spread and fixed by tightening the Rafix housing
For disassembly, push bolt back into the dowel and pull out of the drill hole together with the spreading sleeve.

Order reference

Order Rafix-20 housings separately
Red jig, Unitool drilling jig and Variantool-N drilling jig are available if required

Warranty/Guarantee information

This product is covered under Häfele’s Lifetime Guarantee.

All products covered under the Häfele Lifetime Guarantee have met our quality standards and have been tested according to the relevant industry certification.

All products under this guarantee are covered for normal use of the products in a domestic environment - for commercial environments our standard 12 month guarantee would apply.

For more information go to:

Services > Customer Support > Häfele Lifetime Guarantee

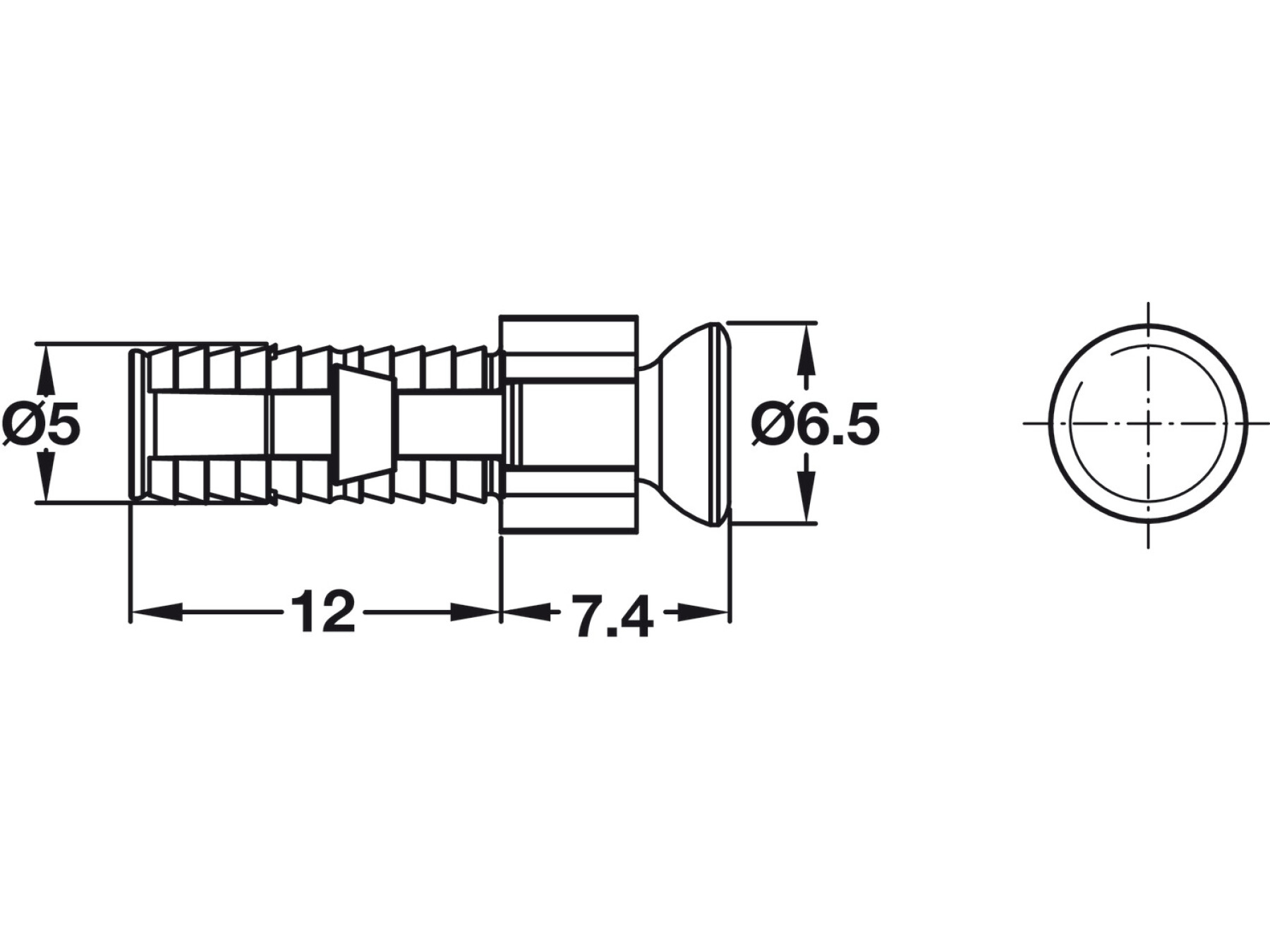

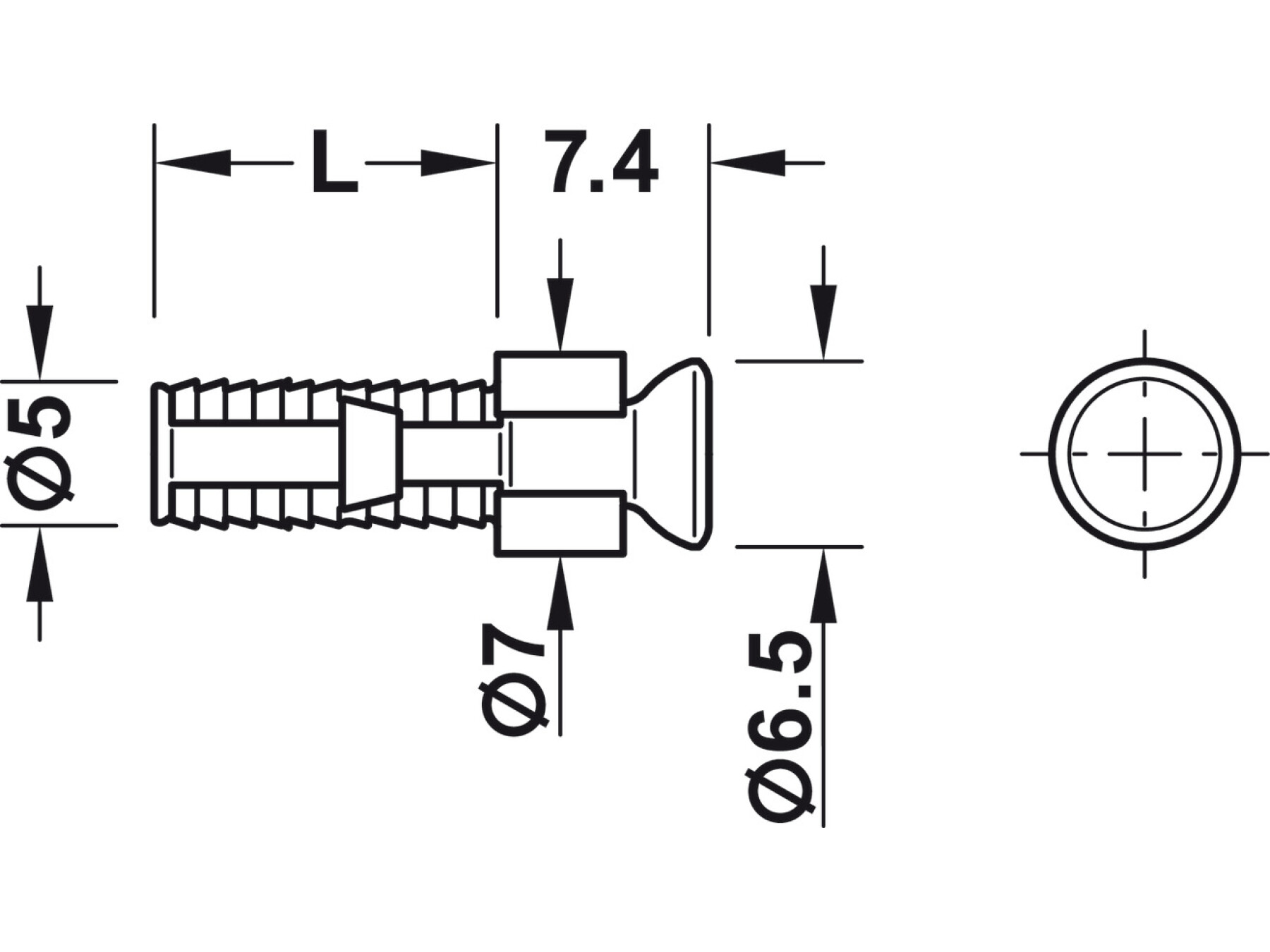

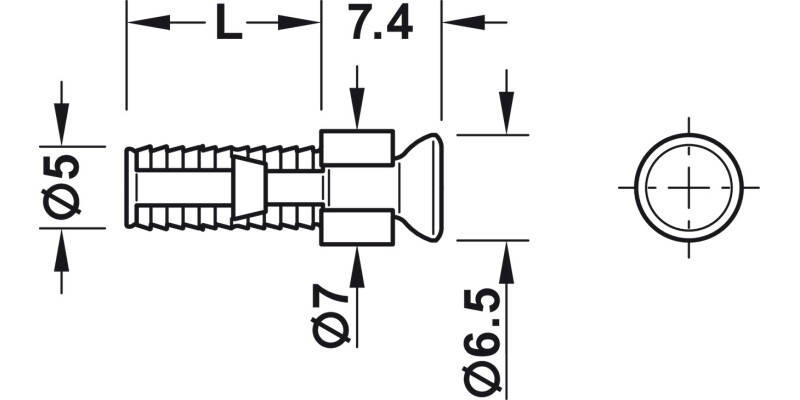

Specifications

Thread length

12.00 mm

For drill hole Ø

5.00 mm

Drilling depth

12.5 mm +1 mm

Area of application

For Rafix housing with ridge

Material

Plastic, Zinc alloy

Hafele Lifetime Guarantee

25 years
