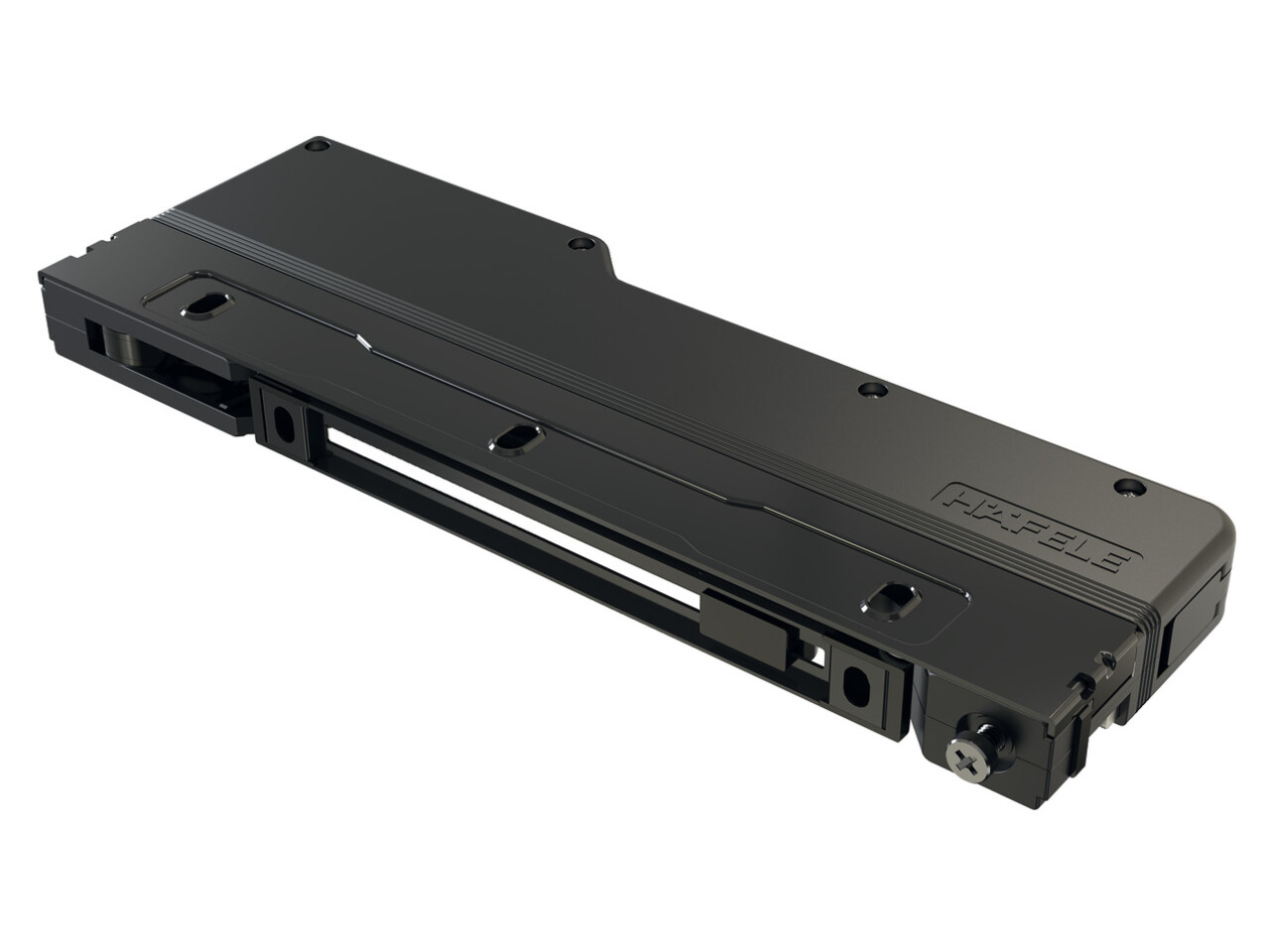

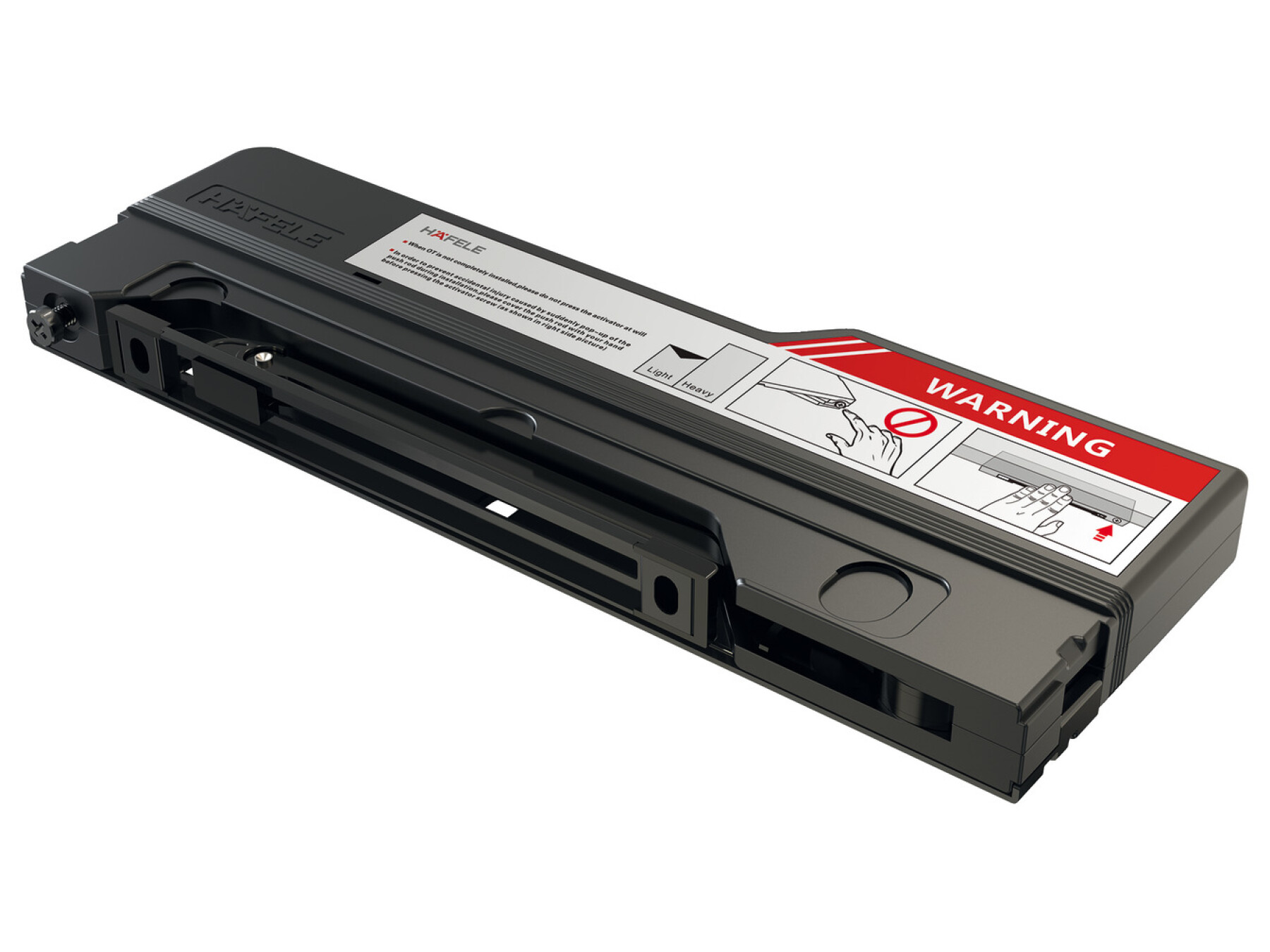

One Touch PTO + SC Mech Max 7.5kg Pl Blk
Part Number: 315.11.400
For use with concealed hinges, For max door weight 7.5 kg, for max. door height ≤700 mm
Price:
£28.79
Per Item
One touch push opening soft close mechanical system is an innovative product for soft close and push to open... Read More
Product Information
Product Details
One touch push opening soft close mechanical system is an innovative product for soft close and push to open applications
Integrating push opening and soft closing functions that can free your hands and allow you to operate the door in an environment vulnerable to bacteria
Hands free, hygienic and convenient to operate
Fully mechanical design, no need to connect with electric power
Smart design and occupying little space
Friendly-to-use as closing and opening only by gentle pressing
Revolutionary operation compare to regular push latches
Area of application
For wooden doors without handles or aluminium frames,
For full overlay, half overlay and inset mounting doors

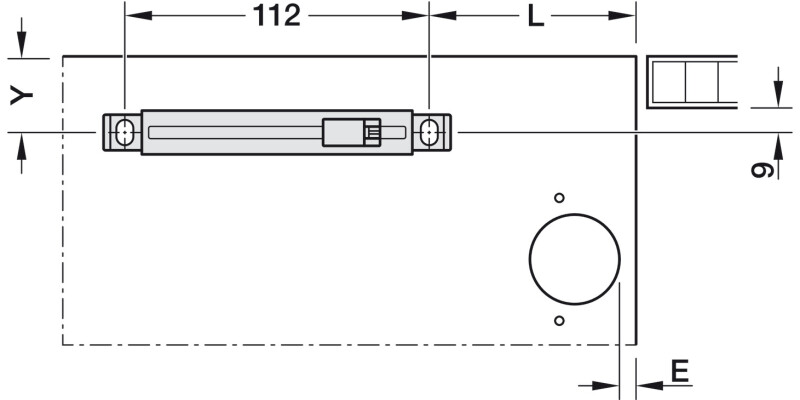

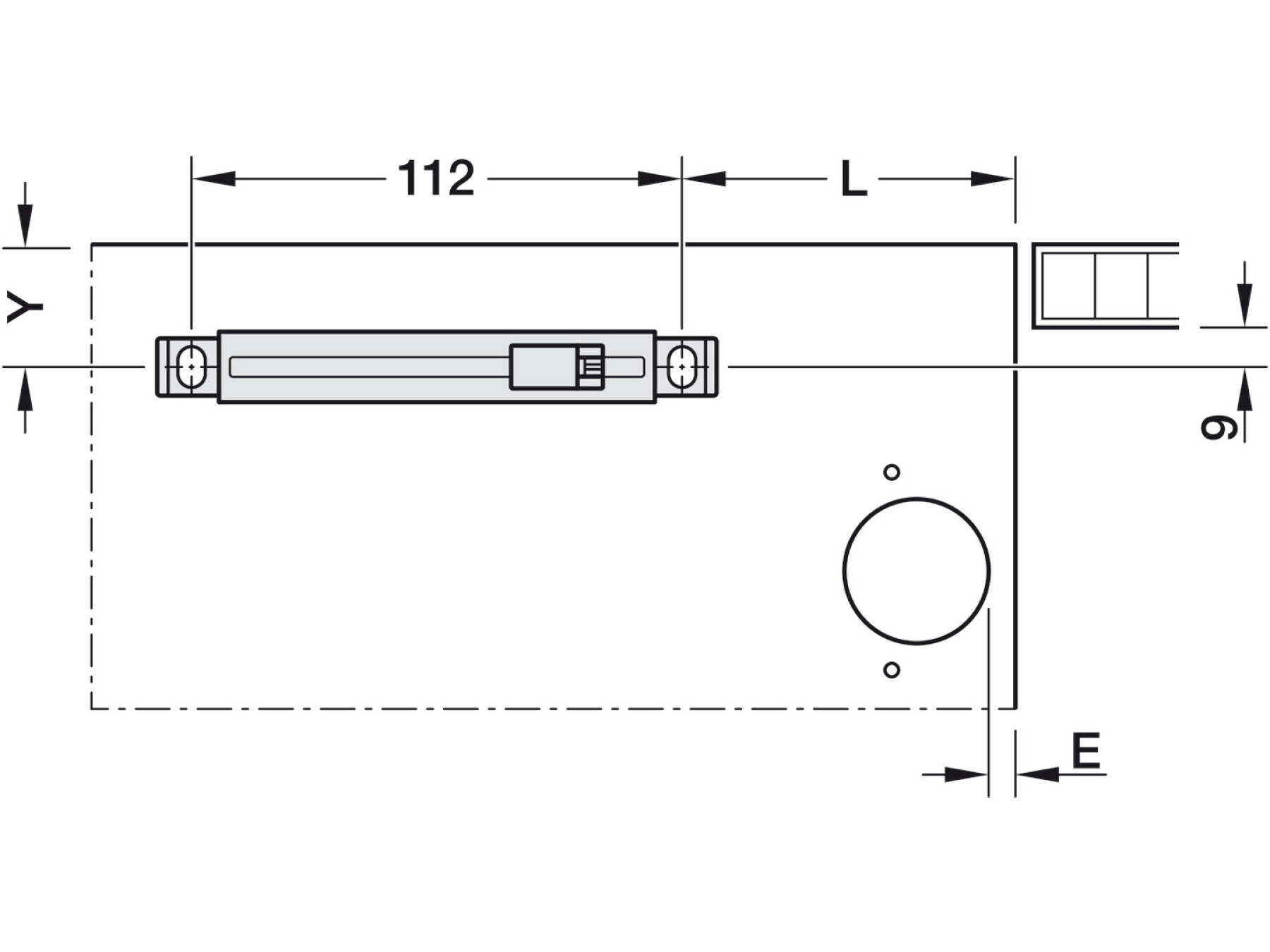

| Door overlay mm | |||||
|---|---|---|---|---|---|
| 16 | 17 | 18 | 19 | 20 | |
| 76 | 77 | 78 | 79 | 80 | 3 |
| 77 | 78 | 79 | 80 | 81 | 4 |
| 78 | 79 | 80 | 81 | 82 | 5 |
When the fitting is not completely installed please do not press the activator at will.
In order to prevent accidental injury caused by suddenly pop-up of the push rod during installation, please cover the push rod with your hand before pressing the activator screw (refer to warning label on product)
Specifications

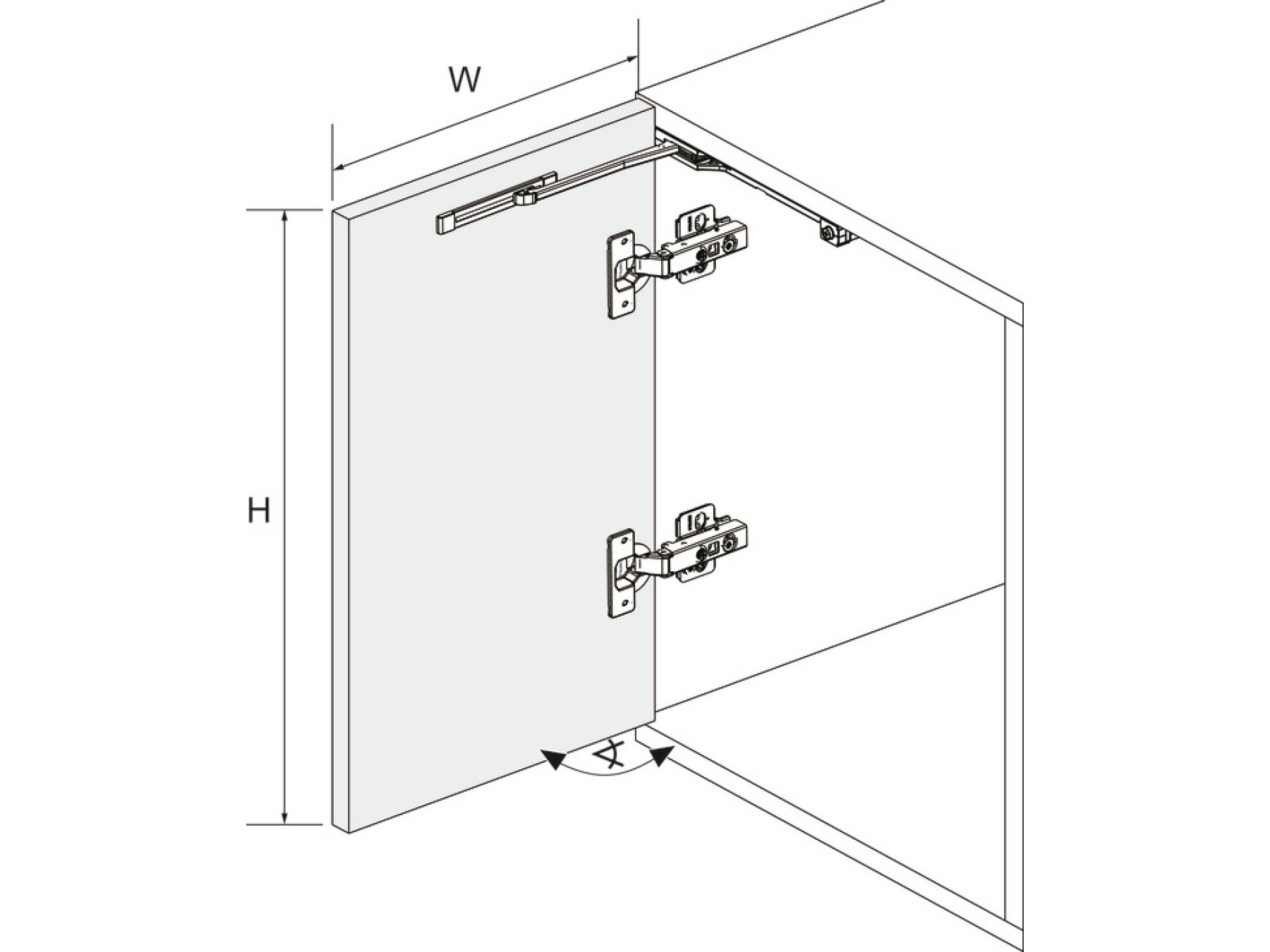

Suitable for

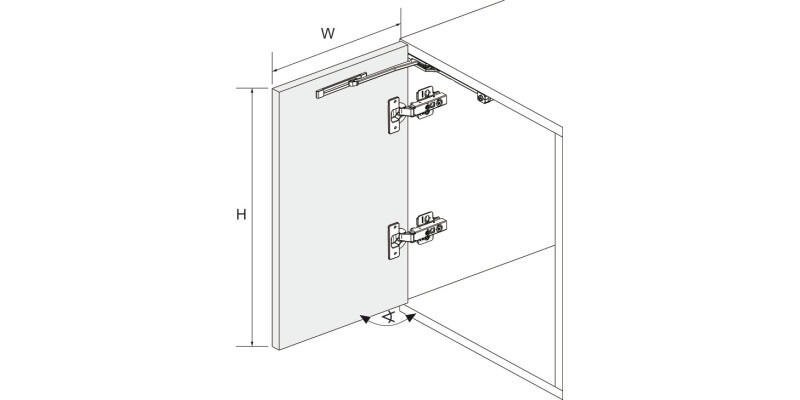

Door width W: ≤600 mm
Colour/finish
Black

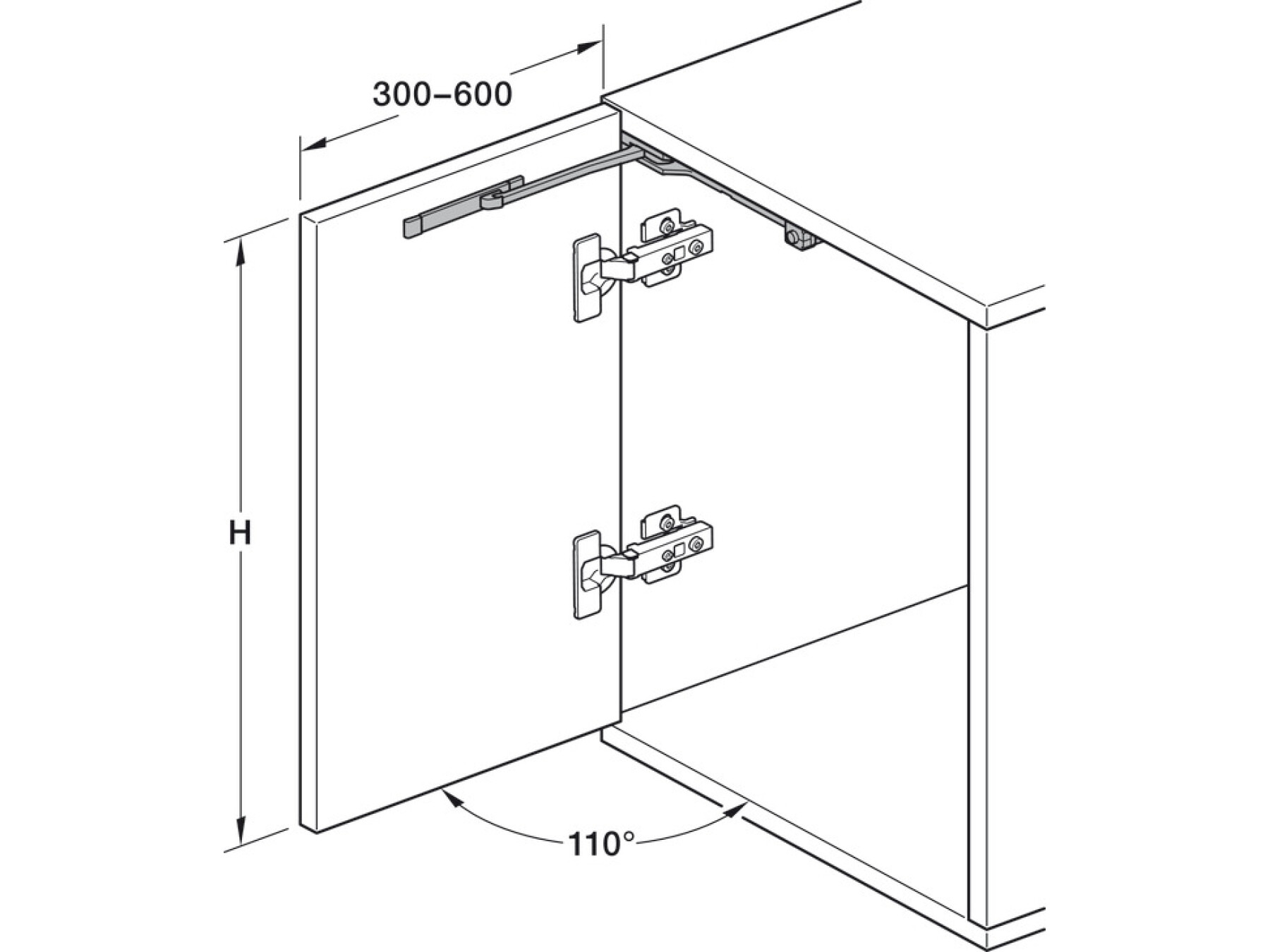

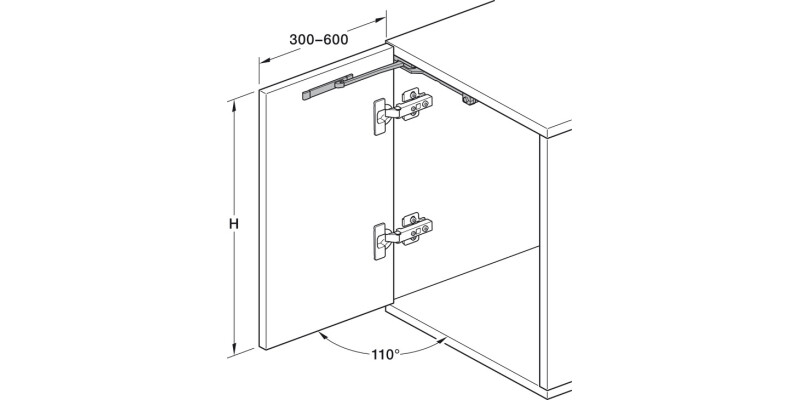

For door width
300 – 600 mm
Material
Plastic
Opening angle
110.00 °
Dim. (L x W x H)
202 x 68 x 18 mm

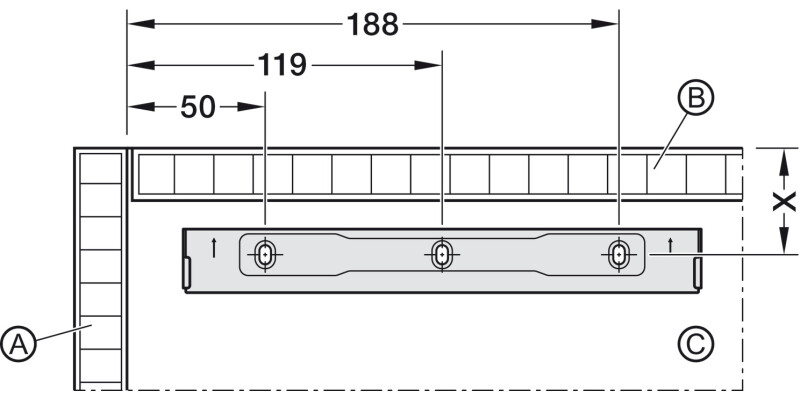

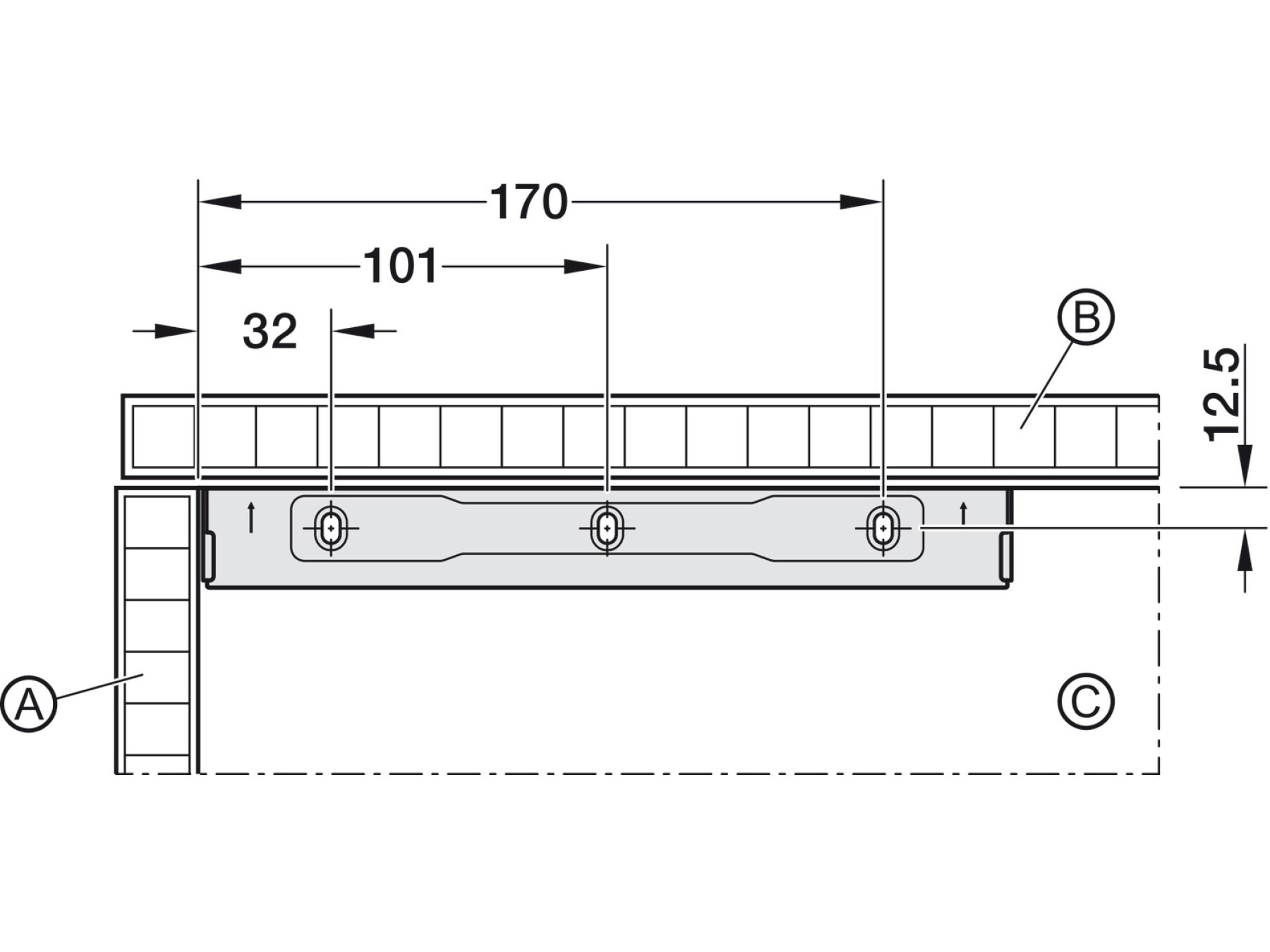

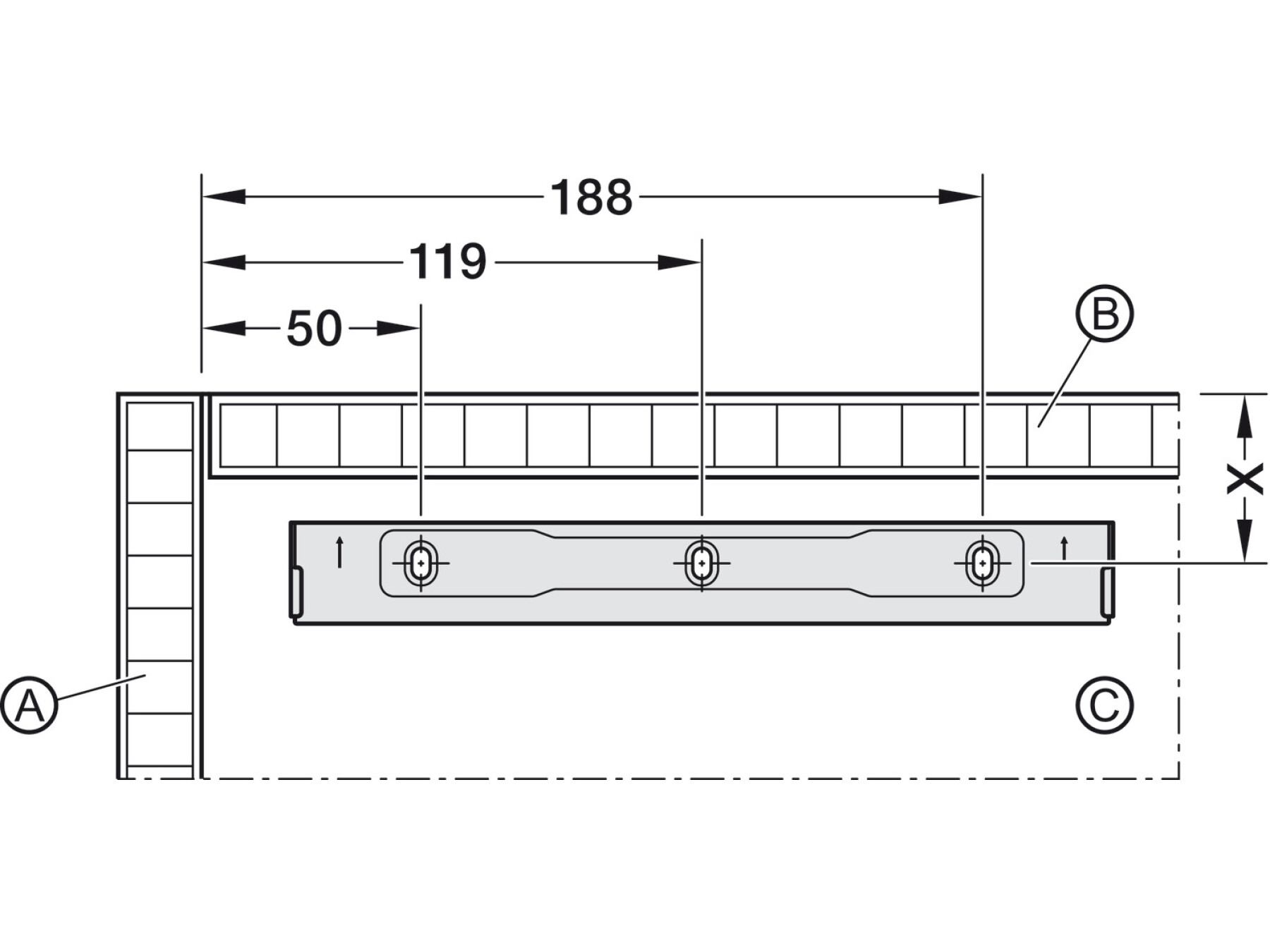

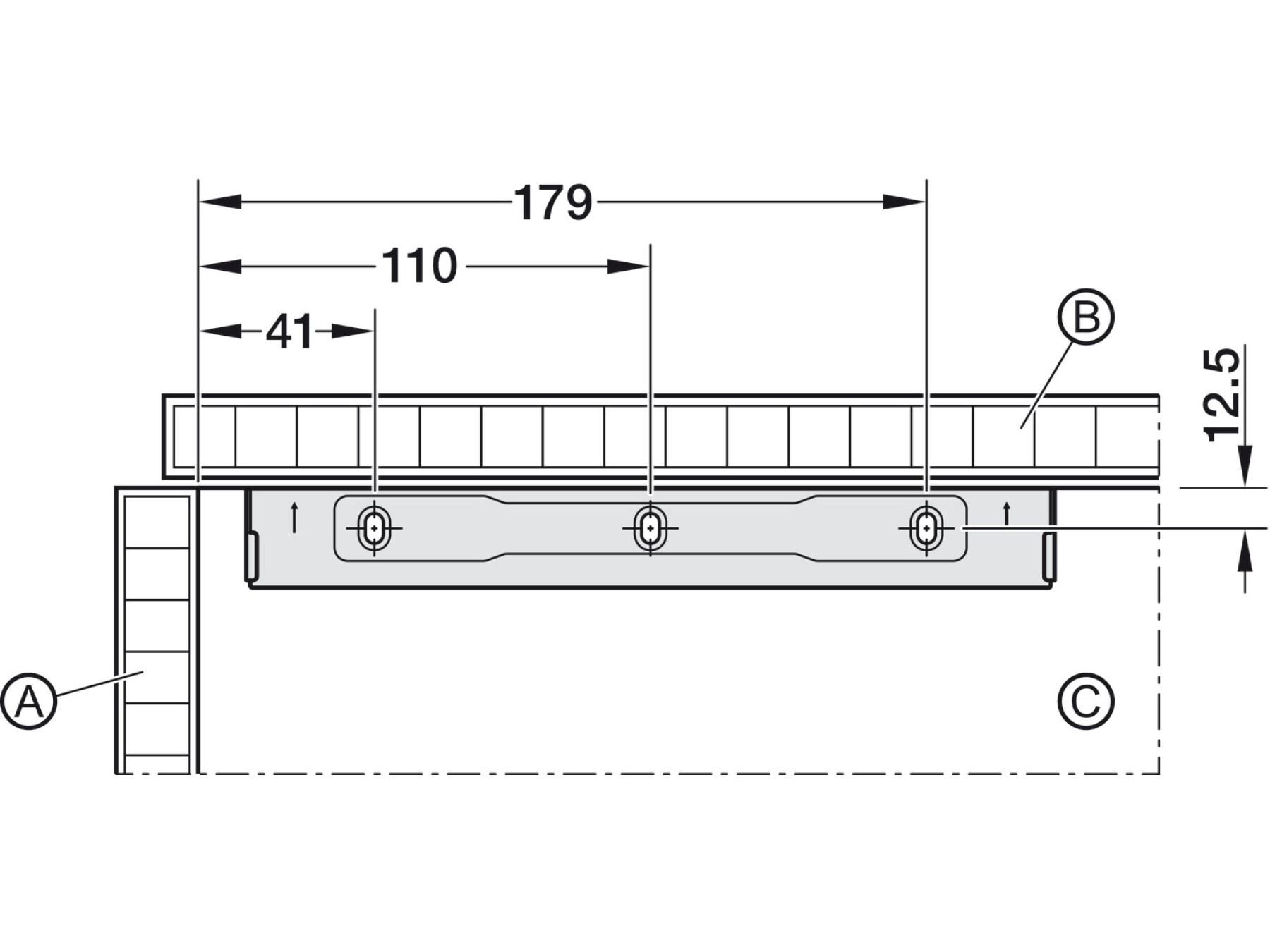

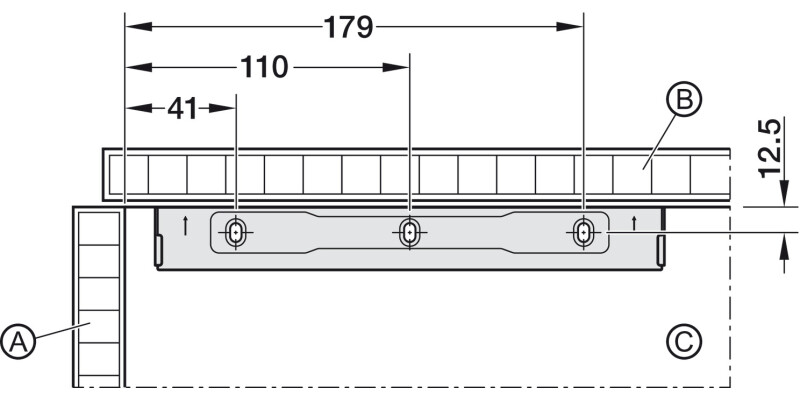

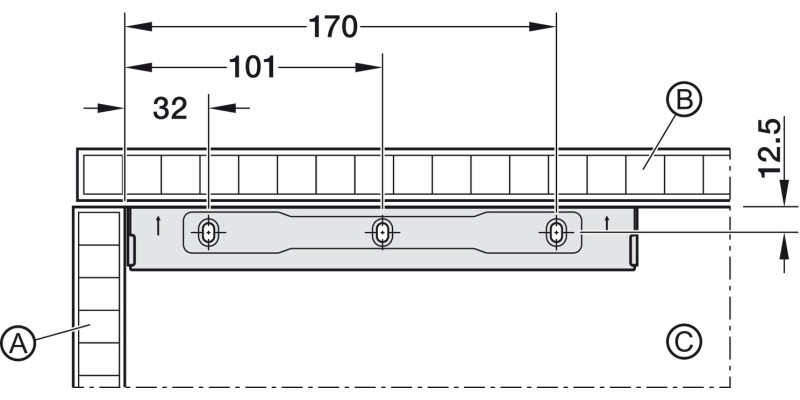

Soft closing mechanism installation

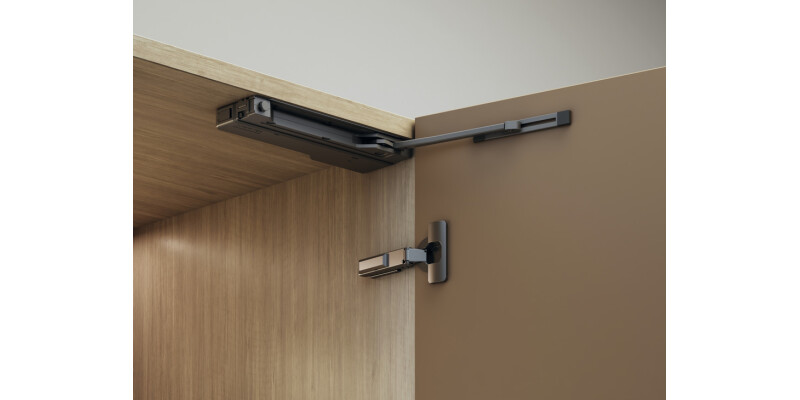

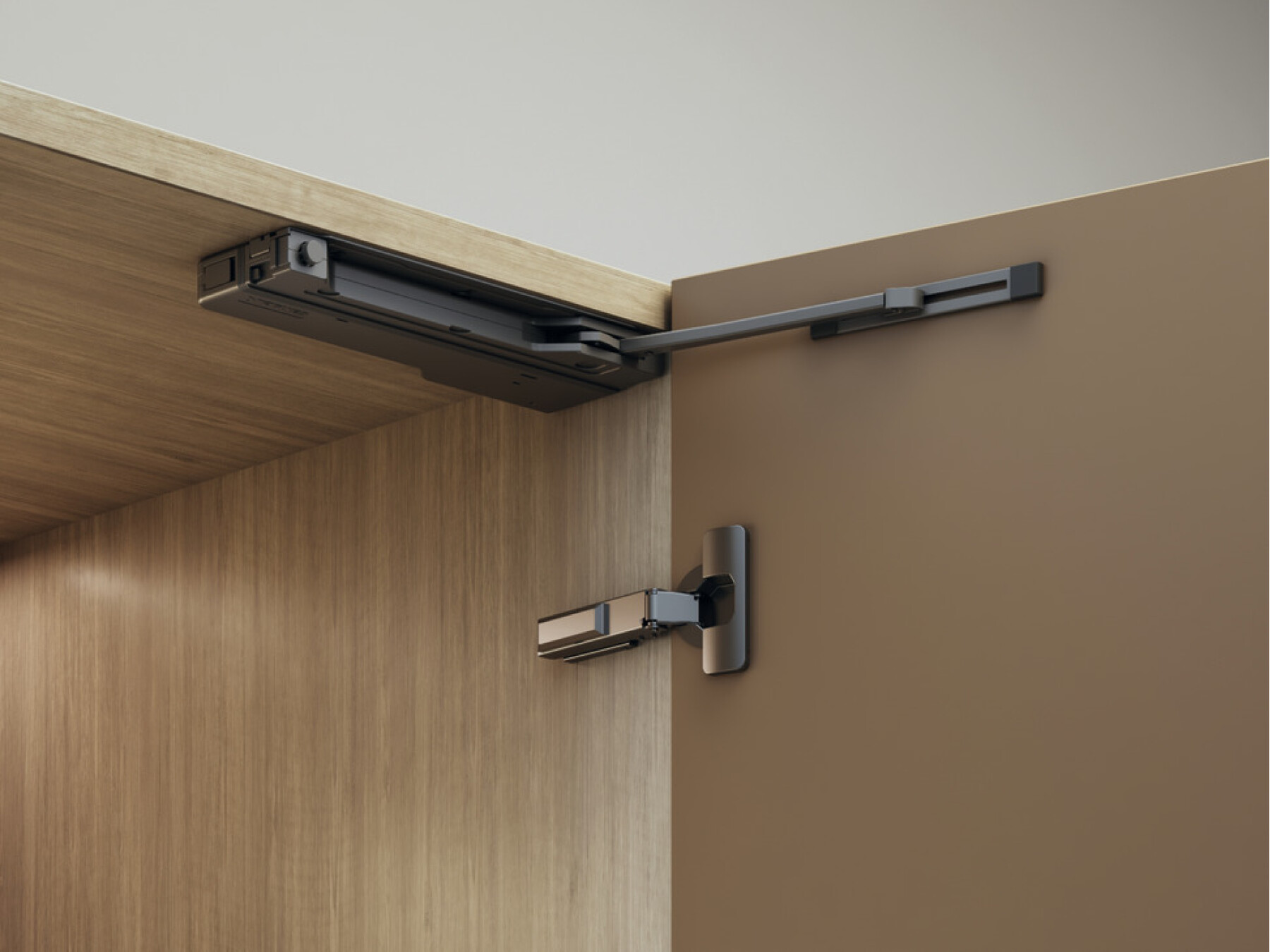

For screw fixing, to cabinet top panel, base panel or shelf, next to hinge side
Installation note
Template Available for easy installation
Order reference
Push to open soft close mechanism should be used in combination with unsprung hinges, order separately
Supplied with
Fixings
