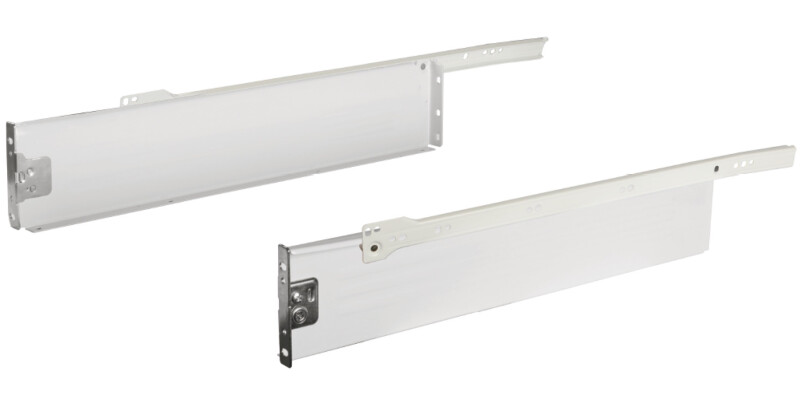

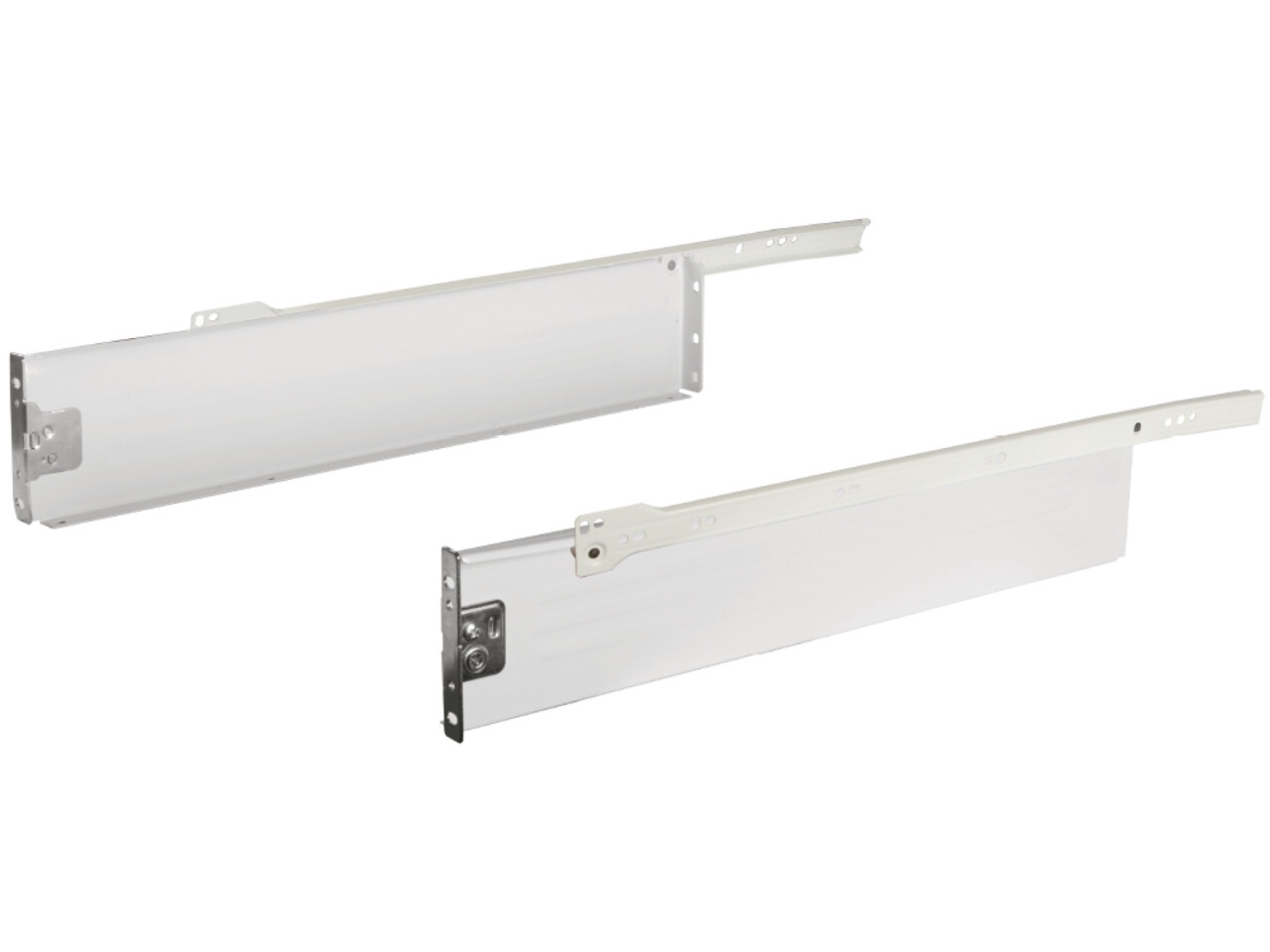

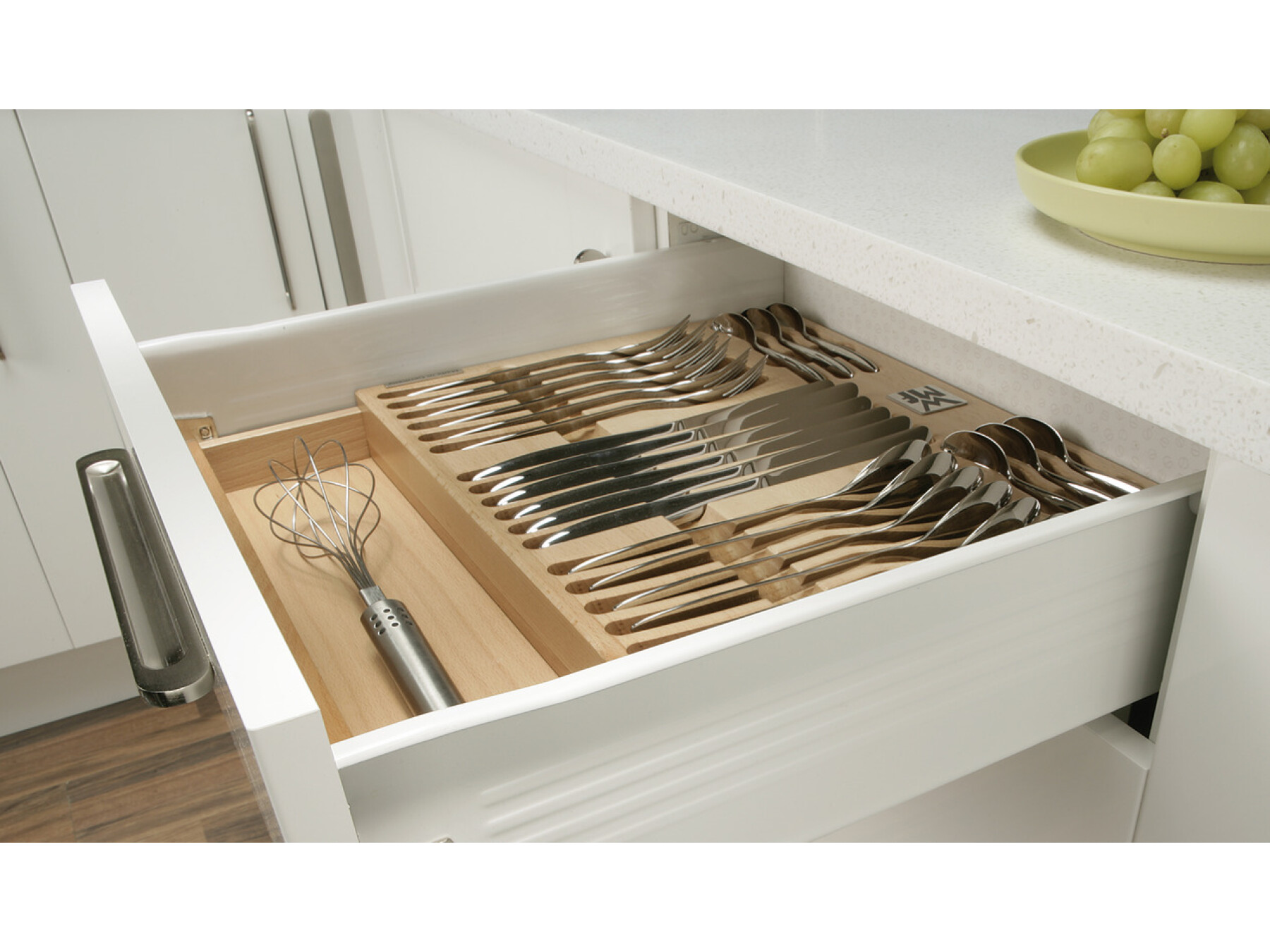

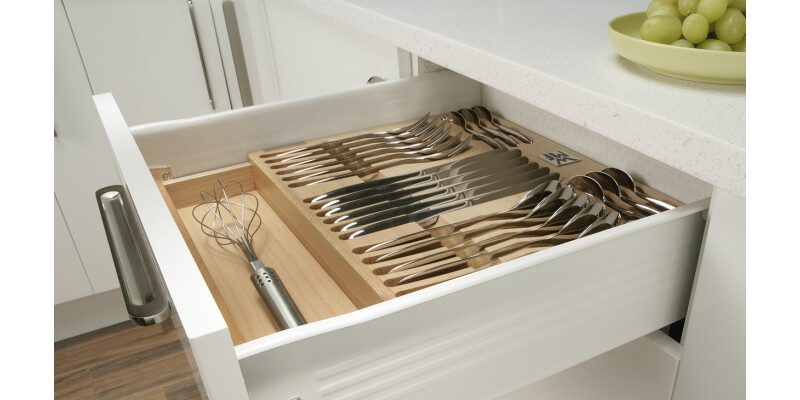

MX Mtl Drw Sides Sgl 20kg 86/350mm Slv
Part Number: 554.47.935

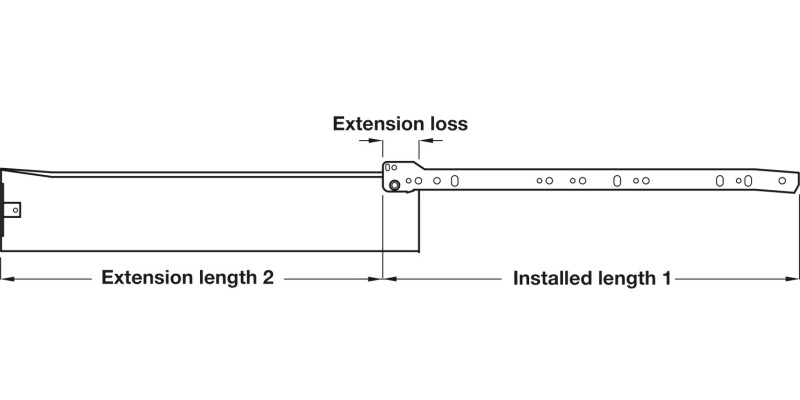

Complete with self closing runners with nylon rollers, Installed length 350 mm, silver finish
Price:
£3.46
Per Item
Single walled metal drawer sides with self closing and nylon rollersAdd on soft close availableFor screw fixing... Read More
Product Information
Product Details
Single walled metal drawer sides with self closing and nylon rollers
Add on soft close available

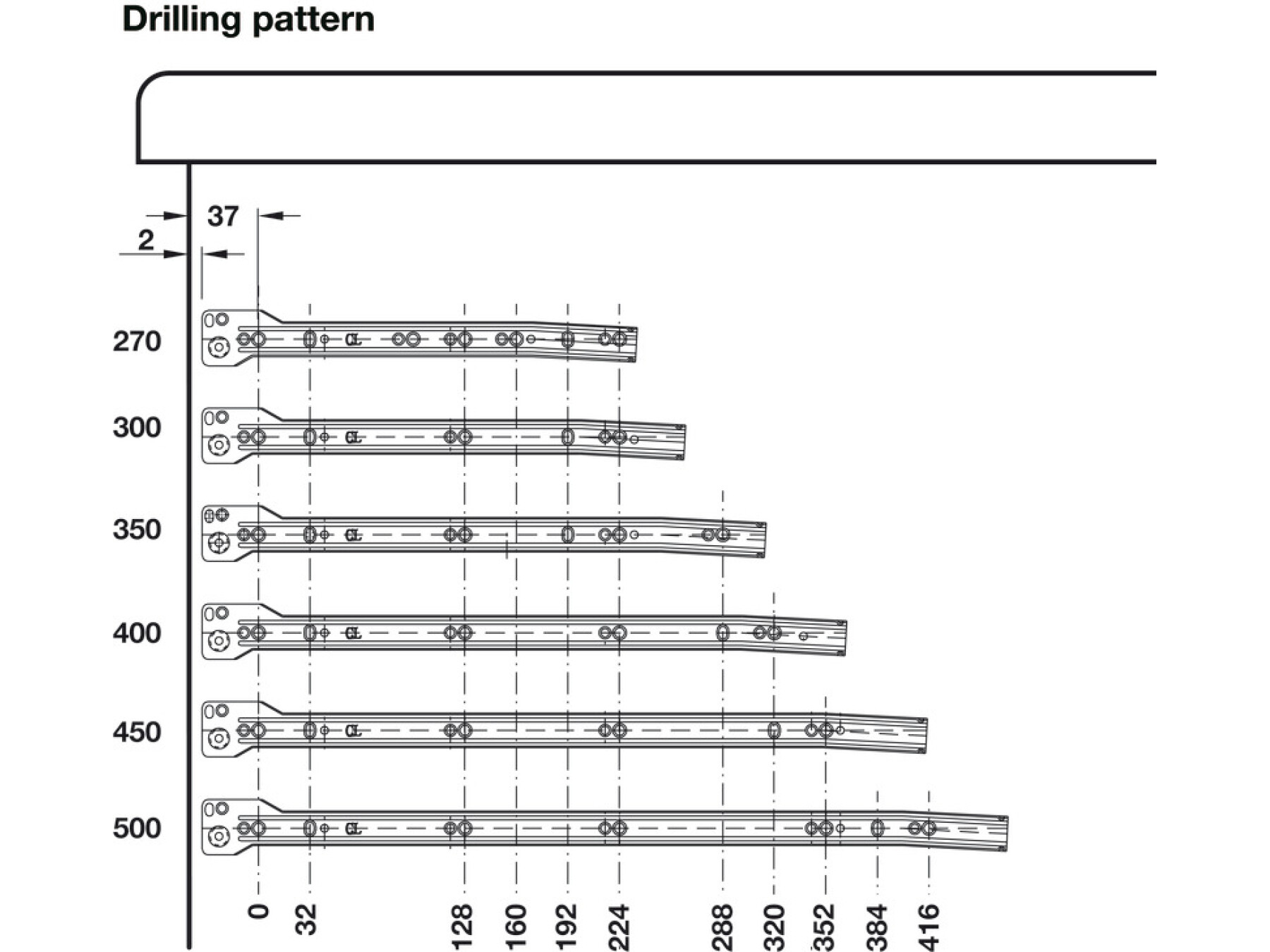

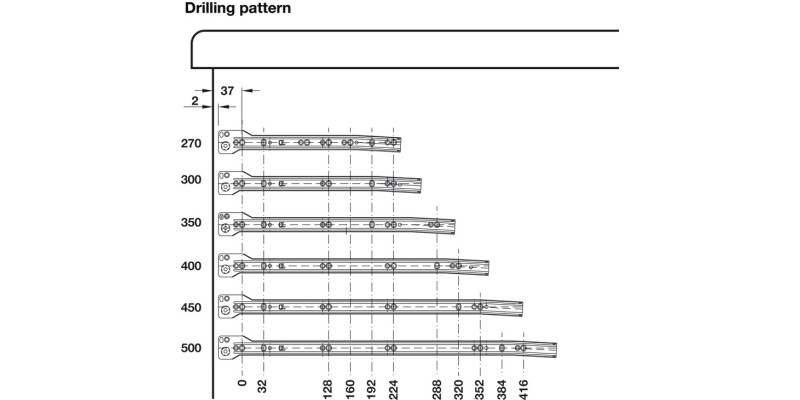

For screw fixing to side panel into 32 mm series drilled holes
Specifications
Height
86.00 mm
Type of pull out
Single extension with self closing mechanism
Area of application
For drawers and pull outs for door front fixing
Version
With roller runners
Material
Steel with zinc alloy brackets
Note on load bearing capacity
20 kg per pair

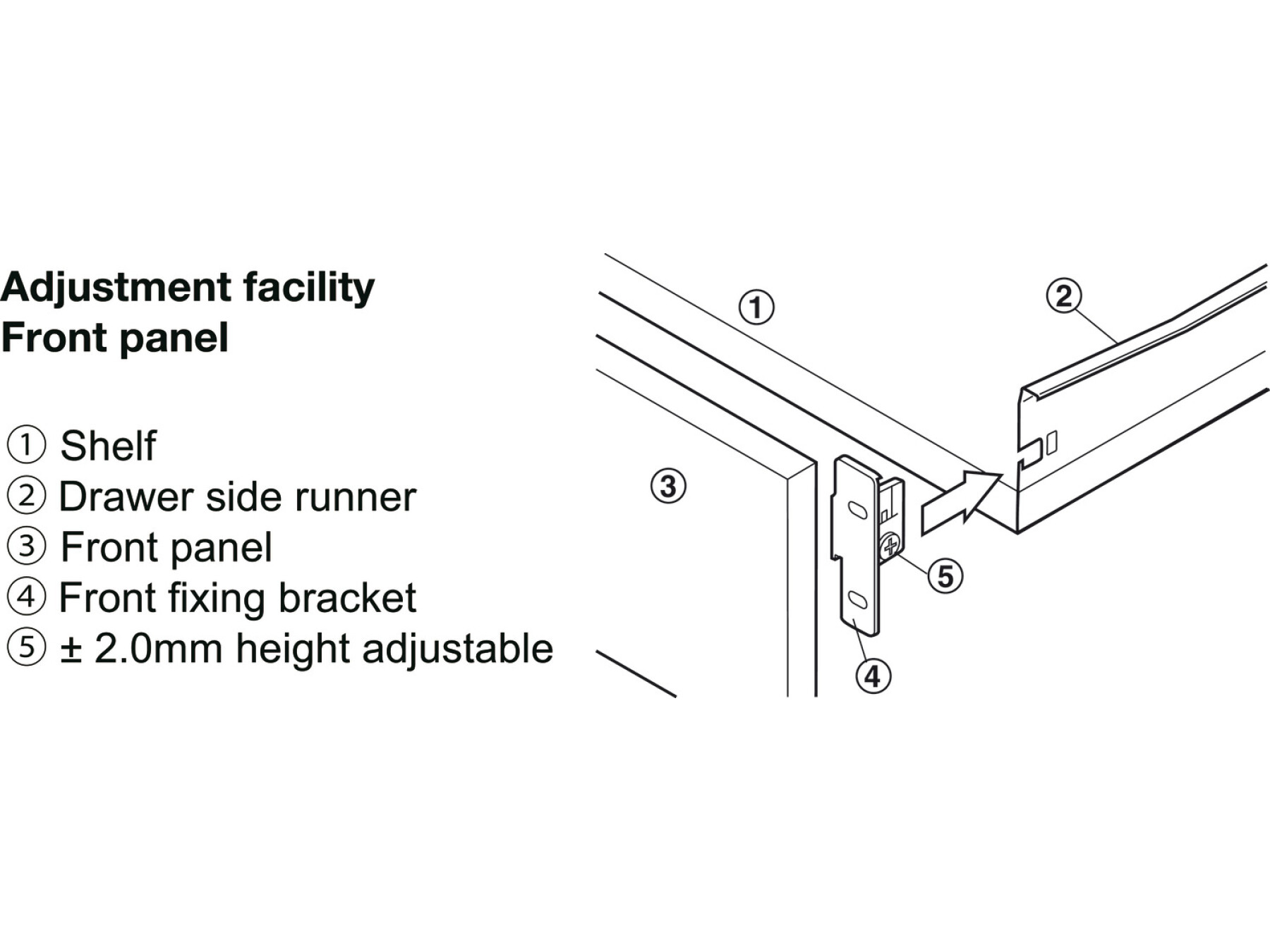

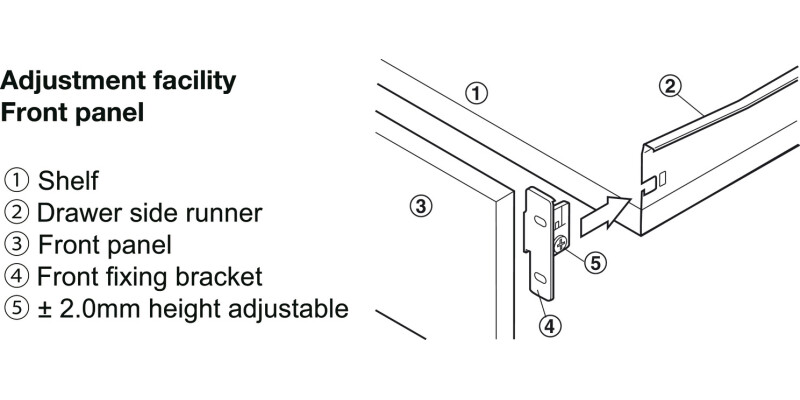

Adjustment facility
± 2 mm height adjustment on bracket
Installation
For screw fixing
Order reference
Order Hospa 3.5 mm countersunk screws seperately
Supplied with
1 set of Front fixing brackets
