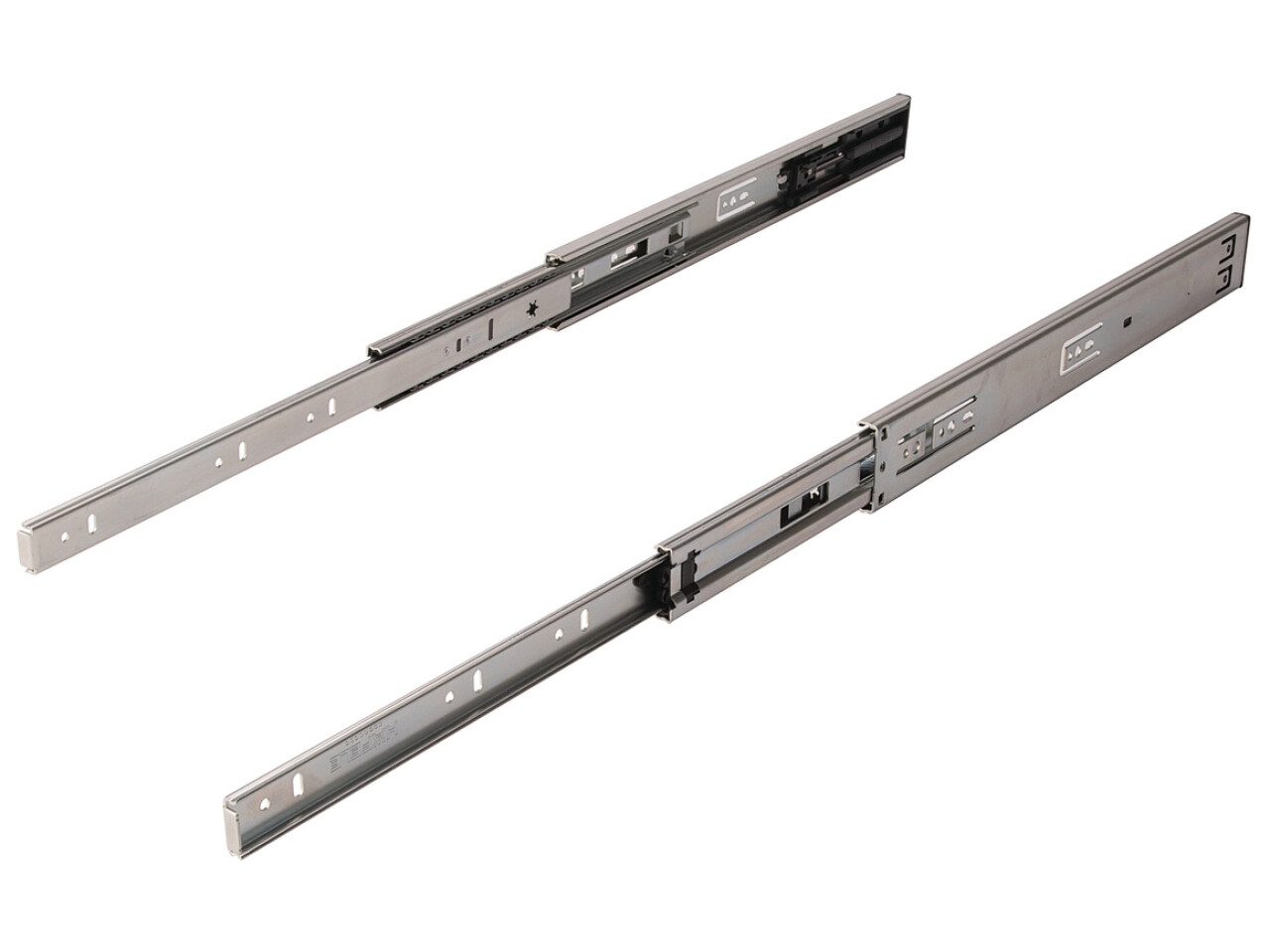

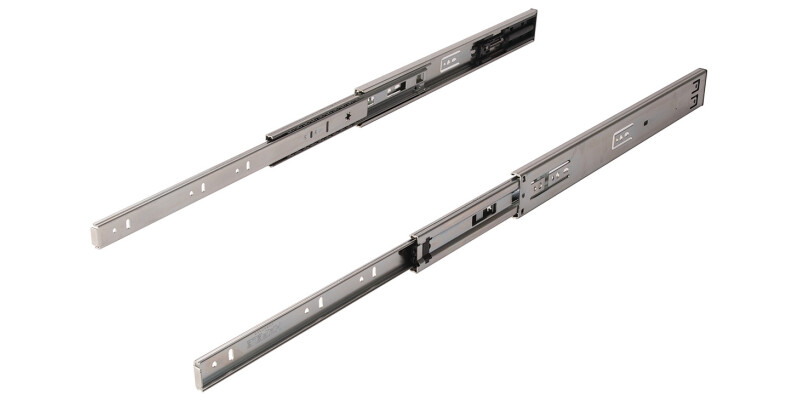

MX BB DrwRun Side Full 35kg 300mm ZP
Part Number: 422.90.930
With front disconnect lever, Installed length 300 mm, extension length 300 mm, load capacity 35 kg, galvanised steel
Price:
£7.43
Per Item

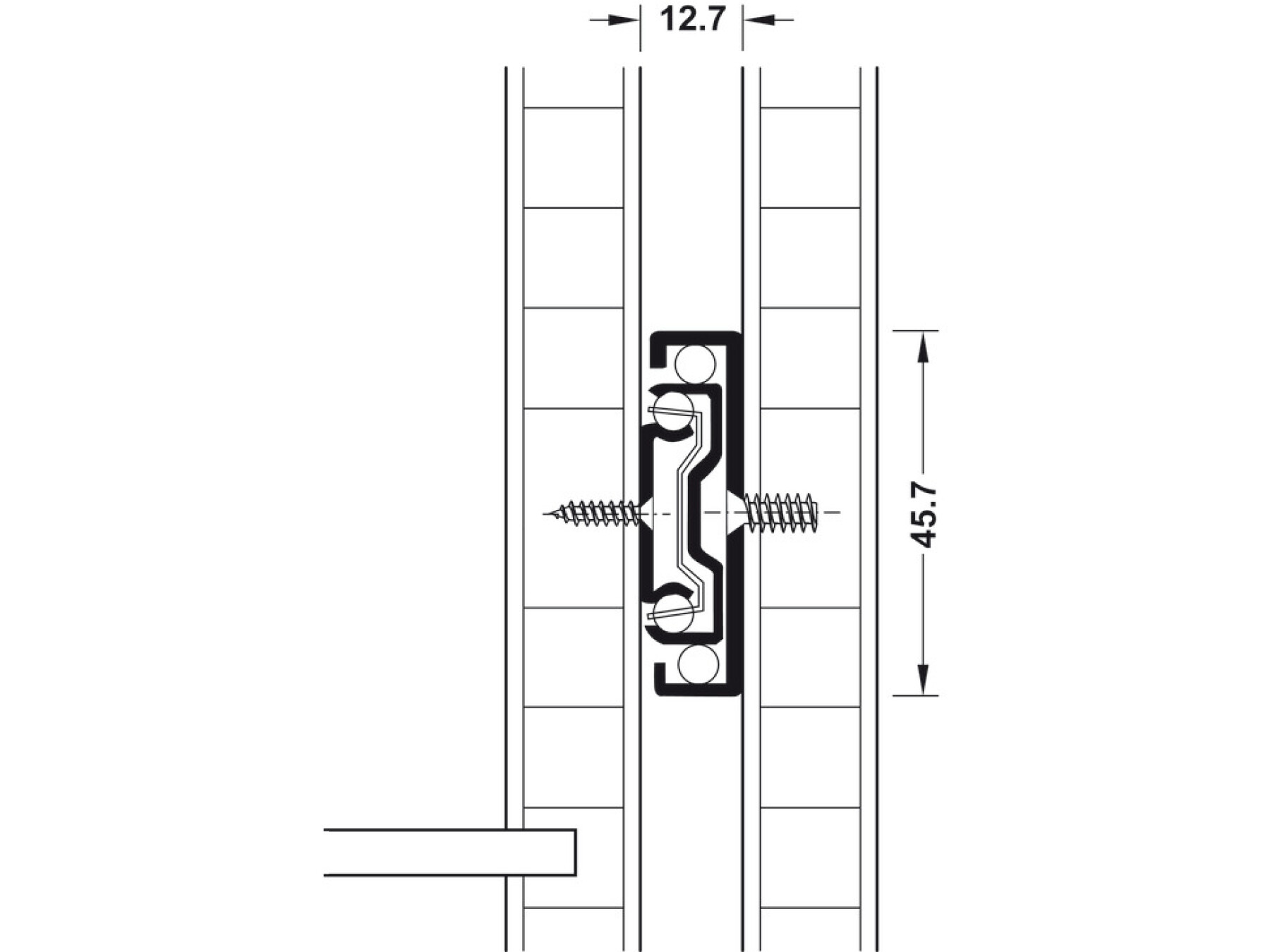

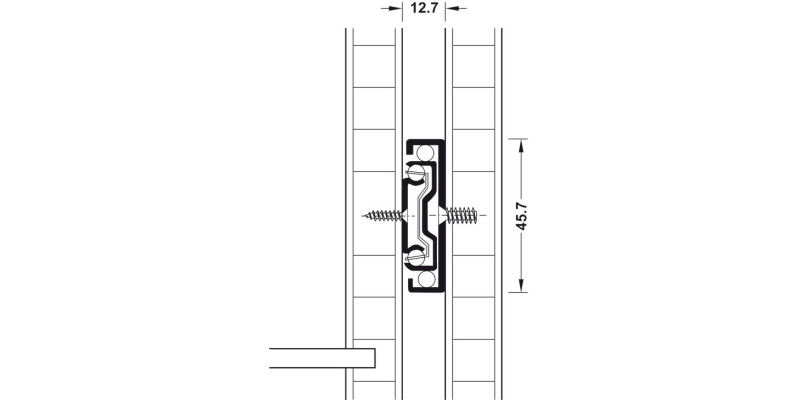

For optimum performance allow between +0.2mm and +0.5mm over the nominal runner thickness, for the runner space
Product Information
Product Details
For optimum performance allow between +0.2mm and +0.5mm over the nominal runner thickness, for the runner space
Specifications
Mounting
Side mounted
Colour/finish
Galvanised
Type of pull out
Full extension
Holding function
Hold-in
Drawer removal

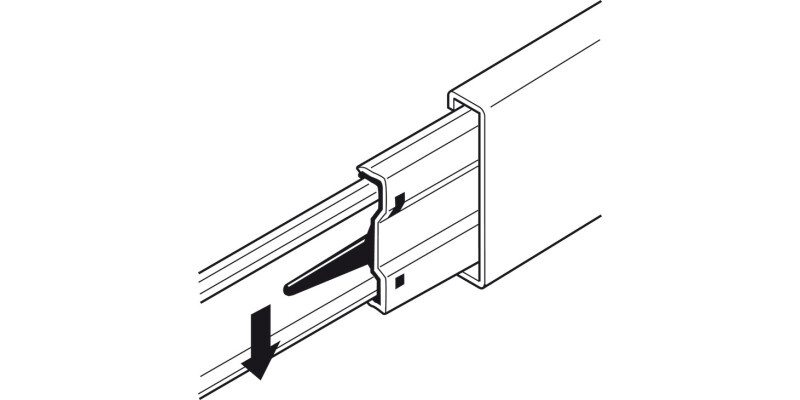

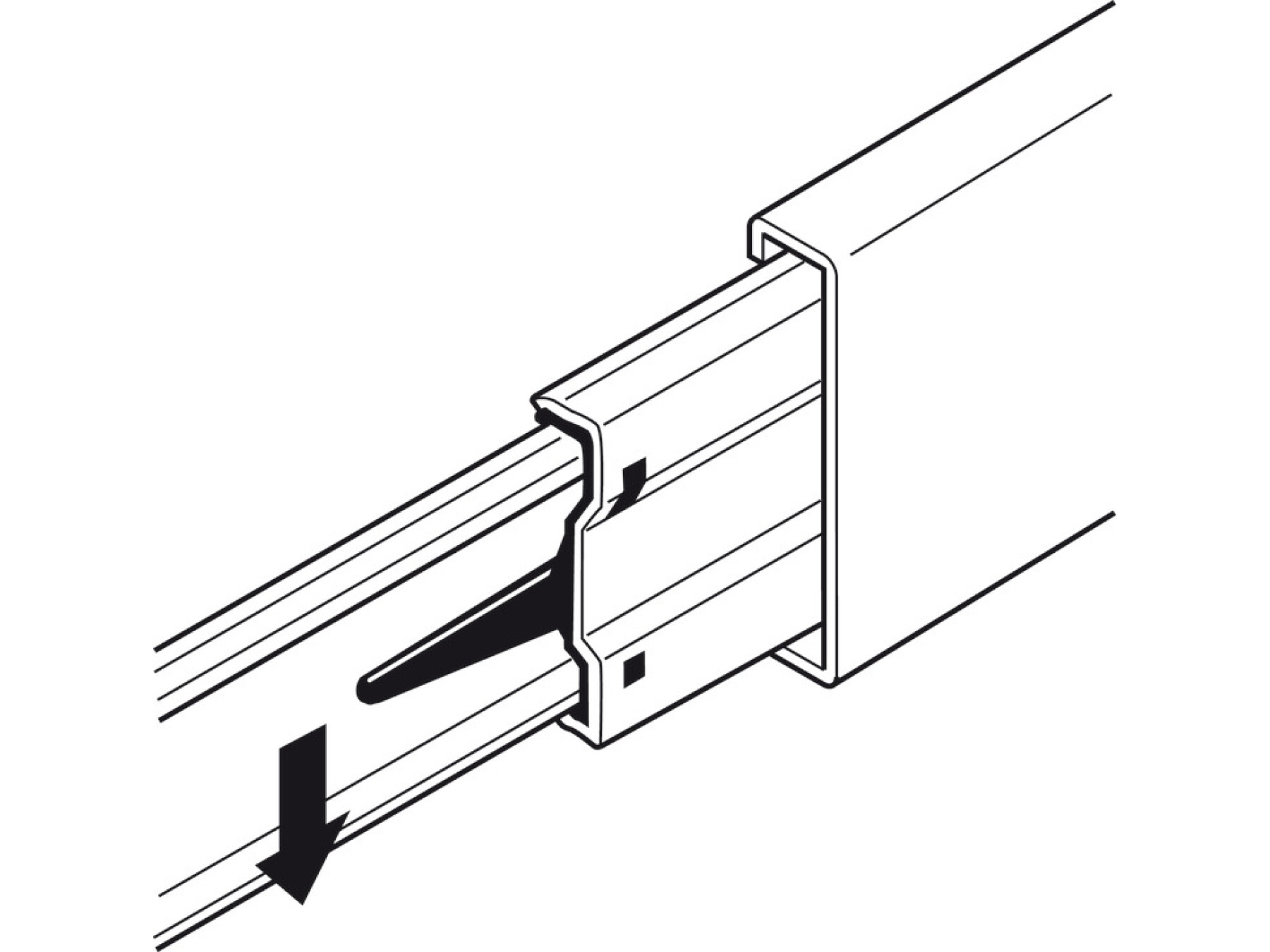

With release lever
Material
Steel
Bearing
Ball bearing
Installation
Screw fixing
Order reference
Order M4 and Hospa 4.0 mm pan head screws separately
