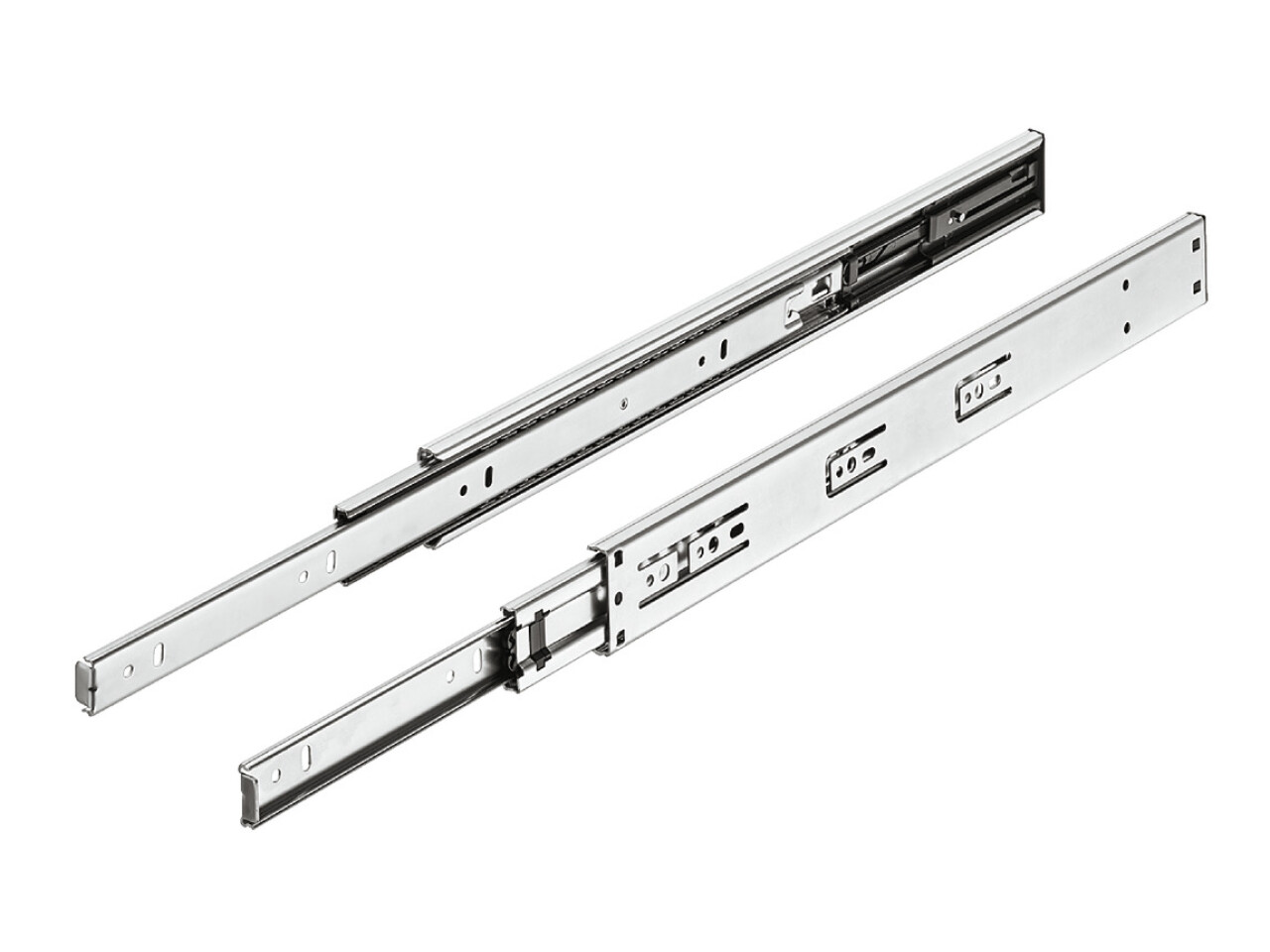

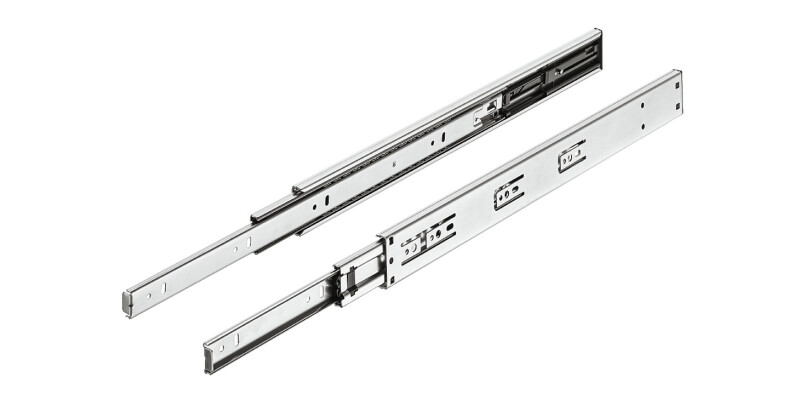

MX BB A DrwRun Side Full 25kg PTO 400mm
Part Number: 422.02.063
with Push-to-Open function, Installed length 400 mm, extension length 400 mm, load capacity 25 kg
Price:
£17.13
Per Item

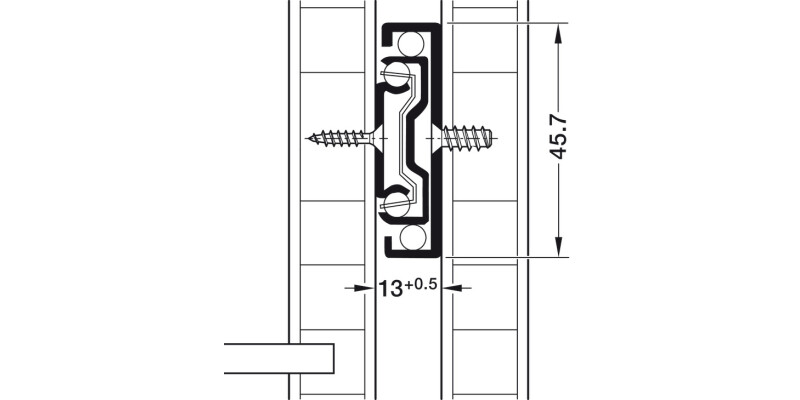

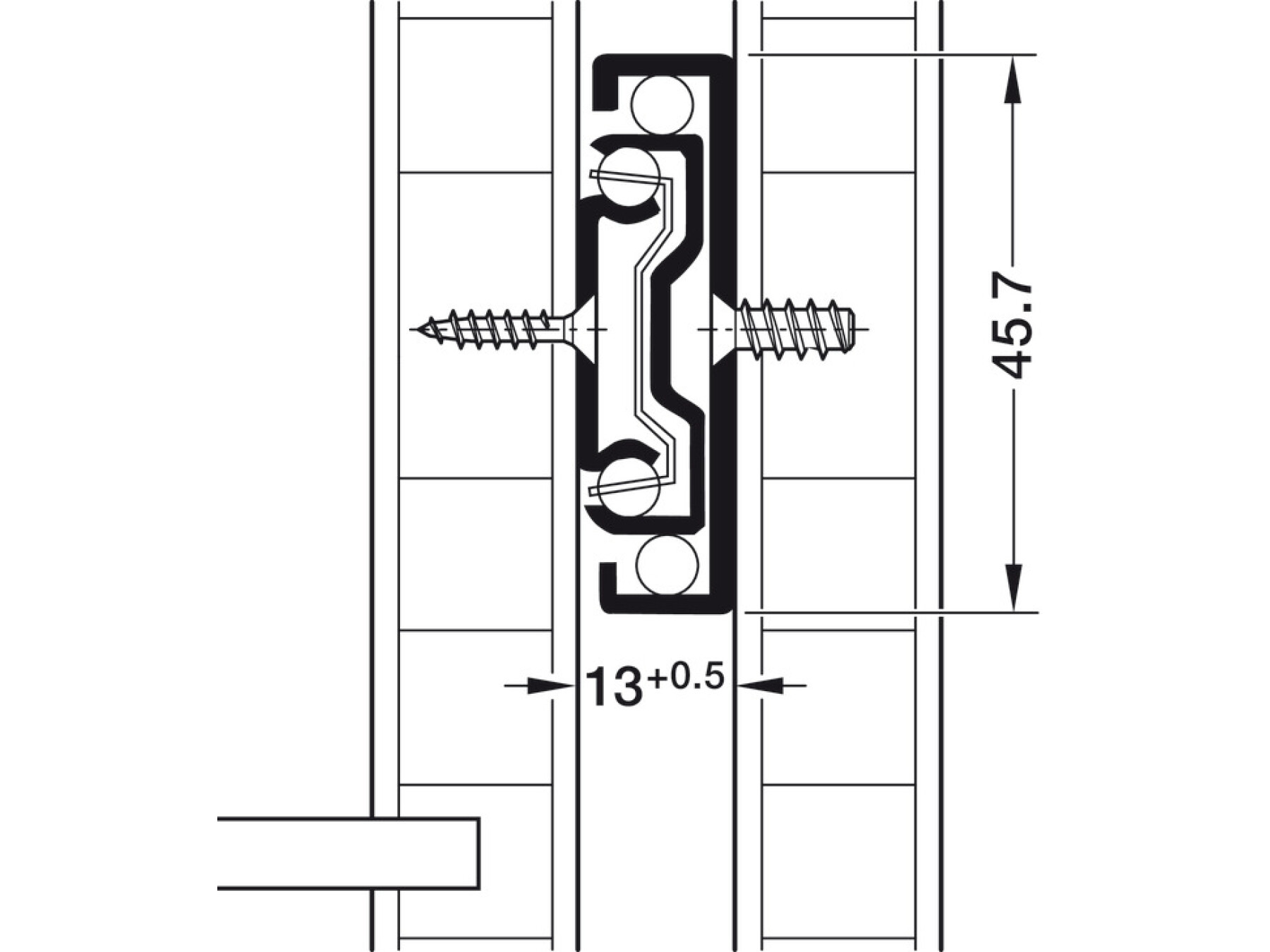

For optimum performance allow between +0.2mm and +0.5mm over the nominal runner thickness, for the runner space
Product Information
Product Details
For optimum performance allow between +0.2mm and +0.5mm over the nominal runner thickness, for the runner space
Specifications
Mounting
Side Mounted
Version
For easy installation, can be disengaged using release lever, with Push-to-Open
Colour/finish
Silver grey, Zinc-plated
Type of pull out
Full extension
Area of application
For material thickness 1.2/1.2/1.4 mm
Drawer removal

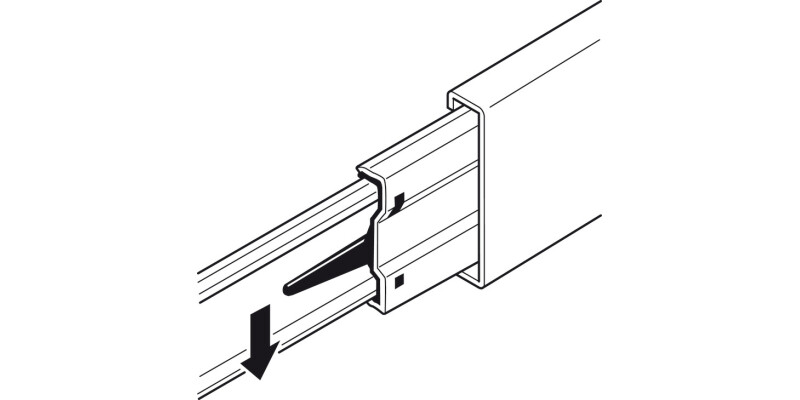

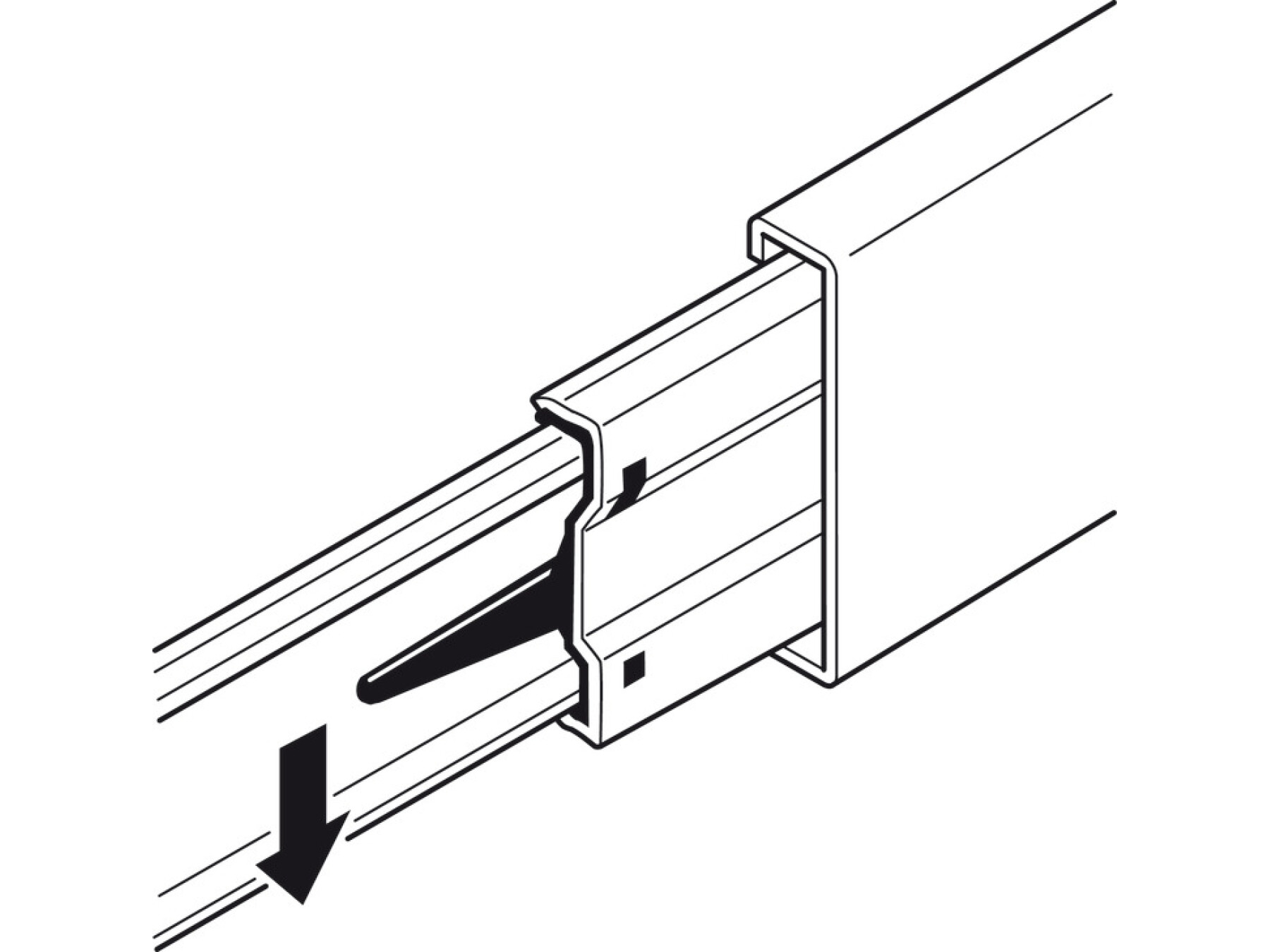

With release lever
Material
Steel
Bearing
Ball bearing
Installation
Screw fixing
Order reference
Order M4 bolts and Hospa pan head 4.0 mm screws separately
