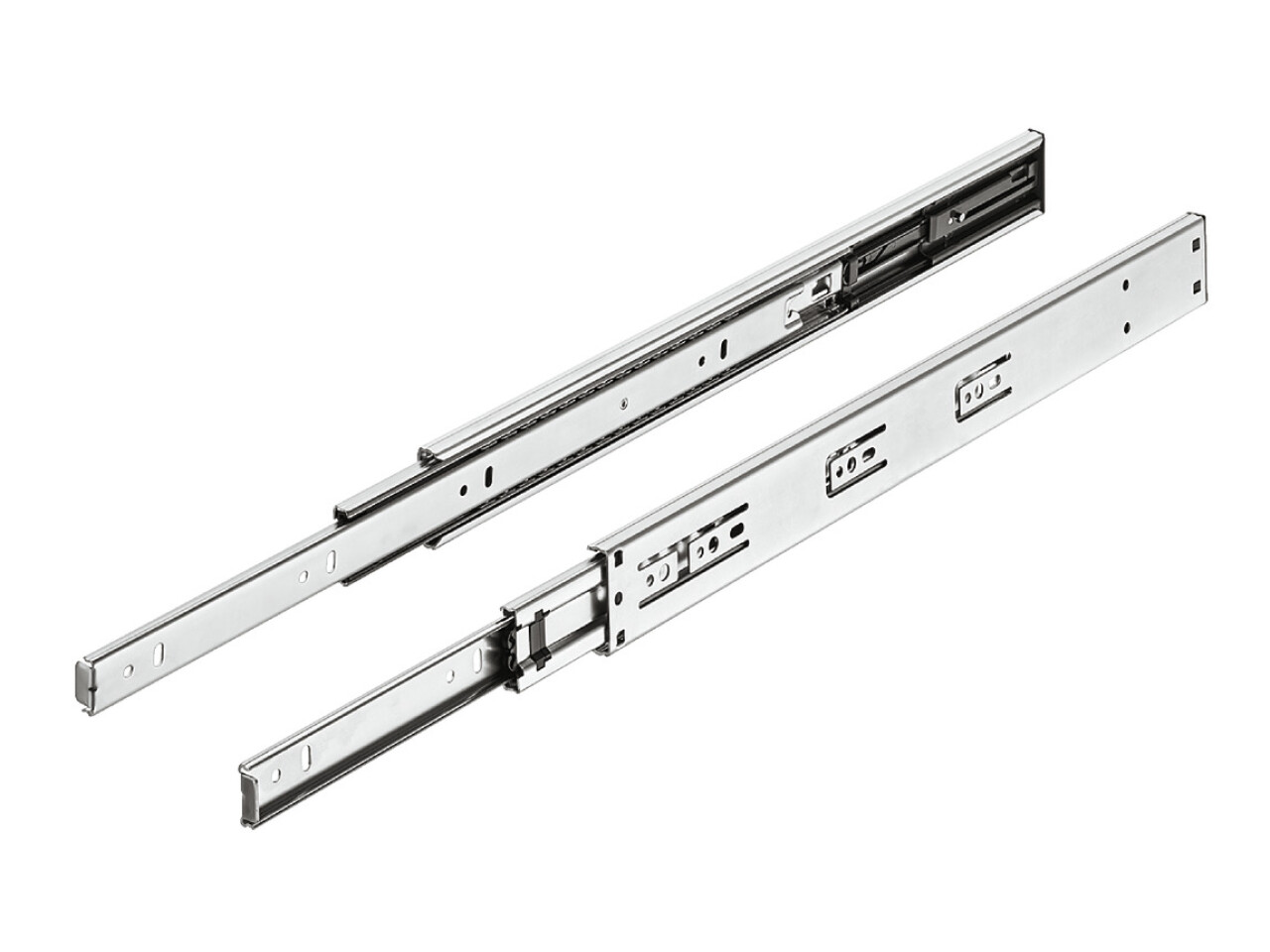

MX BB A DrwRun Side Full 15kg PTO 300mm
Part Number: 422.02.061
with Push-to-Open function, Installed length 300 mm, extension length 300 mm, load capacity 15 kg
Price:
£15.48
Per Item

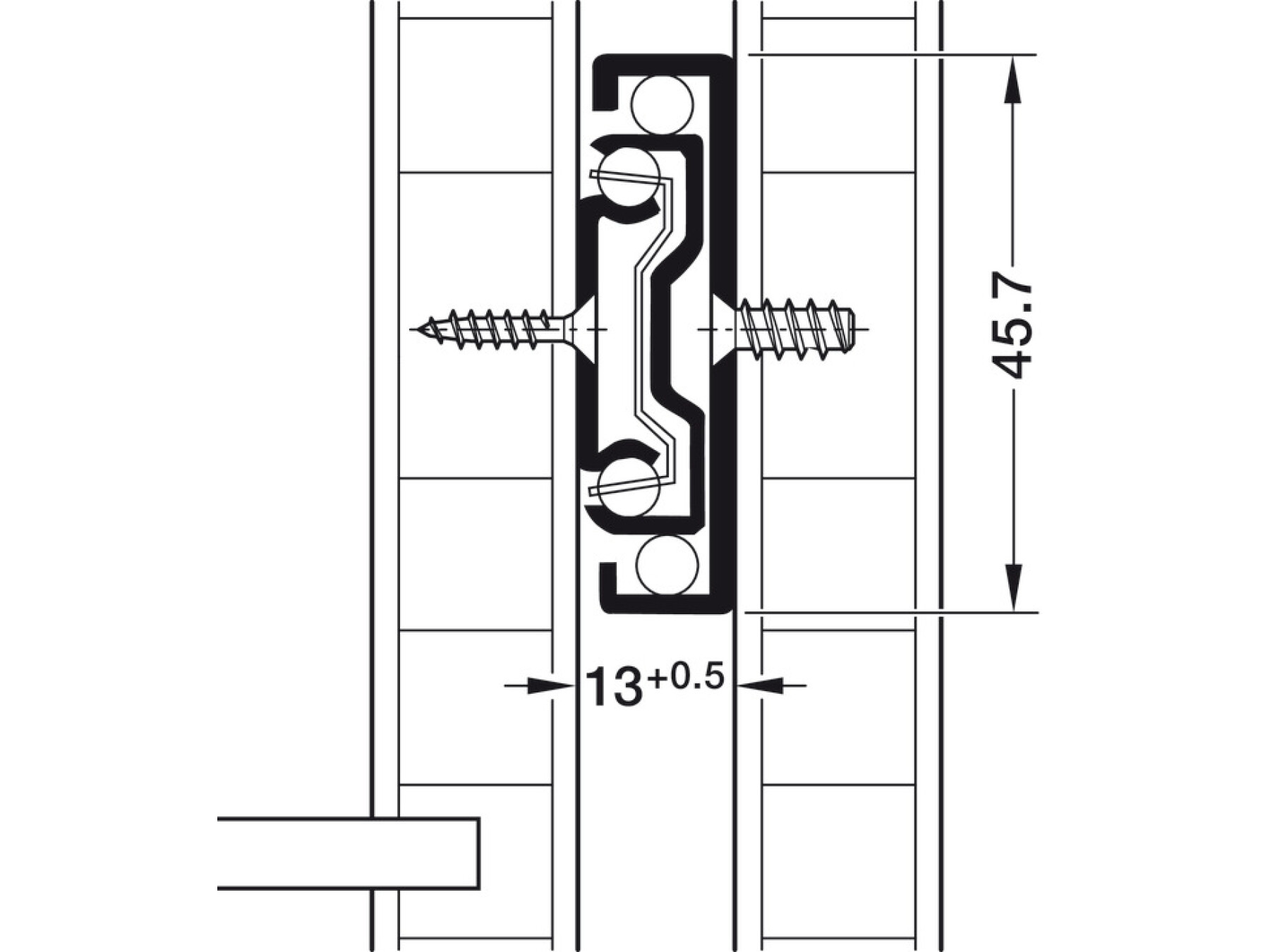

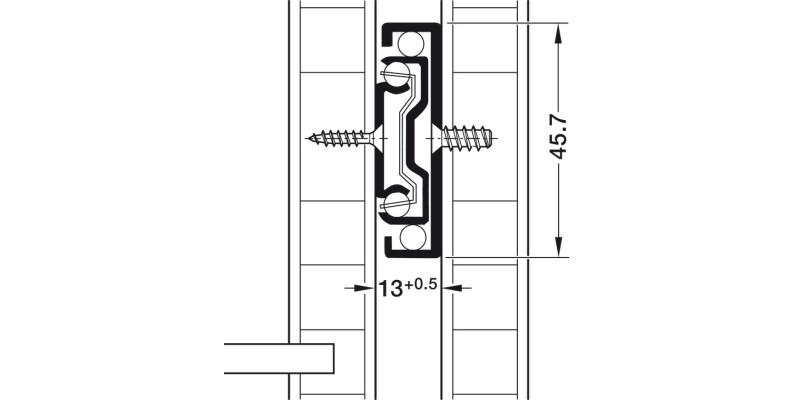

For optimum performance allow between +0.2mm and +0.5mm over the nominal runner thickness, for the runner space
Product Information
Product Details
For optimum performance allow between +0.2mm and +0.5mm over the nominal runner thickness, for the runner space
Specifications
Mounting
Side Mounted
Version

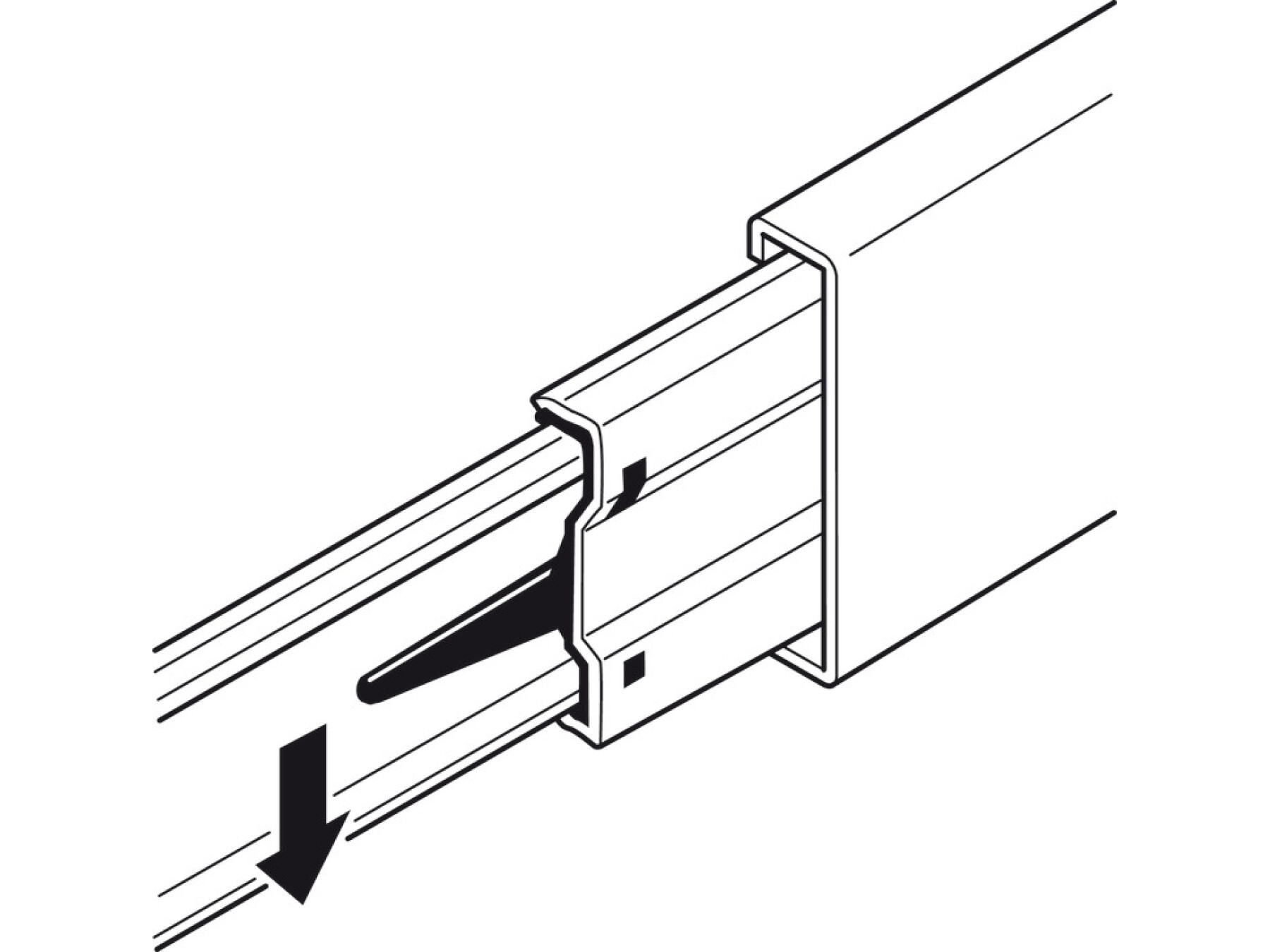

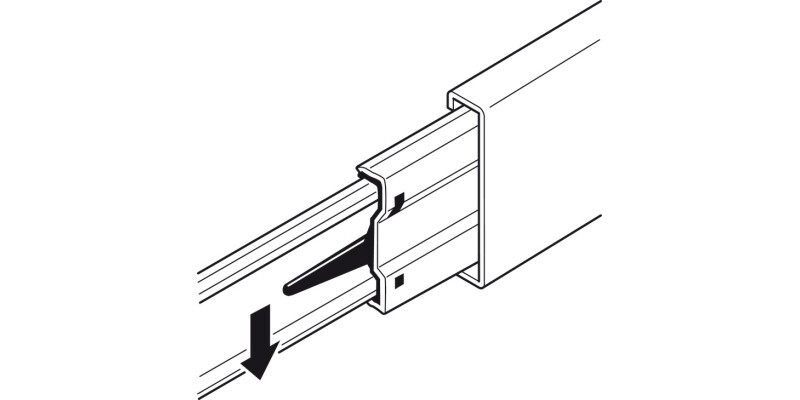

For easy installation, can be disengaged using release lever, with Push-to-Open
Colour/finish
Silver grey, Zinc-plated
Type of pull out
Full extension
Area of application
For material thickness 1.2/1.2/1.4 mm
Drawer removal
without release lever
Material
Steel
Bearing
Ball bearing
Height
30.00 mm
Installation
Screw fixing
Order reference
Order M4 bolts and Hospa pan head 4.0 mm screws separately
