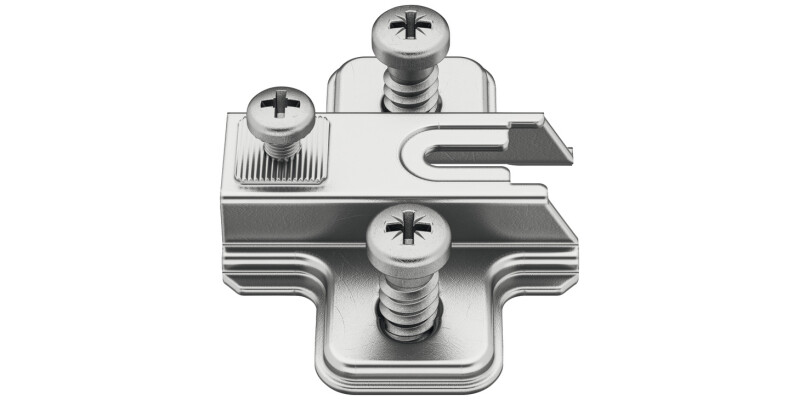

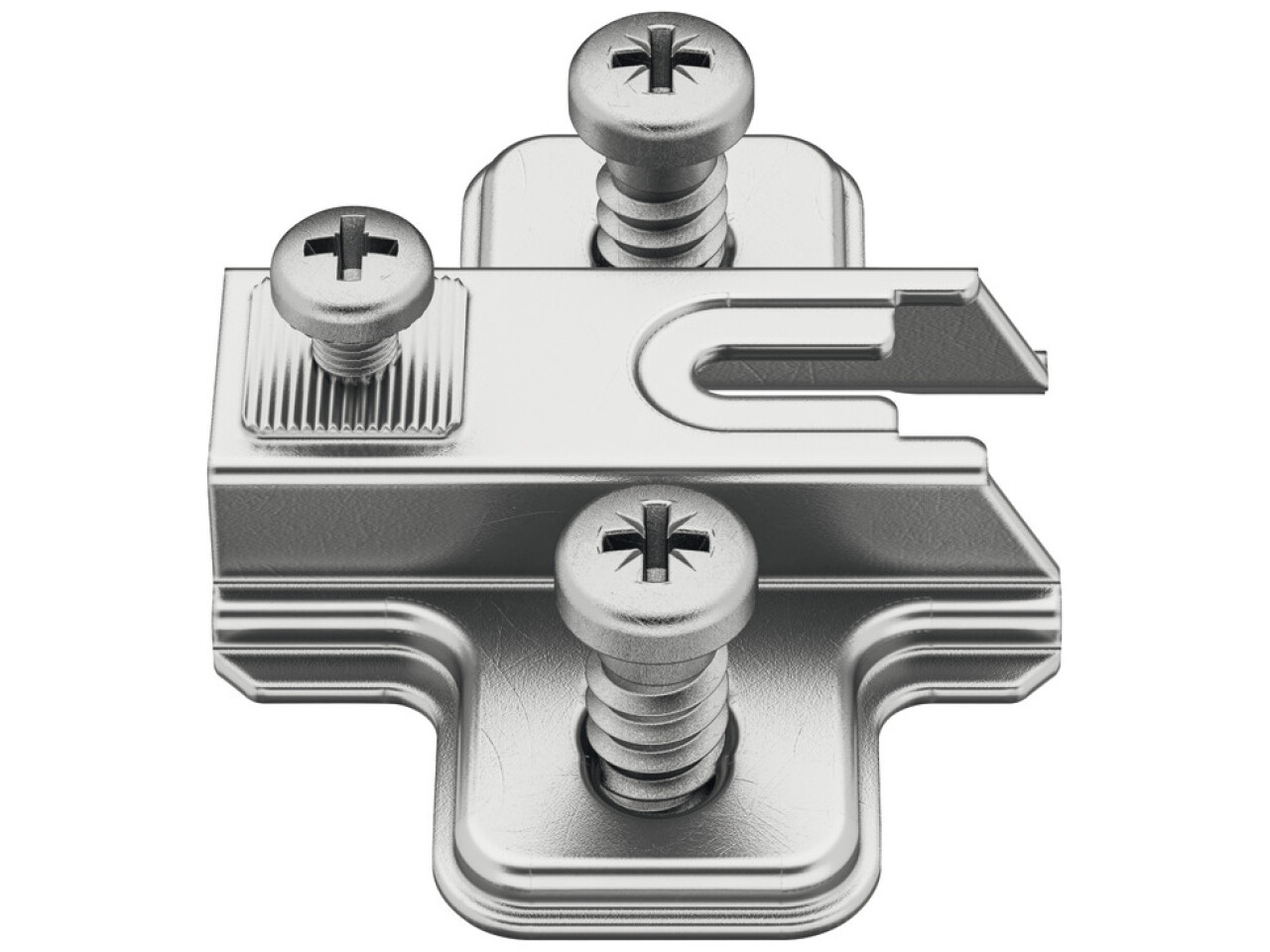

M310A 4mm M.Plt Sld 1prt Cruci Eur SNP
Part Number: 311.03.110

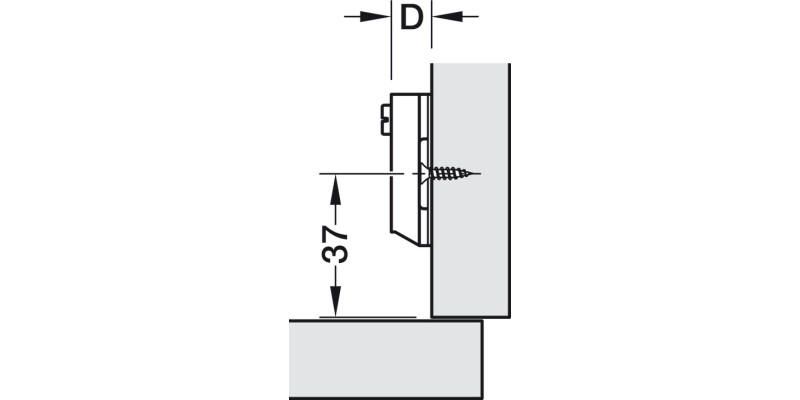

Steel, Distance D: 4 mm
Price:
£0.14
Per Item
Product Information
Specifications
Area of application
For Häfele Metalla 310 A concealed hinges
Version
One part plate
Material
Steel
Colour/finish
nickel plated

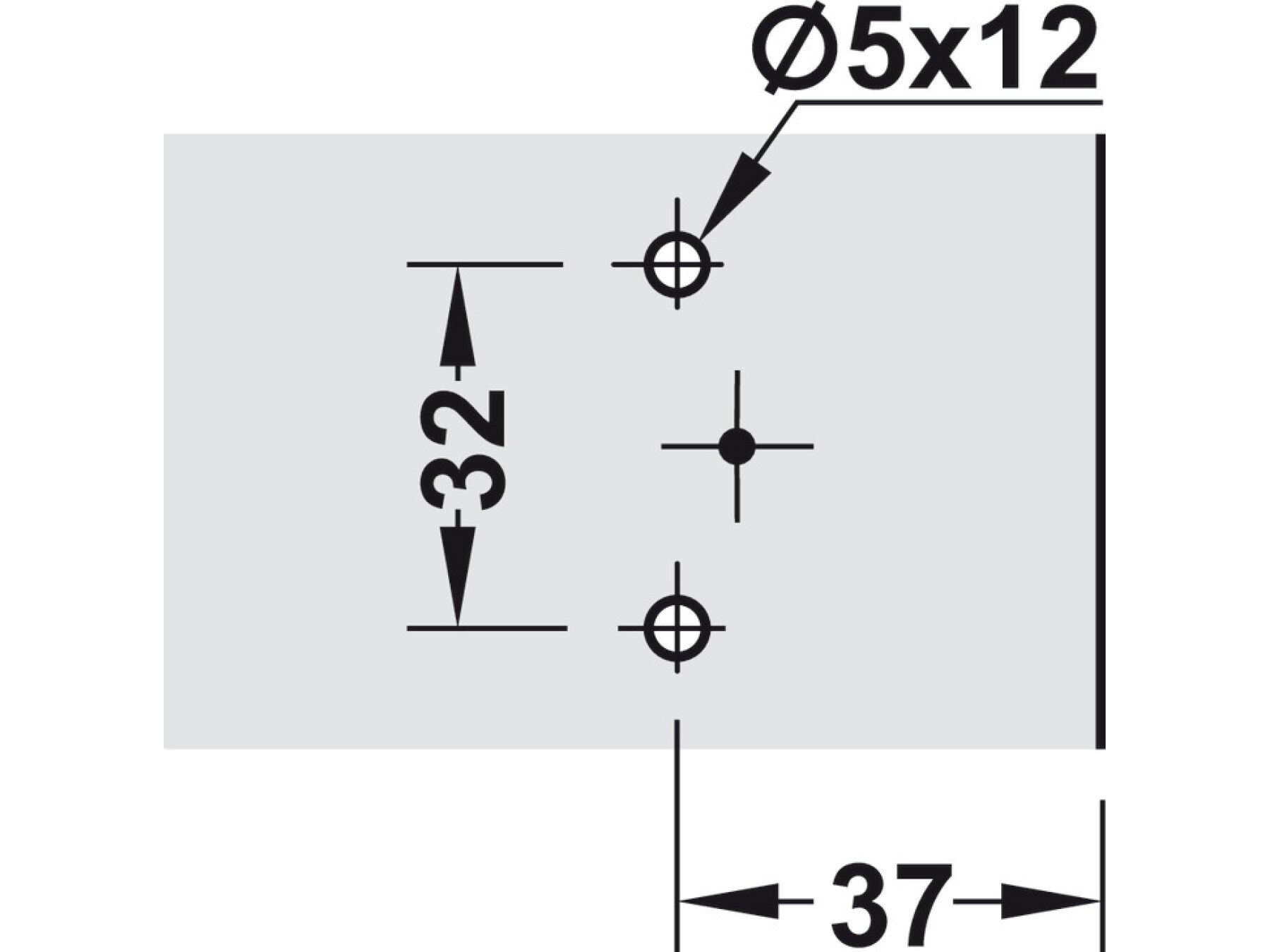

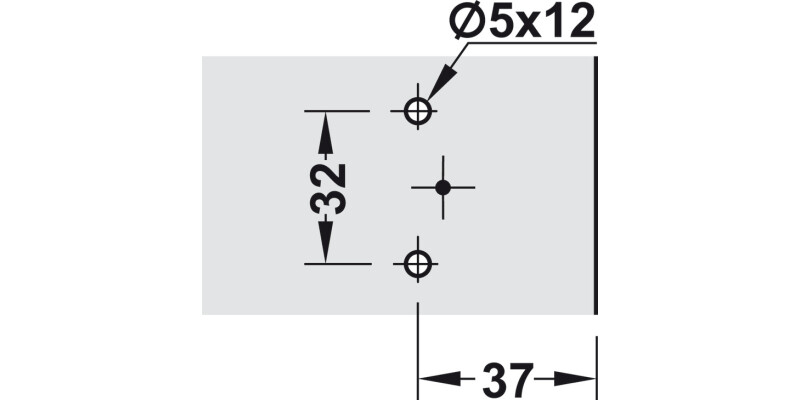

For drill hole Ø
5.00 mm
Drilling depth
12.00 mm
Screw distance
32.00 mm
Edge distance
37.00 mm
Adjustment facility
Height adjustment Via slot ±2 mm
Fixing method
Slide-on system A
Mounting plate version
For screw fixing with pre-mounted Euro screws
Model
Metalla 310 A
Manufacturer
Häfele
Model series
Metalla 310 A
Suitable for
Metalla A straight slide full overlay 110° concealed hinge 311.88.530
Supplied with
Fixings
