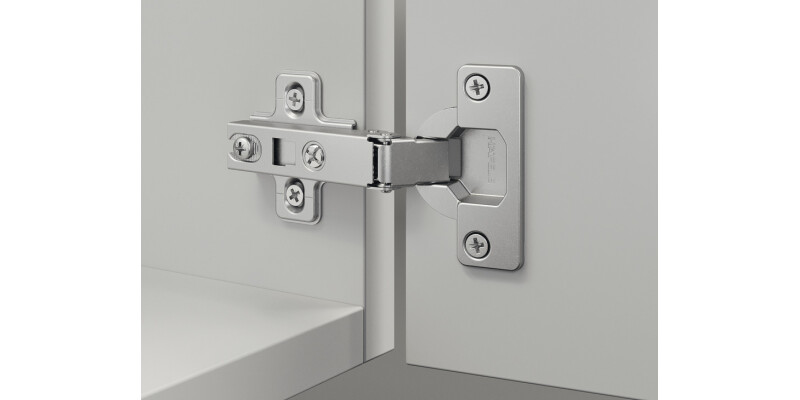

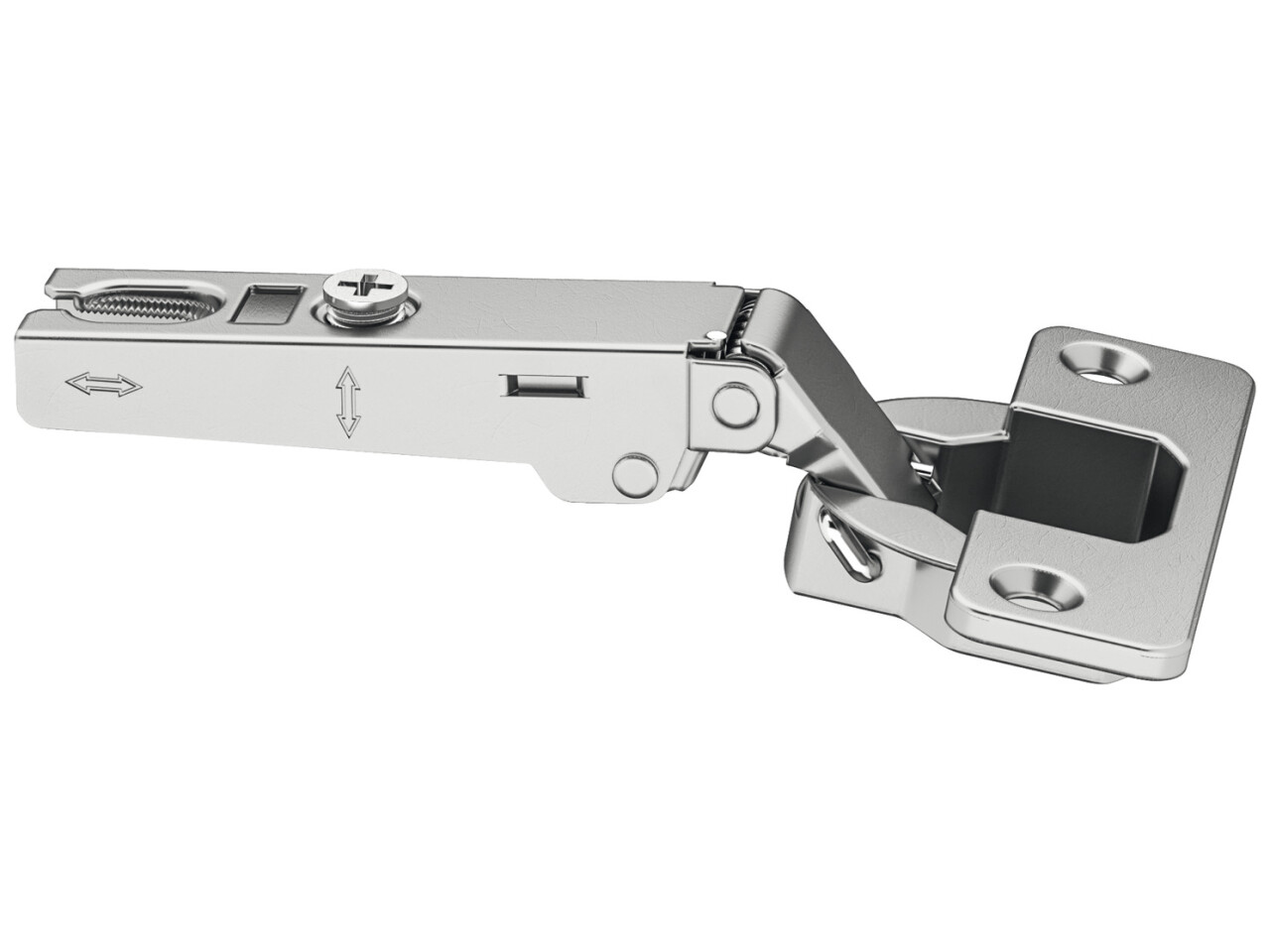

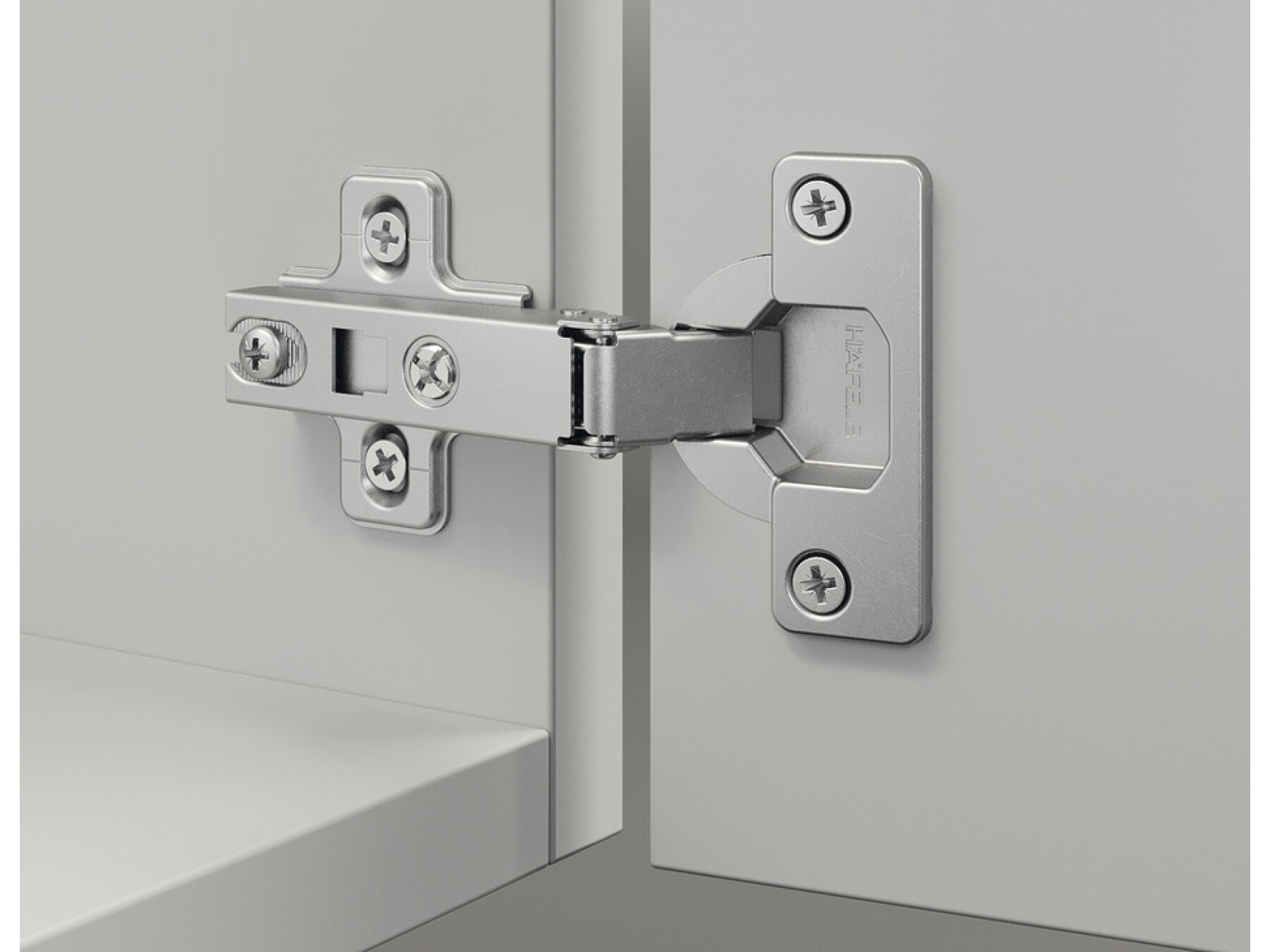

M310A 110D Hinge Sld FO 48/6 wo SC
Part Number: 311.88.530
For wooden doors, Without soft close, with spring, nickel plated, drilling pattern 48/6
Price:
£0.43
Per Item
Full Overlay Mounting Order reference Order Metalla A slide on mounting plate 311.03.101, 311.03.102,... Read More
Product Information
Product Details
Full Overlay Mounting
Order reference
Order Metalla A slide on mounting plate 311.03.101, 311.03.102, 311.03.103, 311.03.108 or 311.03.109 separately, depending on requirements
Order Hospa 3.5 mm countersunk head screws separately
| Minimum gap | |||||
|---|---|---|---|---|---|
| Door thickness mm | Distance to cup E mm | ||||
| 3,0 | 4,0 | 5,0 | 6,0 | 7,0 | |
| 15 | 0,2 | 0,2 | 0,2 | 0,2 | 0,2 |
| 16 | 0,4 | 0,4 | 0,4 | 0,4 | 0,4 |
| 17 | 0,6 | 0,6 | 0,6 | 0,5 | 0,5 |
| 18 | 0,8 | 0,8 | 0,8 | 0,7 | 0,7 |
| 19 | 1,2 | 1,1 | 1,1 | 1,0 | 1,0 |
| 20 | 1,6 | 1,5 | 1,4 | 1,3 | 1,3 |
| 21 | 2,2 | 2,0 | 1,8 | 1,7 | 1,6 |
| 22 | 2,9 | 2,6 | 2,4 | 2,2 | 2,0 |
| 23 | 3,7 | 3,3 | 3,0 | 2,9 | 2,8 |
| 24 | 4,6 | 4,1 | 3,8 | 3,7 | 3,5 |
| Minimum gap F | |||||
| Door overlay mm | |||||||||
|---|---|---|---|---|---|---|---|---|---|
| 10 | 11 | 12 | 13 | 14 | 15 | 16 | 17 | 18 | |
| 3 | 4 | 5 | 6 | 7 | 0 | ||||
| 3 | 4 | 5 | 6 | 7 | 2 | ||||
| 3 | 4 | 5 | 6 | 7 | 4 | ||||
| Distance to cup E mm | Mounting plate distance mm | ||||||||

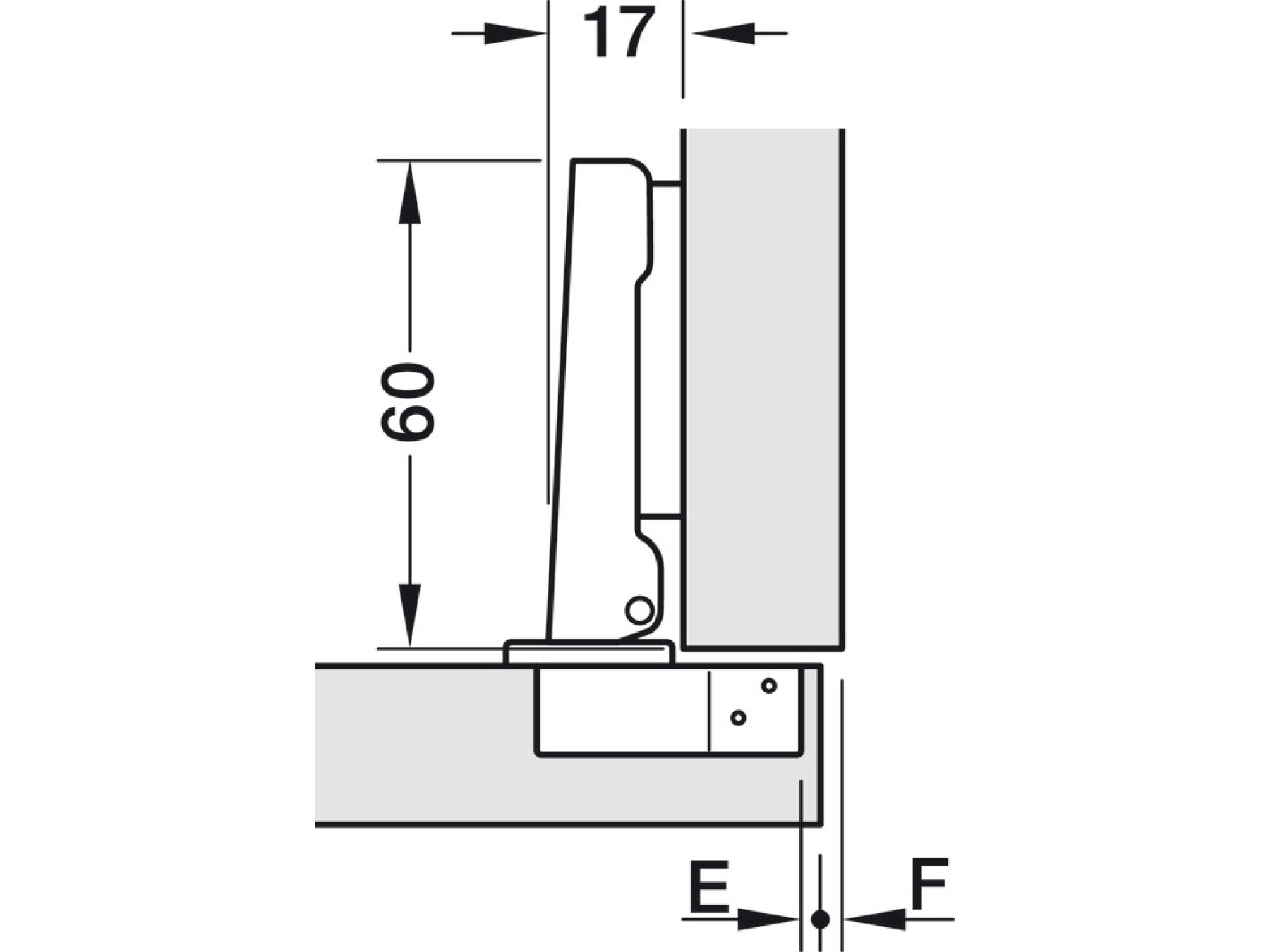

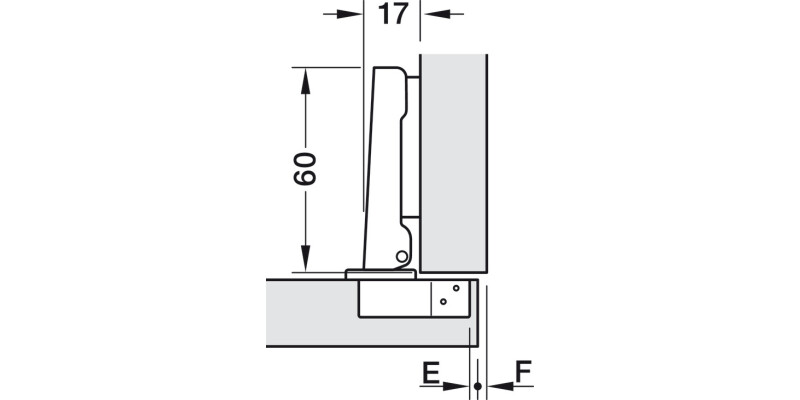

Dimensions and gap specifications in drawings and tables are calculated using factory settings and for mounting plate distance 0 mm
Specifications
Area of application
For wooden doors
Concealed hinge version
Full overlay
Door processing for assembly
with cup drilling
Material
Steel
Colour/finish
nickel plated
Opening angle
110°
Cup drilling depth
12.00 mm
Cup fixing
for screw fixing
Adjustment facility
Side adjustment 3 mm, Height adjustment 2 mm (via mounting plate), Depth adjustment 2 mm
Installation
Door to cabinet with slide-on system
